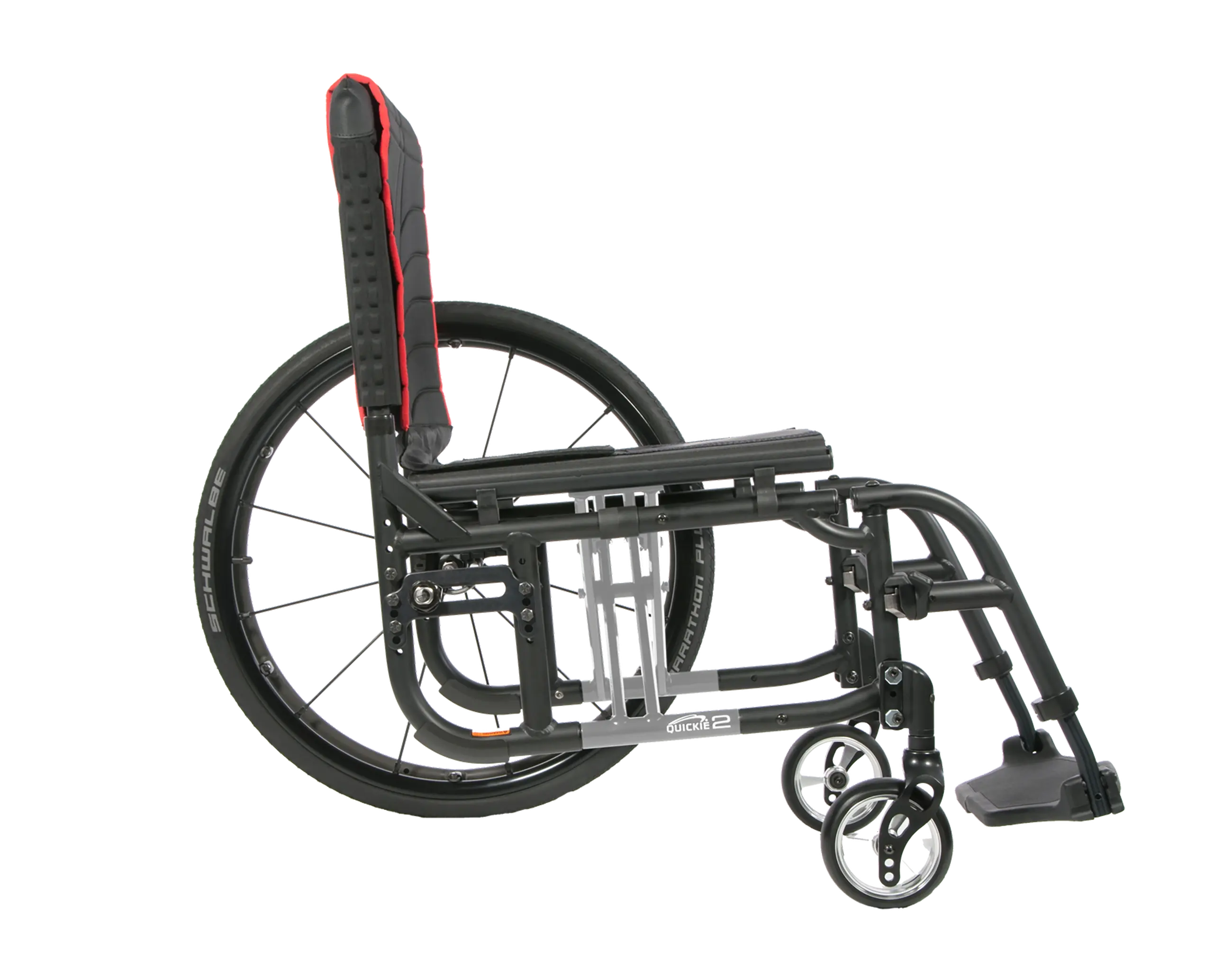

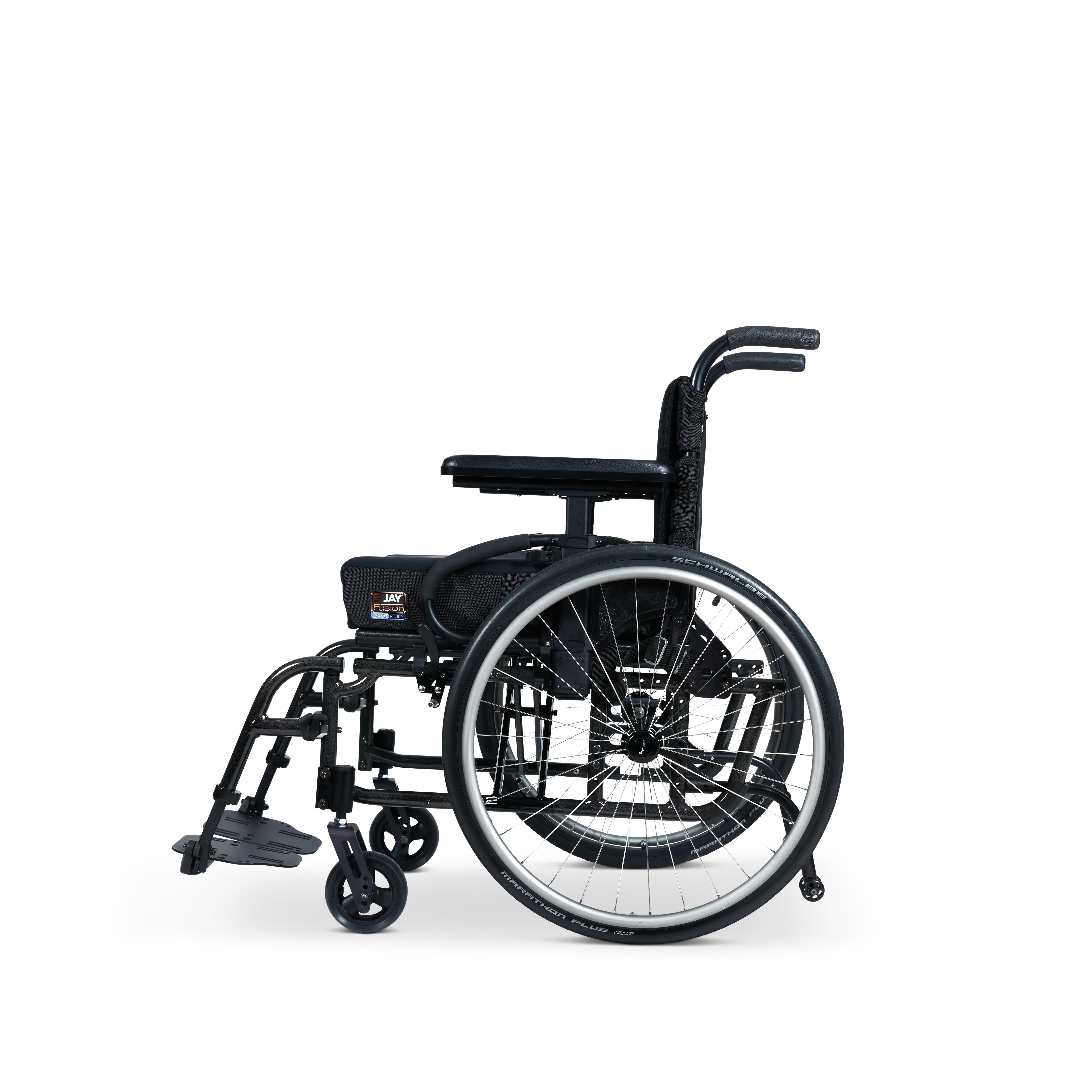

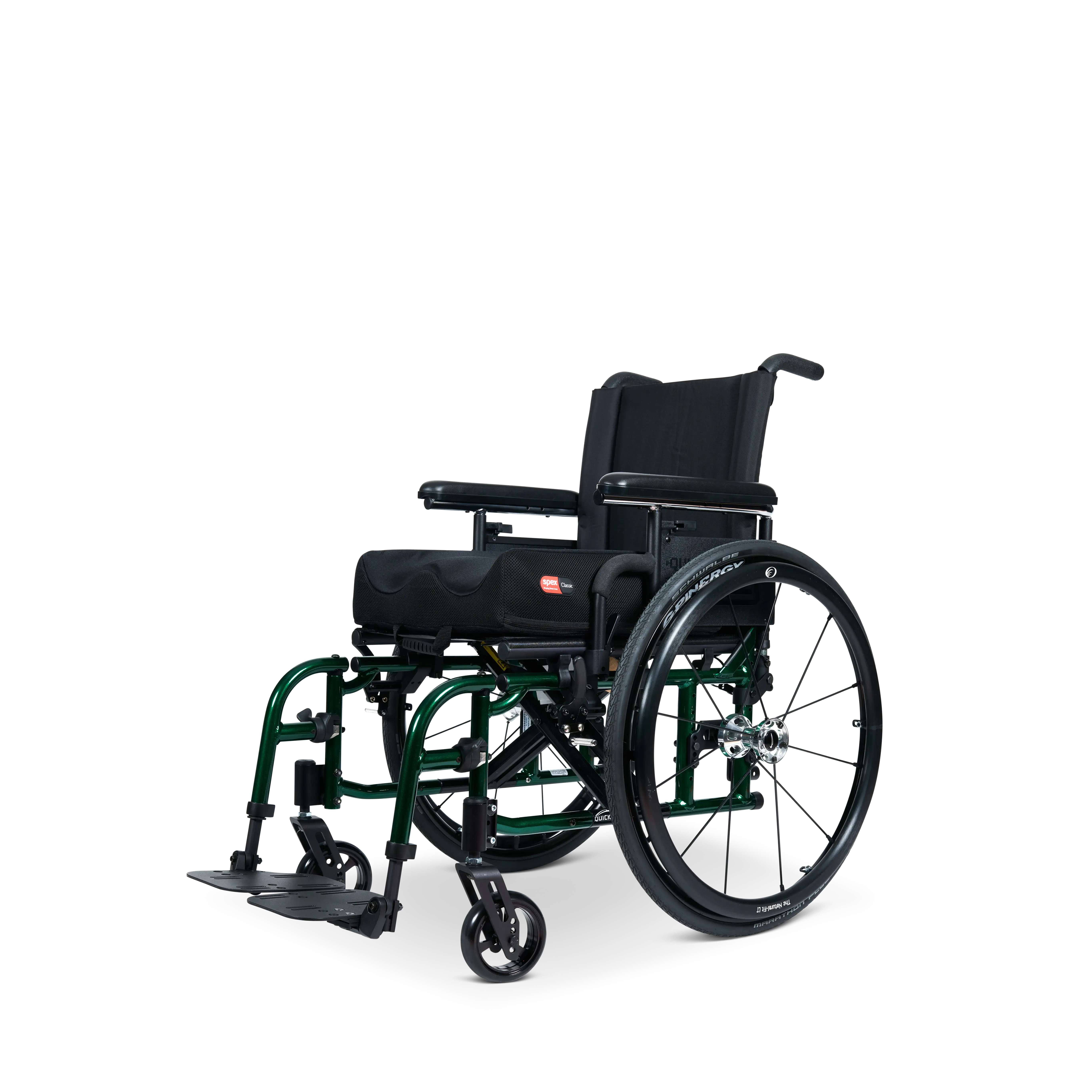

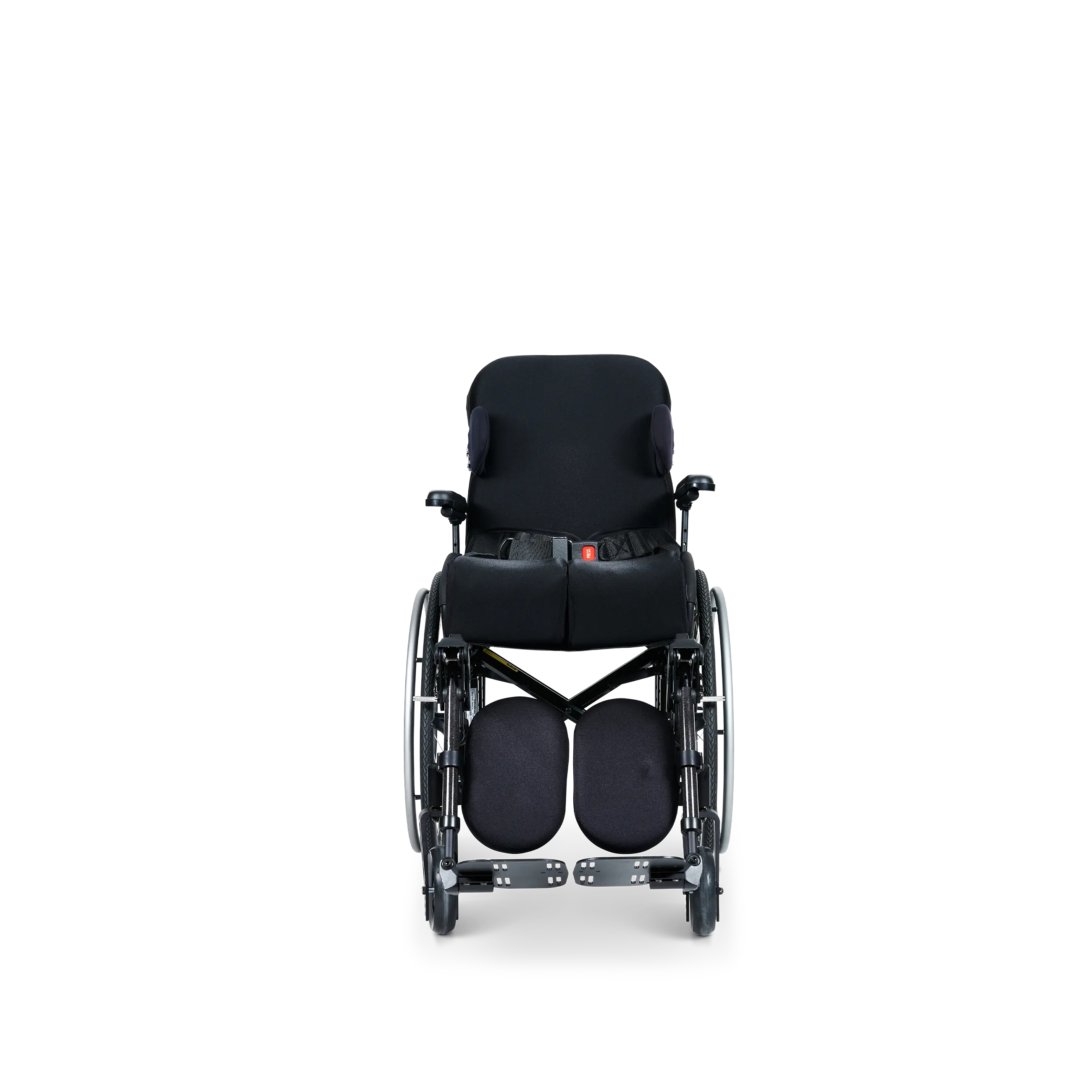

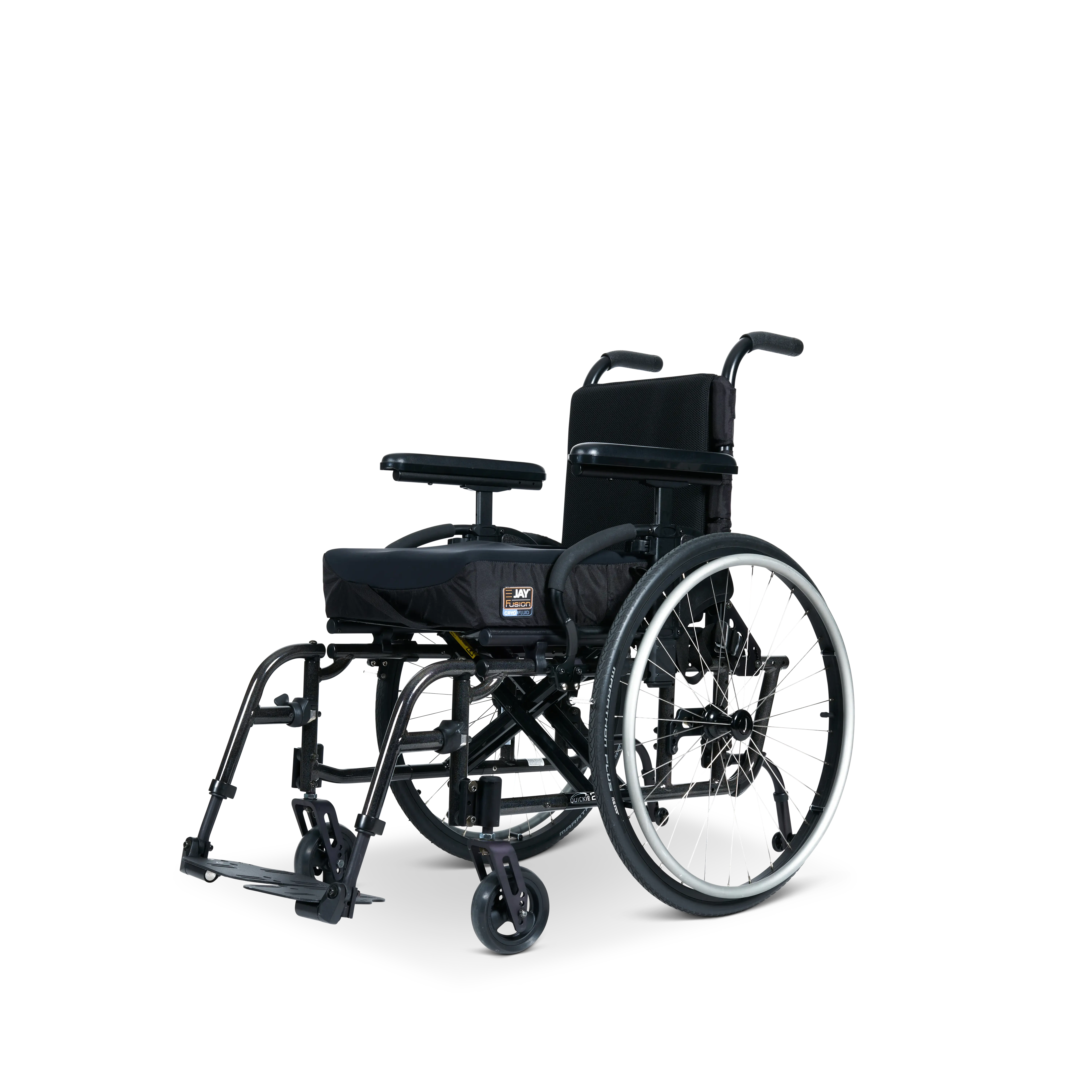

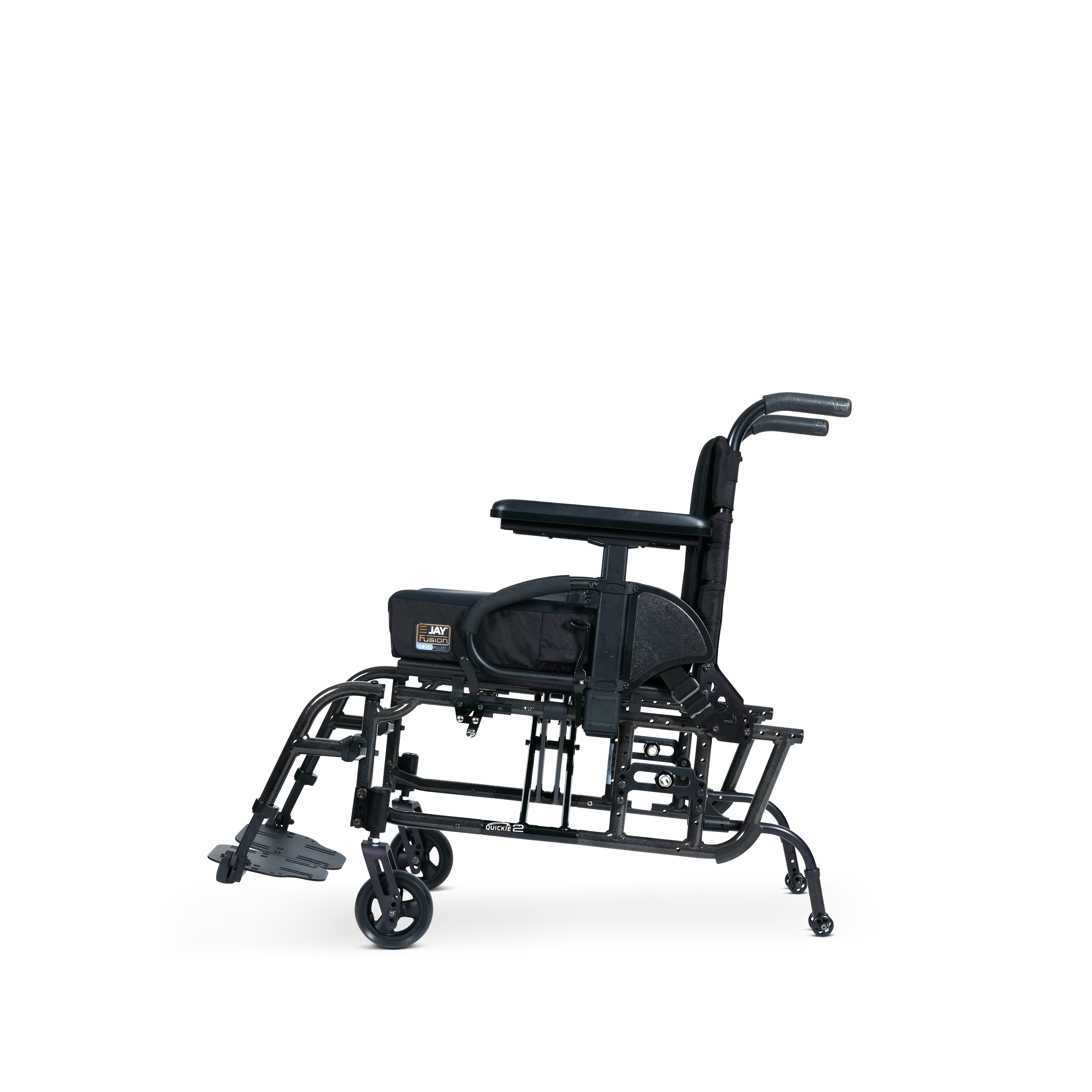

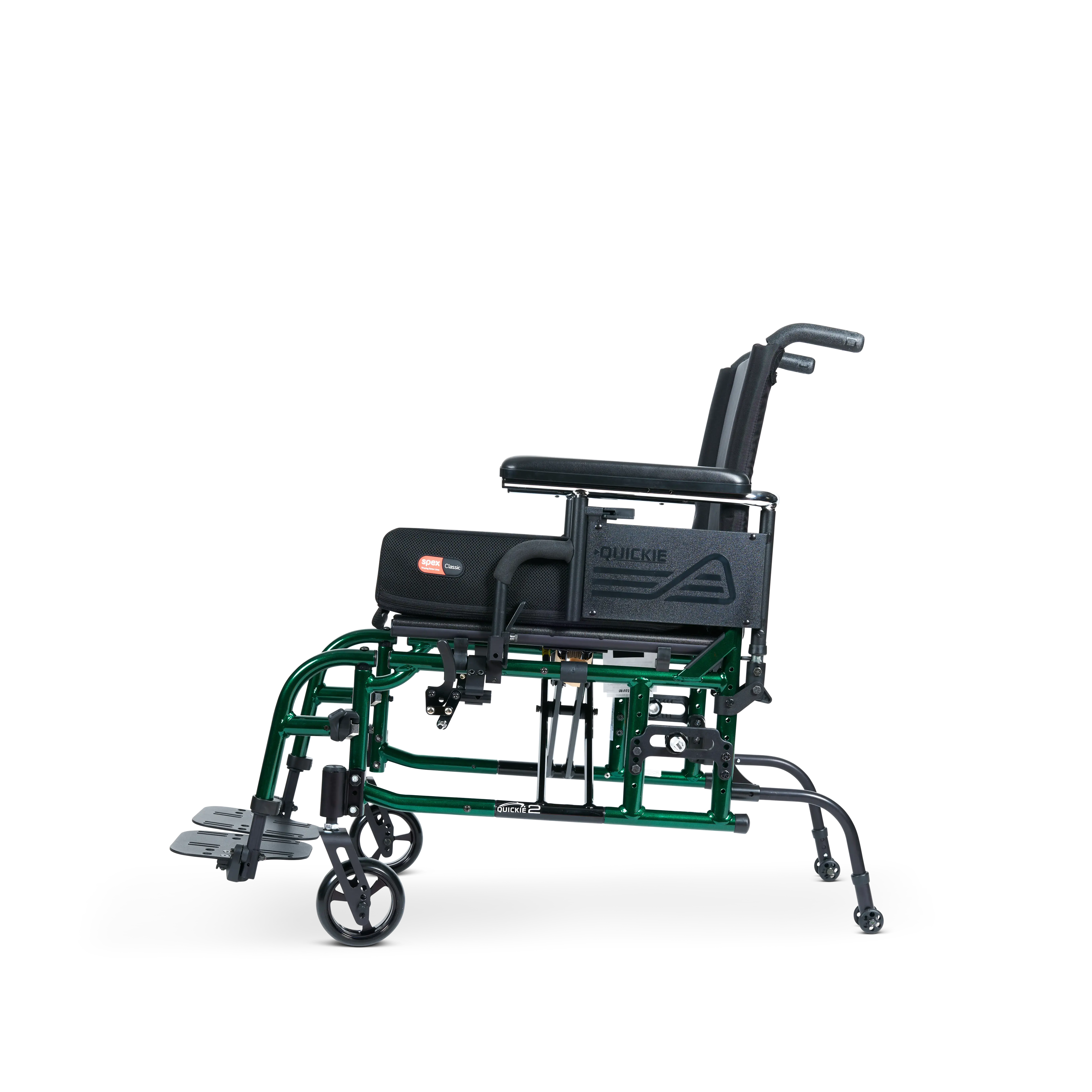

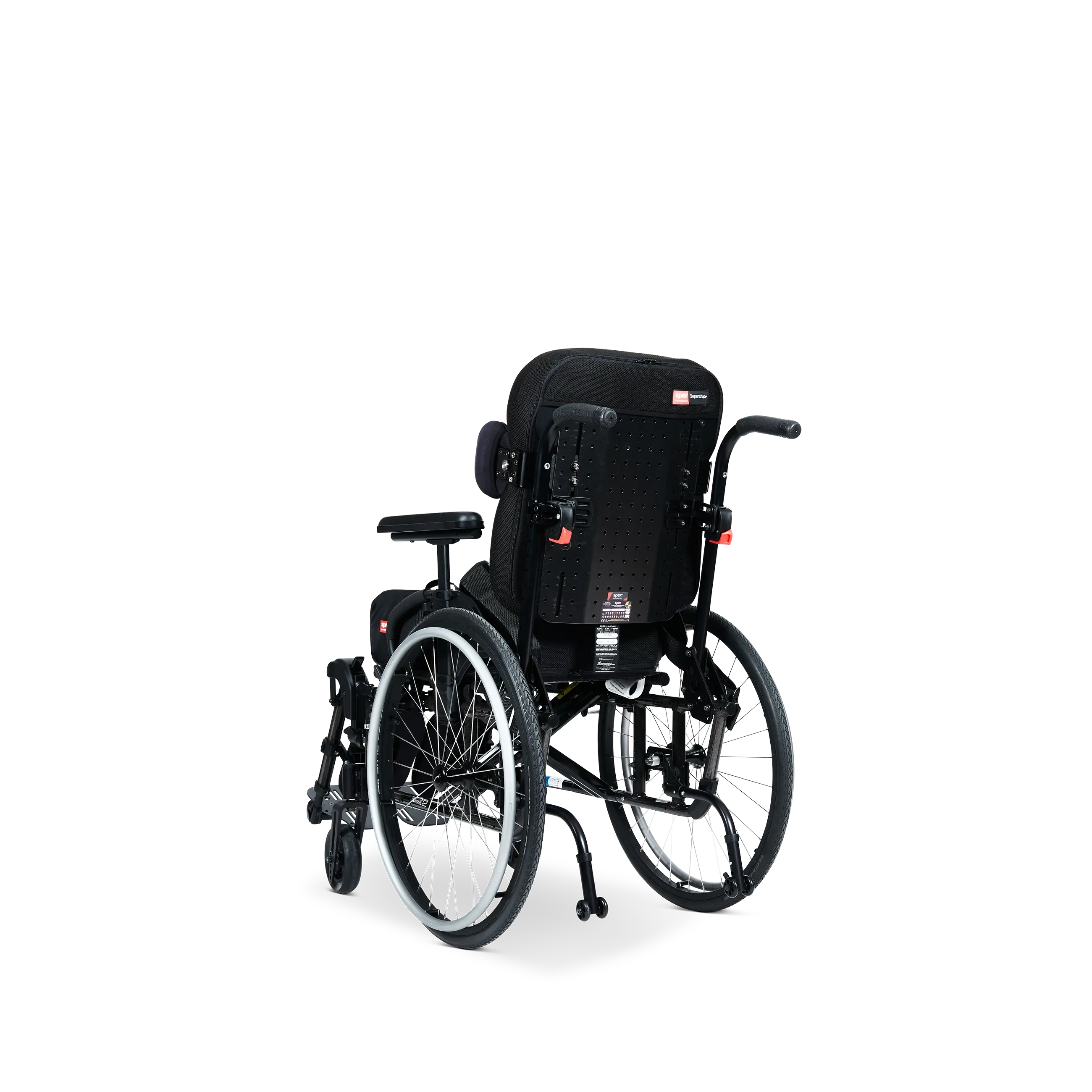

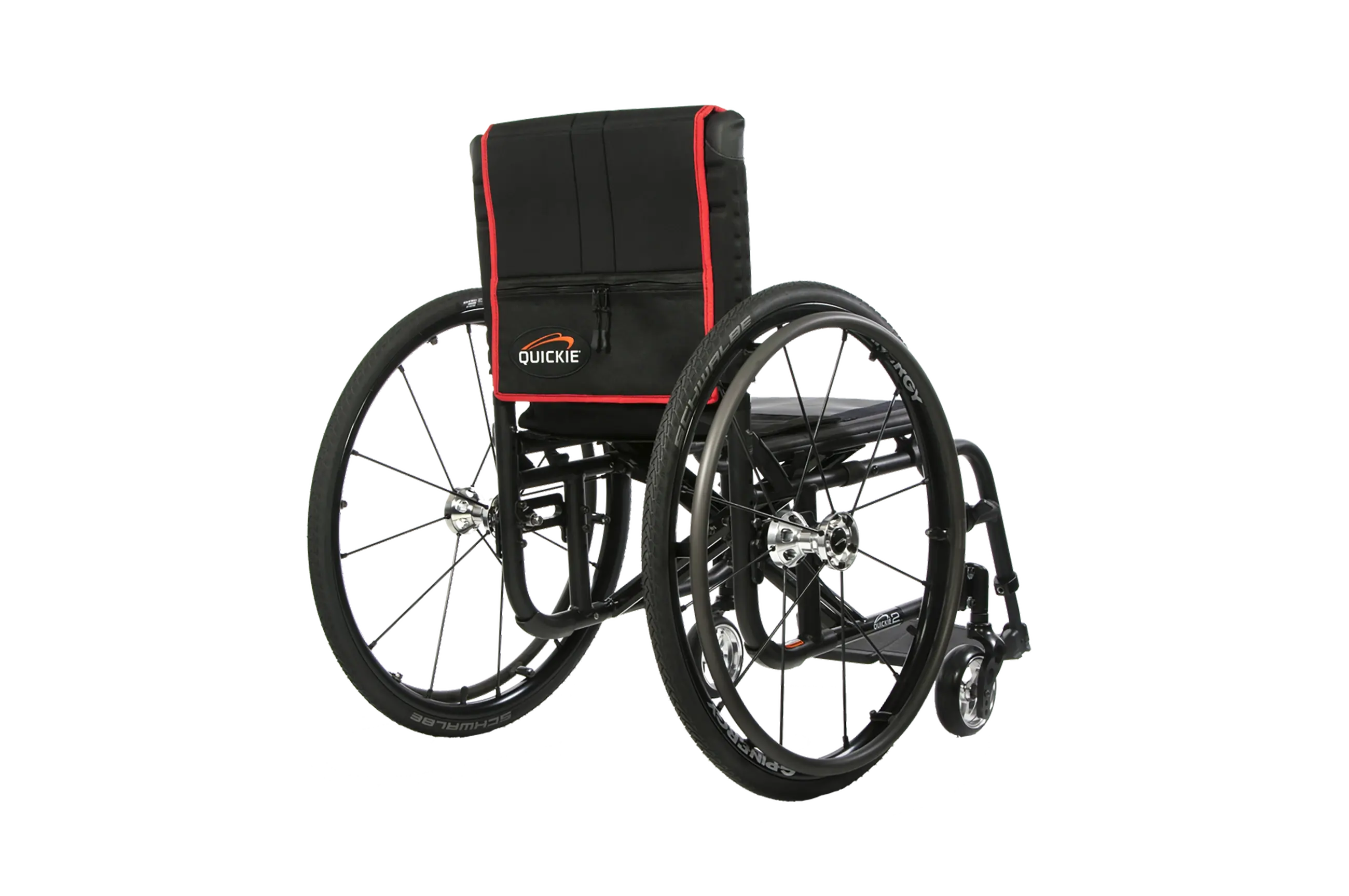

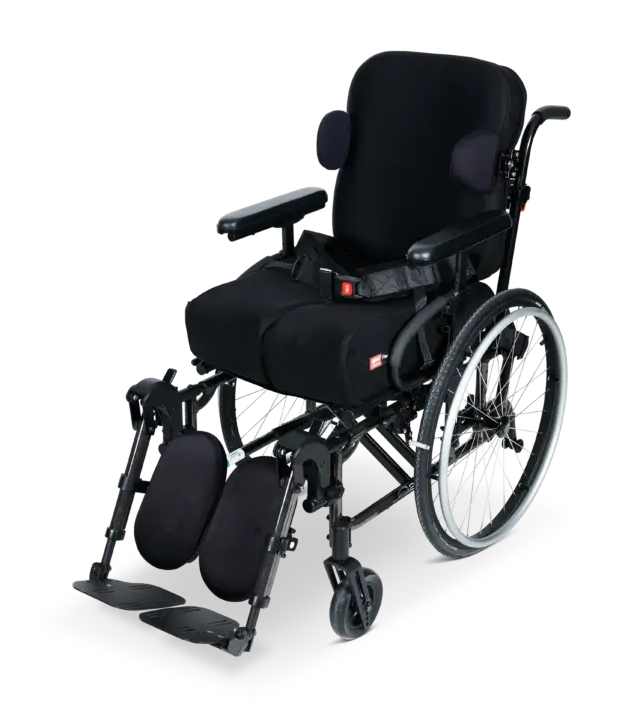

Folding manual wheelchair

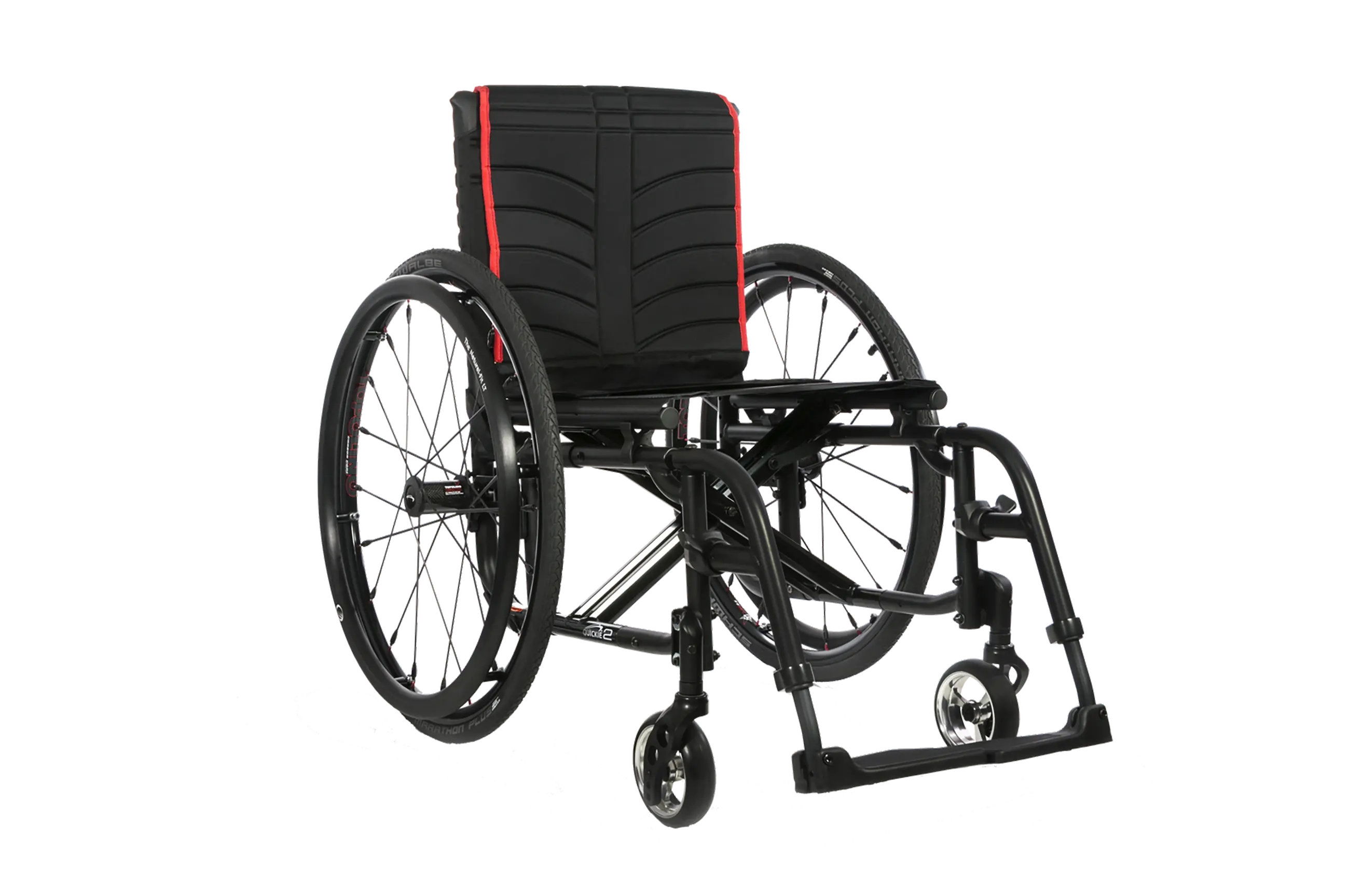

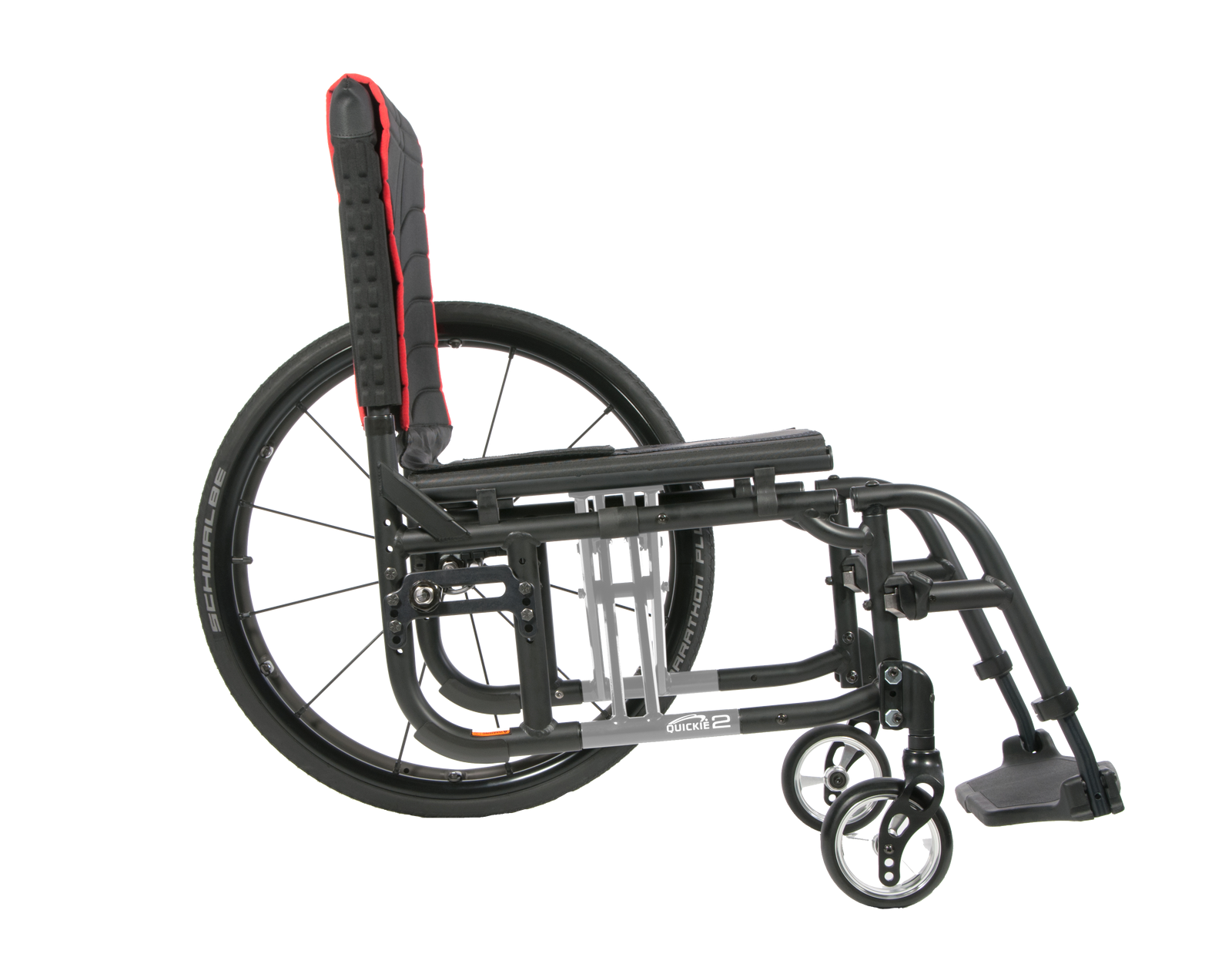

The modern Quickie 2 manual wheelchair series brings advanced aesthetics and technology to the lightweight folding Quickie range.

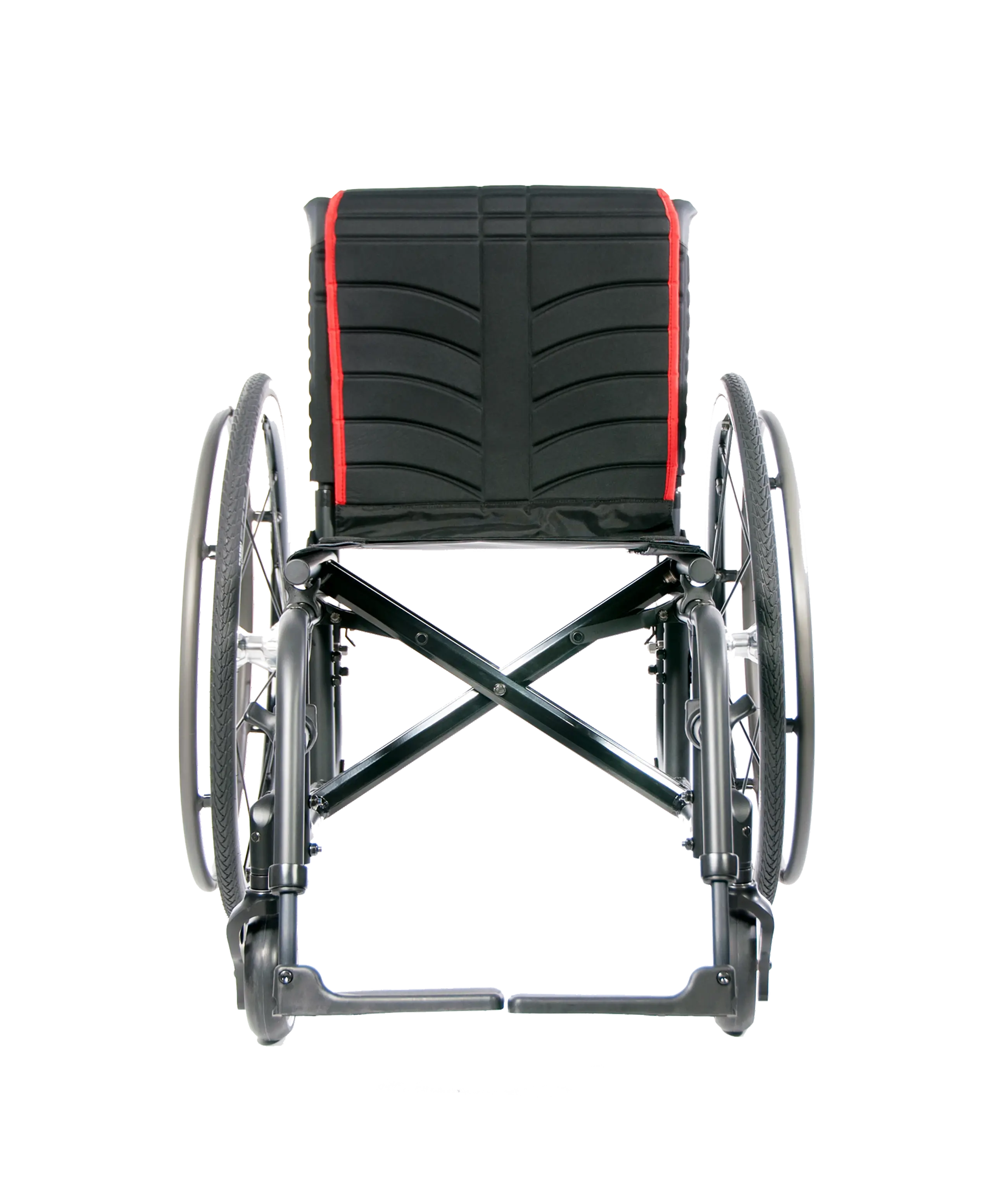

The Quickie 2 remains to be as versatile and modular as before but is now manufactured out of 7000 Series Aerospace Aluminum which makes the redesigned crossbrace more rigid, stronger, and lighter.

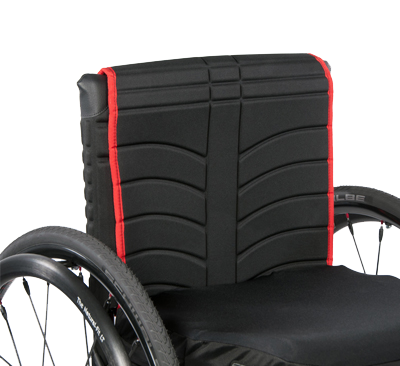

The stronger folding wheelchair frame results in an increased weight capacity of 136 kg, while the overall chair weight is reduced by up to 1 kg. The incredibly versatile axle plate along with the modern wheels, caster housings, and upholstery provide a great-looking, easy-handling, and even more lightweight folding wheelchair.

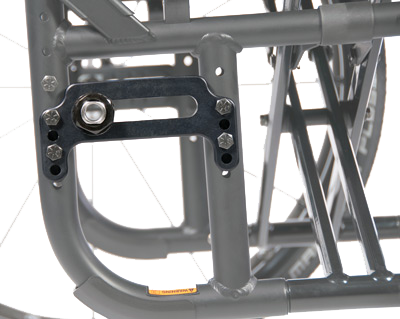

Adjustable Axle Plate: With the new Adjustable Axle Plate you will have all the seat-to-floor heights you ever wanted and intuitive ease of adjustments.

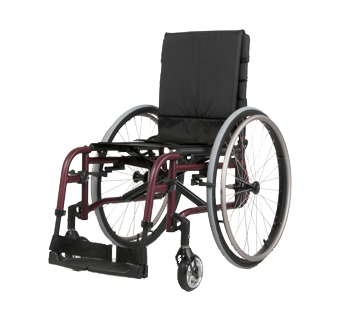

Integral Caster Housing: The optional Q2 caster housing (standard on Q2 Lite) combines durability and adjustability with sleek styling.

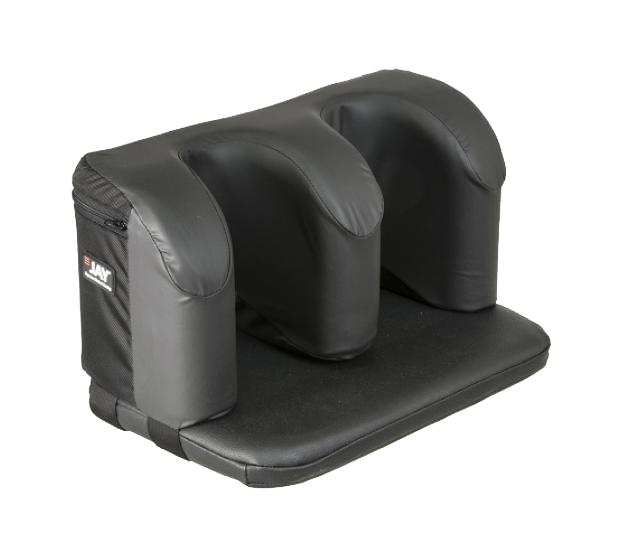

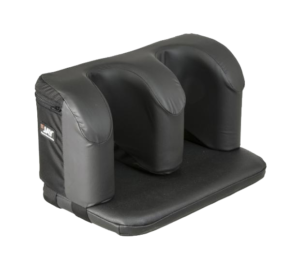

JAY Foot Box
Designed to protect the lower extremities from injury and skin breakdown resulting from periods of high tone, JAY Foot Boxes offer three styles to suit individual client needs.
Size | Height | Code | With Divider |
---|---|---|---|
Single | Standard | 1453-5001-STD | – |
Tall | 1453-5001-TAL | – | |
12″ Full | Standard | 1453-5012-STD | – |
14″ Full | Standard | 1453-5014-STD | – |
16″ Full | Standard | 1453-5016-STD | 1453-5116-STD |
Tall | 1453-5016-TAL | 1453-5116-TAL | |
18″ Full | Standard | 1453-5018-STD | 1453-5118-STD |
Tall | 1453-5018-TAL | 1453-5118-TAL | |
20″ Full | Standard | 1453-5020-STD | 1453-5120-STD |
Tall | 1453-5020-TAL | 1453-5120-TAL | |
22″ Full | Standard | 1453-5022-STD | 1453-5122-STD |
Tall | 1453-5022-TAL | 1453-5122-TAL |
JAY Arm Trough
JAY Arm Troughs help maintain a comfortable and optimal position of the forearms and hands to improve overall upper body posture and head control. The Arm Trough’s contoured design and soft foam also help to reduce the risk of skin breakdown.
Size | 14″ Long | 18″ Long | 22″ Long |
Arm Trough | 1451-5514-400 | 1451-5518-400 | 1451-5522-400 |
With Fixed Hardware | 1451-5614-0FX | 1451-5618-0FX | 1451-5622-0FX |
With Swing Away Hardware | 1451-5614-0SA | 1451-5618-0SA | 1451-5622-0SA |
JAY Stump Support
Stump support kit option by Jay Seating, which can be fitted to any of the range of Quickie wheelchairs.
Pad Size | User Side | Code |
---|---|---|
Standard (8″ x 6″) | Right | 1453-1852-0RH |
Left | 1453-1852-0LH | |
Large (10″ x 8″) | Right | 1453-1853-0RH |
Left | 1453-1853-0LH |

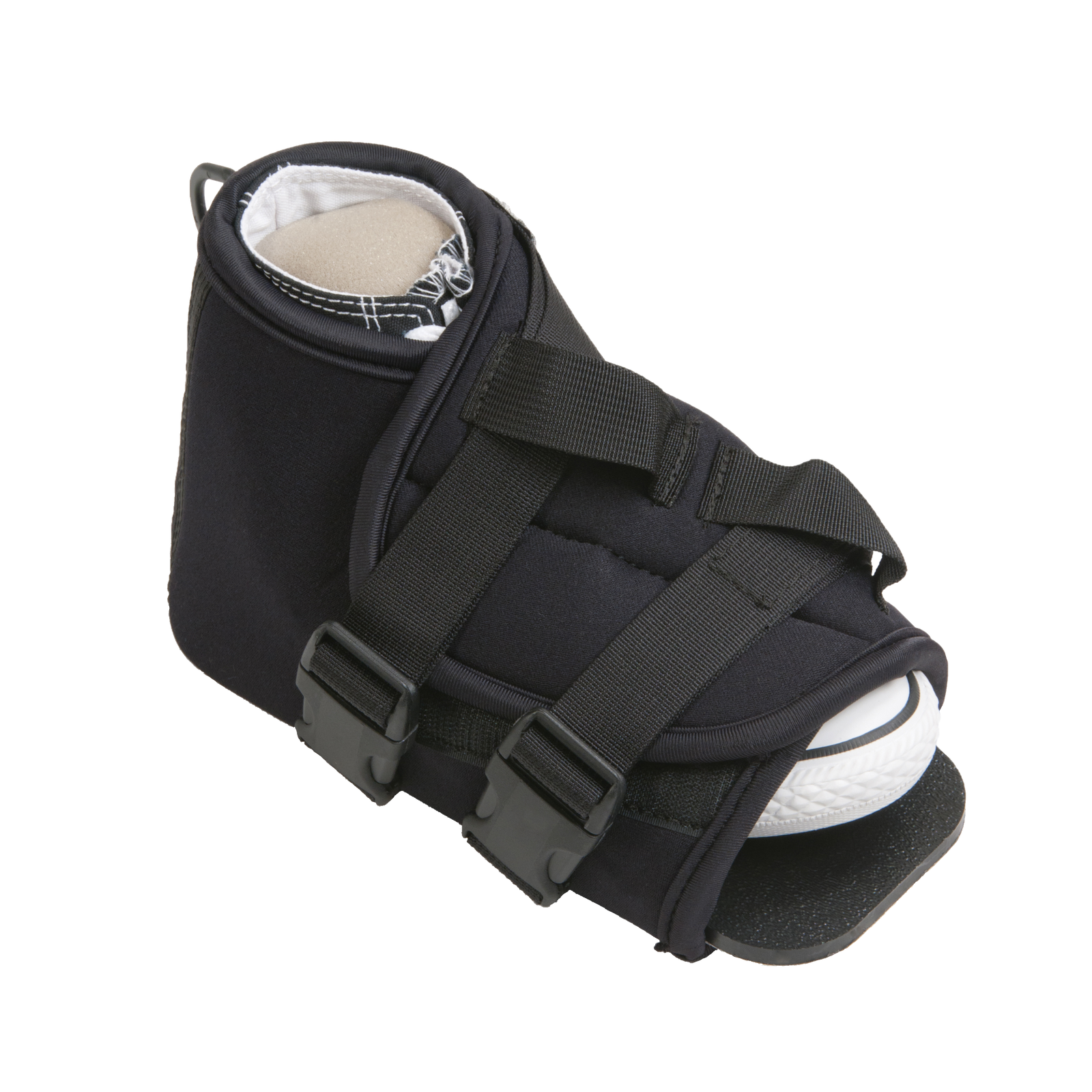

JAY Flexi-Feet Wheelchair Shoe Holder
JAY Flexi-Feet are a dynamic construction to accommodate clients who may experience frequent periods of tone or involuntary movements.
Product Code:
1453-32600L

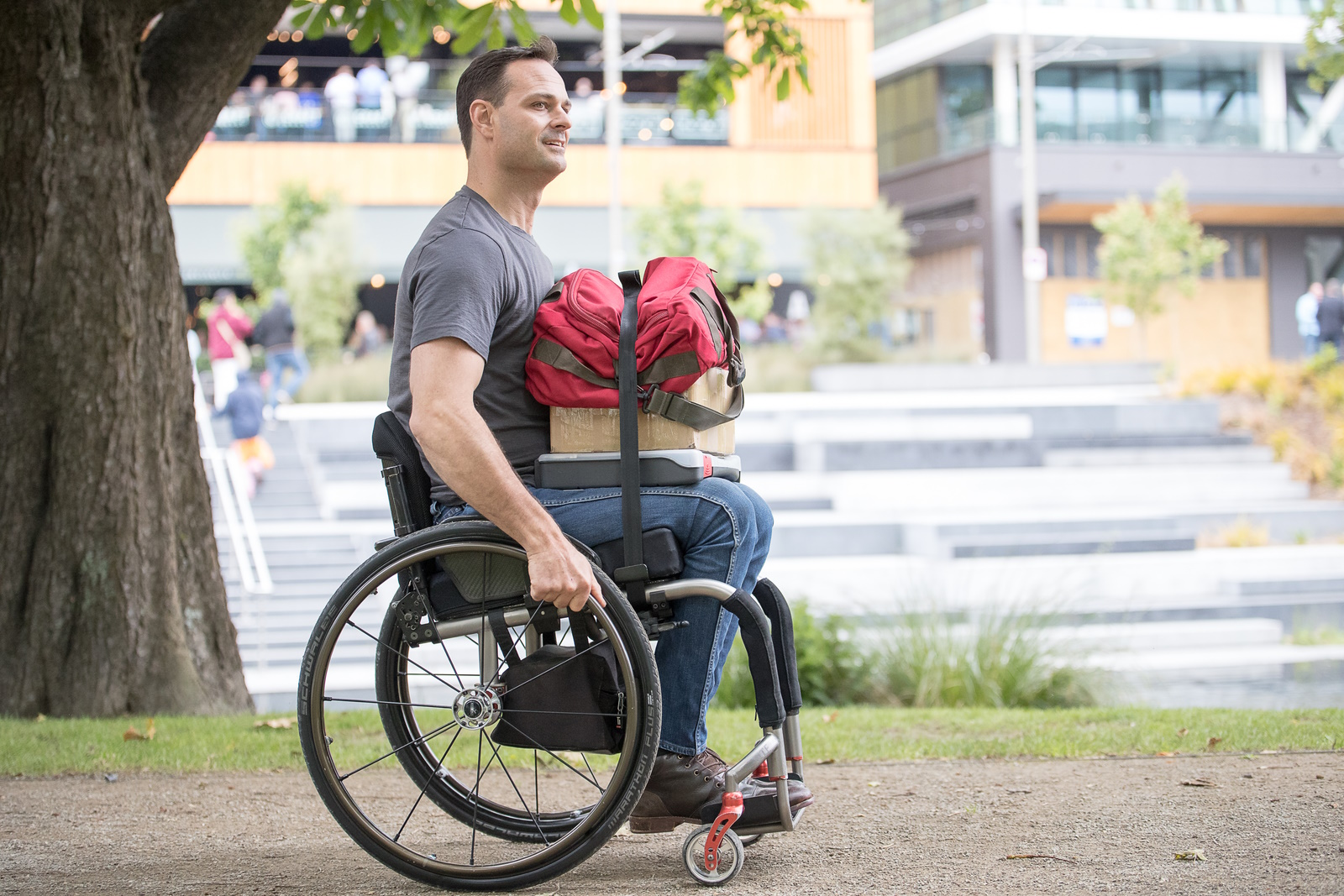

Never Drop Anything Again
With its tensioned, retractable straps, the LapStacker is simple and intuitive to both install and use.
You pull the straps over your lap, clip the buckles together (over the item/s you’re carrying) and roll with confidence! When not in use, it tucks away – and when in use, it makes your life infinitely easier.
Product code:
1579-LAPSTACK2

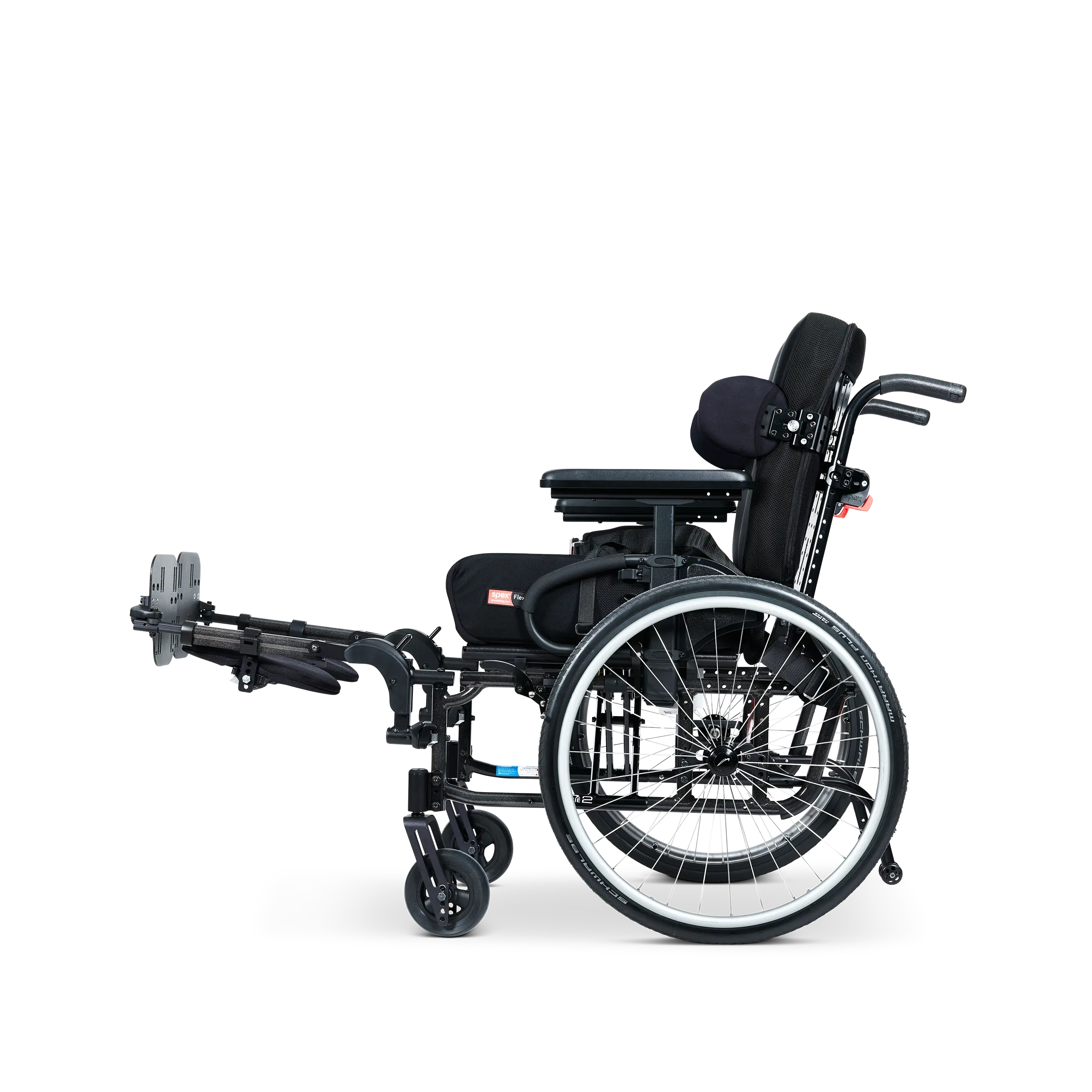

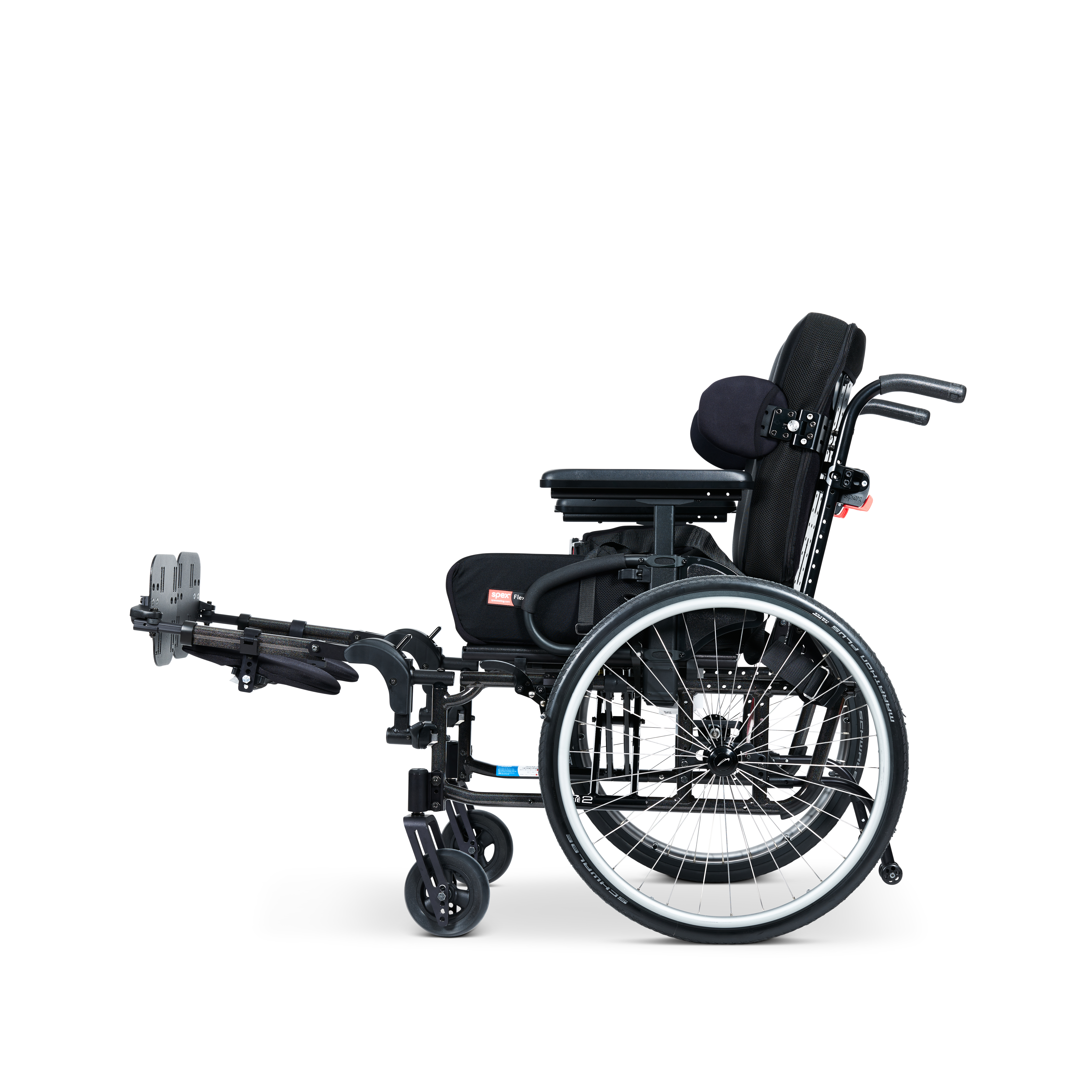

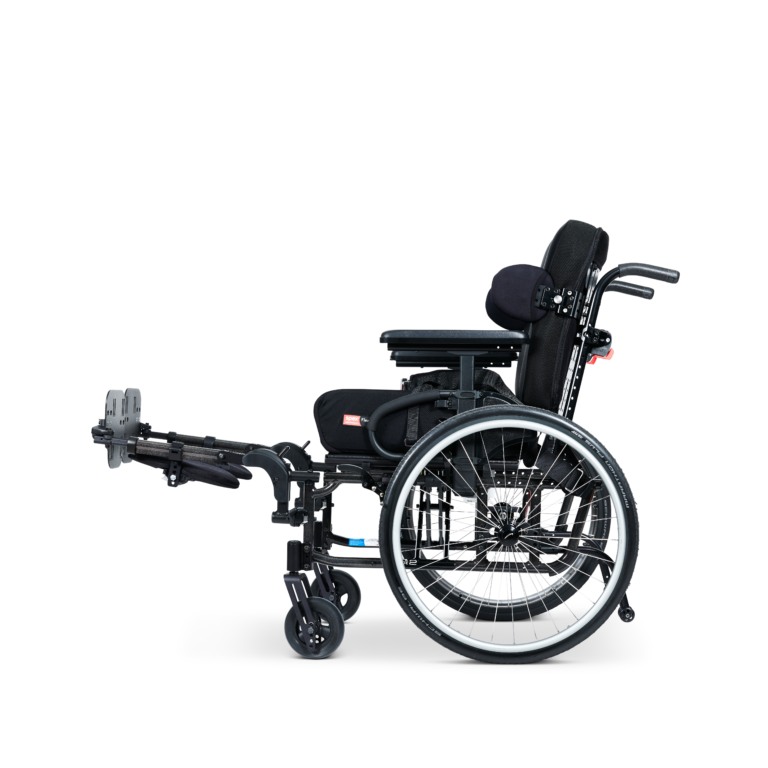

Elevating Leg Rest
Ideal for short term use while leg is in plaster or needs elevation.

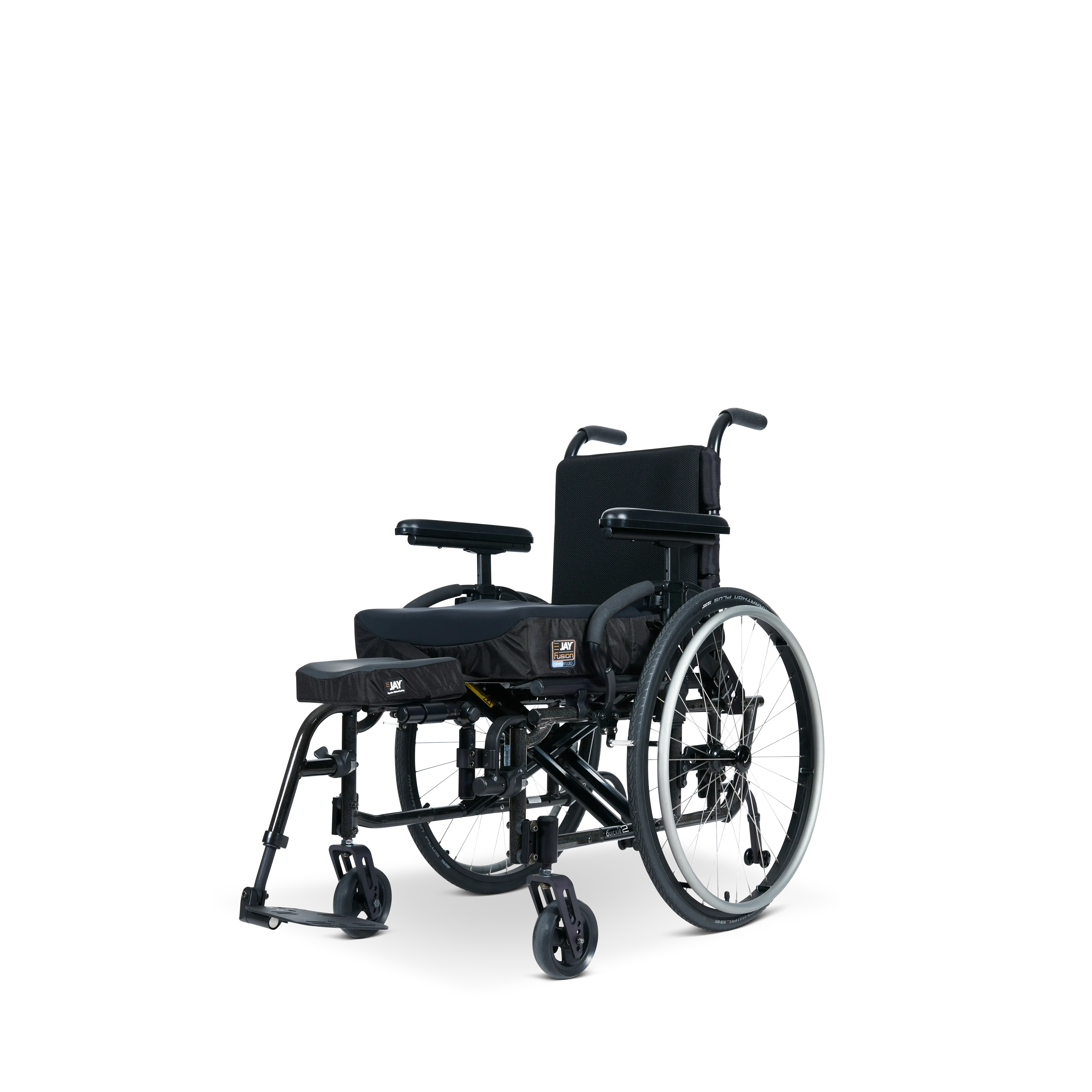

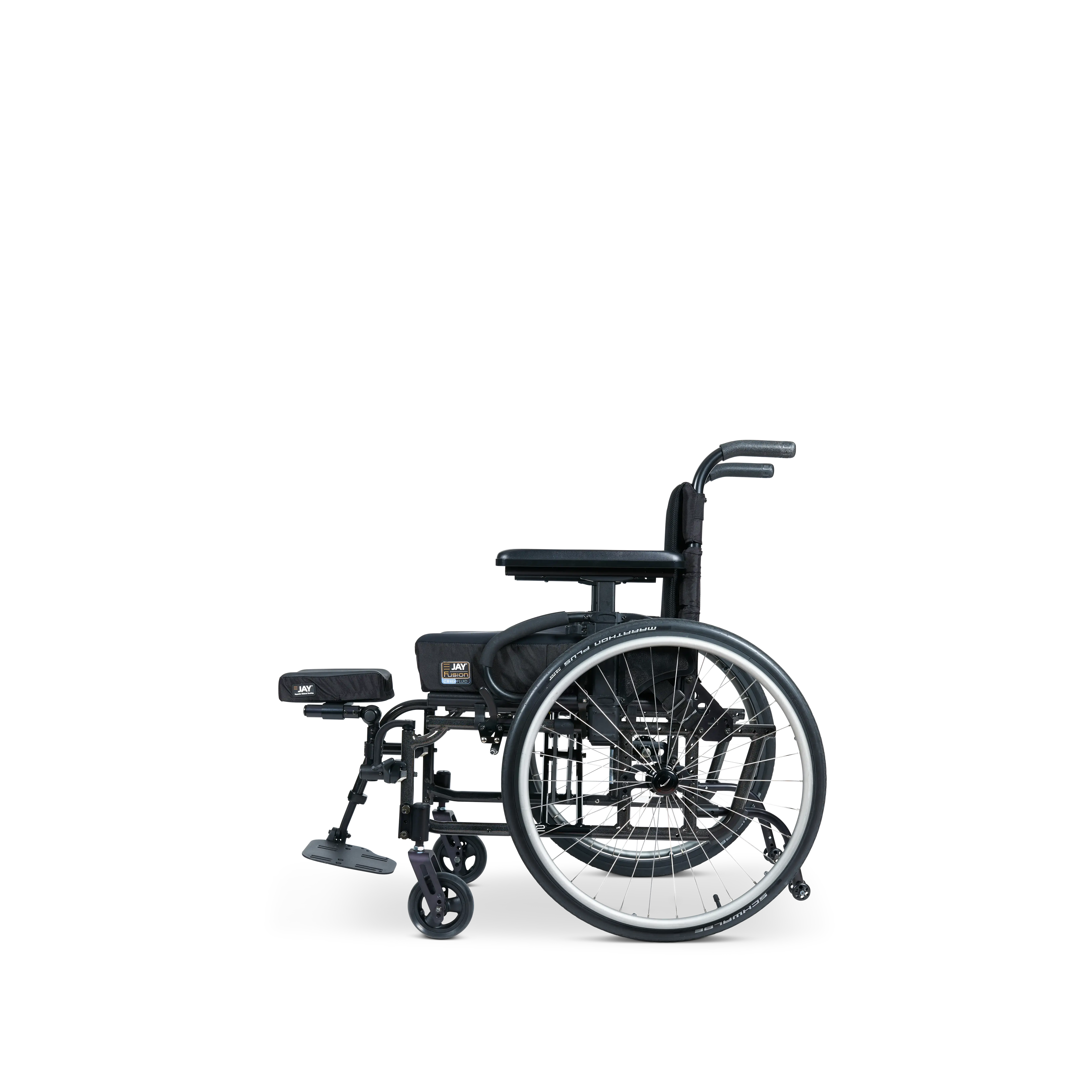

Quickie 2 Stump Support

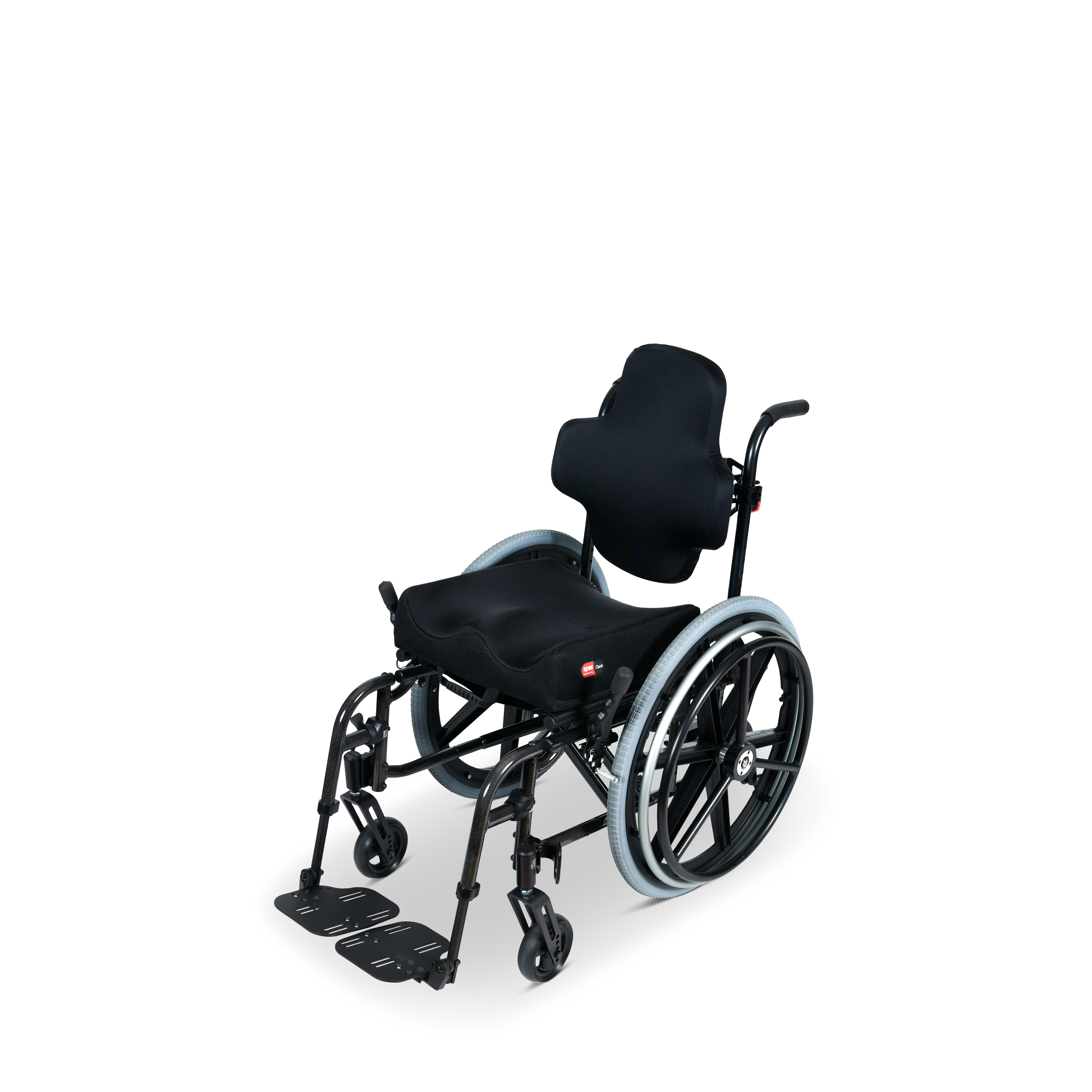

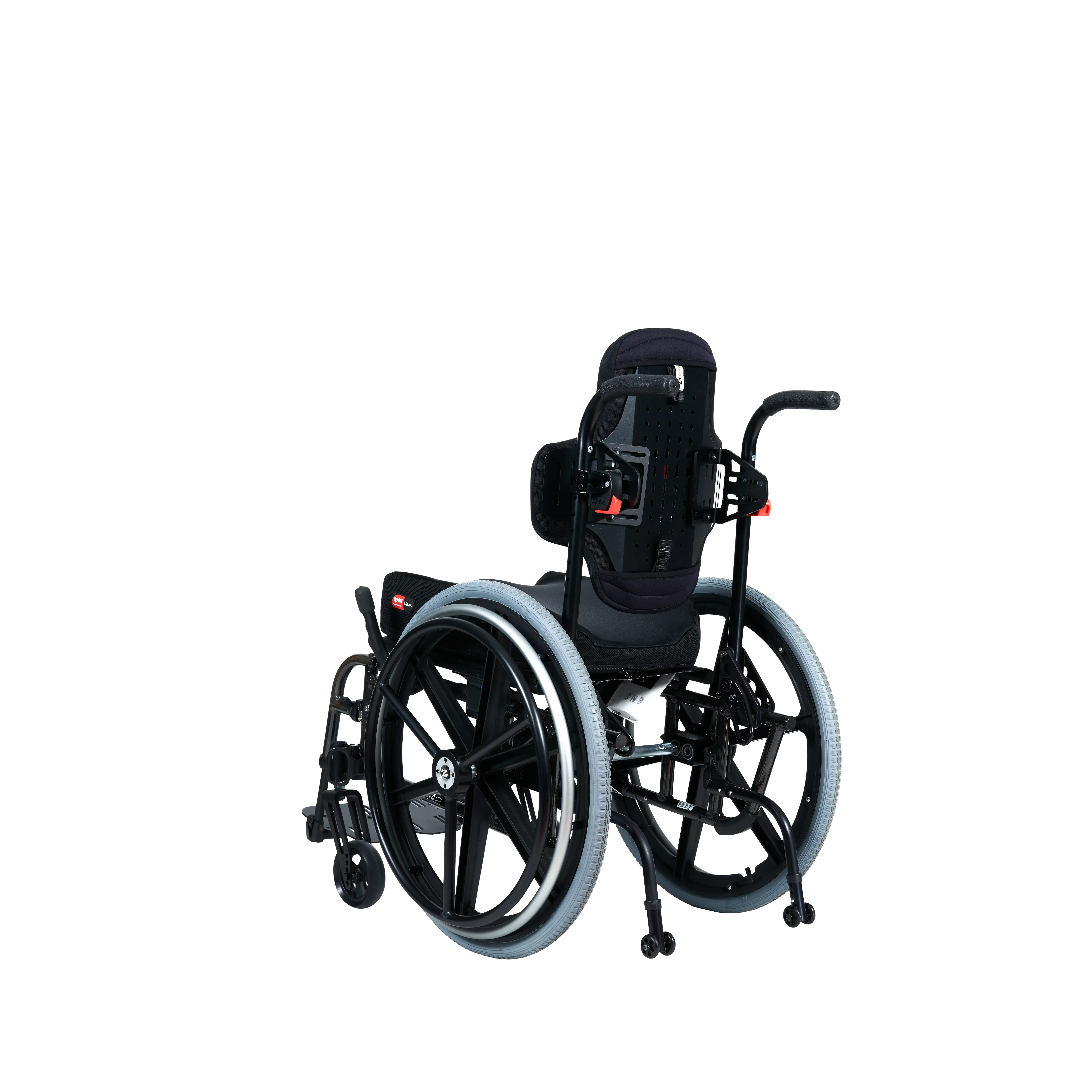

Quickie 2 One Arm Drive
Quickie 2 Hemi Frame
Code | 1571-0000-000 |
---|---|
Seat Width |
Quickie 2: 12″ – 22″
Quickie 2 Lite: 14″ – 20″
|
Seat Depth |
Quickie 2: 12″ – 20″
Quickie 2 Lite: 14″ – 20″
|
Front Seat Height | 13.5″ – 22″ |
Rear Seat Height | 13″ – 22″ |
Back Height | 9″ – 21″ |
Back Support Angle | -15º to 3º |
Camber | 0º, 2º, 4º |
Max. User Weight |
Quickie 2: 136kg
Quickie 2 Lite: 120kg
|
Product Weight | From 5.4kg* (Transit) |
* Frame weight only in the lightest configuration with no wheels, armrests or seating.
