Nitrum
Wheelchair

Energy Into Motion

The Nitrum is designed to efficiently convert energy into motion, making propulsion easier for active wheelchair users. Developed from decades of QUICKIE experience and user feedback, the Nitrum offers precise fit, performance, and adjustability.

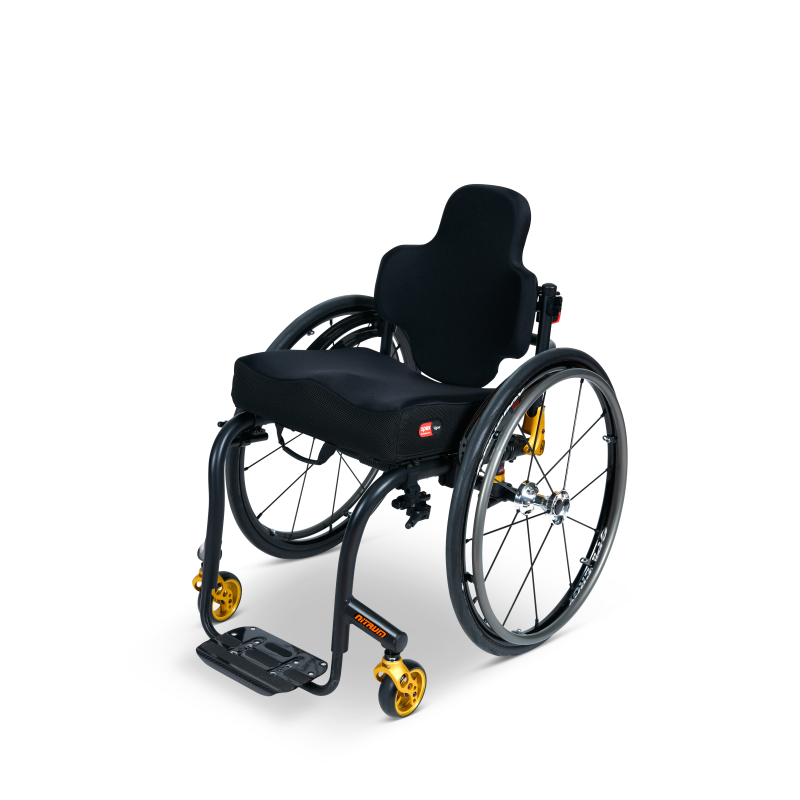

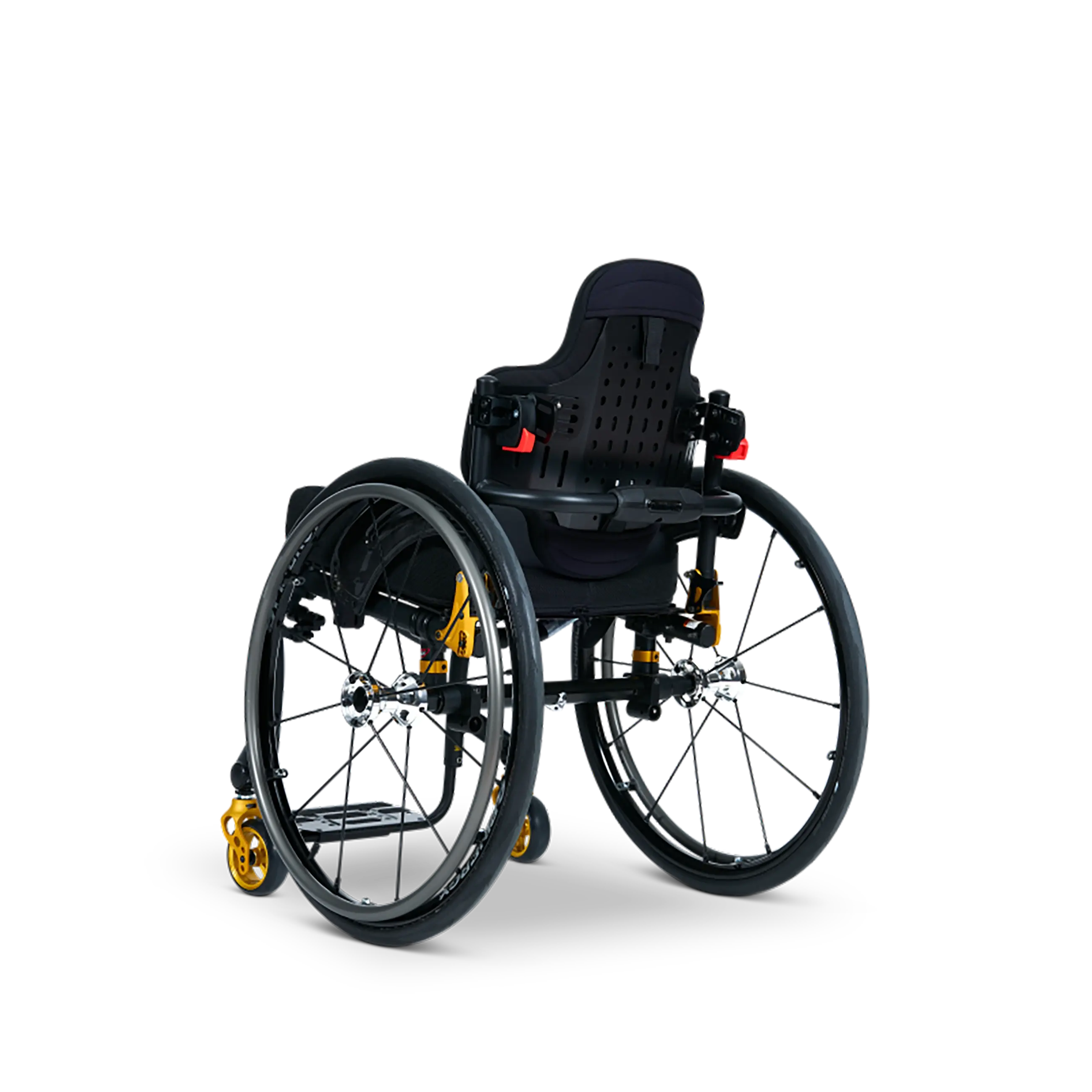

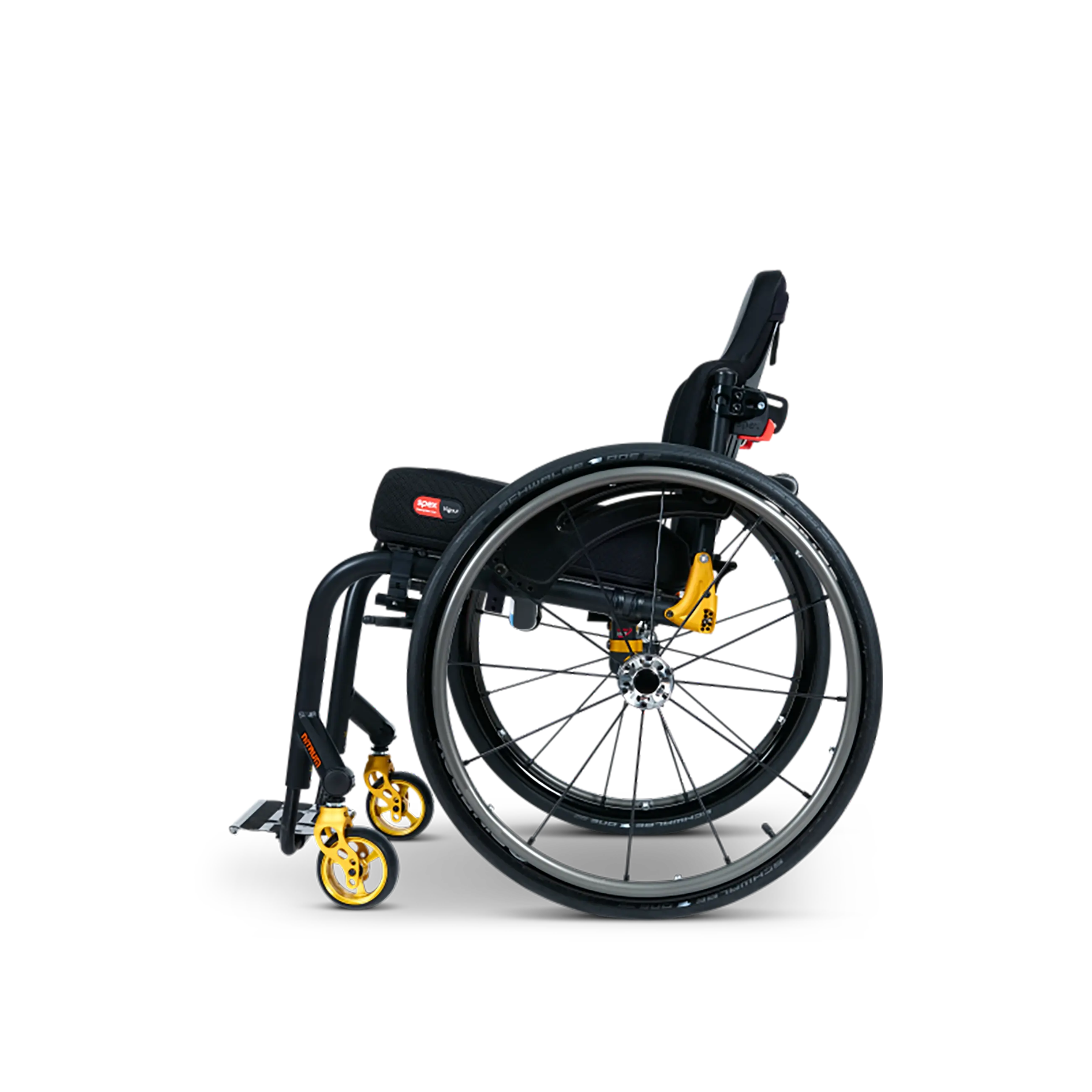

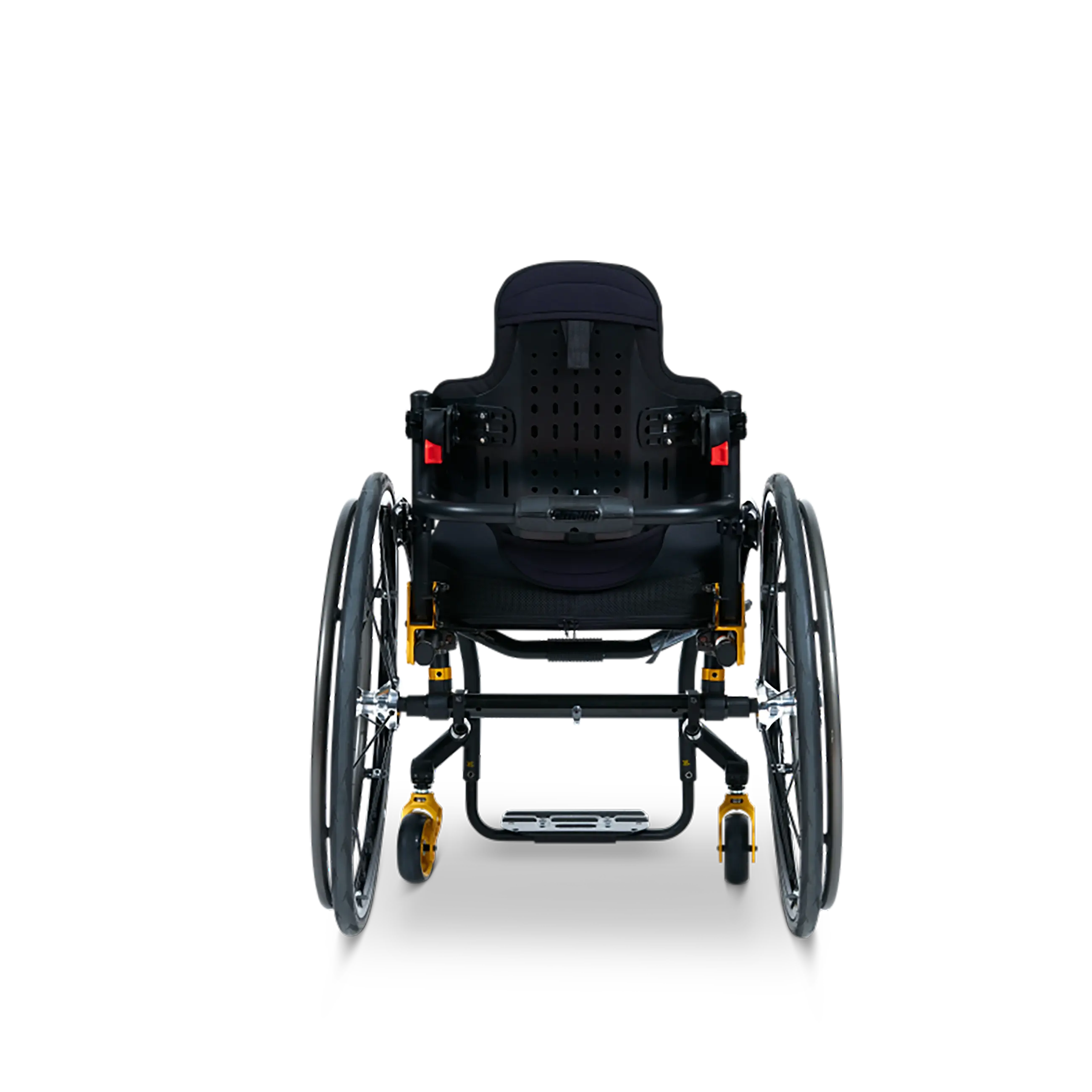

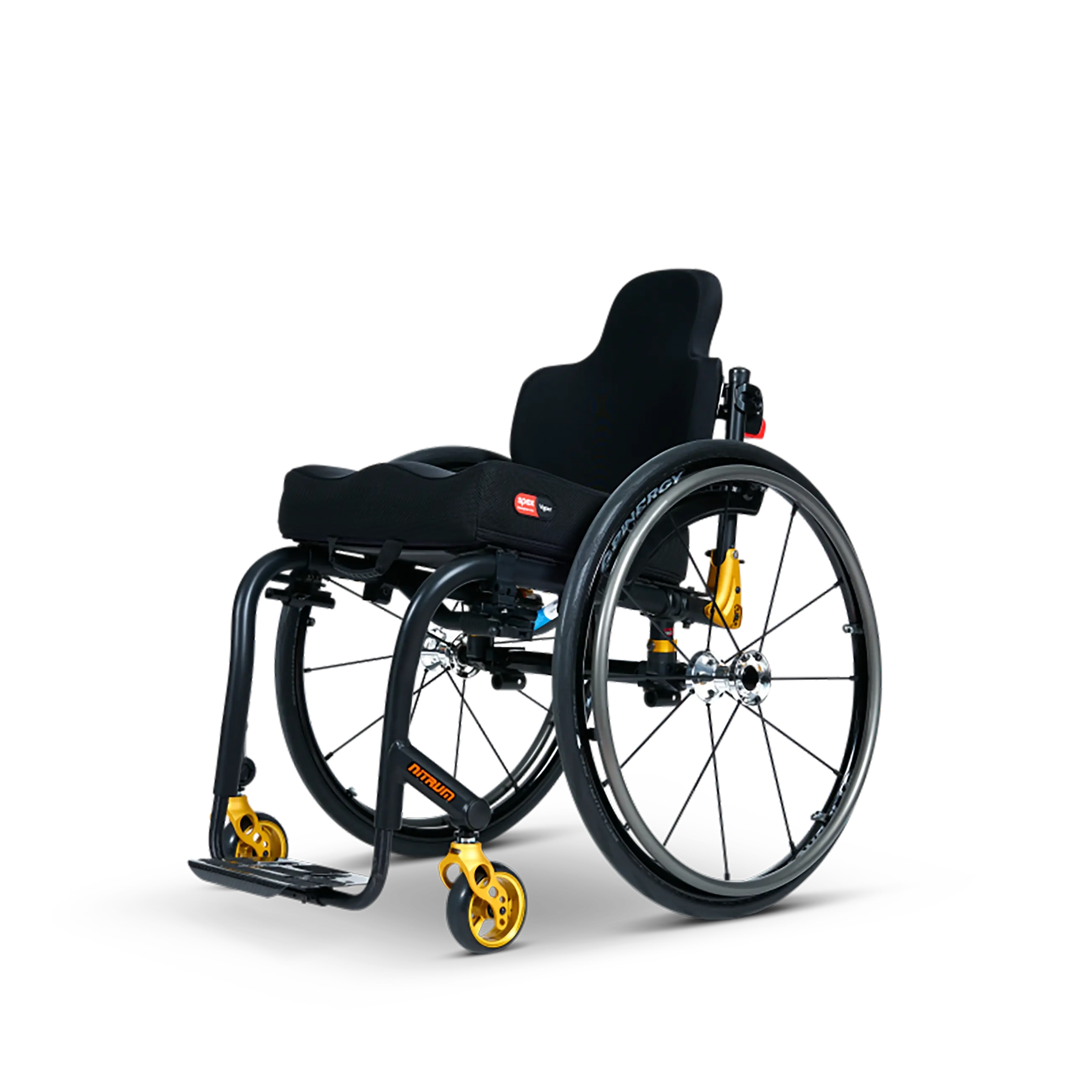

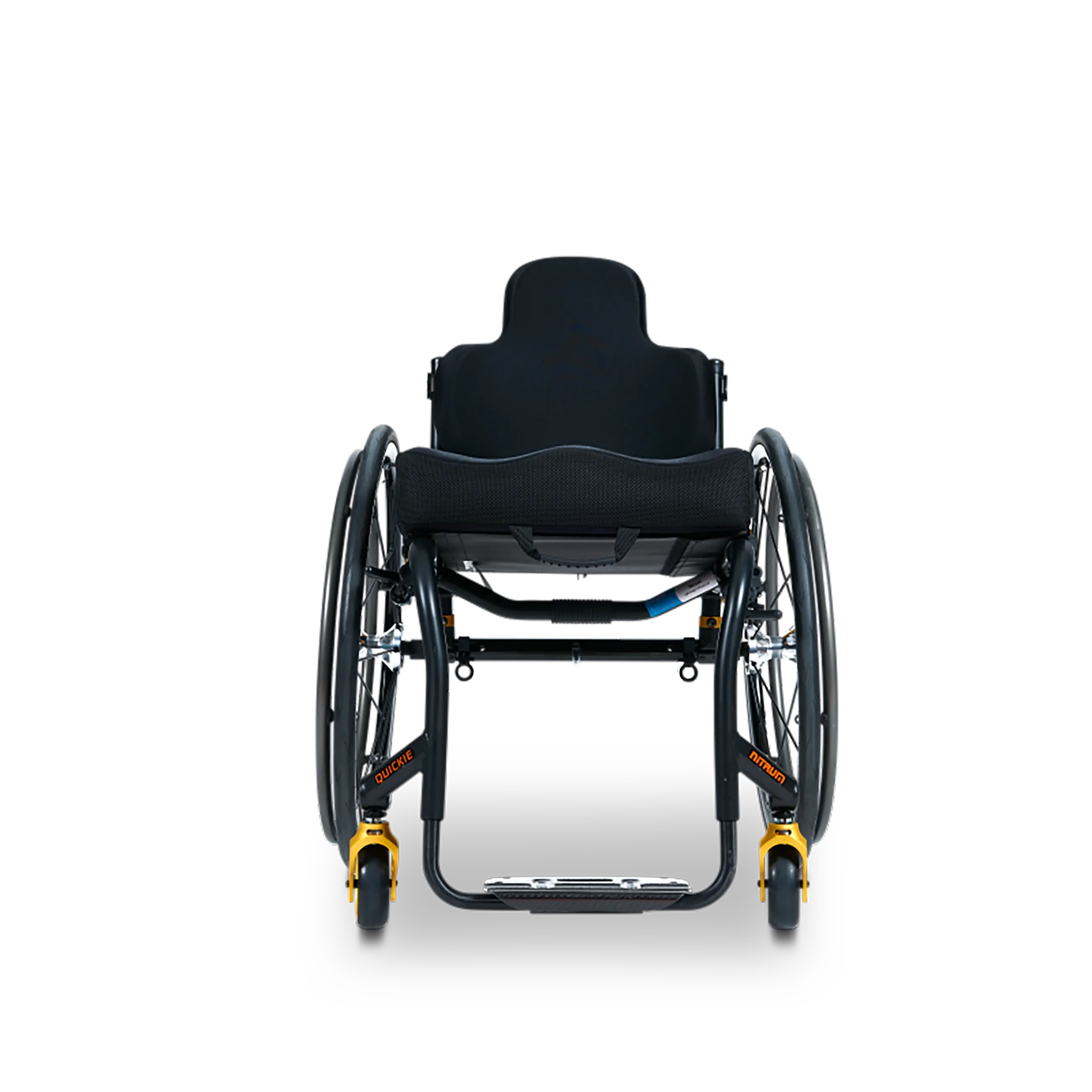

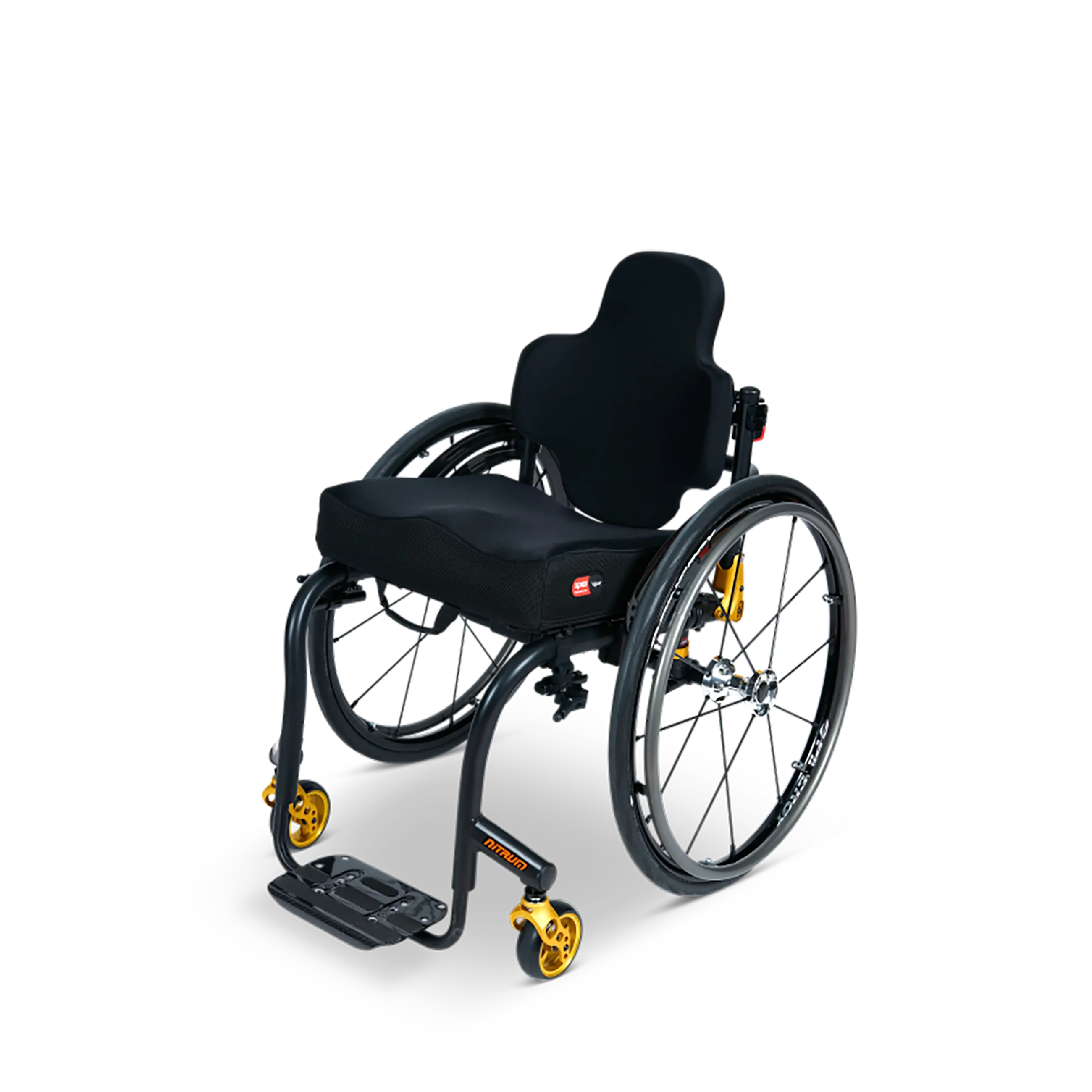

Nitrum (Open Frame)

Lightweight and simple in design, the open frame version prioritises ease of propulsion and agility.

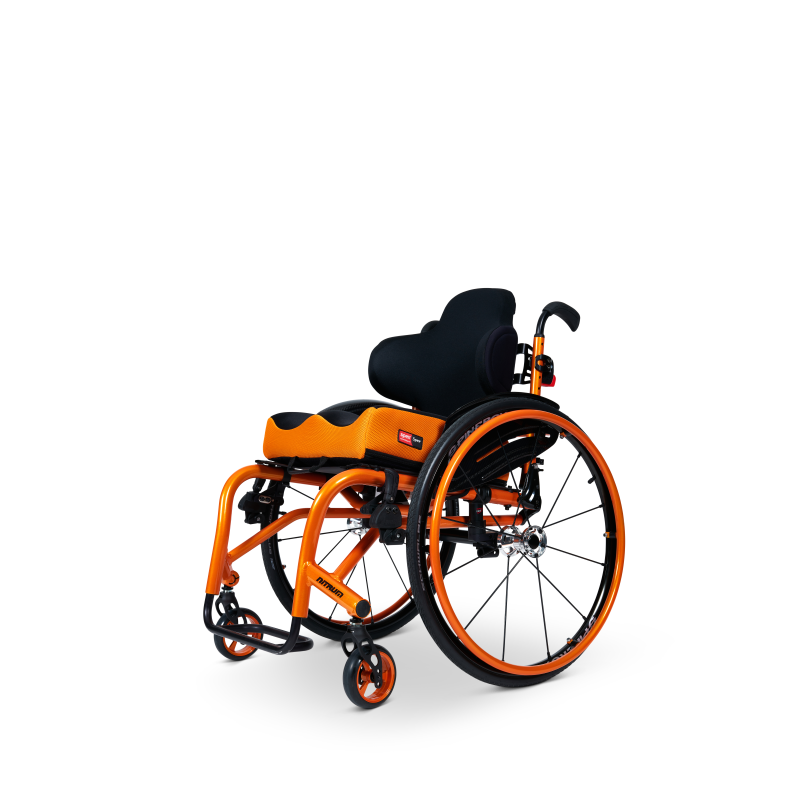

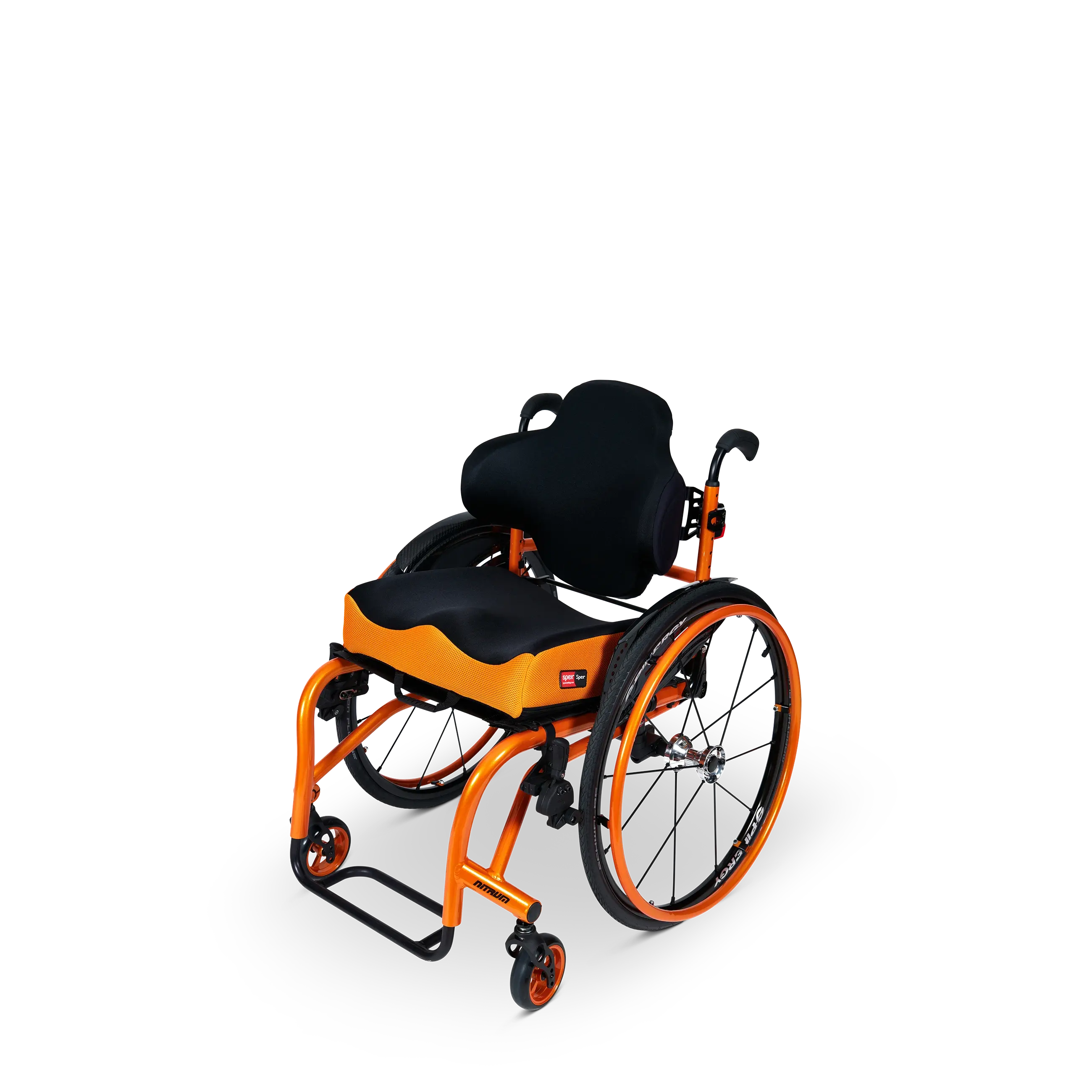

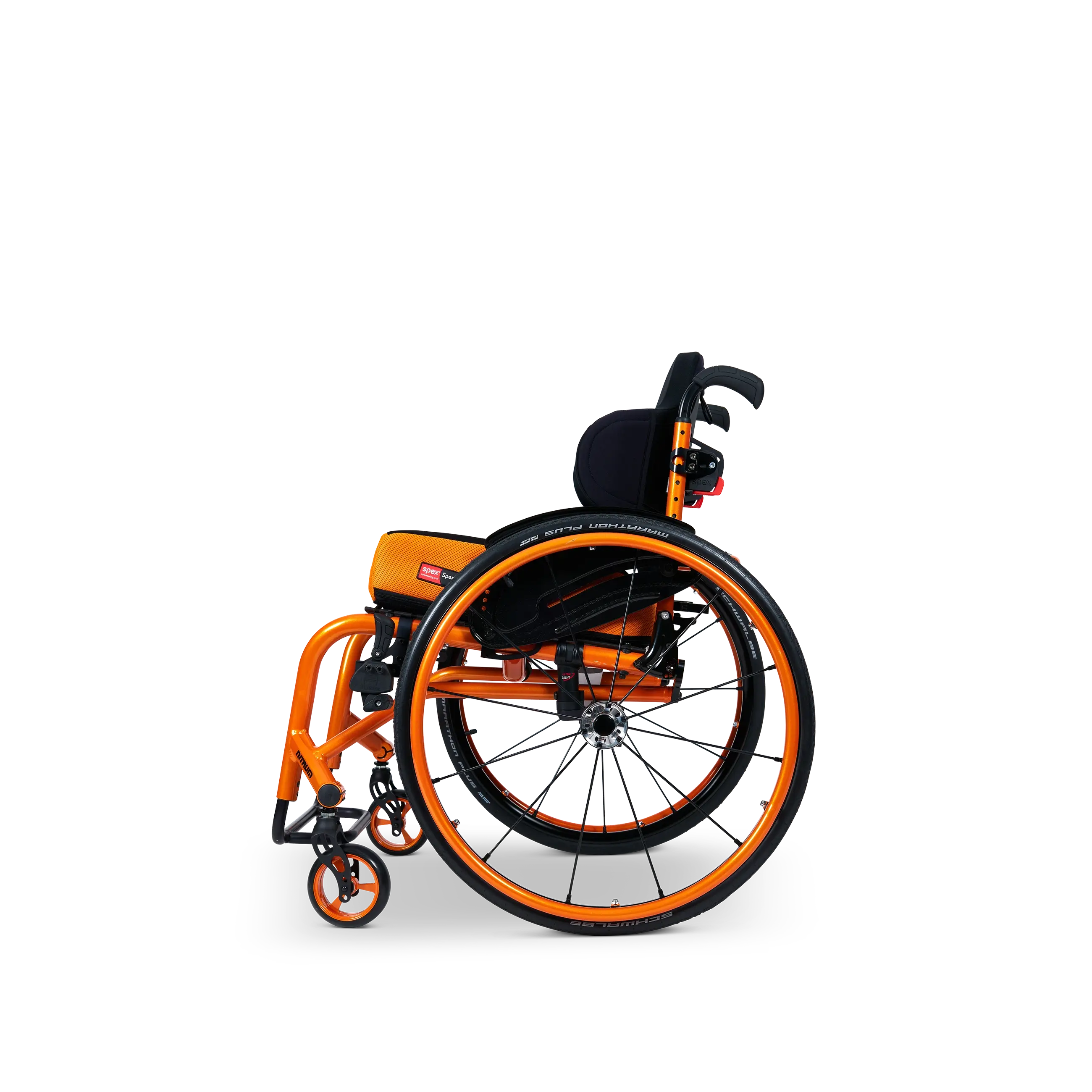

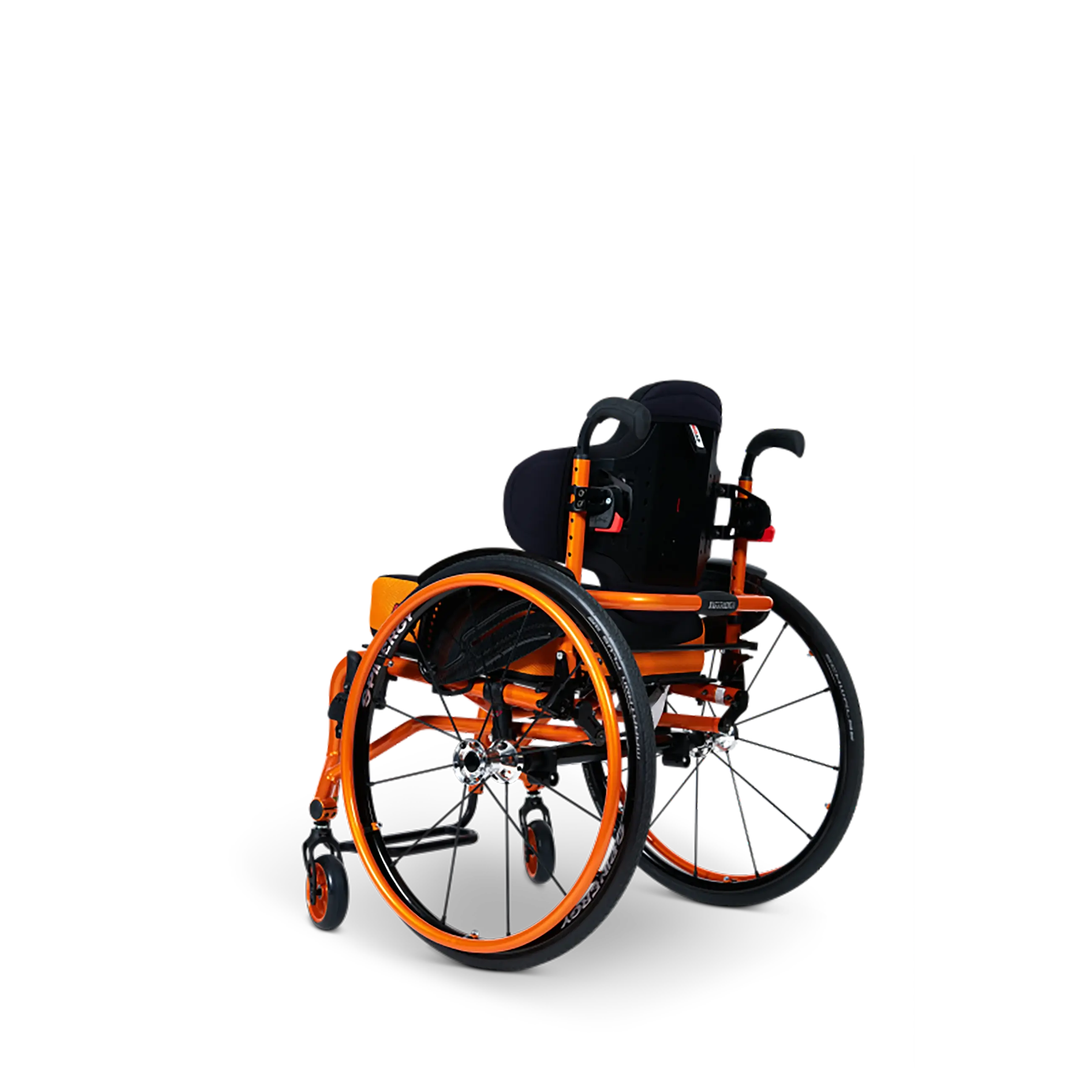

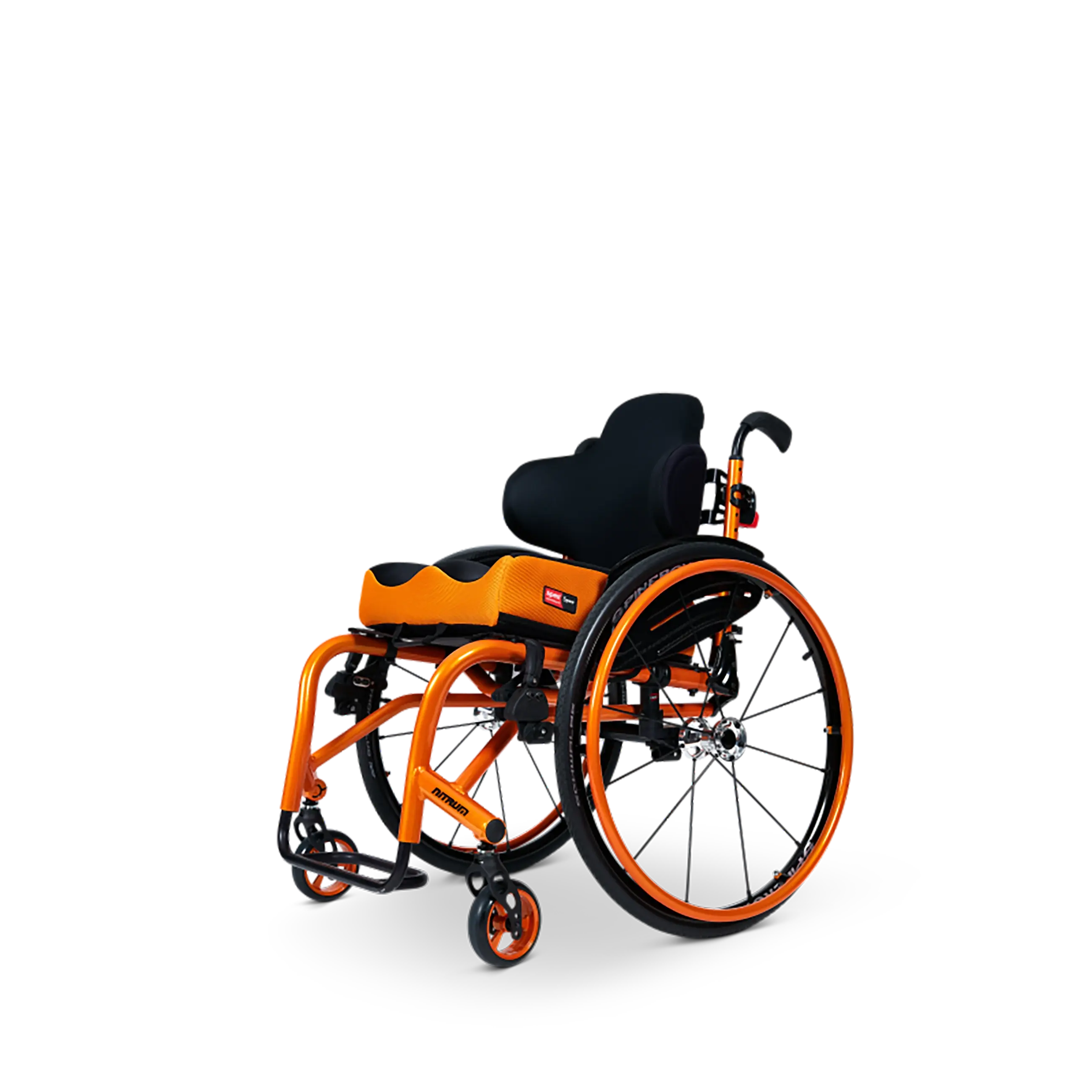

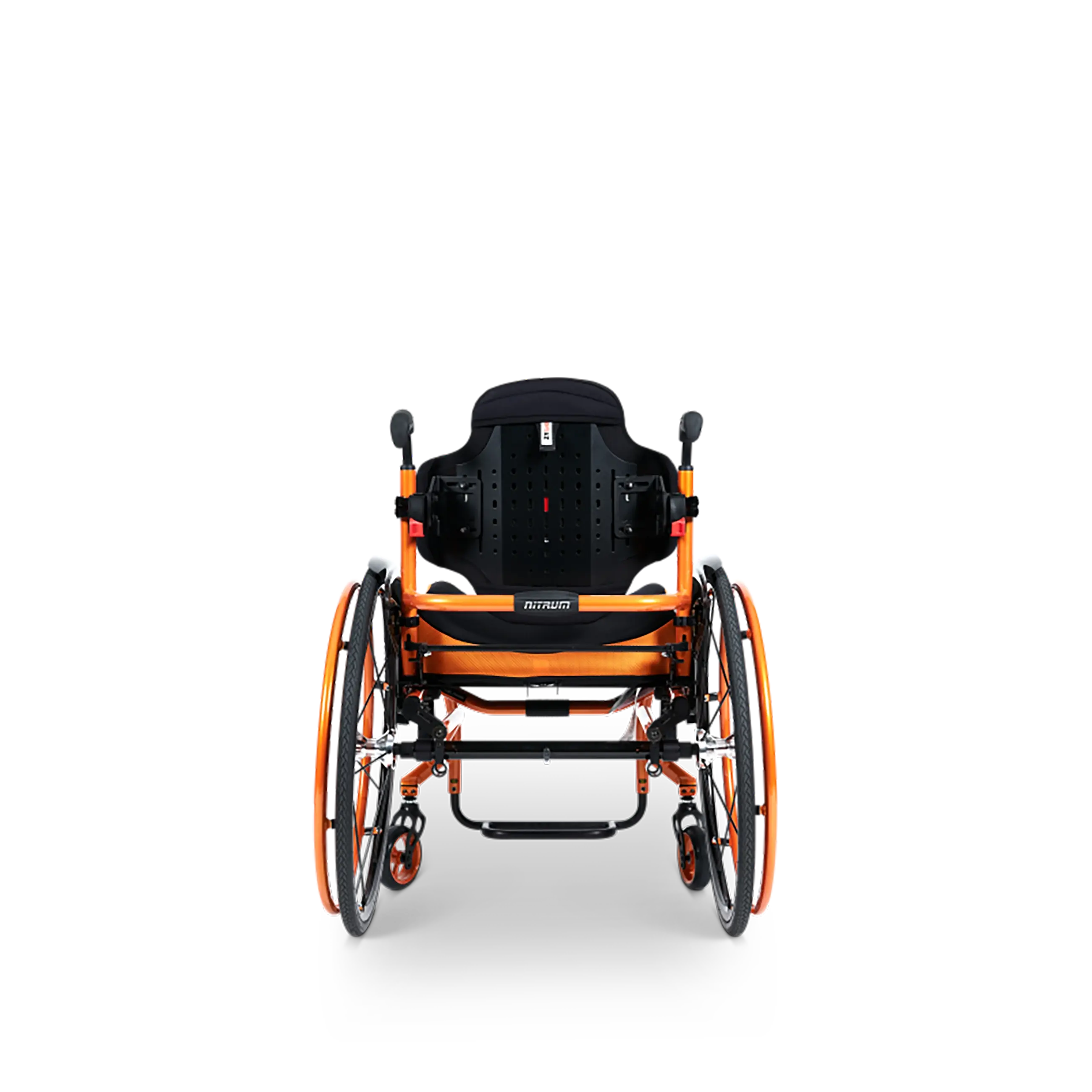

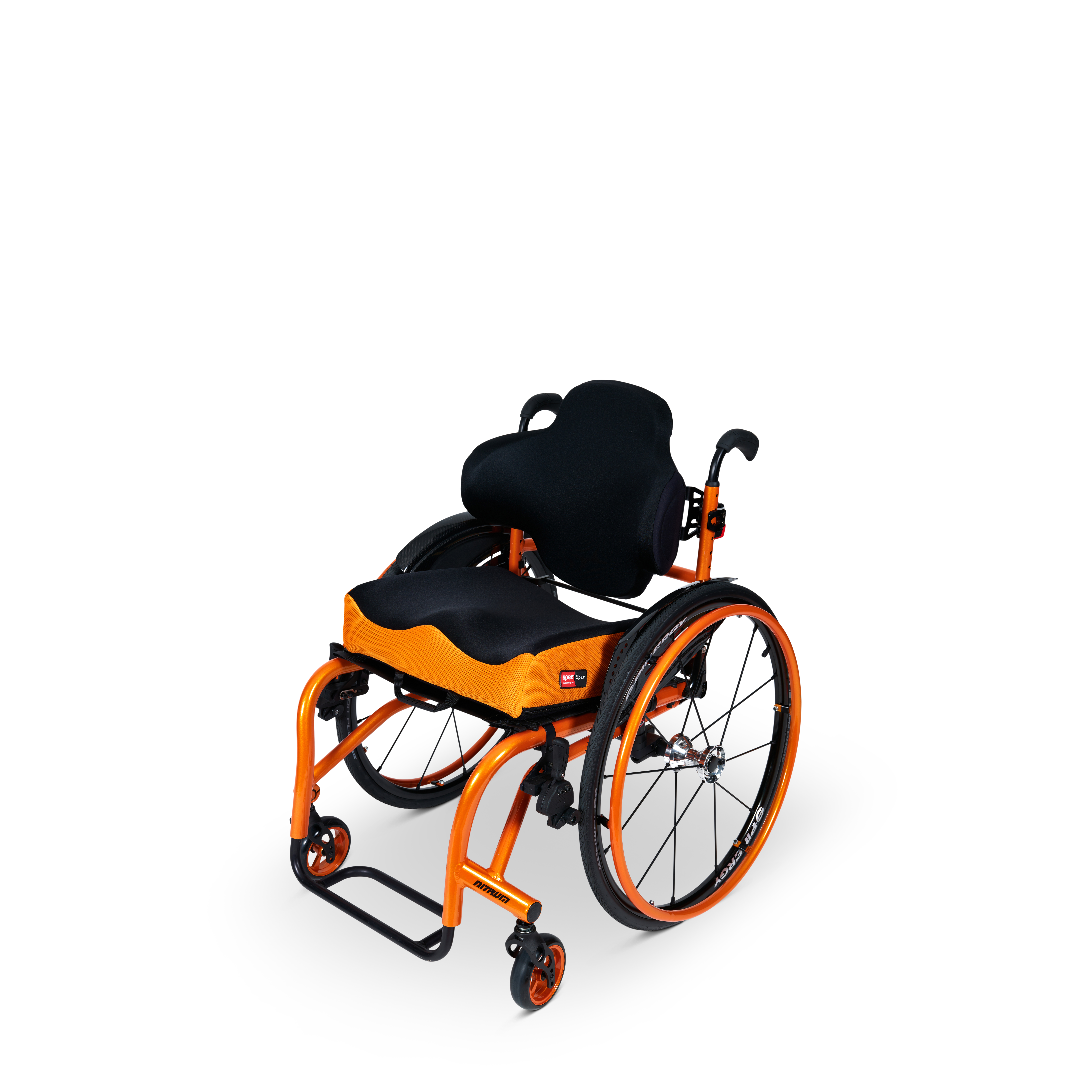

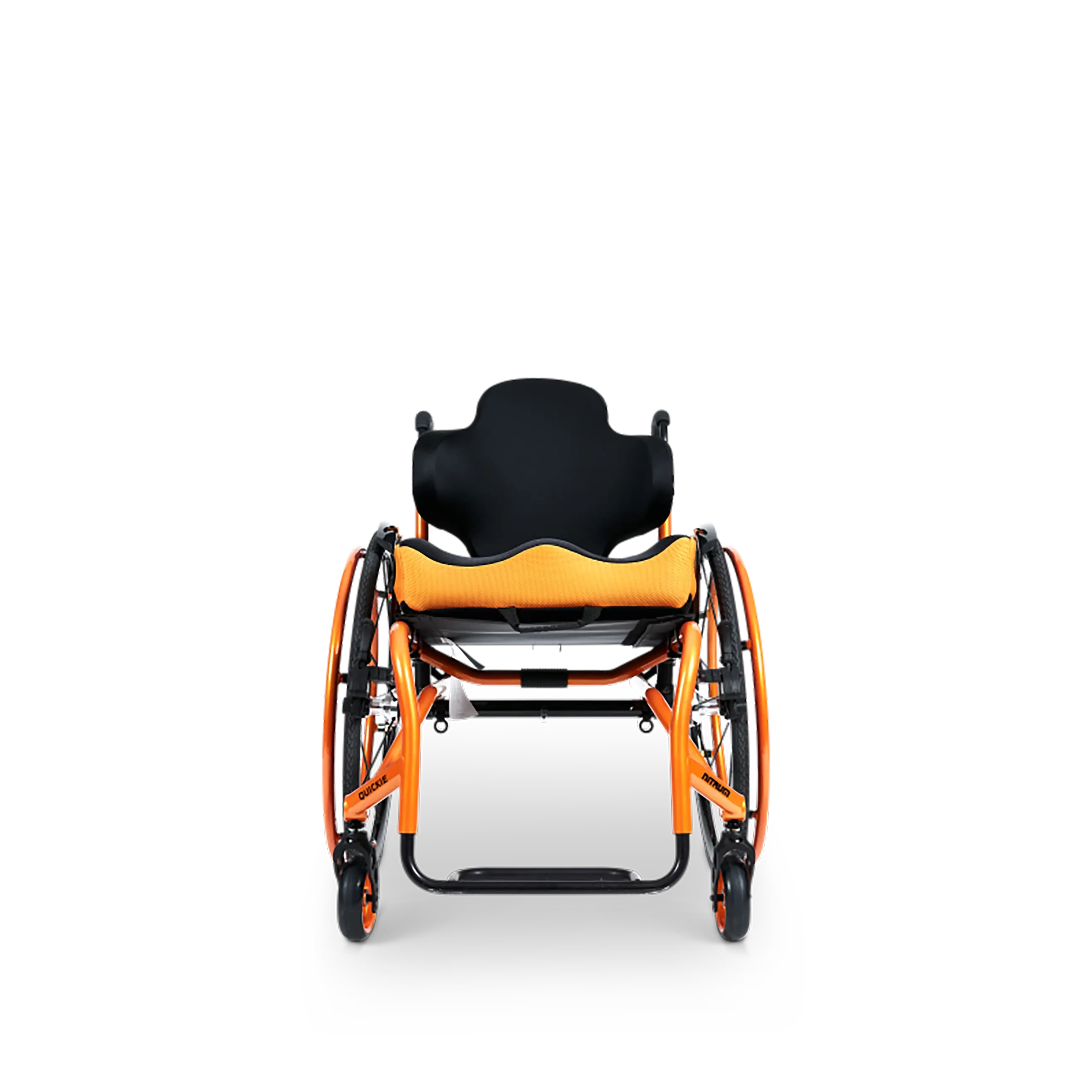

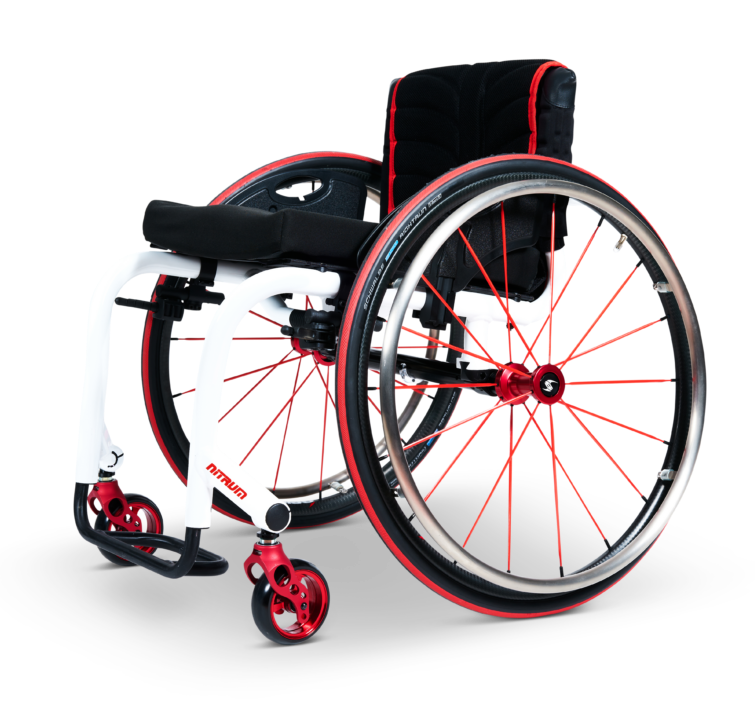

Nitrum Hybrid (Dual Tube Frame)

The Hybrid features a reinforced front frame for extra stability while maintaining a lightweight design. It supports users up to 136kg and provides a rigid, adjustable frame for a firm, stable ride.

Gallery
Functional
Benefits

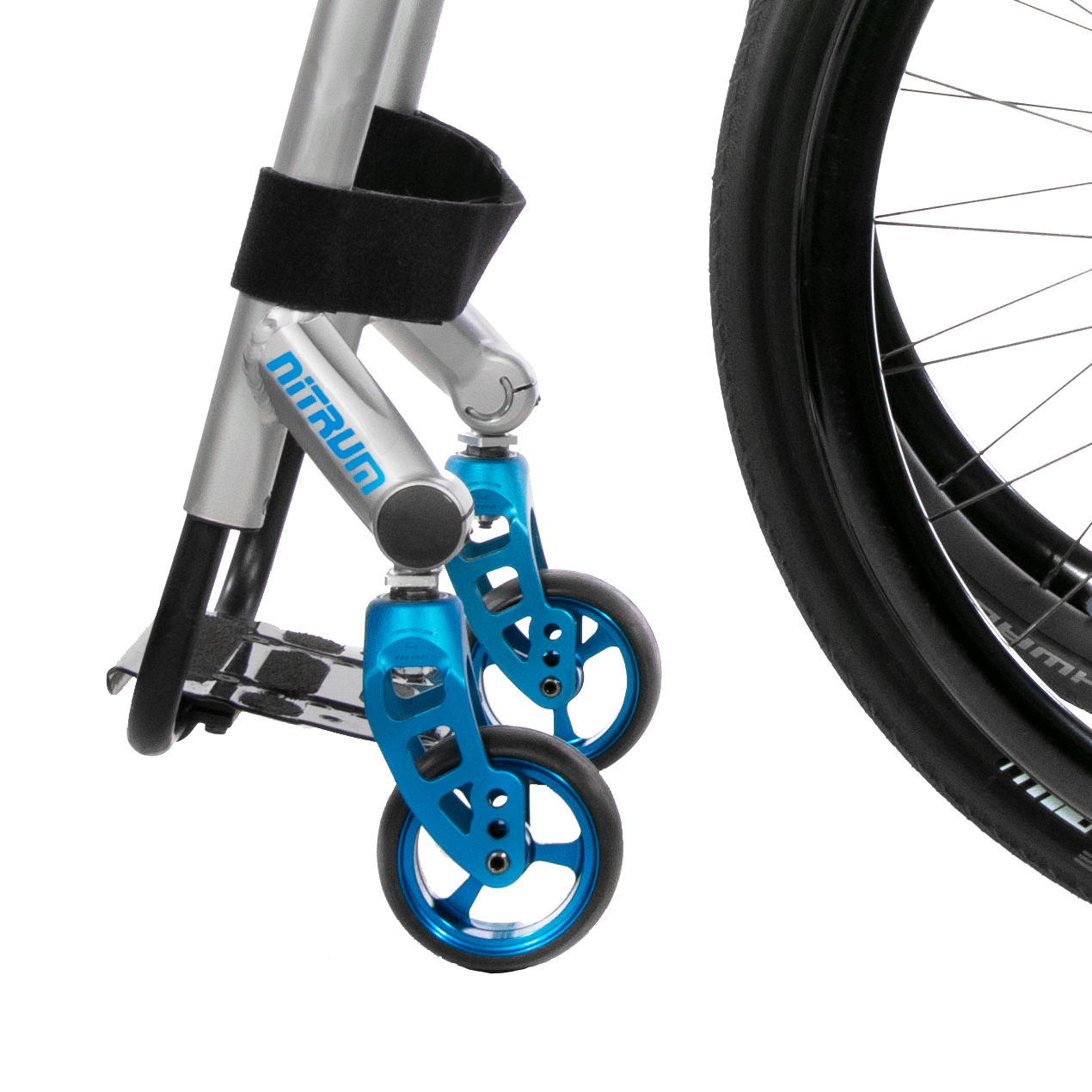

Patented, adjustable caster system
Instead of several welded parts, we use a reinforced and patented caster mechanism in a single hollow-forged component. The fewest possible elements and no moving parts give you amazing driving performance. Ultra-lightweight yet strong and durable without compromising adjustability. Caster position is optimised for handling, turning, and maximized propulsion efficiency. Casters may be positioned narrower for more maneuverability or wider for greater stability.

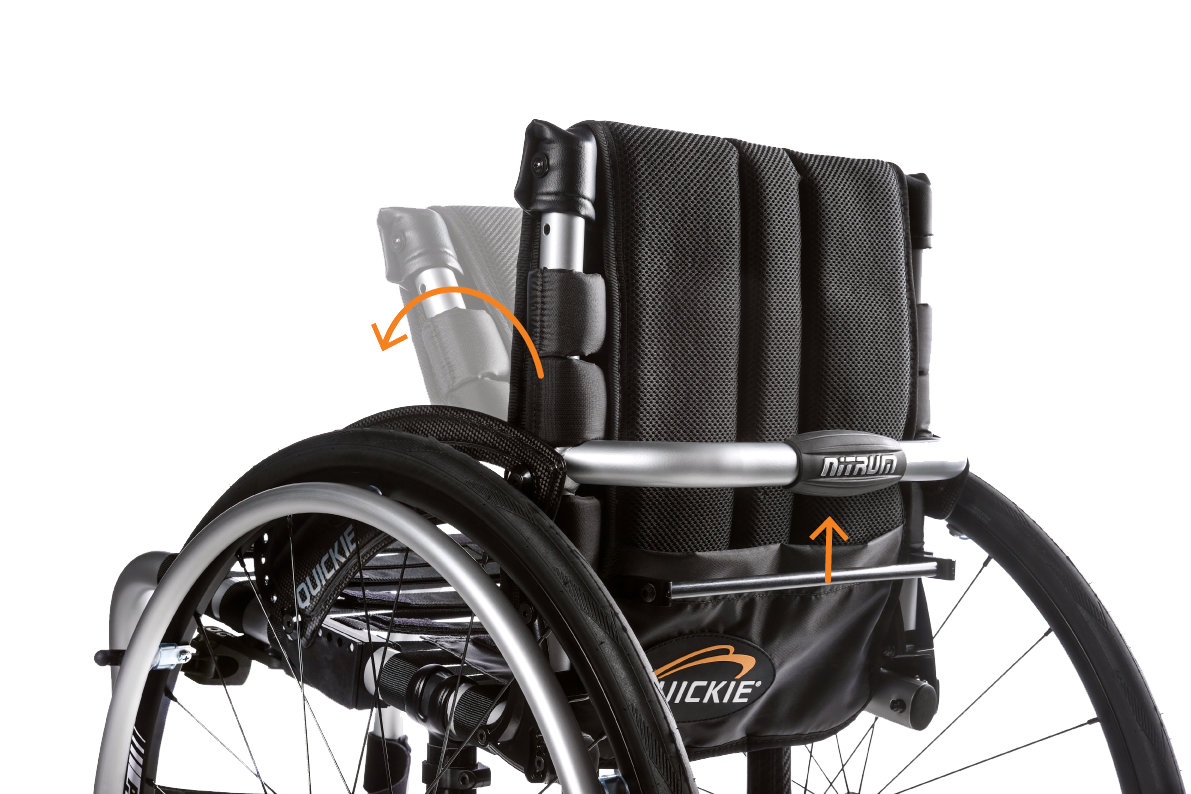

Release Bar folding mechanism (standard option)
The standard option is a release bar (push up to fold) for an ergonomic and quick release of the folding mechanism. You can also choose a lightweight version of the backrest and our proprietary, stylish Freestyle® backrest.

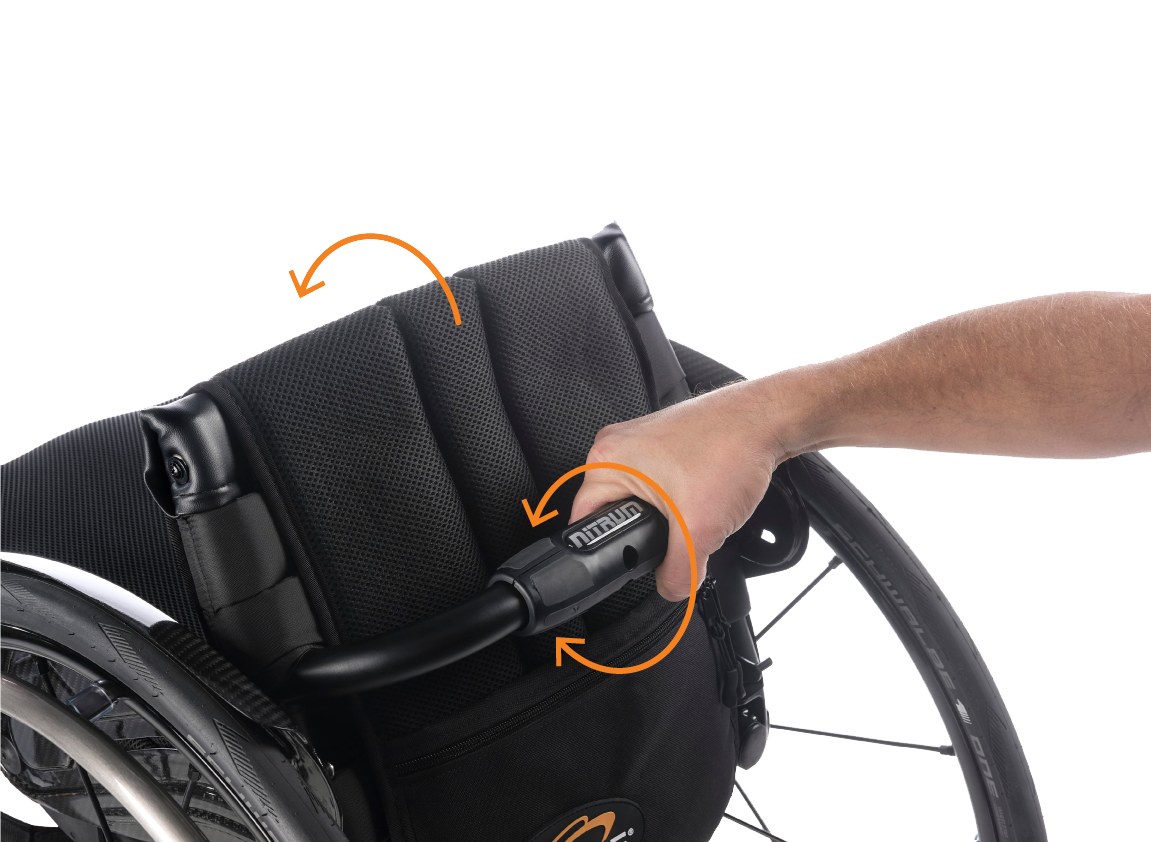

Option of a unique twist-lock folding backrest
Just grab the patented Twist-Lock bar with one hand and twist it to release, fold and load the chair into your car. With double-locking, you can use the same bar to lift it. It'll also lock without removing your sideguards or low-profile cushion.

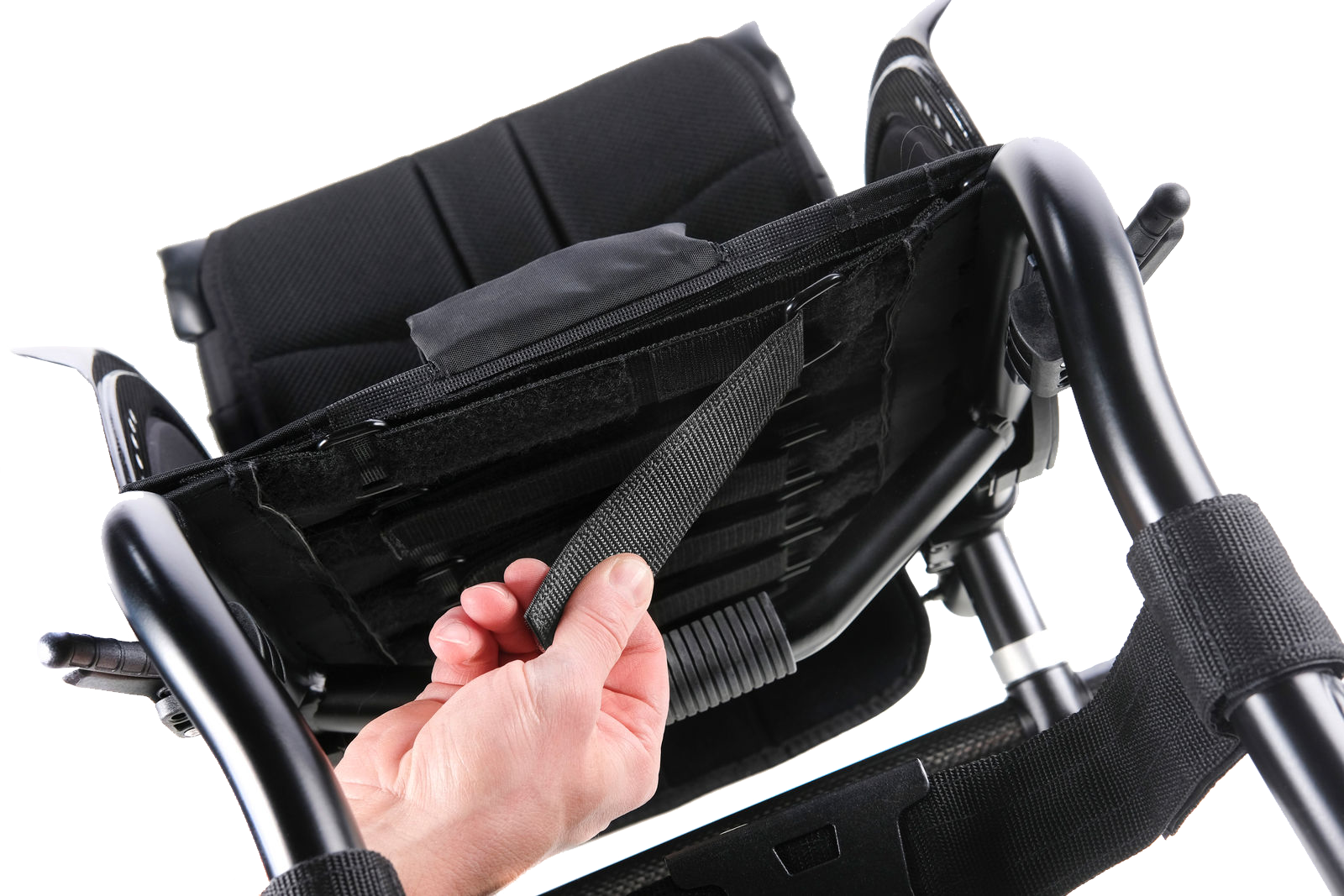

Tension-adjustable seat sling
Breathable fabric with block-and-tackle tension adjustment is easy to tighten, and its double-loop mechanisms will remain secure.

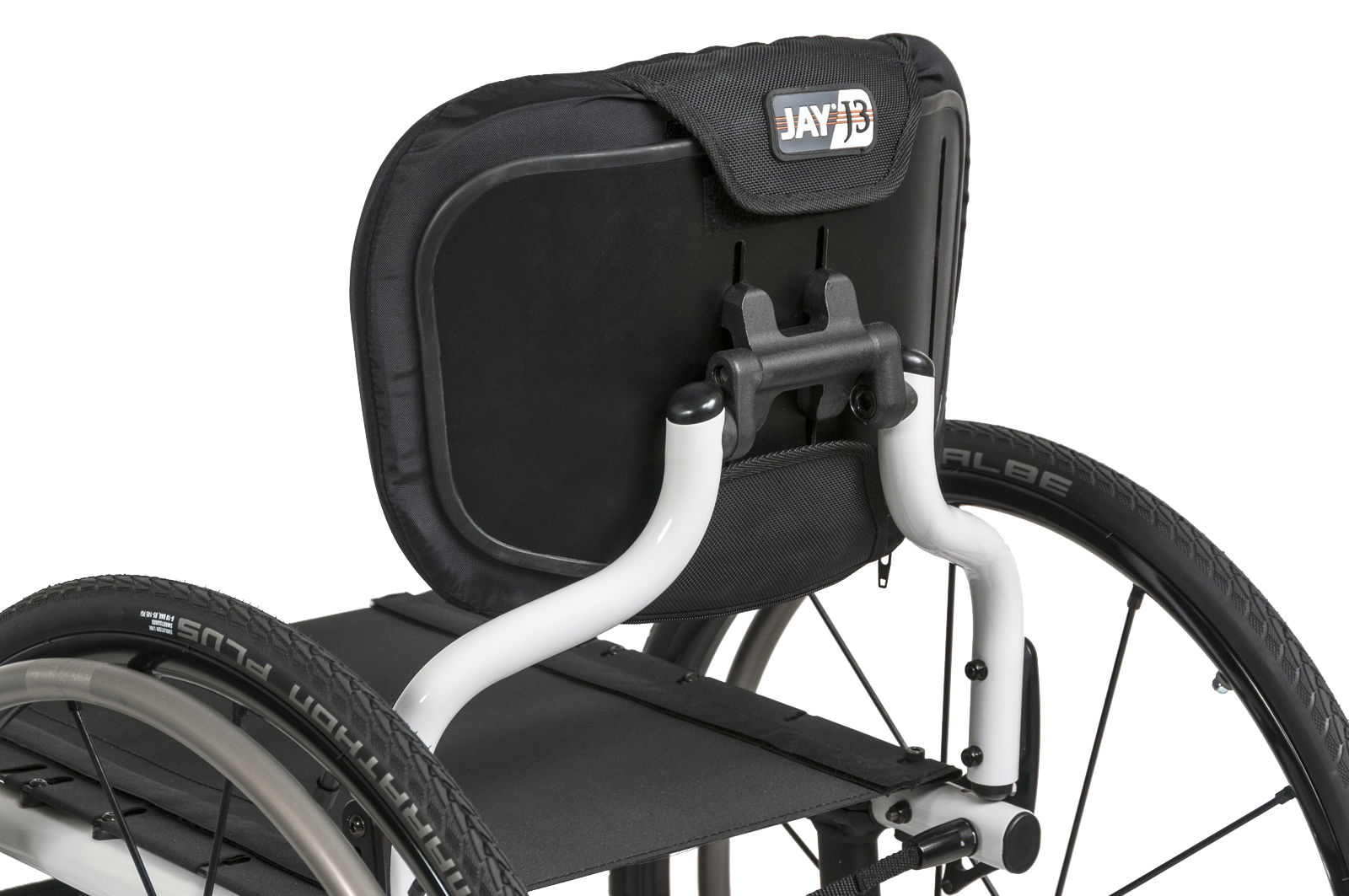

Freestyle Back
The Freestyle back is all about freedom of movement. By providing a 360° range of upper body motion, you can freely twist and turn without catching your backrest posts.

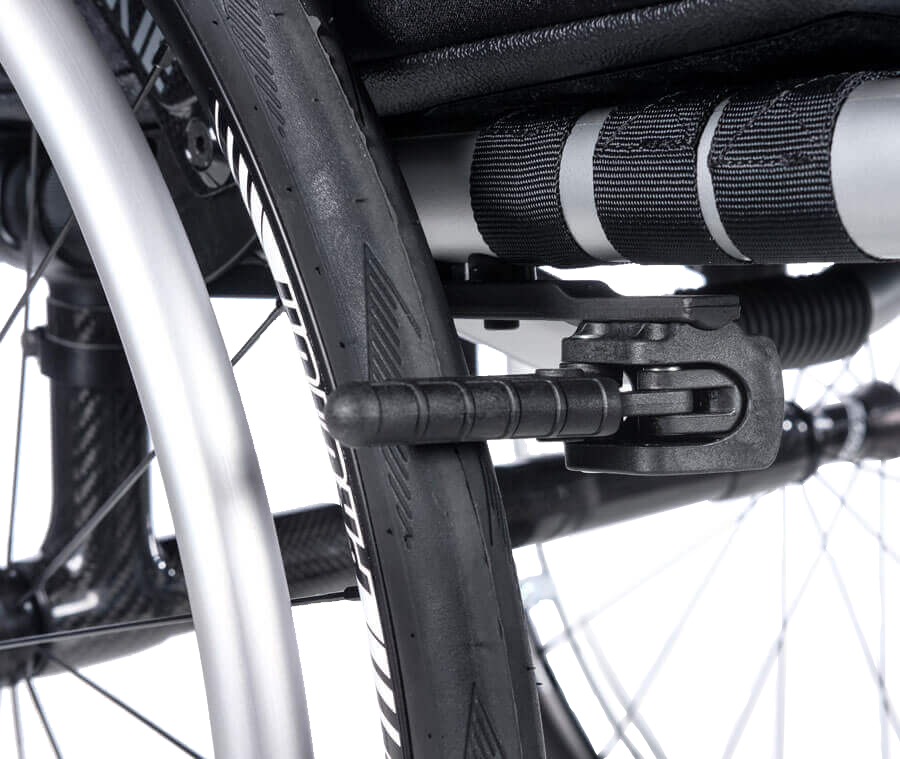

Compact wheel lock
Designed with a better wheel lock in terms of function, strength, and even weight.
Redesigned housing controls play and improves durability.
Enhanced wheel lock engagement.
Transfer-friendly design.
Available as direct mount, reducing weight an additional 6 ounces.

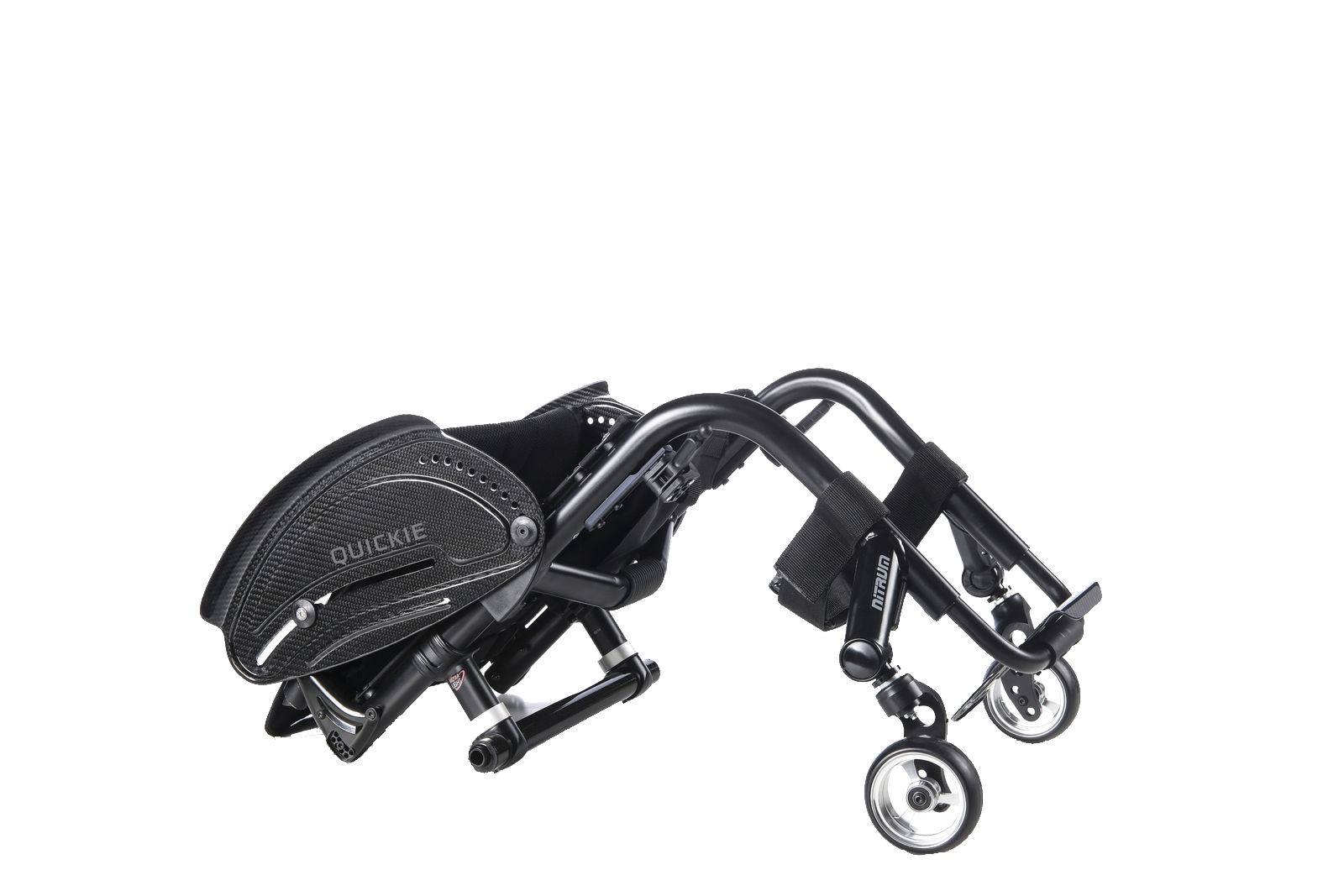

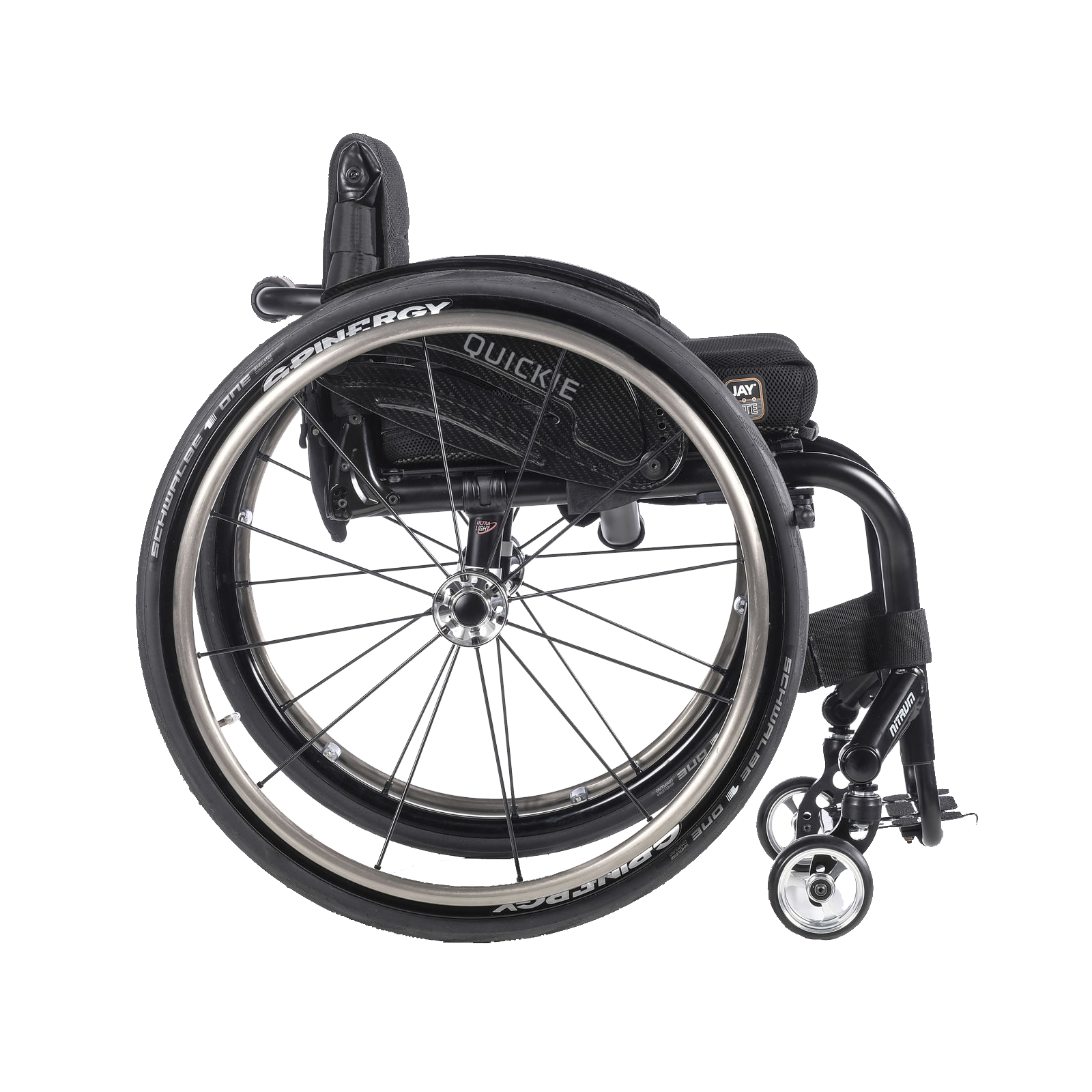

Easy transport
The QUICKIE Nitrum uses a specially processed 7020-series aerospace aluminum. Together with the new hollow forged caster link tubes, we minimize the total weight of the wheelchair. Therefore the open frame is easier to handle and transport in cars or other vehicles.
A perfect fit for every body
Body positioning is crucial for propulsion efficency. When your weight is balanced incorrectly, your wheelchair is more difficult to push. That's why the Nitrum boasts the largest range of sizes and adjustments in its class, so you can achieve your own perfect fit.
Wheel and Handrim options
SPINERGY® CLX carbon fiber wheel.
SPINERGY® SPOX / LX coloured spokes in blue, red, white, green, pink, purple, or yellow.
Stainless steel handrim.
Tab mount handrim: Standard or Narrow.
Client
Gallery
User-Inspired
Innovations



User-Inspired Innovations: The first integrated LEDs with a removable battery.

The Nitrum features integrated LEDs mounted on both caster arms to improve visibility at night. The power pack provides up to 4 hours of run time and can be detached for recharging or to reduce the overall weight of the chair.

  • Composite housing is water- and shock-resistant
  • Four LEDs per side illuminate the area around the caster wheels
  • Three modes: high, low, and blink
  • Control box is mounted on the calf strap and includes a detachable, rechargeable lithium-ion battery
Media
3D Visualizer
Quickie Nitrum
Watch video
Watch video
Resources
Quickie Nitrum Flyer 13.49 MB Comparison Chart NZ - Q-Series Powered Wheelchairs 0.58 MB Medifab Quickie Nitrum Script Form_Sunrise 1.80 MB Medifab Trial Order Form 0.07 MB Nitrum-Spare Parts Manual 33.12 MB Quickie Nitrum User Manual 2.36 MB Quickie Zippie WC-19 Transit Securement 0.61 MB Quickie Nitrum Hybrid Poster 1.88 MB NZ Wheelchair Catalogue 2025 7.52 MB
Accessories
LED Light Kit
Upholstery Trim Colours
Quickie Nitrum Anodised Caster Wheels
Five options for monochrome wheelchair frame graphics, including slashes, flowers, flames, sqaures, and a dragon.
Frame Graphics

LED Light Kit

LED Lights mounted on each caster arm allow you to see and be seen.

  • Composite housing is water and shock proof
  • Four LEDs per side light up the area around the caster wheels
  • Three Modes: high, low, and blink
  • Control box is mounted inconspicuously on the calf strap and includes a detachable/rechargeable Li-Ion battery
  • Four hours of run time

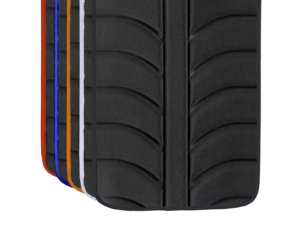

Upholstery Trim Colours

Express your style with coloured upholstery trim, 5 different options.

Anodised Caster Wheels

Express your style with coloured anodized caster wheels and fork options.

Frame Graphics

Express your style with a variety of frame graphics.

Specifications
Quickie Nitrum
Quickie Nitrum Hybrid
Colour Options
Frame material 7020 Oval Aluminium
Seat width 12″ to 20″
Seat depth 12″ to 20″
Frame angles 75°, 80°, 85°
Seat height front 16″ to 21″
Seat height rear 13″ to 20″
Height adjustable 10″ to 20″
Back support height (fixed) 8″ to 19″ (20.3 to 48.3 cm)
Back support angle adjustment -8° to 27°
Center of gravity (COG) 0° to 4°
Chair weight 8.3kg
Transport weight 4.9kg
Weight capacity 125kg
Transit Yes *
Frame material 7020 Oval Aluminum
Seat width 12″ to 20″
Seat depth 12″ to 20″
Frame angles 75°, 80°, 85°
Seat height front 16″ to 21″
Seat height rear 13″ to 20″
Height Adjustable: 10″ to 20″
Back support height (fixed) 8″ to 19″ (20.3 to 48.3cm)
Back support angle adjustment -8° to 27°
Center of gravity (COG) 0° to 4°
Chair weight 9.2kg
Transport weight 5.8kg
Weight capacity 136kg
Transit Yes*

FAQ
Q

Can the backrest height be adjusted?

A

Yes, by raising and lowering the push handles in the rear side frame or back frame one can adjust the back height.
