JAY Ion

Wheelchair Cushion

Comfortable, convenient and quality skin protection and positioning

The JAY Ion is a multi-layer foam cushion which provides comfort and minimal positioning to users who are uncomfortable in their chair and have a low pressure risk.

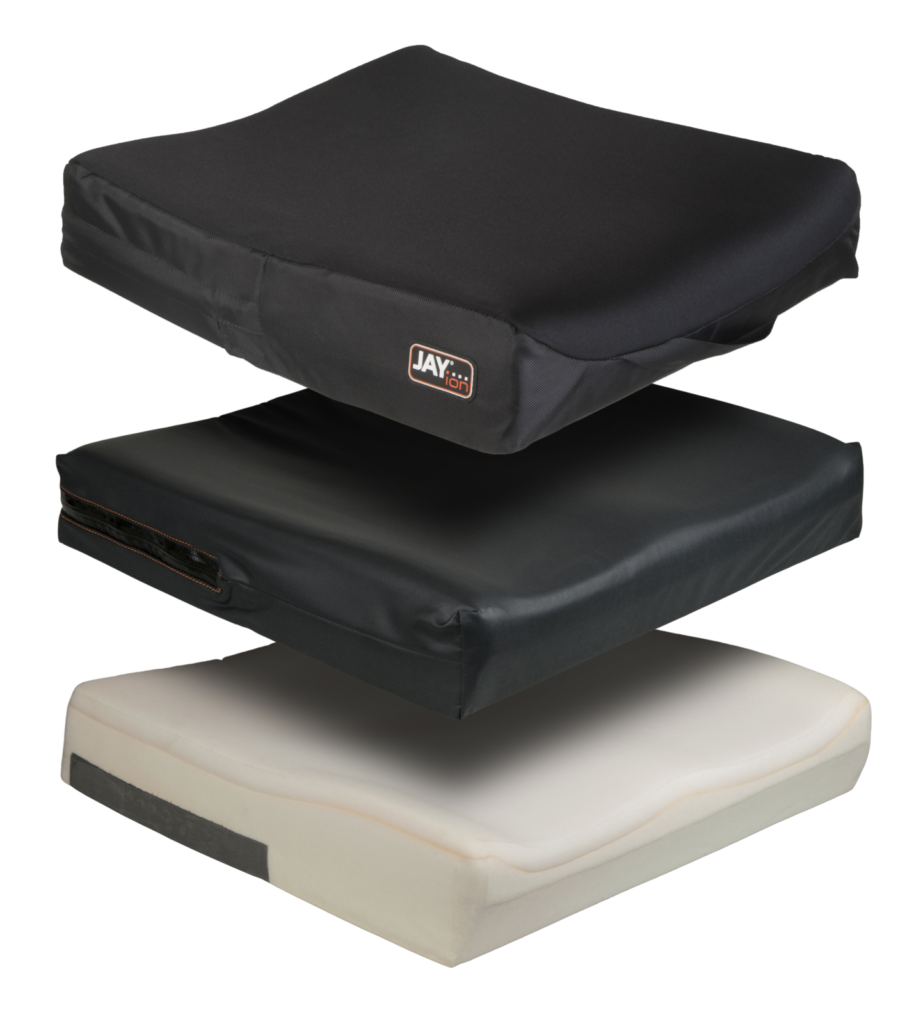

The Ion has multi-layer foam with a Soft Visco memory foam top layer. For convenience and protection, the JAY Ion features a dual-cover system. The water-resistant inner cover assists with incontinence and moisture management, is easy to clean and includes anti-wicking seam thread and Aqua-guard zipper for foam protection.

The machine-washable, stretch outer cover utilizes naturally anti-microbial, silver-impregnated X-static® fiber which help to minimise bacteria buildup (and thus minimise odour). A layer of 3DX spacer fabric promotes airflow for additional skin protection. This cover also helps to reduce shear.

Gallery

Functional

Benefits

Dual-Layered Foam Base with Varying Firmness

The Ion wheelchair seat cushion features a dual-layered foam base for a combination of structural support and comfort. For optimized immersion for each individual, the foam's firmness is determined by the cushion width, which directly corresponds with client weight.

Visco™ Memory Foam Top Layer

The top layer of soft, Visco memory foam featured in this wheelchair cushion conforms to each individual and distributes weight over a larger area for pressure reduction and maximum comfort.

Innovative, Dual-Cover System

For convenience and protection, the JAY Ion features a dual-cover system. The inner cover is water-resistant and easy to wipe off and clean, while its Aqua-guard zipper and anti-wicking thread protect the foam base from fluids. The machine-washable, stretch outer cover reduces surface tension and utilises naturally anti-microbial, silver-impregnated X-static® fibre. A layer of 3DX spacer fabric promotes airflow and dissipates heat and moisture for additional skin protection.

Foam combination for Optimum Results

The Ion features multiple foam layers including Support Foam, Soft Foam, Super Soft Memory Foam and Air Movement Foam

Discomfort Level

Ideal for a user who requires a comfortable cushion to sit on for short periods of time. User will still need to be able to perform weight shifts in the chair.

Common Client Characteristics

May be at moderate risk of skin breakdown
May be able to perform independent weight shifts
May have moderate positioning needs
May be in a wheelchair for extended periods of time

Resources

JAY Ion Brochure 0.63 MB JAY Ion Cushion Technical Specifications 0.05 MB JAY Ion User Manual 0.29 MB

Accessories

Ion Cushion Additional Outer Cover

Ion Cushion Additional Inner Cover

Ion Cushion Additional Outer Cover

The JAY Ion outer cover is designed to promote comfort, convenience and breathability by the use of “X-Static” material and 3DX Spacer Fabric.

Air	1713-21-CJFUSIONxxxxA
Fluid	1713-20-CJFUSIONxxxx

‘x’ represents dimensions

Ion Cushion Additional Inner Cover

The water resistant inner cover, combined with the Aquaguard™ Zipper and anti wicking thread provides the ultimate protection against odour.

Product Code: 1713-31-ICJFUSIONxxxx

Specifications

Measurements

Jay Ion Size Matrix

Warranty

Width	14″ – 24″
Depth	14″ – 24″
Height	4″
Max. User Weight	136 kg: 14″ -21″ wide 227 kg: 22″ – 24″ wide
Max. Product Weight	1.5 kg (based on 18″ x 18″ size)
Cover Type	X-Static® with Ballistic Nylon
Time Spent in Chair	Short periods. Usually <3 hours at a time.
Postural Support	Minimal
Waterlow Score	<15

WIDTH
DEPTH		14″	15	16″	17″	18″	19″	20″	21″	22″	23″	24″
	14″	1705-01-JION1414	–	1705-01-JION1614	–	–	N/A	N/A	N/A	N/A	N/A	N/A
	15″	–	–	–	–	–	–	–	N/A	N/A	N/A	N/A
	16″	1705-01-JION1416	–	1705-01-JION1616	–	1705-01-JION1816	–	–	N/A	N/A	N/A	N/A
	17″	–	–	–	–	–	–	–	–	–	N/A	N/A
	18″	1705-01-JION1418	–	1705-01-JION1618	–	1705-01-JION1818	–	1705-01-JION2018	–	1705-01-JION2218	N/A	N/A
	19″	N/A	–	–	–	–	–	–	–	–	–	–
	20″	N/A	–	1705-01-JION1620	–	1705-01-JION1820	–	1705-01-JION2020	–	1705-01-JION2220	–	1705-01-JION2420
	21″	N/A	–	–	–	–	–	–	–	–	–	–
	22″	N/A	N/A	–	–	–	–	1705-01-JION2022	–	1705-01-JION2222	1705-01-JION2322	1705-01-JION2422
	23″	N/A	N/A	N/A	–	–	–	–	–	1705-01-JION2223	1705-01-JION2323	–
	24″	N/A	N/A	N/A	N/A	–	–	–	–	1705-01-JION2224	–	1705-01-JION2424

Size Guide:

Code	Enable NZ List Cushion
–	Size available to Indent Order
N/A	Size Not Available

Every JAY Ion cushion base is guaranteed to be free from defects in materials and workmanship for a period of 24 months from the date of purchase, provided normal use.

The removable outer and inner covers are guaranteed to be free from defects in materials and workmanship for a period of six (6) months from the date of purchase, provided normal use.

For full warranty details refer User Manual.

Click here for more Technical Specifications
