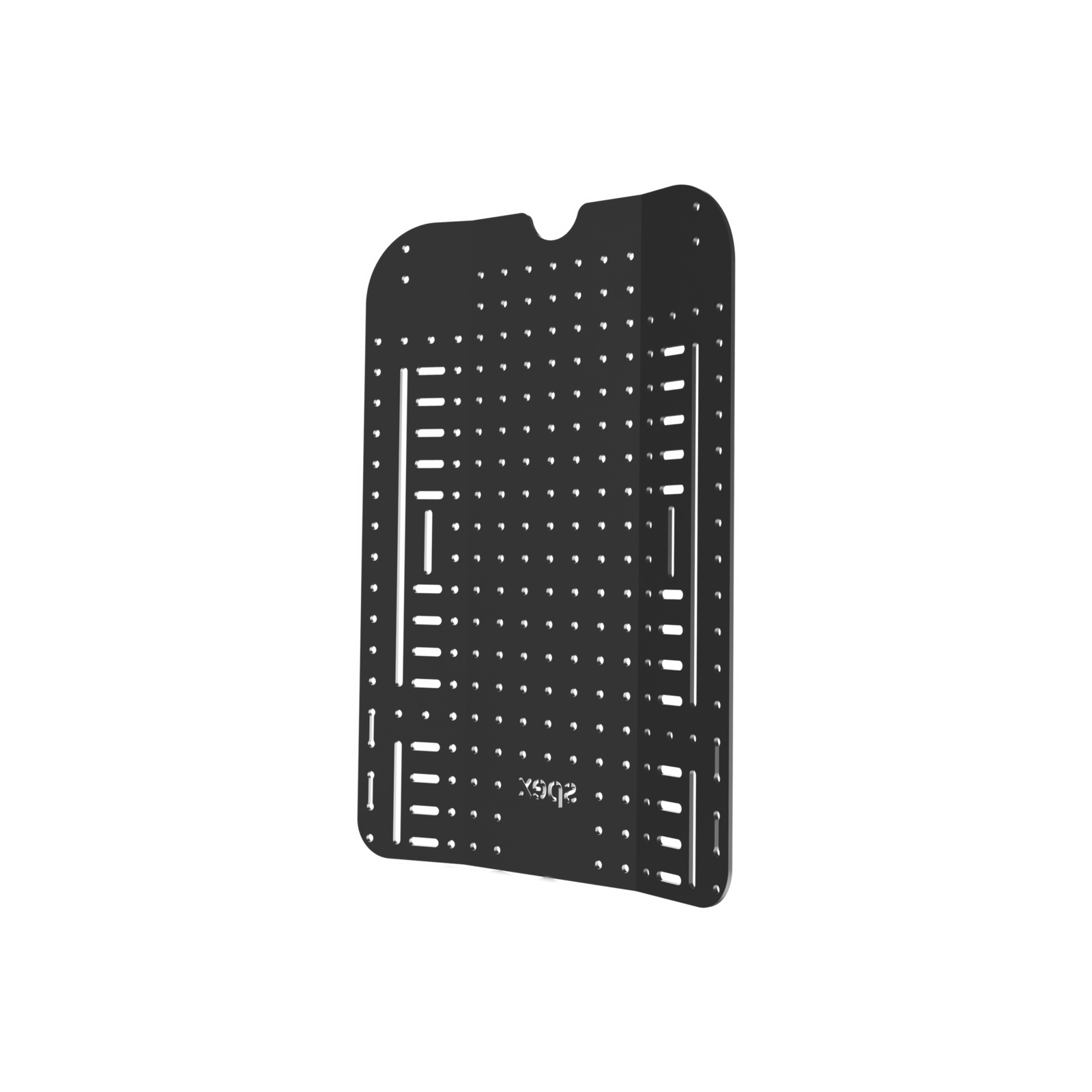

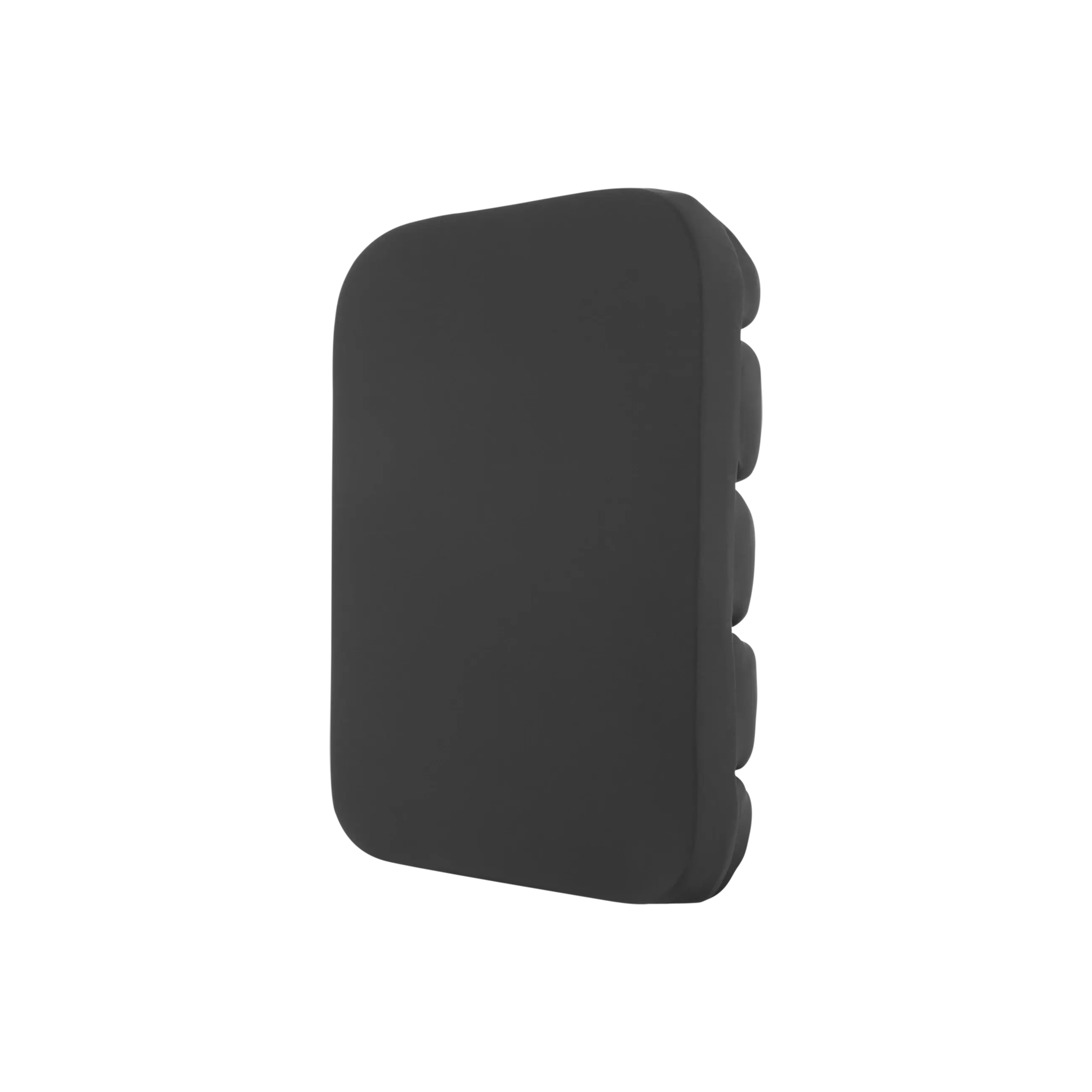

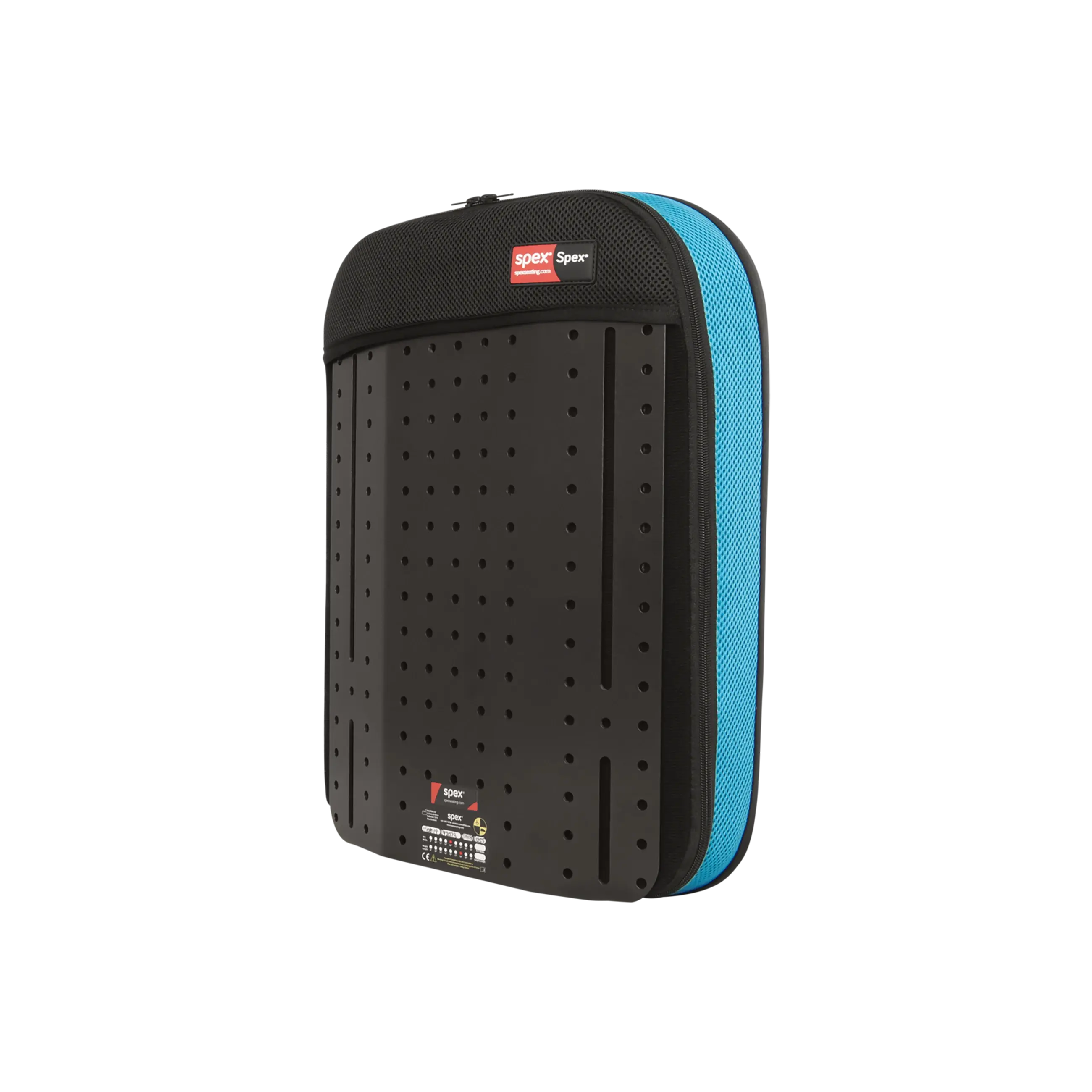

Easily solve upper torso needs for most wheelchair users with the Spex Classic.
The Spex Classic back support incorporates the popular Spex Contouring Cube System to allow on-the-spot customisations for torso comfort & asymmetry needs.
- Effortless customisations
- On-the-spot adaptions for changing postural needs
- Instant results
- Cubes can be removed and added at any time
- Contouring doesn’t move or slip out of adjustment
- Additional contouring support wedges can be used to further enhance the degree of contouring
Designed for the individual who:
- Requires a comfortable back support to reduce torso pain
- Requires spinal alignment and support
- Has skin breakdown/pressure care needs
- Has bony or protruding skeletal prominences
- Have changing postural needs
- Pertains a maladaptive or asymmetric posture
| For Mild Bony Prominences | For Immersion | For Asymmetry |
|---|---|---|
 |
 |
 |
|

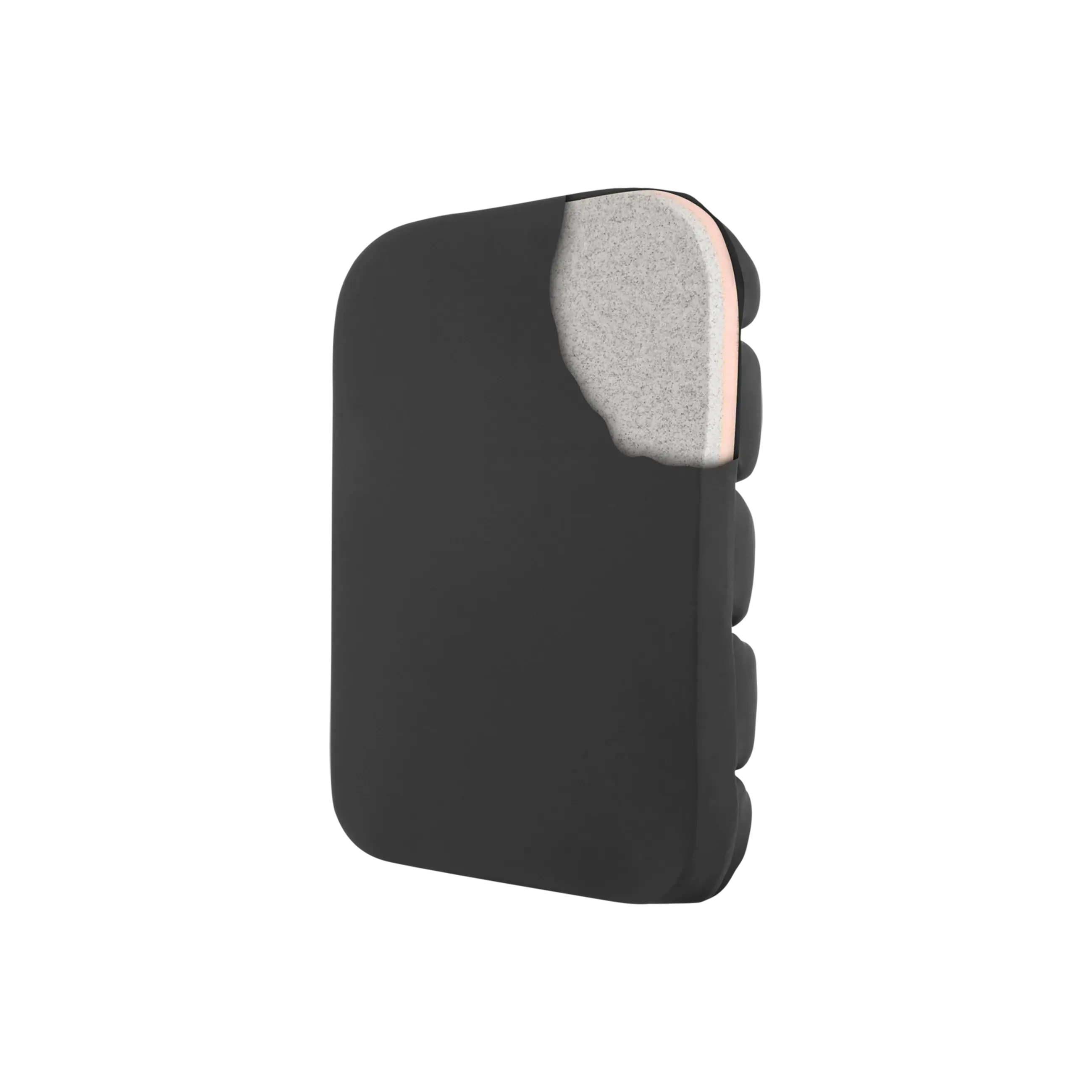

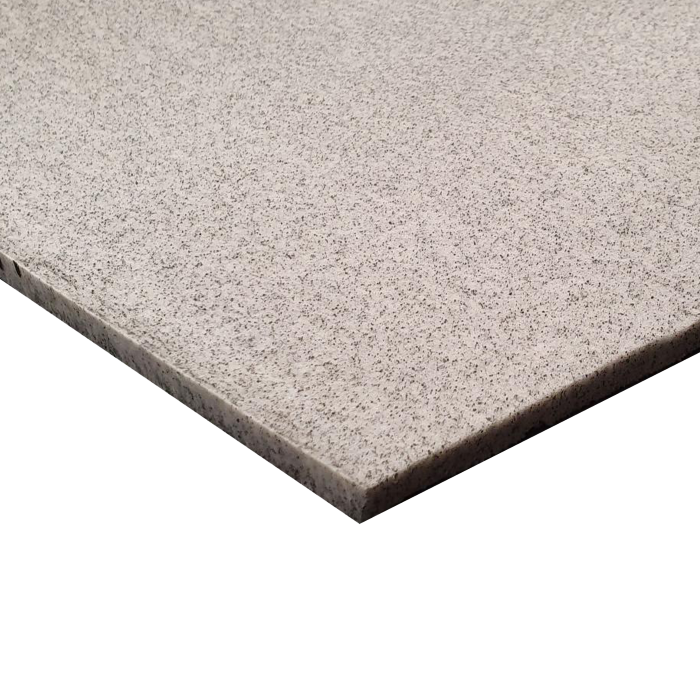

Without even adjusting the cube system, the Spex back support has slight contouring and integrates a comfortable pressure reducing foam surface layer to absorb mild bony prominences and asymmetries for uniform torso contact. |
For individuals that require immersion into the back support, simply adjust the cube contouring cell system to configure for a perfect fit and shape for the user’s back. | For asymmetrical or maladaptive postures, the contour can be arranged to provide the matching shape required to support the user’s torso profile. |

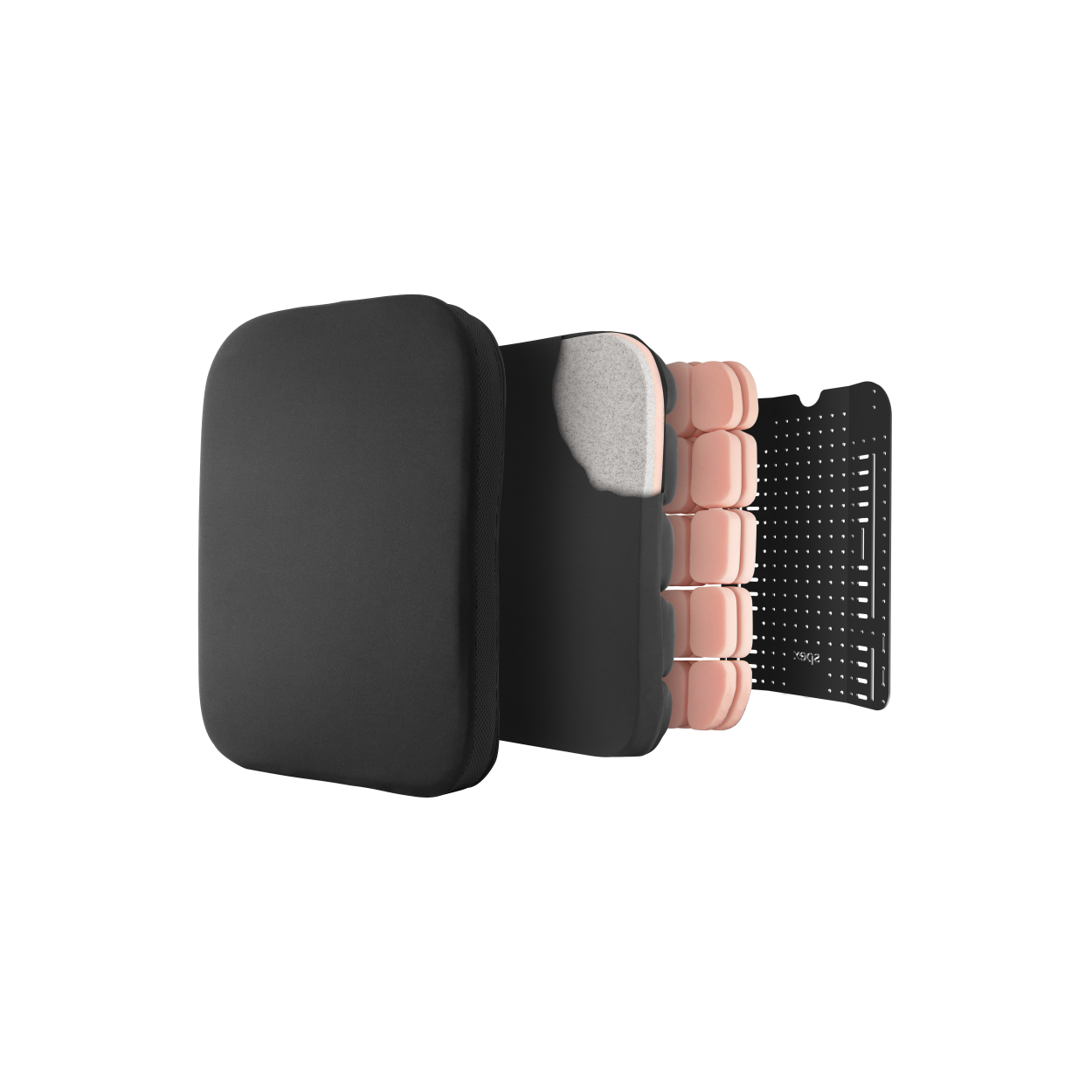

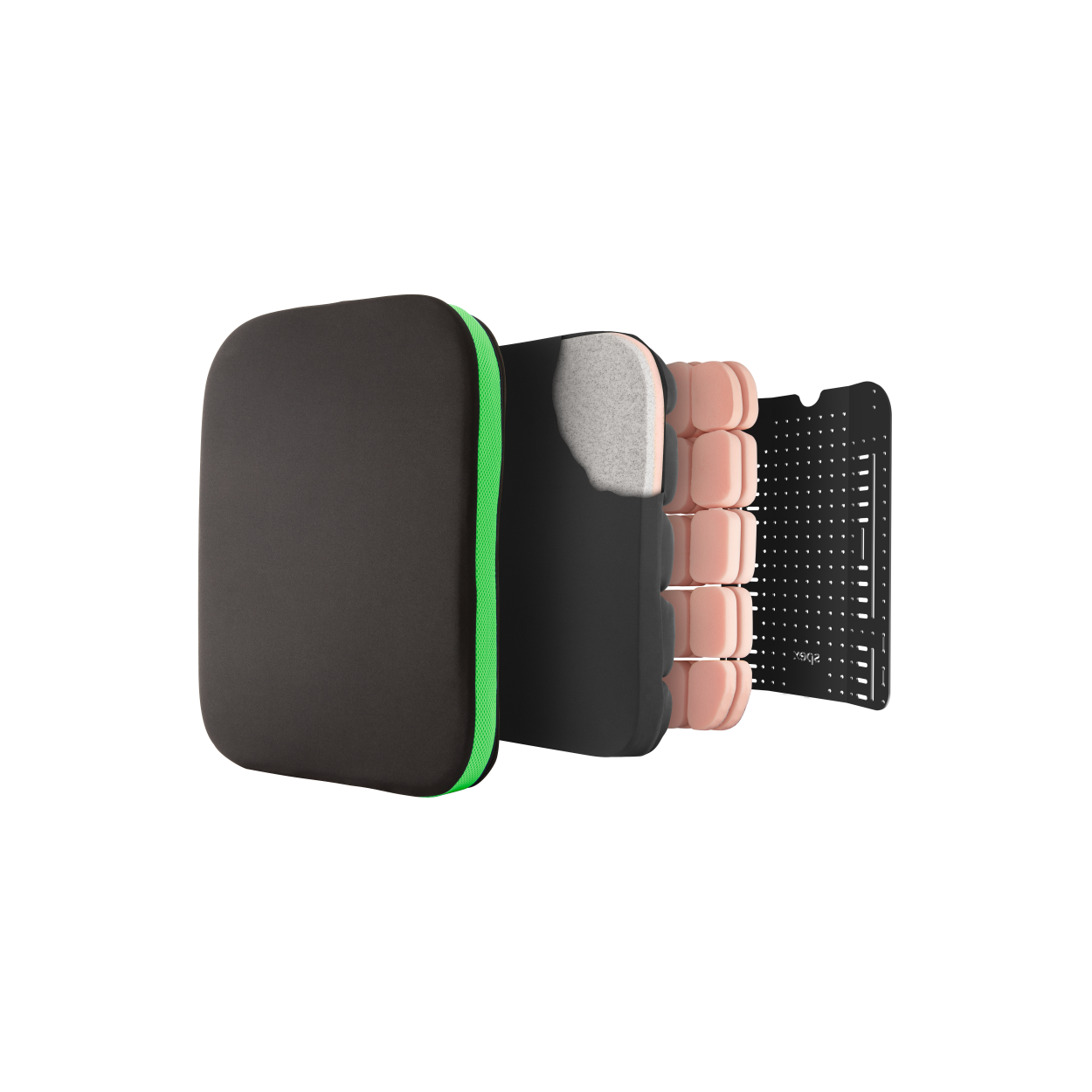

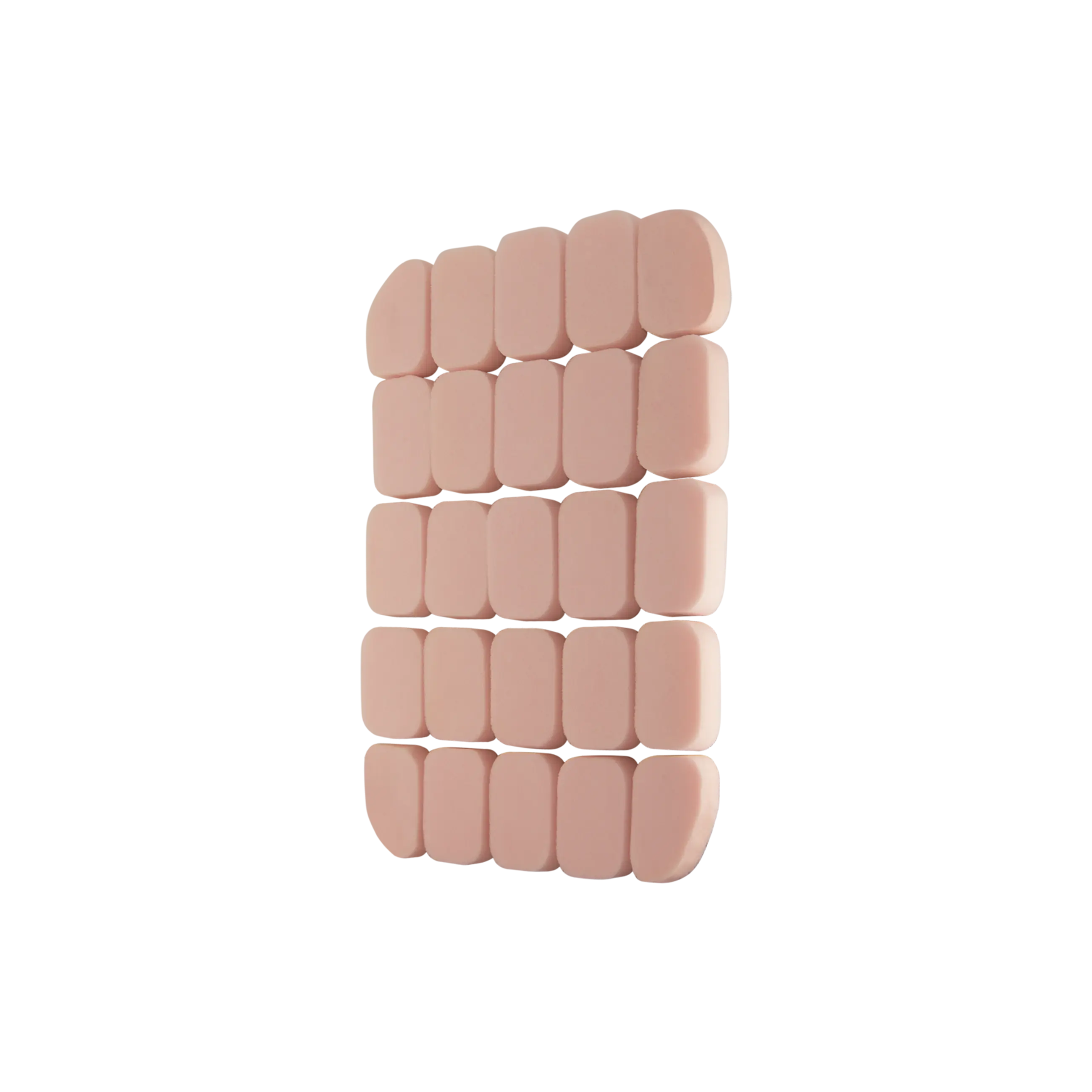

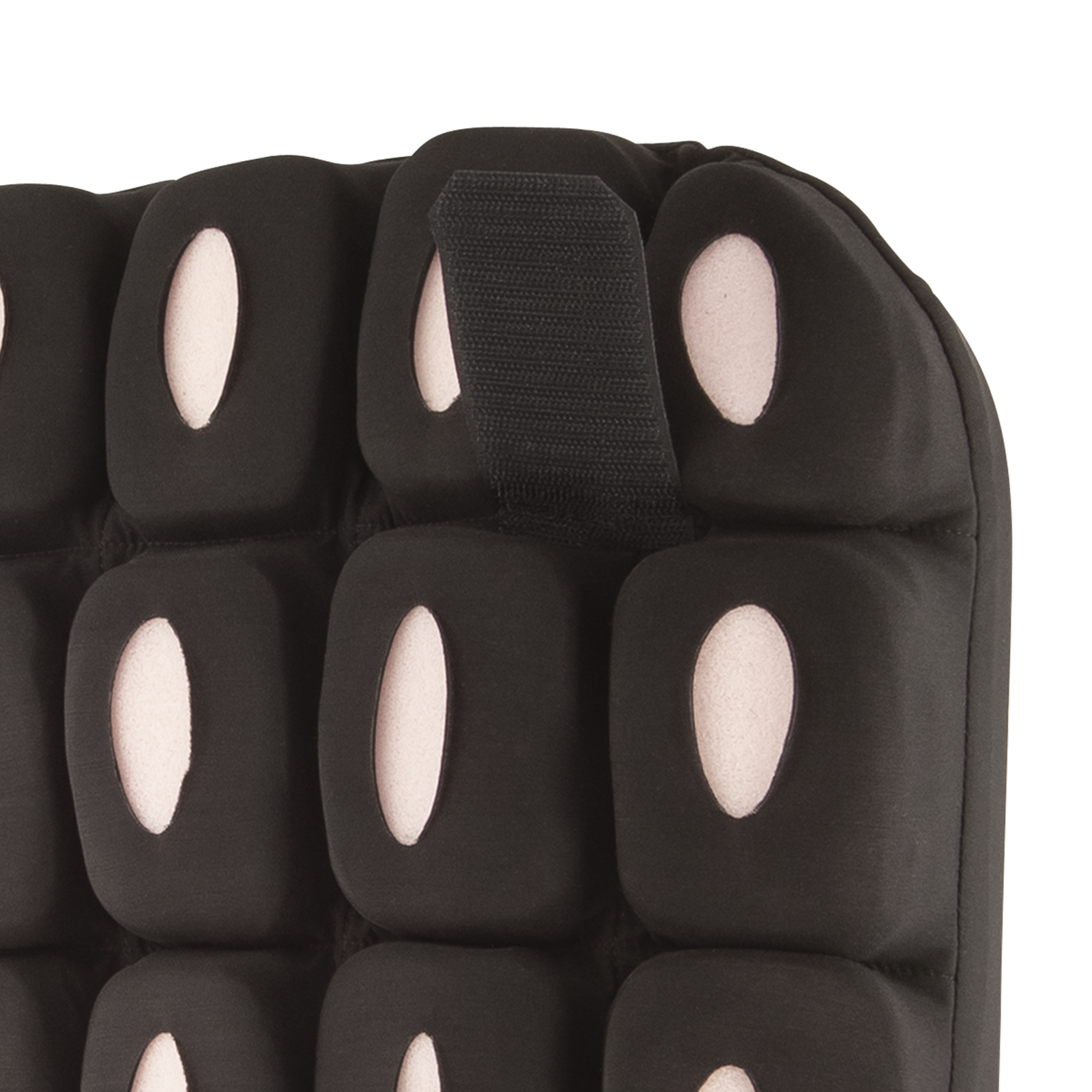

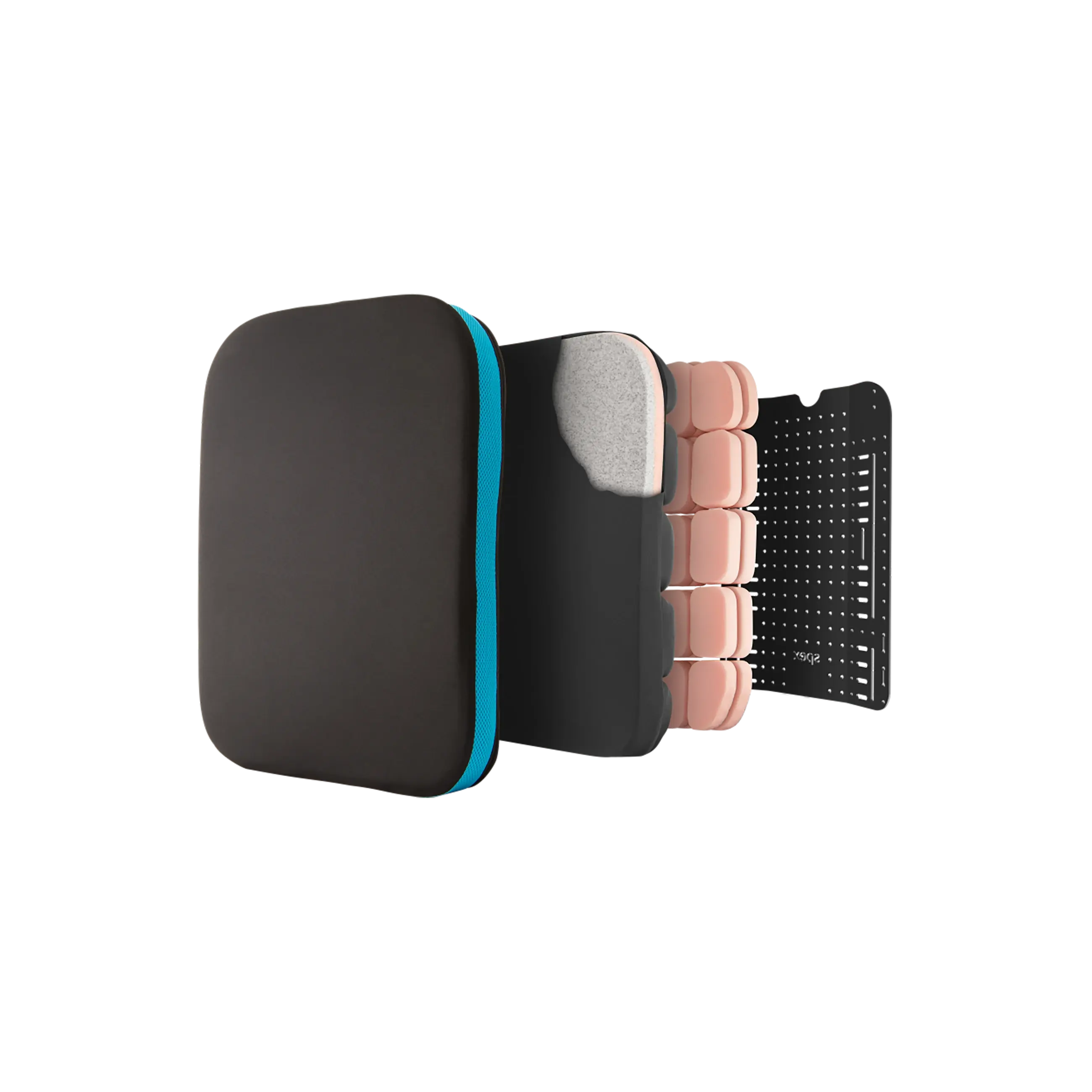

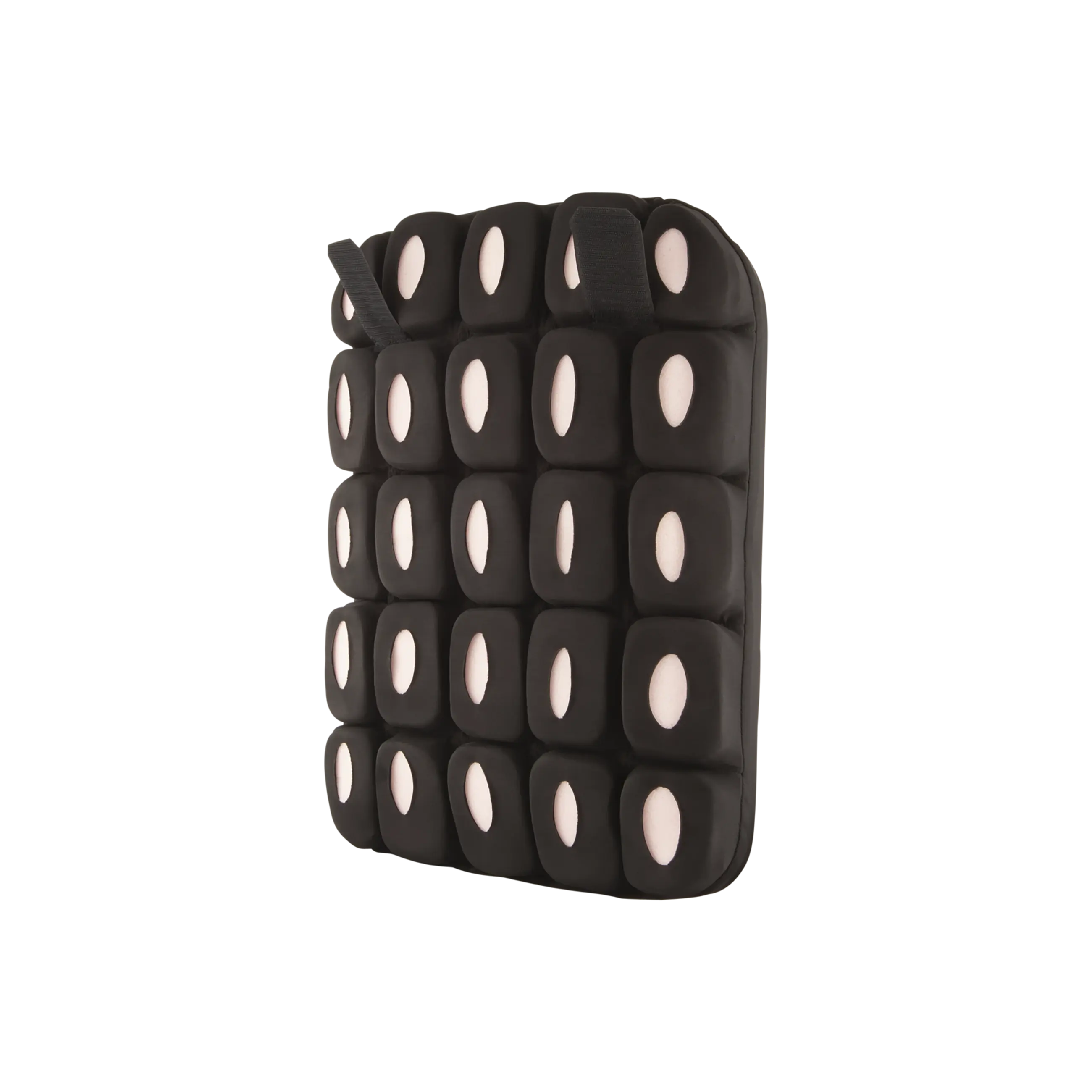

A special feature of the Spex back support is the adjustable contouring-cell cube system which incorporates into the upholstery unit of the backrest. Easy configurations are performed for asymmetrical trunk postures without the need for complicated custom/bespoke seating.

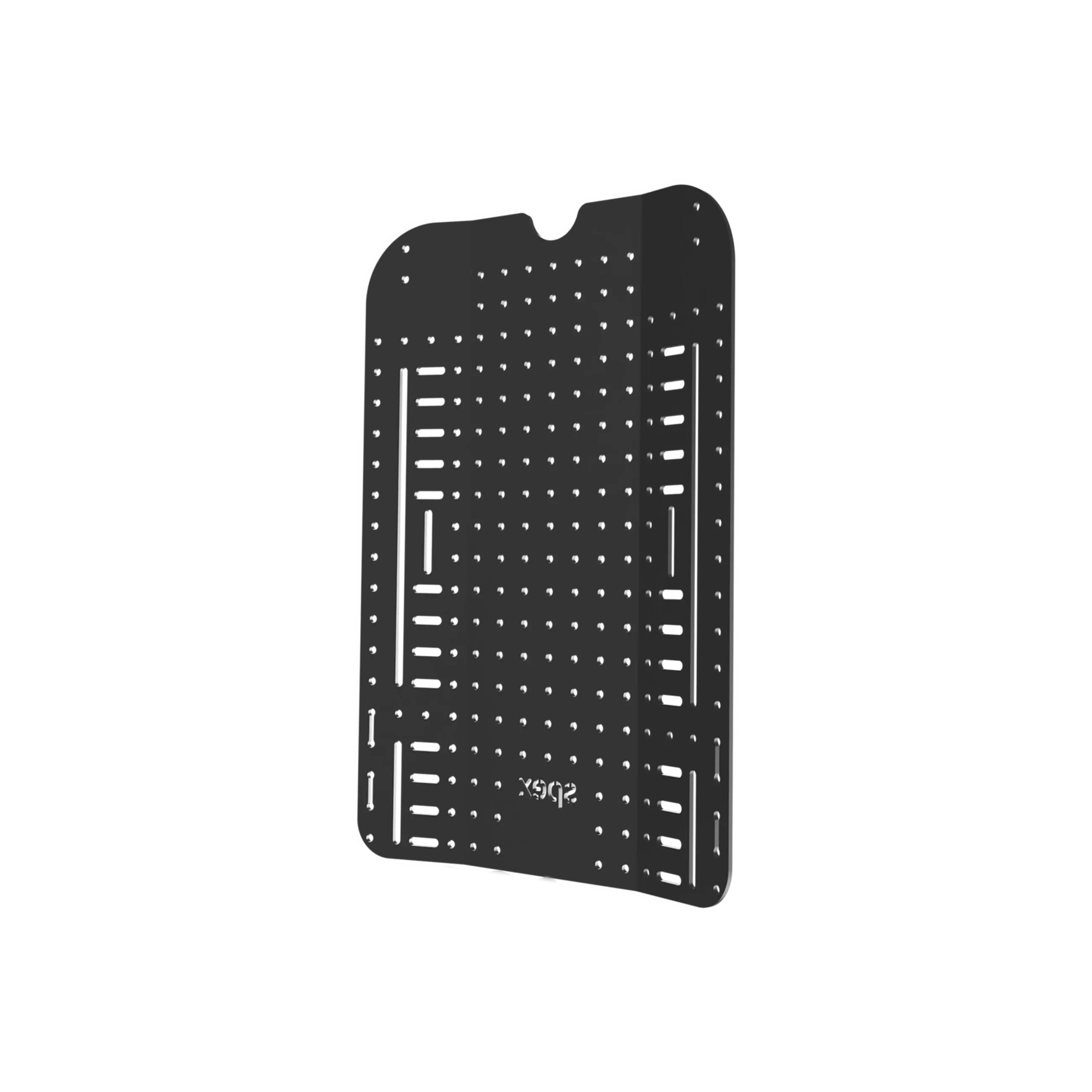

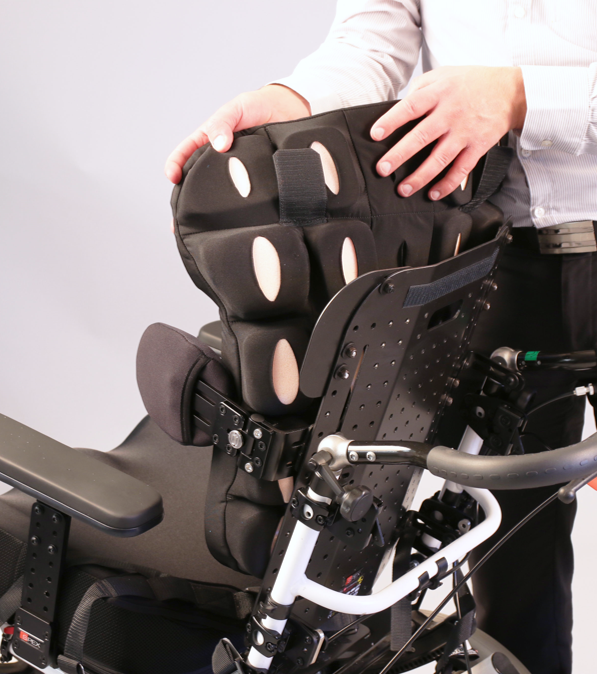

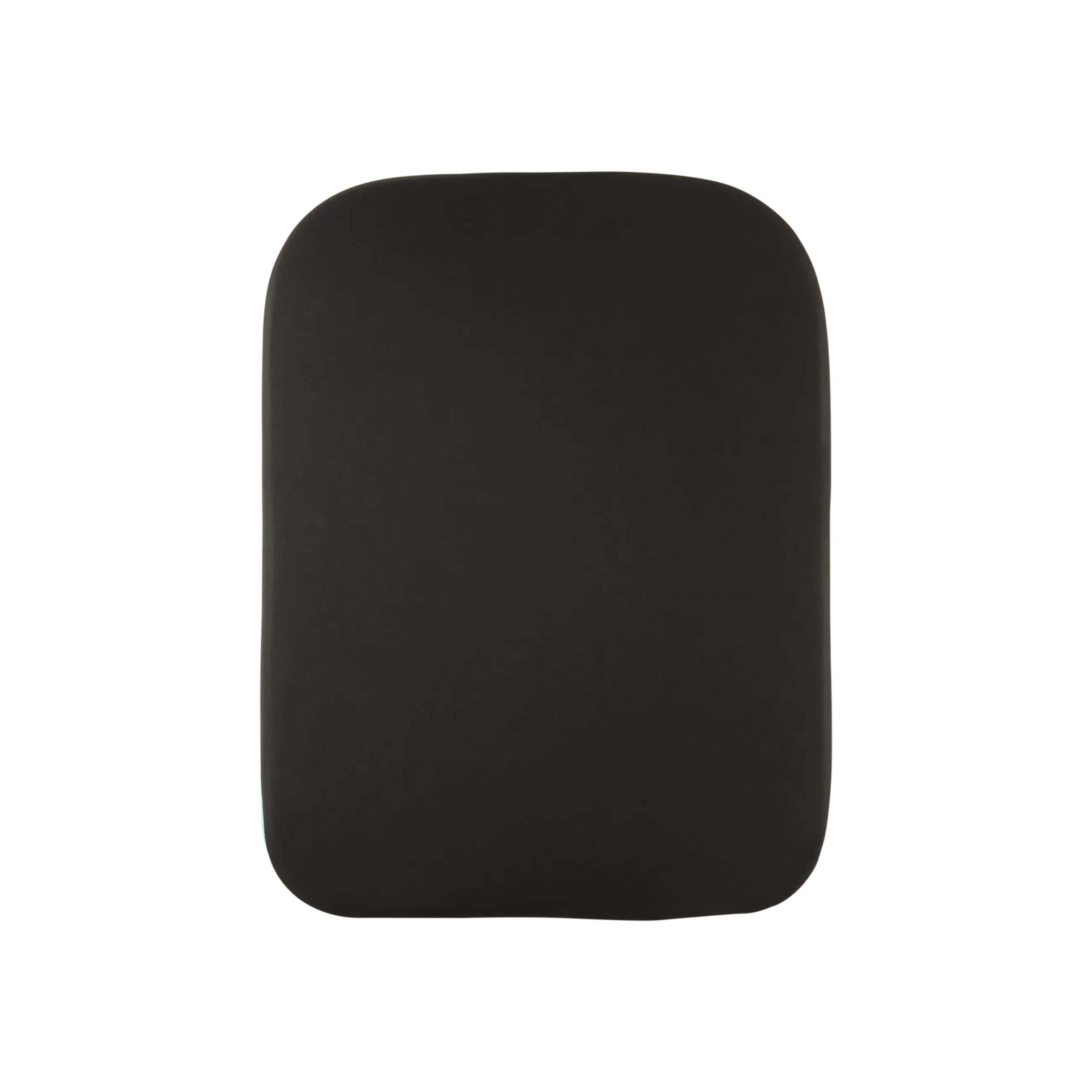

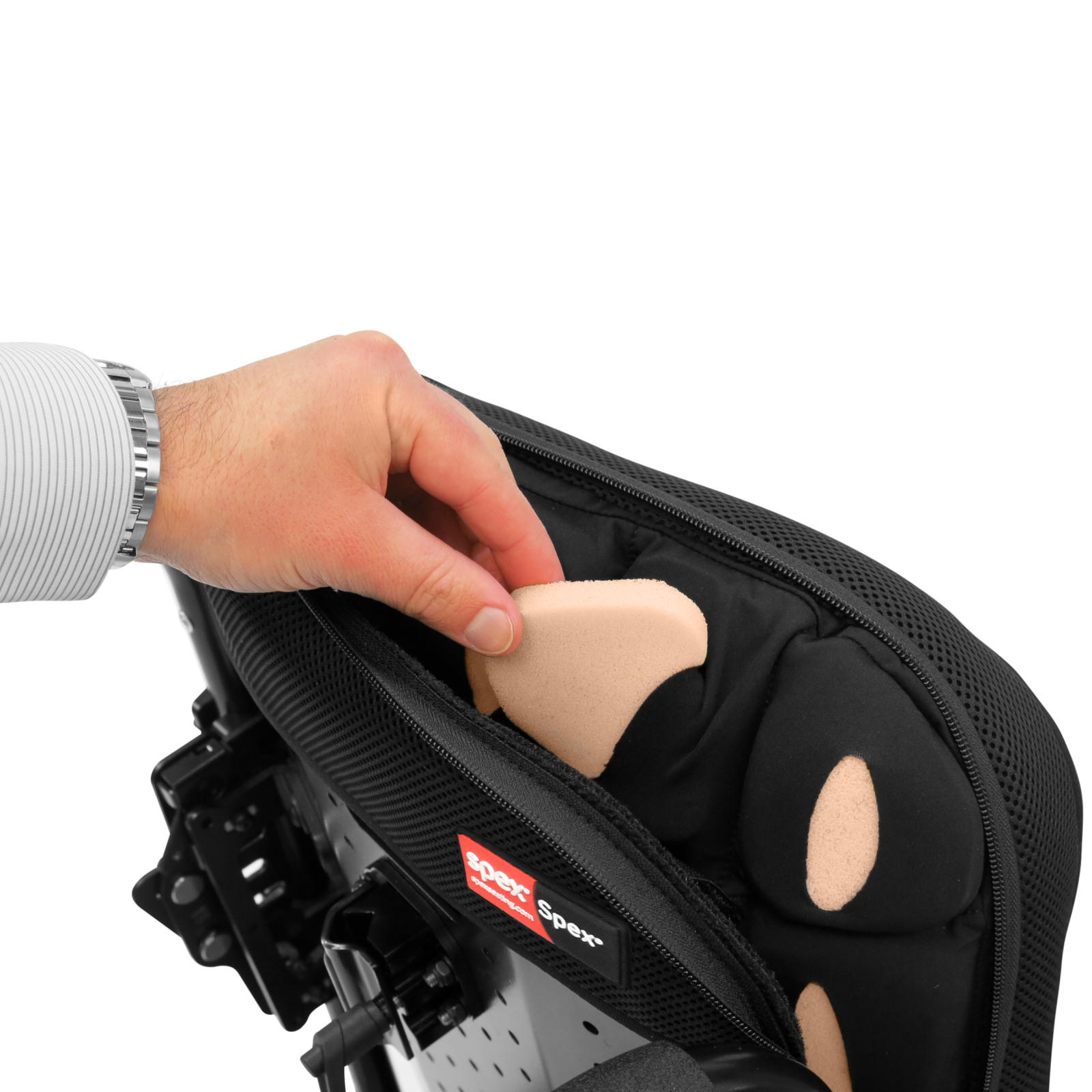

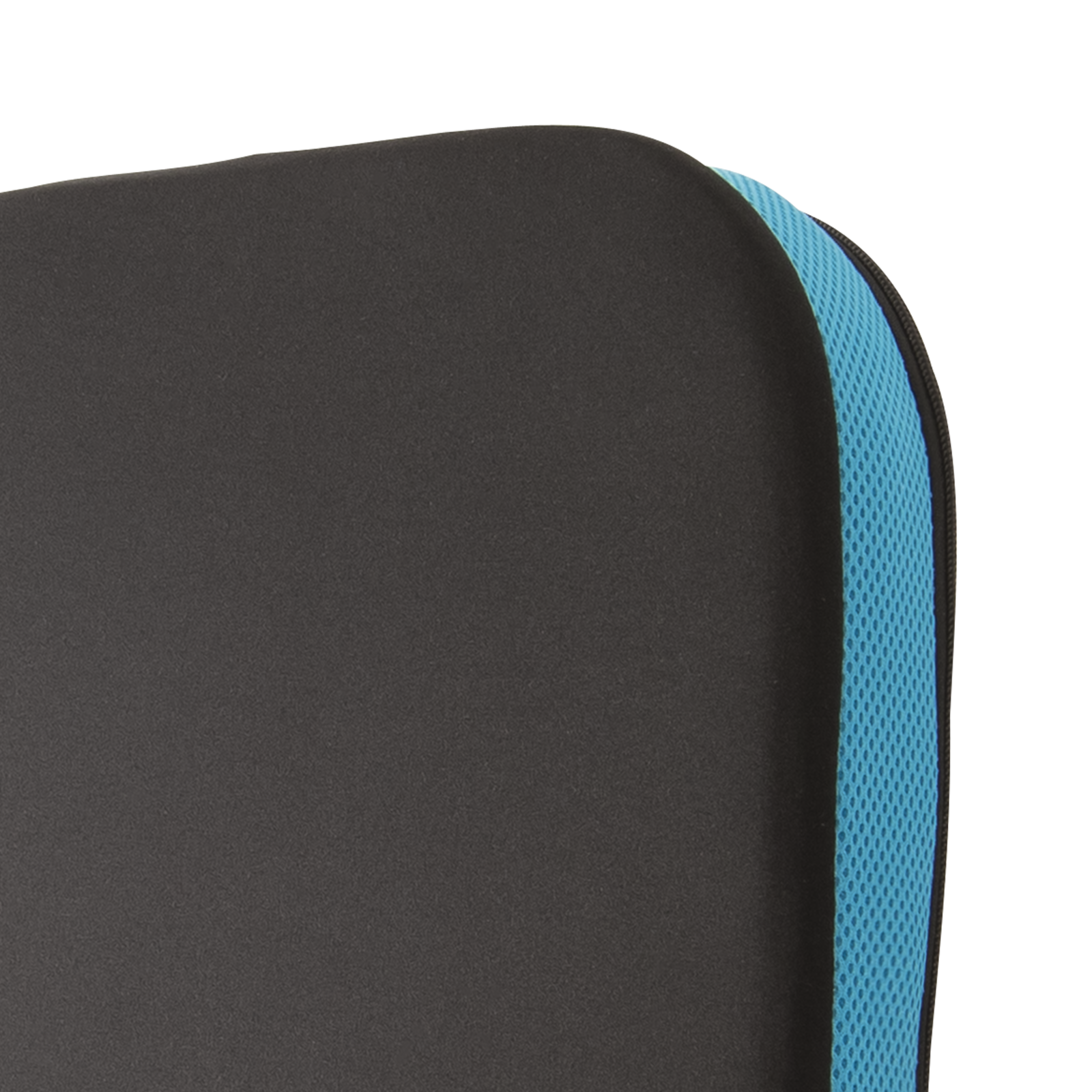

The cover un-zips from the top of the back support and remains fixed to the shell whilst you remove the inner upholstery unit. Changes to the contouring are made
on-the-spot for instant results.
Further postural enhancements to the degree and depth of contouring are achieved with the positioning kit of support wedges (included with every Spex back support).

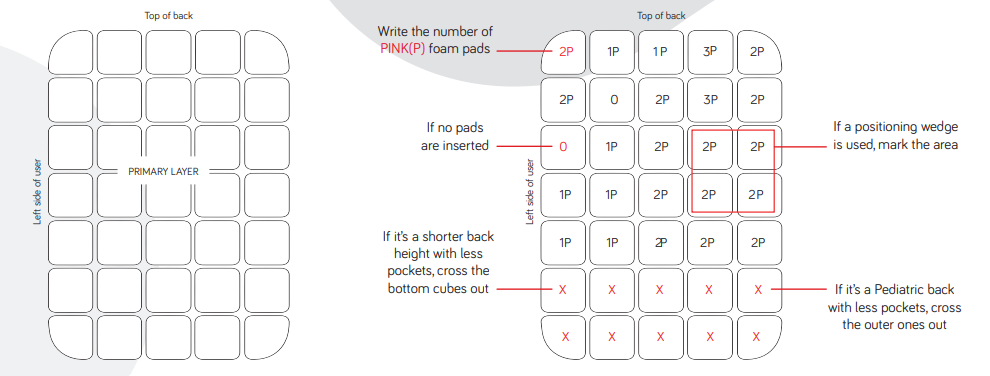

Back Support Contouring Charts
Spex Limb Supports

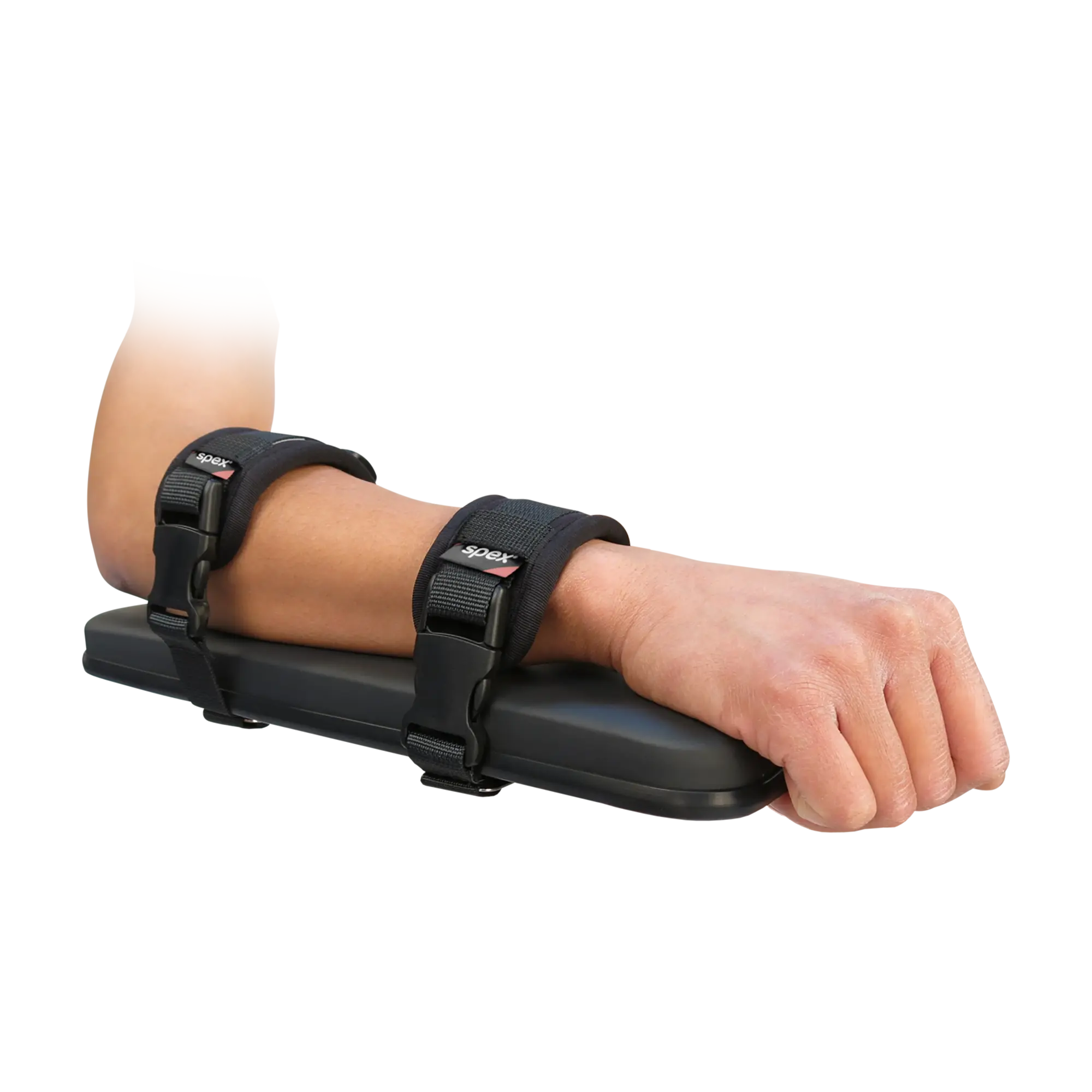

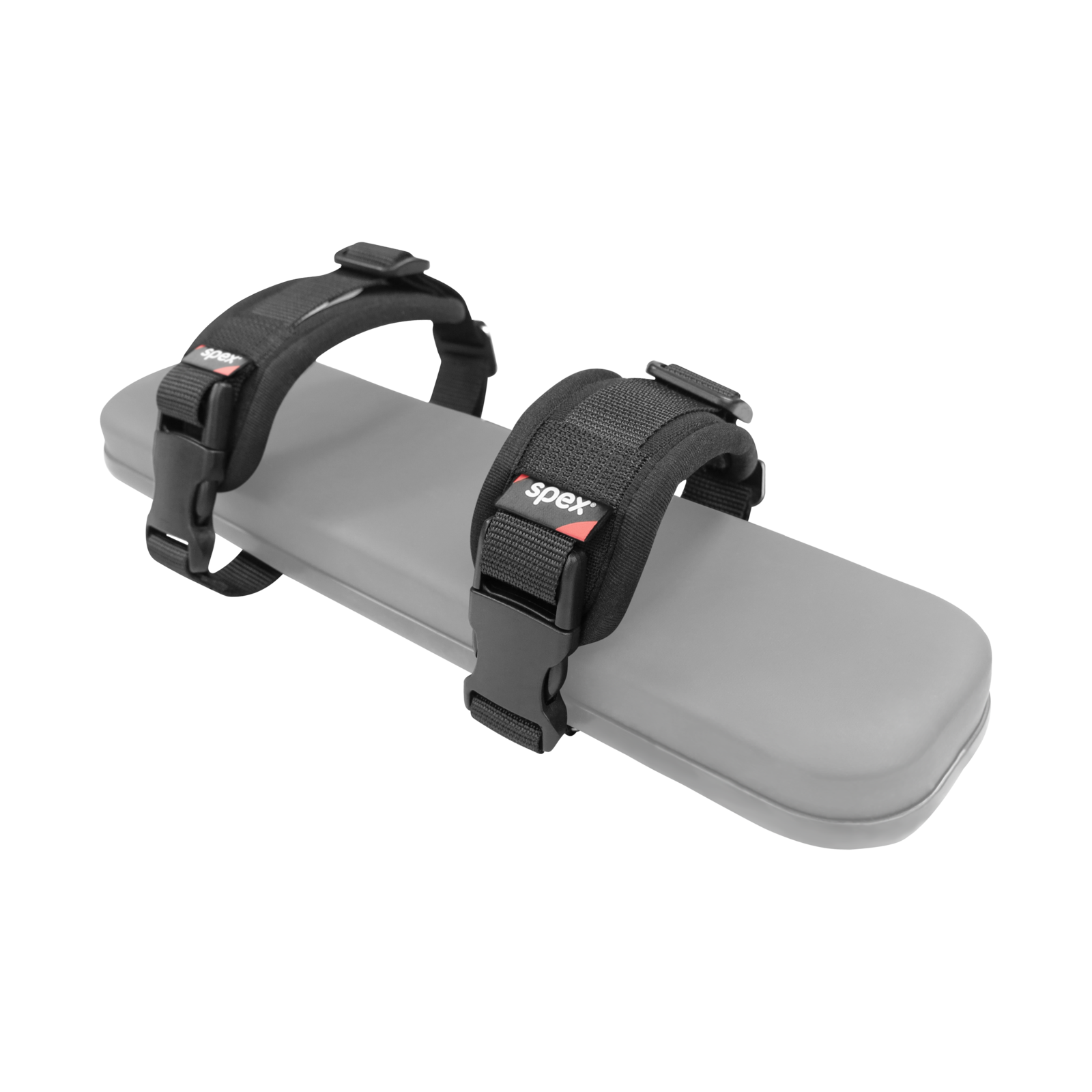

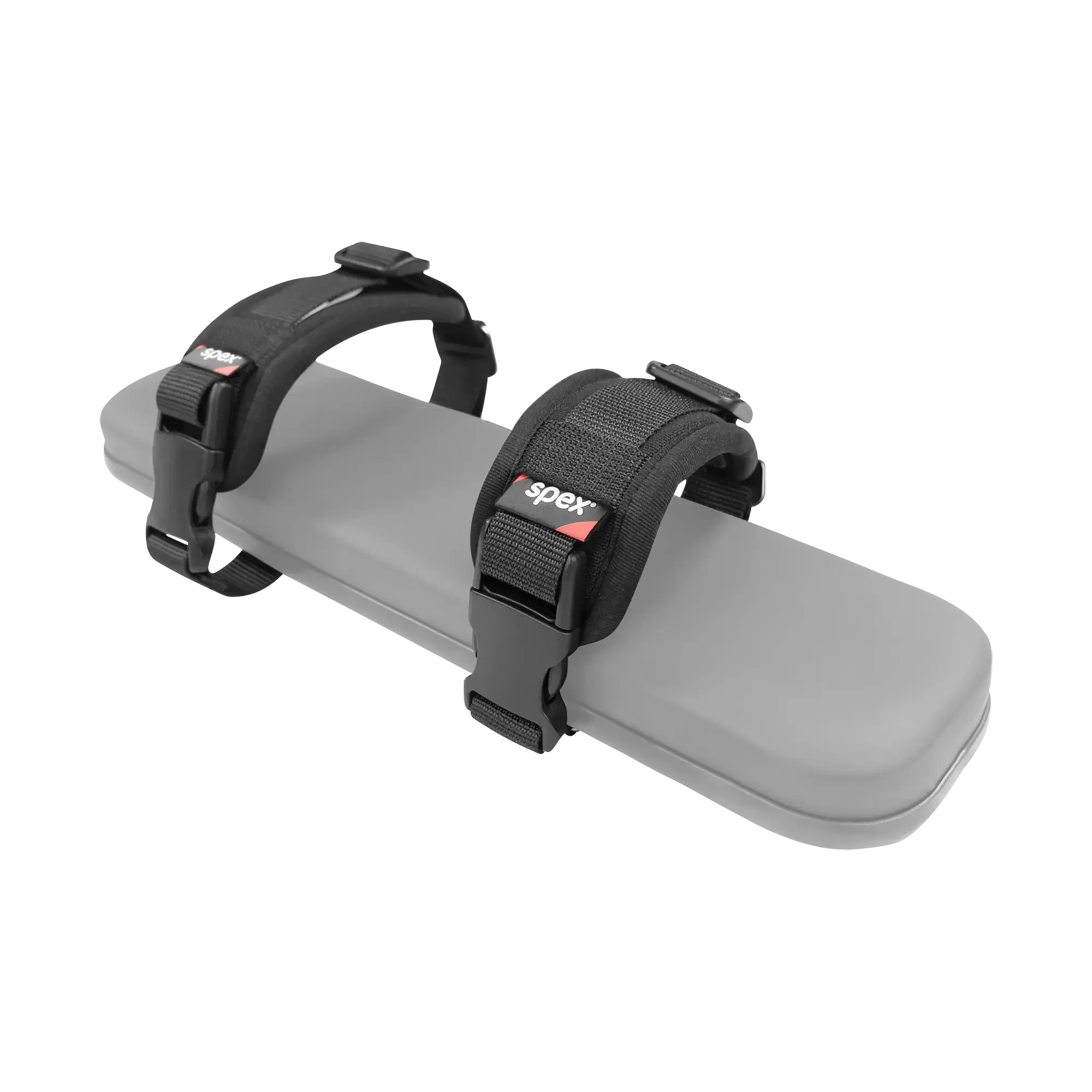

Padded Forearm Straps
| Size | Length | Set of Four | One only |
|---|---|---|---|
| SML | 150 mm | 1408-6511-017 | 1408-6521-017 |
| MED | 180 mm | 1408-6512-017 | 1408-6522-017 |
| LGE | 230 mm | 1408-6513-017 | 1408-6523-017 |

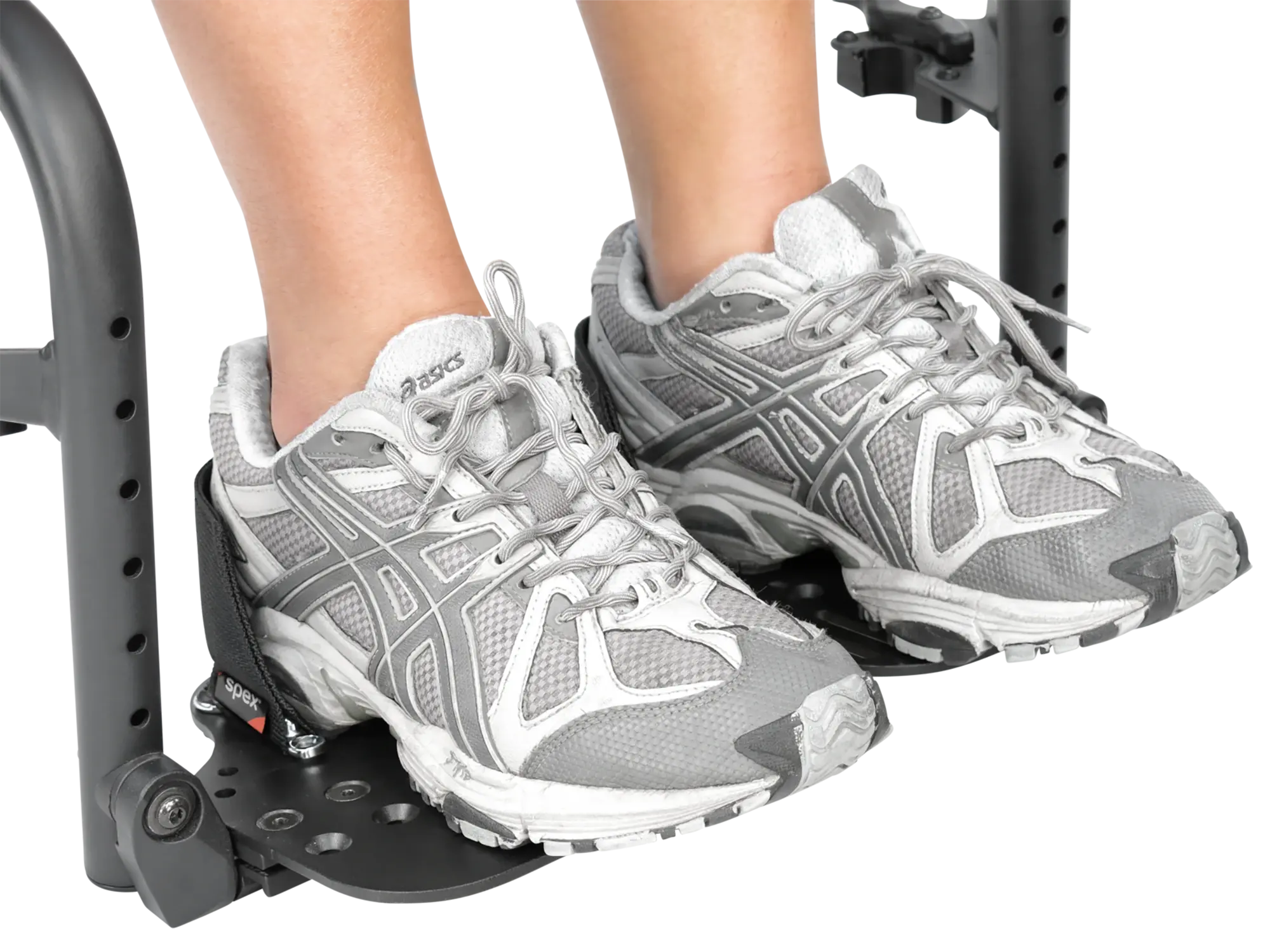

Heel Loops
| Size | Pair |
|---|---|
| SML | 1403-6181-017 |
| MED | 1403-6182-017 |
| LGE | 1403-6183-017 |

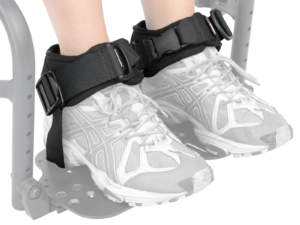

Footfast Stabilisers
| Size | Circumference | Standard Pair | Pair with Rear Retainer Strap |
|---|---|---|---|
| SML | 15-23 cm (Inner) | 1401-6161-017 | 1401-6165-017 |
| MED | 22-30 cm (Inner) | 1401-6162-017 | 1401-6166-017 |
| LGE | 26-38 cm (Inner) | 1401-6163-017 | 1401-6167-017 |

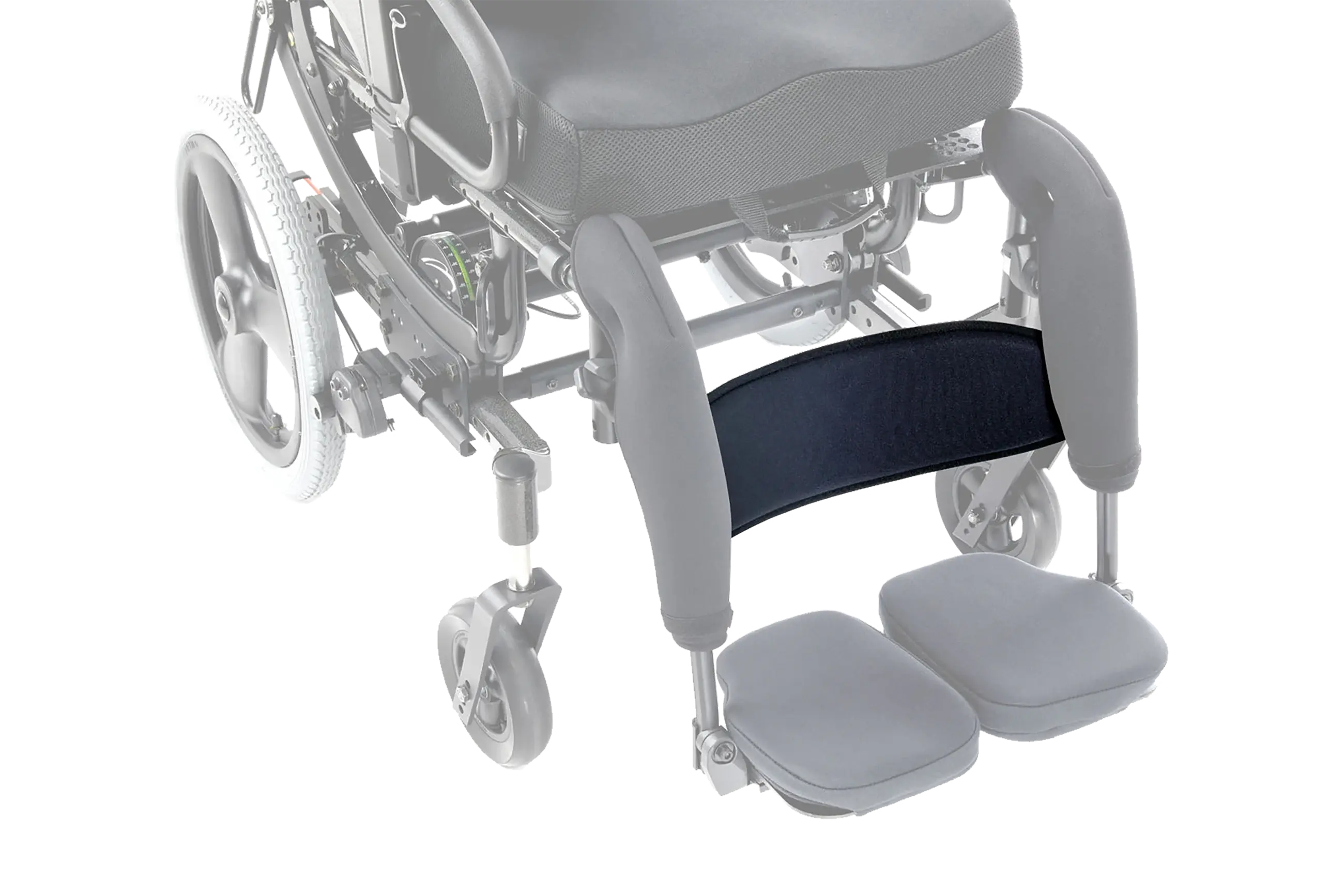

Padded Calf Straps
| Code | W/C Width | Height | Code | W/C Width | Height |
|---|---|---|---|---|---|
| 1402-6170-017 | 10″ | 5 cm | 1402-6174-017 | 17″ | 9 cm |
| 1402-6171-017 | 12″ | 5 cm | 1402-6175-017 | 18 “ | 11 cm |
| 1402-6172-017 | 14″ | 7 cm | 1402-6176-017 | 20″ | 13 cm |
| 1402-6173-017 | 16″ | 9 cm |
Spex Stylo Head Supports
| Circle | Comfort | Contour |
 |
 |
 |

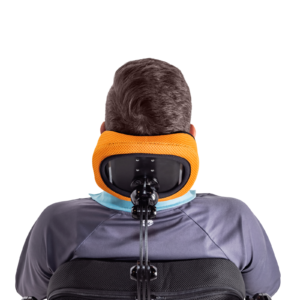

| Unique minimal head support providing direct posterior support for users with good head control.
Available in two sizes: Circle 150 and Circle 250. |

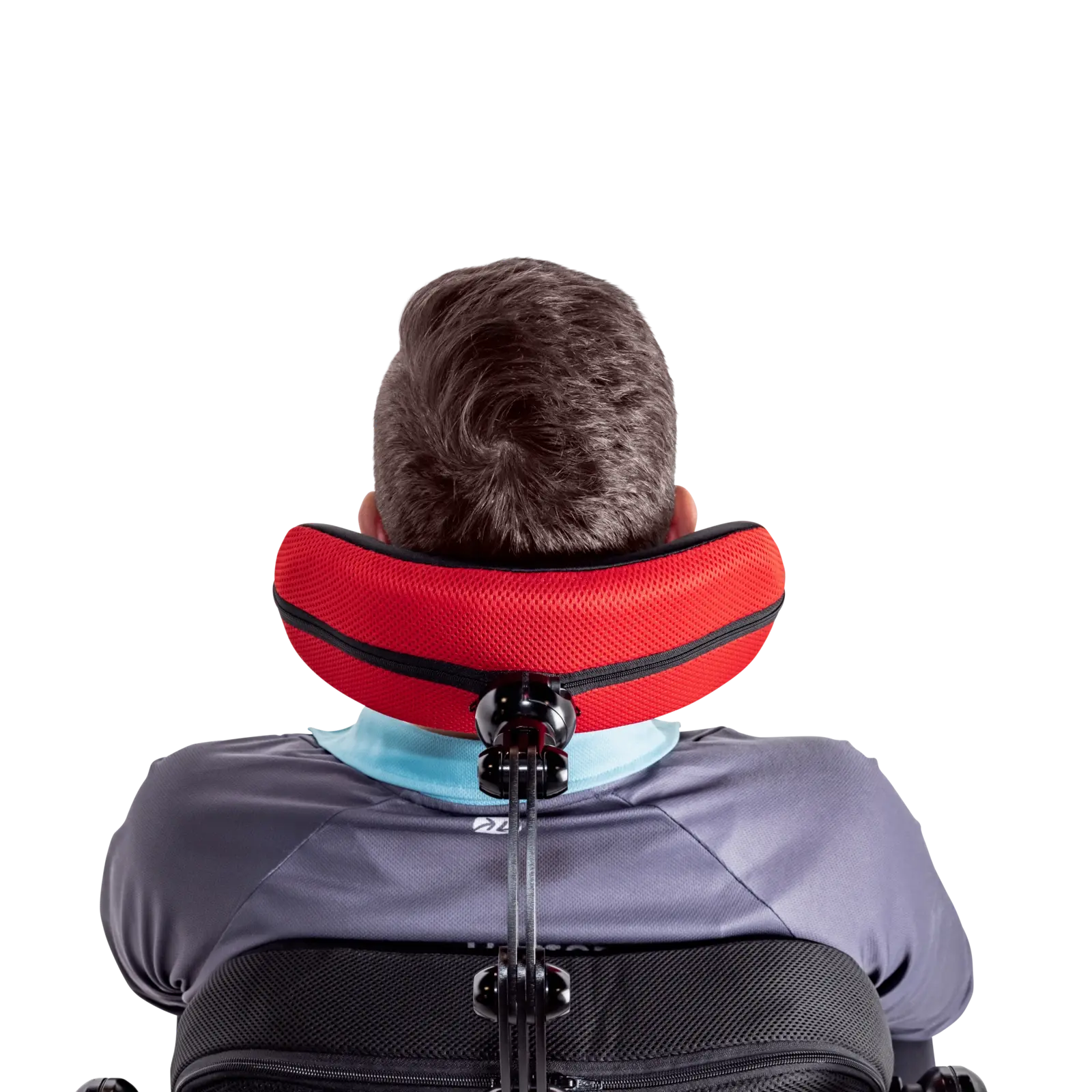

General use head support pad suited for transit and travel.
Available in two sizes: Comfort 250 and Comfort 350. |
Contoured shaped pad for superior occipital and suboccipital support.
Available in two sizes: Contour 250 and Contour 350. |
| Standard Lateral | Extended Lateral | Adjustable Lateral |
 |
 |
 |
| One-piece lateral head support solution for moderate head positioning needs.
Available in two sizes: Paediatric and Adult. |
One-piece lateral head support solution for complex head positioning needs.
Available in two sizes: Paediatric and Adult. |
A superior adjustable lateral head control system with individualised ‘tuning’.
Available in two sizes: Adjustable Lateral 150 and Adjustable Lateral 250. |
Custom head supports are available – please contact us for more information.
Spex Medial Thigh Support
Swing-Down, Standard Pad
| Code | Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F(mm) |
|---|---|---|---|---|---|---|---|
| 1162-1501-000 | 1 | 60 | 145 | 95 | 40 | 40 | 65 |
| 1162-1502-000 | 2 | 60 | 155 | 100 | 60 | 50 | 65 |
| 1162-1503-000 | 3 | 60 | 185 | 105 | 60 | 60 | 75 |
Swing-Down, Axial-Adjustable Pad
| Code | Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
|---|---|---|---|---|---|---|---|
| 1162-1601-000 | 1 | 70-140 | 145 | 95 | 50-120 | 40 | 65 |
| 1162-1602-000 | 2 | 70-140 | 155 | 100 | 60-140 | 50 | 65 |
| 1162-1603-000 | 3 | 70-160 | 185 | 105 | 60-140 | 60 | 75 |
For medial thigh support customisations please contact us.

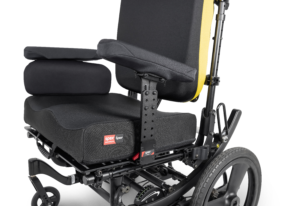

Spex Arm Support Hardware
Seat Pan
| Each | Quick Release | Swing-Down | Fixed Mount |
|---|---|---|---|
| Fixed | 1156-0100-110 | 1156-0100-120 | 1156-0100-130 |
| Fixed Kidz | 1156-0200-110 | 1156-0200-120 | 1156-0200-130 |
| Angle-Adjust | 1156-0300-110 | 1156-0300-120 | 1156-0300-130 |
Seat Rail
| Each | Quick Release | Swing-Down | Fixed Mount |
|---|---|---|---|
| Fixed | 1156-0100-210 | 1156-0100-220 | 1156-0100-230 |
| Fixed Kidz | 1156-0200-210 | 1156-0200-220 | 1156-0200-230 |
| Angle-Adjust | 1156-0300-210 | 1156-0300-220 | 1156-0300-230 |

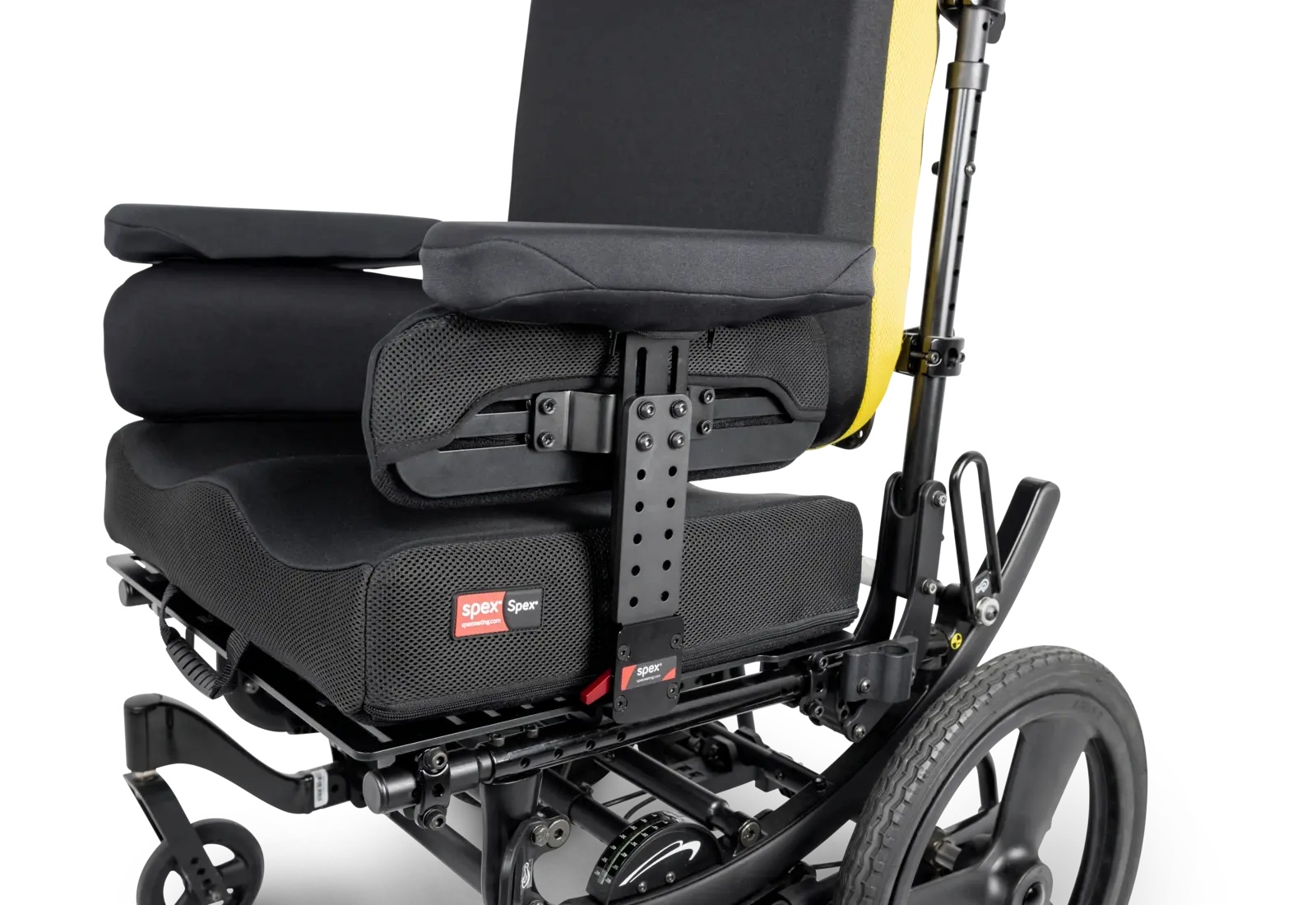

Spex Arm & Thigh Hardware
Seat Pan
| Each | Quick Release | Swing-Down | Fixed Mount |
|---|---|---|---|
| Angle-Adjust Arm + Axial Thigh | 1156-0301-110 | 1156-0301-120 | 1156-0301-130 |
| Angle-Adjust Arm + Fixed Thigh | 1156-0302-110 | 1156-0302-120 | 1156-0302-130 |

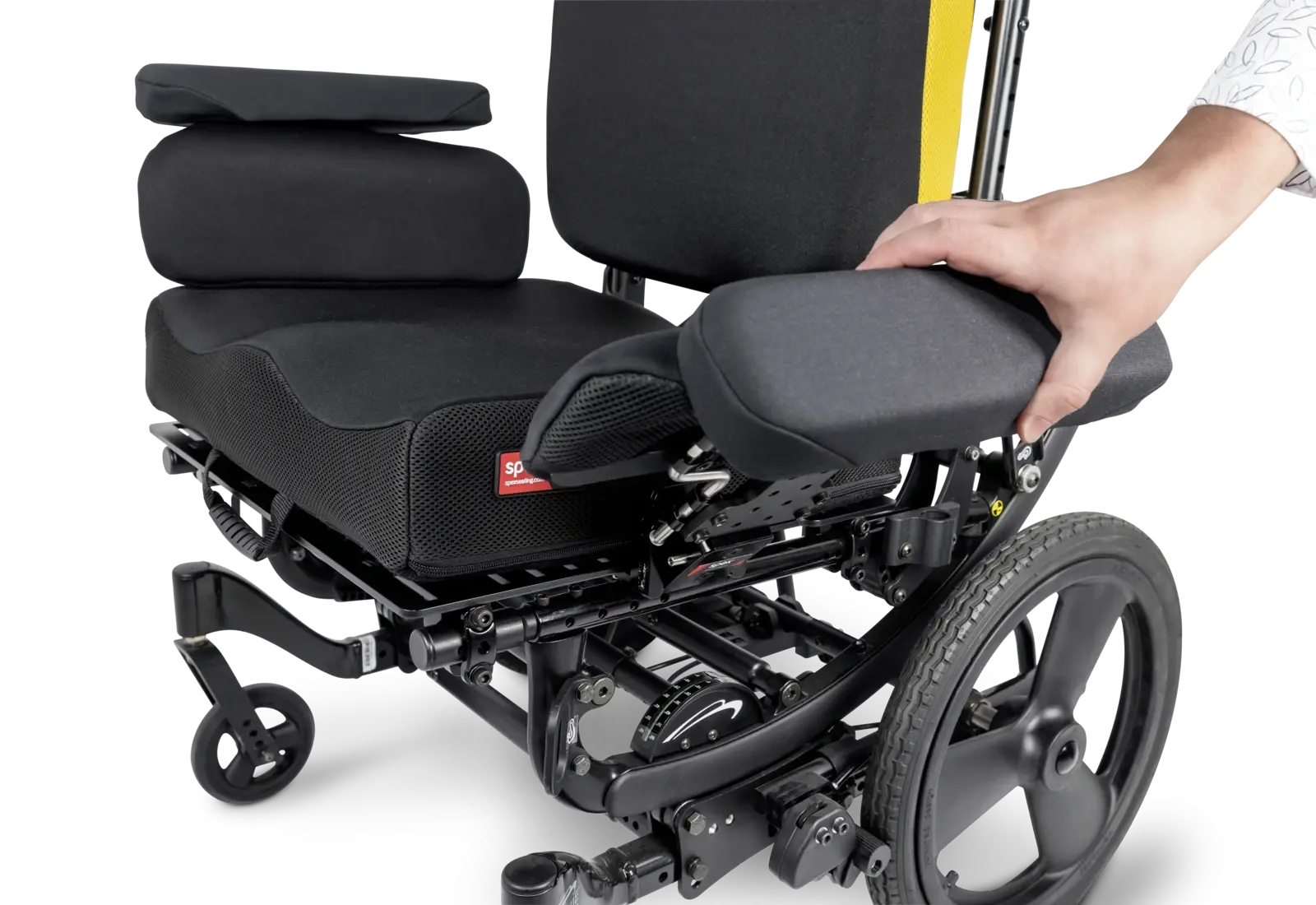

| Fixed Arm + Axial Thigh | 1156-0101-110 | 1156-0101-120 | 1156-0101-130 |
| Kidz Fixed Arm + Axial Thigh | 1156-0201-110 | 1156-0201-120 | 1156-0201-130 |
| Fixed Arm + Fixed Thigh | 1156-0102-110 | 1156-0102-120 | 1156-0102-130 |
| Kidz Fixed Arm + Fixed Thigh | 1156-0202-110 | 1156-0202-120 | 1156-0202-130 |
Seat Rail
| Each | Quick Release | Swing-Down | Fixed Mount |
|---|---|---|---|
| Angle-Adjust Arm + Axial Thigh | 1156-0301-210 | 1156-0301-220 | 1156-0301-230 |
| Angle-Adjust Arm + Fixed Thigh | 1156-0302-210 | 1156-0302-220 | 1156-0302-230 |
| Fixed Arm + Axial Thigh | 1156-0101-210 | 1156-0101-220 | 1156-0101-230 |
| Kidz Fixed Arm + Axial Thigh | 1156-0201-210 | 1156-0201-220 | 1156-0201-230 |
| Fixed Arm + Fixed Thigh | 1156-0102-210 | 1156-0102-220 | 1156-0102-230 |
| Kidz Fixed Arm + Fixed Thigh | 1156-0202-210 | 1156-0202-220 | 1156-0202-230 |

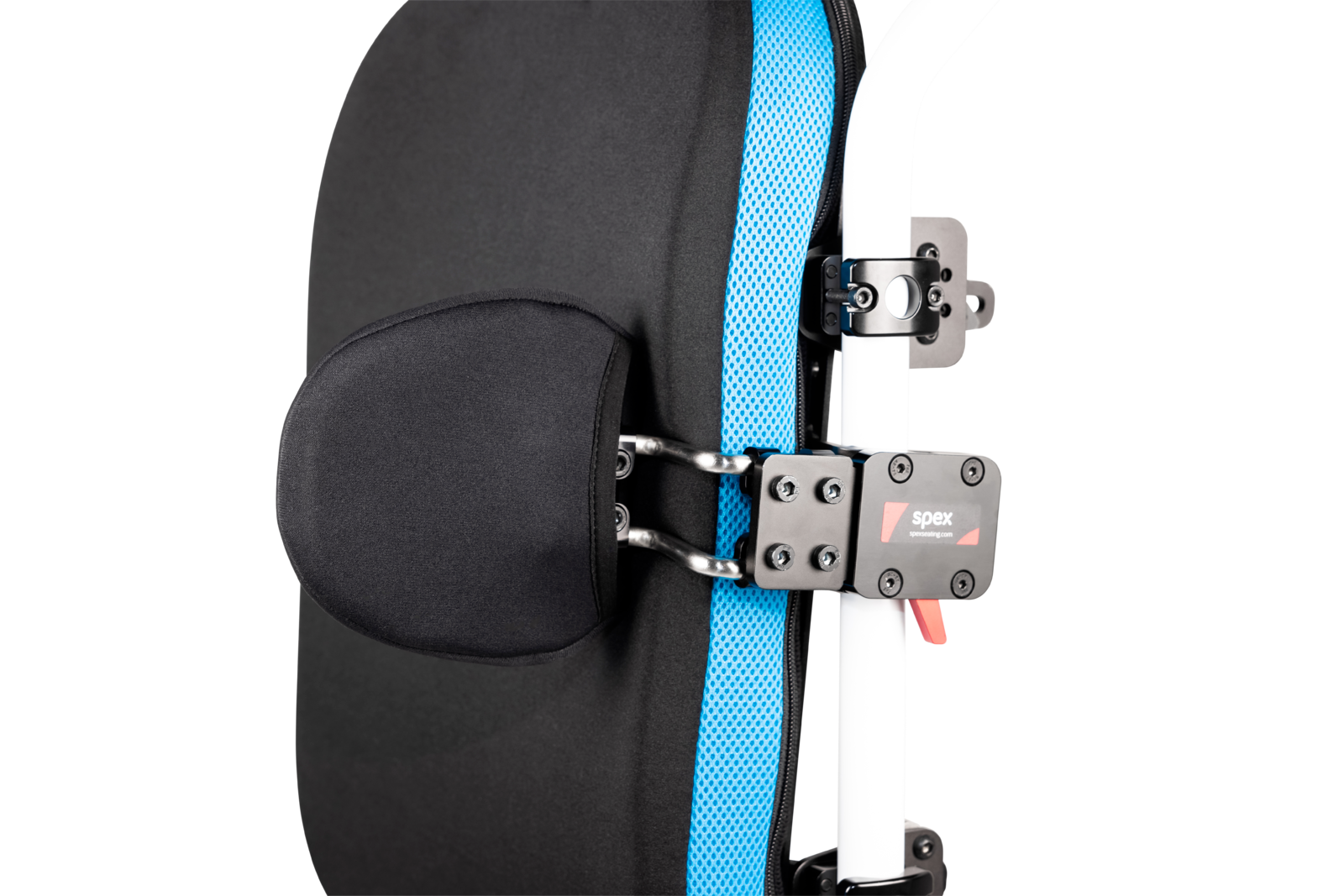

Spex Lateral Trunk Supports
Select Hardware
- Fixed Bracket
- Standard Swing-Away Bracket
- Axial Swing-Away Bracket
Select Bracket Upgrade
- Cane Mount
- DeepContour backrest bracket
- Extension for DeepContour (commonly used with SuperShape Backrest
Select Comfy-Cover
- Extended padding over mechanism to protect arms from metal hardware
- Clever release strap for operating the swing away movement
- Easy release for users who have limited hand function and need independent use to open the laterals for transfers
Spex Thigh and Arm Support Pads
Thigh Support Pads
| Code | Size | A (mm) | B (mm) | E (mm) | PER |
|---|---|---|---|---|---|
| 1156-1010-400 | 10″ | 265 | 90 | 35 | EA |
| 1156-1012-400 | 12″ | 310 | 95 | 35 | EA |
| 1156-1014-400 | 14″ | 360 | 130 | 50 | EA |
| 1156-1016-400 | 16″ | 410 | 135 | 50 | EA |
| 1156-1018-400 | 18″ | 460 | 145 | 50 | EA |
| 1156-1020-400 | 20″ | 510 | 160 | 50 | EA |
Arm Supports Pads
| Code | Size | A (mm) | B (mm) | PER |
|---|---|---|---|---|
| 1156-5811-400 | 1 Narrow | 40 | 250 | EA |
| 1156-5812-400 | 2 Narrow | 50 | 300 | EA |
| 1156-5813-400 | 3 Narrow | 60 | 350 | EA |
| 1156-5821-400 | 1 Wide | 70 | 250 | EA |
| 1156-5822-400 | 2 Wide | 80 | 300 | EA |
| 1156-5823-400 | 3 Wide | 90 | 350 | EA |
For custom arm or thigh supports please contact us.
Spex Thigh Support Hardware
Seat Pan
| Each | Quick Release | Swing-Down | Fixed Mount |
|---|---|---|---|
| Fixed | 1156-0002-110 | 1256-0002-120 | 1156-0002-130 |
| Axial | 1156-0001-110 | 1156-0001-120 | 1156-0001-130 |
Seat Rail
| Each | Quick Release | Swing-Down | Fixed Mount |
|---|---|---|---|
| Fixed | 1156-0002-210 | 1156-0002-220 | 1156-0002-230 |
| Axial | 1156-0001-210 | 1156-0001-220 | 1156-0001-230 |
Spex Tray Tables
| Size | Width | Depth | Black ABS Tray Top | Clear Polycarbonate Tray Top |
|---|---|---|---|---|
| Small | 450 mm | 450 mm | 1311-7101-000 | 1311-7111-000 |
| Medium | 550 mm | 550 mm | 1311-7102-000 | 1311-7112-000 |
| Large | 650 mm | 650 mm | 1311-7103-000 | 1311-7113-000 |
Slide and Lock
Drop and Lock

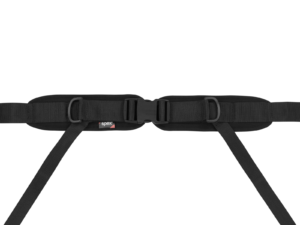

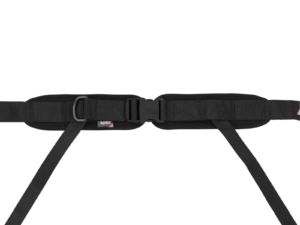

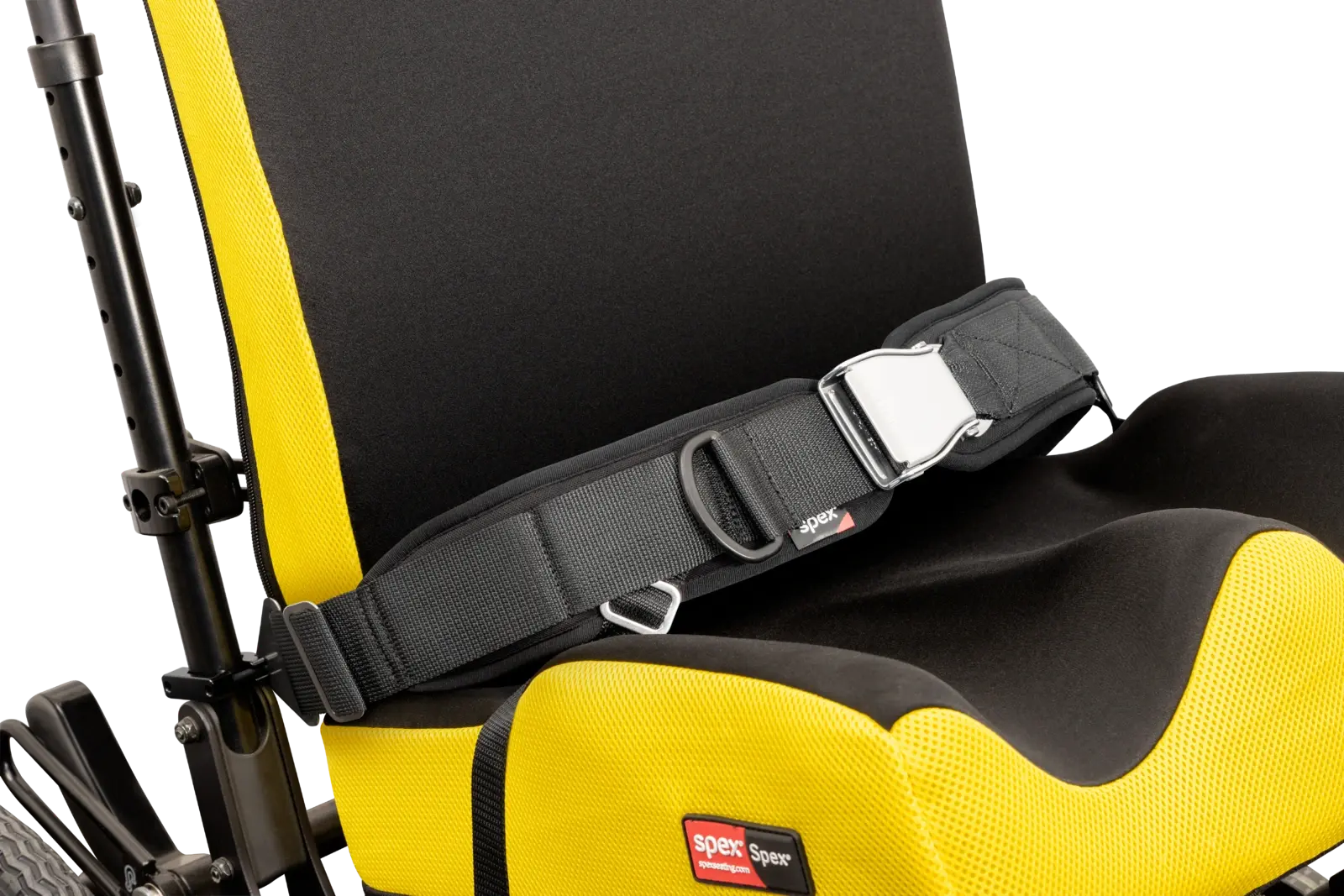

Spex Hip Belts
| 2 Point
Centre Pull |
2 Point Dual-Centre Pull | 4 Point Side Pull | 4 Point Centre Pull | 4 Point Dual-Centre Pull |
|---|---|---|---|---|
 |
 |
 |
 |
 |

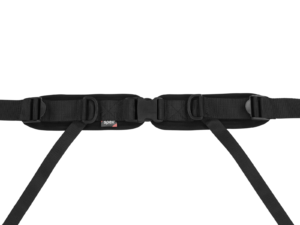

| User or carer operated. Tensions at centre of buckle. Suits clients with low muscle tone or weakness. | User or carer operated. Tensions from both sides at centre of buckle. Suits clients needing greater adjustment. Accommodates clothing/weight changes. | Carer operated. Tensions from the rear of the pad pulling towards the centre, for more severe needs. Suits clients with high muscle tone. | User or carer operated. Tensions at centre of buckle. Suits clients with low muscle tone or weakness. | User or carer operated. Tensions from both sides at centre of buckle. Suits clients needing greater adjustment. Accommodates clothing/weight changes. |
Harnesses
| Hip Belt Style | X-Small | Small | Medium | Large |
|---|---|---|---|---|
| Pad width 30cm | Pad width 36cm | Pad width 46cm | Pad width 56cm | |
| 2 Point Padded Centre Pull | 1405-6210-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
| 2 Point Padded Dual Centre Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
| 4 Point Padded Centre Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
| 4 Point Padded Dual Centre Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
| 4 Point Padded Side Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
The last three digits of the code refer to the buckle type. See below table for buckle options.
Buckle Options

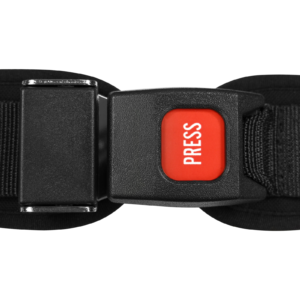

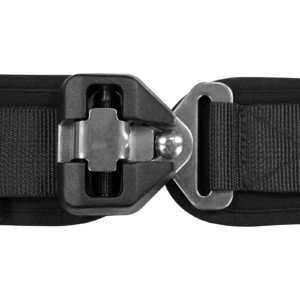

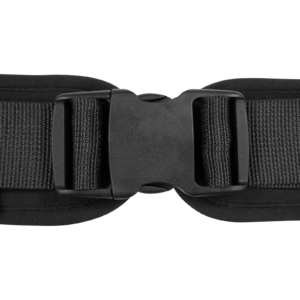

| Side Release | Centre Release | Anti-Escape | Pen Popper | Easy Release Latch |
|---|---|---|---|---|
 |
 |
 |
 |
 |
| -027 | -028 | -026 | -025 | -023 |

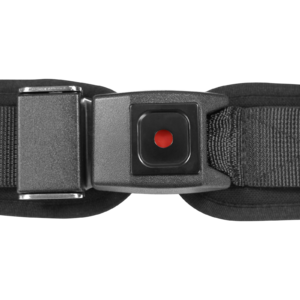

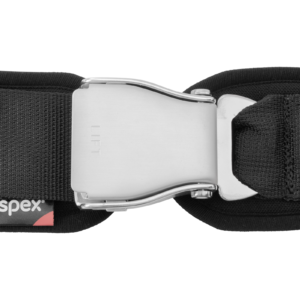

| Simple and easy to click together and undo. | Robust design to keep the user positioned and safe. | Prevent users with challenging behaviour from releasing the buckle. | Requires a pen to prod the buckle mechanism to release open. | Simply lift the metal buckle flap and slide the buckle apart. |
Note: These harnesses are a positioning device only. Do not use as a safety restraint in vehicles.
