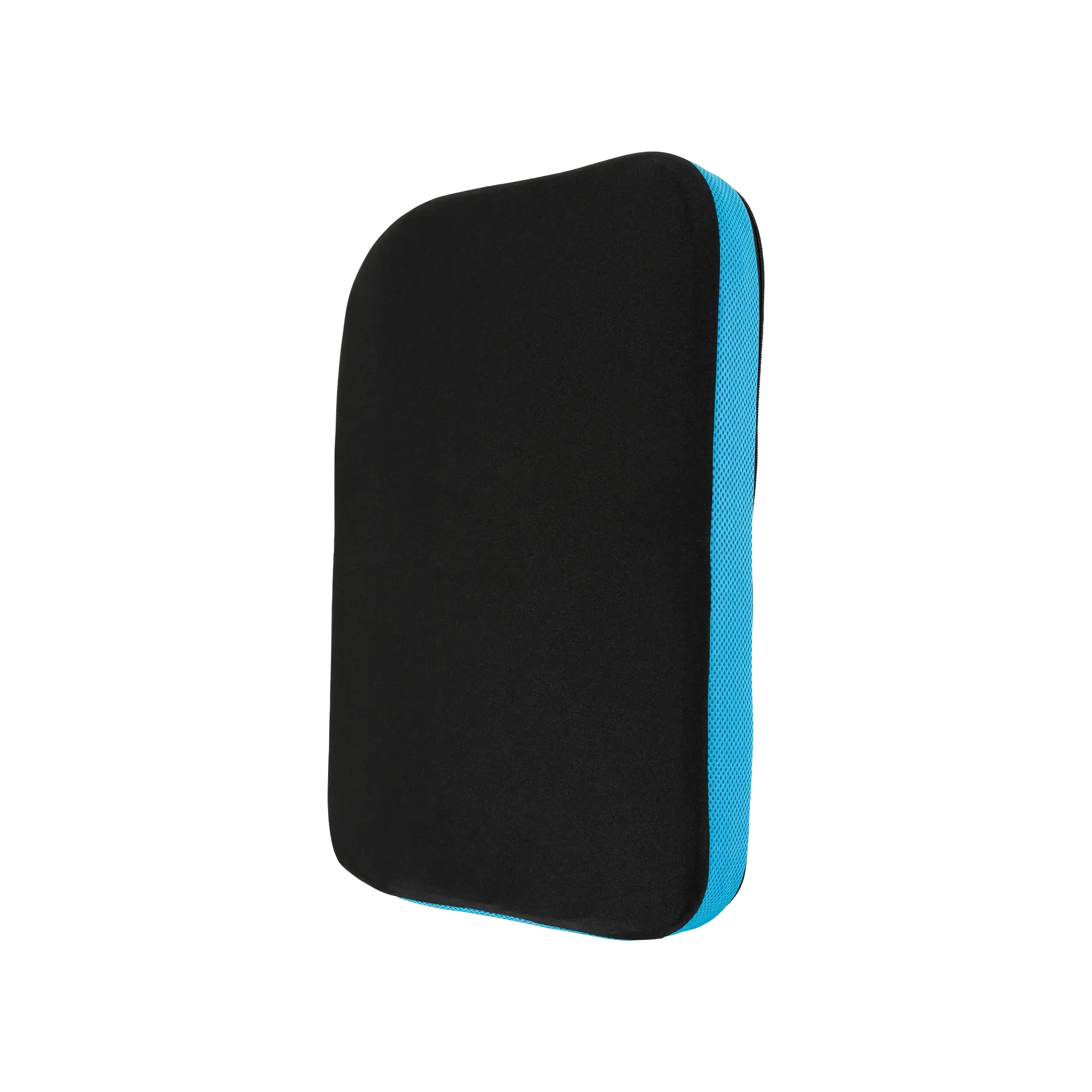

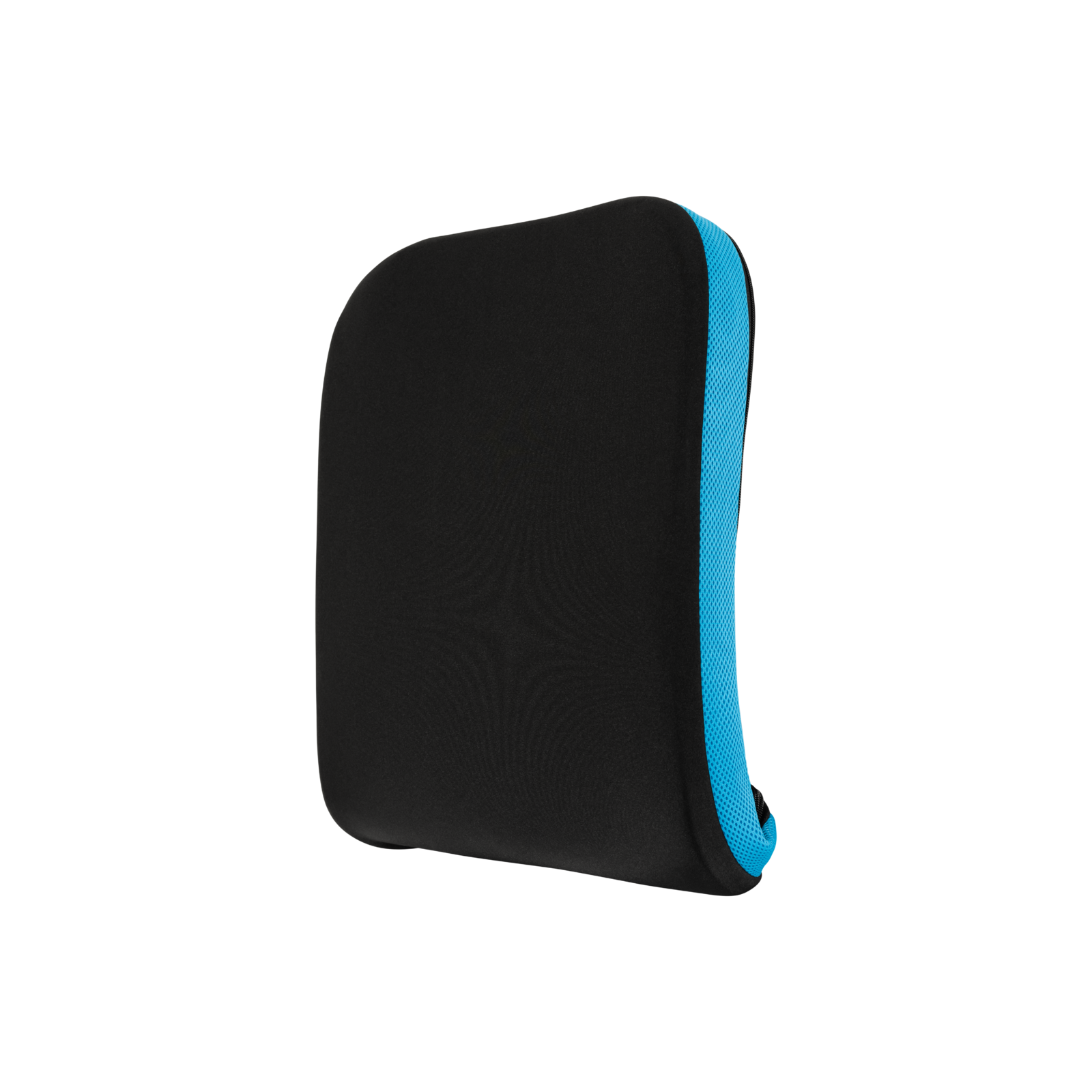

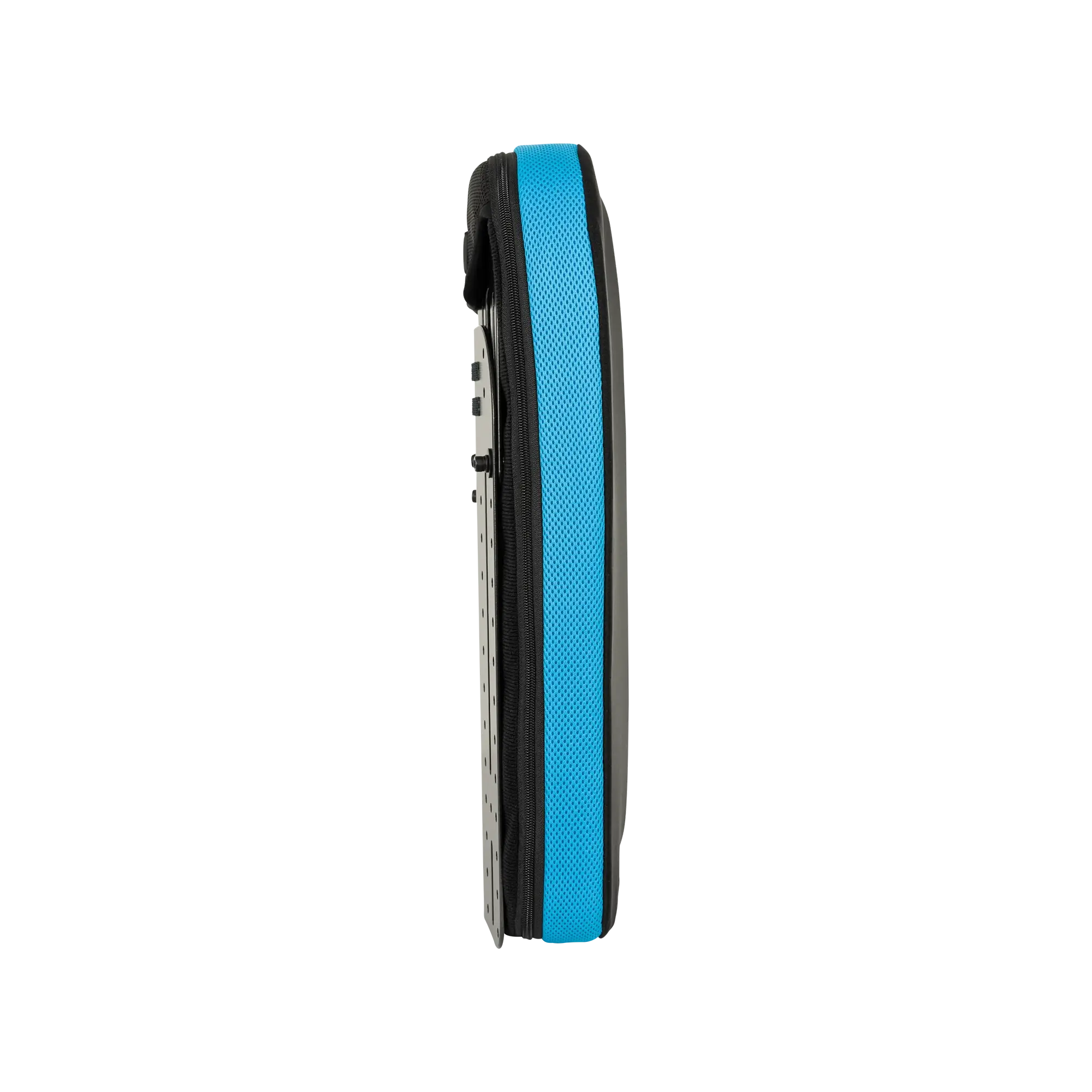

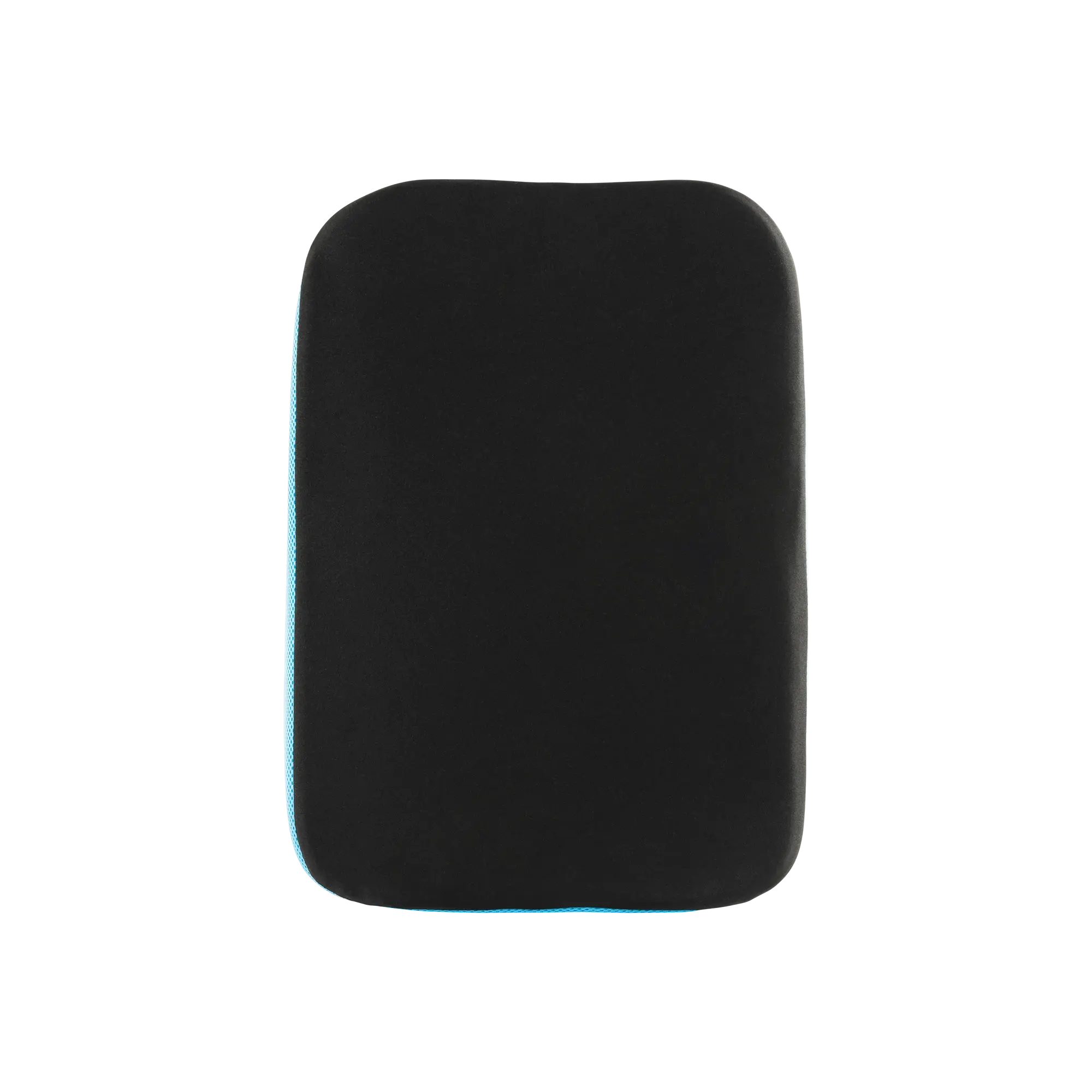

The Back Support that stretches for future growth!

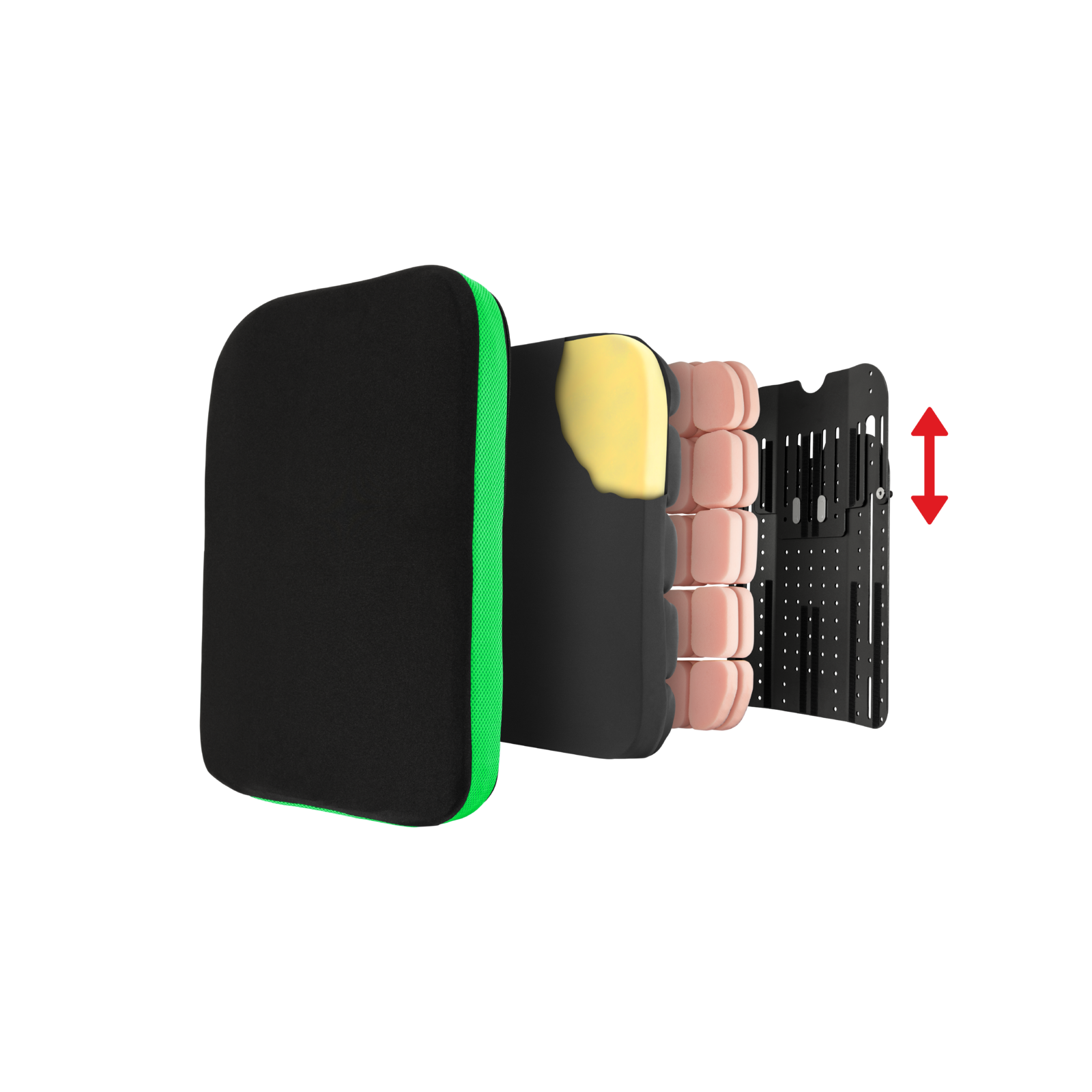

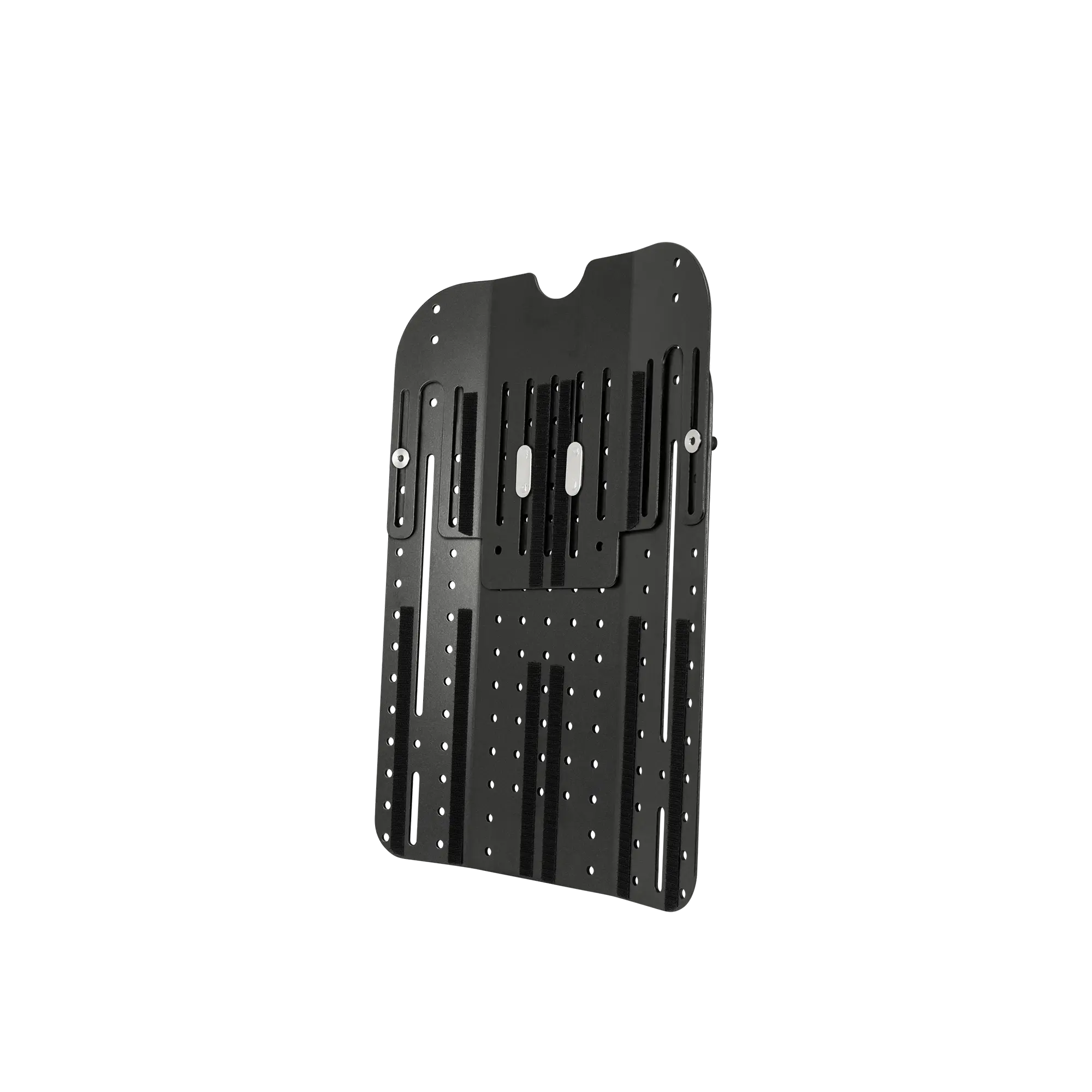

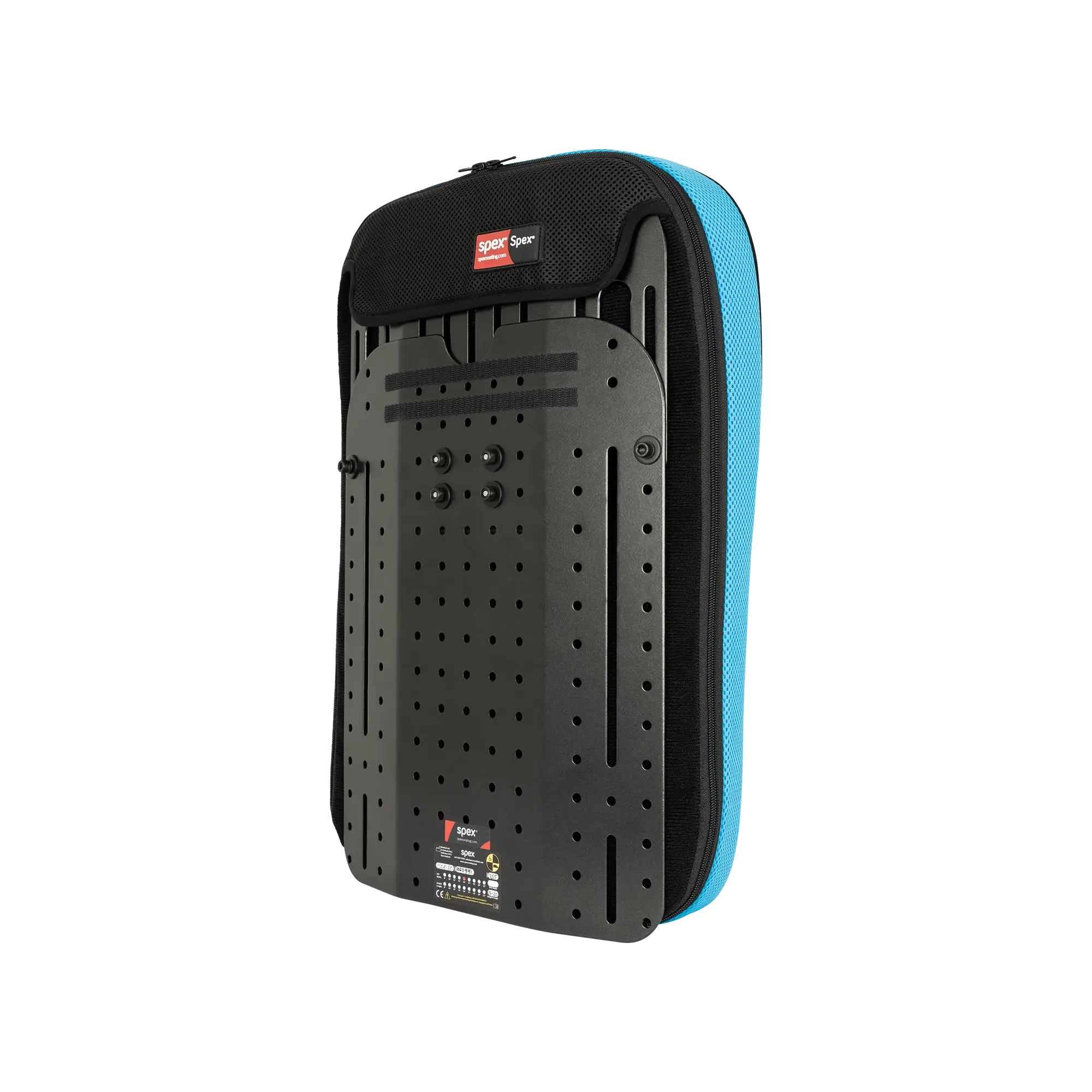

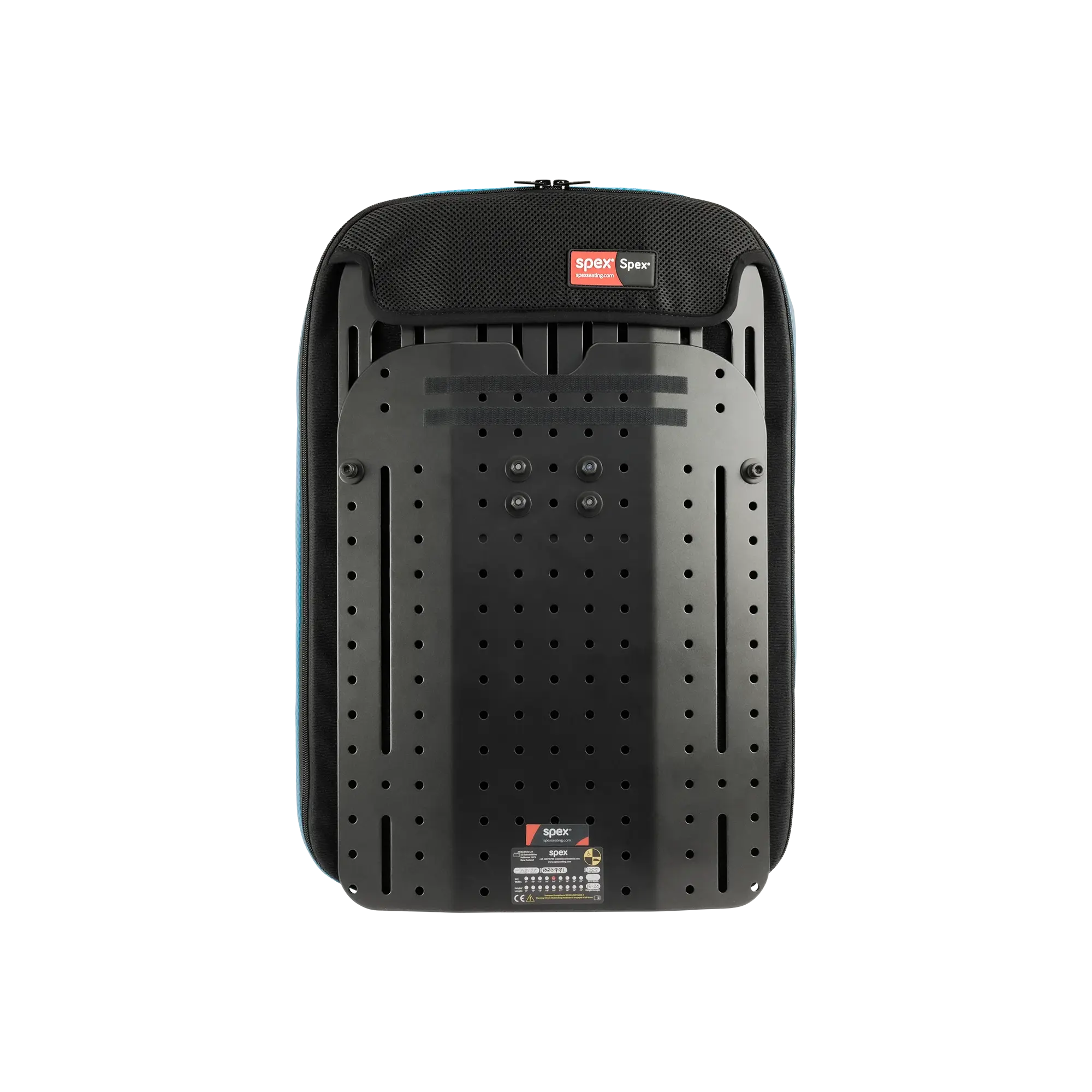

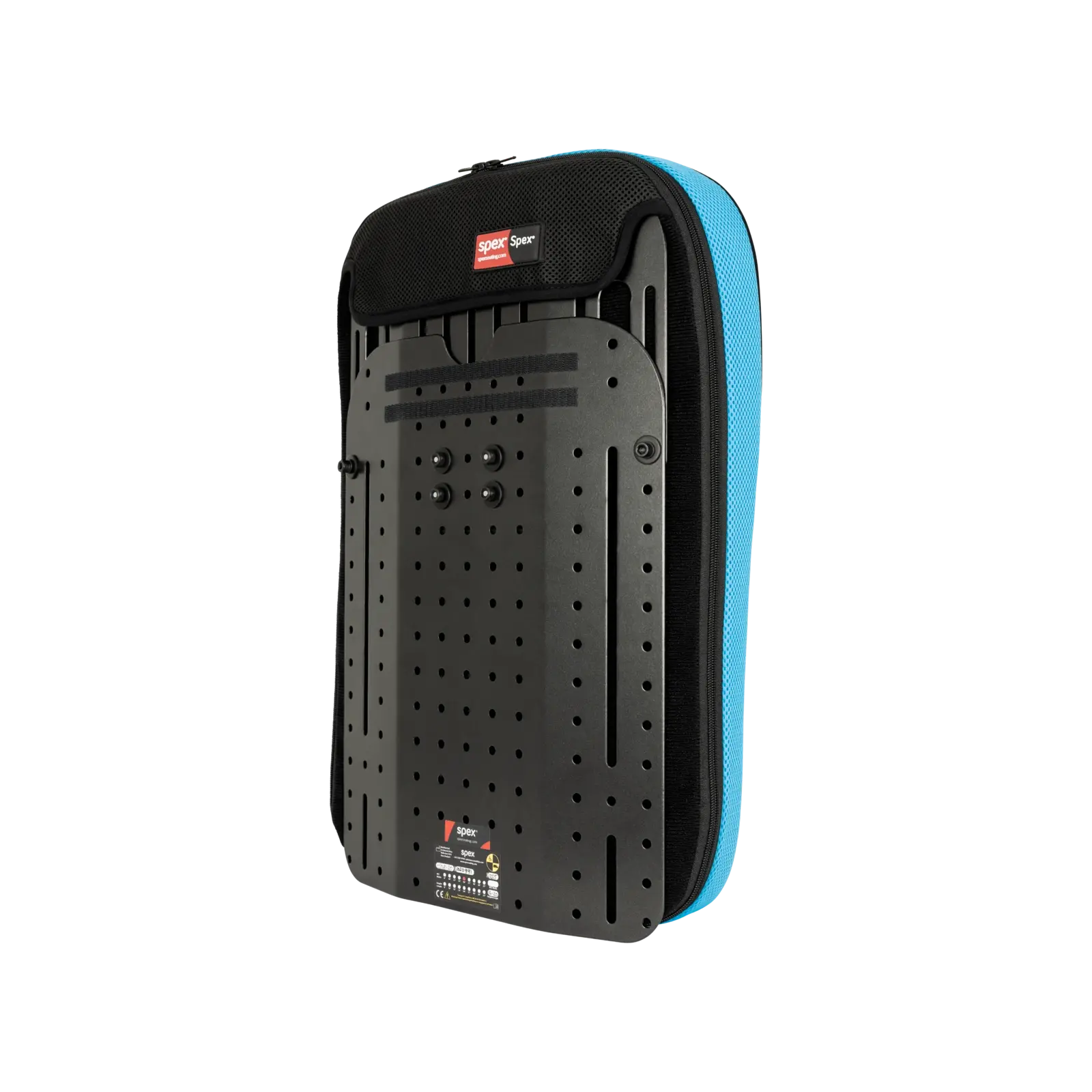

An innovative back support shell style retains all the lightweight yet sturdy features of the Vigour and Spex Back Supports yet incorporates inbuilt growth adjustment due to the unique shell style.

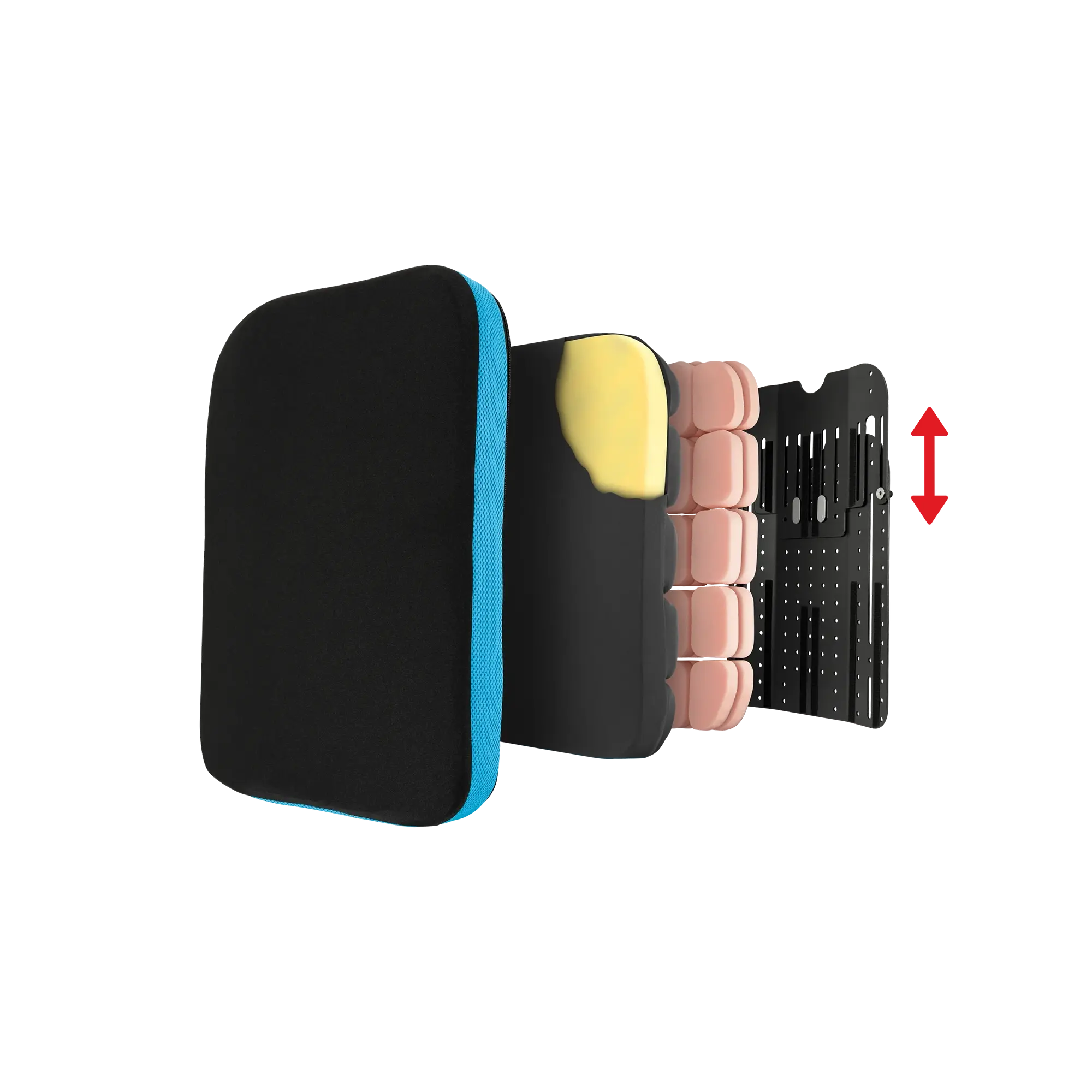

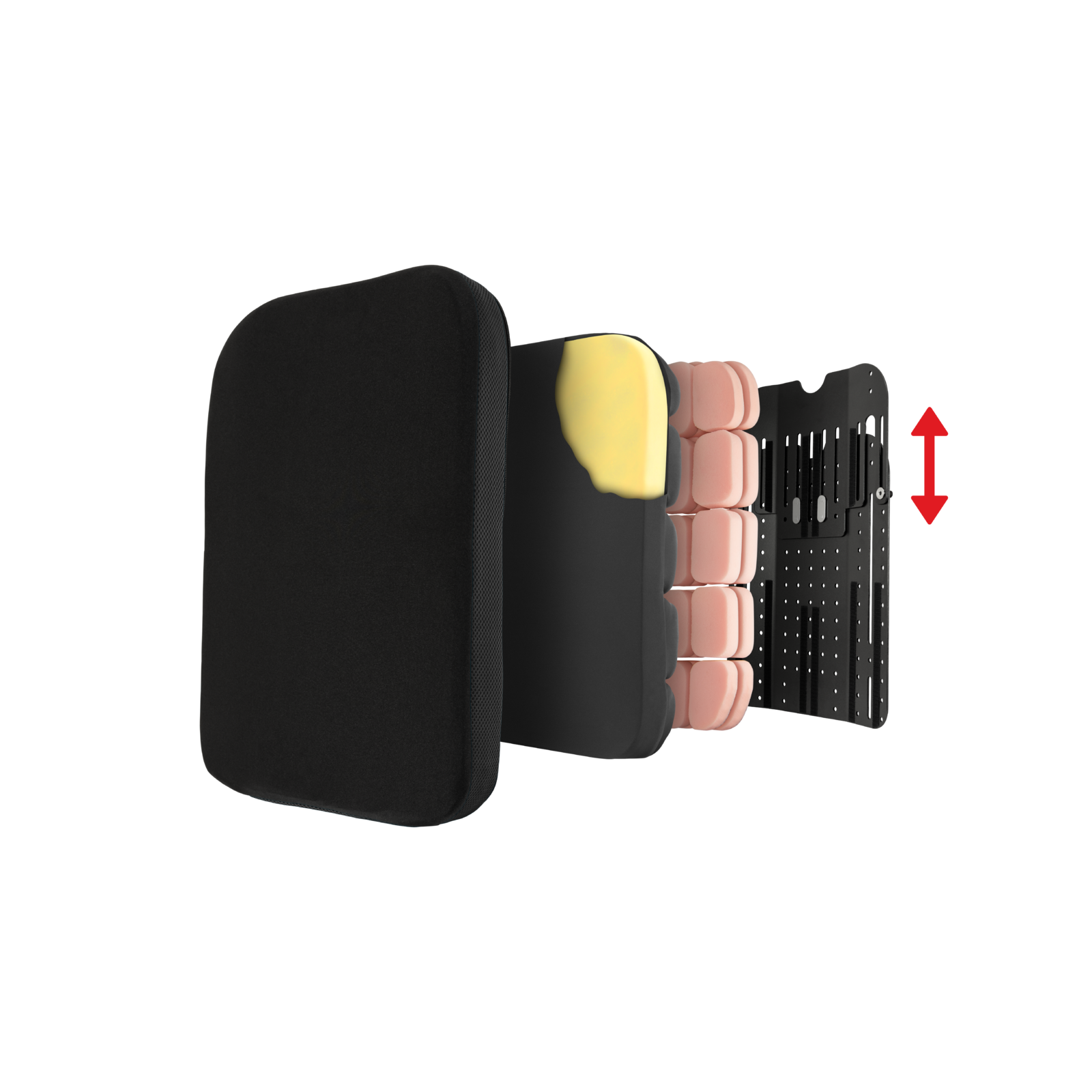

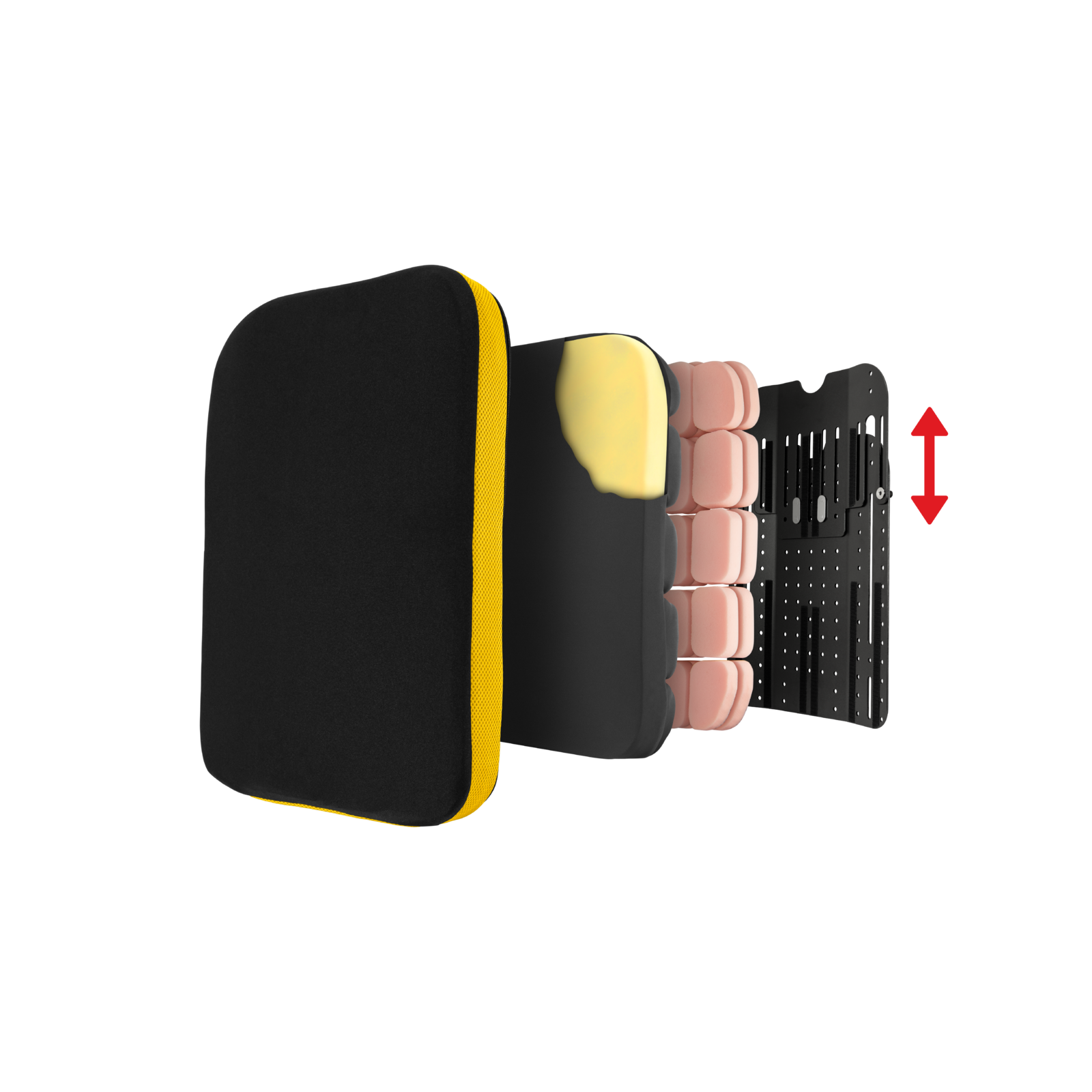

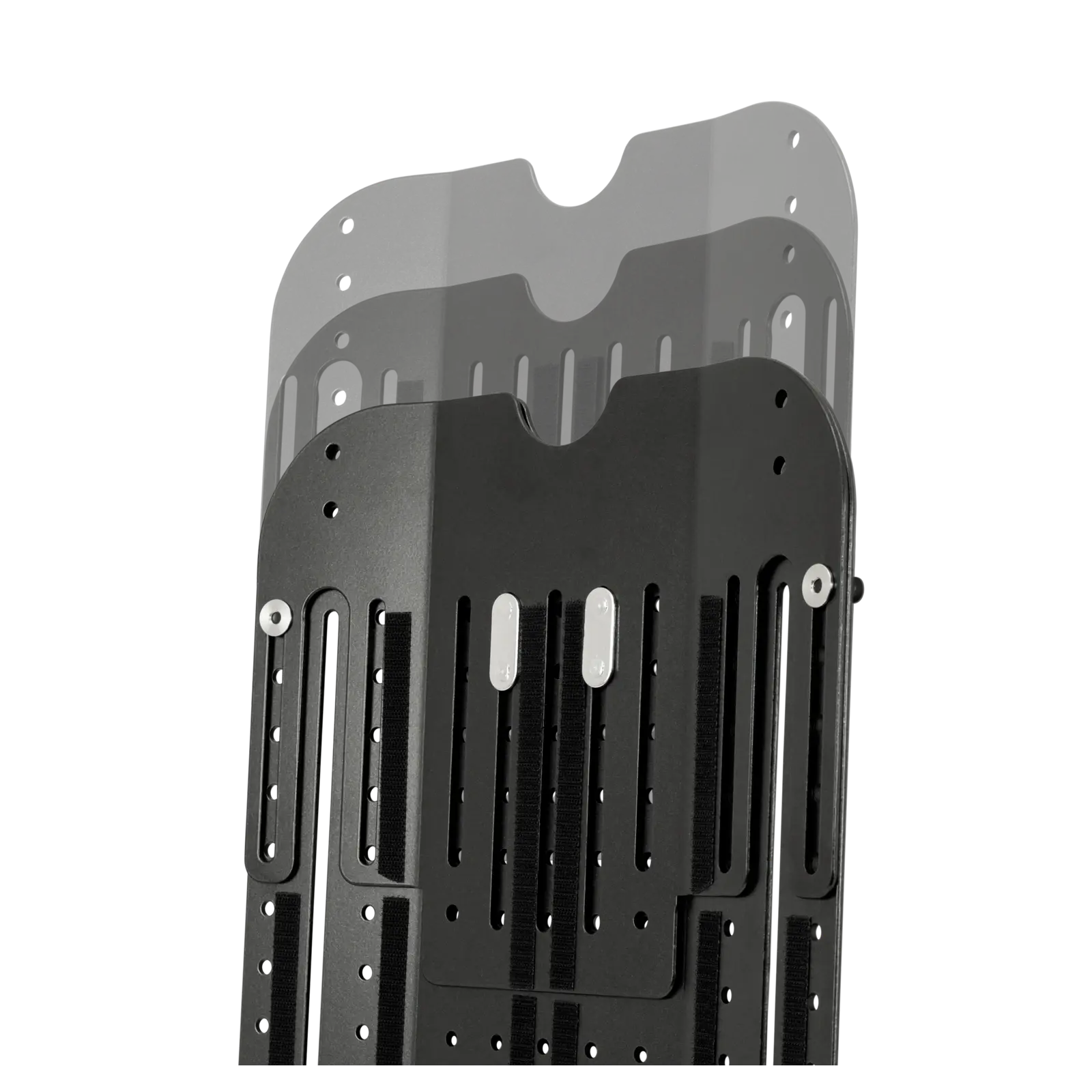

This growth system has an upper sliding interface and allows up to 4” / 10cm of additional growth adjustment meaning that from the initial wheelchair setup the prescriber can rest assured that the back support can grow in height as the user grows. This is particularly effective for paediatrics.
The foam and upholstery unit is matched for the longest growth setting meaning that you don’t have to purchase different sizes of padding as the user grows.

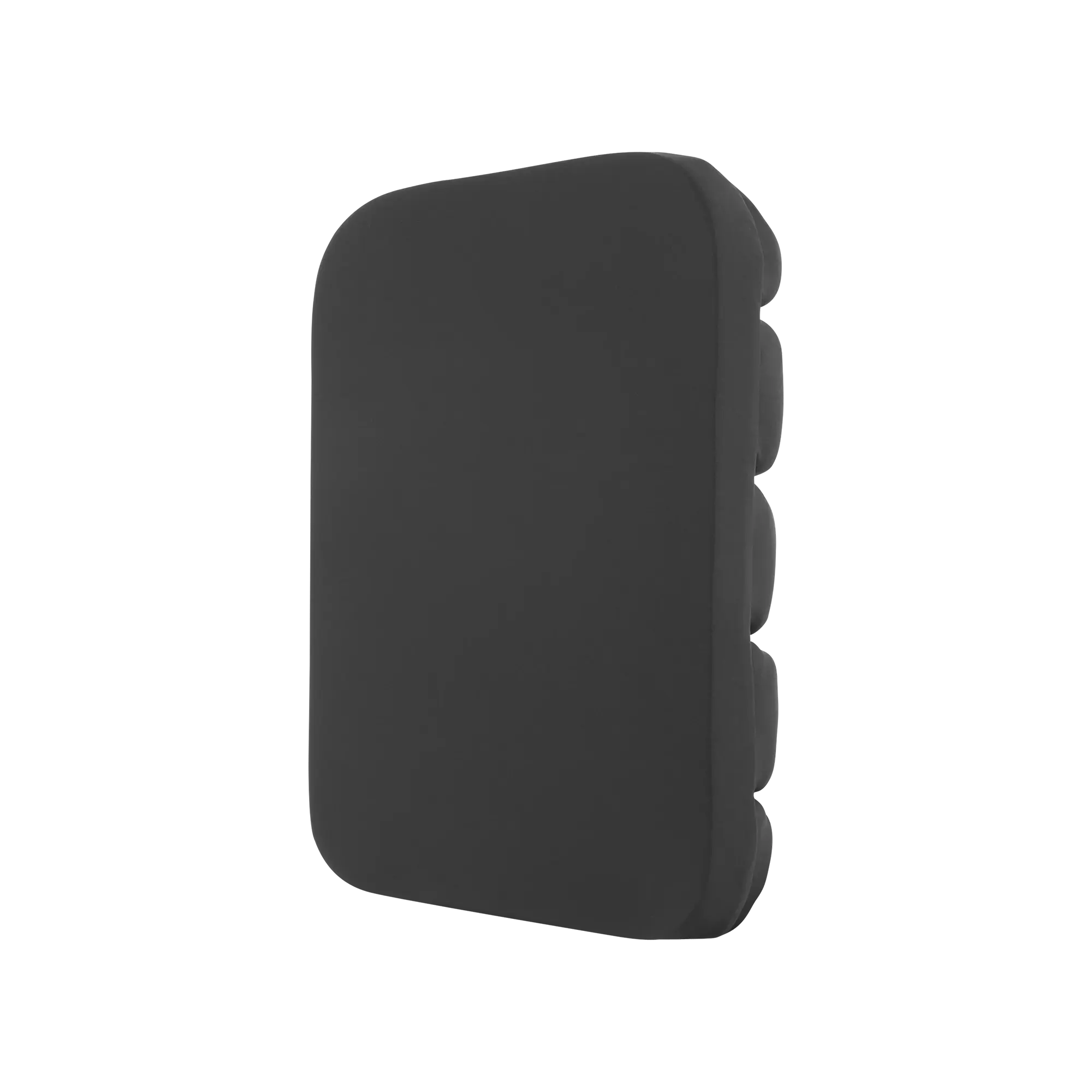

The height-adjustable shell is available with the following padding options:

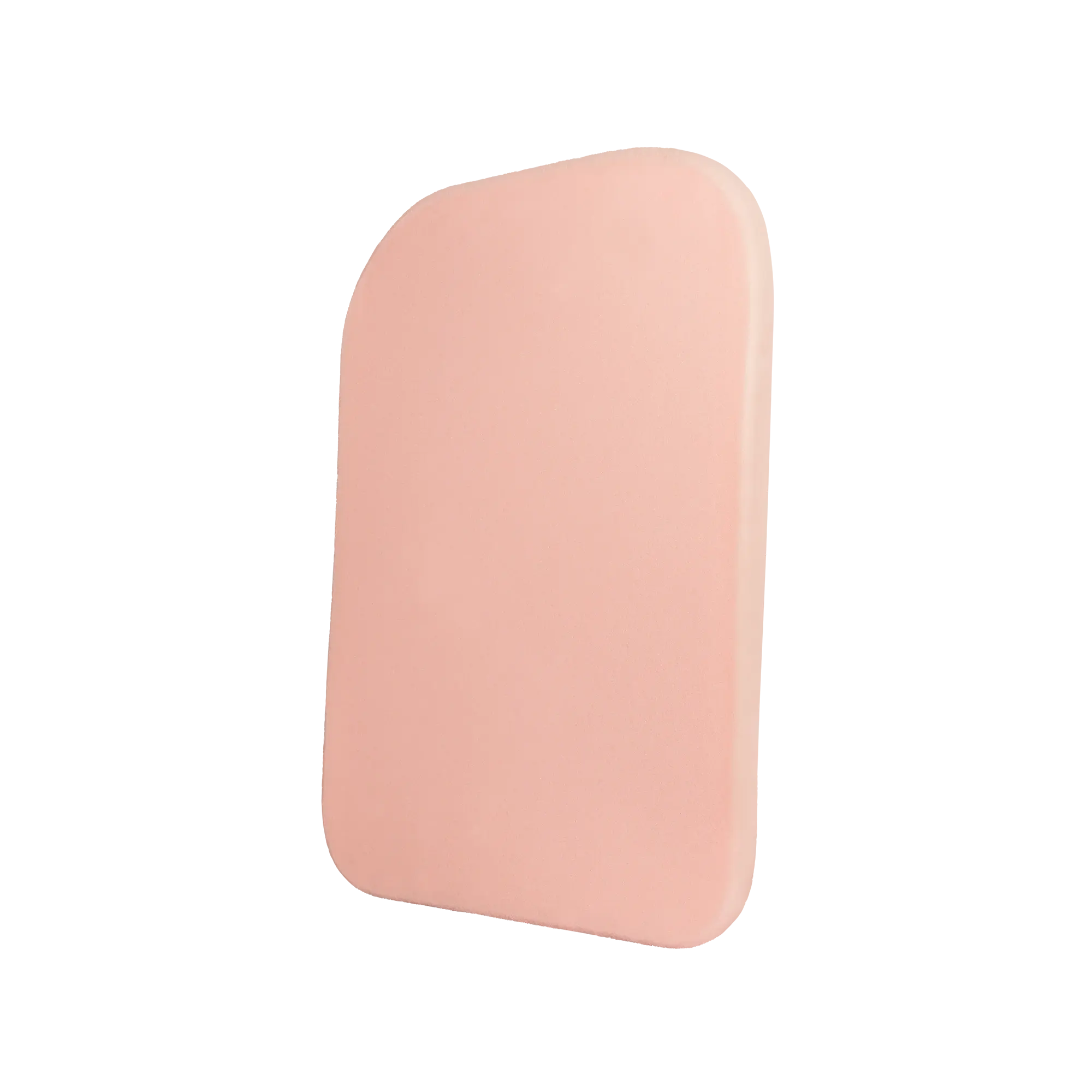

- Vigour foam: for users with symmetrical postures.

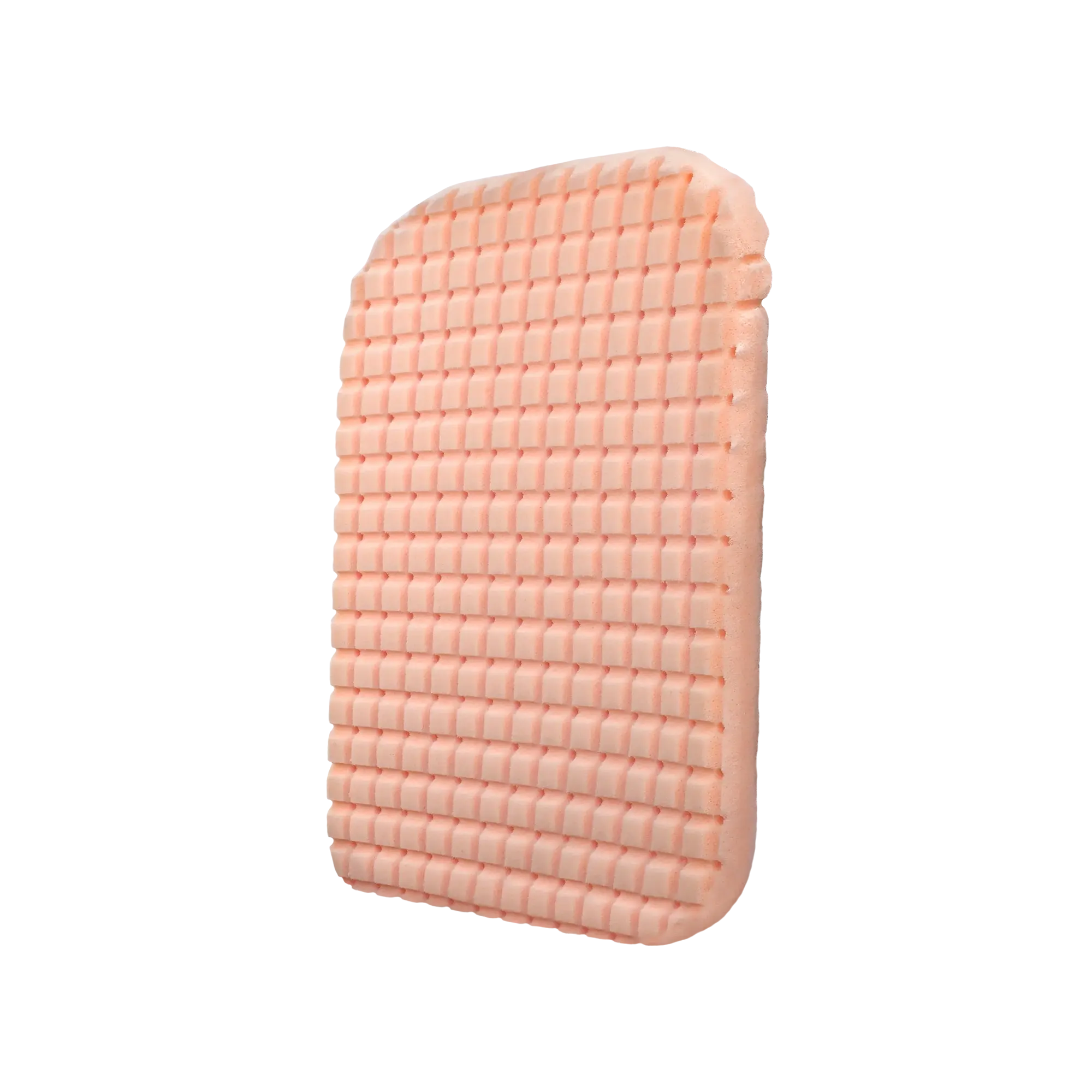

- Micro-cube foam: for users that require heat reduction and comfort

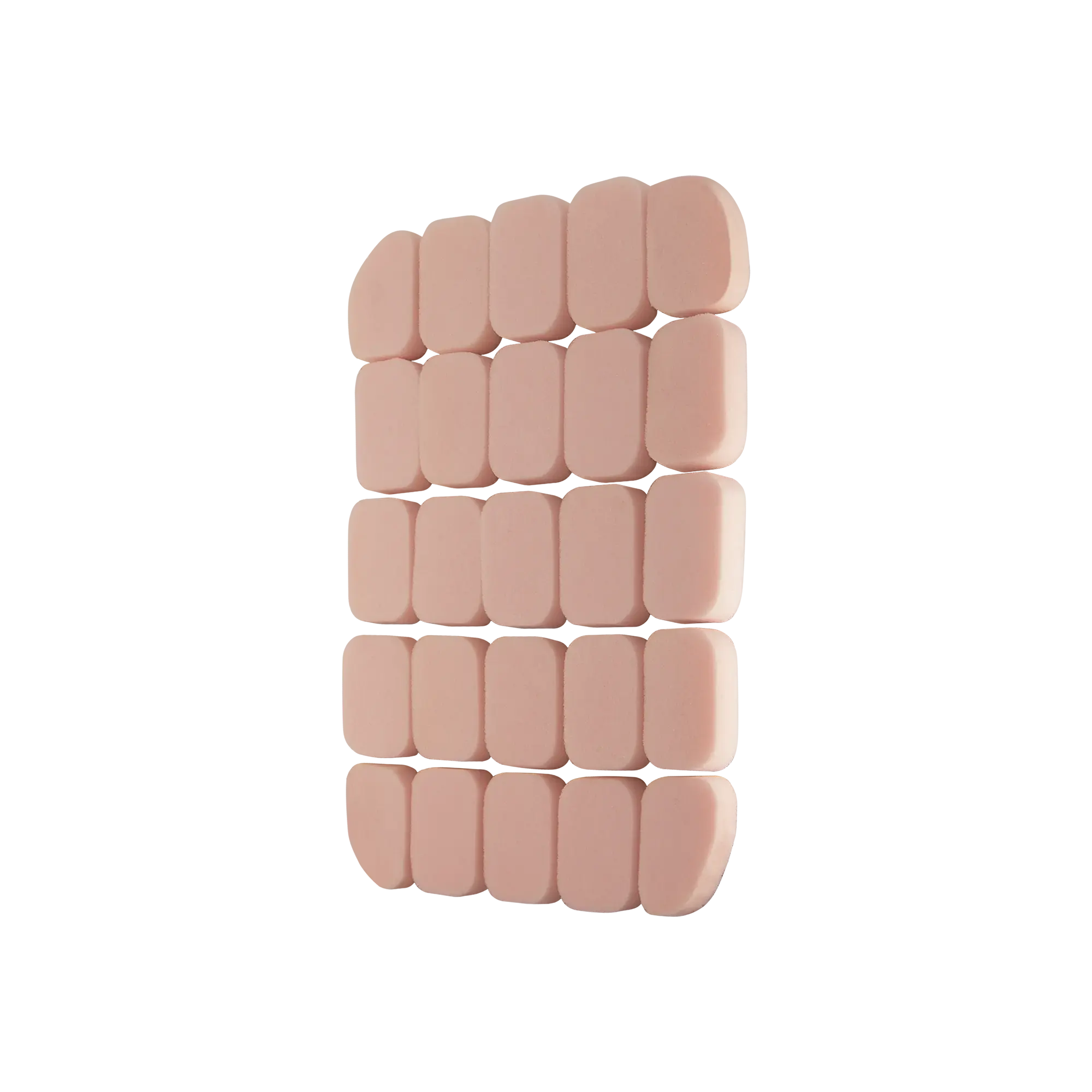

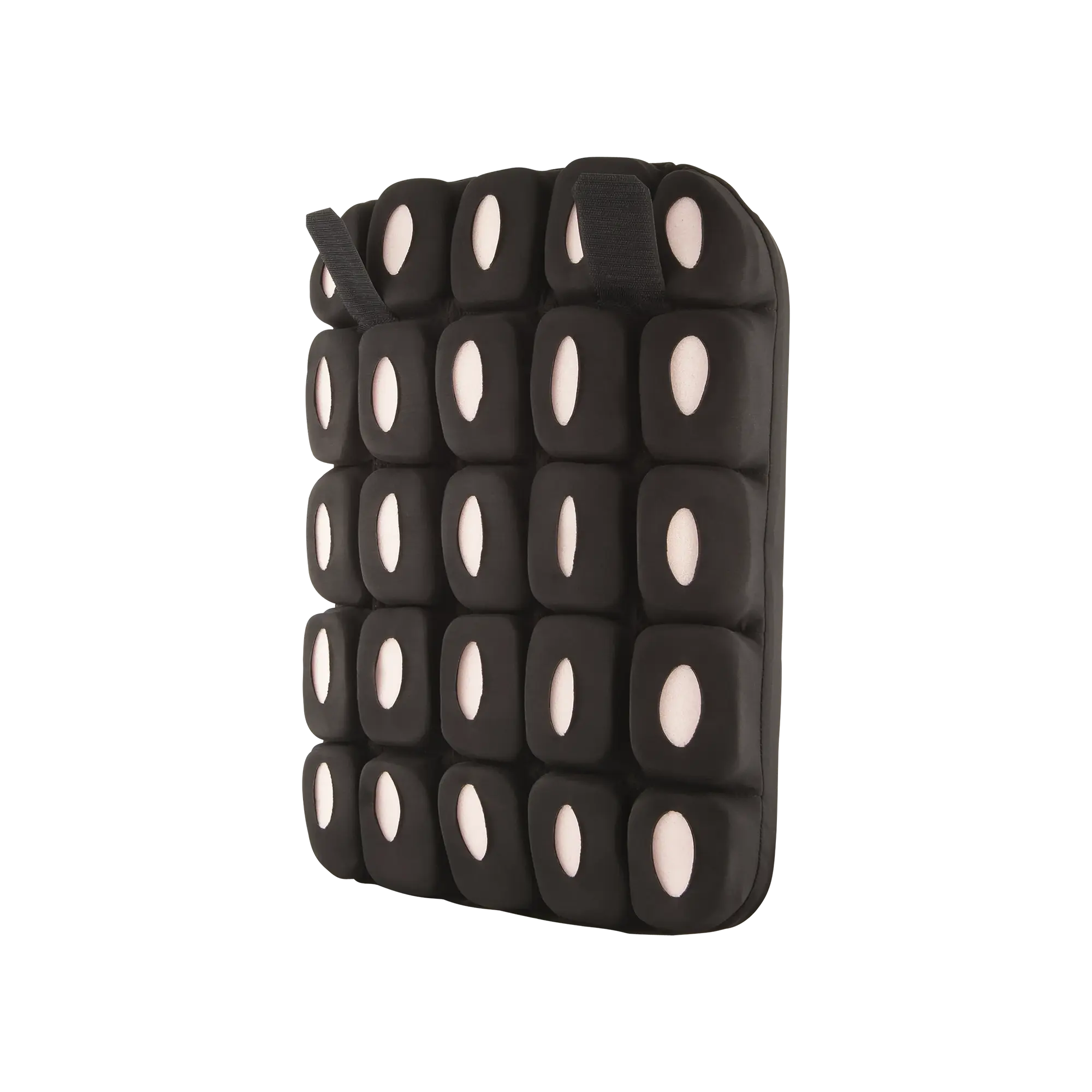

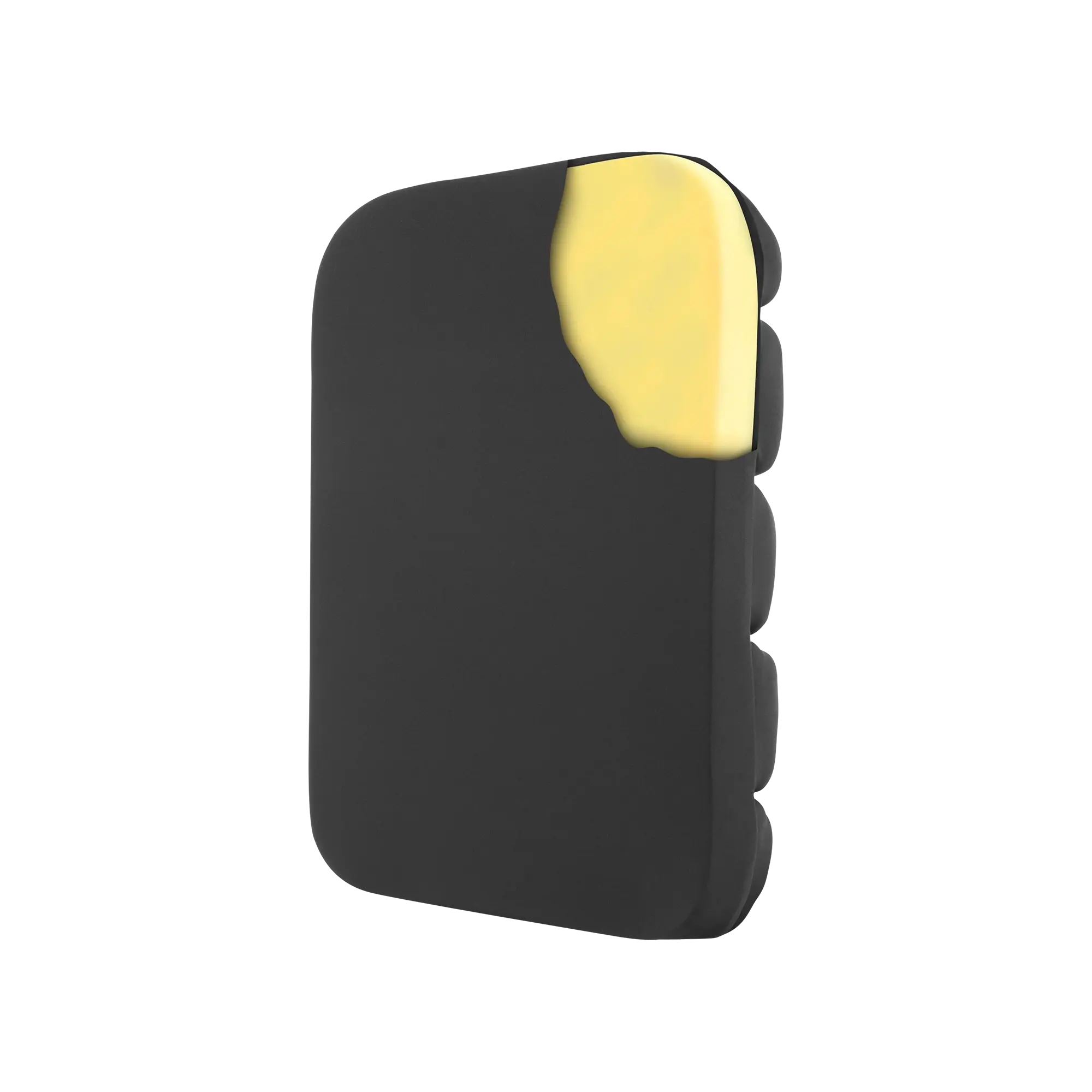

- Spex contourable cube padding: for users with asymmetries and who require pressure reduction

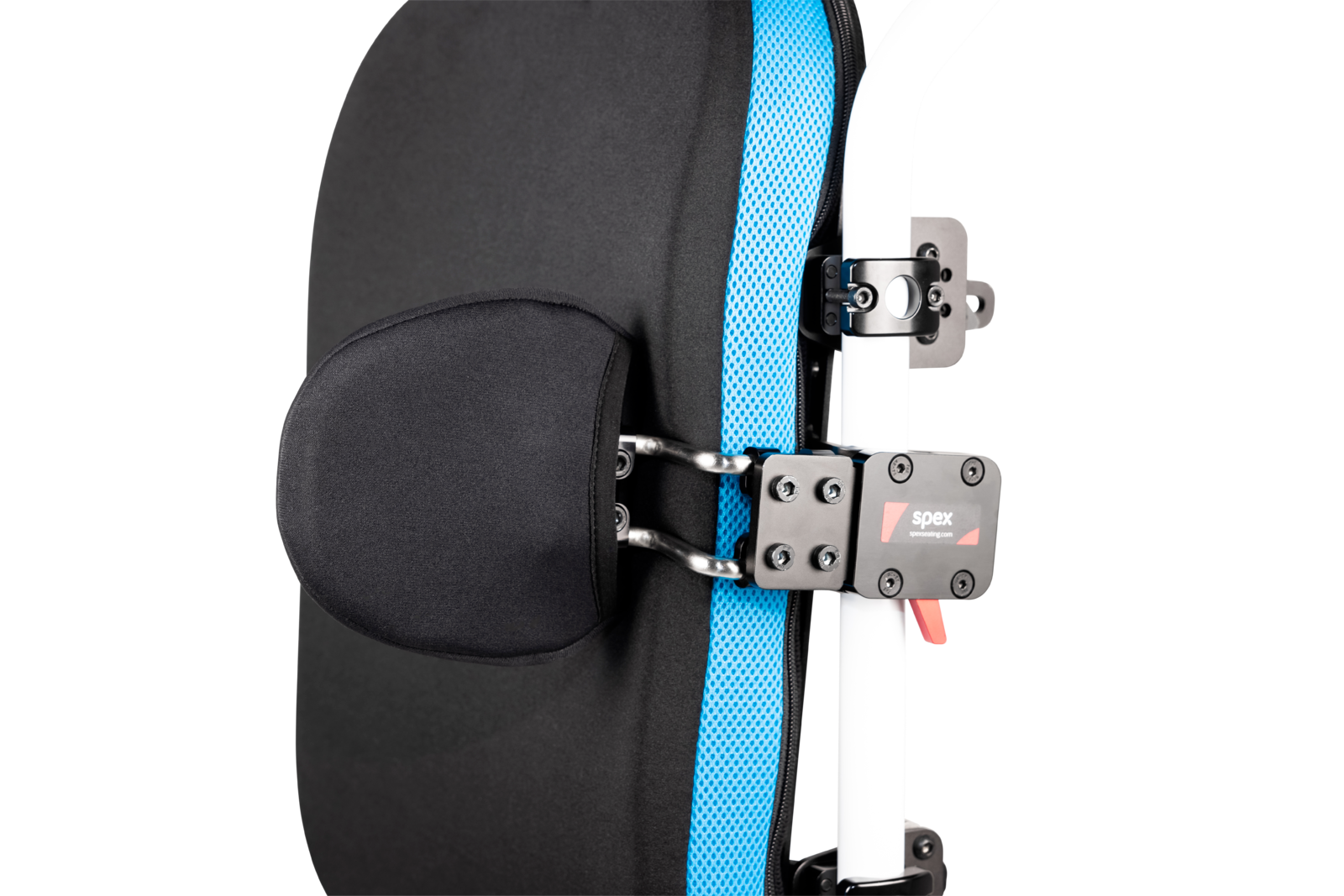

Spex Lateral Trunk Supports

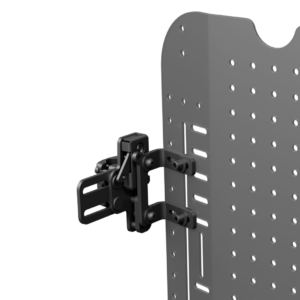

Select Hardware
- Fixed Bracket
- Standard Swing-Away Bracket
- Axial Swing-Away Bracket
Select Bracket Upgrade
- Cane Mount
- DeepContour backrest bracket
- Extension for DeepContour (commonly used with SuperShape Backrest
Select Comfy-Cover
- Extended padding over mechanism to protect arms from metal hardware
- Clever release strap for operating the swing away movement
- Easy release for users who have limited hand function and need independent use to open the laterals for transfers

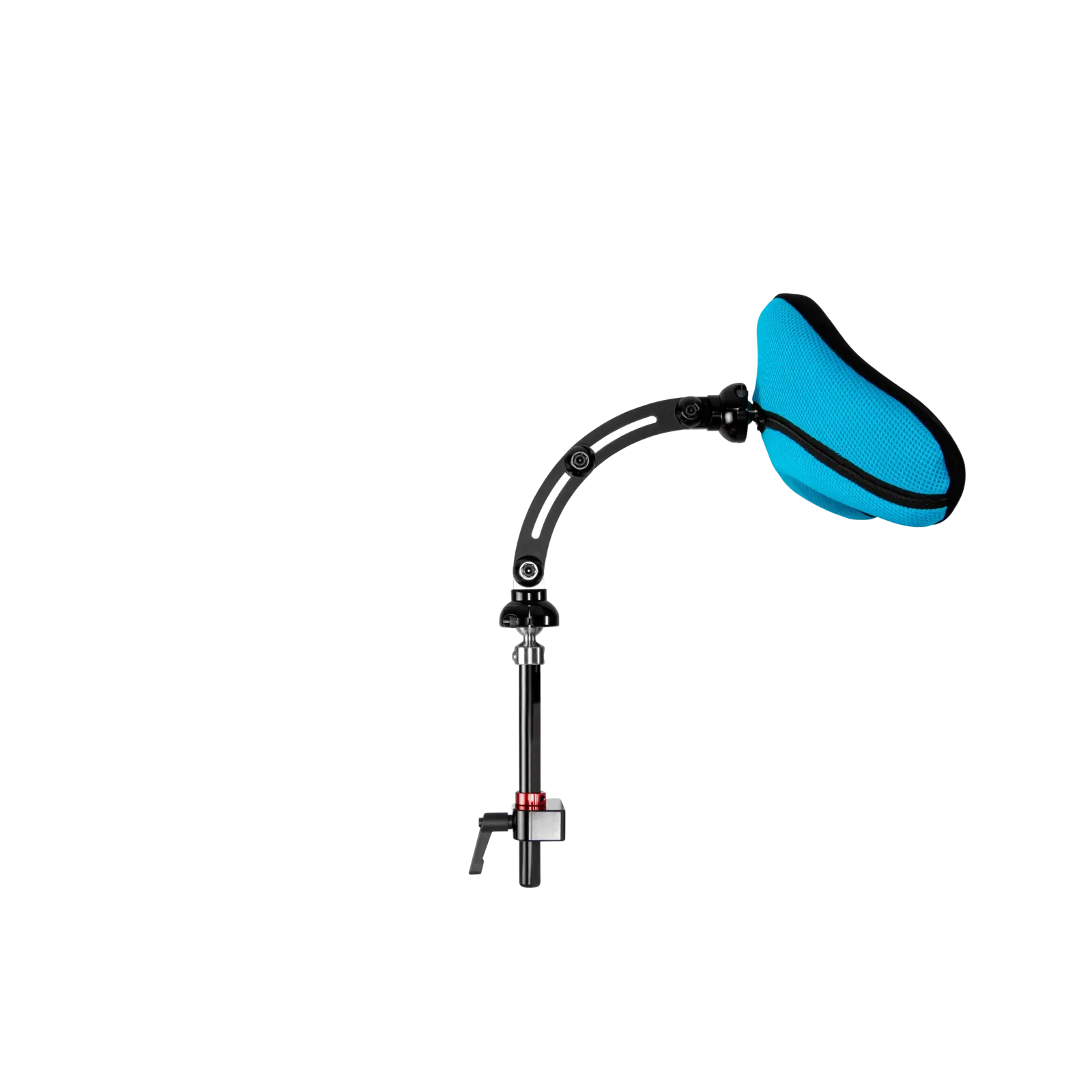

Spex Stylo Head Supports
| Circle | Comfort | Contour |
 |
 |
 |

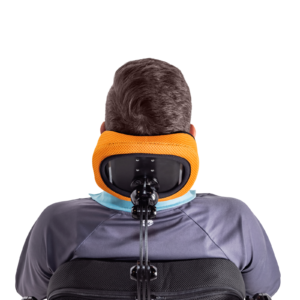

| Unique minimal head support providing direct posterior support for users with good head control.
Available in two sizes: Circle 150 and Circle 250. |
General use head support pad suited for transit and travel.
Available in two sizes: Comfort 250 and Comfort 350. |
Contoured shaped pad for superior occipital and suboccipital support.
Available in two sizes: Contour 250 and Contour 350. |
| Standard Lateral | Extended Lateral | Adjustable Lateral |
 |
 |
 |
| One-piece lateral head support solution for moderate head positioning needs.
Available in two sizes: Paediatric and Adult. |
One-piece lateral head support solution for complex head positioning needs.
Available in two sizes: Paediatric and Adult. |
A superior adjustable lateral head control system with individualised ‘tuning’.
Available in two sizes: Adjustable Lateral 150 and Adjustable Lateral 250. |
Custom head supports are available – please contact us for more information.
Spex Tray Tables
| Size | Width | Depth | Black ABS Tray Top | Clear Polycarbonate Tray Top |
|---|---|---|---|---|
| Small | 450 mm | 450 mm | 1311-7101-000 | 1311-7111-000 |
| Medium | 550 mm | 550 mm | 1311-7102-000 | 1311-7112-000 |
| Large | 650 mm | 650 mm | 1311-7103-000 | 1311-7113-000 |
Slide and Lock
Drop and Lock

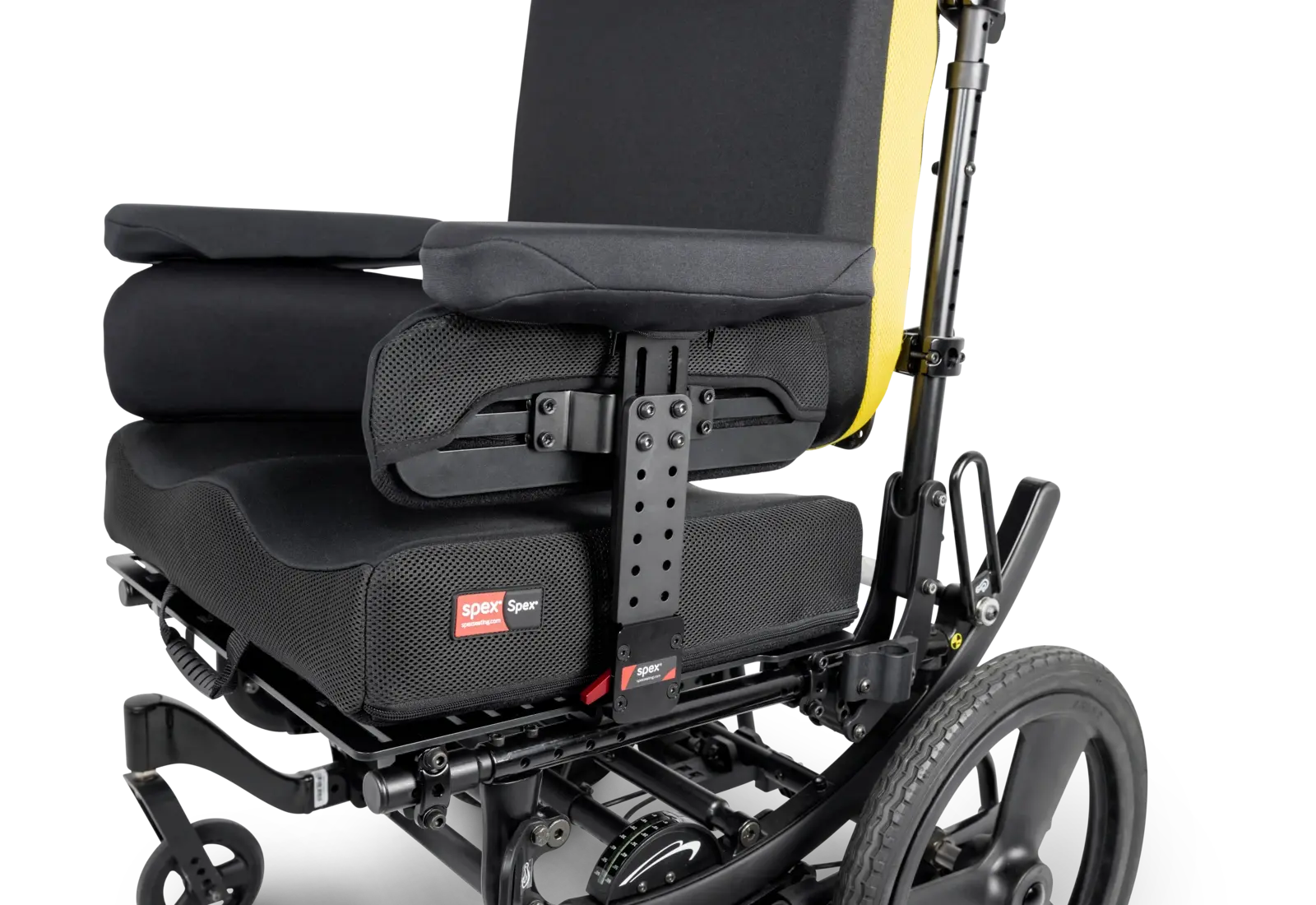

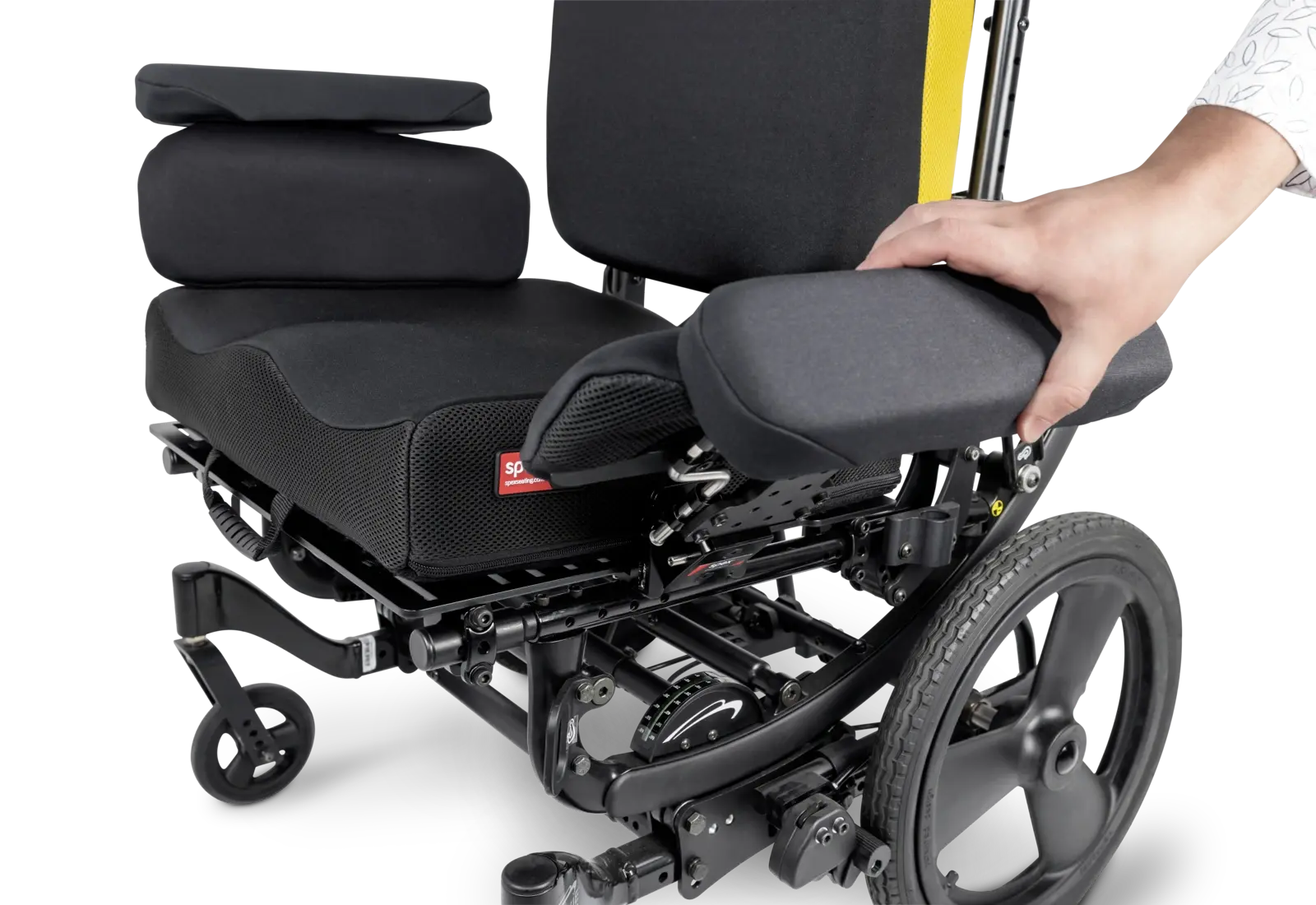

Spex Arm & Thigh Hardware
Seat Pan
| Each | Quick Release | Swing-Down | Fixed Mount |
|---|---|---|---|
| Angle-Adjust Arm + Axial Thigh | 1156-0301-110 | 1156-0301-120 | 1156-0301-130 |
| Angle-Adjust Arm + Fixed Thigh | 1156-0302-110 | 1156-0302-120 | 1156-0302-130 |
| Fixed Arm + Axial Thigh | 1156-0101-110 | 1156-0101-120 | 1156-0101-130 |
| Kidz Fixed Arm + Axial Thigh | 1156-0201-110 | 1156-0201-120 | 1156-0201-130 |
| Fixed Arm + Fixed Thigh | 1156-0102-110 | 1156-0102-120 | 1156-0102-130 |
| Kidz Fixed Arm + Fixed Thigh | 1156-0202-110 | 1156-0202-120 | 1156-0202-130 |
Seat Rail
| Each | Quick Release | Swing-Down | Fixed Mount |
|---|---|---|---|
| Angle-Adjust Arm + Axial Thigh | 1156-0301-210 | 1156-0301-220 | 1156-0301-230 |
| Angle-Adjust Arm + Fixed Thigh | 1156-0302-210 | 1156-0302-220 | 1156-0302-230 |
| Fixed Arm + Axial Thigh | 1156-0101-210 | 1156-0101-220 | 1156-0101-230 |
| Kidz Fixed Arm + Axial Thigh | 1156-0201-210 | 1156-0201-220 | 1156-0201-230 |
| Fixed Arm + Fixed Thigh | 1156-0102-210 | 1156-0102-220 | 1156-0102-230 |
| Kidz Fixed Arm + Fixed Thigh | 1156-0202-210 | 1156-0202-220 | 1156-0202-230 |
Spex Thigh and Arm Support Pads
Thigh Support Pads
| Code | Size | A (mm) | B (mm) | E (mm) | PER |
|---|---|---|---|---|---|
| 1156-1010-400 | 10″ | 265 | 90 | 35 | EA |
| 1156-1012-400 | 12″ | 310 | 95 | 35 | EA |
| 1156-1014-400 | 14″ | 360 | 130 | 50 | EA |
| 1156-1016-400 | 16″ | 410 | 135 | 50 | EA |
| 1156-1018-400 | 18″ | 460 | 145 | 50 | EA |
| 1156-1020-400 | 20″ | 510 | 160 | 50 | EA |
Arm Supports Pads
| Code | Size | A (mm) | B (mm) | PER |
|---|---|---|---|---|
| 1156-5811-400 | 1 Narrow | 40 | 250 | EA |
| 1156-5812-400 | 2 Narrow | 50 | 300 | EA |
| 1156-5813-400 | 3 Narrow | 60 | 350 | EA |
| 1156-5821-400 | 1 Wide | 70 | 250 | EA |
| 1156-5822-400 | 2 Wide | 80 | 300 | EA |
| 1156-5823-400 | 3 Wide | 90 | 350 | EA |
For custom arm or thigh supports please contact us.

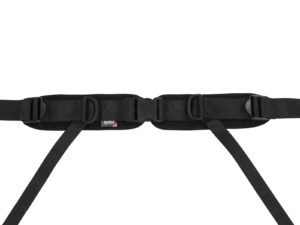

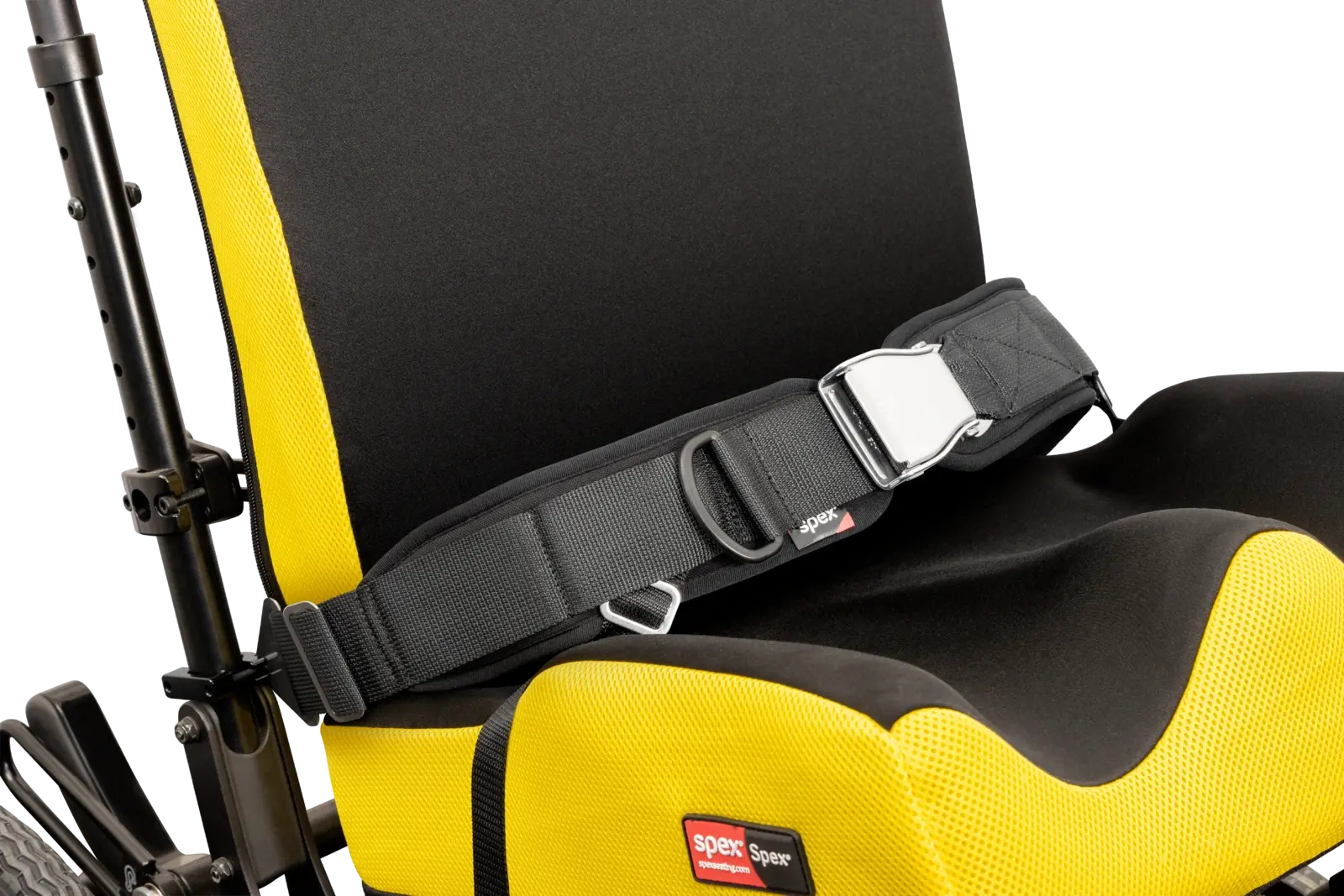

Spex Hip Belts

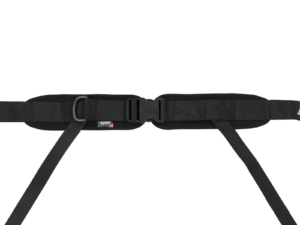

| 2 Point
Centre Pull |

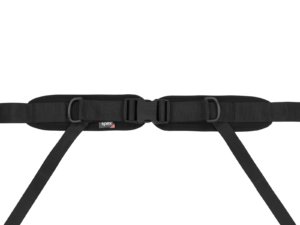

2 Point Dual-Centre Pull | 4 Point Side Pull | 4 Point Centre Pull | 4 Point Dual-Centre Pull |
|---|---|---|---|---|
 |
 |
 |
 |
 |
| User or carer operated. Tensions at centre of buckle. Suits clients with low muscle tone or weakness. | User or carer operated. Tensions from both sides at centre of buckle. Suits clients needing greater adjustment. Accommodates clothing/weight changes. | Carer operated. Tensions from the rear of the pad pulling towards the centre, for more severe needs. Suits clients with high muscle tone. | User or carer operated. Tensions at centre of buckle. Suits clients with low muscle tone or weakness. | User or carer operated. Tensions from both sides at centre of buckle. Suits clients needing greater adjustment. Accommodates clothing/weight changes. |
Harnesses
| Hip Belt Style | X-Small | Small | Medium | Large |
|---|---|---|---|---|
| Pad width 30cm | Pad width 36cm | Pad width 46cm | Pad width 56cm | |
| 2 Point Padded Centre Pull | 1405-6210-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
| 2 Point Padded Dual Centre Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
| 4 Point Padded Centre Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
| 4 Point Padded Dual Centre Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
| 4 Point Padded Side Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
The last three digits of the code refer to the buckle type. See below table for buckle options.
Buckle Options

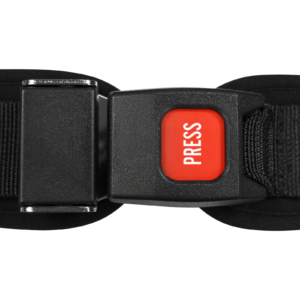

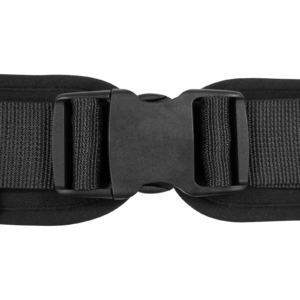

| Side Release | Centre Release | Anti-Escape | Pen Popper | Easy Release Latch |
|---|---|---|---|---|
 |
 |
 |
 |
 |
| -027 | -028 | -026 | -025 | -023 |

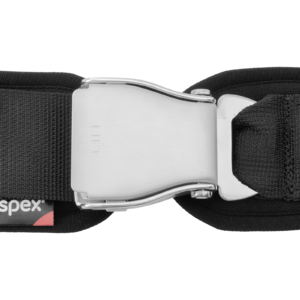

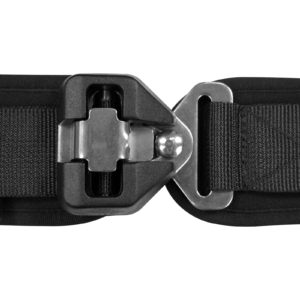

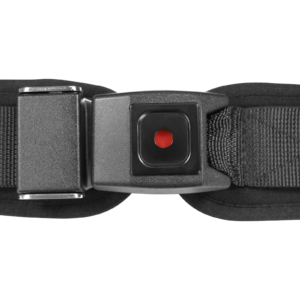

| Simple and easy to click together and undo. | Robust design to keep the user positioned and safe. | Prevent users with challenging behaviour from releasing the buckle. | Requires a pen to prod the buckle mechanism to release open. | Simply lift the metal buckle flap and slide the buckle apart. |
Note: These harnesses are a positioning device only. Do not use as a safety restraint in vehicles.
Spex Shoulder Strap Guides
Recommended for any harness choice to prevent shoulder straps from falling off shoulders.
The Spex Harness Guides are height adjustable and fit both 1″ and 1.5″ straps. Package includes
a pair of 5mm aluminium strap guides and attachment hardware.

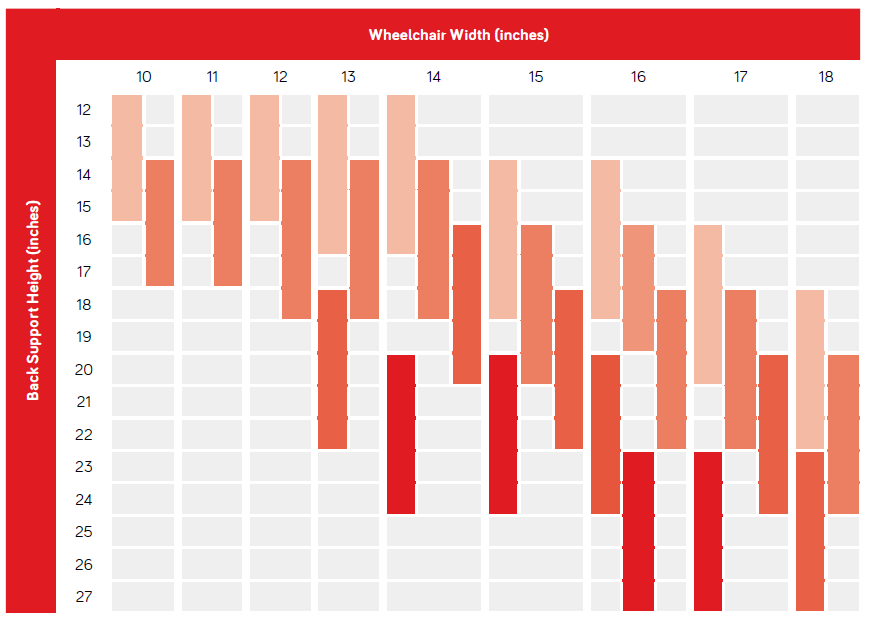

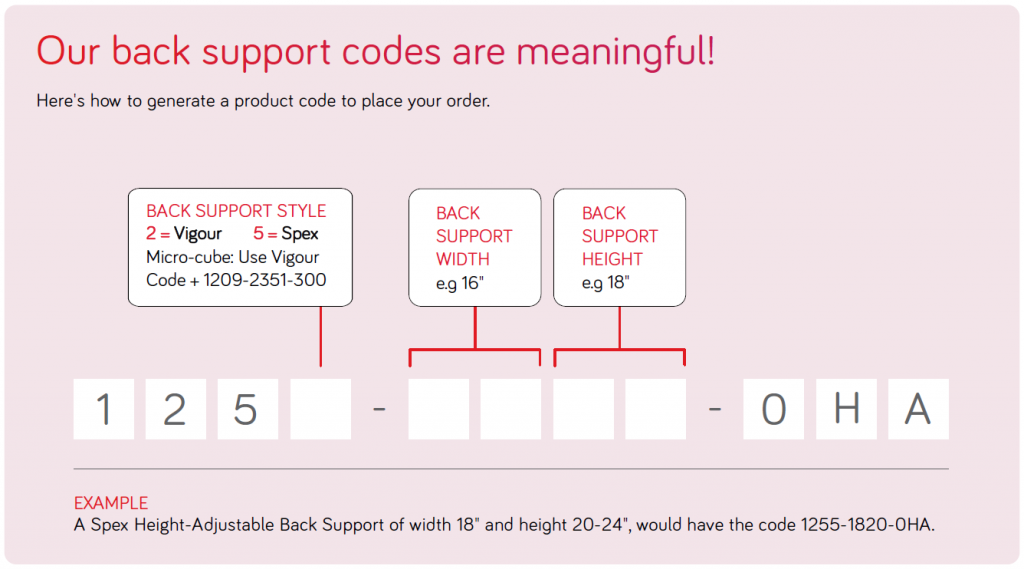

To order the correct product using the code guide below, Back Support Width is the size shown across the table, and Back Support Height, shown on the left, is the first size shown in the shaded area.
Example: To order a 14″ wide by 18″ high back support, you can order either 1414 or 1416, depending on the adjustability required.
