Spex Classic
T Shape
Back Support

Spex Classic Back Support Technology with enhanced upper body and shoulder support

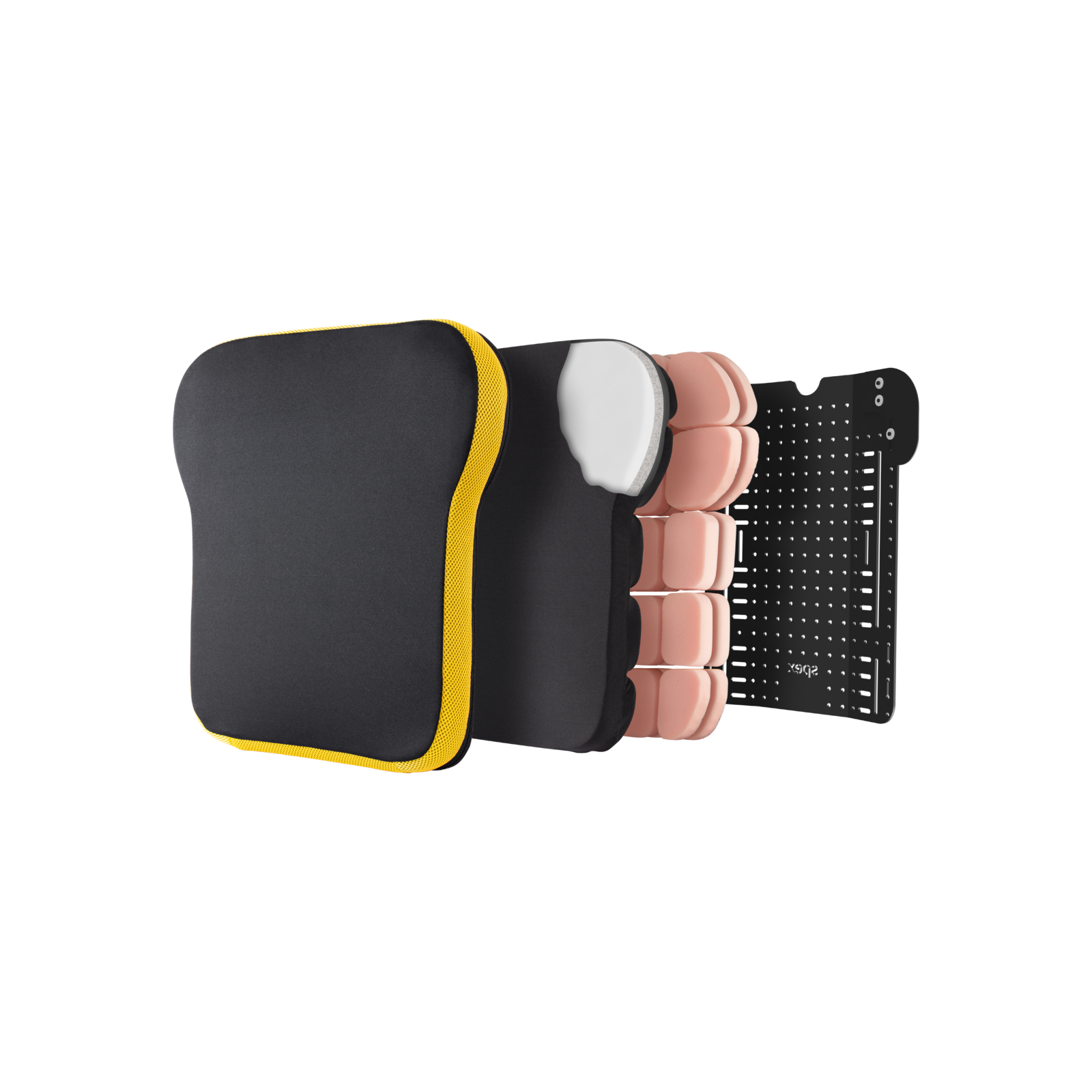

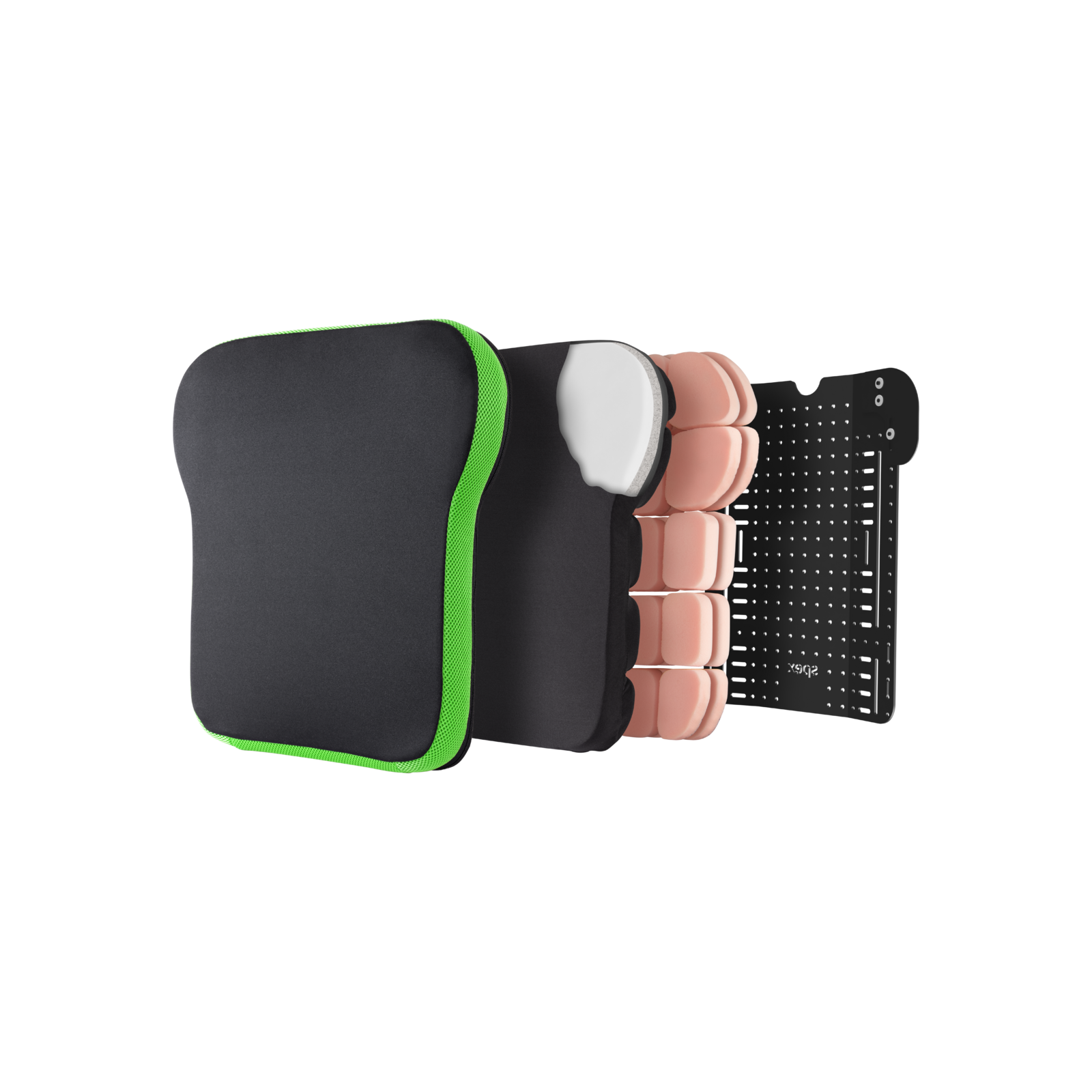

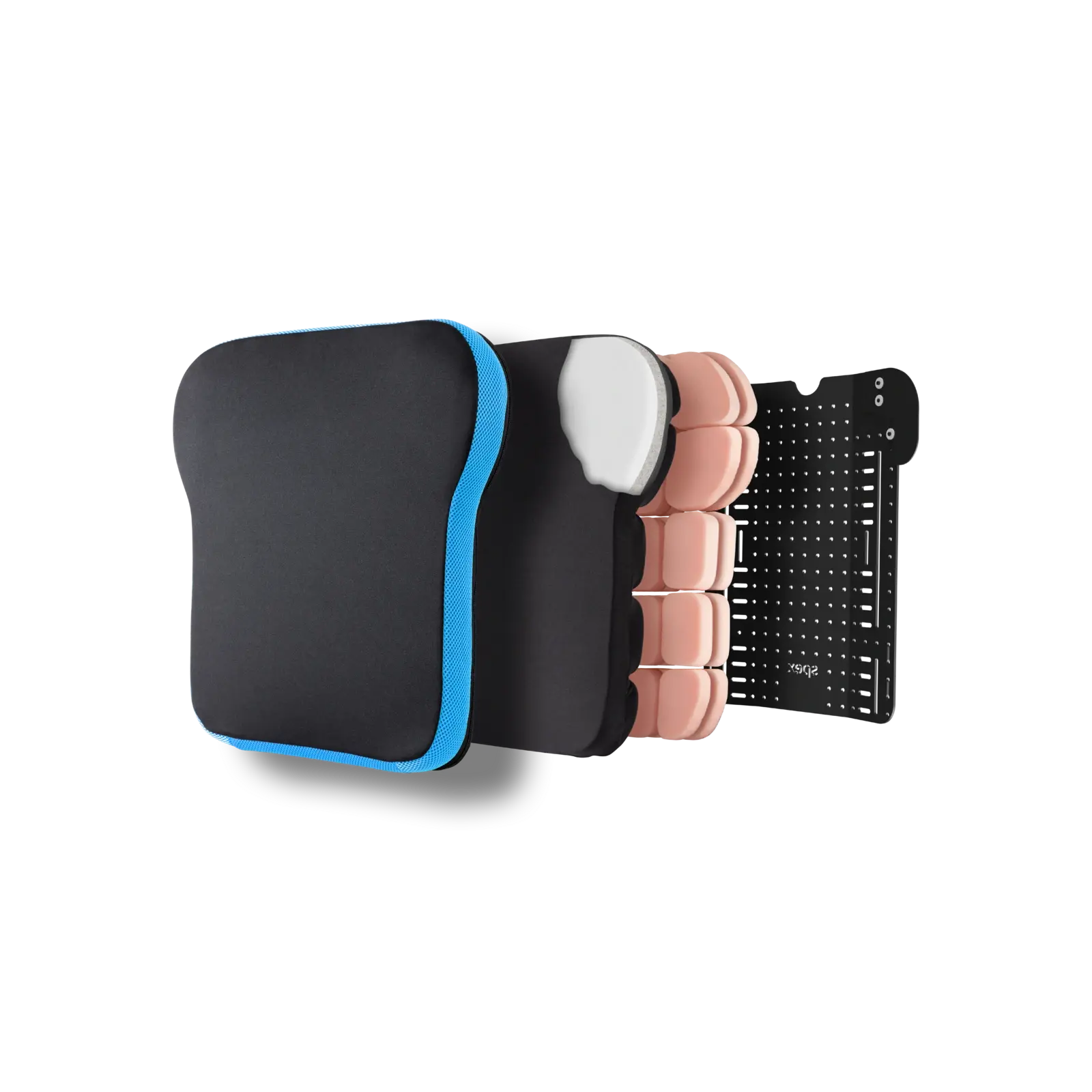

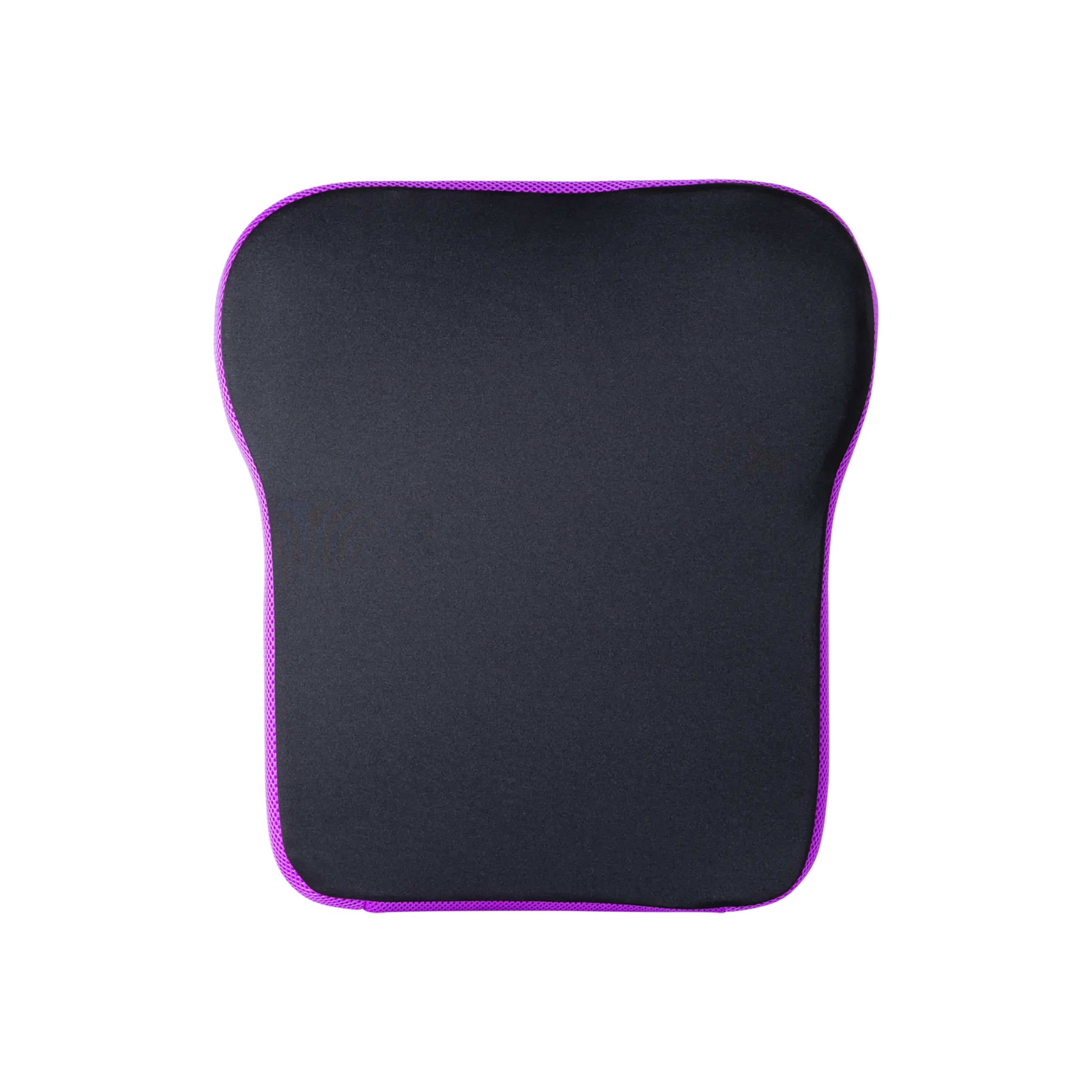

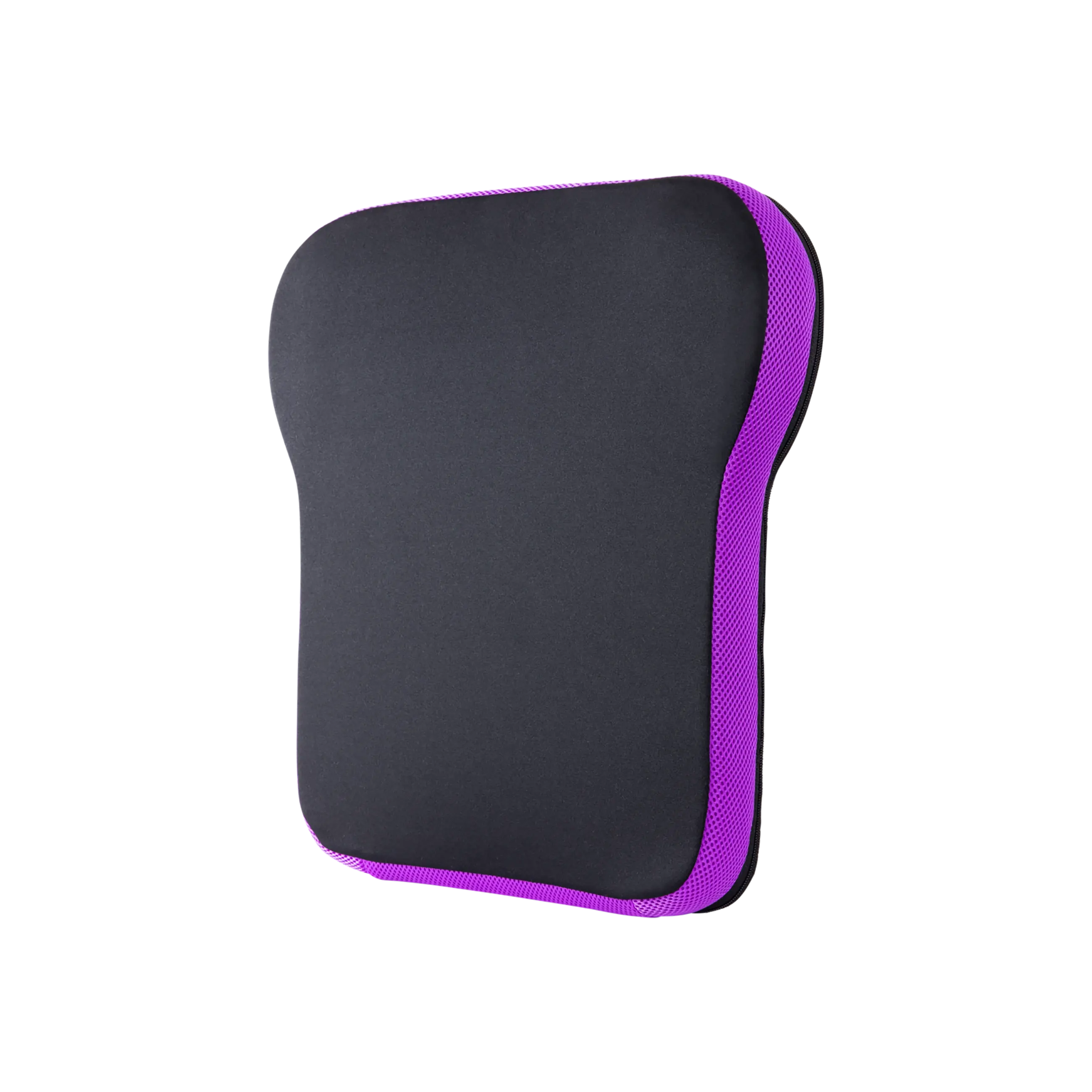

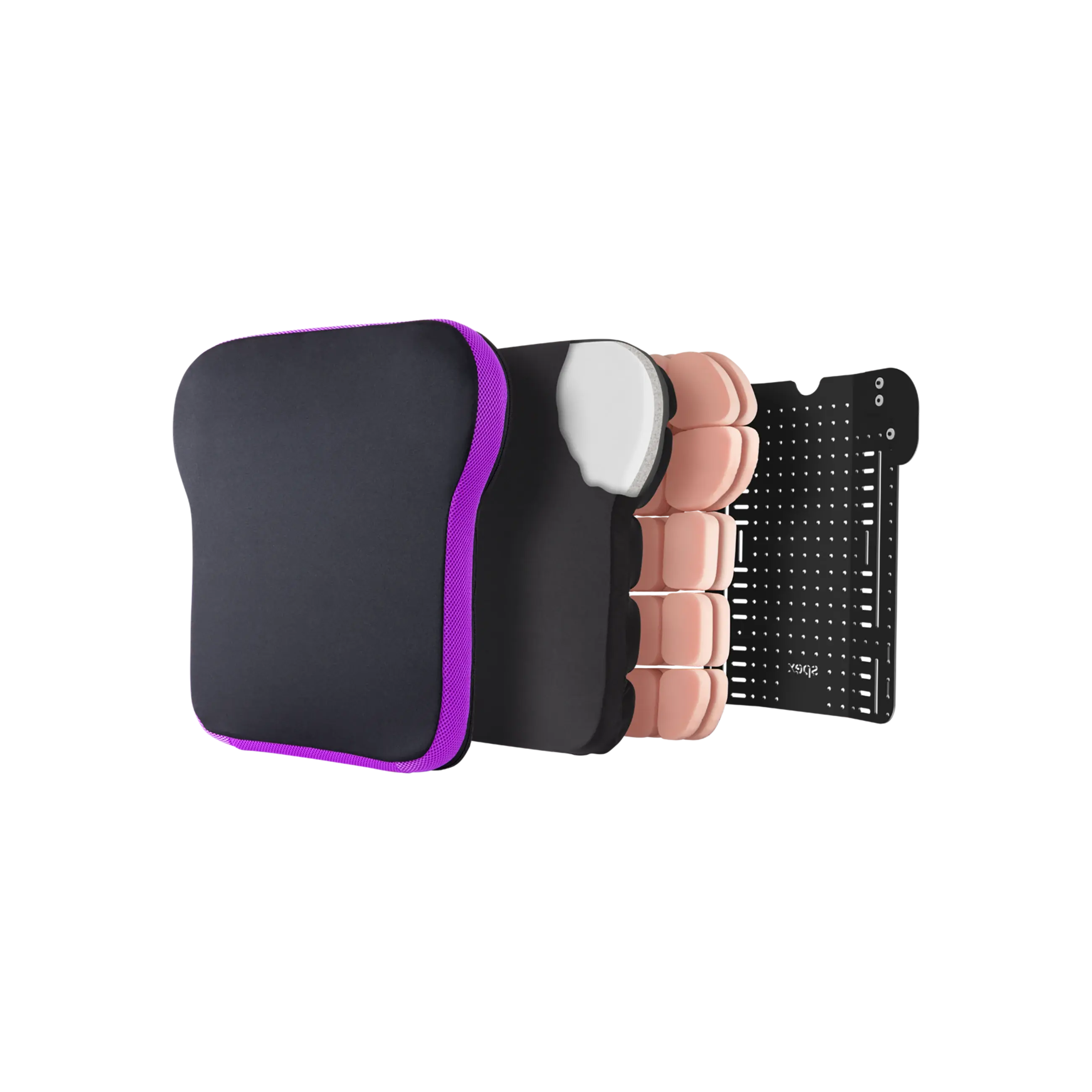

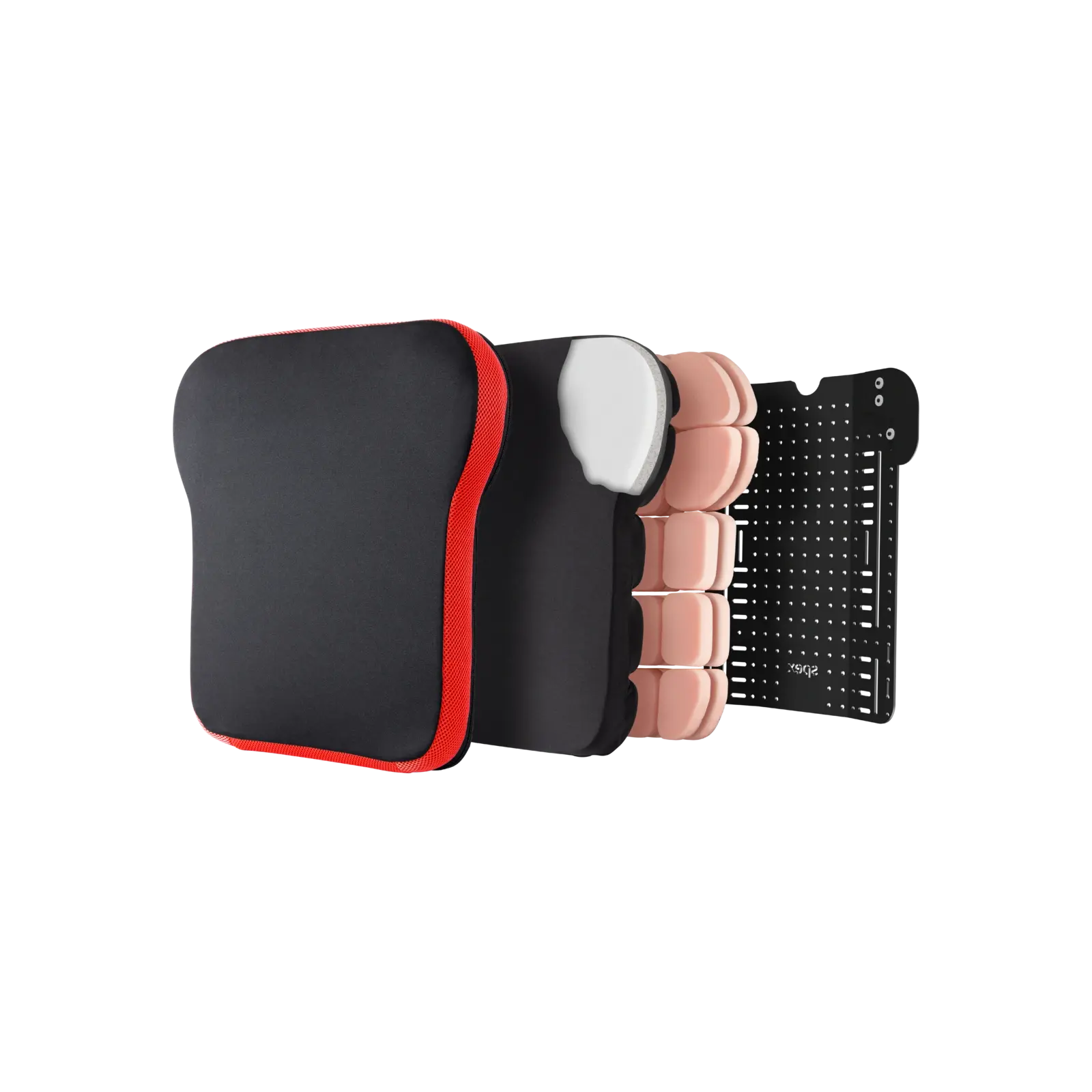

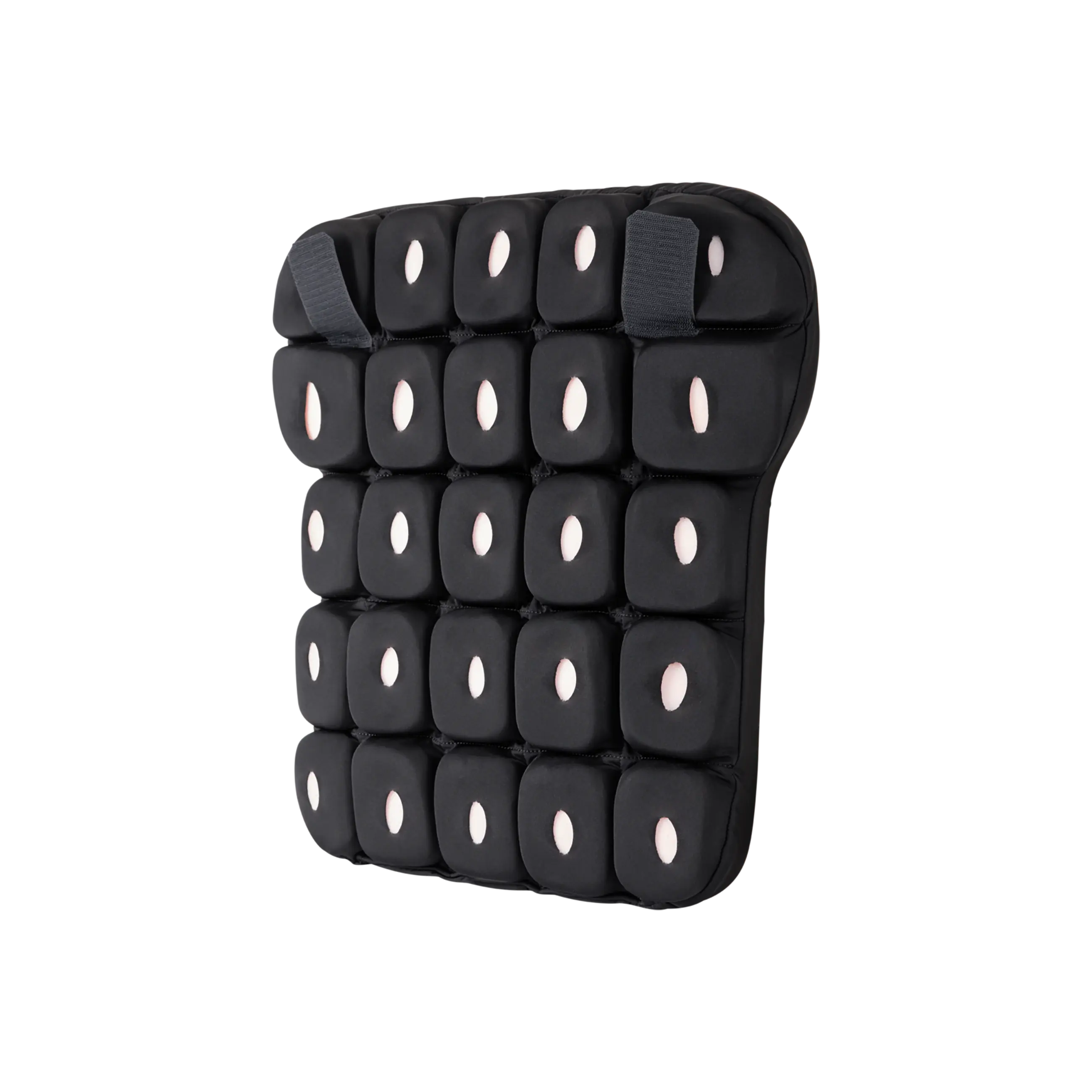

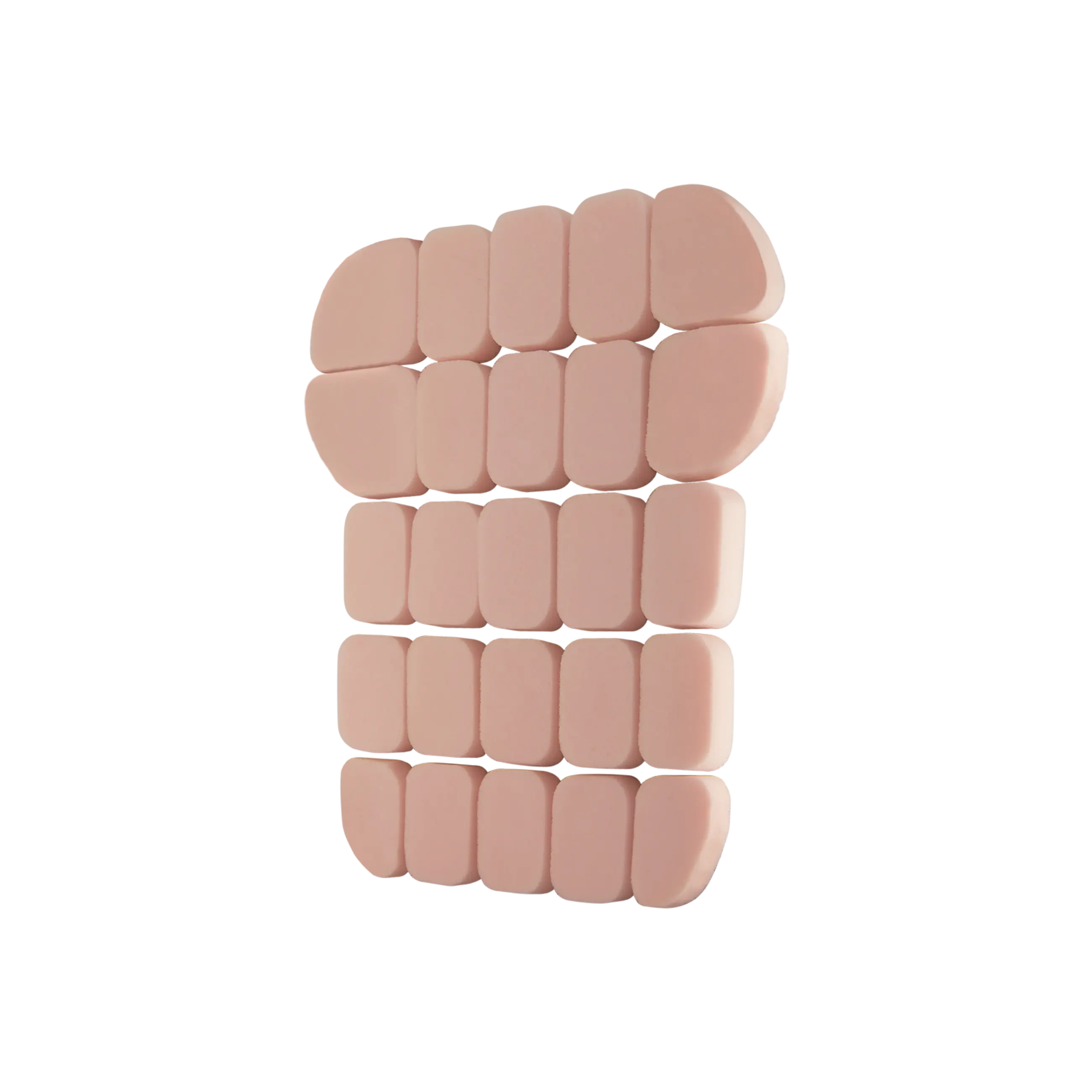

Easily solve upper torso positioning needs for most wheelchair users with the Spex Classic T Shape Back Support. The T Shape Back Support incorporates the classic Spex contouring cube system to allow on-the-spot customisations for torso comfort and asymmetry needs, whilst also providing greater stability for the user’s upper body.

Greater stability in the trunk can allow for improved head and neck movements, and greater contact surface can aid with pressure distribution for comfort. The contouring and immersion ensures that individual body shape and comfort needs are easily responded to with the T Shape Back Support.

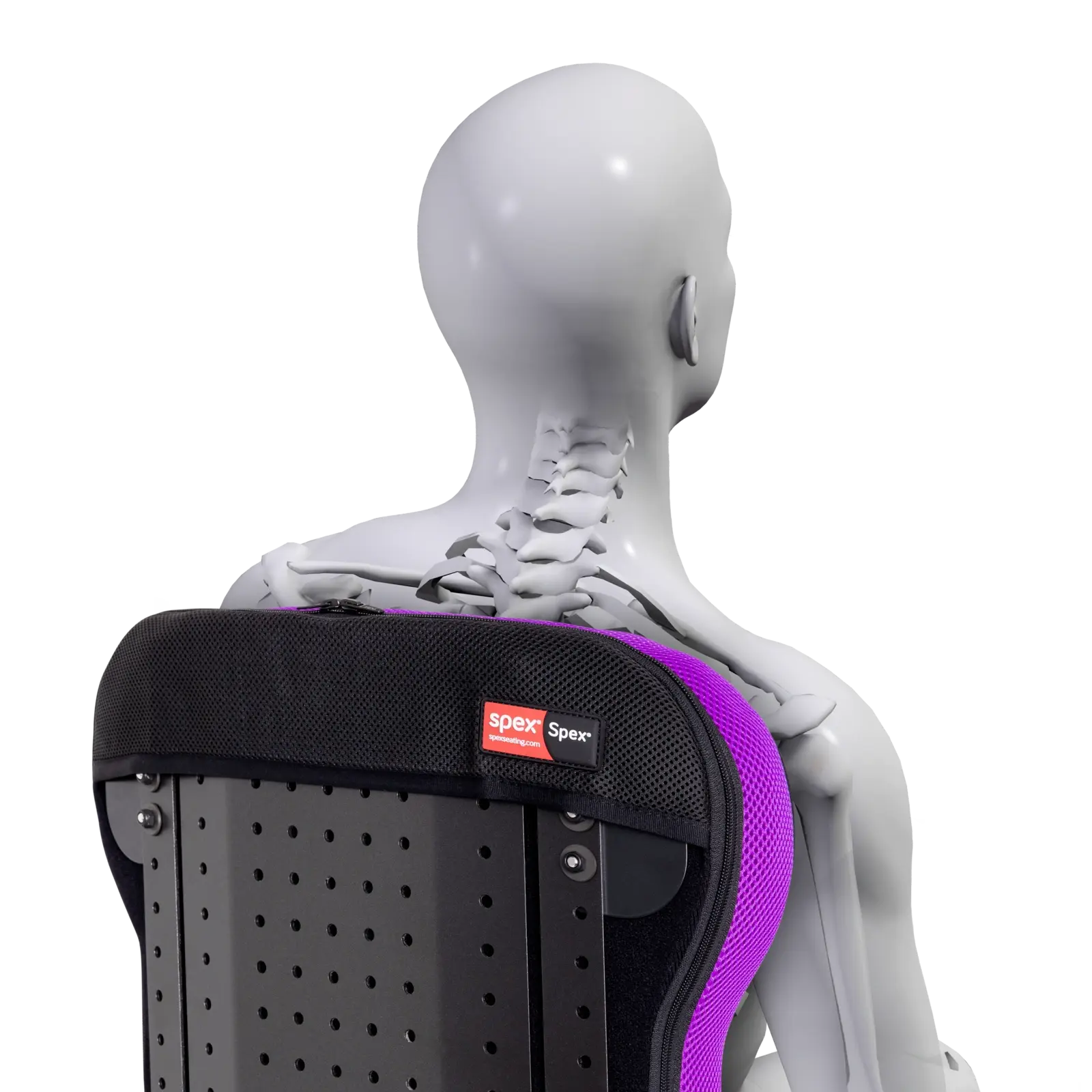

The T Shape provides superior upper back and shoulder support, and is especially useful in situations where the user requires tilt-in-space and their upper body and shoulders will have more contact with the contact surface of the back support.

  • Superior upper back and shoulder support
  • Effortless customisations
  • On-the-spot adaptions for changing postural needs
  • Instant results

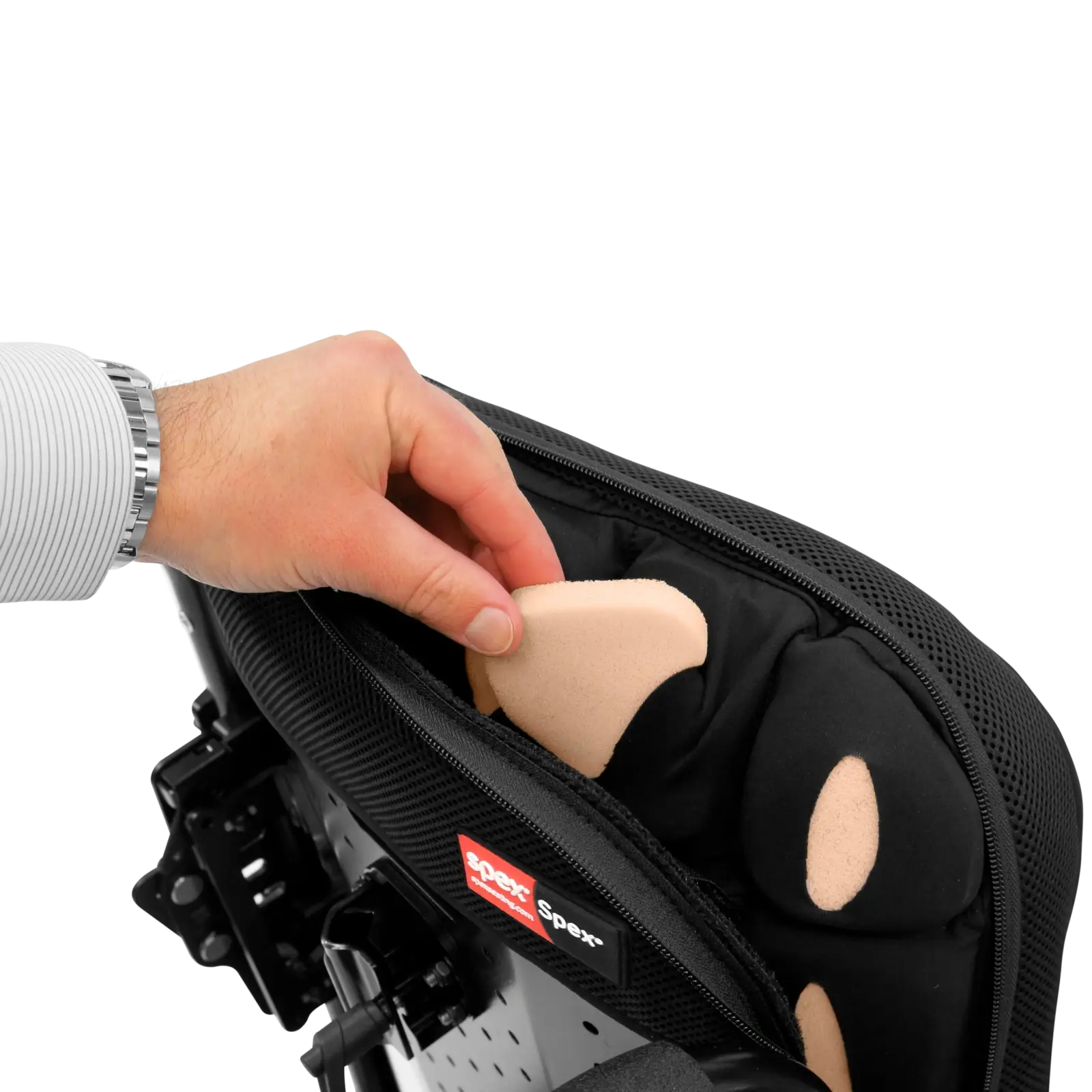

  • Cubes can be removed and added at any time

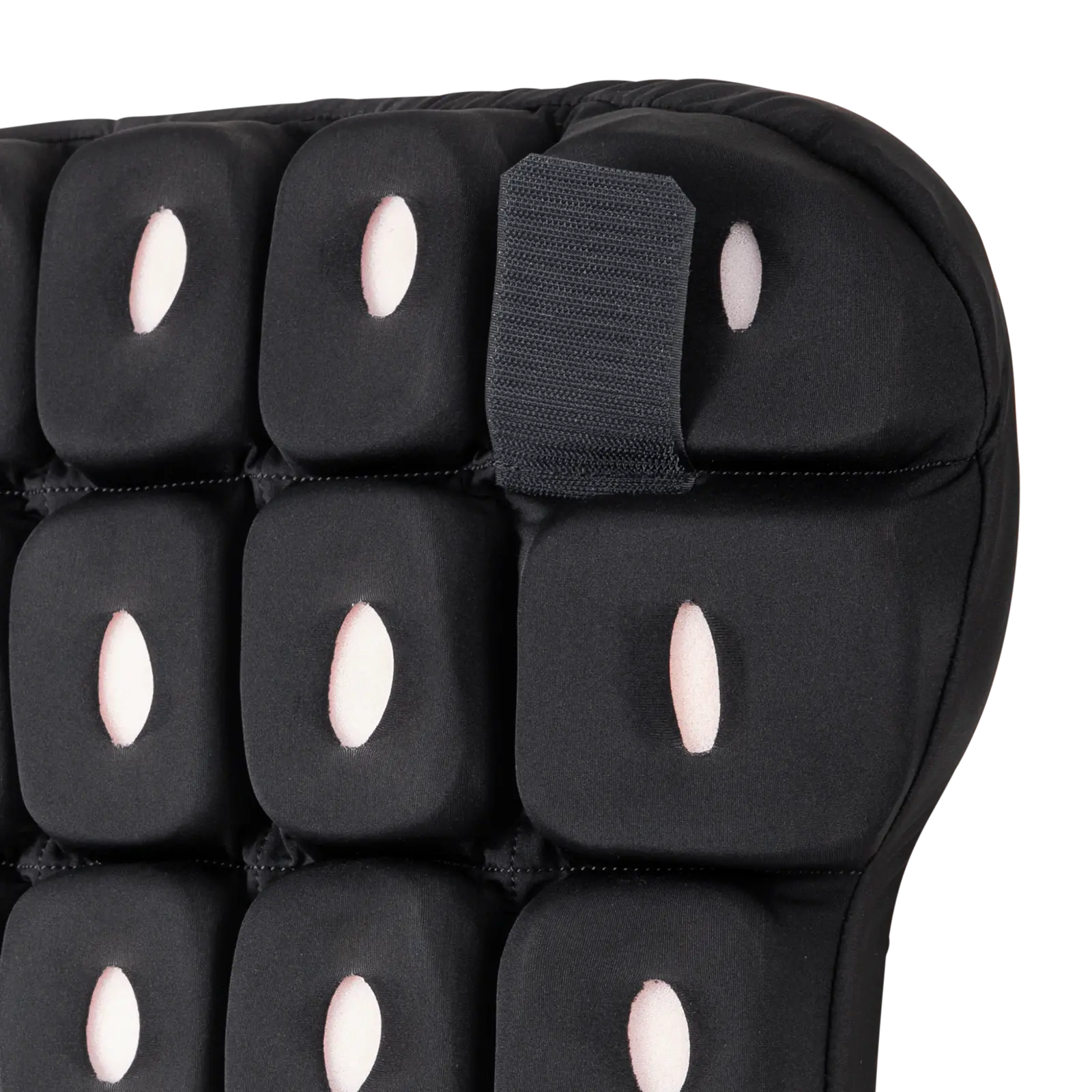

  • Contouring doesn’t move or slip out of adjustment
  • Additional contouring support wedges can be used to further enhance the degree of contouring for individual body shapes

While the standard Classic Back Support style with its rectangle shape fits between the wheelchair canes, the T Shape sits in front of the wheelchair canes due to the additional shoulder support components. This will inhibit the recline adjustment that is available in most Spex back support hardware.

Description
Clinical
Functional

Designed for the individual who:

  • Requires a comfortable back support to reduce torso pain
  • Requires spinal alignment and support
  • Has skin breakdown/pressure care needs
  • Has bony or protruding skeletal prominences
  • Have changing postural needs
  • Pertains a maladaptive or asymmetric posture



For Mild Bony Prominences For Immersion For Asymmetry
Without even adjusting the cube system, the Spex back support has slight contouring and integrates a comfortable pressure reducing foam surface layer to absorb mild bony prominences and asymmetries for uniform torso contact. For individuals that require immersion into the back support, simply adjust the cube contouring cell system to configure for a perfect fit and shape for the user’s back. For asymmetrical or maladaptive postures, the contour can be arranged to provide the matching shape required to support the user’s torso profile.



Functional

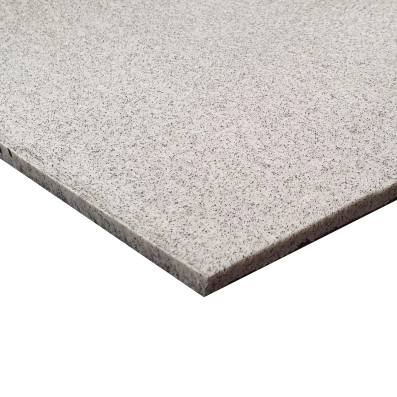

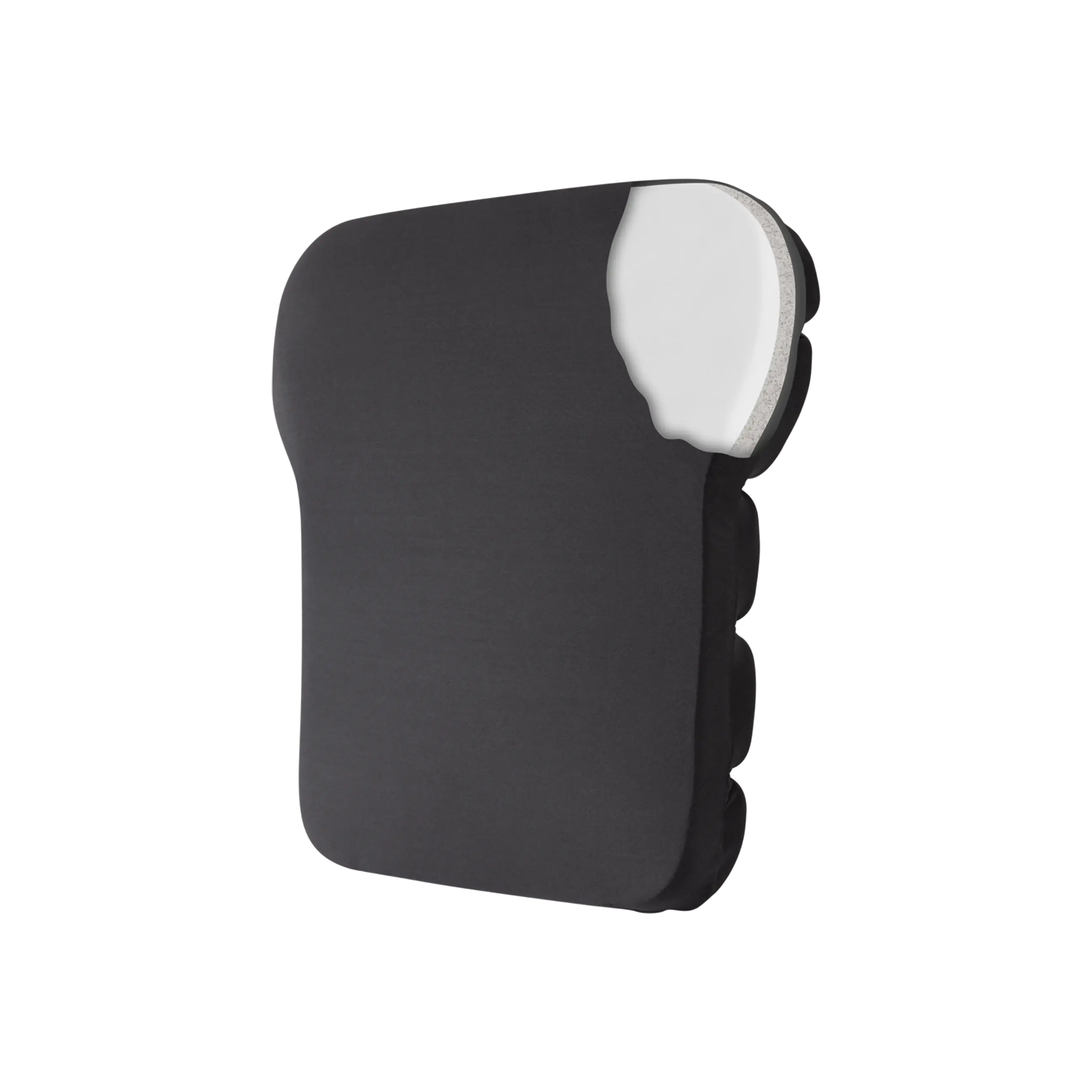

  • Comfortable pressure reducing foam surface layer to absorb bony prominences.
  • Cube contouring cell system provides configurations for a perfect fit and shape for the client.
  • Customisation to contouring are performed on-the-spot.
  • Created as the solution-solver for asymmetrical back postures.

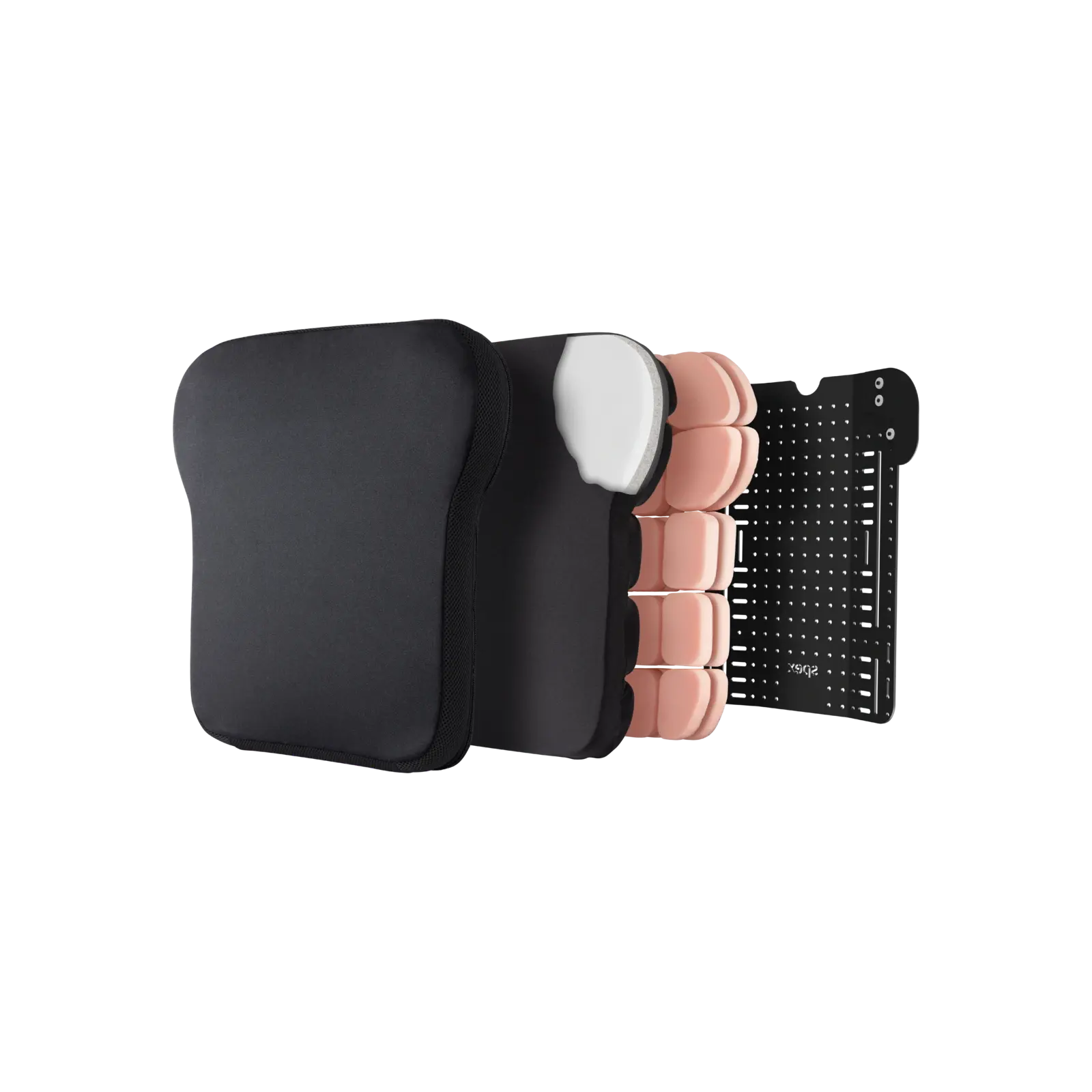

  • Modular componentry means you can ‘mix and match’ with different lateral pad options and positioning supports.
  • Offers exceptional back/shoulder contact.
  • Sustainable choice for issuing to other users.

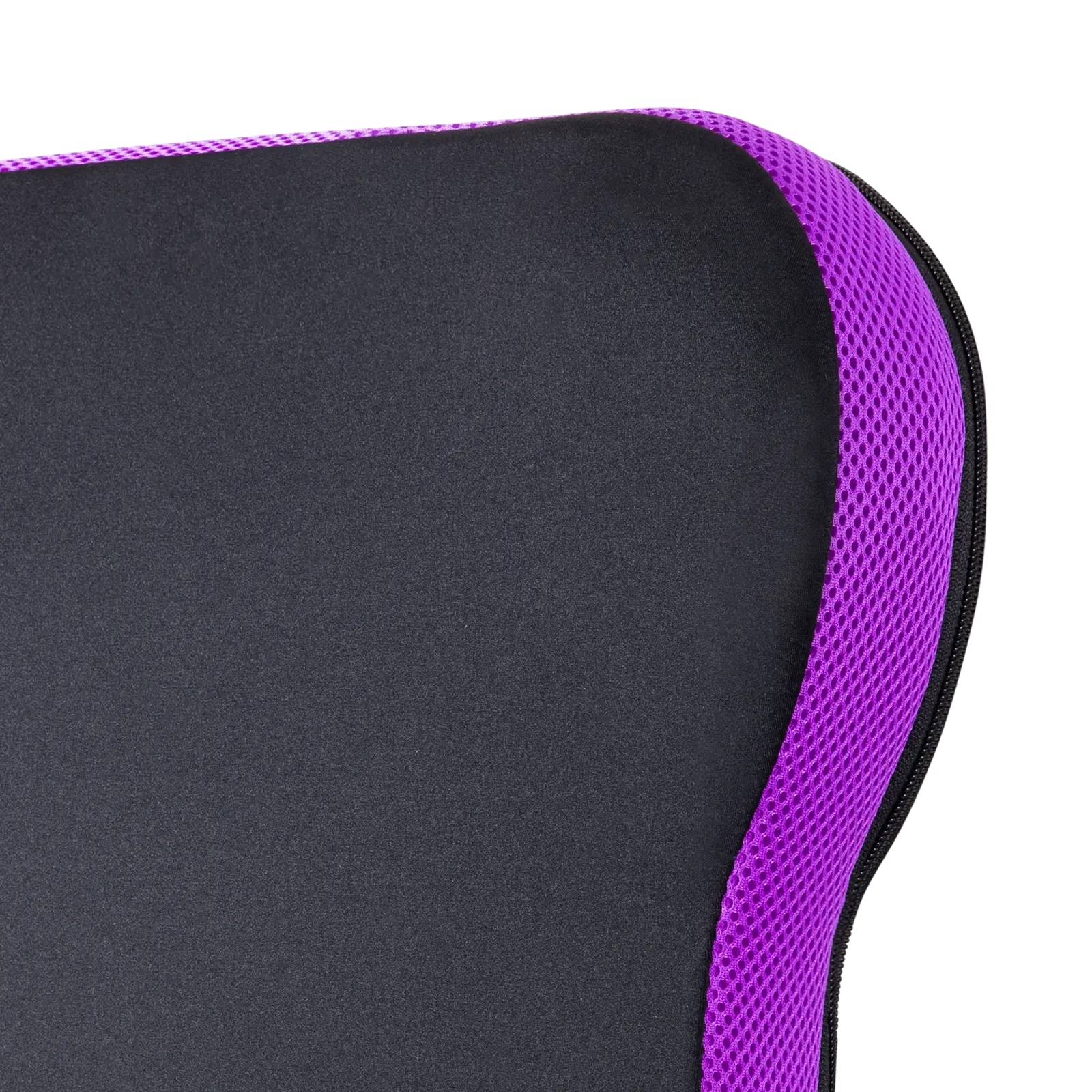

  • Dual-layer cover reduces shear forces, and breathable air-mesh on back support sides counters moisture and temperature.
Videos &
Downloads

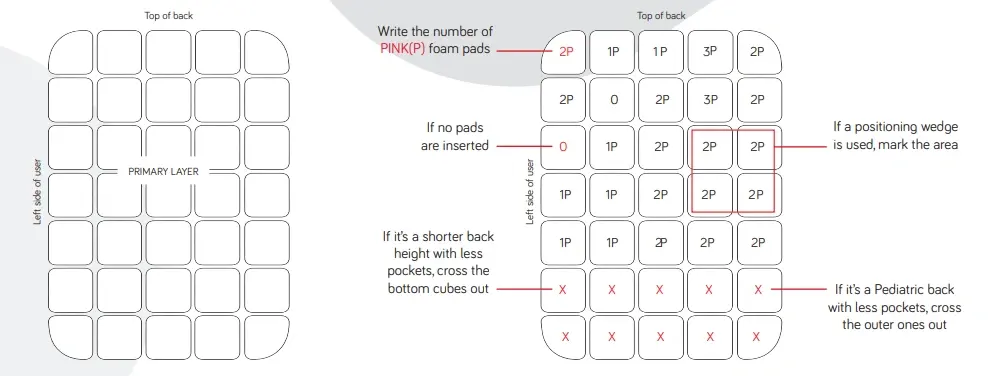

How to use the Contouring Chart

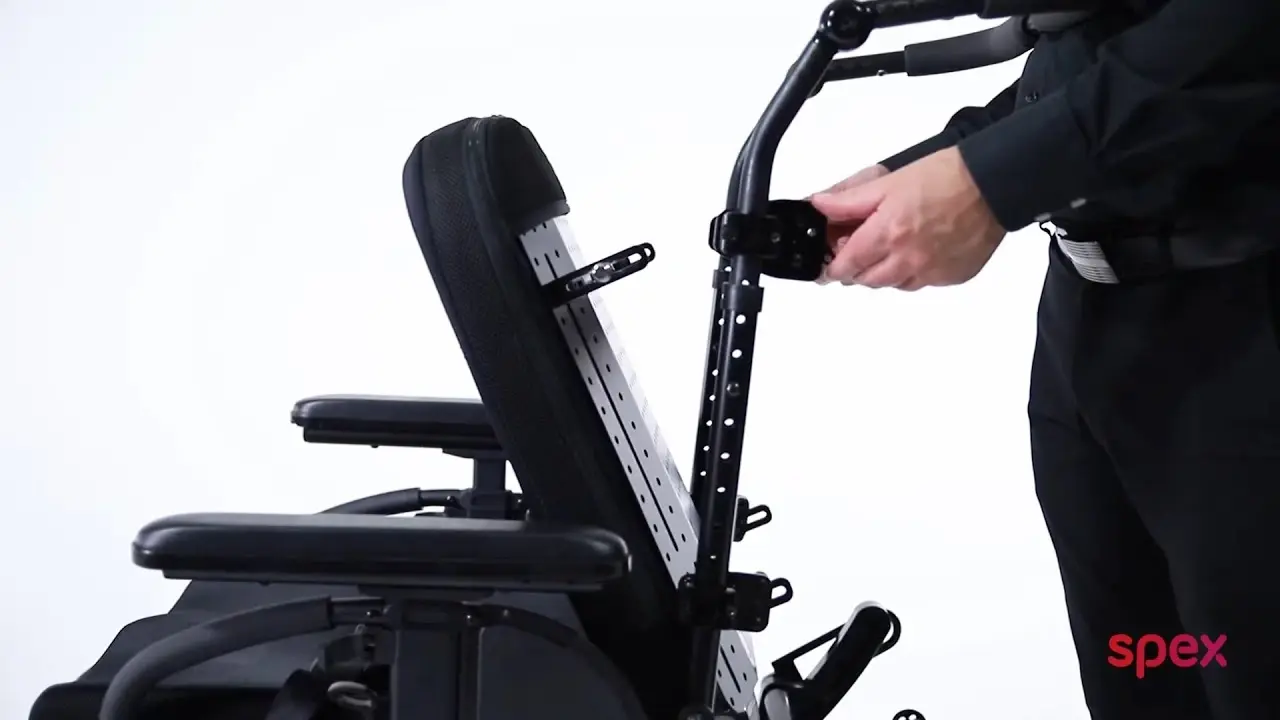

How to Install and Adjust: Spex Quad Mount Quick-Release Hardware
Specifications
Weight Capacity
Size Options
Product Codes
Dimensions for T Shape and Surface extensions
Back Support Size 10″-15″
(25.4-38 cm)
16″-20″
(41-51 cm)
21″+
(53 cm+)
Maximum Occupant Weight 200 lb (90 kg) 300 lb (136 kg) Must use Heavy-Duty brackets
400 lb (180 kg)
Maximum Occupant Weight with Heavy-Duty Brackets 300 lb (136 kg) 400 lb (180 kg)



Thickness of the back support is 7 cm. The Spex Classic Back Support is designed to be contoured and this measurement only reflects the thickness without any of this contouring. Therefore the back support thickness will likely be less than 7cm in some sections and more in others.

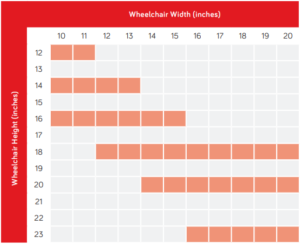

  • Red squares are standard sizes
  • Non-standard or custom sizes are available on request.

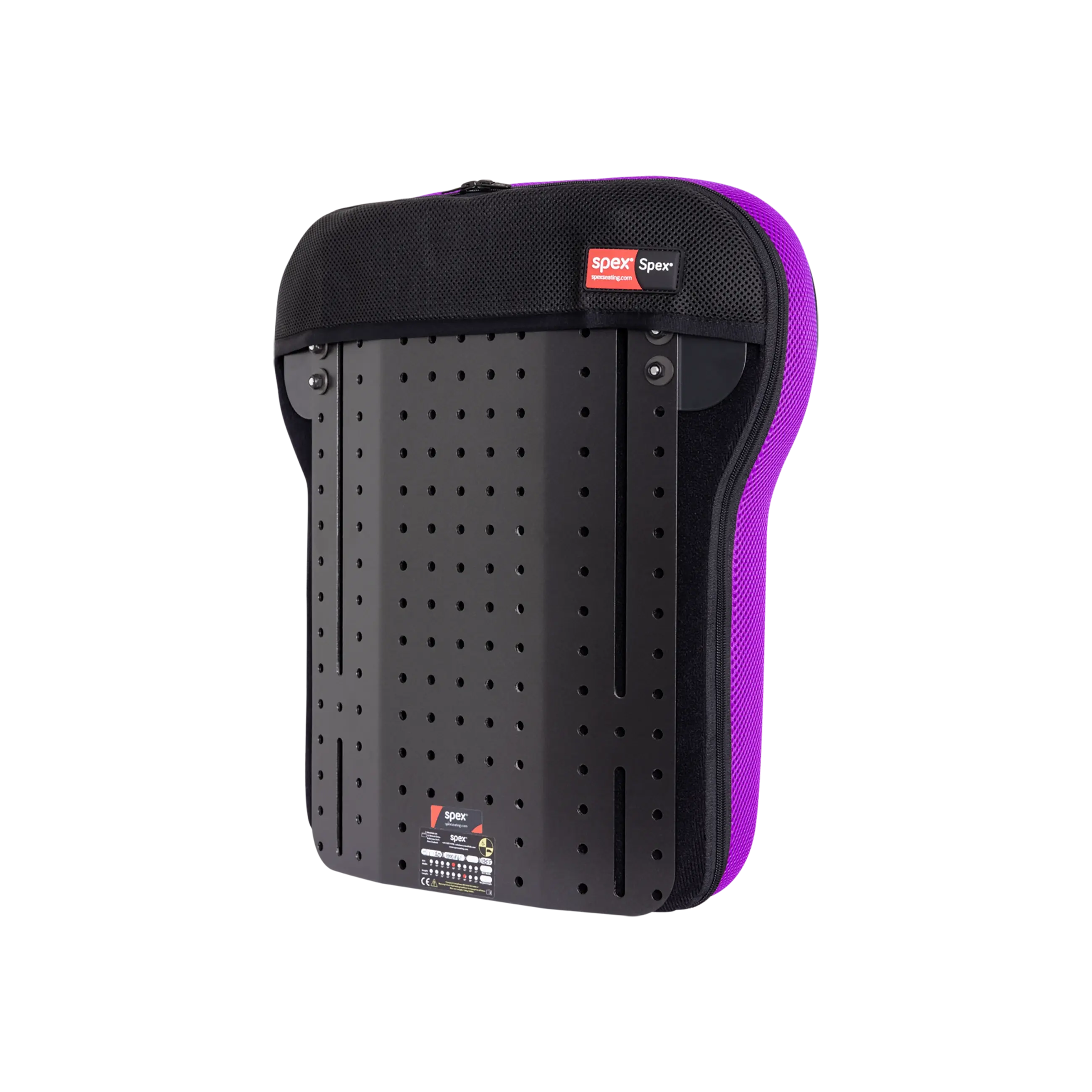

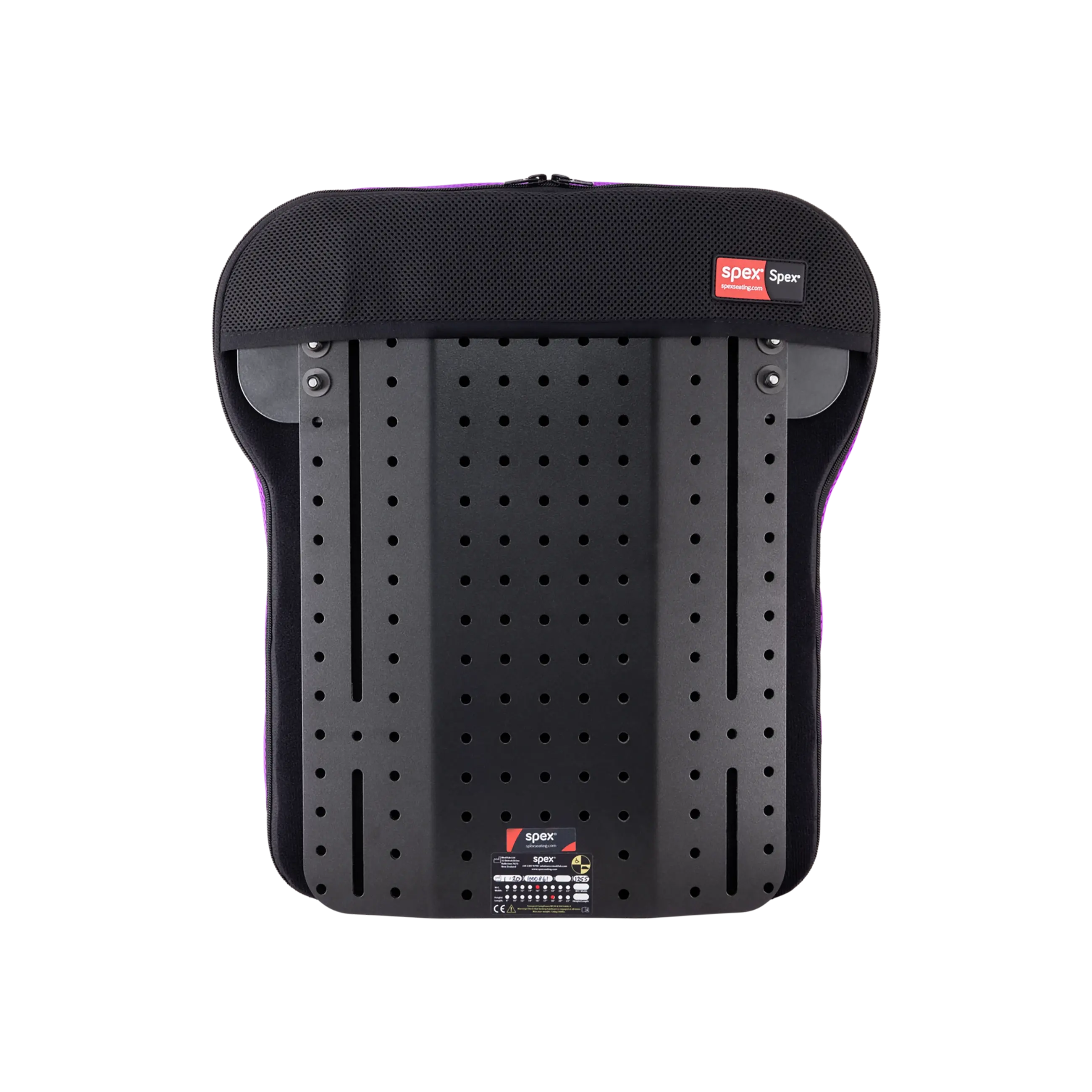

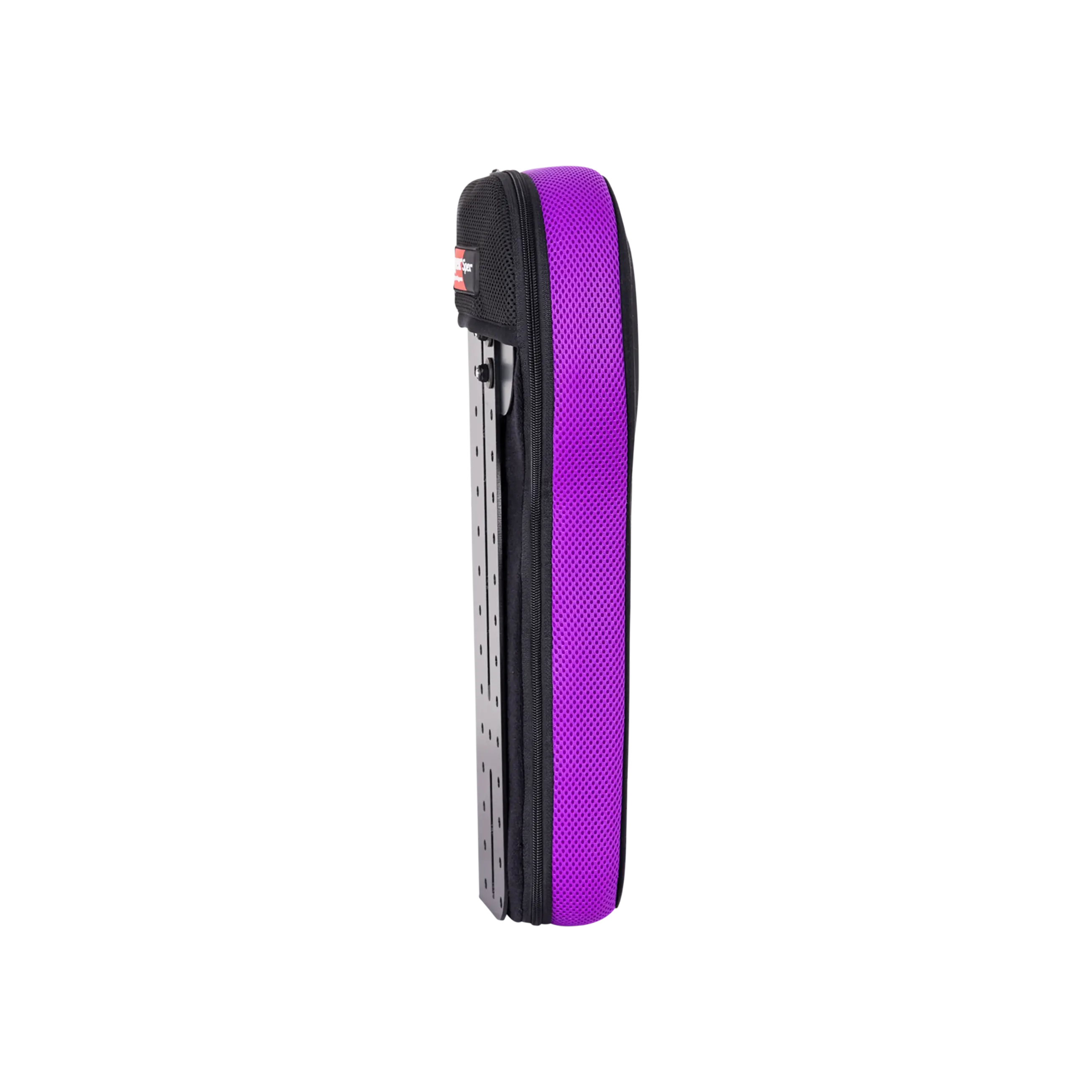

Spex Classic T Shape Back Support sits in front of wheelchair canes.

Width Height T Shape Code
10″ 12″ 1255-1012-0TS
14″ 1255-1014-0TS
16″ 1255-1016-0TS
11″ 12″ 1255-1112-0TS
14″ 1255-1114-0TS
16″ 1255-1116-0TS
12″ 14″ 1255-1214-0TS
16″ 1255-1216-0TS
18″ 1255-1218-0TS
13″ 14″ 1255-1314-0TS
16″ 1255-1316-0TS
18″ 1255-1318-0TS
14″ 16″ 1255-1416-0TS
18″ 1255-1418-0TS
20″ 1255-1420-0TS
15″ 16″ 1255-1516-0TS
18″ 1255-1518-0TS
20″ 1255-1520-0TS
16″ 18″ 1255-1618-0TS
20″ 1255-1620-0TS
23″ 1255-1623-0TS
17″ 18″ 1255-1718-0TS
20″ 1255-1720-0TS
23″ 1255-1723-0TS
18″ 18″ 1255-1818-0TS
20″ 1255-1820-0TS
23″ 1255-1823-0TS
19″ 18″ 1255-1918-0TS
20″ 1255-1920-0TS
23″ 1255-1923-0TS
20″ 18″ 1255-2020-0TS
20″ 1255-2020-0TS
23″ 1255-2023-0TS

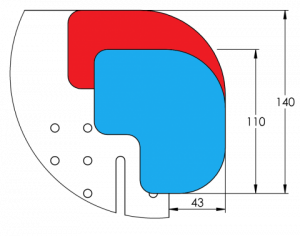

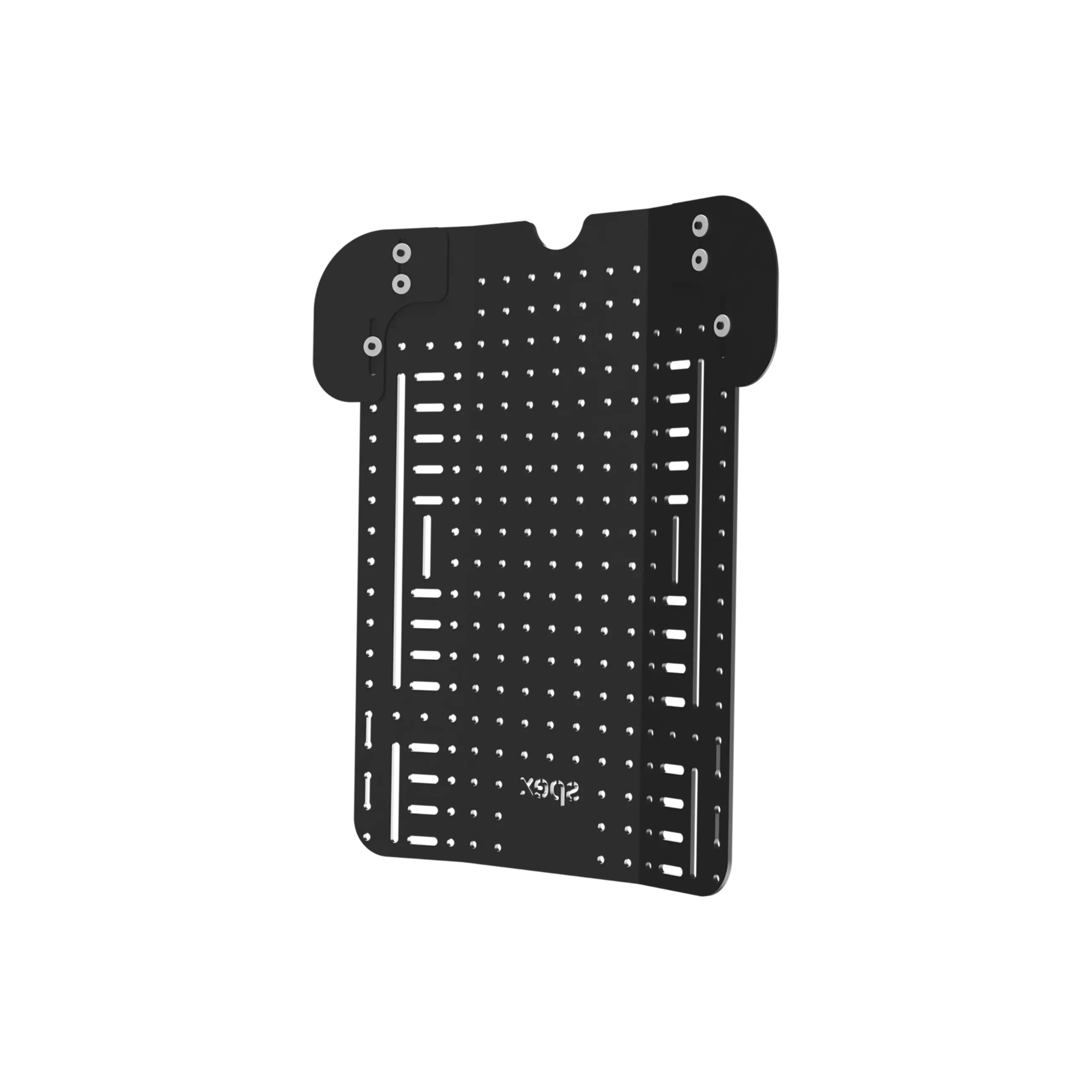

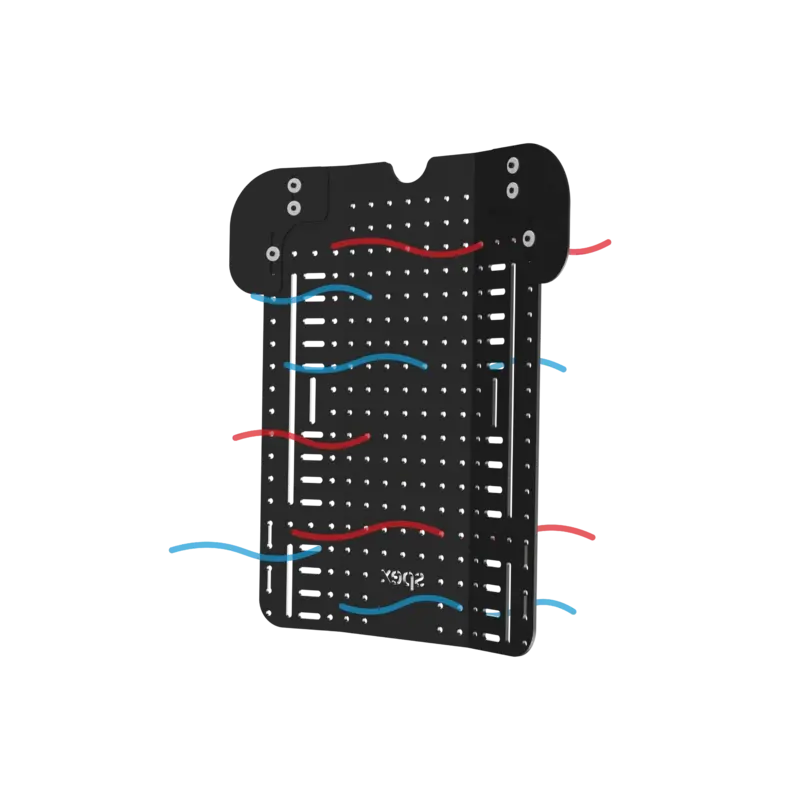

When ordering a T Shape or Surface back support, the standard plates used are shown below. Plates shown in blue = 10-15″ back support. Plates shown in red = 16″+ back support.
