Quickie Q500M Power Wheelchair

Make an enquiry

Quickie

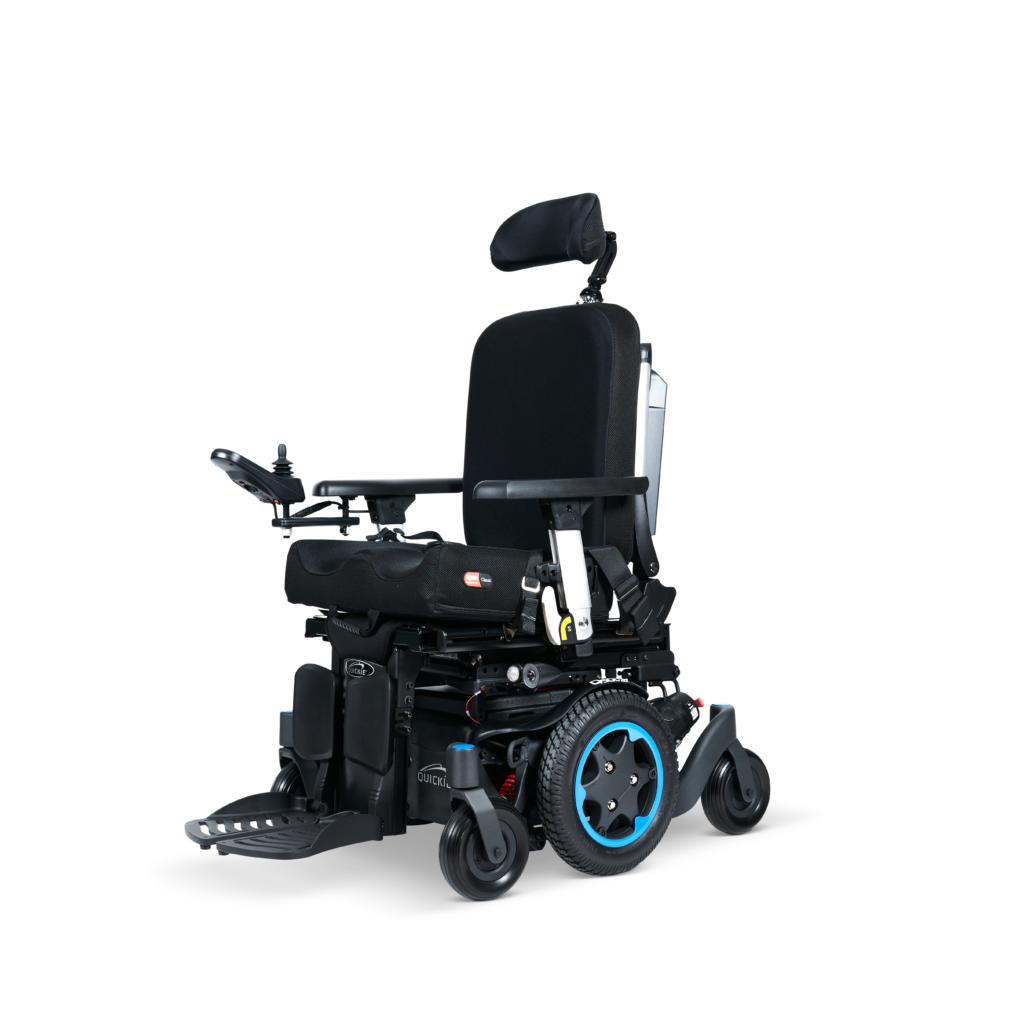

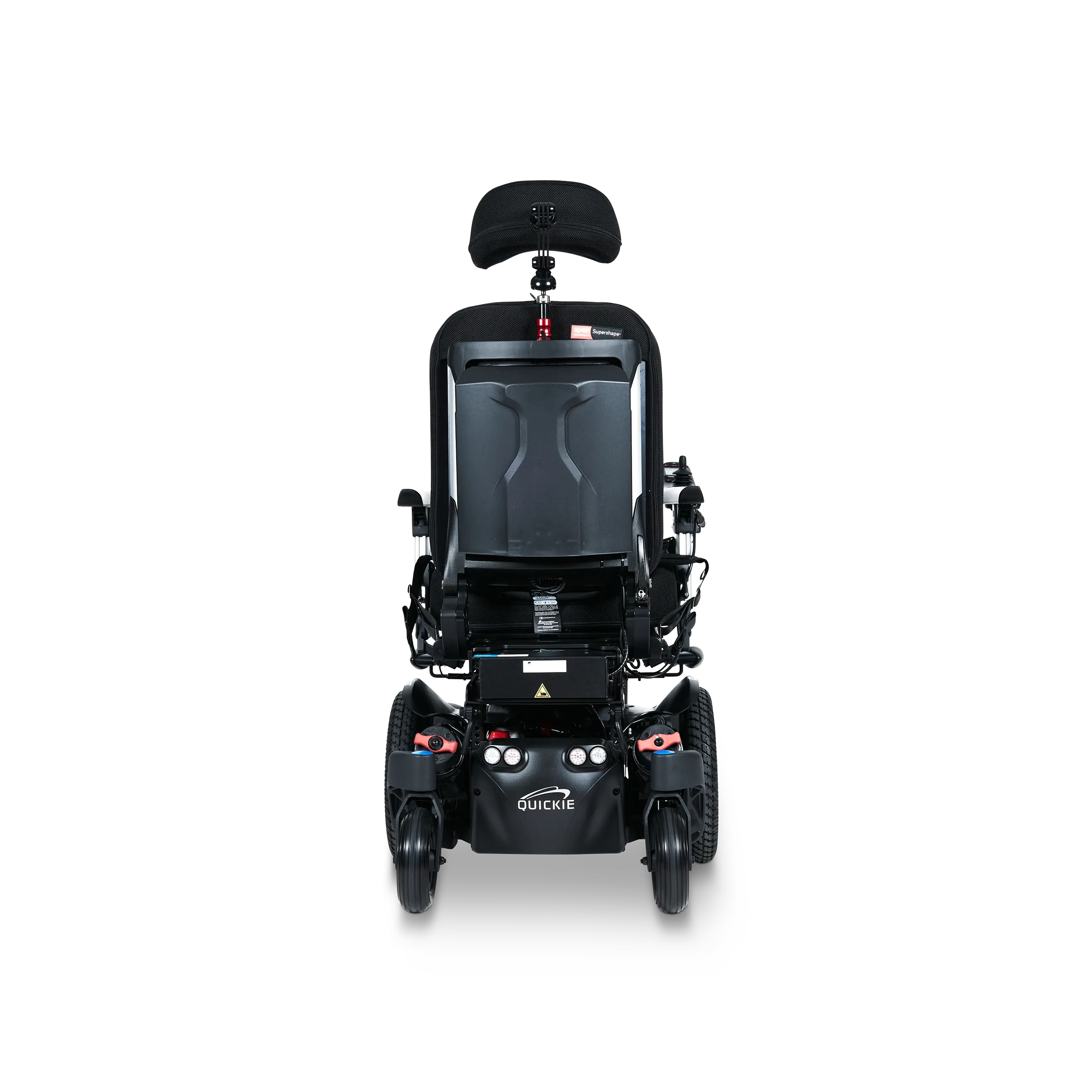

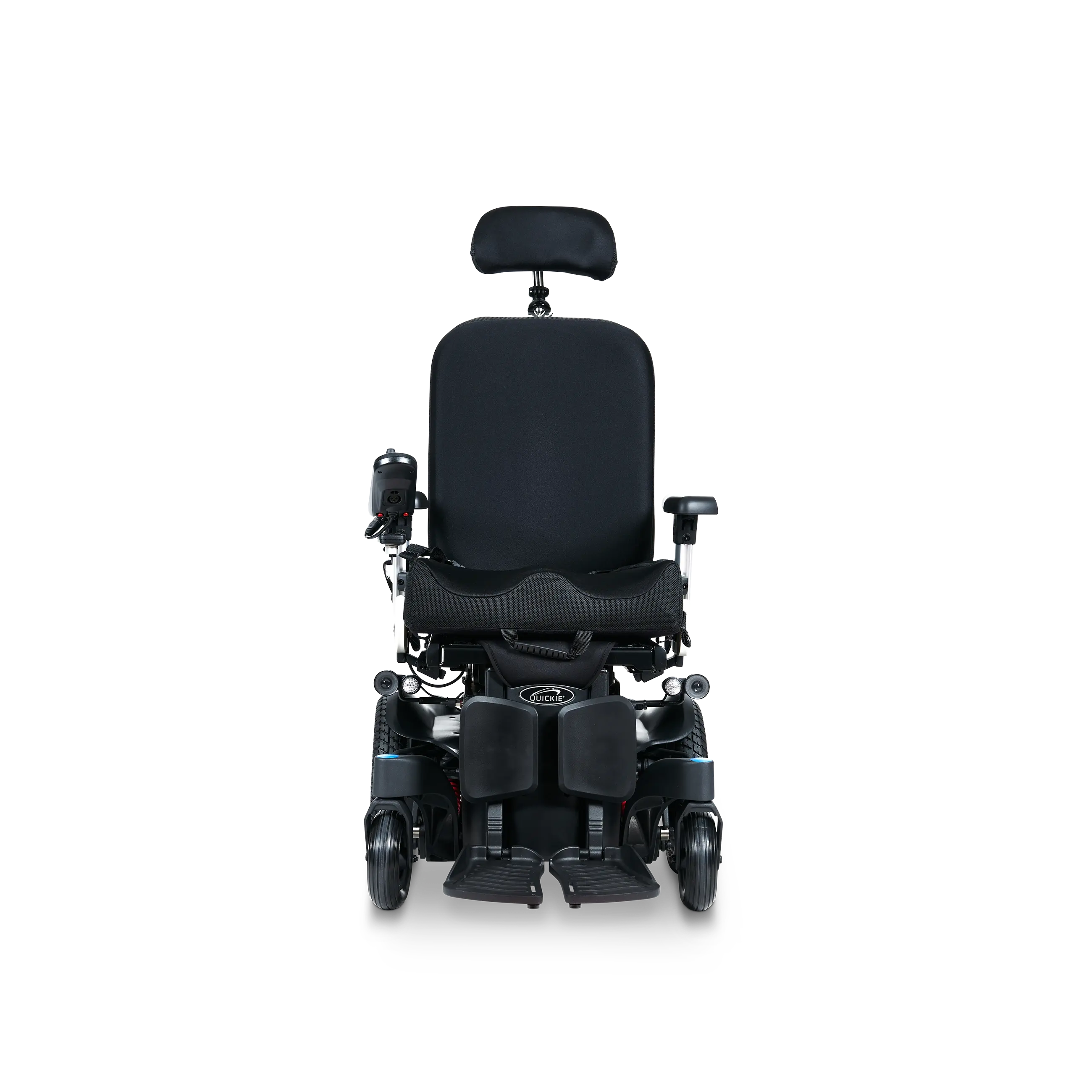

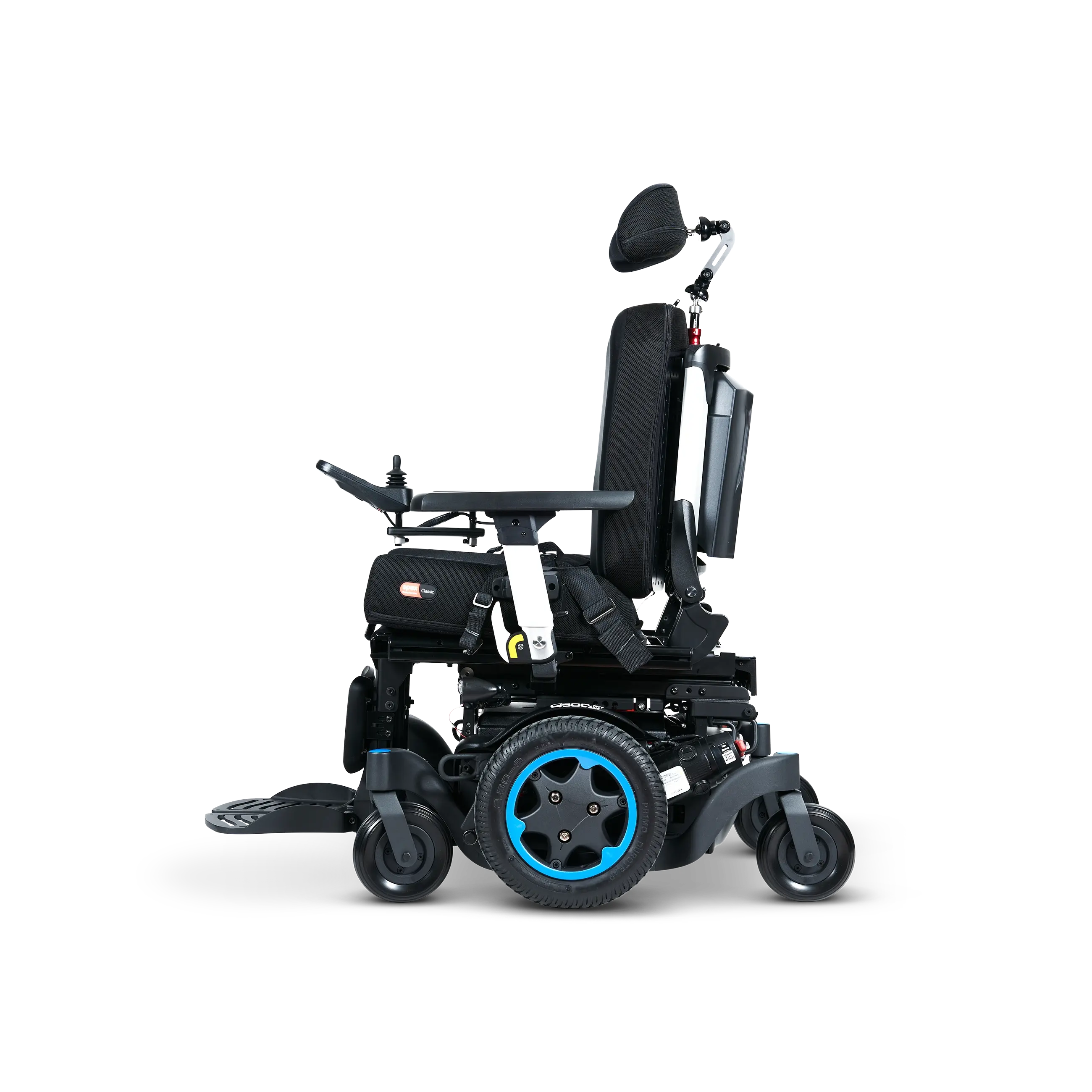

Q500M

Make your own adventure with the Q500M, combining the very best drive base in its class with a NEW suspension system for maximum traction and comfort outdoors and a compact chassis and tight turning circle for easy navigation indoors. The Q500M is the perfect powerchair for those who want it all!

Superb indoor manoeuvrability, outstanding outdoor performance, headturning style

The new Quickie Q500 M base balances superb indoor manoeuvrability with outstanding outdoor performance and head-turning style. All of these combined with the benefits of the highly personalised Sedeo Pro seating and the most advanced controls, creates the perfect powered wheelchair for any adventure. The updated suspension system delivers a more responsive, firm and comfortable ride.

Seating Options

The Q500M is available in two seating options: the Sedeo Pro, and the Sedeo Lite, each offering unique benefits and applications.

Functional

Benefits

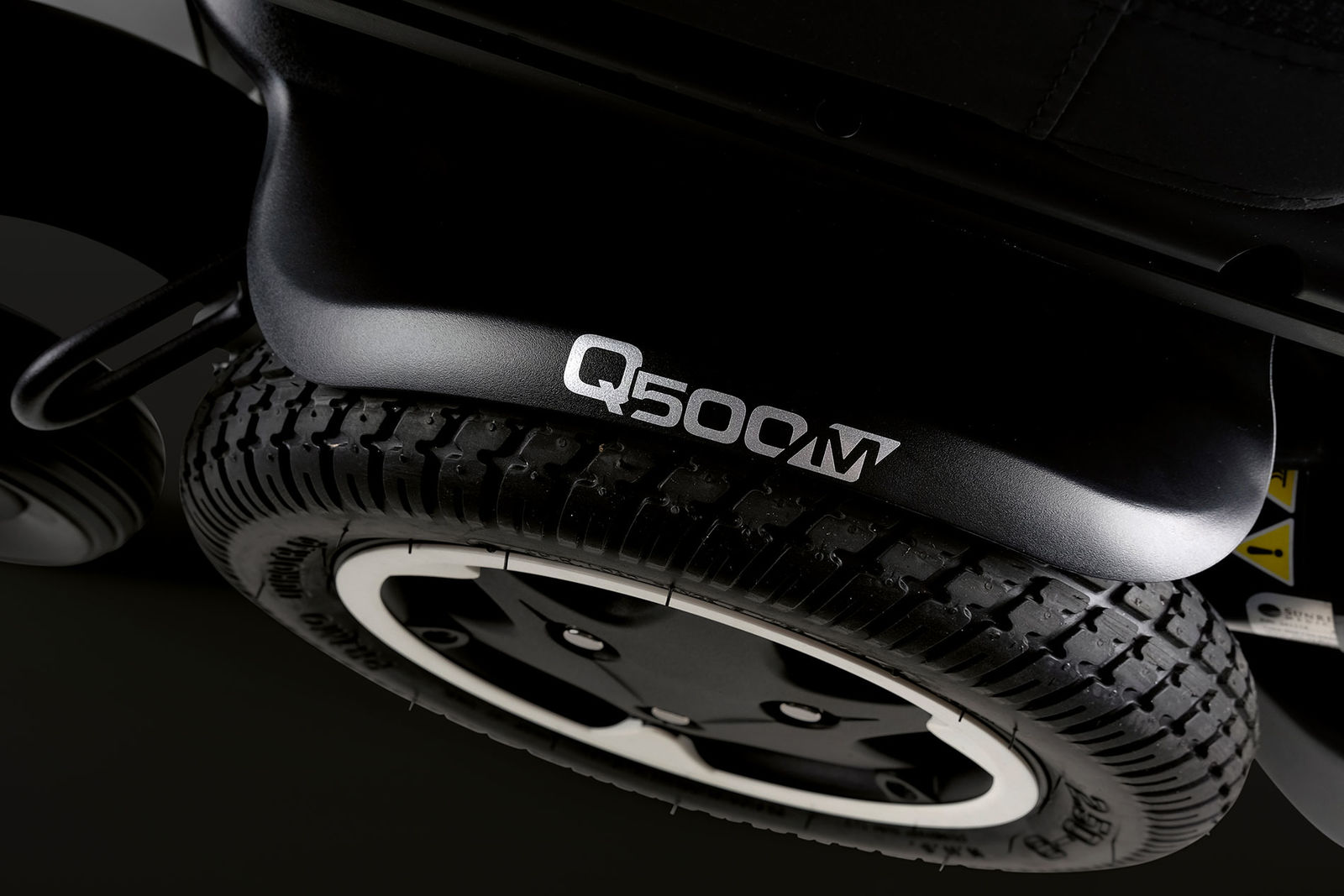

Manoeuvrability

Superb indoor agility. Turning on its own axis, enjoy intuitive driving and excellent manoeuvrability in tight compact spaces with its narrow (620 mm) base and a 560-630 mm turning radius. Also, easily sit under tables and access Wheelchair Adaptive Vehicles (WAVs) with a low seat height from just 415 mm.

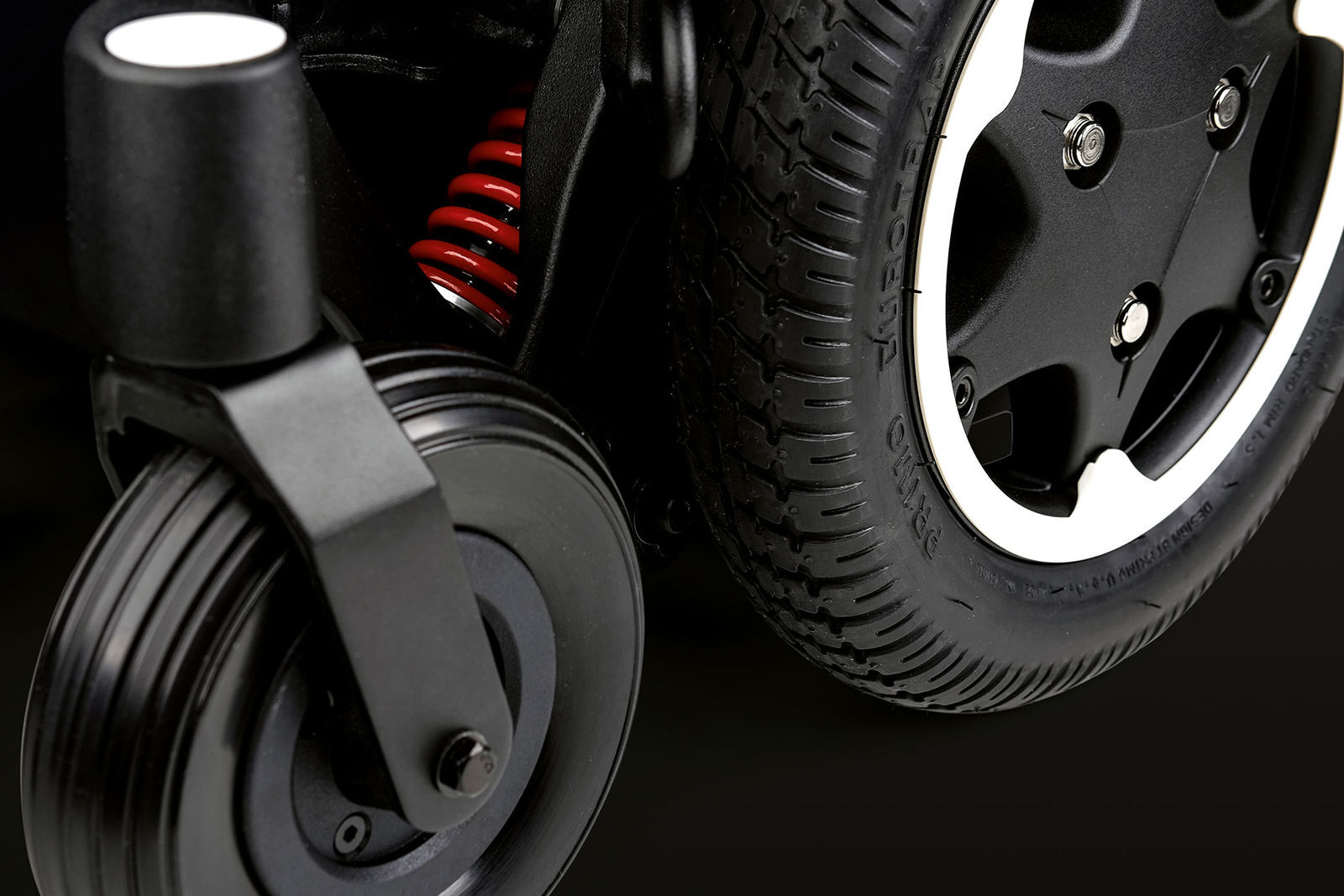

All-wheel suspension

Outstanding outdoor performance. Enjoy a smooth and stable ride, even over rough terrain, with Quickie's patented all-wheel suspension - six independently suspended wheels absorb all those bumps. Quickie's anti-pitch technology eliminates pitching on slopes, and with all your weight located directly above the drive wheel to maximise traction you've never been in a safer driving position.

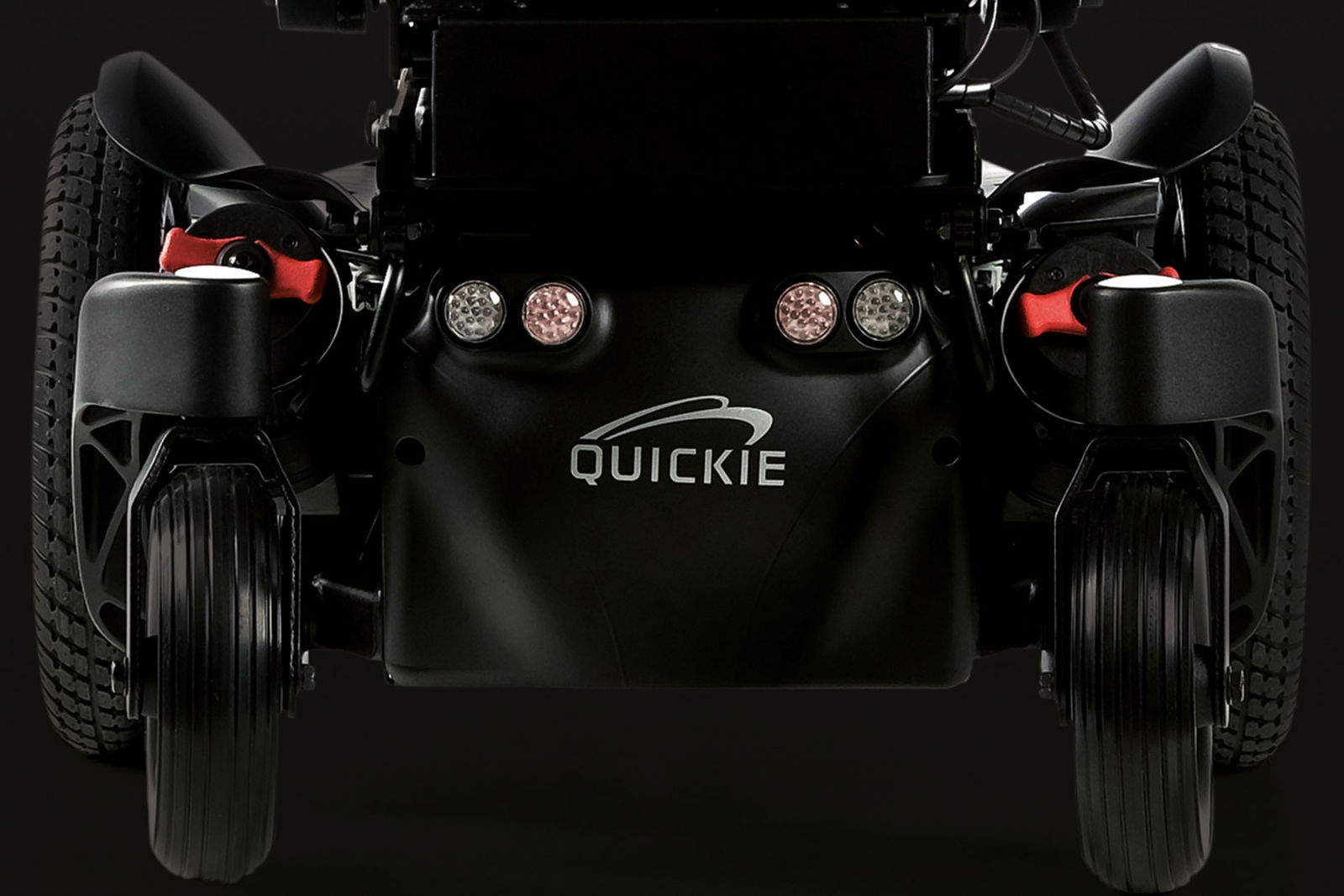

Motors & Batteries

The power to get you where you want to go. Enjoy power and speed at your fingertips with the 4-pole high torque motors. Choose from 6 kph high torque or 10 kph standard for the ultimate performance. Plus, with a choice of 60 Ah or 72 Ah batteries, you can maximise your range of up to 40 km and experience outdoor performance like never before!

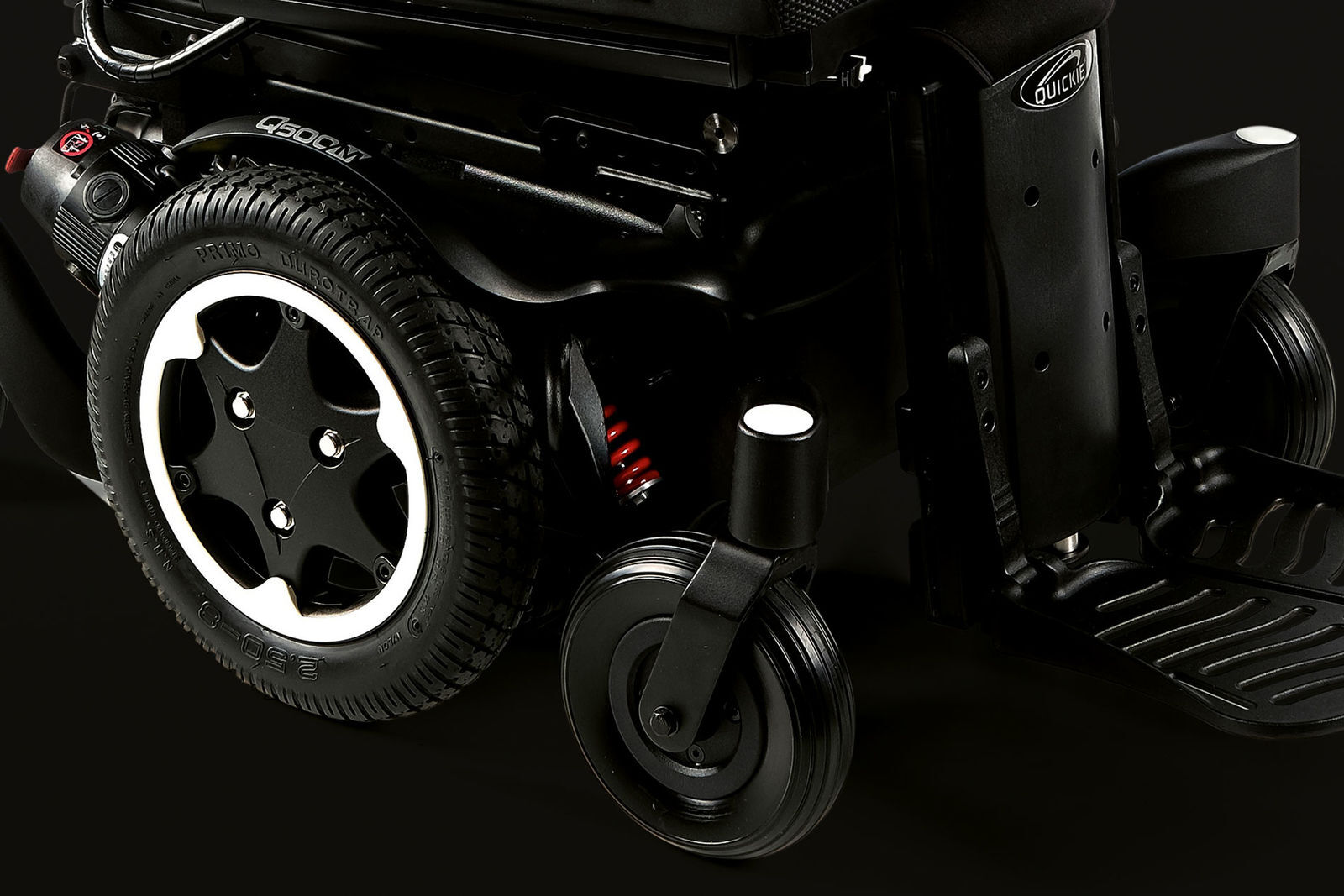

Travel with confidence

With ultra-reliable high torque 4-pole motors powering speeds of 6 kph high torque or 10 kph standard and a choice of 60 or 72 Ah batteries to maximise your range, you can always travel in confidence with the Q500 M Sedeo Lite.

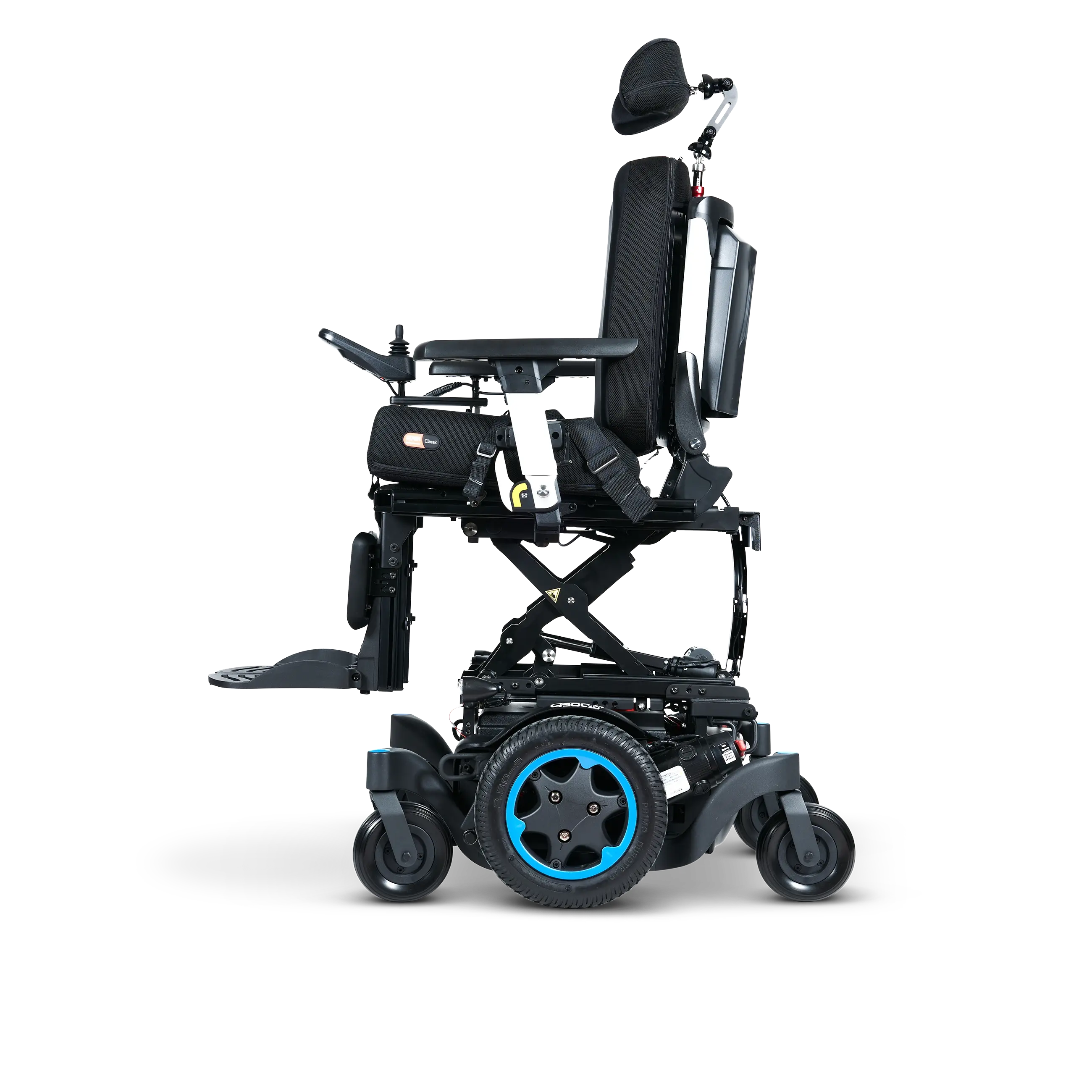

C-Me Seat Elevation

No more waiting around or driving at reduced speed when elevated. C-Me® enables you to elevate up to 12" while traveling up to 5 kph (weight limitations may apply). You can lift or descend at the touch of a button with no need to stop while transitioning. Just rise up and go at the same time! The suspension doesn't lock out when you drive, giving you a smooth and comfortable ride from start to finish. You'll never have to compromise dependability for accessibility again. C-Me available on Sedeo Pro and Sedeo Lite seating systems.

Client

Gallery

Resources

Quickie Q-Series Power Wheelchairs Range Brochure 2.75 MB Q500M-Spare Parts Manual 38.17 MB Comparison Chart (NZ) Power Wheelchairs 0.96 MB Comparison Chart (NZ) - Q-Series Powered Wheelchairs 0.75 MB Quickie Q500 M & Q400 M Owner's Manual 1.47 MB Q500M Powerchair Script Form NZ 0.17 MB Crash Test Brochure_AUS_2023 9.22 MB

Watch video

Specifications

Drive Configuration	Mid-Wheel Drive
Overall Base Width	61cm	24″
Overall Base Length (not including footrests)	86cm	33.8″
Turning Circle Turning radius (QMFM) vs diameter (QUP)	63cm	24.8″
Ground Clearance	7cm	2.7″
Seat to Floor Heights	41.5cm	16.3″
Max Speed	10kph
Range	40km
Drive Wheel Size	33cm	13″
Castor Wheel Size	17.7cm	7″
Seat Frame Options	Sedeo Pro/Sedeo Lite
Third Party Seating	Yes with Special Mounting
Seating Sizes	40.6 – 50.8cm (W) 40.6 – 55.8 (D)	16″ – 20″ (W) 16″ – 22″ (D)
Lift	30cm	11.8″

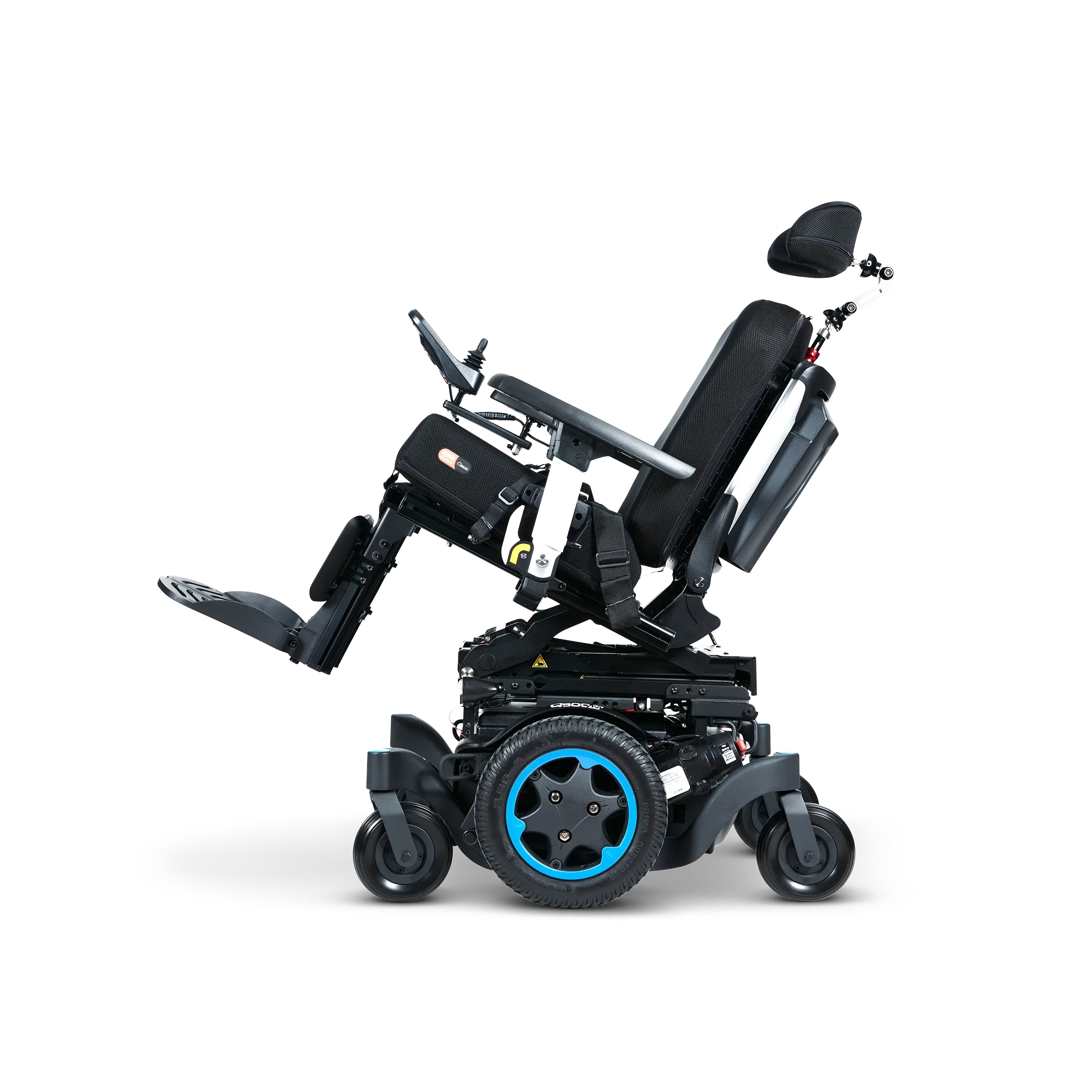

Tilt	50°
Power Recline	90° – 150°
Power Leg Elevate	Yes/Swing Away or PCM
Manual Recline	90° – 130°

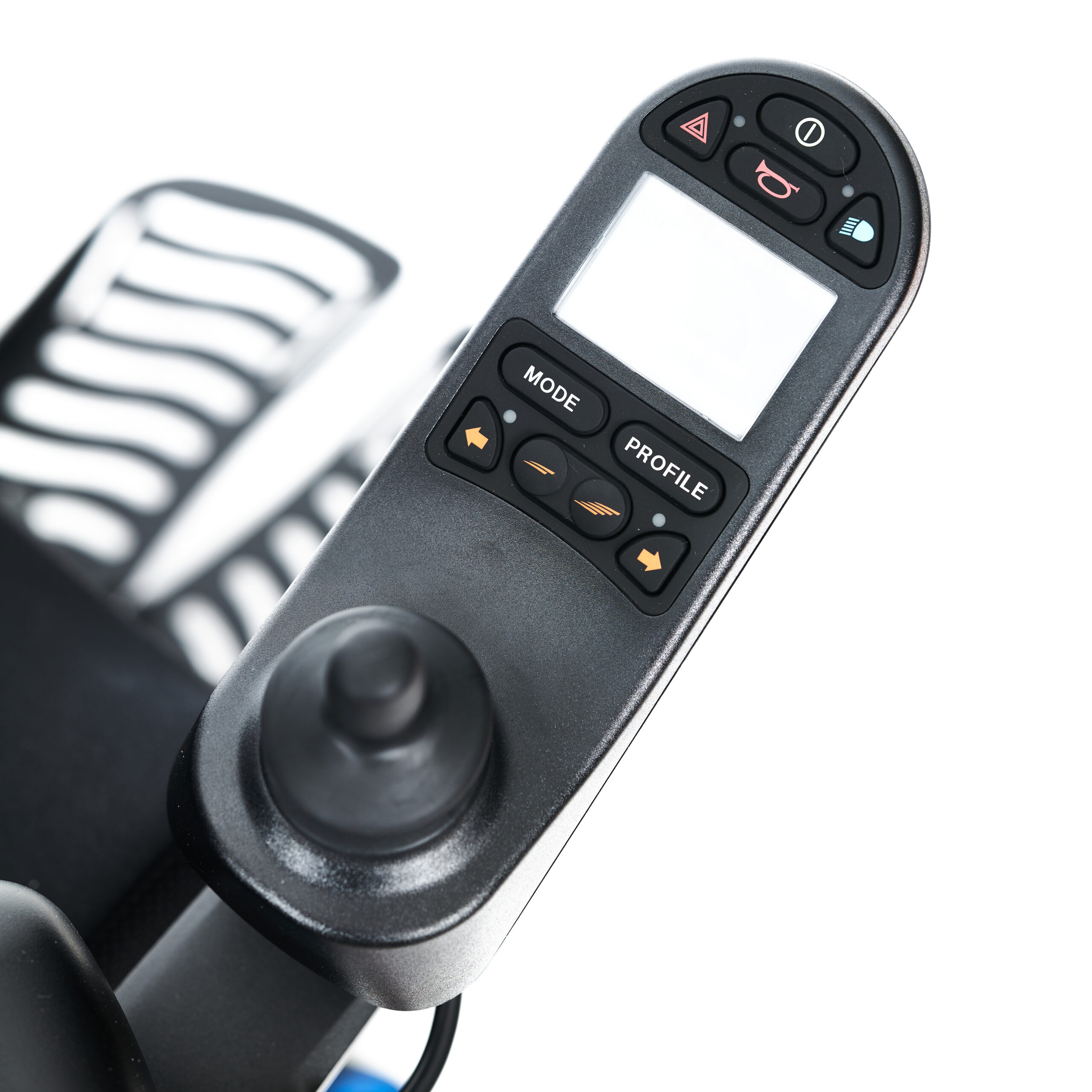

Electronics	R-Net
Specialty Controls	Yes
Suspension	Drive Wheels, Advanced
Motors	4 Pole
Battery Size	60Ah/72Ah
Chair Weight	130/155kg
Max. User Weight	136kg
Transit Tested	Yes

Sedeo

Seating

Sedeo Lite

Sedeo Pro

Sedeo Lite

The Q300M as supplied by Medifab, includes the Sedeo Lite Seating System. This is a multi-adjustable seat frame with the option of either Spex seating, Jay seating, or a simple sling back upholstery. Sedeo Lite is designed for users with medium to low clinical needs that require an adjustable seating system, where the backrest, armrests and legrests are able to be adjusted to fit the user. The seat frame includes seat rails for additional mounting solutions.

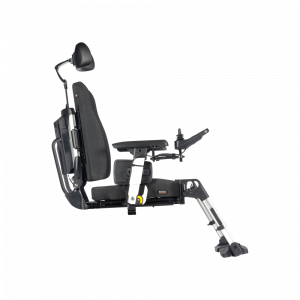

Sedeo Pro

High-end fully adjustable and configurable seating frame with a wide range of comfort cushions and positioning options. Aimed at meeting moderate to complex clinical needs. With a wide range of armrests, armpads, legrests, seat and back cushions, headrests and positioning accessories, Sedeo Pro offers great flexibility to adapt to the individual user needs.
