Rear-wheel powered wheelchair
Enjoy the ultimate driving experience with the Q700 R, Quickie’s most advanced rear-wheel drive powered wheelchair! Featuring Spirit Level technology, the advanced Sedeo Ergo biomechanical seating system and innovative controls or the supremely comfortable – and suitable for all – Sedeo Pro seating system and innovative controls.
Resources
Q700 R | ||
---|---|---|
Drive Configuration | Rear-Wheel Drive | |
Overall Base Width | 63cm | 24.8″ |
Overall Base Length (not including footrests) |
88cm | 34.6″ |
Turning Circle Turning radius (QMFM) vs diameter (QUP) |
95cm | 37.4″ |
Ground Clearance | 7.5cm | 2.9″ |
Seat to Floor Heights | 41.5cm | 16.3″ |
Max Speed | 8,10kph | |
Range | 40km | |
Drive Wheel Size | 35.5cm | 14″ |
Castor Wheel Size | 22.8 & 25.4cm | 9″ & 10″ |
Seat Frame Options | Sedeo Ergo/Sedeo Pro | |
Third Party Seating | Yes with Special Mounting | |
Seating Sizes | 40.6 – 50.8cm (W) 40.6 – 55.8 (D) |
16″ – 20″ (W) 16″ – 22″ (D) |
Lift | 30cm | 11.8″ |
Tilt | 50° | |
Power Recline | 90° – 150° | |
Power Leg Elevate | Yes/Swing Away or PCM | |
Manual Recline | 90° – 130° | |
Electronics | R-Net | |

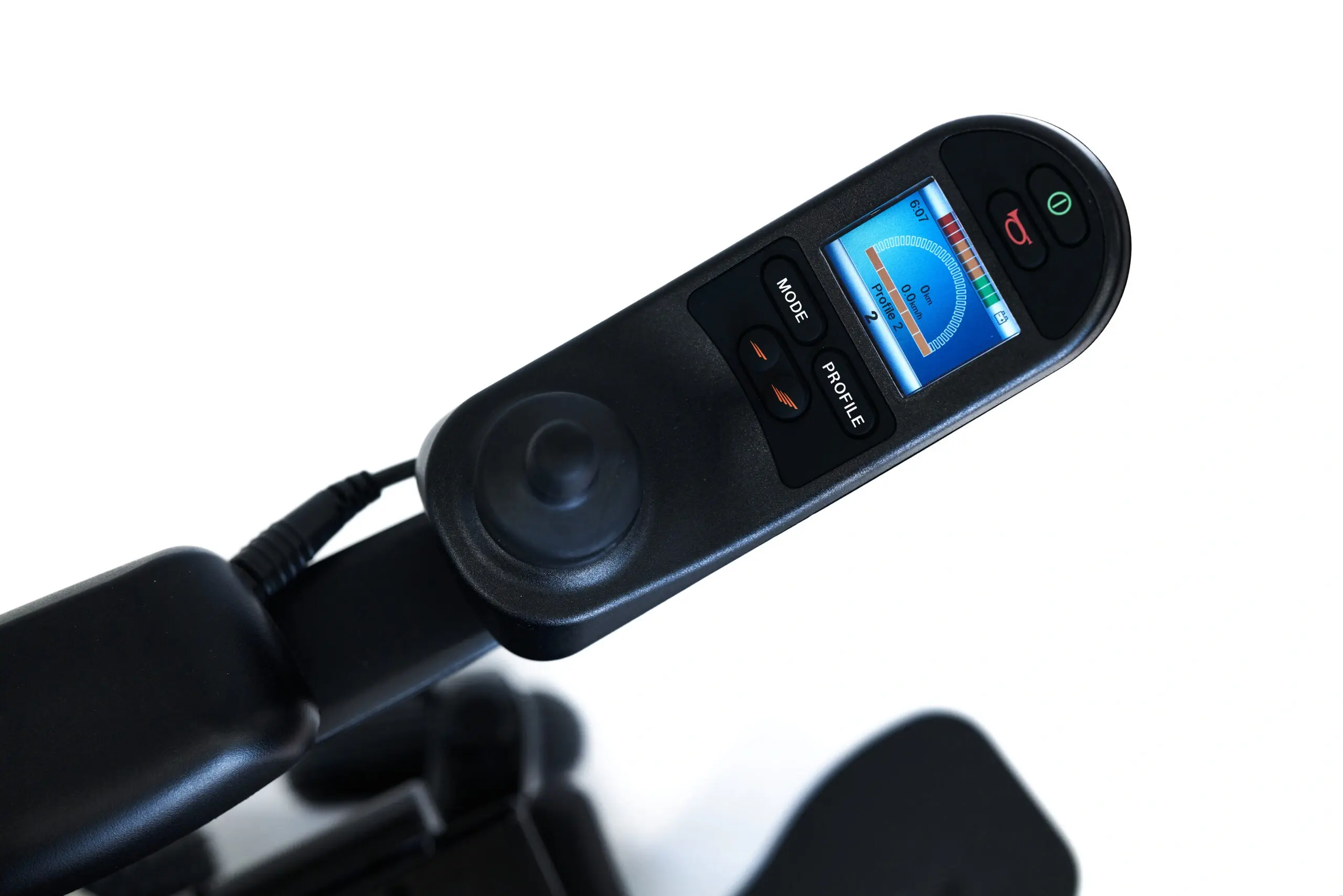

Specialty Controls | Yes | |
Suspension | All Wheels | |
Motors | 4 Pole | |
Battery Size | 60Ah/72Ah | |
Chair Weight | 140/165kg | |
Max. User Weight | 160kg – Tilt Only 136kg – Tilt and Elevate |
|
Transit Tested | Yes |

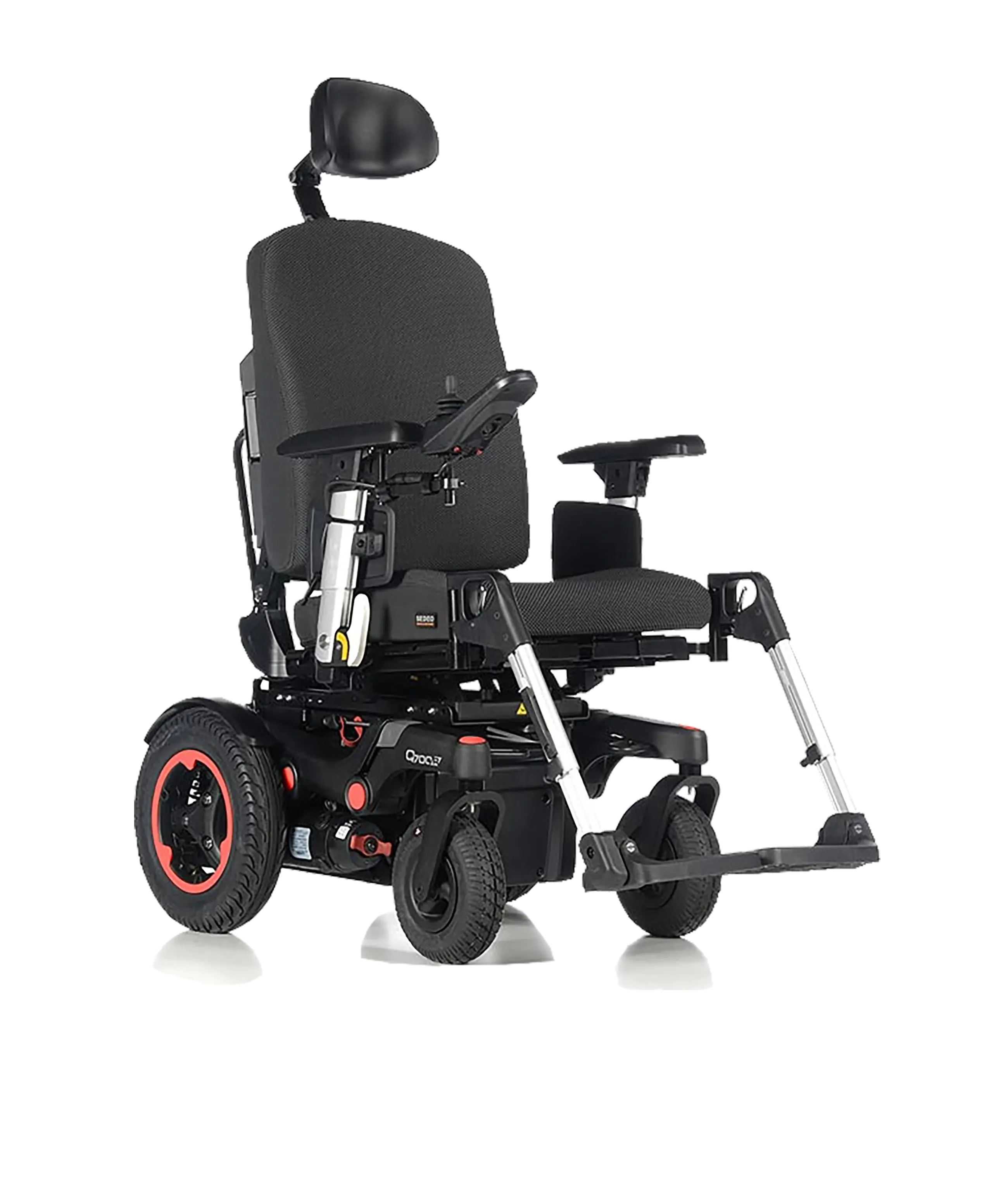

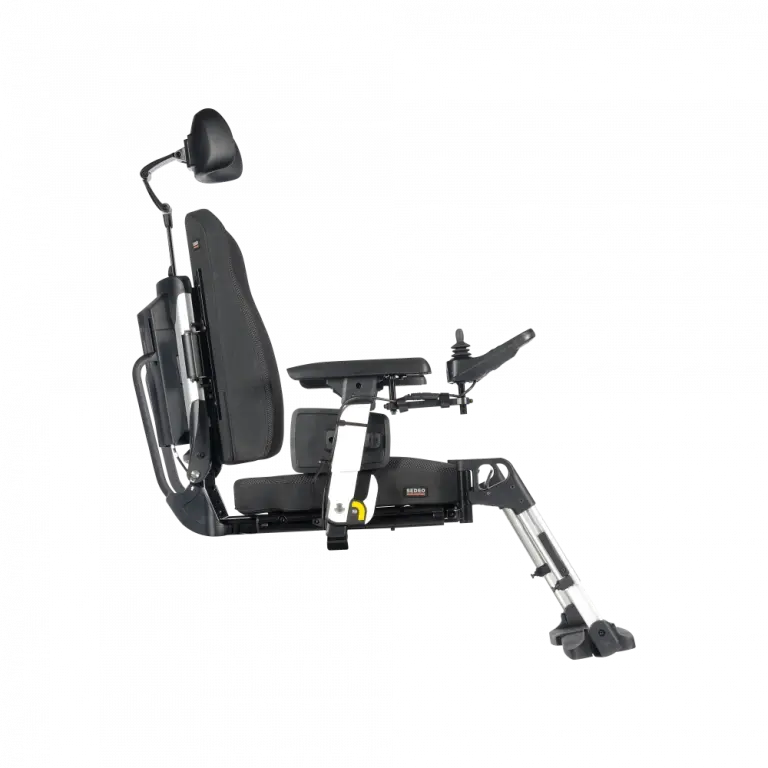

Sedeo Pro

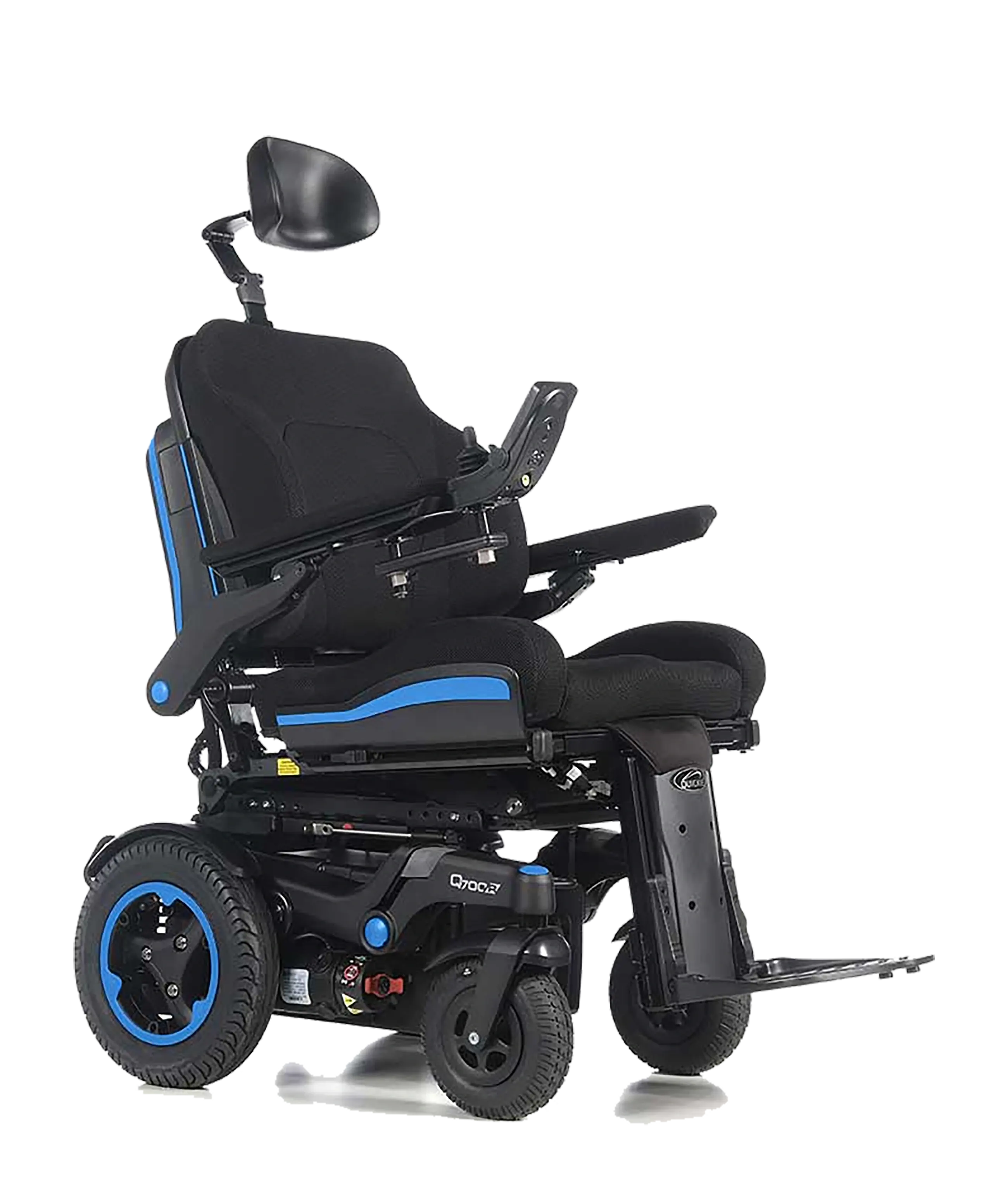

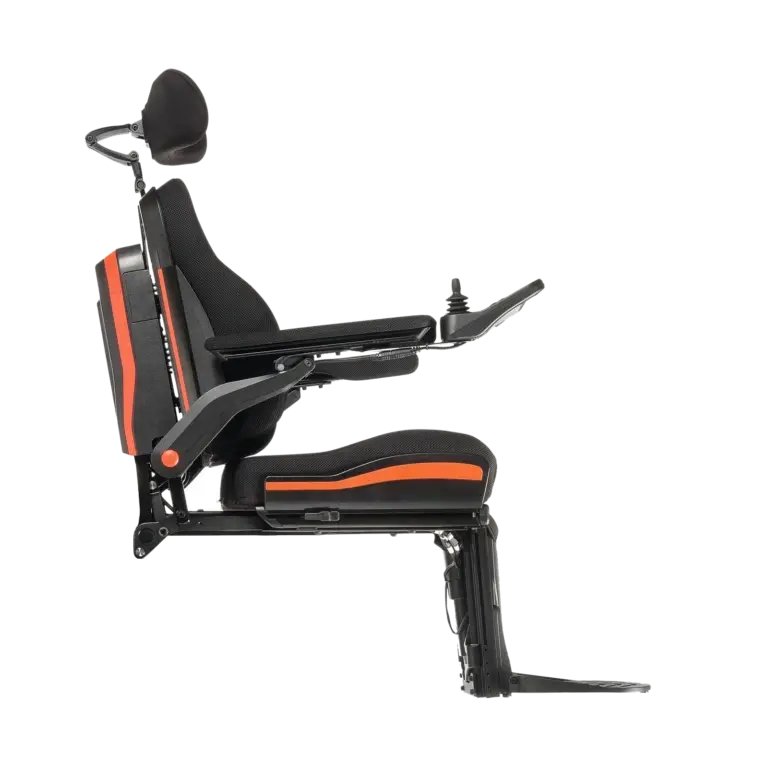

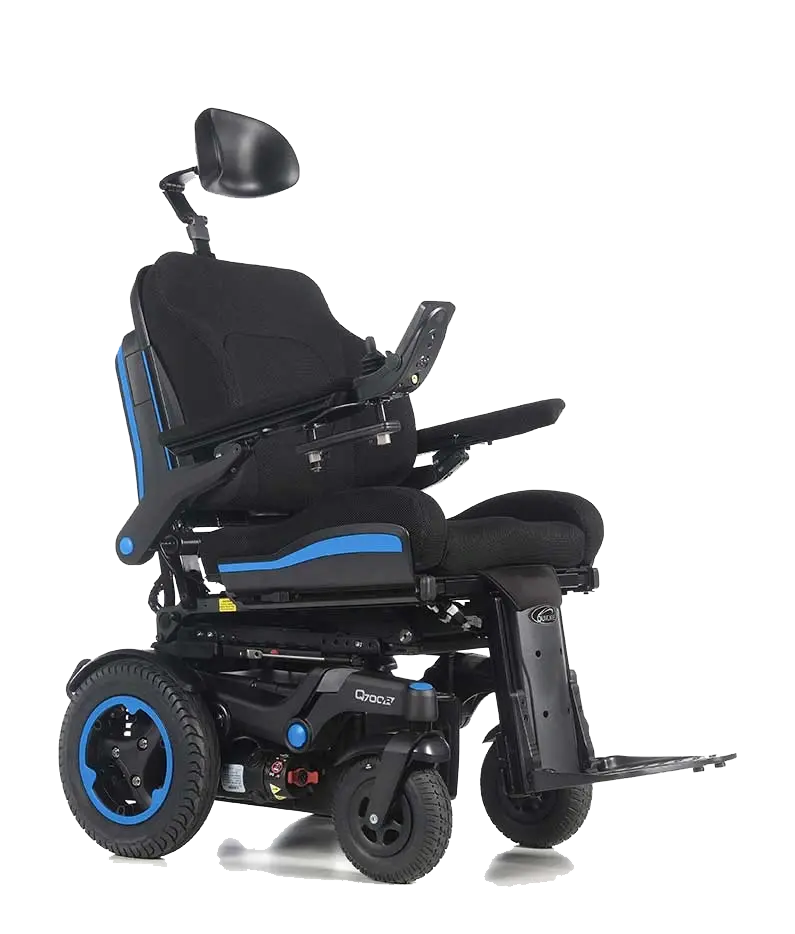

Sedeo Ergo
