Zippie Z500M Mini Power Wheelchair

Make an enquiry

Zippie Z500M

Mini

Allows your child to navigate tight spaces and is capable of tackling tough terrain.

The Z500M Mini combines our ultra compact wheelchair with highly adjustable and customisable seating. End result – a great choice to promote active kids.

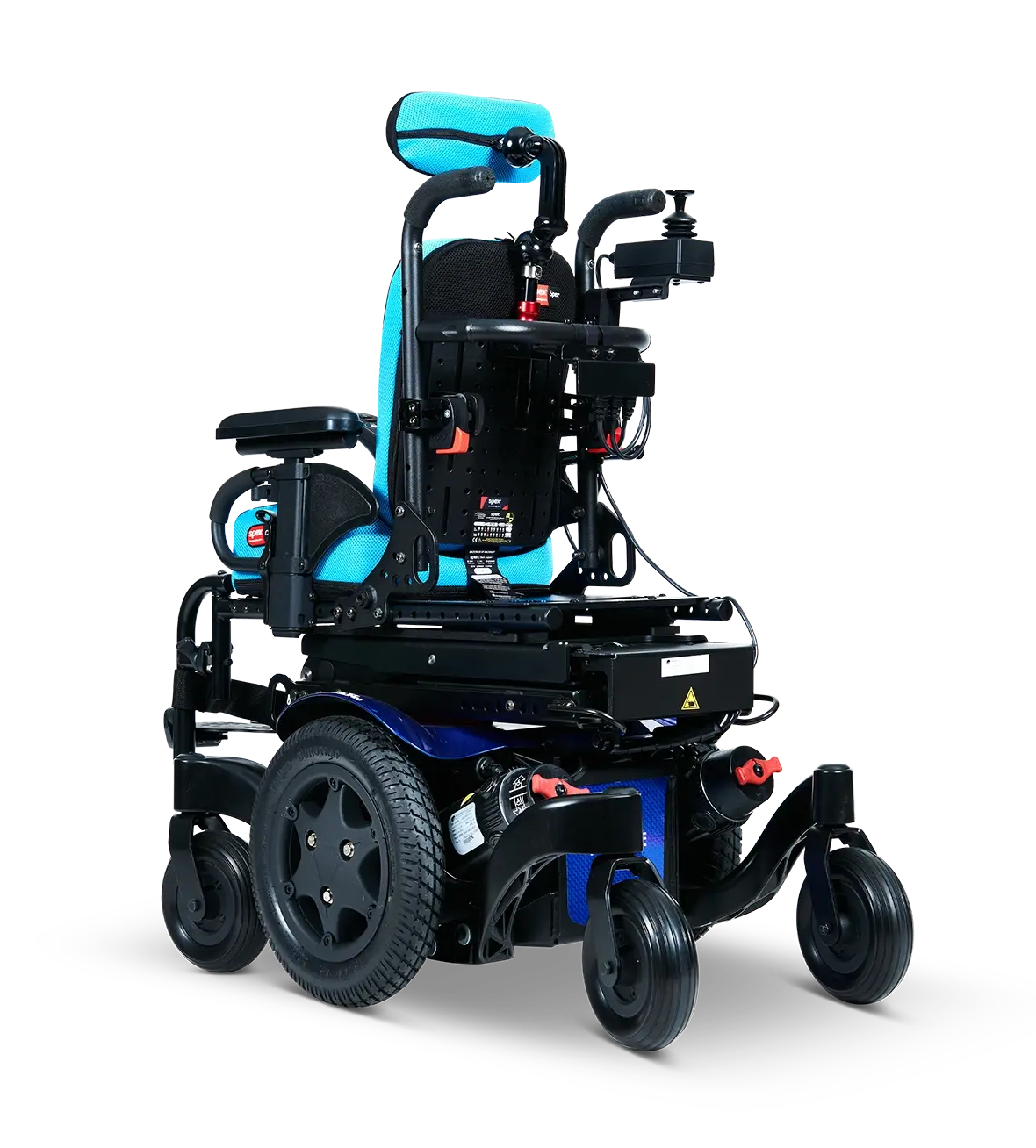

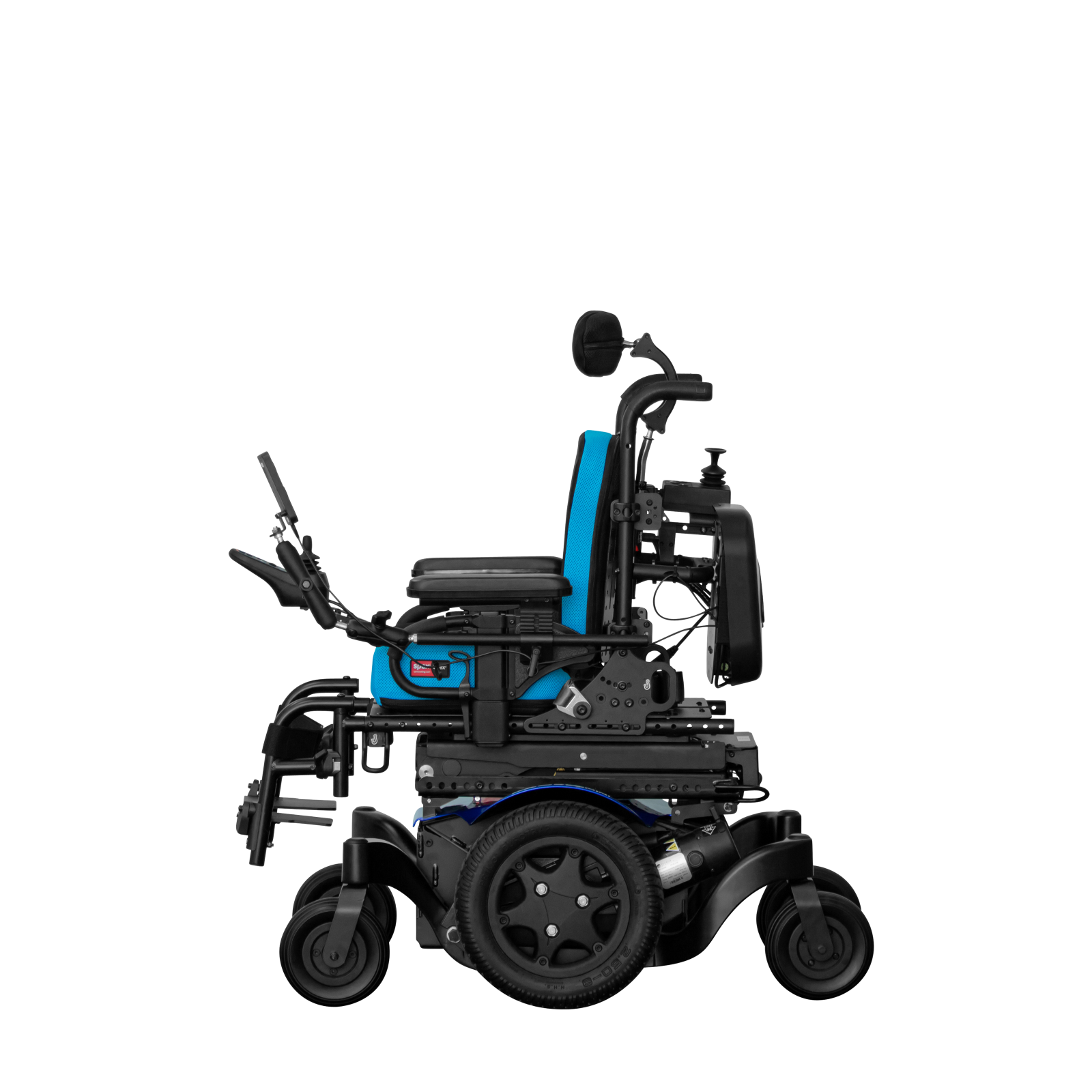

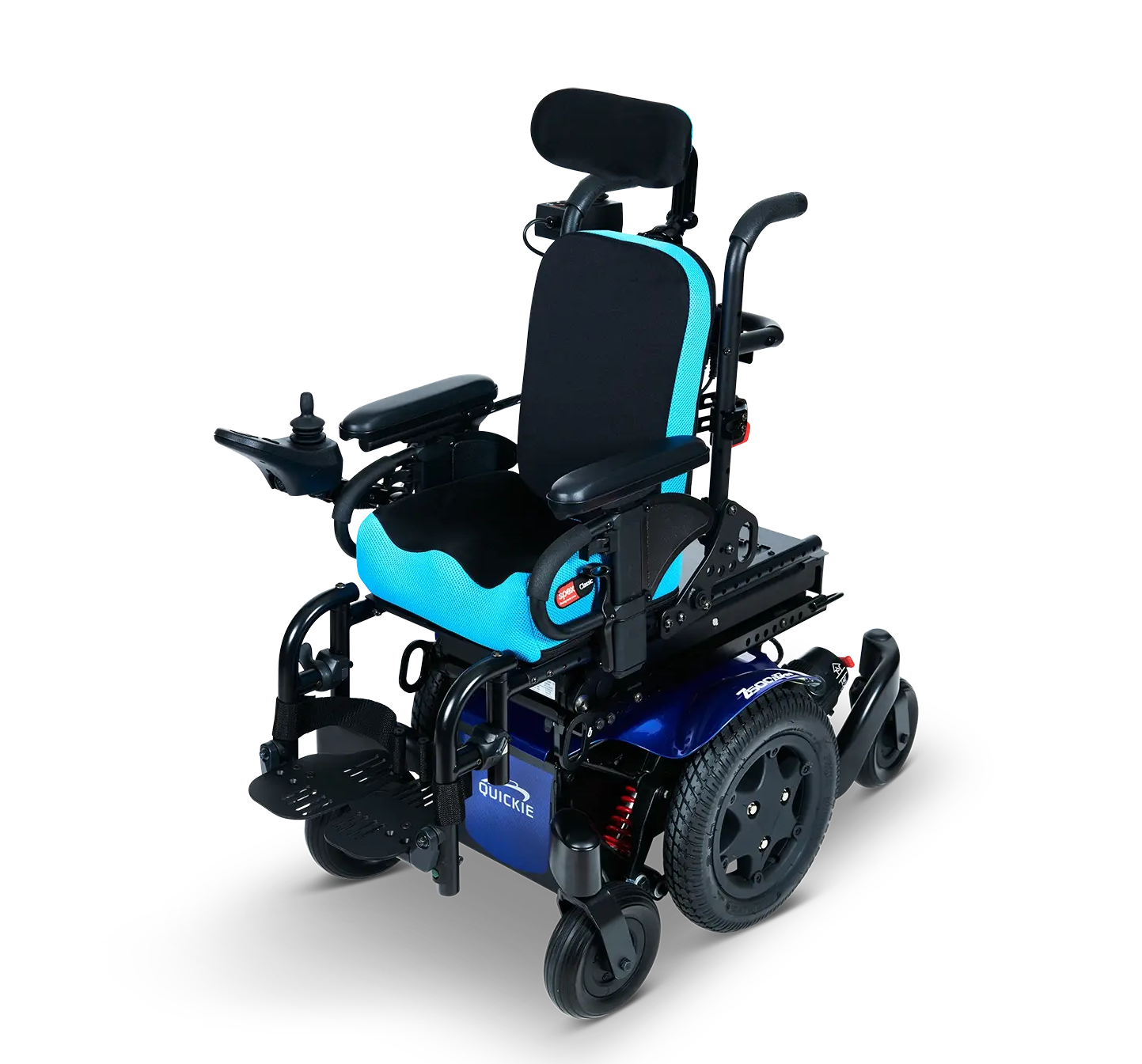

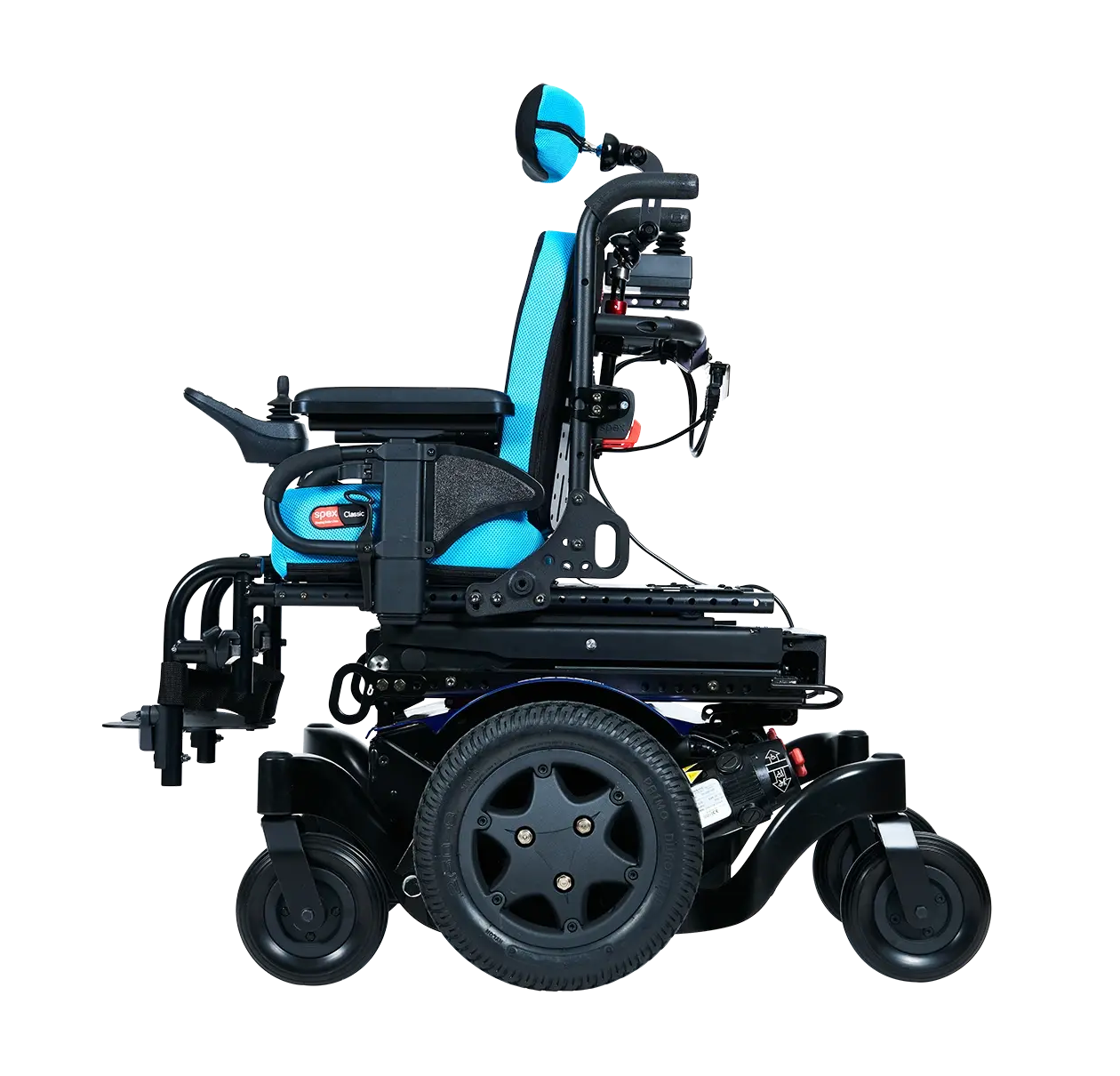

The Z500M Mini is our smallest Mid Wheel Drive Base

The Z500M Mini compact base is only 52cm wide for accessing tight indoor spaces. Its mid wheel drive design is intuitive to drive and turns on a dime. The combination allows your child to drive effortlessly through narrow hallways, between desks, and beside friends and family.

Powerful Motors & Batteries

Our reliable and high performance motor package features, 10kph motors that keep up with your child’s most playful and energetic days. The Z500M Mini long-lasting batteries provide the range needed to travel the distance on a single charge.

Functional

Benefits

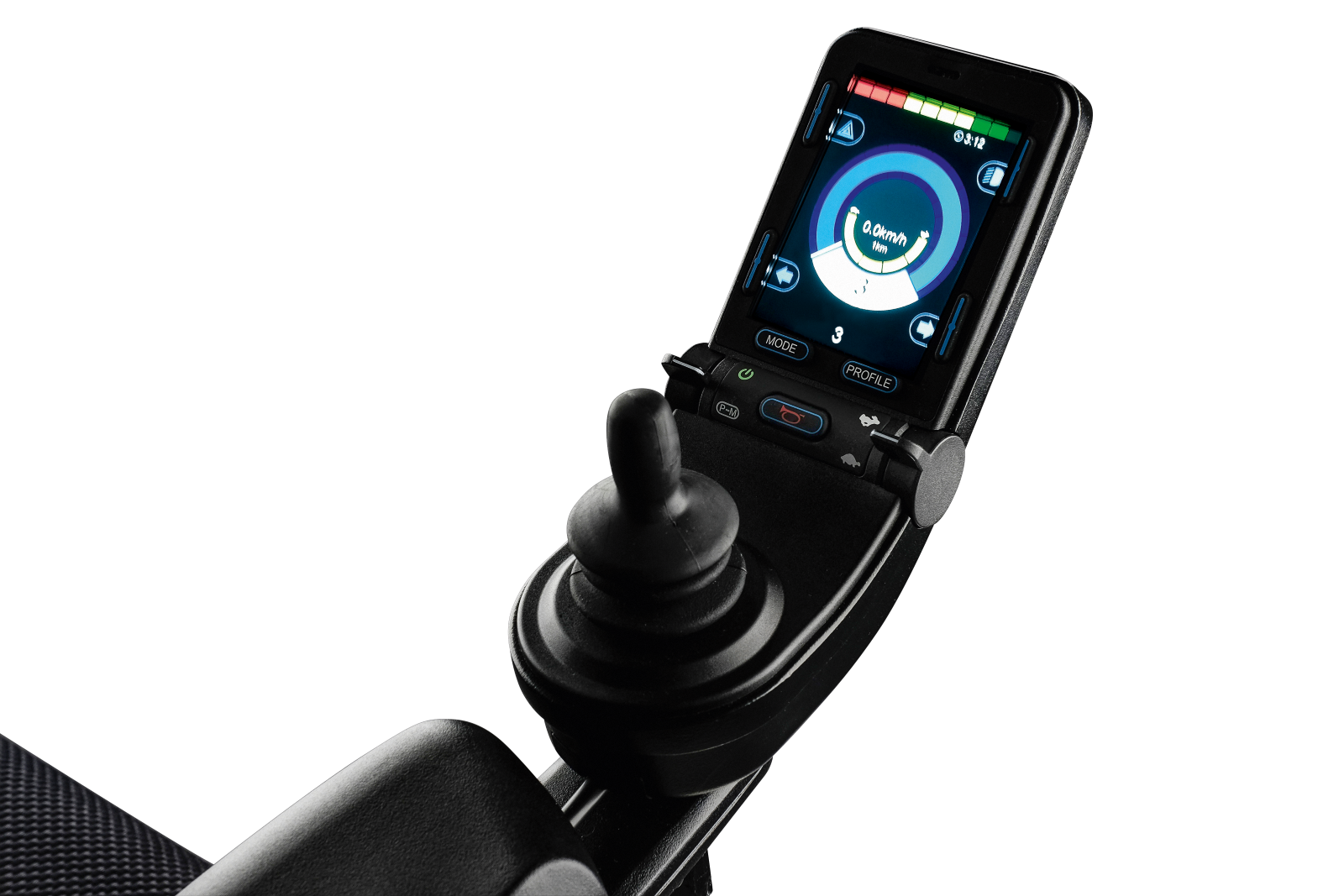

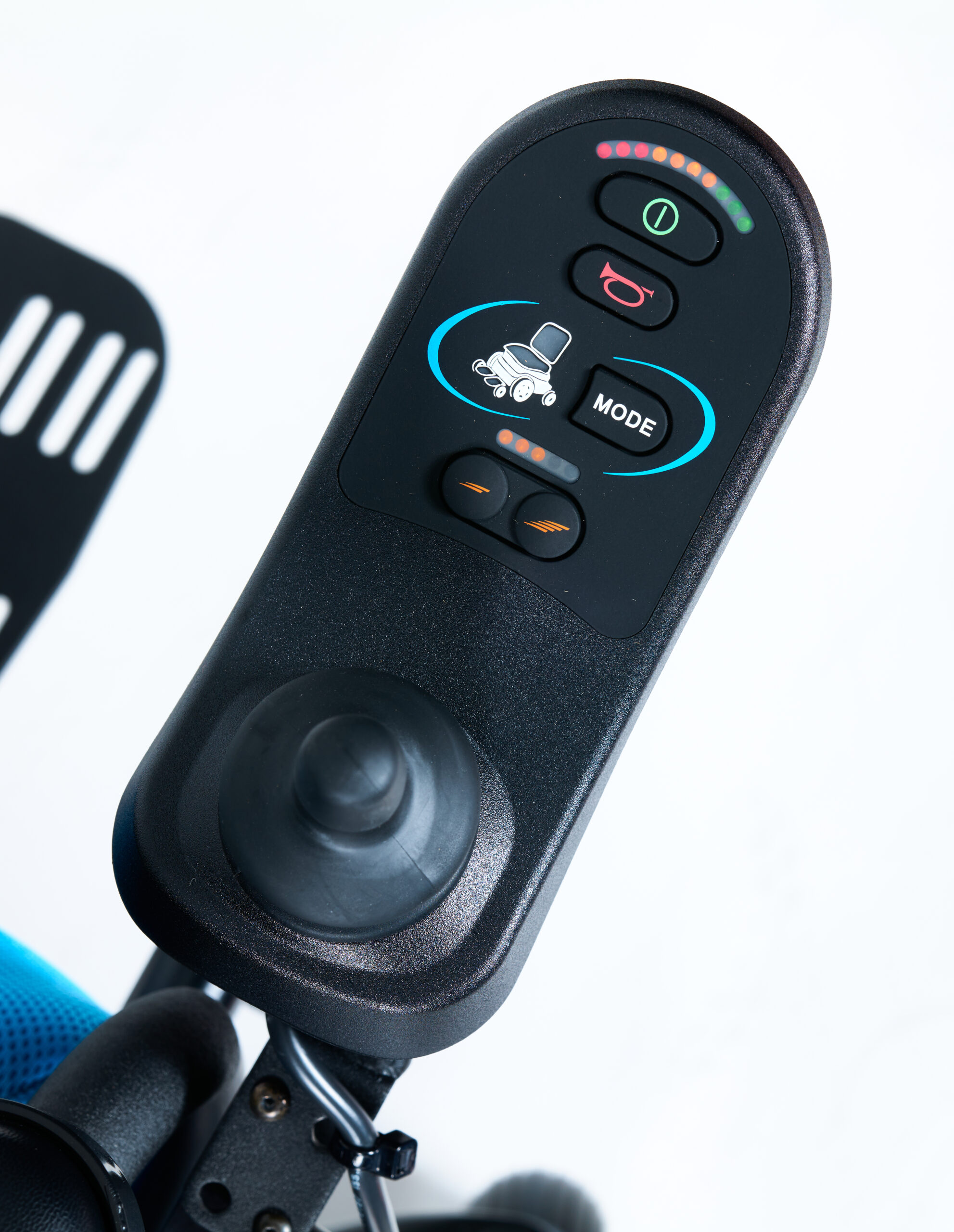

R-Net Multi Module Powerchair Control System

When a standard joystick is not the best option for your child, Specialty Input Devices help make independent mobility possible.

Quickie and specialty input device leaders Switch-It®, offer devices such as switch controls, head array/ chin controls that focus on the strengths and capabilities of each child to create a personalised driving platform they can operate with ease.

Mini Base

The Z300 M Mini's Micro base is just 52cm wide!

This compact base is perfect for children to move around their environment with ease and efficiency.

Powerful Motor & Battery

Our reliable and high performance motor package features, 10kph motors that keep up with your child's most playful and energetic days. The Z500M Mini's long-lasting batteries provide the range needed to travel the distance on a single charge.

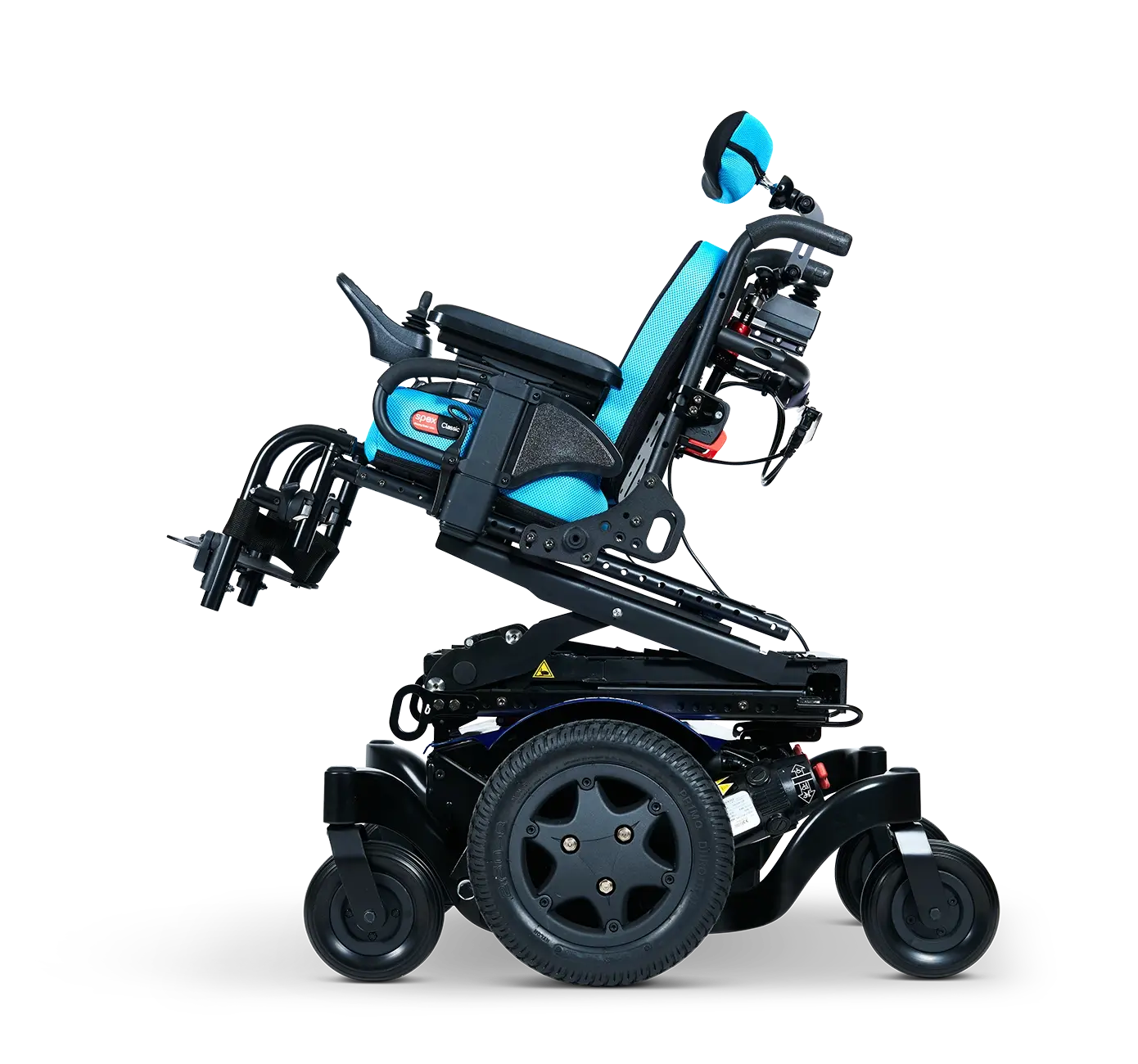

Power Tilt

50° of power tilt allows you or your child to change their position and shift weight to reduce the risk of skin breakdown, power tilit will also help reduce development of postural deviations and increase your child's comfort, allowing them to be more active.

Client

Gallery

Resources

Zippie Z500M Mini Brochure 2.24 MB Comparison Chart - Medifab Paediatric Wheelchairs 1.72 MB Medifab Zippie Spoke Guard Options 2.86 MB Zippie Z500 Mini Spare Parts Manual 19.05 MB

Specifications

Drive Configuration	Mid-Wheel Drive
Overall Base Width	52cm	20.5″
Overall Base Length (not including footrests)	86cm	33.8″
Turning Circle Turning radius (QMFM) vs diameter (QUP)	55cm	21.6″
Ground Clearance	6.5cm	2.5″
Seat to Floor Heights	43 – 49cm	16.9 – 19.2″
Max Speed	10kph
Range	30km
Drive Wheel Size	31.7cm	12.5″
Castor Wheel Size	17.7cm	7″
Seat Frame Options	Zippie Style Seat Frame
Third Party Seating	Yes
Seating Sizes	25.4 – 40.6cm (W) 25.4 – 48.2cm (D)	10″ – 16″ (W) 10″ – 19″ (D)

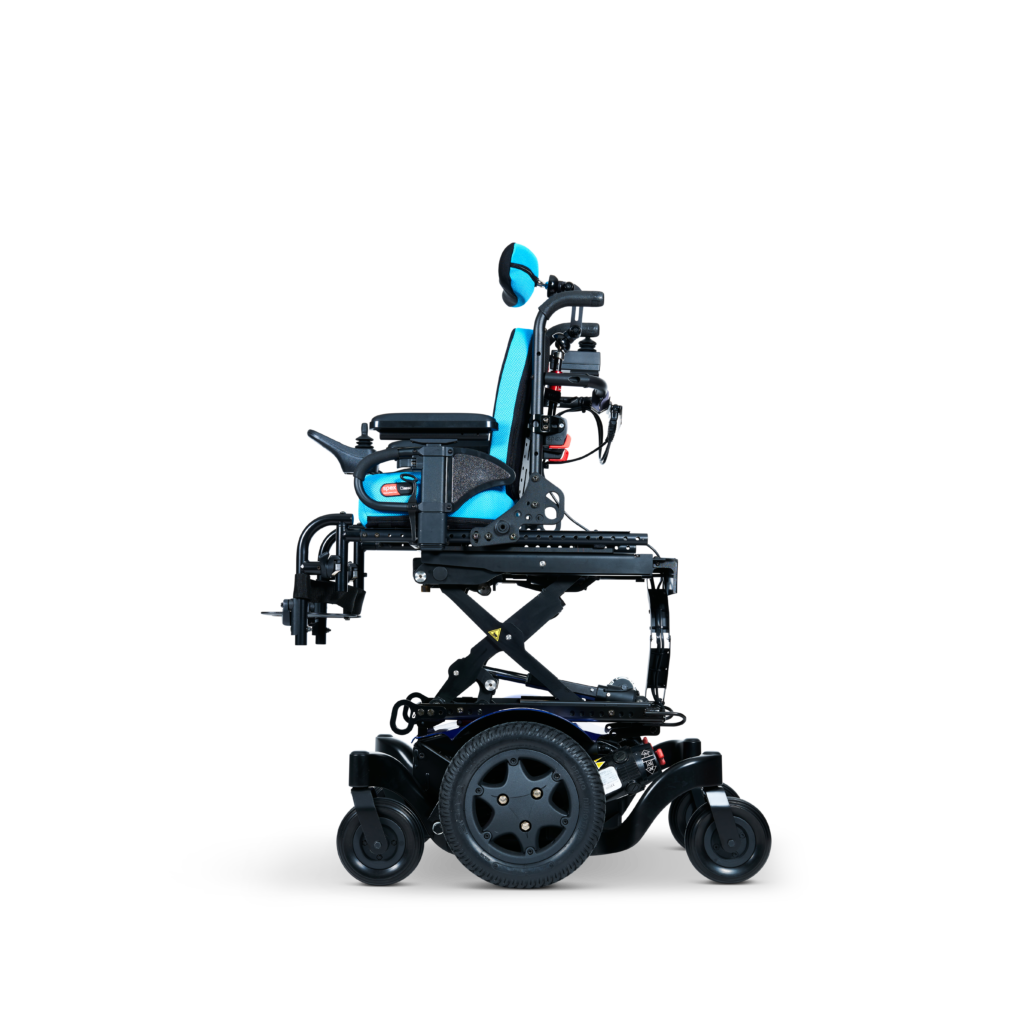

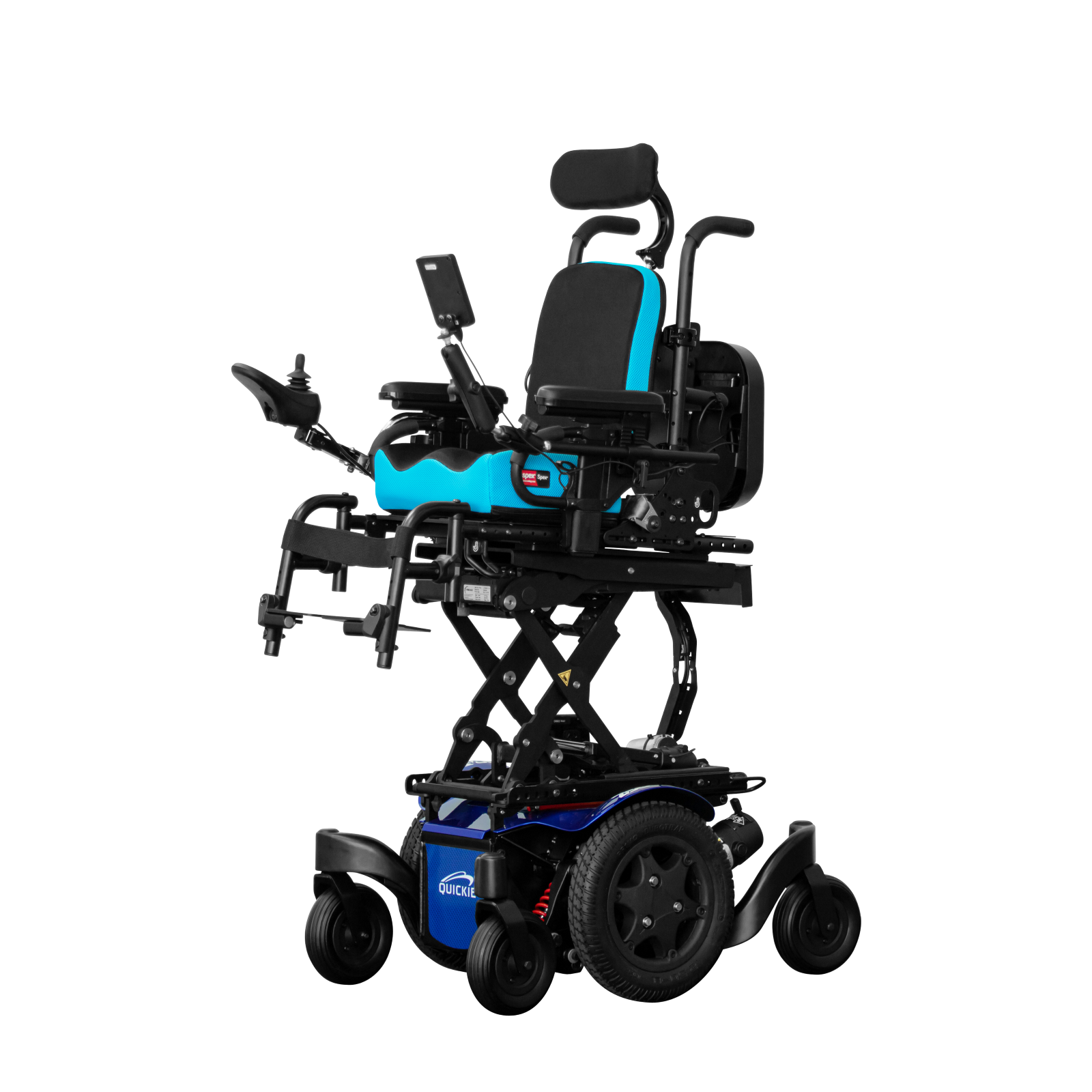

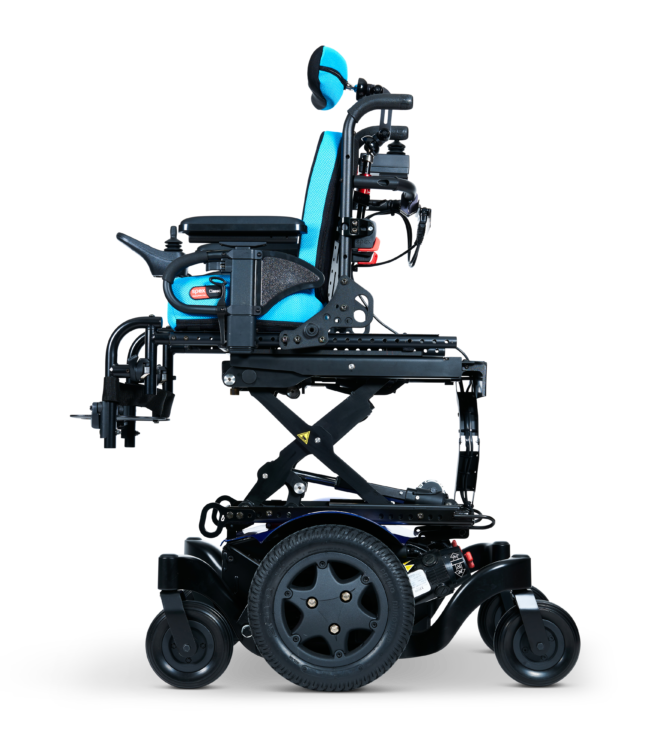

Lift	30cm	11.8″
Tilt	30°
Power Recline	No
Power Leg Elevate	No
Manual Recline	40°
Electronics	R-Net
Specialty Controls	Yes
Suspension	Drive Wheels/Base
Motors	2 Pole
Battery Size	34Ah
Chair Weight	130 – 155kg with batteries
Max. User Weight	75kg
Transit Tested	Yes
