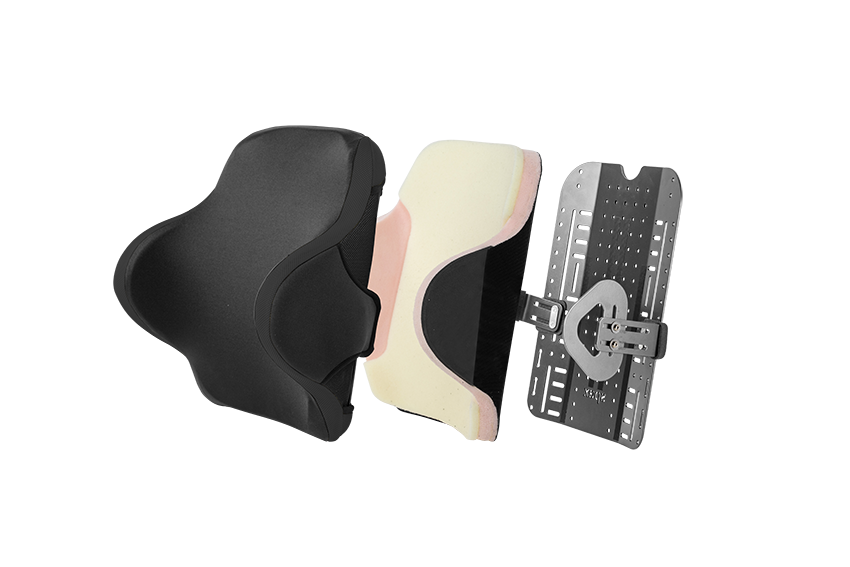

Simplistic to Sophisticated. Effortless to Elaborate. Clean to Complex.
- Dual-Orientation Cover Design: Unique cover can be flipped 180 degrees, enabling the lateral trunk supports to be positioned either higher or lower, providing optimal fit and lateral trunk control tailored to the user’s needs

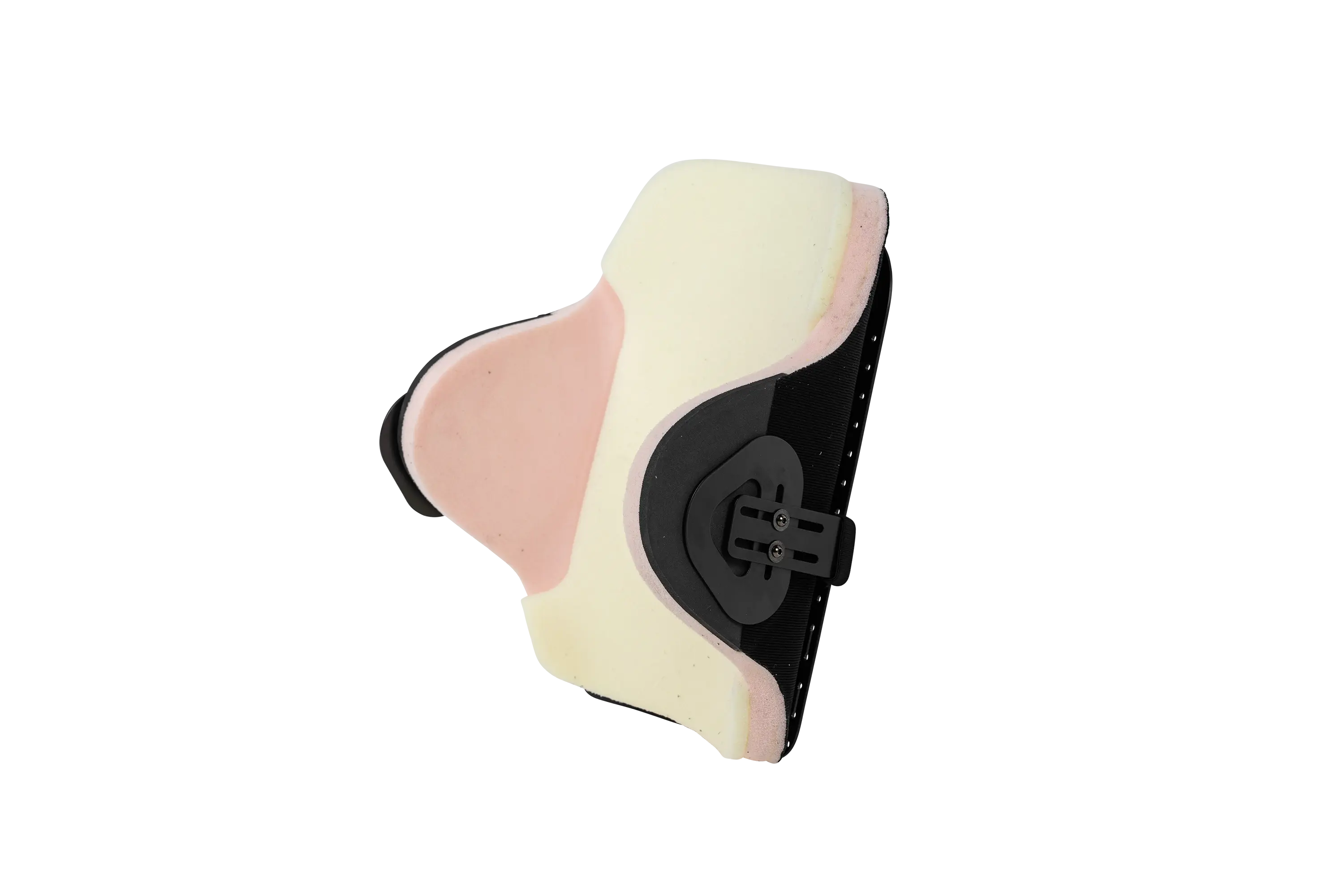

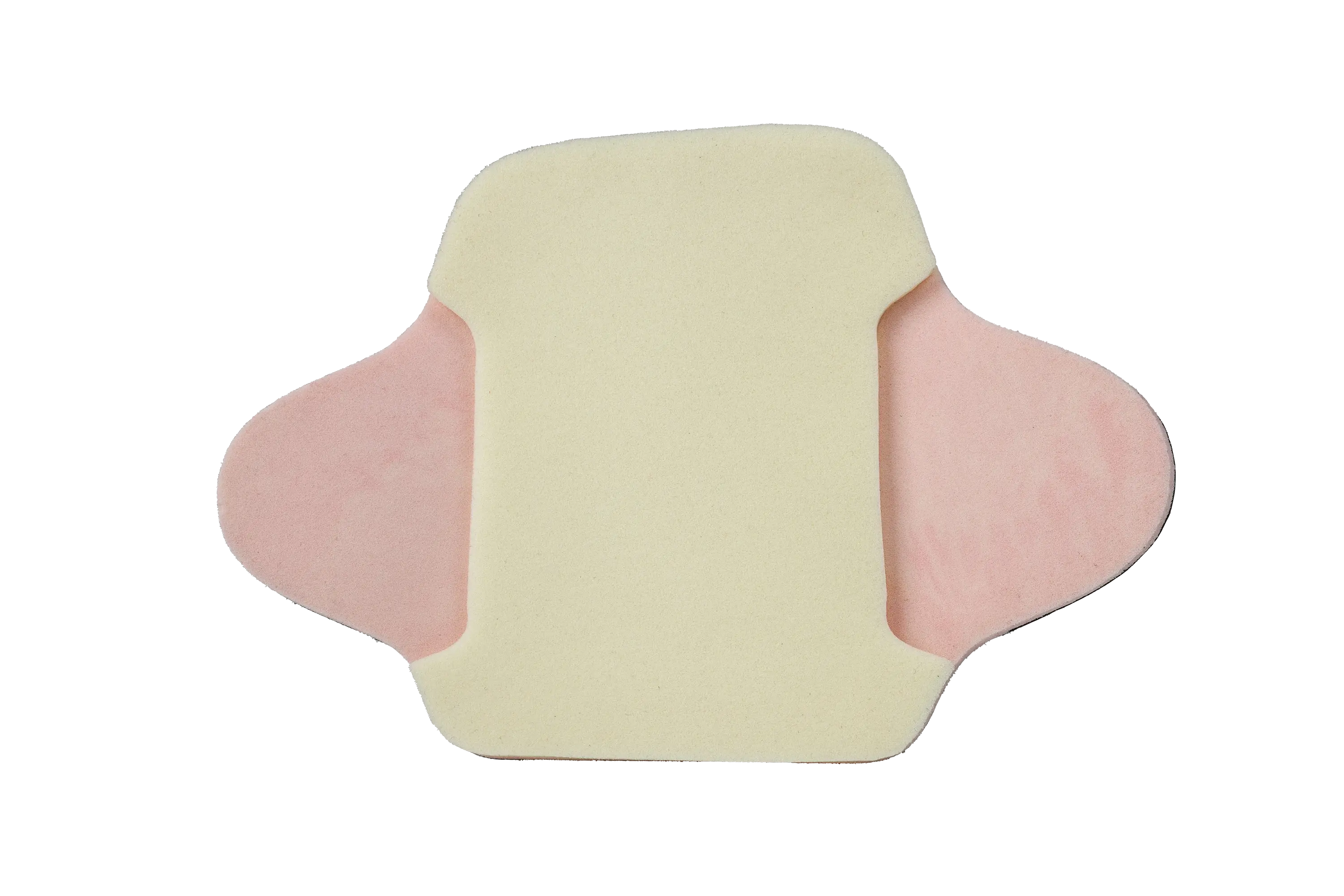

- Superior Comfort: Memory foam inner lines the center of the back support

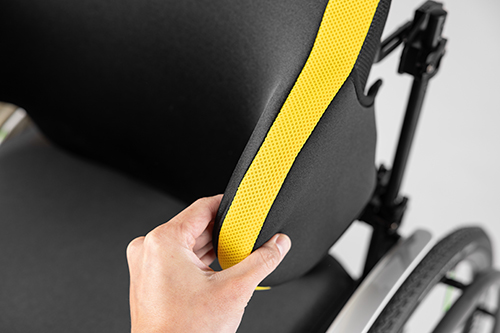

- Neoprene Lateral Support Covers: Provide a soft, comfortable surface where the arms contact the lateral area e.g. when self-propelling

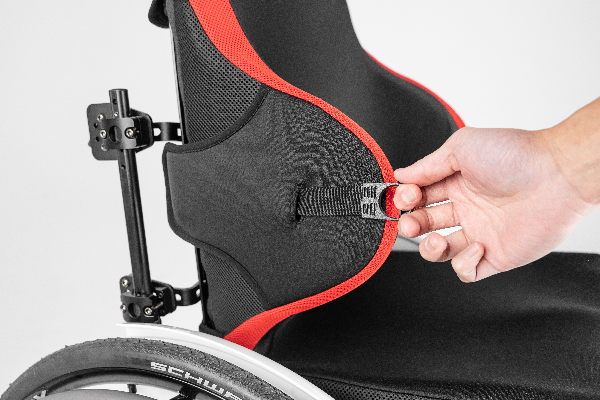

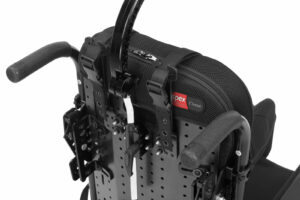

- Integrated Harness Retainer: A discreet fabric loop at the top of the back support helps keep anterior trunk supports tidy and in place (please note this is not intended for clinical positioning – for this purpose, please add Spex Harness Guides)

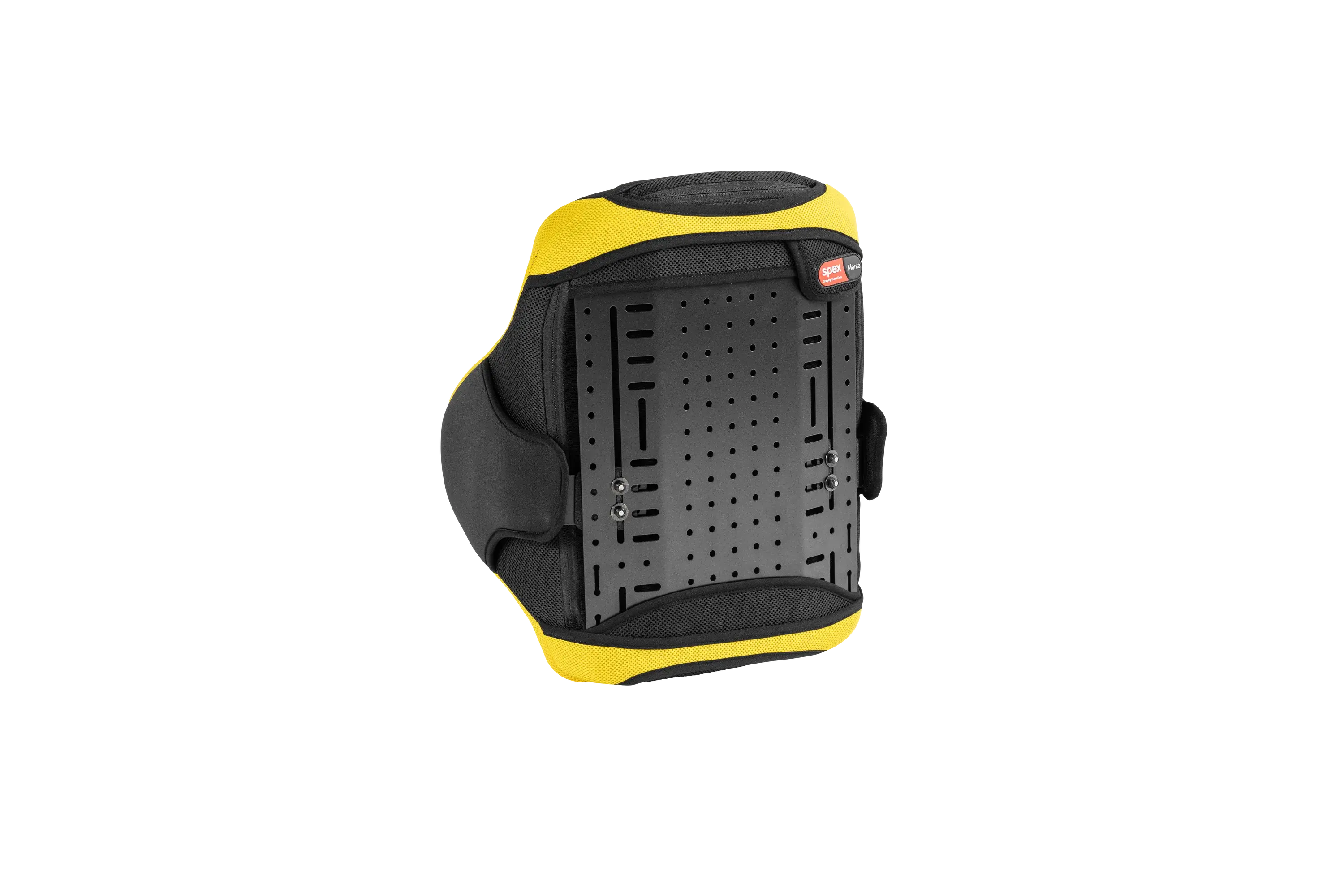

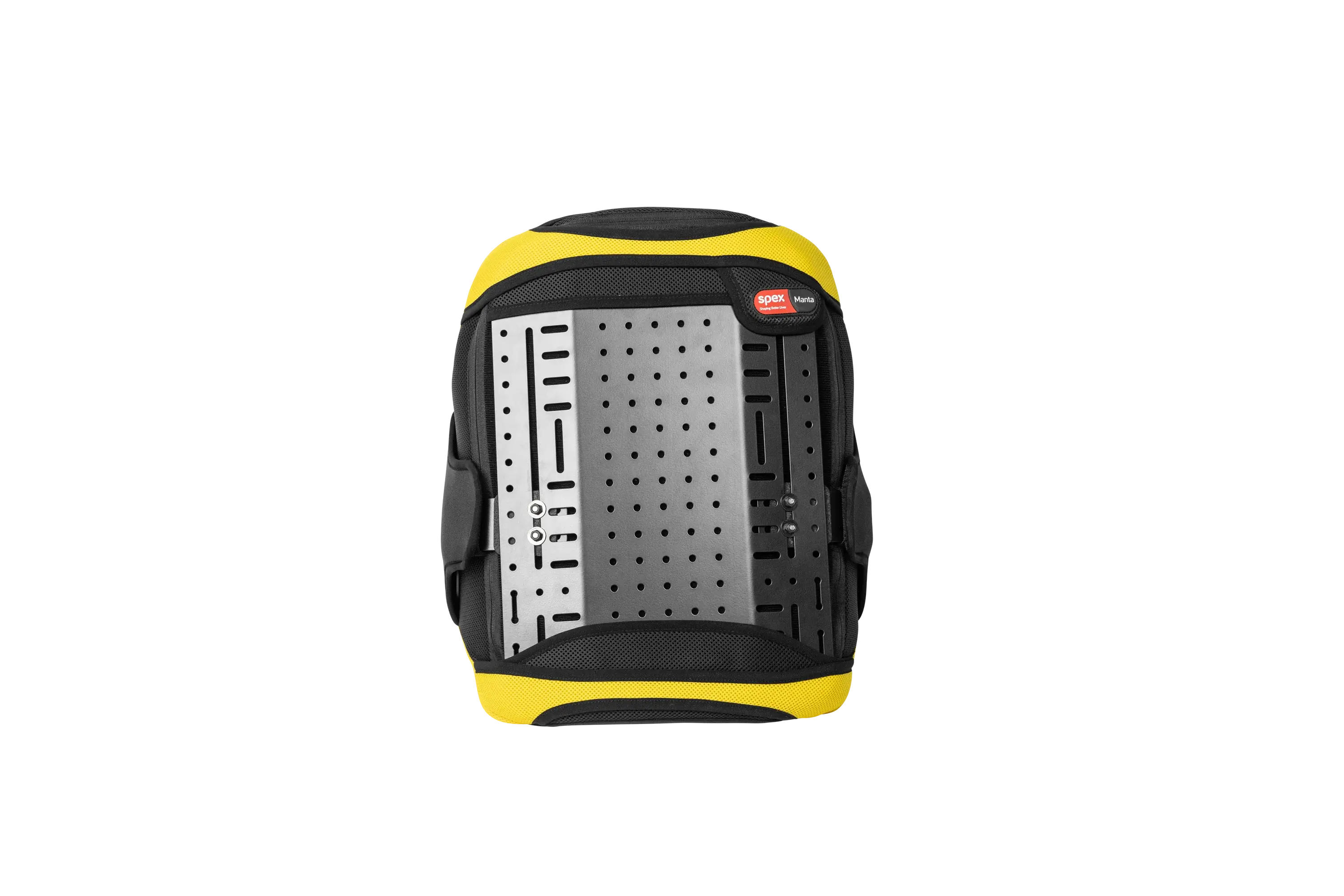

- Powerchair Compatibility: Cover design maintains access to the back support shell for easy attachment to power wheelchair interfaces and back plates

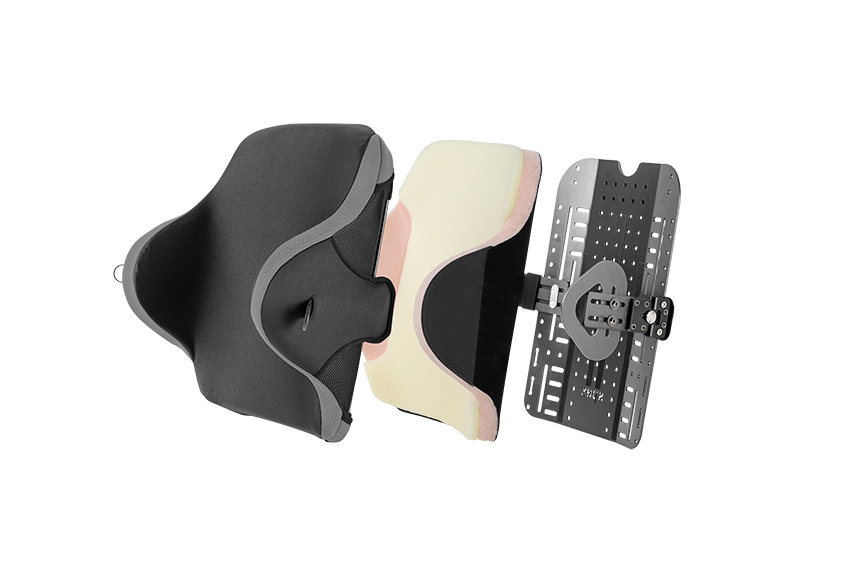

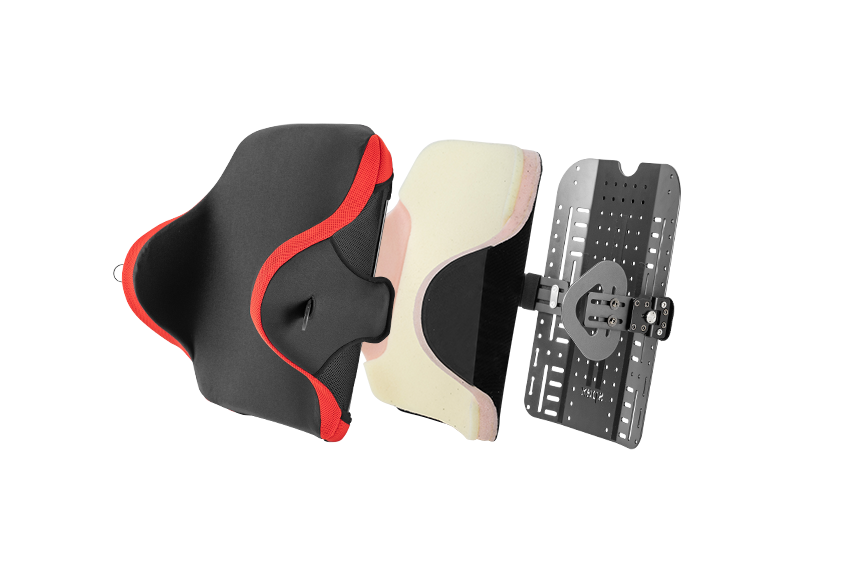

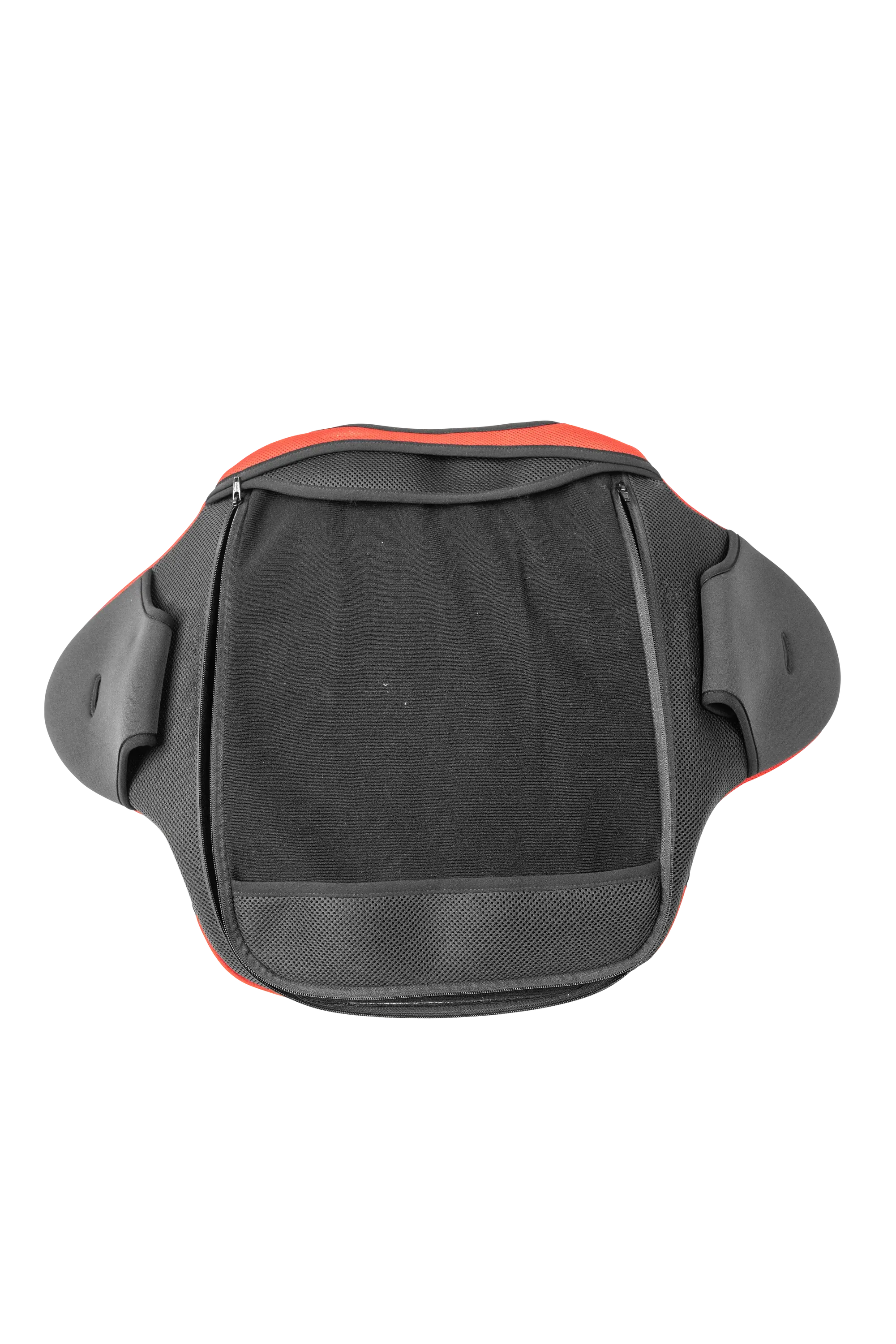

- Easy-to-Remove Cover: The zipper runs around the entire rear edge of the back support, making it simple to remove for washing and to replace the foam insert afterwards.
- TSS and Wedge Compatibility: Velcro surface behind the foam inner allows for compatibility with the Spex TSS and other positioning wedges
- Swing-Away Lateral Option: Swing-away laterals are available as an option, allowing for easier transfers
- Wide Range of Sizes: Standard sizes are available up to 22” wide
Manta is designed for the individual who requires:
- A solid back support to support stability needs.
- A shoulder height back support with deep contour lateral support.
- Minimal to high level postural support.

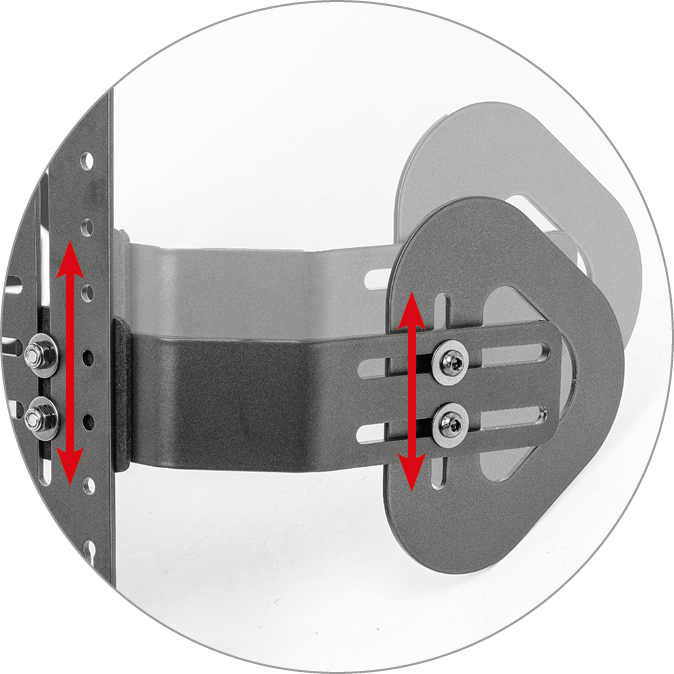

- Improved trunk positioning with independently adjustable incorporated lateral supports.
- Support for mild-moderate trunk asymmetries.

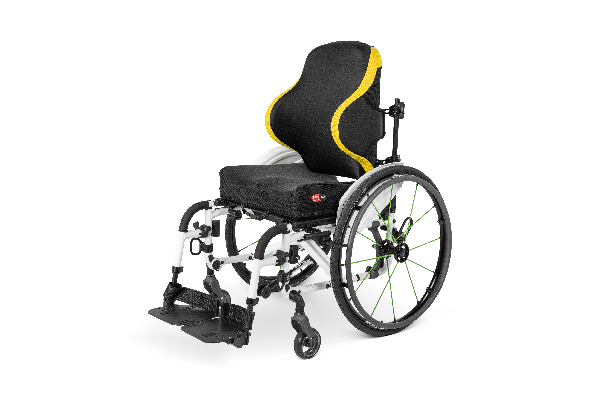

Explore the Refined Spex Manta Back Support
Refined Spex Manta Back Support: What's New?

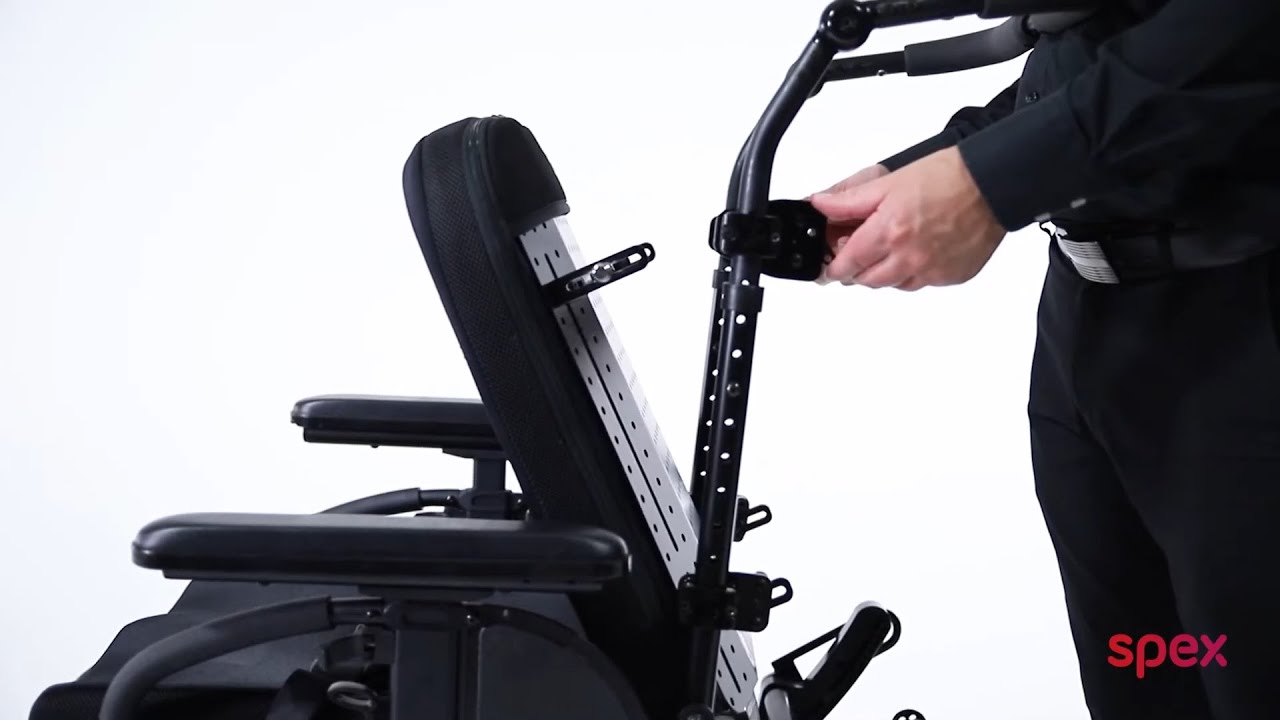

How to Install and Adjust: Spex Quad Mount Quick-Release Hardware
Resources
Spex Stylo Head Supports
Spex Lateral Trunk Supports
Back Support Incontinence Cover
Extra Outer Back Support Cover
Asymmetric Contour Wedge Kit
TSS Lite Kit
Spex Anterior Trunk Support

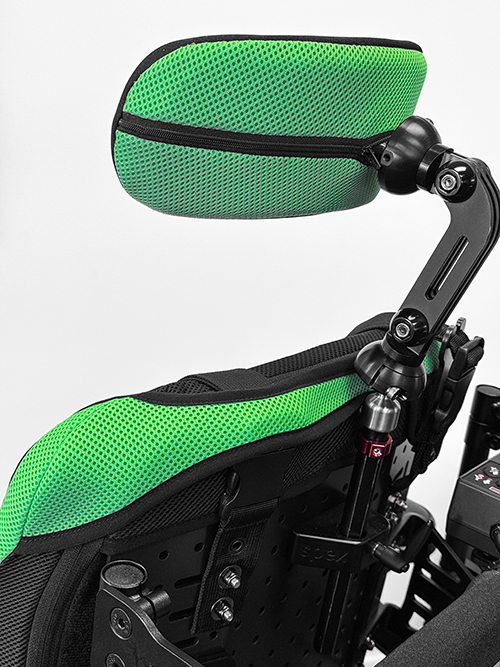

Spex Stylo Head Supports
| Circle | Comfort | Contour |
 |
 |
 |
| Unique minimal head support providing direct posterior support for users with good head control.
Available in two sizes: Circle 150 and Circle 250. |
General use head support pad suited for transit and travel.
Available in two sizes: Comfort 250 and Comfort 350. |
Contoured shaped pad for superior occipital and suboccipital support.
Available in two sizes: Contour 250 and Contour 350. |
| Standard Lateral | Extended Lateral | Adjustable Lateral |
 |
 |
 |
| One-piece lateral head support solution for moderate head positioning needs.
Available in two sizes: Paediatric and Adult. |

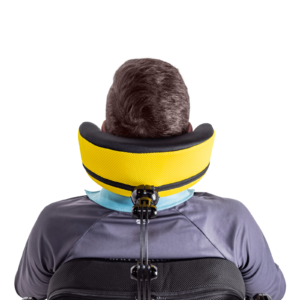

One-piece lateral head support solution for complex head positioning needs.
Available in two sizes: Paediatric and Adult. |
A superior adjustable lateral head control system with individualised ‘tuning’.
Available in two sizes: Adjustable Lateral 150 and Adjustable Lateral 250. |
Custom head supports are available – please contact us for more information.
Spex Lateral Trunk Supports
Select Hardware
- Fixed Bracket
- Standard Swing-Away Bracket
- Axial Swing-Away Bracket
Select Bracket Upgrade
- Cane Mount
- DeepContour backrest bracket
- Extension for DeepContour (commonly used with SuperShape Backrest
Select Comfy-Cover
- Extended padding over mechanism to protect arms from metal hardware
- Clever release strap for operating the swing away movement
- Easy release for users who have limited hand function and need independent use to open the laterals for transfers

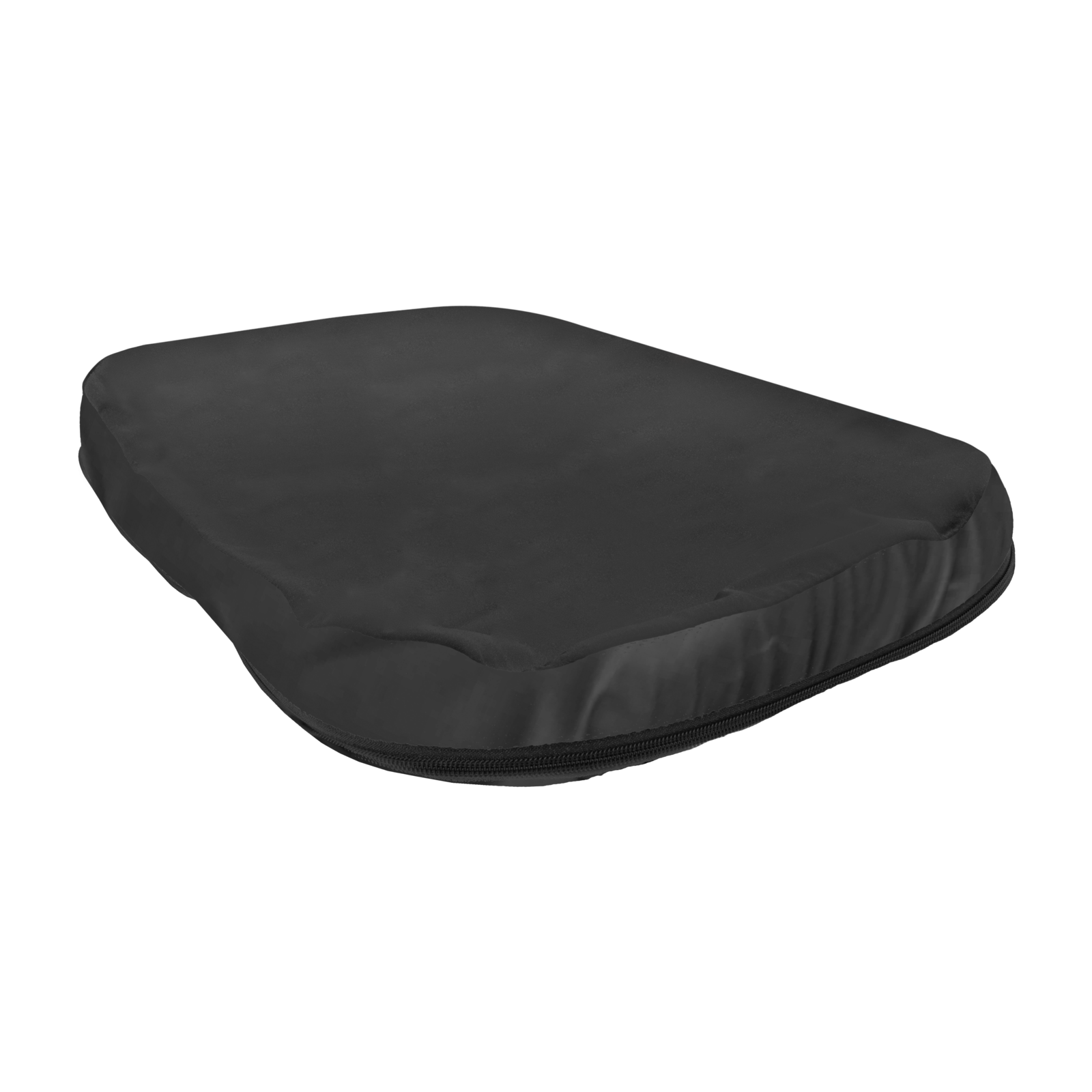

Back Support Incontinence Cover
Product Code:
1254-WWHH-000-I

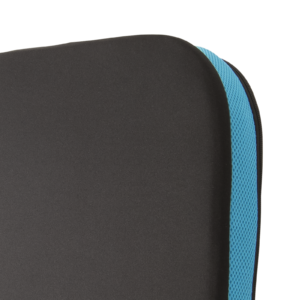

Extra Outer Back Support Cover
Product Code:
1
254-WW-HH-000-C

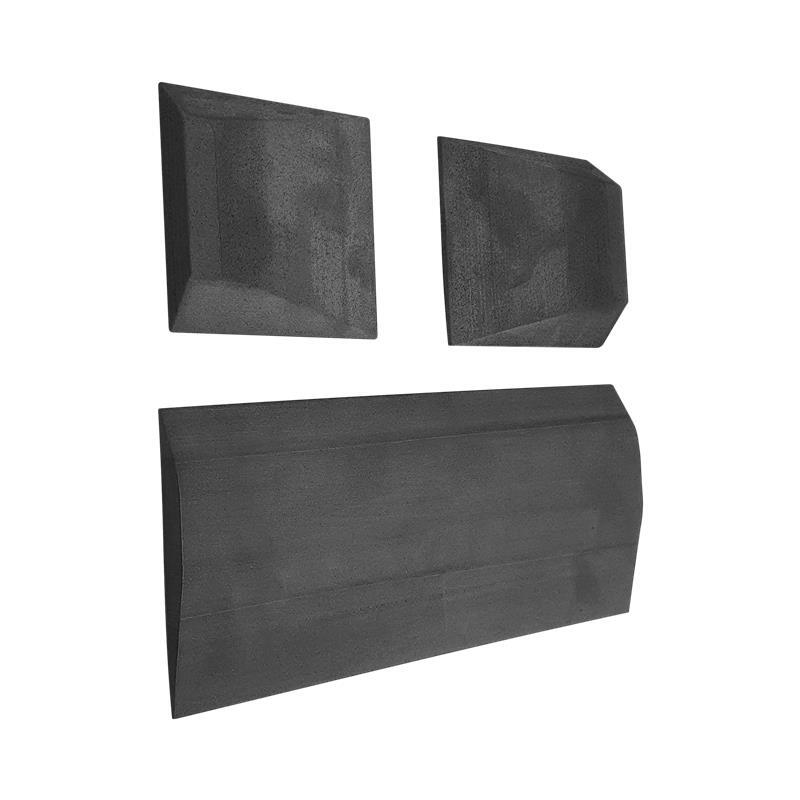

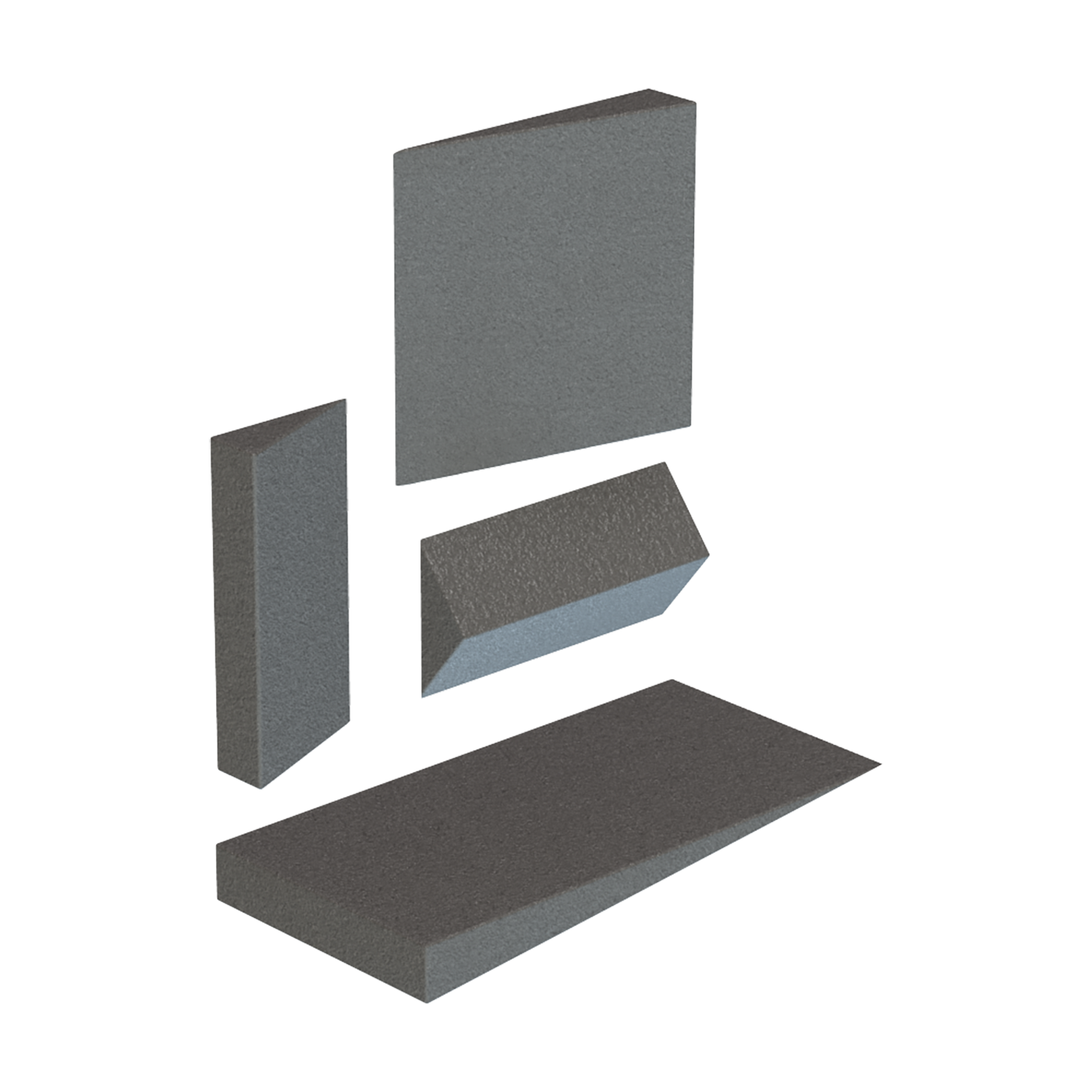

Asymmetric Contour Wedge Kit
Contains four foam wedges to provide greater contouring.
Dimensions:
- 20 x 20 x 4cm
- 20 x 10 x 4cm
- 20 x 10 x 4cm
- 4 x 20 x 40cm
Product Code:
1209-2720-300

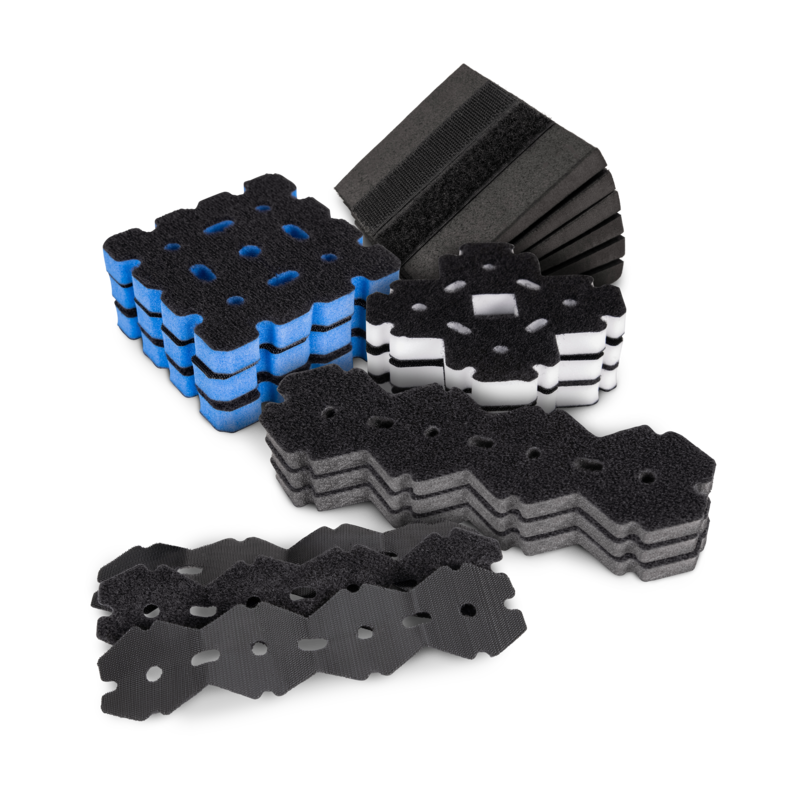

TSS Lite Kit
Contouring and positioning kit for use behind Zygo upholstery. Includes selection of TSS
shape elements and foam wedges.
Product Code:
1250-3955-000

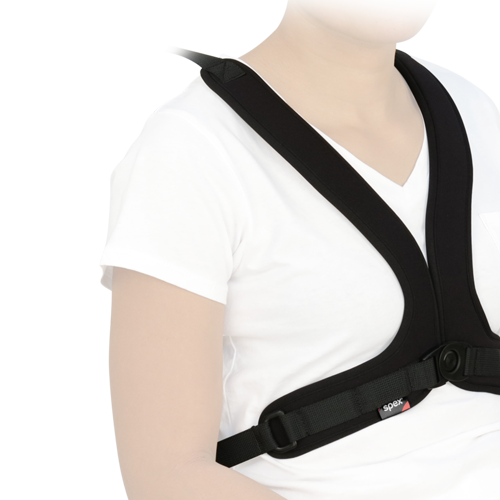

Anterior Trunk Support
Unique harness designs suit a wide scope of requirements for postural restraint and support.

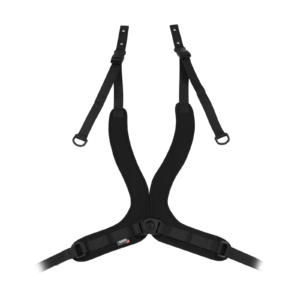

| Spex Centrepoint Harness | Spex Retractor Harness | Spex Vest Harness |
 |
 |
 |
| With a curved pad construction and unique shape, it is designed to follow natural contours of the body.
Product code: see table below |

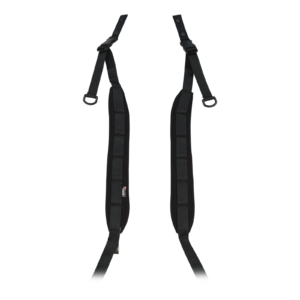

Comprising of two individual ‘straps’ to encourage good retraction of the user’s shoulders.
Product code: see table below |

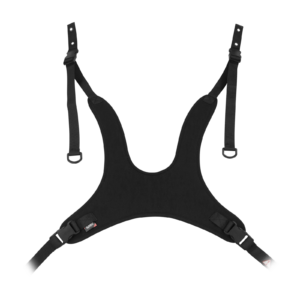

Low neck design for increased safety, and sufficient lower cut-out for optimum stomach clearance and comfort.
Product code: see table below |

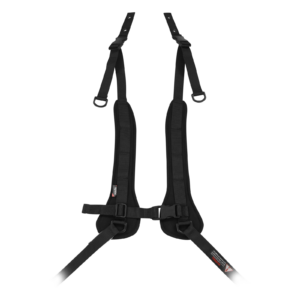

| Spex H-Harness | Spex Chest Strap | Spex Shoulder Strap Guides |
 |
 |
 |
| A minimalist option, featuring a cross strap that is positioned low on the user’s trunk for increased safety.
Product code: see table below |

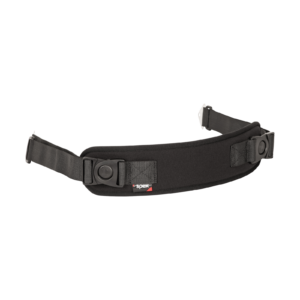

For users who need firm support around their chest, whilst still providing a high level of comfort.
Product code: see table below |
Recommended for any harness choice to prevent shoulder straps from falling off shoulders.
Product code: 1400-6692-000 |
Product Codes
| Spex Centrepoint | Spex Retractor | Spex Vest | Spex H-Harness | Spex Chest Strap | |
|---|---|---|---|---|---|
| Extra Small | 1409-6660-017 | – | 1409-6610-017 | 1409-6640-017 | – |
| Small | 1409-6661-017 | 1409-6621-017 | 1409-6611-017 | 1409-6641-017 | 1409-6821-017 |
| Medium | 1409-6662-017 | 1409-6622-017 | 1409-6612-017 | 1409-6642-017 | 1409-6822-017 |
| Large | 1409-6663-017 | 1409-6628-017 | 1406-6613-017 | 1409-6643-017 | 1409-6623-017 |
| Extra Large | 1409-6664-017 | 1409-6624-017 | – | 1409-6644-017 | – |
Weight Capacity

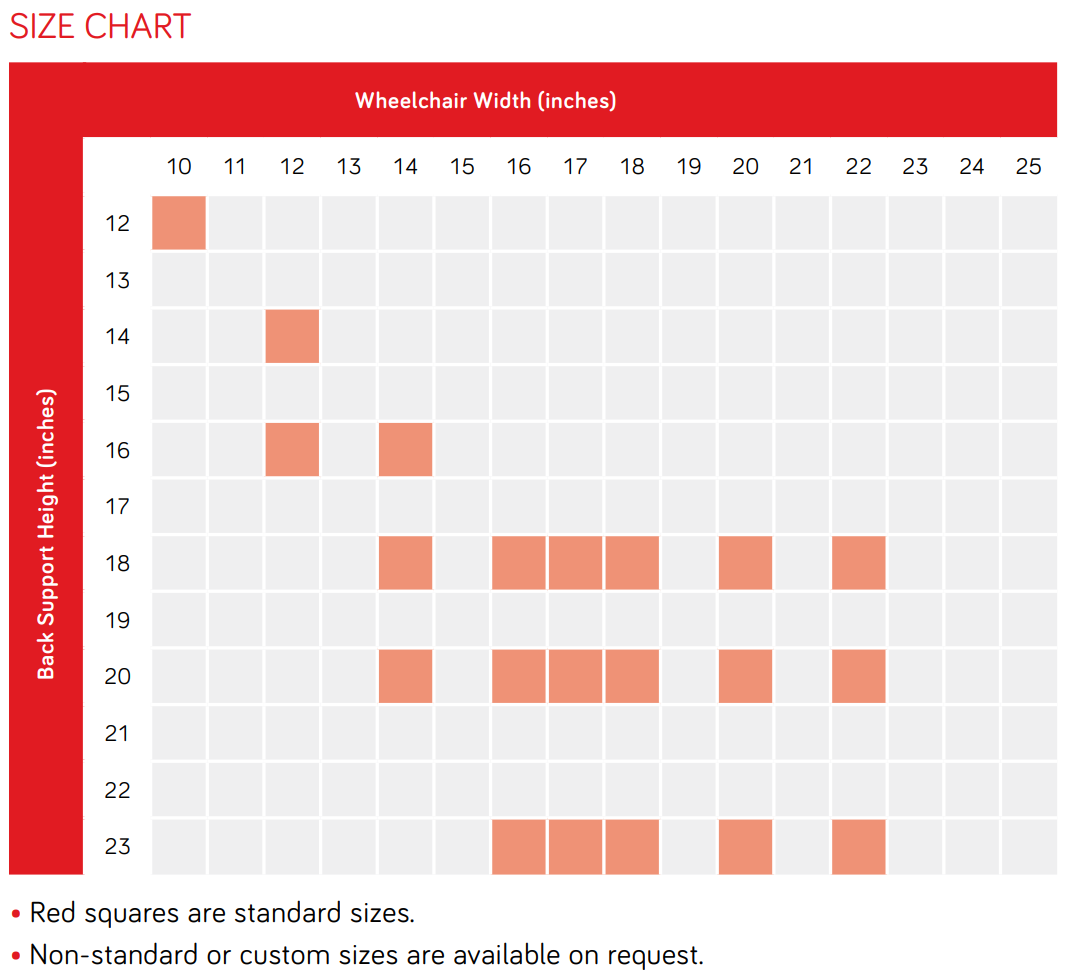

Sizing Chart
Manta Fitting

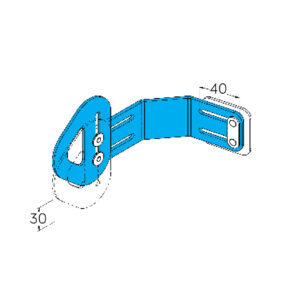

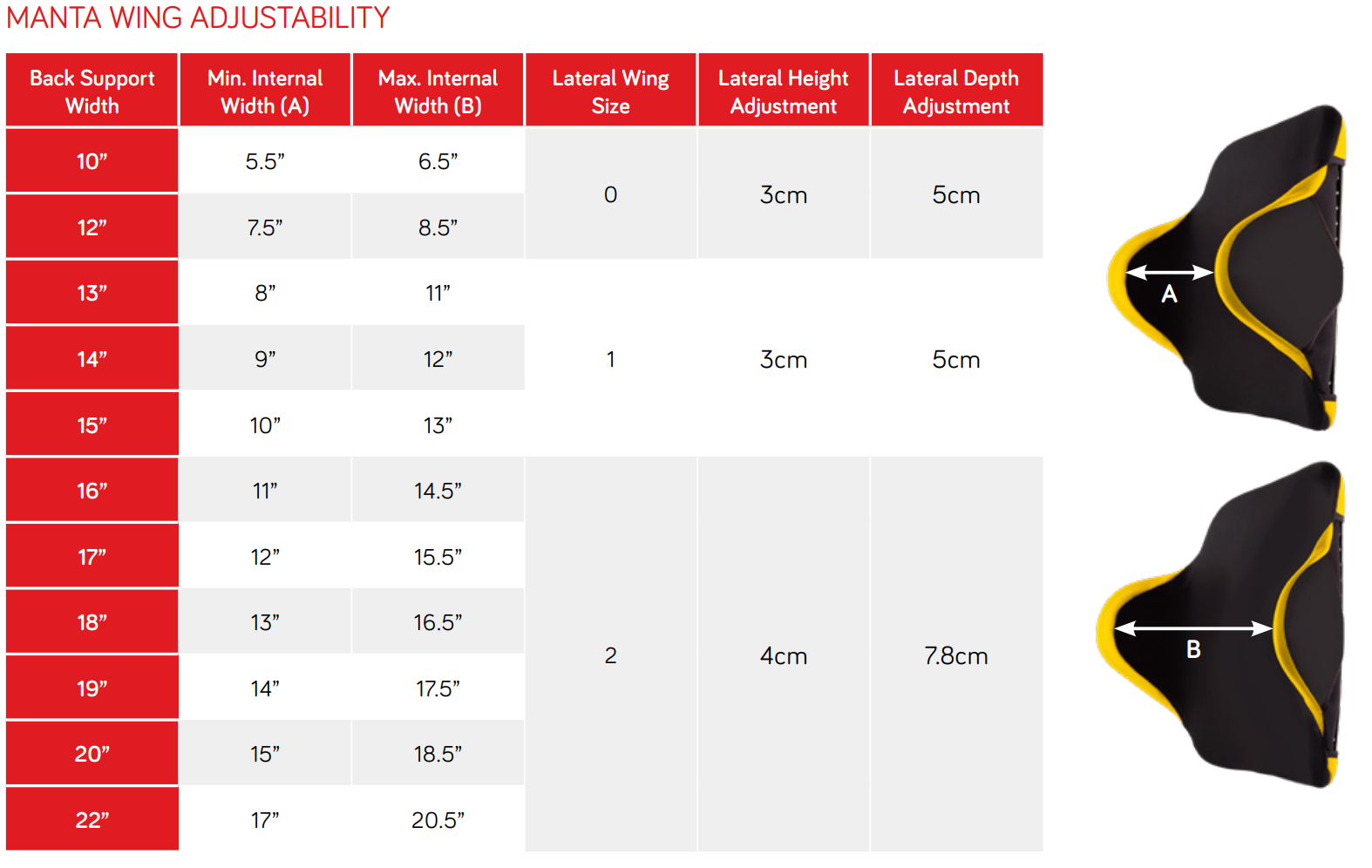

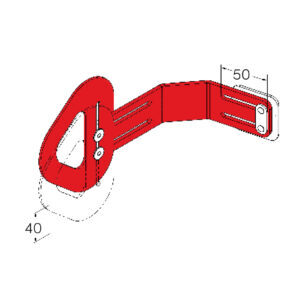

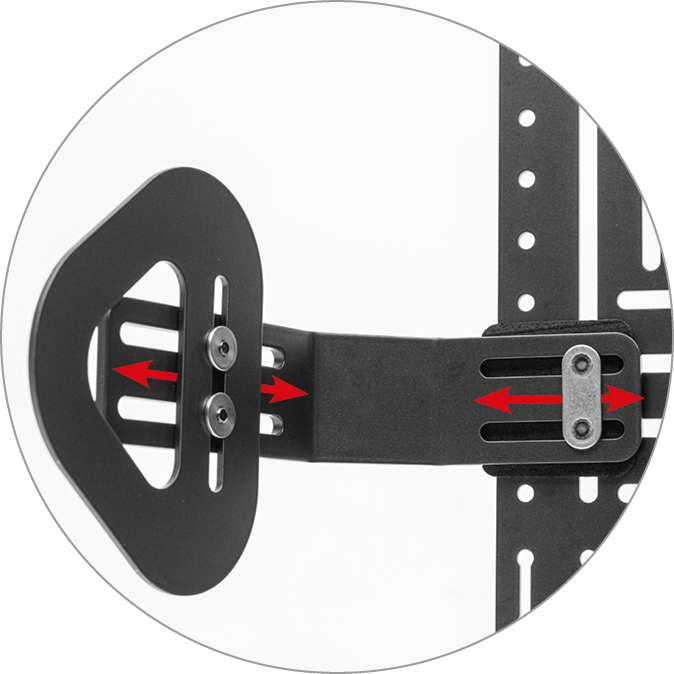

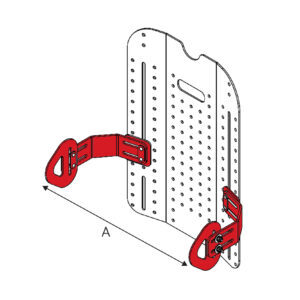

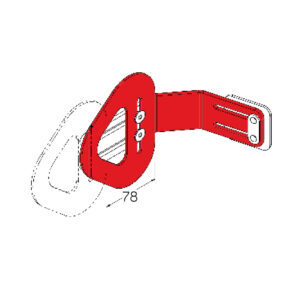

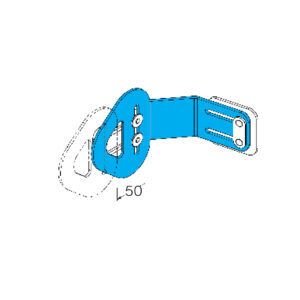

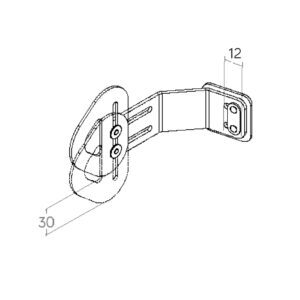

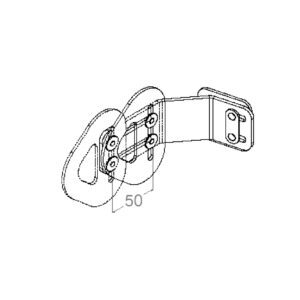

Manta Lateral Hardware Sizes
Product Codes
Note: To order a non-standard or custom size, replace the HH and WW in the code, with the appropriate size required (as shown on script form).
| Size 0 | Size 1 | Size 2 |
|---|---|---|
 |
 |
 |
 |
 |
 |
| Manta Back Support Size | Lateral Wings | Max. Internal Width (A) | Min. Internal Width (A) |
|---|---|---|---|
| 10-12″ | Size 0 | Scripted Back Width -3.5″ (eg. 12″ Manta = 8.5″) |
Scripted Back Width -4.5″ (eg. 12″ Manta = 7.5″) |
| 13-15″ | Size 1 | Scripted Back Width -3.5″ (eg. 14″ Manta = 12″) |
Scripted Back Width -5″ (eg. 14″ Manta = 9″) |
| 16″+ | Size 2 | Scripted Back Width -1.5″ (eg. 16″ Manta = 14.5″) |
Scripted Back Width -5″ (eg. 16″ Manta = 11″) |
