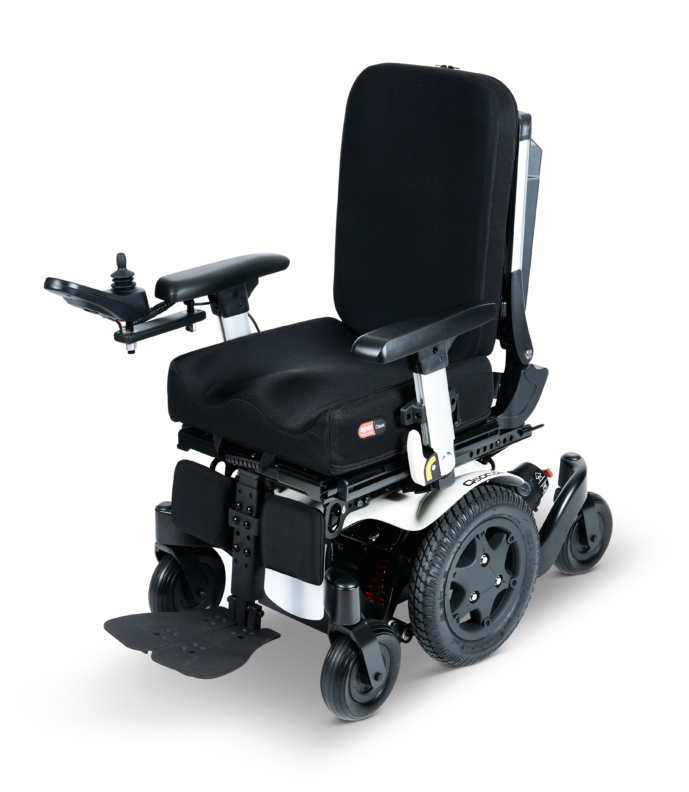

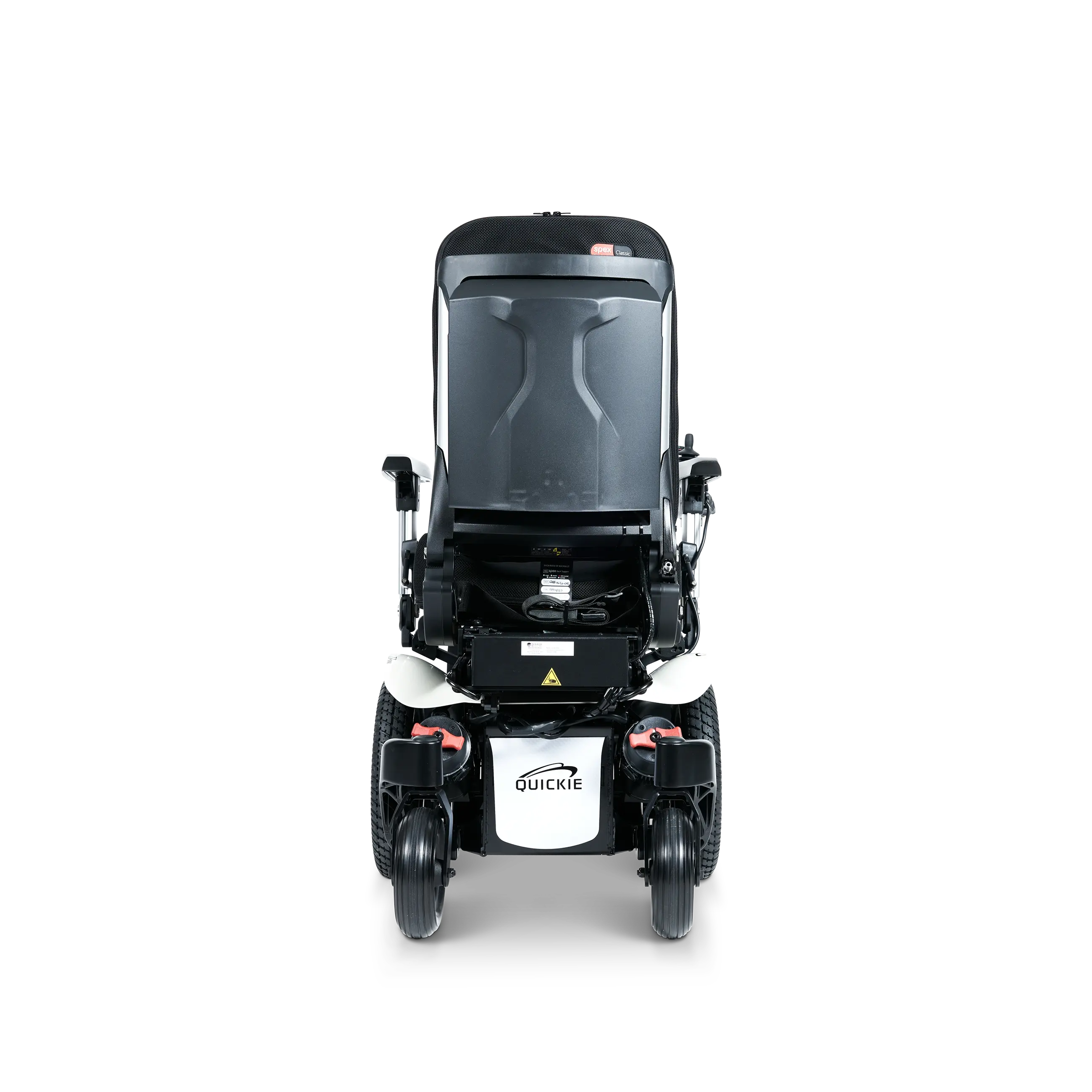

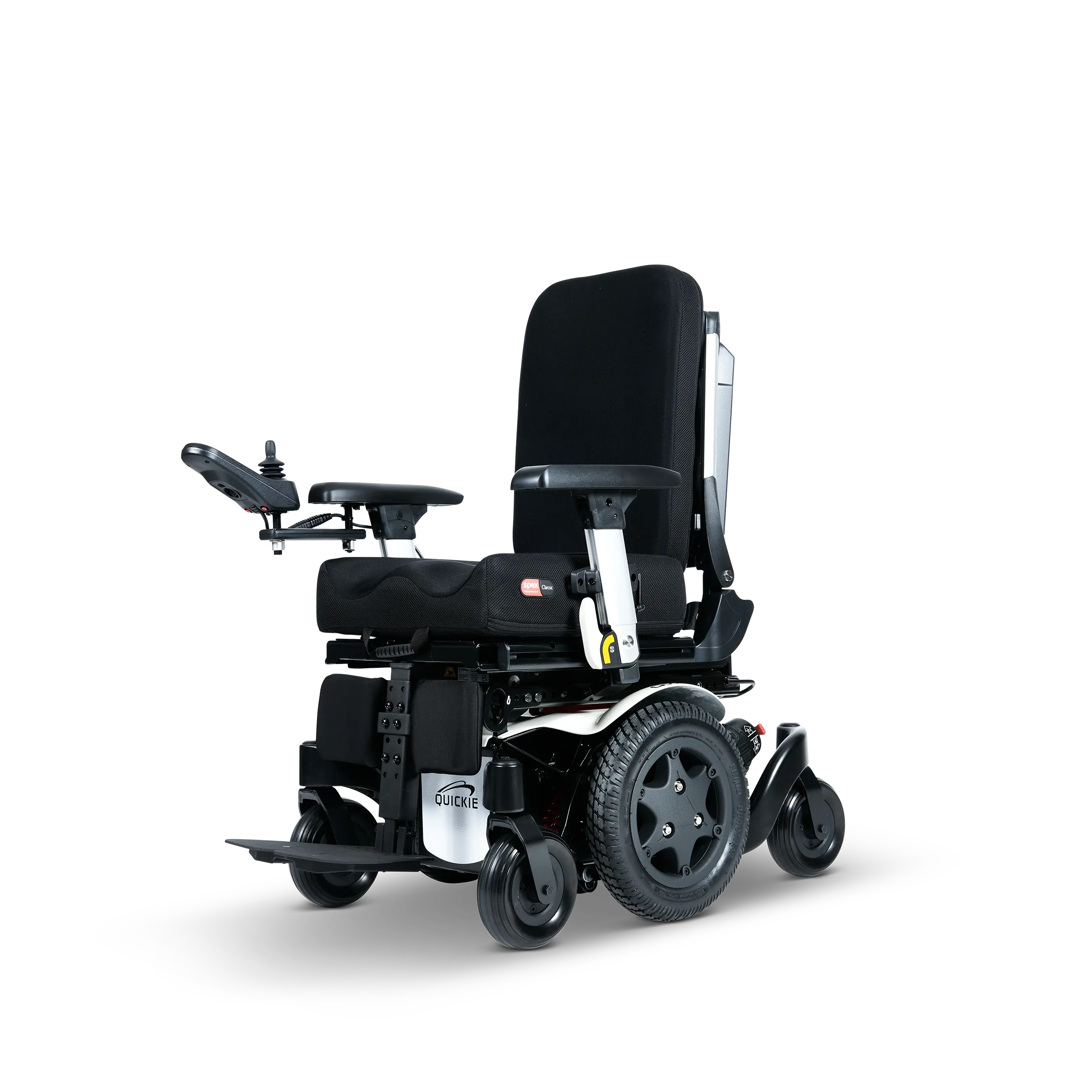

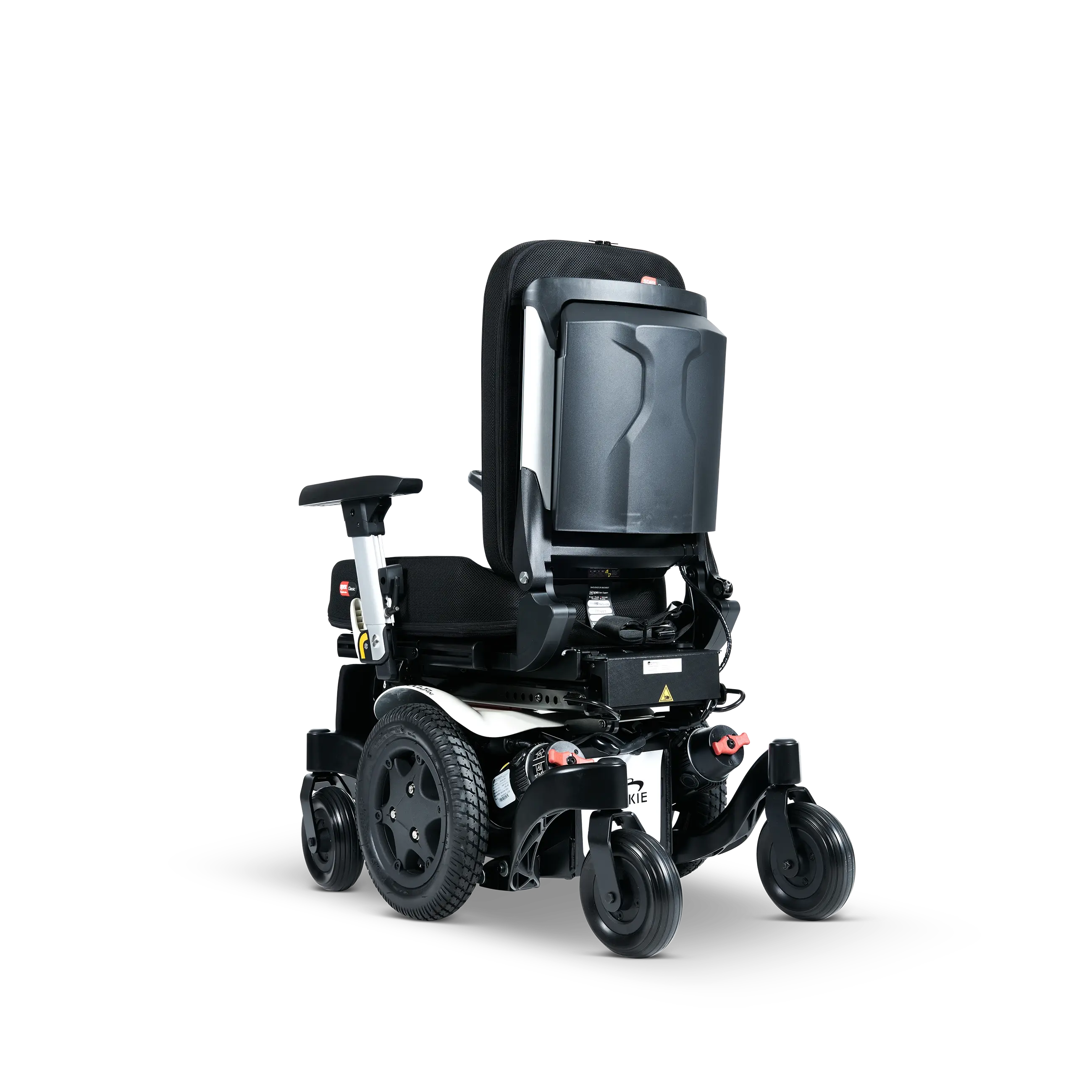

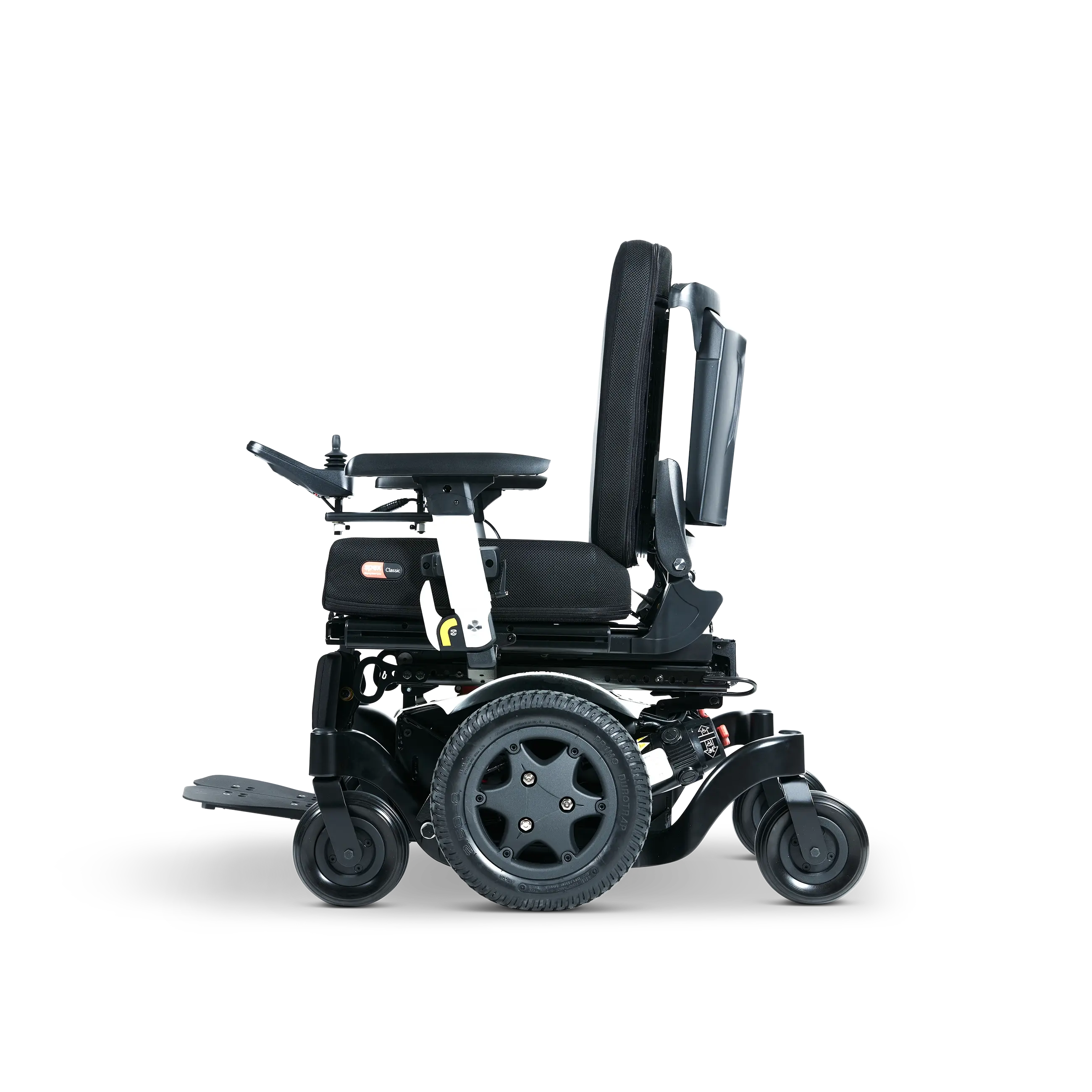

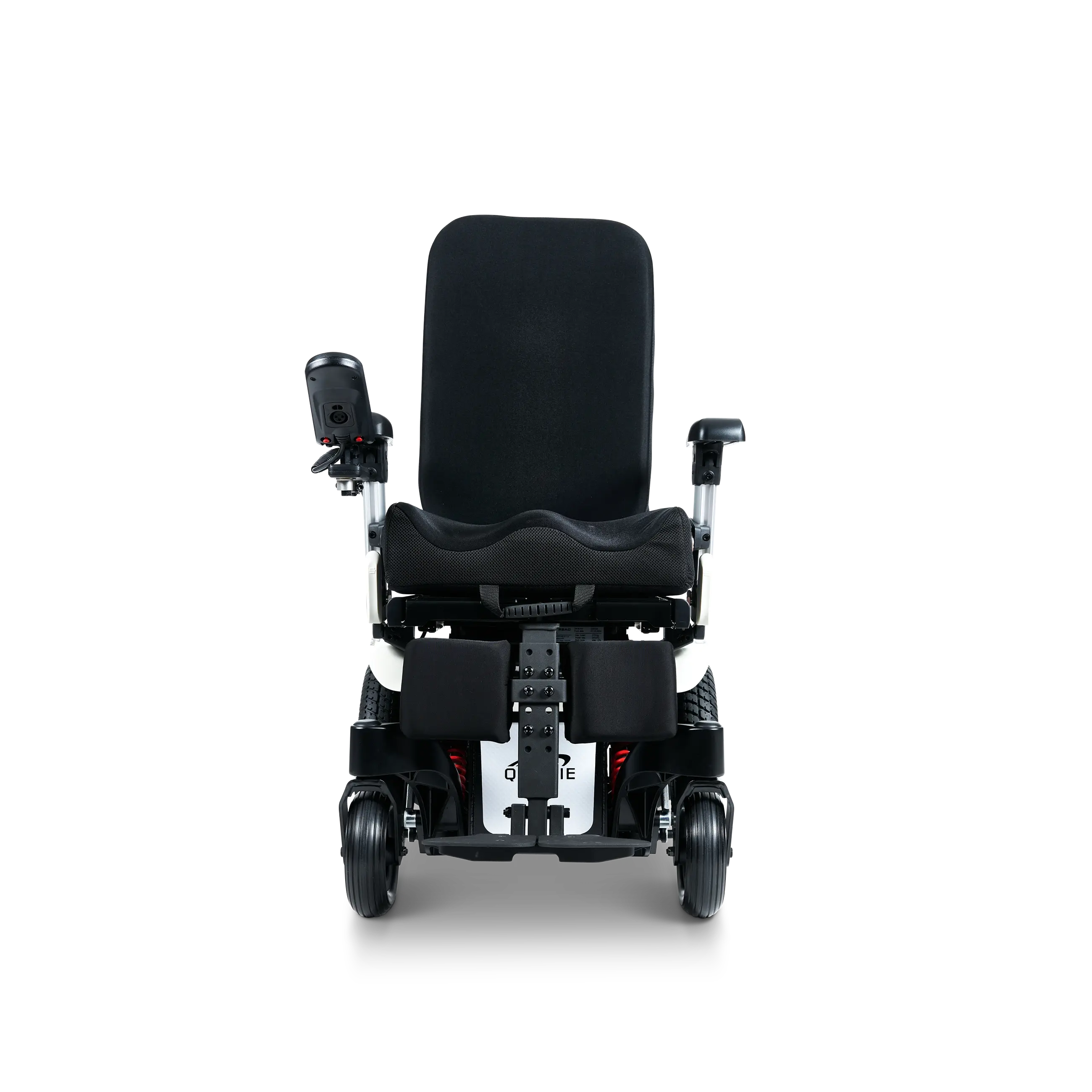

A compact mid wheel drive powerchair for ultimate ease of navigation!
Make your own adventure with the Q500M Mini, packed with clever advantages from the Q500 range of a practical drive base coupled with a new suspension system for maximum traction and comfort outdoors; but an even more compact chassis and tight turning circle for easy navigation indoors.
The Q500M Mini is an ultra compact powerchair with highly adjustable and customisable seating and electronics – a combination to match users with high clinical needs, but tight indoor environments.
The Q500M Mini is the perfect powerchair for easiest navigation!
| Drive Configuration | Mid-Wheel Drive | |
|---|---|---|
| Overall Base Width | 52cm | 20.5″ |
| Overall Base Length (not including footrests) |
86cm | 33.8″ |
| Turning Circle Turning radius (QMFM) vs diameter (QUP) |
55cm | 21.6″ |
| Ground Clearance | 6.5cm | 2.5″ |
| Seat to Floor Heights | 43 – 49cm | 16.9 – 19.2″ |
| Max Speed | 10kph | |
| Range | 30km | |
| Drive Wheel Size | 31.7cm | 12.5″ |
| Castor Wheel Size | 17.7cm | 7″ |
| Seat Frame Options | Sedeo Pro | |
| Third Party Seating | Yes with Special Mounting | |
| Seating Sizes | 40.6 – 50.8cm (W) 40.6 – 55.8 (D) |
16″ – 20″ (W) 16″ – 22″ (D) |
| Lift | 30cm | 11.8″ |
| Tilt | 30° | |
| Power Recline | 90° – 150° | |
| Power Leg Elevate | Yes/Swing Away or PCM | |
| Manual Recline | 90° – 130° | |
| Electronics | R-Net | |
| Specialty Controls | Yes | |
| Suspension | Drive Wheels, Basic | |
| Motors | 2 Pole | |
| Battery Size | 34Ah | |
| Chair Weight | 130/155kg | |
| Max. User Weight | 136kg | |
| Transit Tested | Yes | |

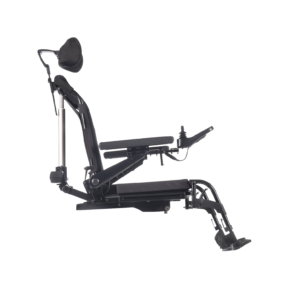

Sedeo Lite
The Q300M as supplied by Medifab, includes the Sedeo Lite Seating System. This is a multi-adjustable seat frame with the option of either Spex seating, Jay seating, or a simple sling back upholstery. Sedeo Lite is designed for users with medium to low clinical needs that require an adjustable seating system, where the backrest, armrests and legrests are able to be adjusted to fit the user. The seat frame includes seat rails for additional mounting solutions.

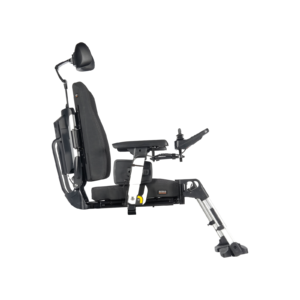

Sedeo Pro
High-end fully adjustable and configurable seating frame with a wide range of comfort cushions and positioning options. Aimed at meeting moderate to complex clinical needs. With a wide range of armrests, armpads, legrests, seat and back cushions, headrests and positioning accessories, Sedeo Pro offers great flexibility to adapt to the individual user needs.

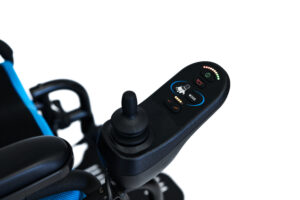

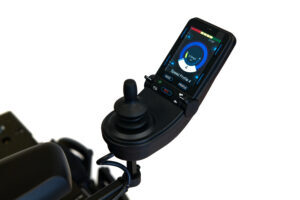

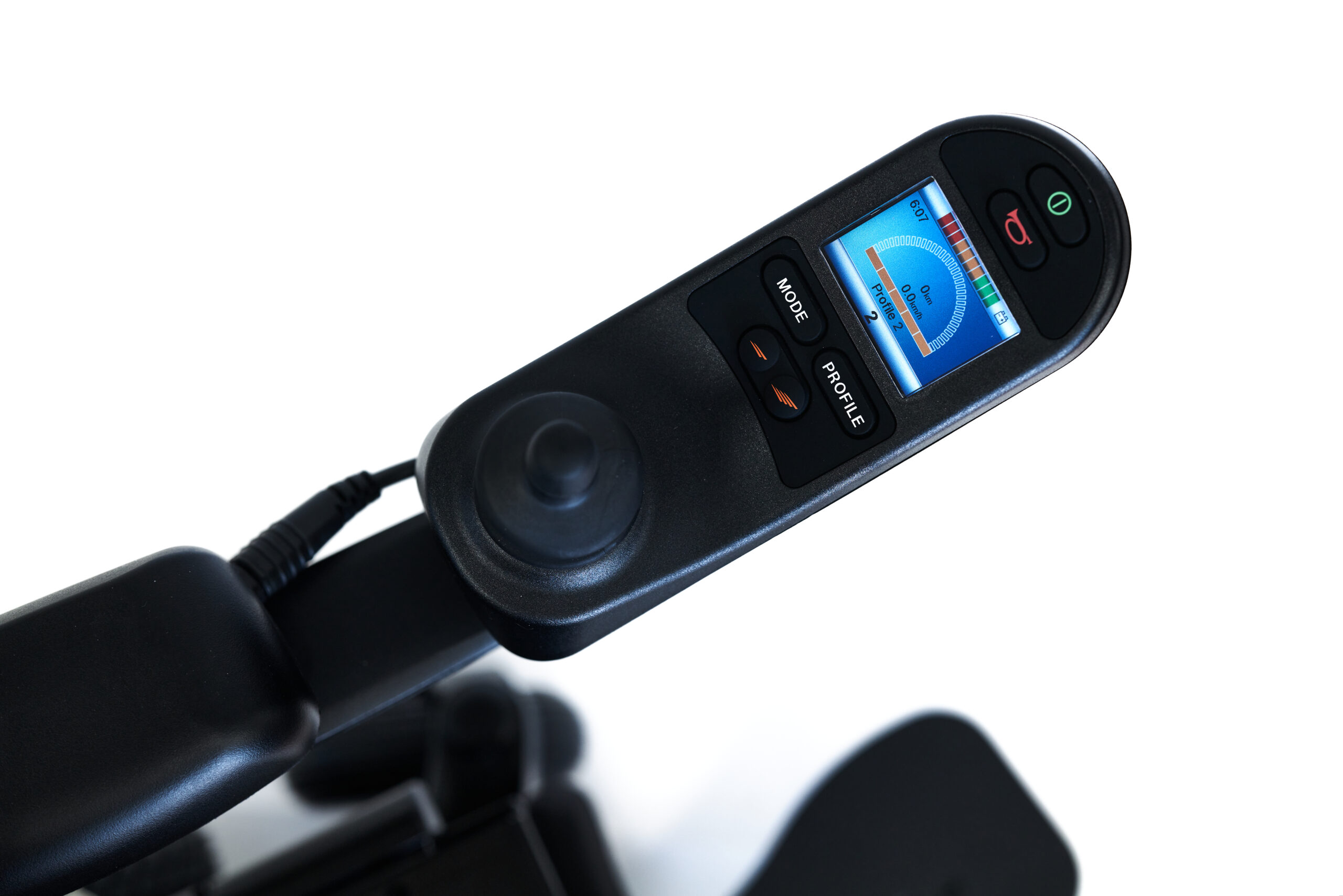

Powerchair Joy Stick
Compatible on any powerchair other then the Q400.

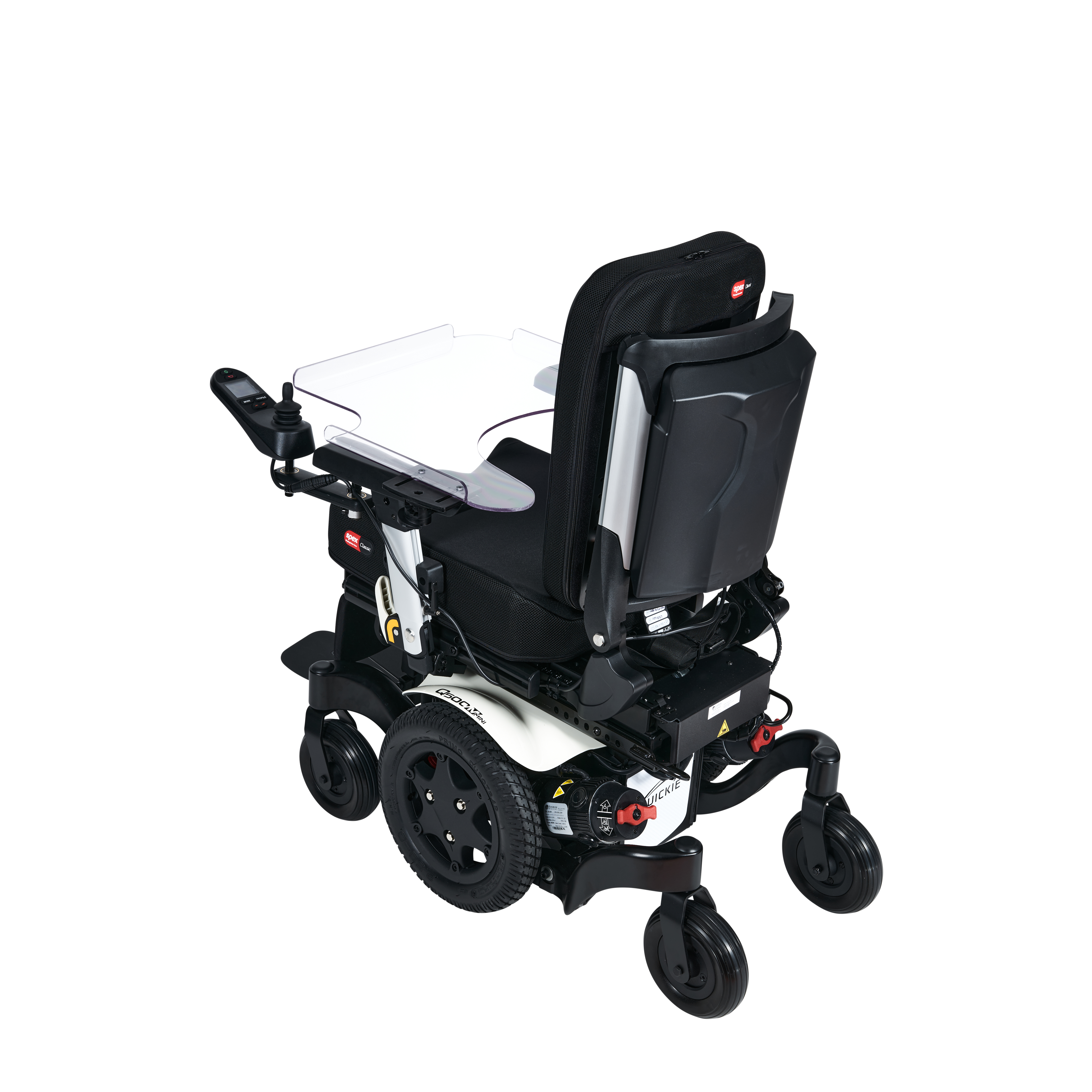

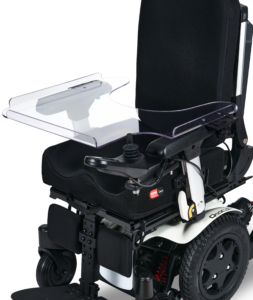

Q 500 Mini Clear Tray
Clear Tray accessory that can attached to the Q 500 mini.
