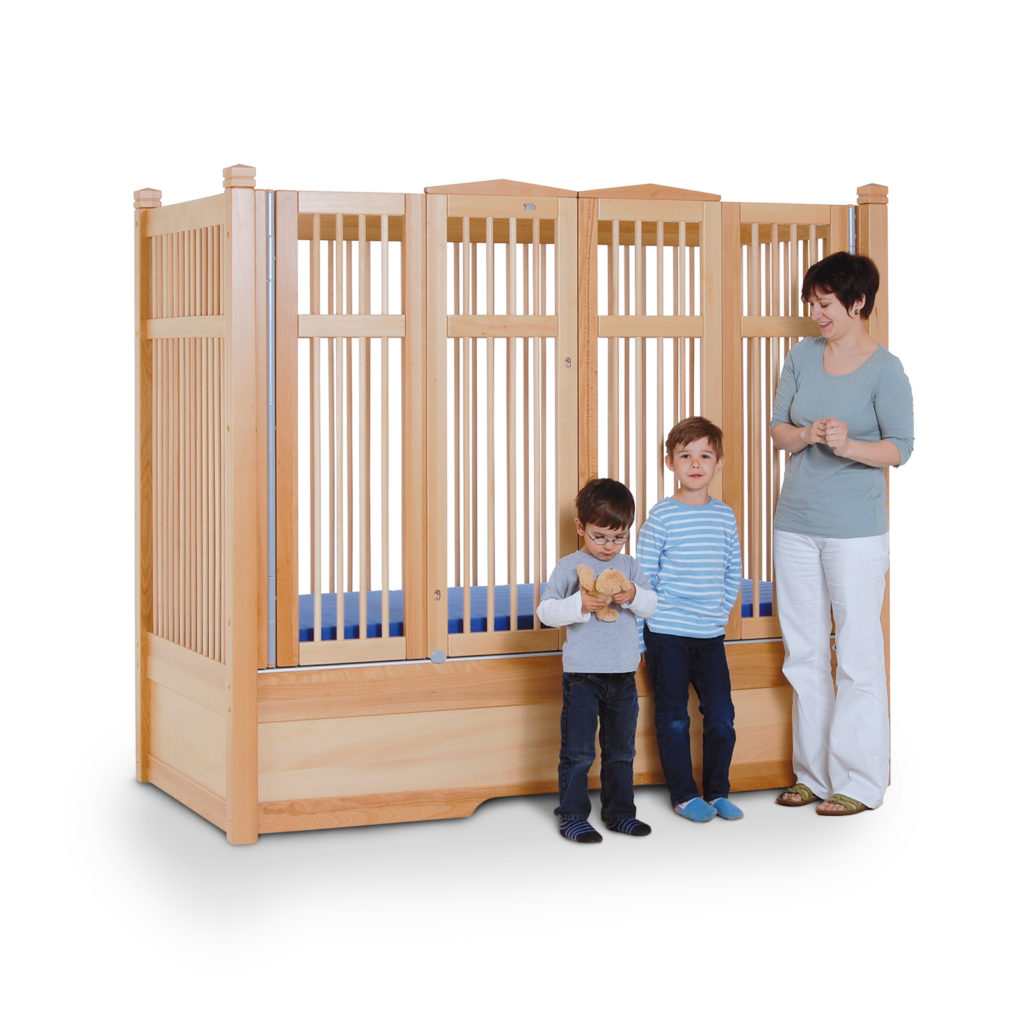

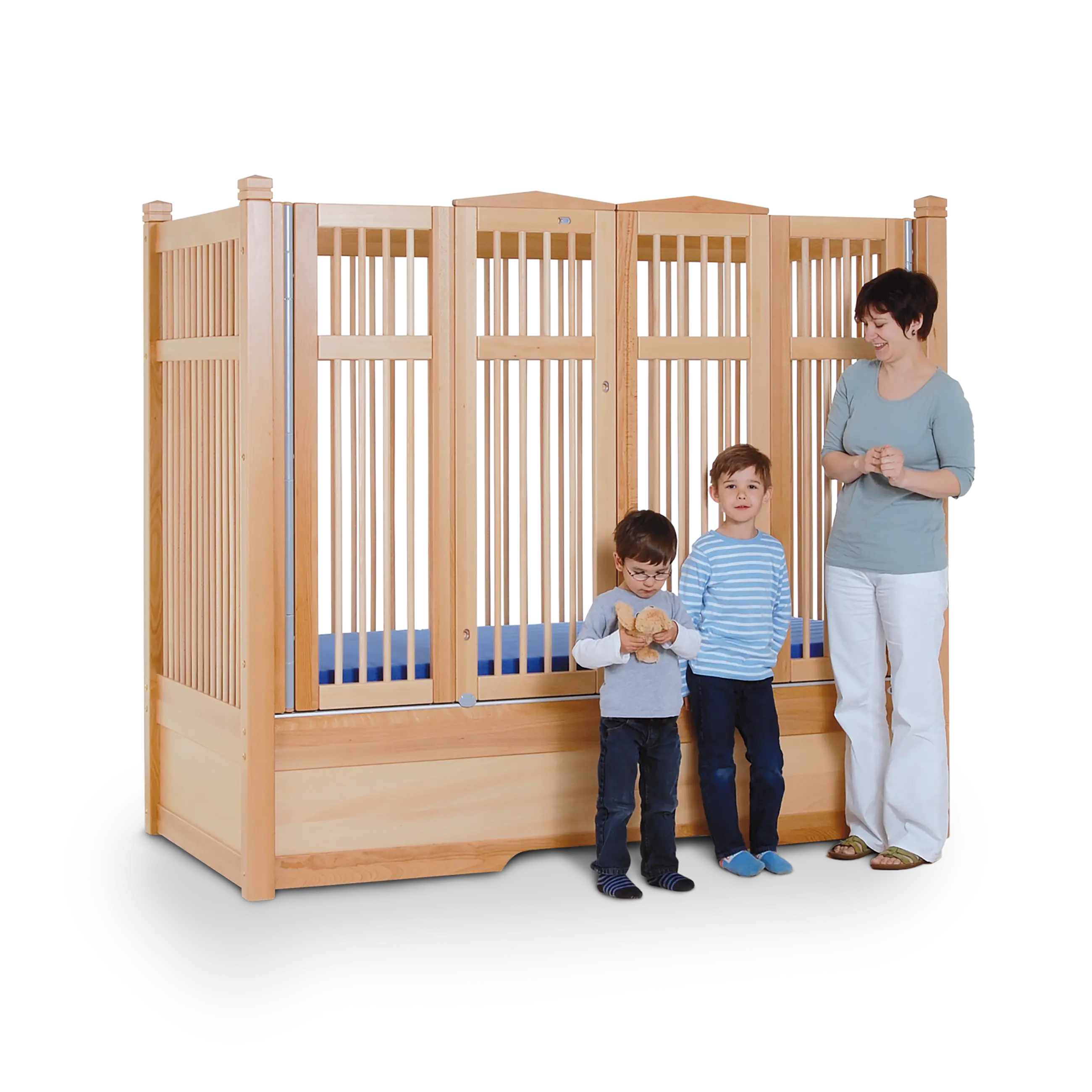

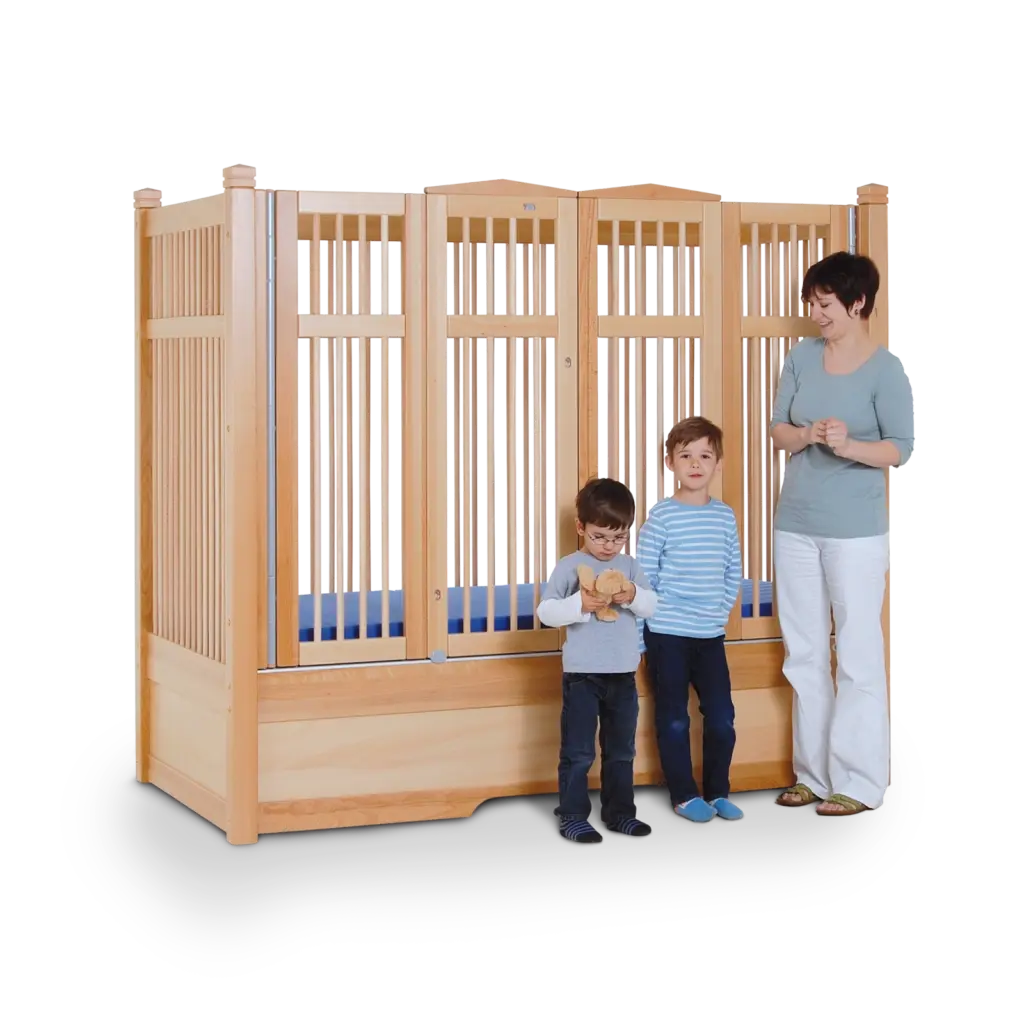

Safety and certainty for both the user and the carer! The Safe Surround Plus bed provides a safe environment for active people with challenging behavior.
There is plenty of space with these big fun beds!

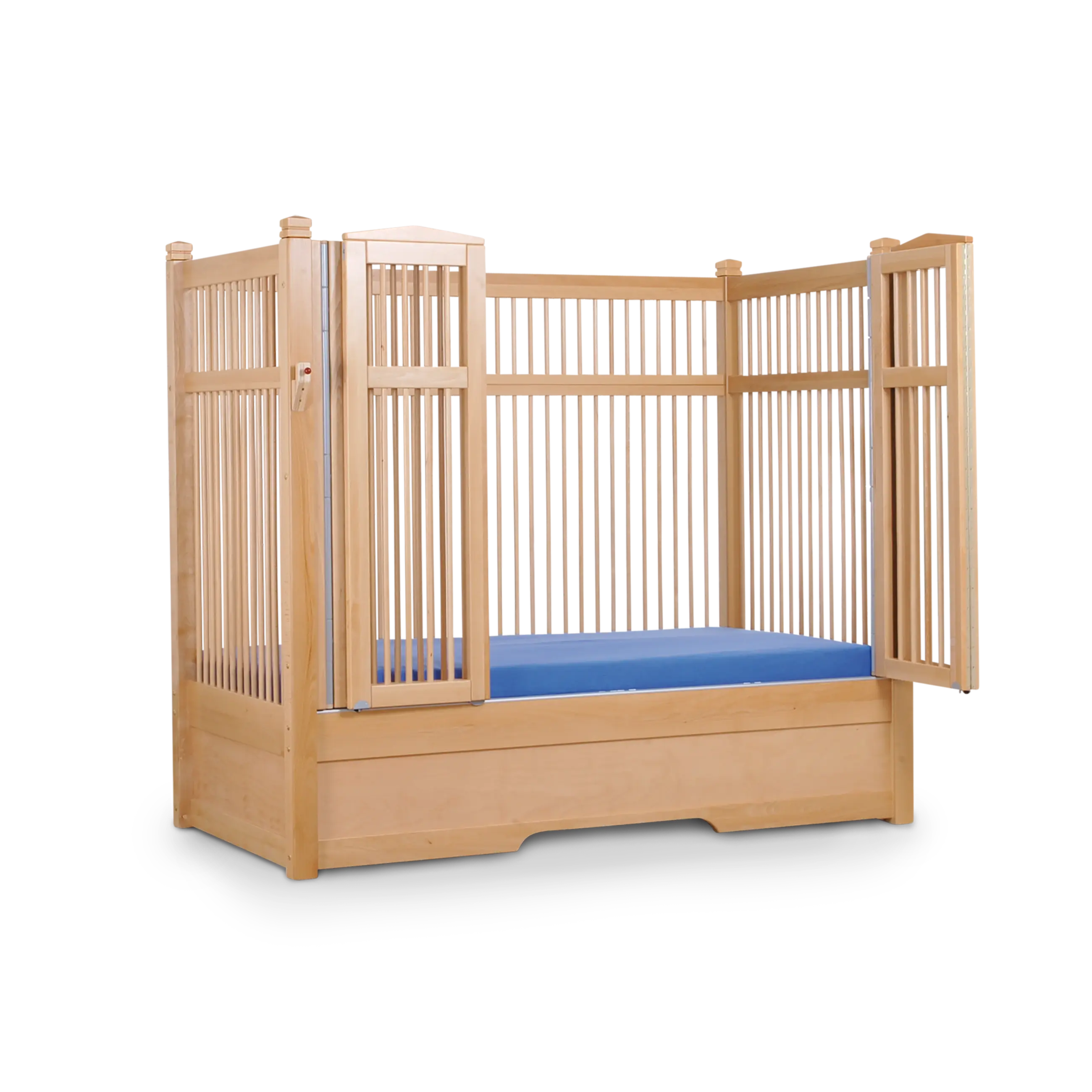

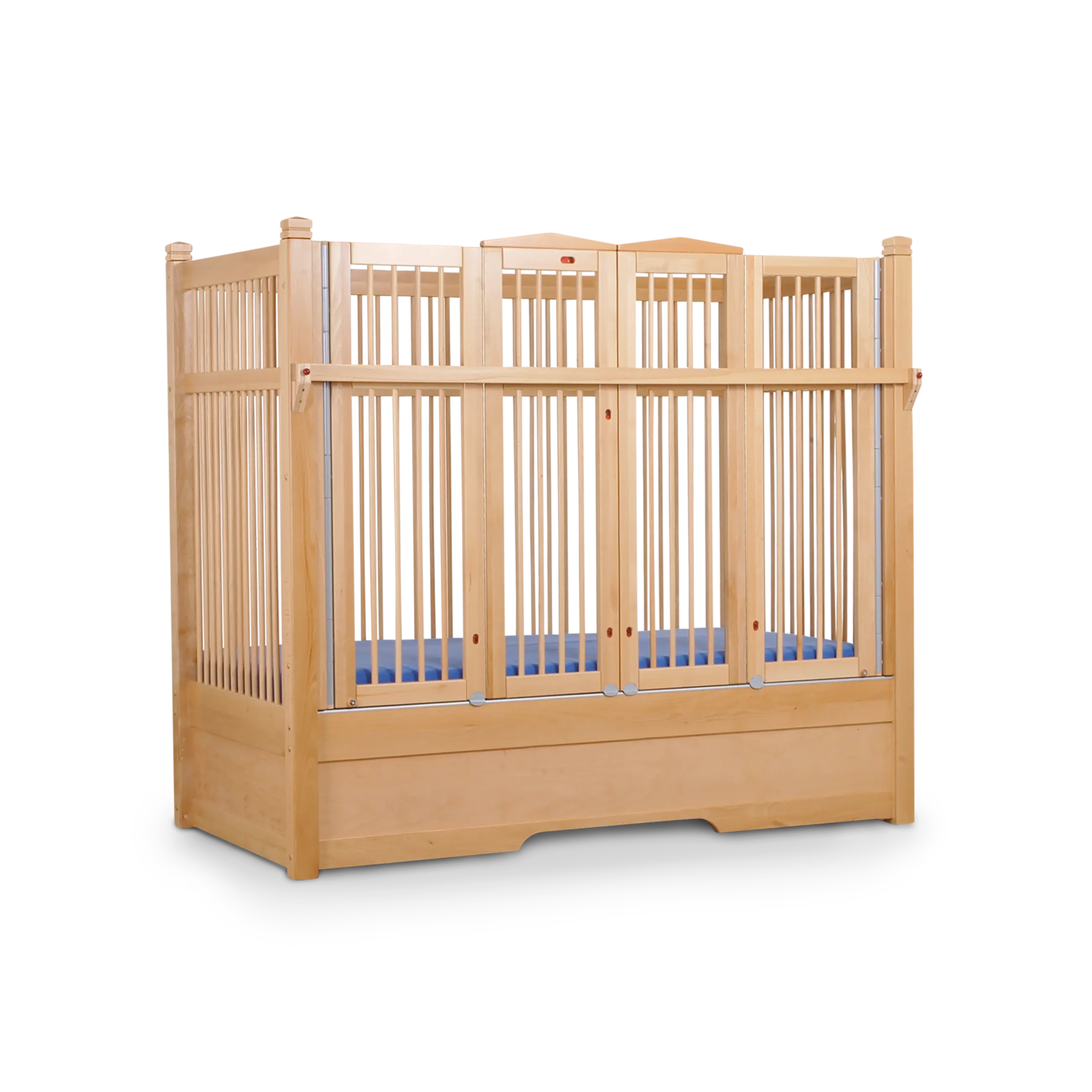

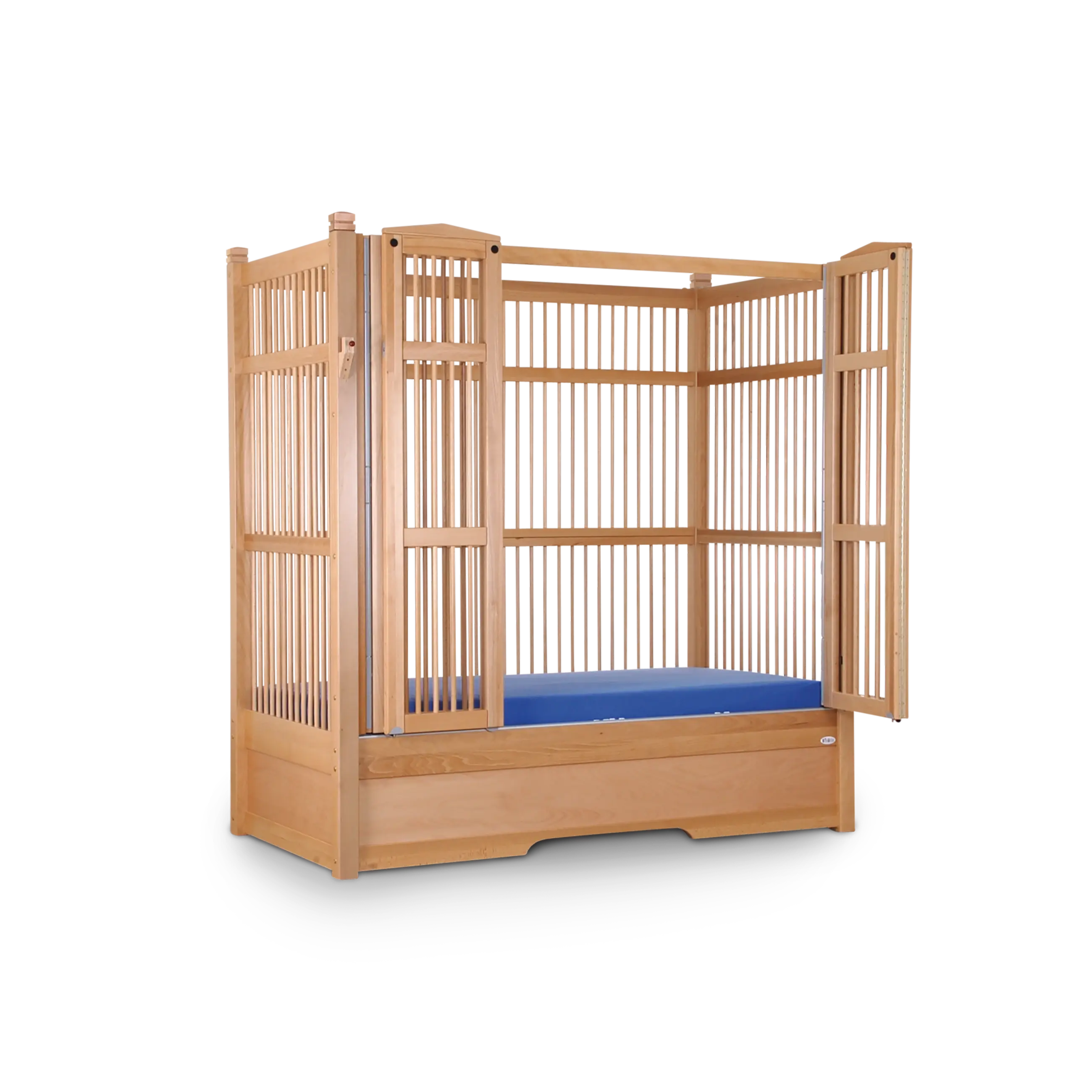

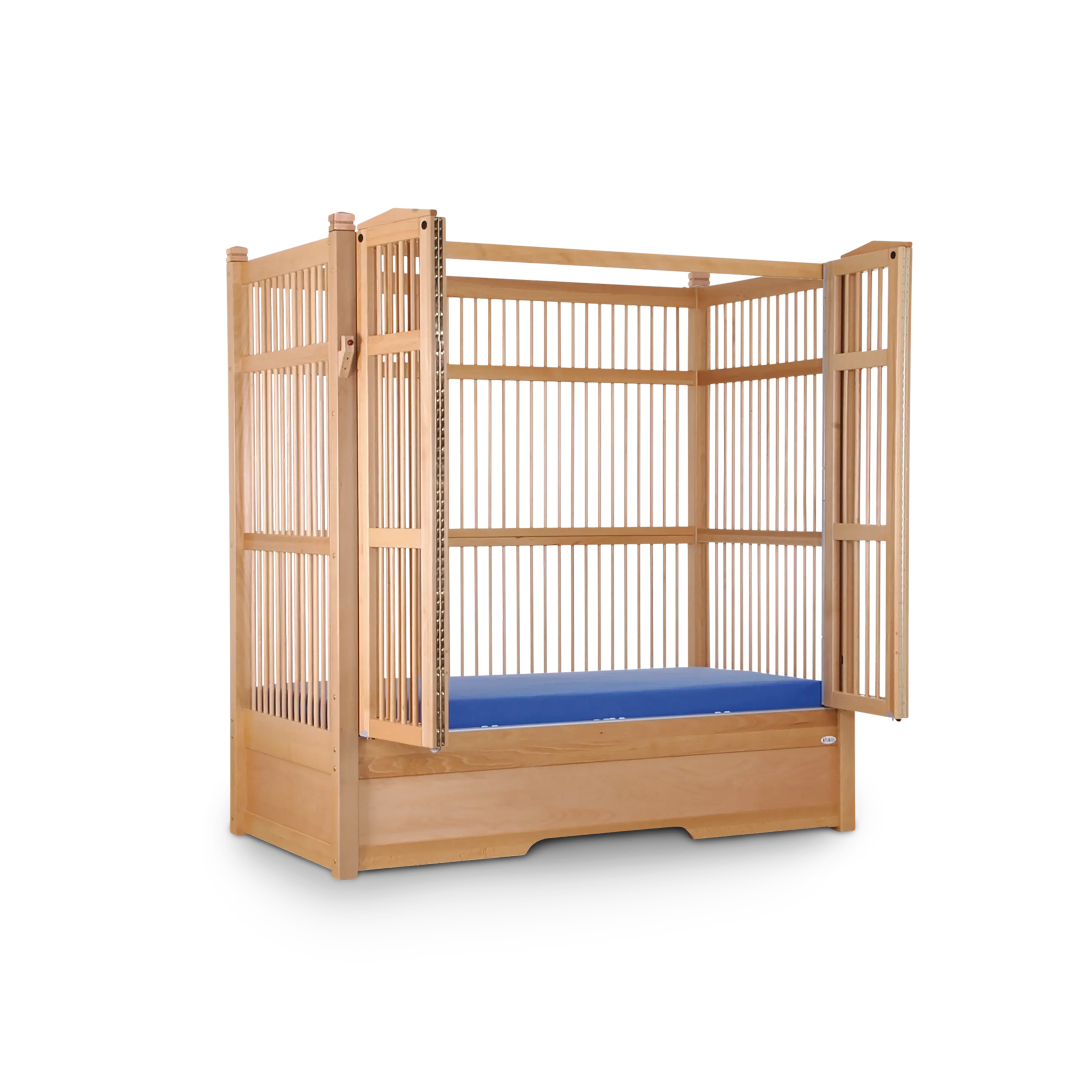

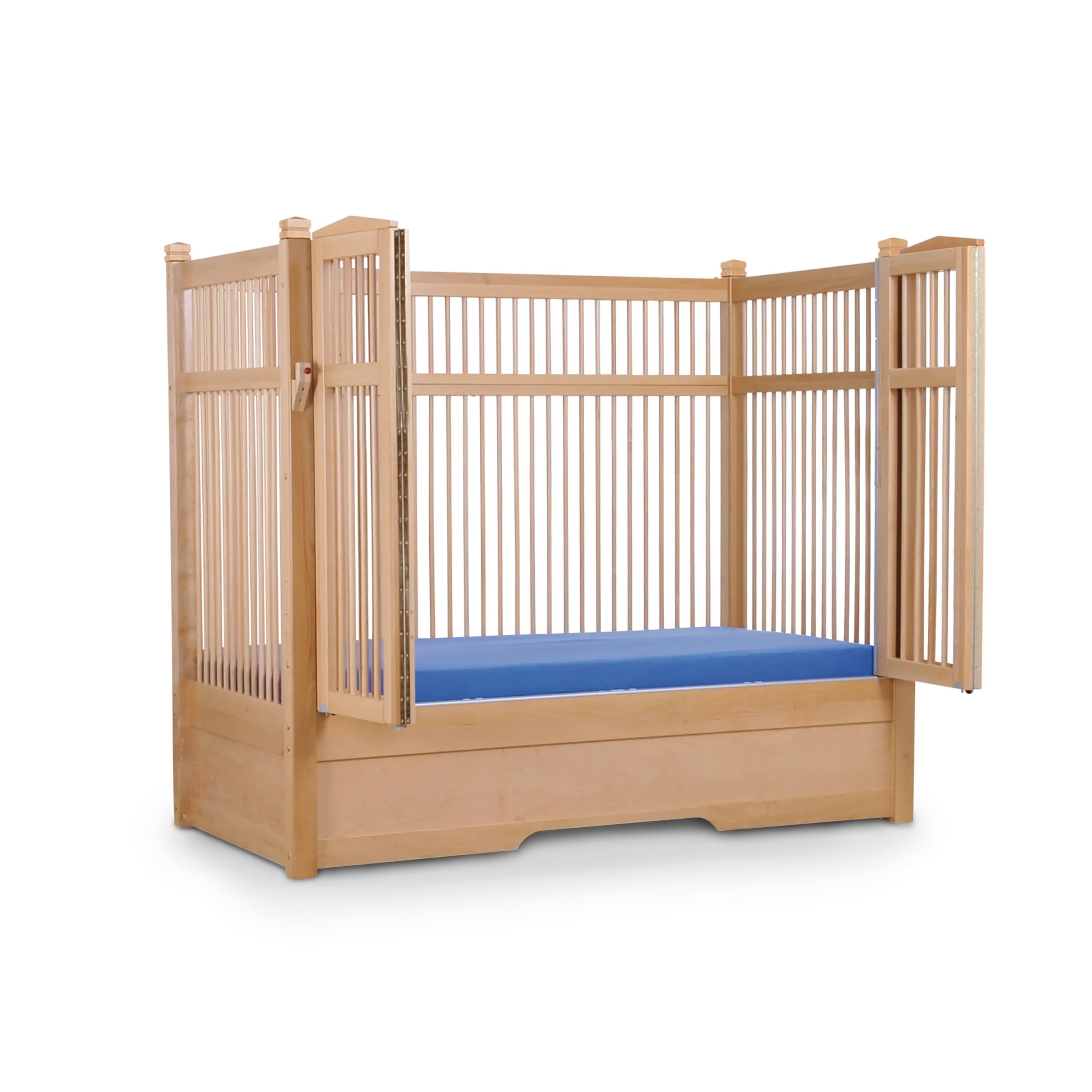

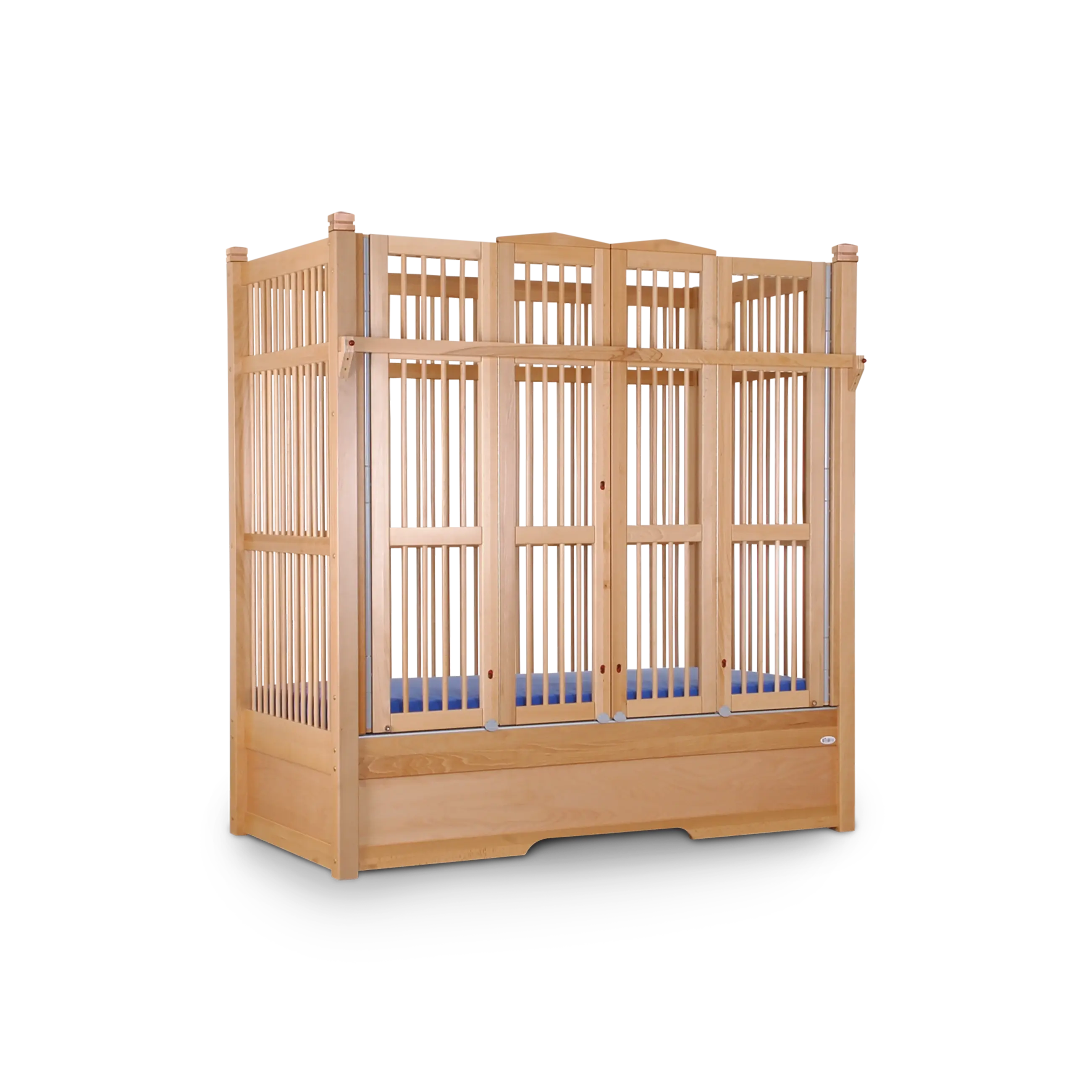

The Plus Surround Bed is built in an extremely stable manner, being specially designed to meet any child’s medical, physical or behavioural needs. This bed was designed for those children with restless motor functions or seriously disruptive behaviours and who are physically ambulatory and need a safe environment to both sleep and play. With the roomy internal measurement and door height options, this bed can protect almost any active child from harming themself.
A child’s safety is the number one concern for parents/care-givers who have fear and anguish over the possibility of a child hurting themself at night. Every parent, and household for that matter, needs the safety and peace-of-mind against misfortunes with the knowledge that their child is secure in their bed at night, and that what was once a fear of midnight harm is now a dream of safety that has come true.

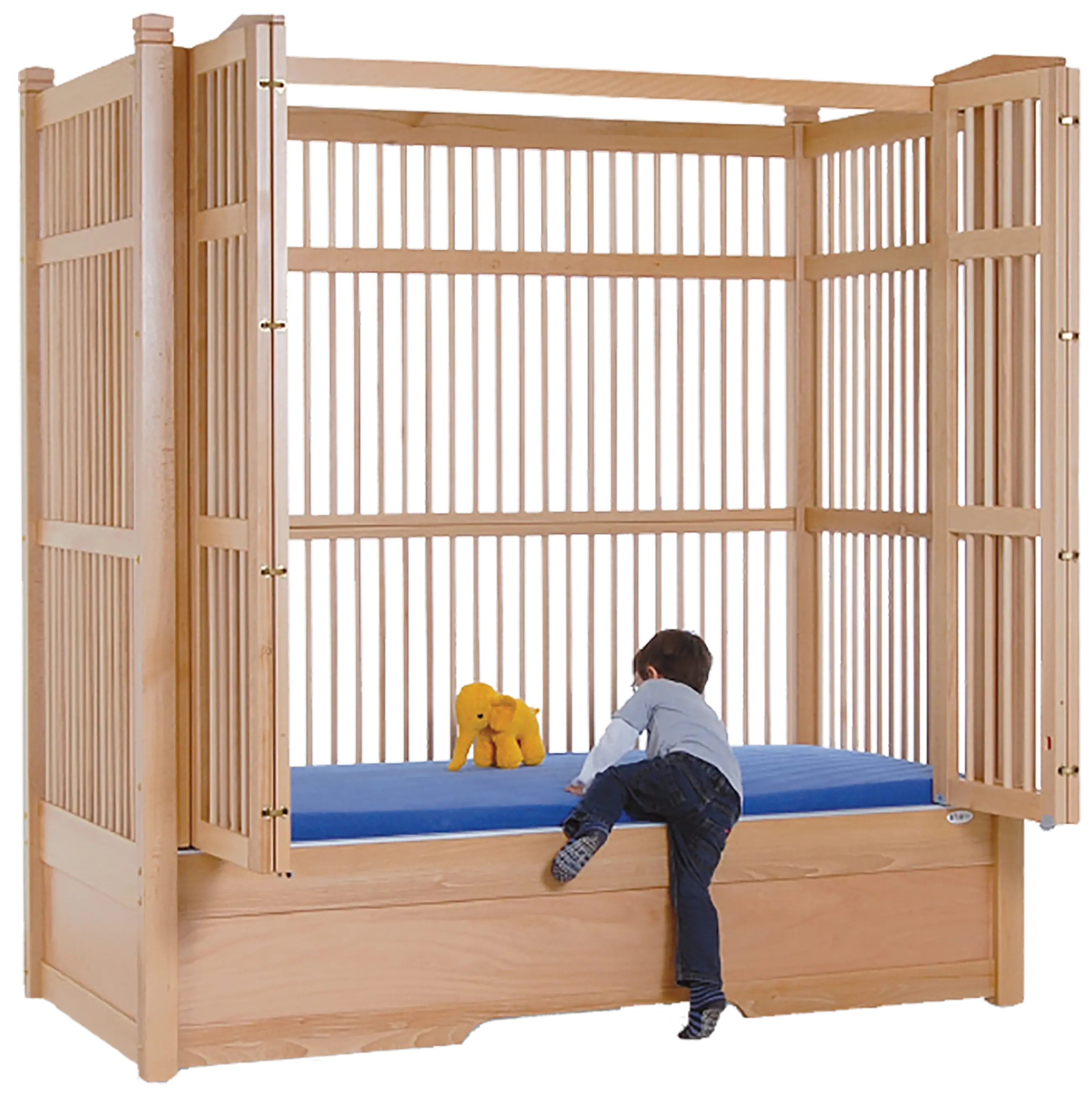

Plus also serves to encourage and facilitate proper motion. It is suitable for children who, in spite of illness and disability, possess sufficient motor competence to effect the transfer into and out of bed independently.
Safe Surround Bed Incontinence Cover
To protect the bed’s mattress. Waterproof and machine washable to 30ºC.
| Bed Type | Code | Dimensions |
|---|---|---|
| Genie | 7956-0026-000 | 200 x 90 cm |
| Plus | 7956-0027-000 | 200 x 100 cm |
| Lotte | 7956-0023-000 | 140 x 70 cm |
Heavy-duty solid Slatted Base
Heavy duty solid wooden base with central air vent holes constructed of thin plywood slats. Provides a sturdy surface for those who don’t require the profiling platform base.
Pressure-Relieving Mattress
Incontinence covers for pressure-relieving mattresses are also available.
| Bed Type | Code | Dimensions |
|---|---|---|
| Genie | 7956-0011-051 | 200 x 90 cm |
| Plus | 7956-0012-051 | 200 x 100 cm |
Safe Surround Bed Internal Padding
Prevents harm to the user. Customisable to suit requirements – can be full height of the sides or partial height padding.
| Bed Type | Code |
|---|---|
| Genie 98 | 7957-0022-000 |
| Plus 135 | 7957-0017-000 |
| Plus 170 | 7957-0020-000 |
Perspex Side Panels
Safety side glazing with Perspex (or similar) plastic panels secured to internal face of railings.
| Bed Type | Code | Details |
|---|---|---|
| Genie | 7957-0288-000 | 4 panels on middle doors |
| Plus 135 | 7957-0135-000 | Panels on lower section of doors and walls |
| Plus 170 | 7957-0170-000 | Panels up to second rail on doors and walls |
Customisations available to suit individual requirements.
| Size | Safe Surround 135 Bed | Safe Surround 170 Bed |
|---|---|---|
| Code | 7953-0008 | 7953-0011 |
| Door Height | 135 cm | 170 cm |
| Mattress Level to Top of Door | 129 cm | 164.5 cm |
| Internal Dimensions | 200 x 100 cm | |
| External Dimensions | 215 x 111 cm | |
| Weight Limit | 150 kg | |
| Distance Between Railings | 44 mm | |
| Platform Height (top of mattress) | Max. 87 cm | |
| Overall Height | 176 cm | 211 cm |
Safety
Accidents with electrically adjustable carebeds are mainly due to electrical safety faults and failure to comply with safety-related dimensions of the side lattices. (Source: Federal Institute for Pharmaceutical Products and Medical Devices BfArM)
Kayserbetten, as manufacturers of medical devices, produce carebeds for children in accordance with the standards of the medical devices guidelines, which are regulated by the German Act on Medical Devices and in accordance with the guidelines for care aids that are specified by the Central Association of Health Insurance Companies.
Compliance with these regulations is tested and monitored by the accredited test laboratory for active and non-active medical devices of BerlinCert Prüf- und Zertifizierungsstelle für Medizinprodukte GmbH (BerlinCert Testing and Certifying Body for Medical Devices) at the Technical University in Berlin.
The following norms apply:
DIN EN 32623:2002
Children’s hospital beds made of metal and plastics
DIN EN 1970:2000
Adjustable beds for disabled persons
DIN EN 60601-2-38:2001
Medical electrical equipment, Section 2-38: specific safety regulations for electrically operated hospital beds.
DIN EN 60601-1:1996
Medical electrical equipment, Section 1
General safety regulations
Side lattice dimensions
These norms regulate amongst others the adherence to the safety-related dimensions of the side lattices. Here, the limits are defined for all gap widths and spacing of a side lattice to minimise the danger of entrapment.

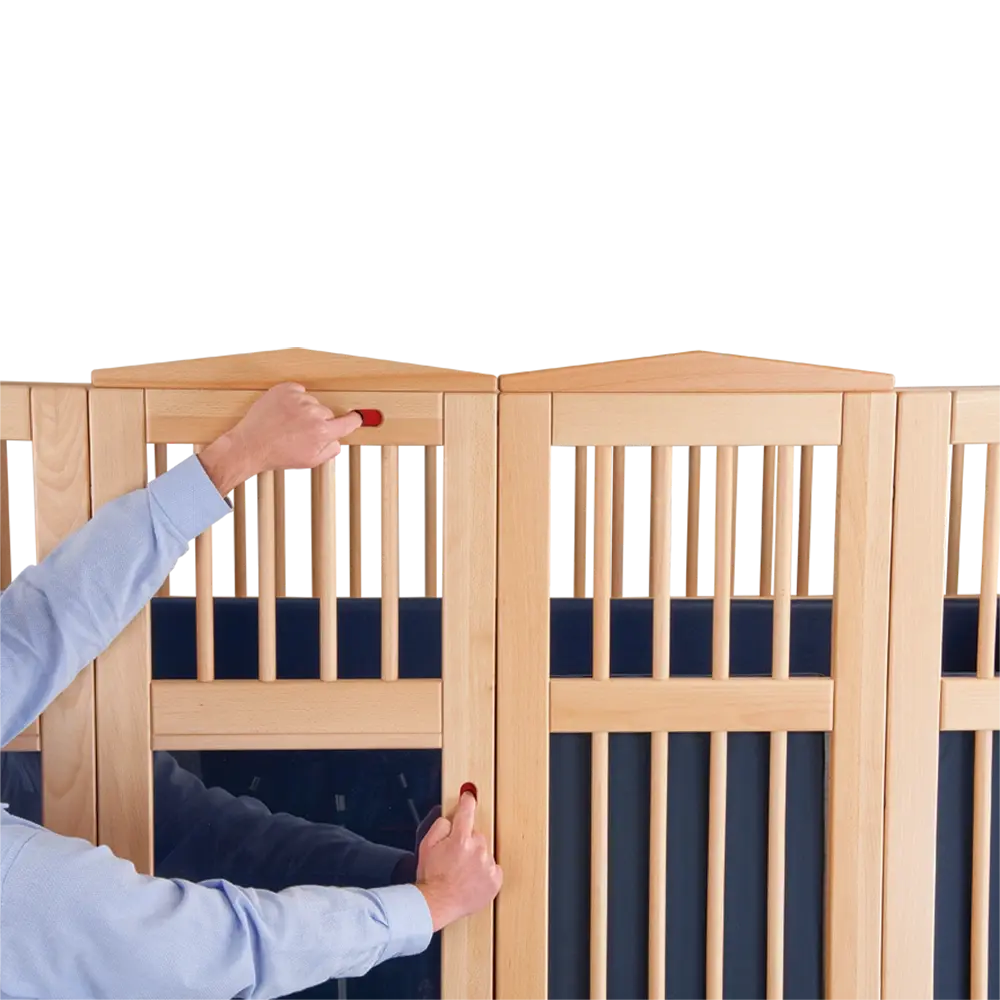

Another important requirement of this norm is that the locking devices have to be at least 850 mm apart. If this is not possible, e.g. at the head or foot of the bed, the system requires two consecutive actions, each operating on a different principle. The second action must be dependent on the first action.
1. Unlock the side lattice safeguard (red circle)
2. Pull the locking devices inwards simultaneously
Furthermore, a hinge system has been developed for our doors with which we can reduce the danger of entrapment to a minimum.
 |
 |
| Nip | Hinge System |
In the interior of the bed, there is no point where fingers can be trapped in the area of the door’s fulcrum.
We use only selected beech wood, high quality fittings from well-known manufacturers and locking mechanisms developed and produced by our company.
Safety of the electrics and surfaces
The electrical safety of KayserBeds is guaranteed by the following features:
- Moisture resistance category IPX4 and manufacture of all electrical components in accordance with the guidelines of the German Electrical Technicians Association (VDE)
- Power cut-off plug. When the hand switch is not activated (power disconnected state) all electrical components of the bed are disconnected from the mains and therefore no electricity is used. Electric and magnetic fields in the bed are prevented.
- Primary fuse on power plug
- Maintenance-free DC motors and manual safety switch, low voltage
- Emergency lowering in the case of power failure
Surfaces
As Kayserbetten are the only manufacturer of wooden carecots, they provide a coating that seals the surfaces for maximum hygiene. Unlike open surfaces (waxed or oiled), this coating protects against liquids and dirt. Conform to the requirements of the norm
DIN 68861, 1B
Furniture surfaces, Section 1: Behaviour under chemical exposure. The surface can be cleaned with common cleaning and disinfection products. With this, KayserBeds are not only excellent for use at home – they can be used in the clinical field too. The tests carried out on the paints used guarantees that there are no health risks in connection with sucking, licking and swallowing parts of the surface coating, based on the following norms:
DIN EN71 Section 3
Toy safety
EN ISO 10993-1:2003
Biological evaluation of medical products. Cytotoxic (“cell toxicity”: toxic effect on a cellular level) biocompatibility testing of the paint by the laboratory for biological safety tests ©CYTOX Erlangen.
Do these beds come with a warranty?
The manufacturer guarantees that the product is free of manufacturing and material defects. The guarantee amounts to 24 months and starts with the delivery/install date. As our beds are crafted from natural beechwood, a type of timber that can be sensitive to humid conditions, in some cases exposure to moisture may cause the wood to swell, potentially leading to functional issues. Issues resulting from this are also covered by the standard warranty.
How can I maintain my bed in good working order?
Our beds are crafted from natural beechwood, a type of timber that can be sensitive to humid conditions. In some cases, exposure to moisture may cause the wood to swell, potentially leading to functional issues. If the bed is being used in a humid climate, we recommend taking steps to reduce humidity through the use of air conditioning or a dehumidifier if available.
Additionally, it’s important to install the beds on a level surface to prevent any twisting that could affect their performance, such as doors becoming difficult to open. Floor levelling or the use of packers can help resolve this issue and is recommended where the floor is not level.
Meet Sophia… a young girl with Sturge Weber Syndrome.
Thanks to Lacey Lane, an Australian kids clothing brand, Sophia’s mum now has peace of mind at night, knowing that Sophia is safe and sound in her Safe Surround Bed by Medifab.
We are so thankful to have had this opportunity to shape this special girl’s life for the better and relieve the stress on those who help look after her.
