Q700-UP M

Redefining standing wheelchair technology

Experience life from new heights, with the Q700-Up M Sedeo Ergo standing wheelchair. Combining all of the benefits of the Q700 M’s high-performance mid-wheel drive base (with SpiderTrac™ 2.0 suspension), Sedeo Ergo biomechanical seating system and innovative controls with the power to stand whenever you want.

The Q700-Up M is our new flagship of the Quickie powered wheelchair platform that takes standing wheelchair technology to the next level – inside and out. With a simple touch of a button, be eye-to-eye with the world around you and enjoy all of the benefits of a standing wheelchair! Featuring the most advanced performance powerbase: Speed, comfort and access to all areas. The Q700-Up M electric wheelchair comes with our reliable SpiderTrac™ 2.0 suspension and additionally features the amazing Sedeo Ergo biomechanical seating system. The best just got better!

Gallery
Q700-UP M in standing position

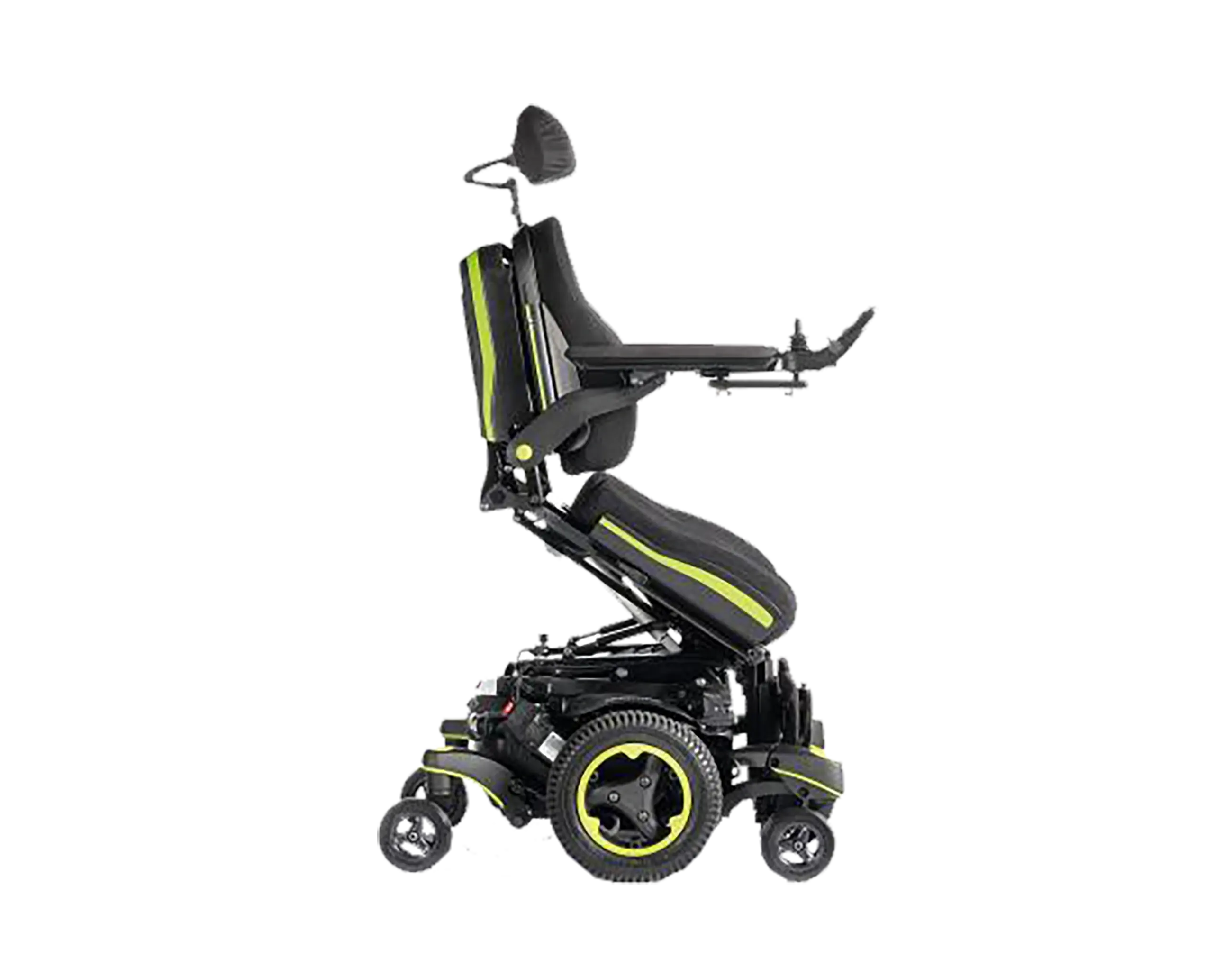

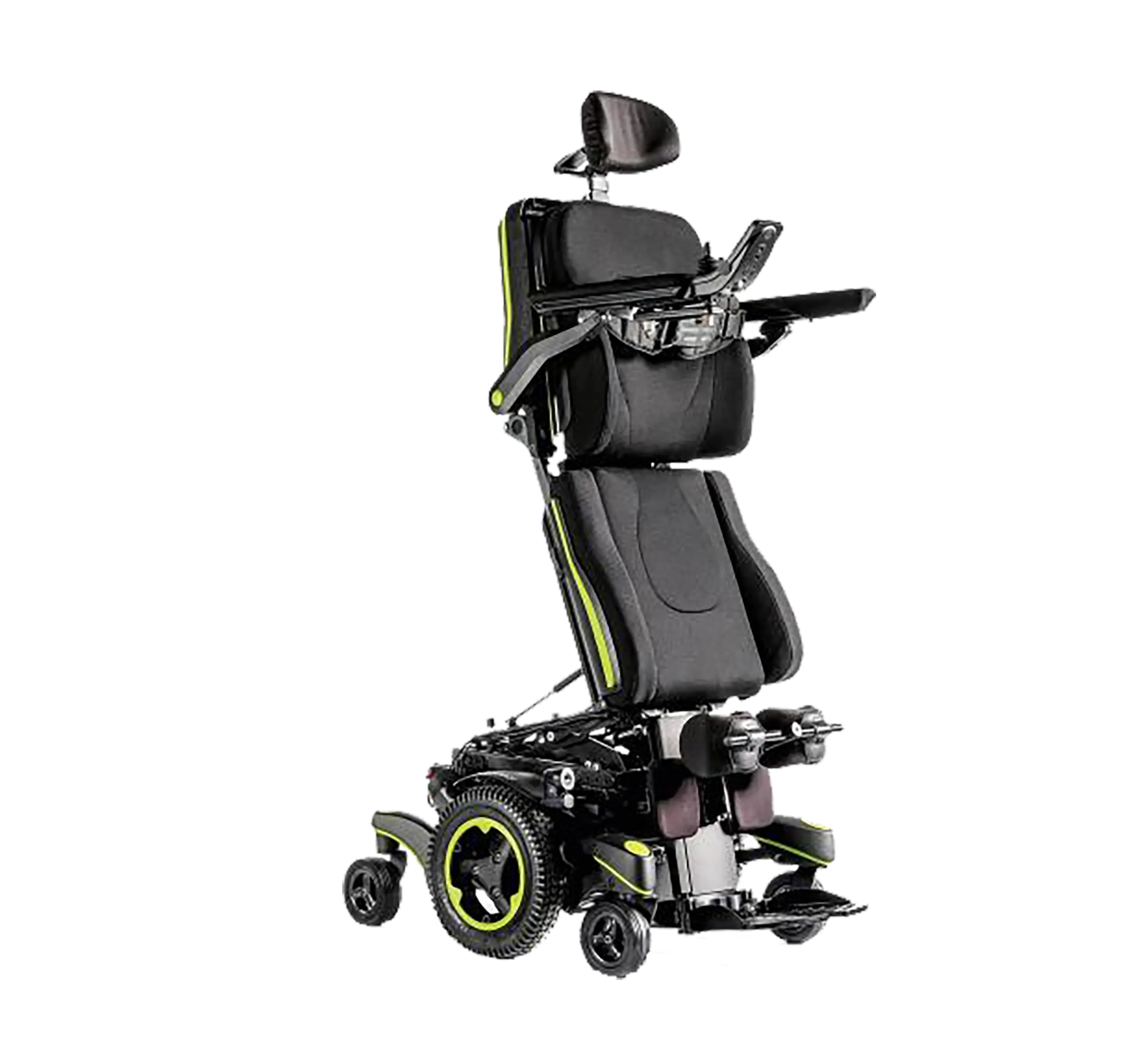

Side view of the Q700-UP M in partially standing position
The Q700 Quickie wheelchair is great for indoor agility, high performance outdoor suspension and anyplace you need to go
This Quickie Q700 UP M wheelchair provides amazing standing abilities

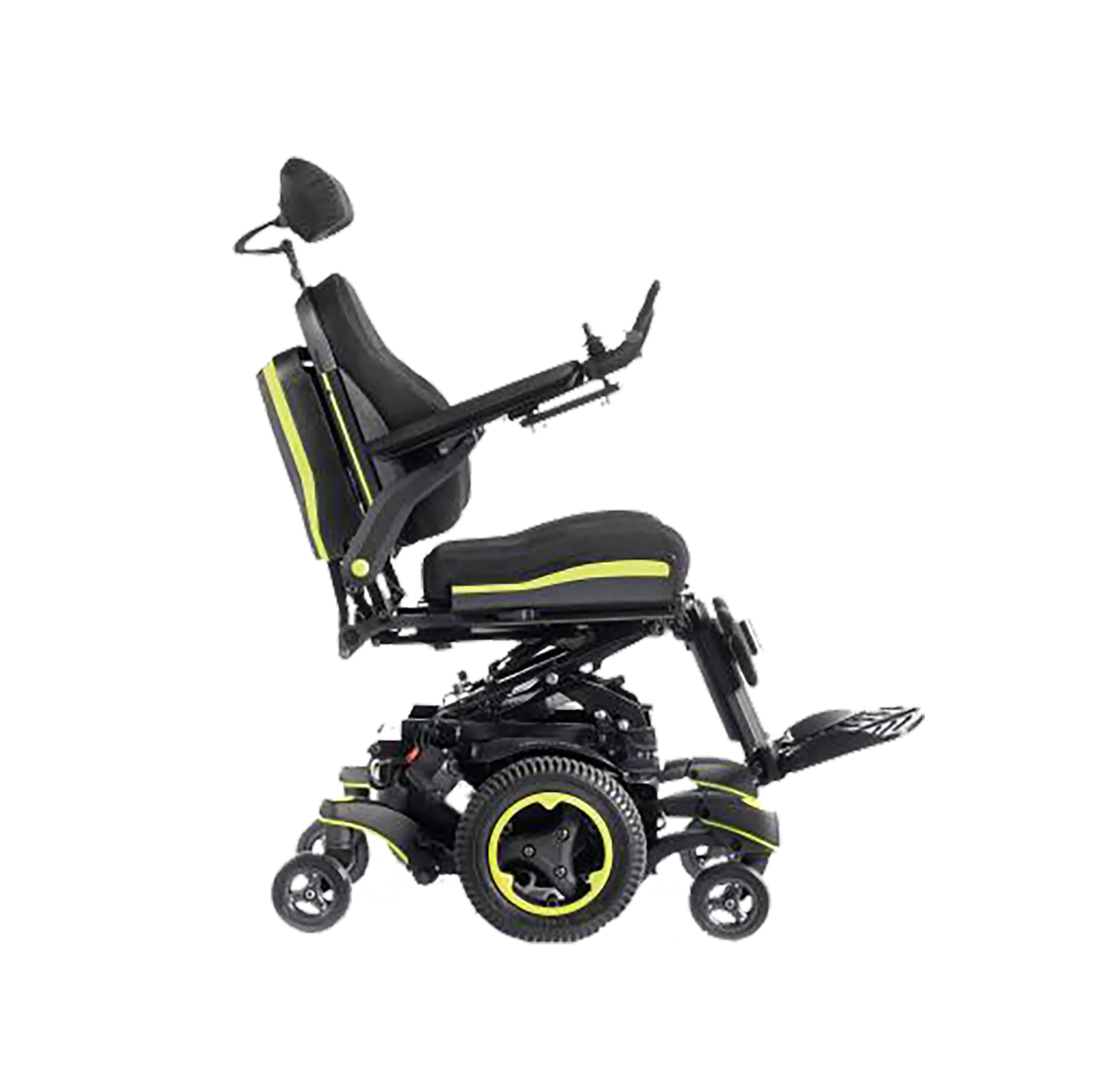

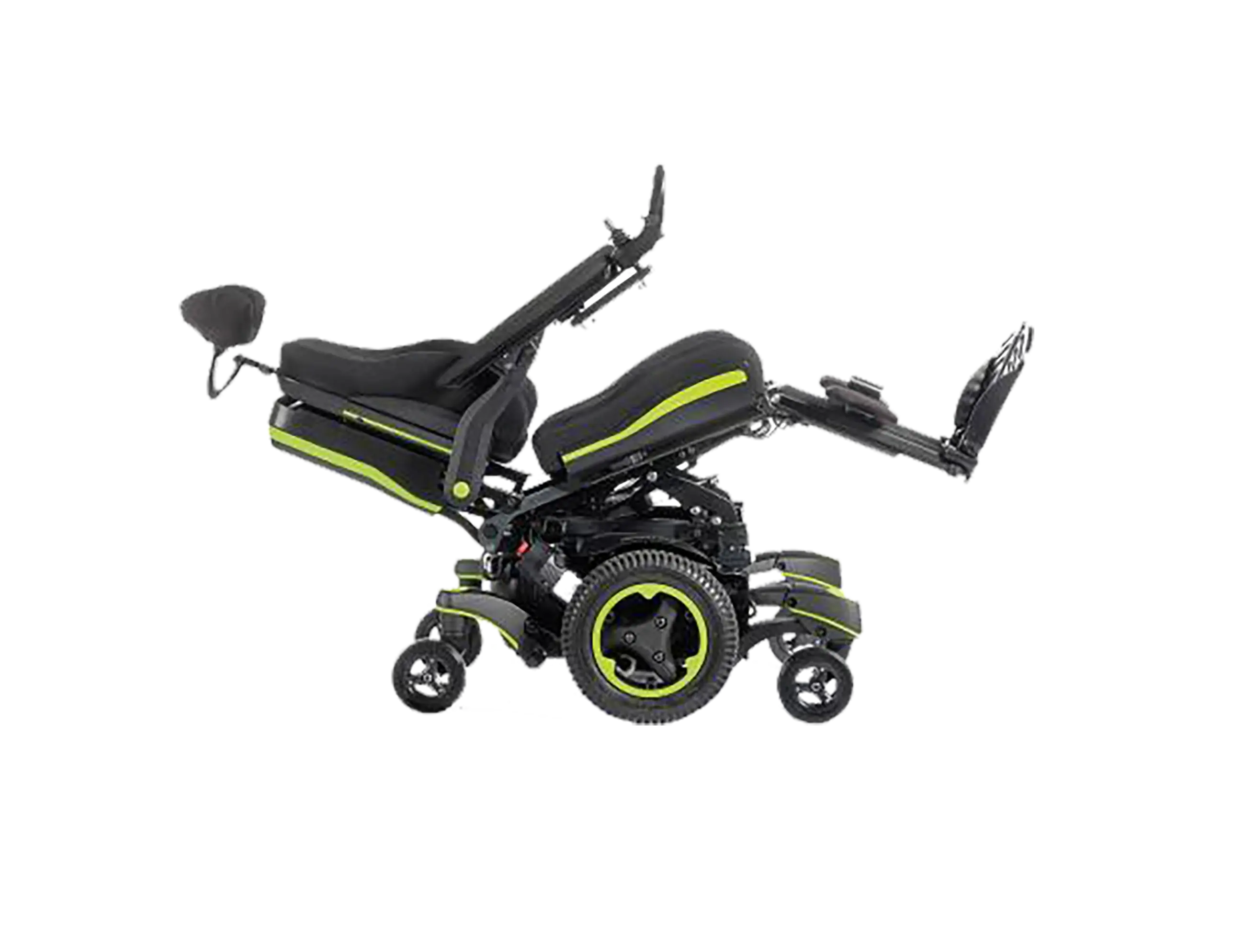

The Q700 UP M in reclining position.

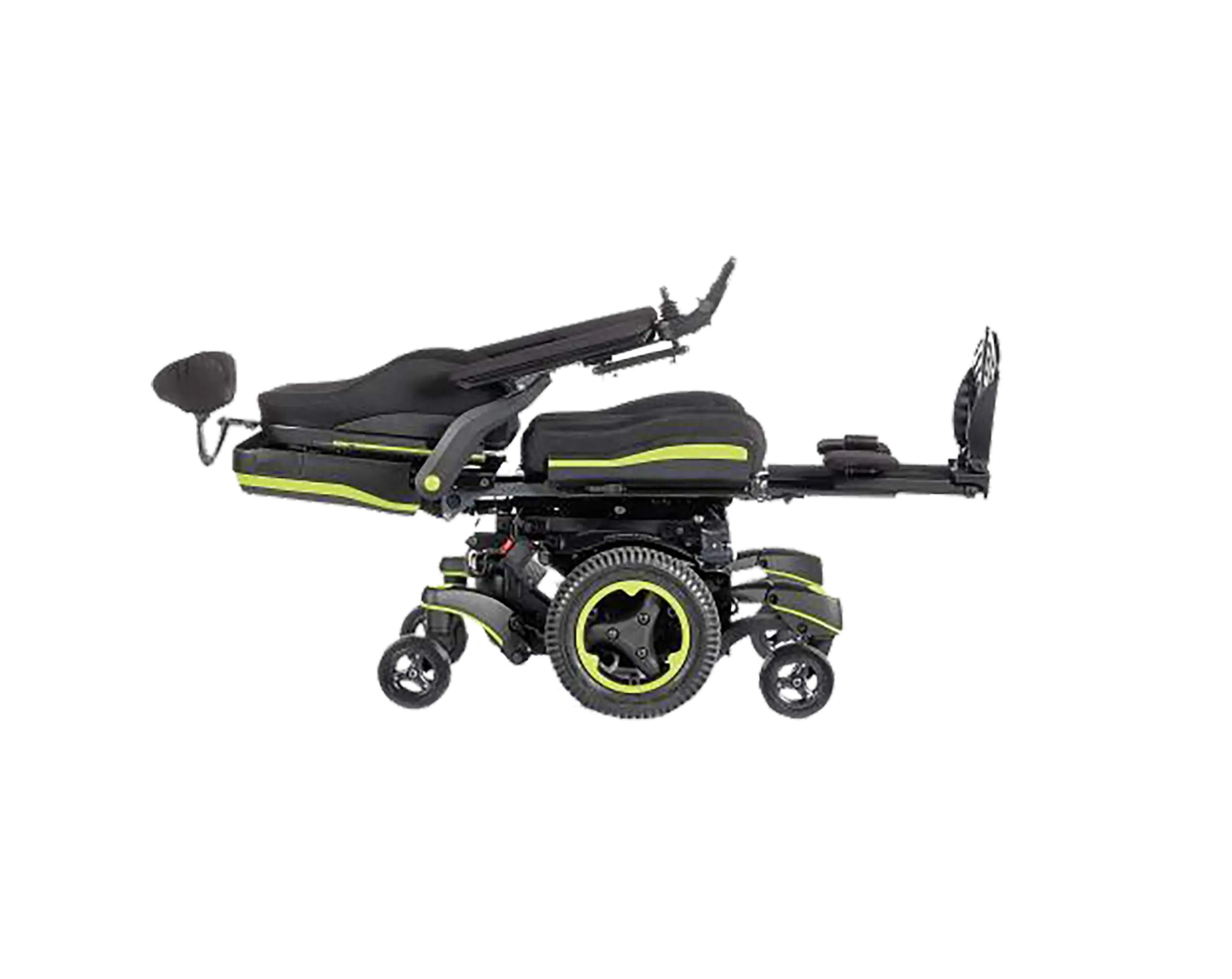

The Q700 UP M in horizontal position.

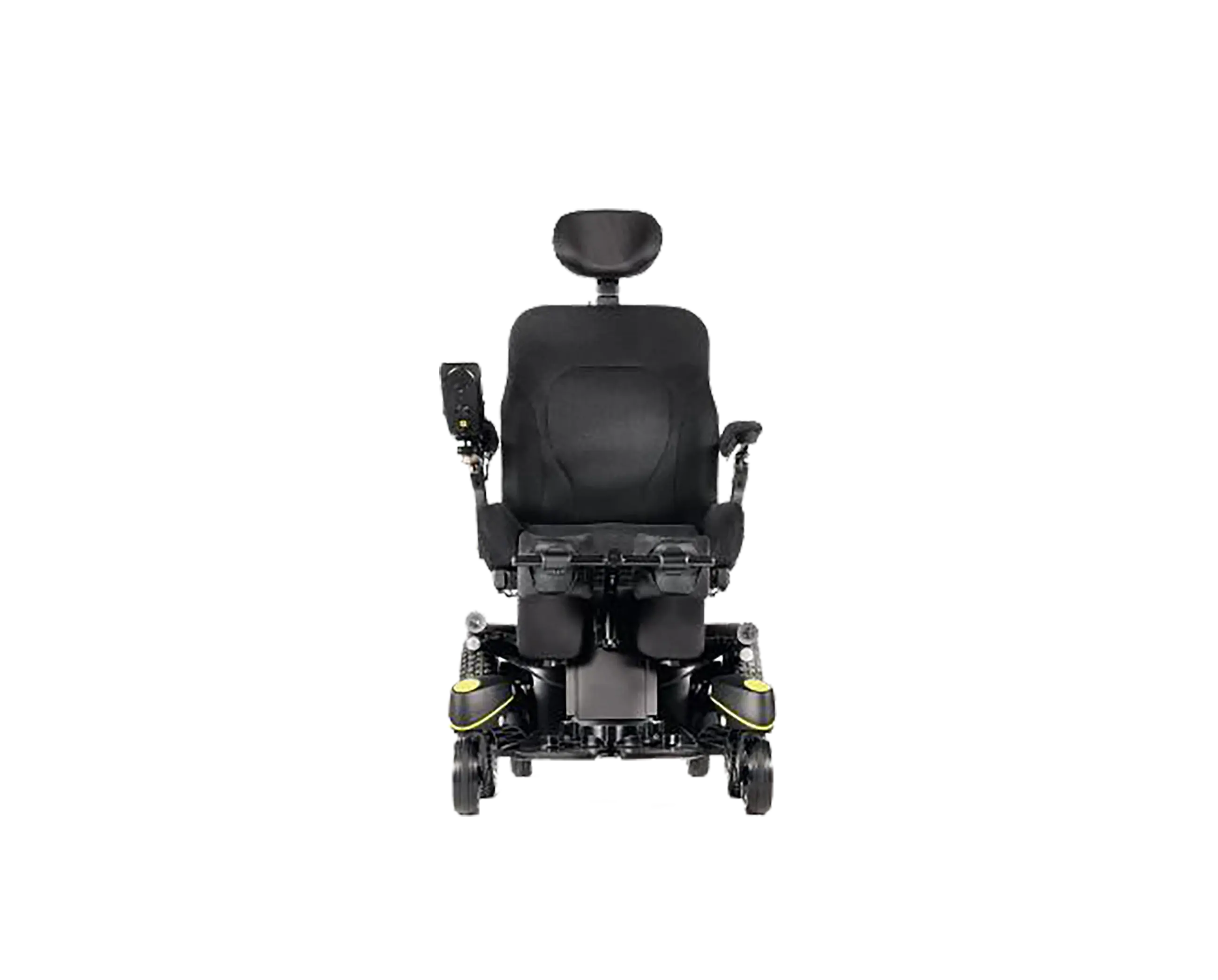

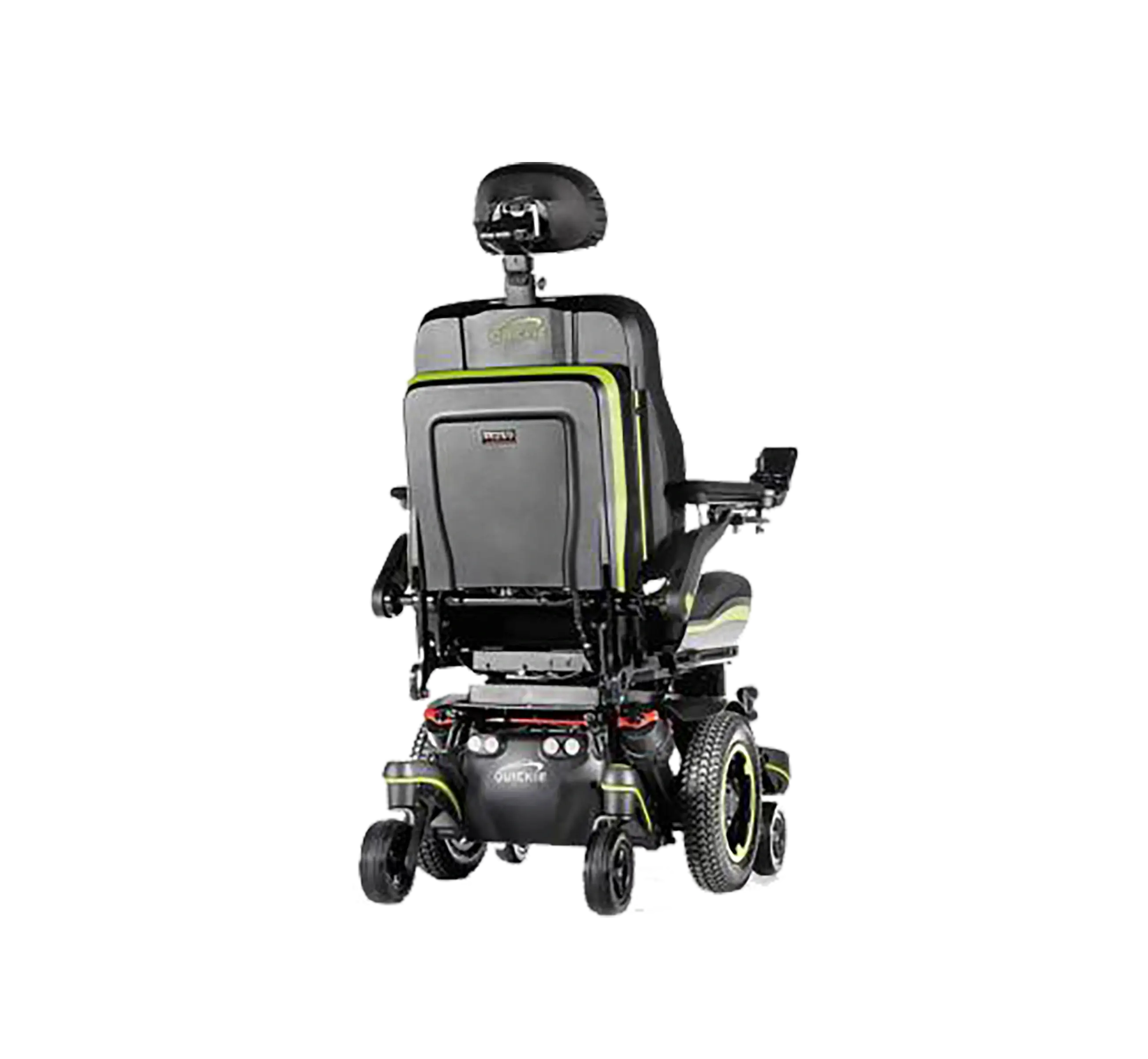

Back view of Q700-UP M

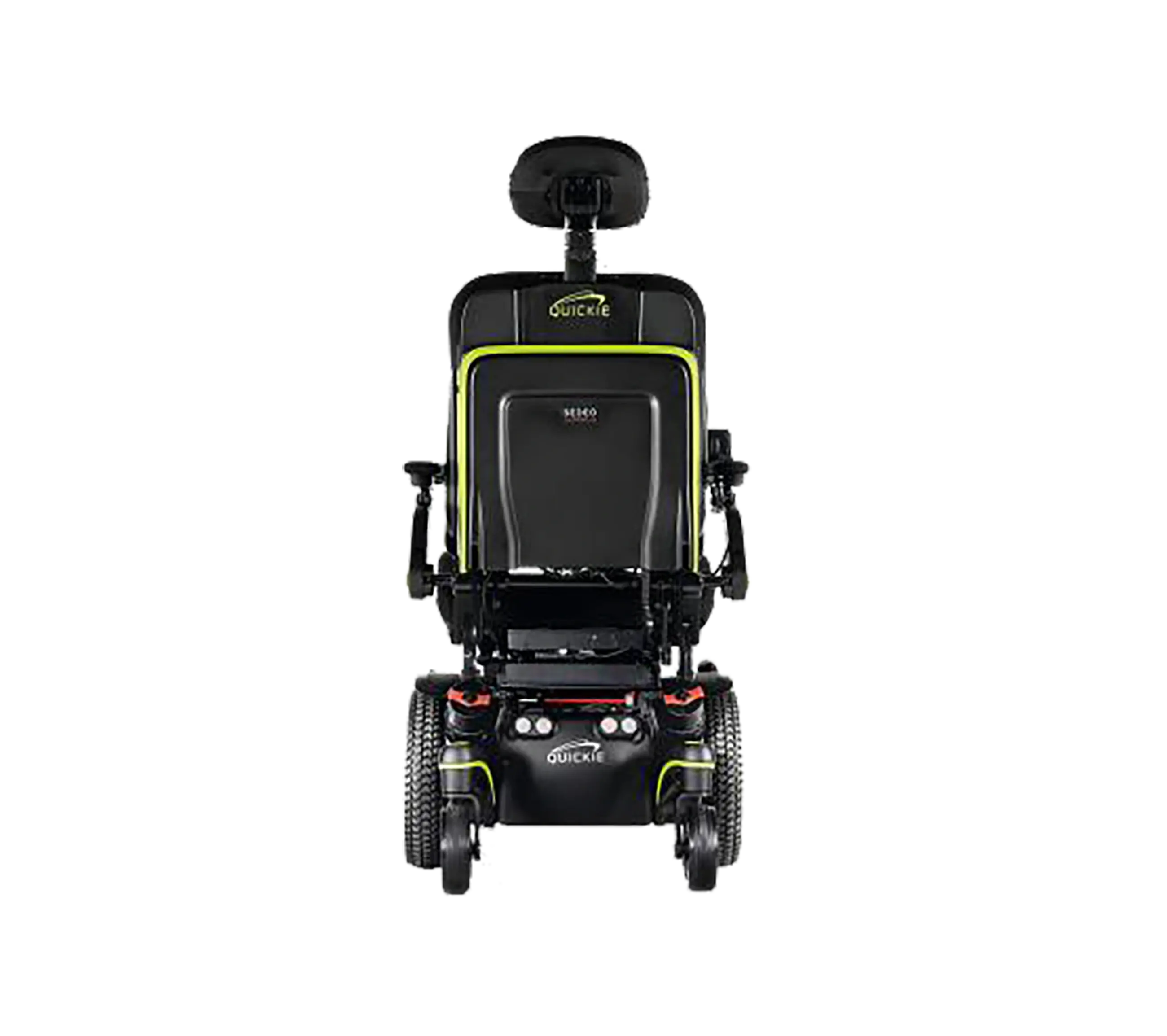

Back view of the Q700-Up M
The Q700 Quickie wheelchair is great for indoor agility, high performance outdoor suspension and anyplace you need to go
The Q700 Quickie wheelchair is great for indoor agility, high performance outdoor suspension and anyplace you need to go
Functional
Benefits
Superb Indoor Agility
Turning on its own axis, enjoy intuitive driving and excellent manoeuvrability in tight compact spaces with its narrow (620 mm) base and a 1260 mm turning circle. Also, easily sit under tables and access Wheelchair Adaptive Vehicles (WAVs) with a low seat height from just 445 mm.
High-performance outdoor suspension
Climb kerbs of up to 100 mm (4") and enjoy a stiffer, more responsive ride with the revolutionary SpiderTrac™ 2.0 suspension. With its independent movement of all six wheels, the front and rear wheels gives it the ability to crawl up and down steep obstacles whilst keeping all 6 wheels to the ground - even when ascending gradients of up to 10 degrees. Plus, you'll also stay in control and maintain stability on kerbs and slopes with Quickie's patented anti-pitch system.
Motors & Batteries
Enjoy power and speed at your fingertips with the 4-pole high torque motors. Choose from 10 kph as standard, or upgrade to 6 kph (high torque) for the ultimate performance. Plus, with a choice of 60 Ah or 72 Ah batteries, you can maximise your range of up to 40 km and experience outdoor performance like never before!
Timeless Design
Timeless design that leaves a lasting impression! Style, it's a personal thing - that's why you have a choice of 6 vibrant colour in-lays to suit your personality. With hidden wiring and components combined with sharp-tailored upholstery, it's a powered wheelchair that provides a truly sleek and minimalist silhouette from every angle. Inspired by its design and want something extra? Our Built-4-Me customisations team can tailor your power wheelchair into a striking expression of you. Why not take it for a spin and experience style in motion?
Lumbar positions for the Q700 UP M Sedeo Ergo Anti Shear Backrest.
Anti-Shear Backrest
Transitioning in and out of recline doesn’t need to be uncomfortable. The Sedeo Ergo’s power recline is supported by 7" of anti-shear to better maintain the positioning of the headrest, and even chin control, during recline.

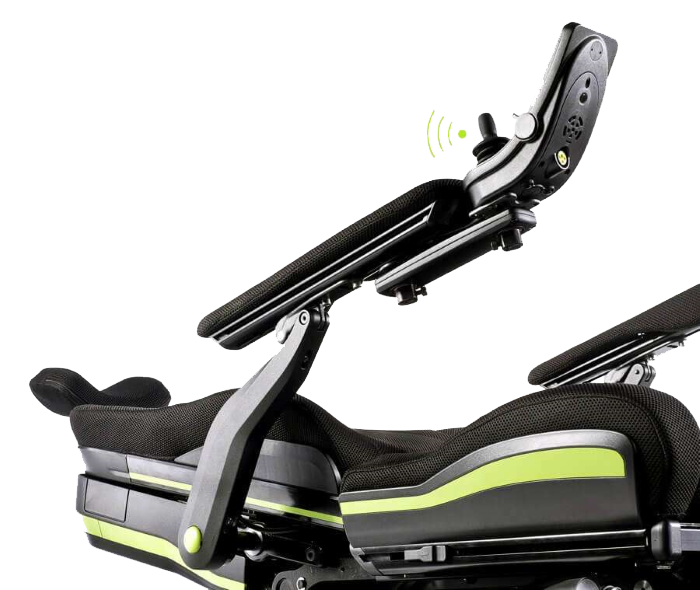

Lumbar tilt position in relation to arm rest and controller for the Quickie Q700 Up M Sedo Ergo seating system.
Seat Coaching
Your Q700-UP M can also provide pressure relief reminders, to help remind you when it's time to change your seated position. A log of these can also be kept and sent to your clinician to review.

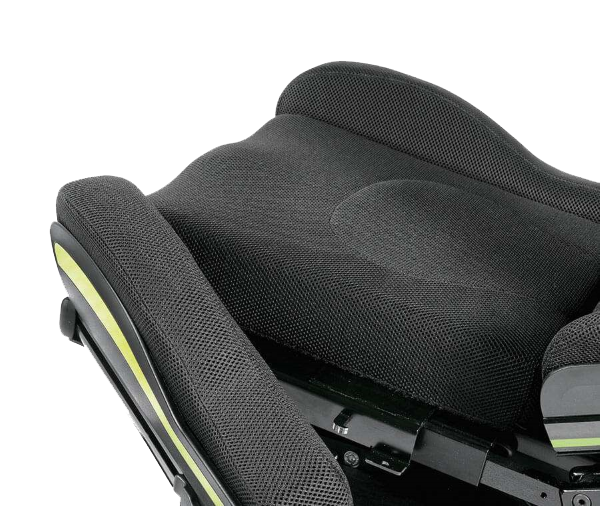

Q700 UP M Sedeo Ergo wheel chair provides easy access and entry to the comfortable seating
Easy-Entry System
The Q700-UP M's seat cushion is divided into 3 elements. The two lateral side cushions can be swung-out and lifted off, ensuring a comfortable transfer. The middle part can also be substituted for a Spex or Jay cushion.

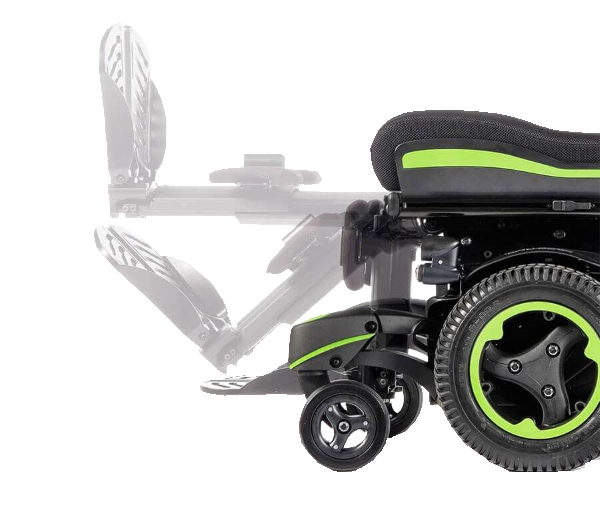

this Q700 UP M Sedeo Ergo Footrest supplies great standing use allowing superb power to stand whenever you want.
90° Centre-Mount Footrest
The new centre-mount footrest gives a true 90° knee angle in seated position. The ergonomic knee pad is also depth adjustable. Plus the footplate can go all the way to the ground, so you're able to do standing transfers in-and-out of your Q700-UP M.

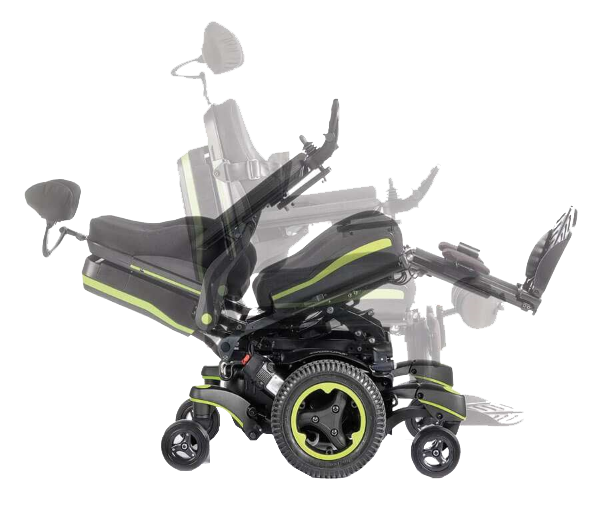

The different tilting positions of the Sedeo Lite Wheelchair
Biometric Repositioning
Moving out of a reclined position often requires use of the tilt function or to regain your proper seated posture. With the patented Biometric Repositioning, when you move from reclined to seated, the Sedeo Ergo will first pass through an intermediary tilted position, using gravity to realign your pelvis in one smooth, effortless motion.

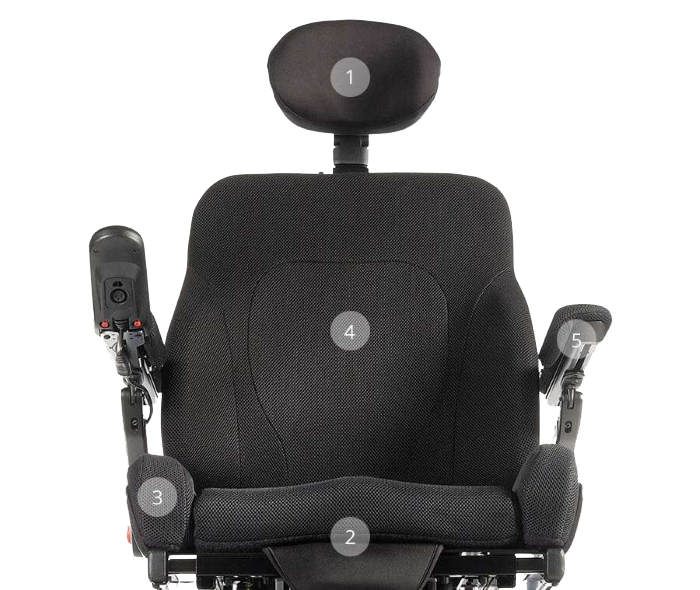

Front view of the seat on a Sedeo Ergo Adjustable Wheelchair
Adjustable to Fit You
The premium headrest (1) can easily be adjusted or removed. All seat widths and depths (2) are infinitely adjustable with just one tool. Also, the seat and backrest width (3+4) can be adjusted independently of each other. Even the armrest height and angle (5) are simple to adjust too.
Resources
Quickie Q-Series Power Wheelchairs Range Brochure 2.75 MB Q700 Powerchair Script Form NZ AU Interactive 0.20 MB Comparison Chart (NZ) - Q-Series Powered Wheelchairs 0.75 MB Comparison Chart (NZ) Power Wheelchairs 0.96 MB Crash Test Brochure_AUS_2023 9.22 MB Q700 User Manual 9.00 MB
Specifications
Dimensions
Width 620 mm
Length 1070 mm
Seat Width 400 – 500 mm
Seat Height 450 – 480 mm
Seat Depth 400 – 540 mm
Backrest Height 510 – 610 mm
Turning Diameter 1000mm
Performance/Weights
Speed 6 kph high torque, 10 kph standard
Batteries 60 Ah; 72 Ah (optional)
Maximum Safe Slope 10°
Maximum Kerb Climb 100mm
Minimum Wheelchair Weight R-Net controller; lights & indicators
Maximum User Weight 120 kg
Transportation
Crash Tested? This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19 / WC19.
Accessories
Powerchair Joy Stick

Powerchair Joy Stick

Compatible on any powerchair other then the Q400.
