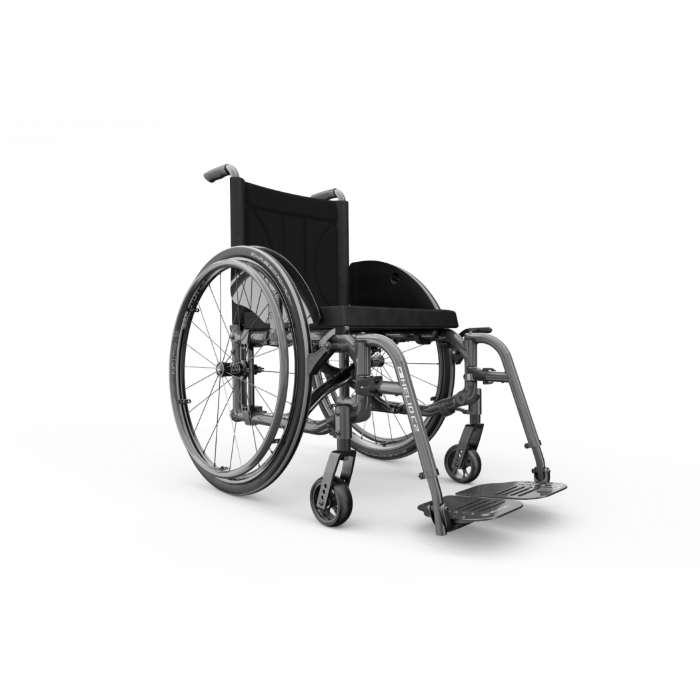

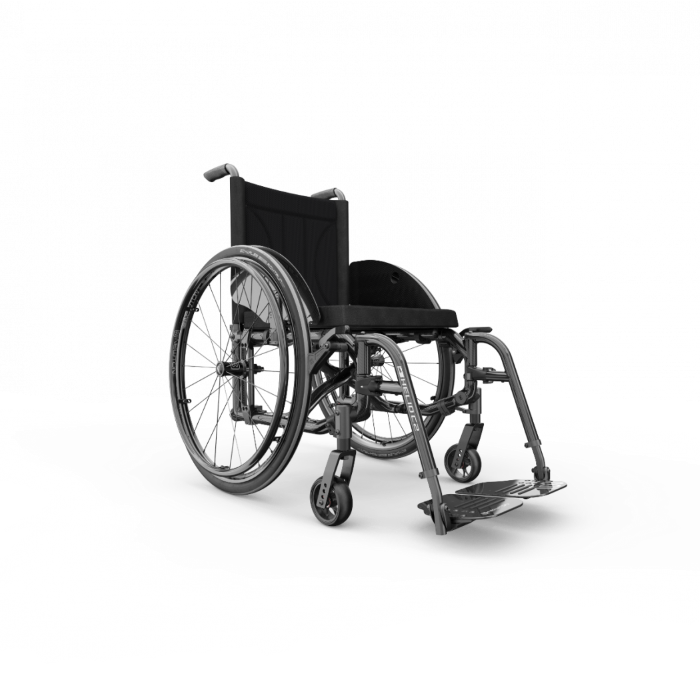

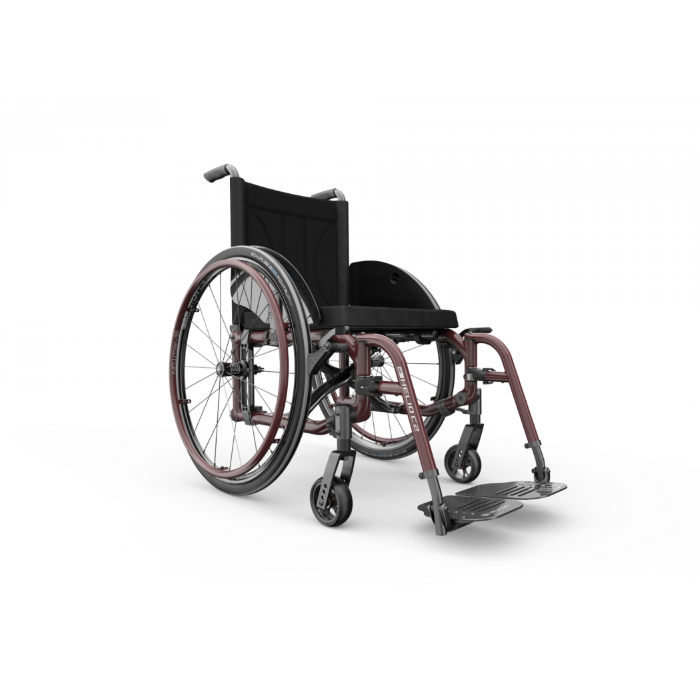

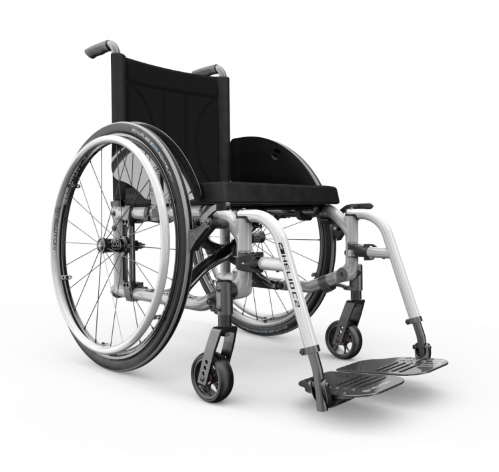

Select a colour

Motion Composites – HELIO C2 – Carbon Folding Wheelchair

Make an Enquiry

Motion Composites

HELIO C2

EXPERIENCE THE PERFORMANCE

This flagship model is one of the lightest, most technologically advanced wheelchairs in its category. The HELIO C2 is the result of a series of innovations, it features revolutionary components, an impeccable finish and all the advantages carbon fiber offers.

Read more Read less

ENDLESS COLOR COMBINATIONS!

Personalize your wheelchair to express your unique self by mixing and matching the color of your frame, accents and handrims!

Read more Read less

Gallery

Functional

Benefits

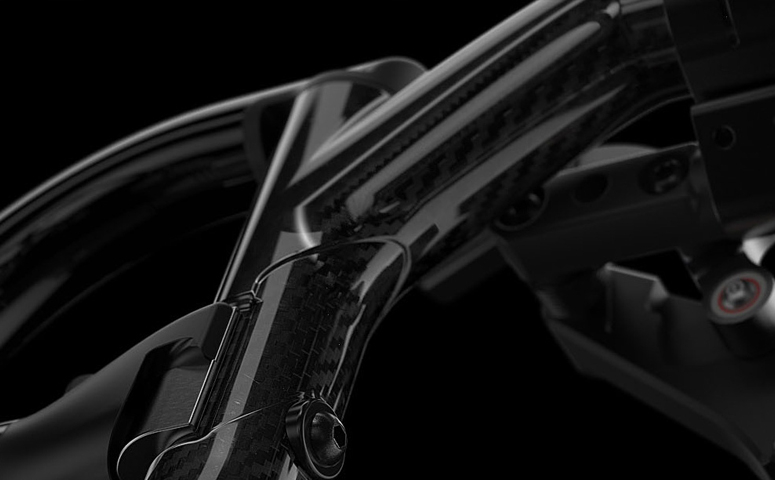

Reactive handling And Easy Transportation

Our vision for the HELIO C2 was significantly reduced weight and greater freedom of movement. Each component was carefully selected and carbon fiber was used for strength and lightness. The result is greater mobility as well as reduced chronic shoulder and joint injuries.

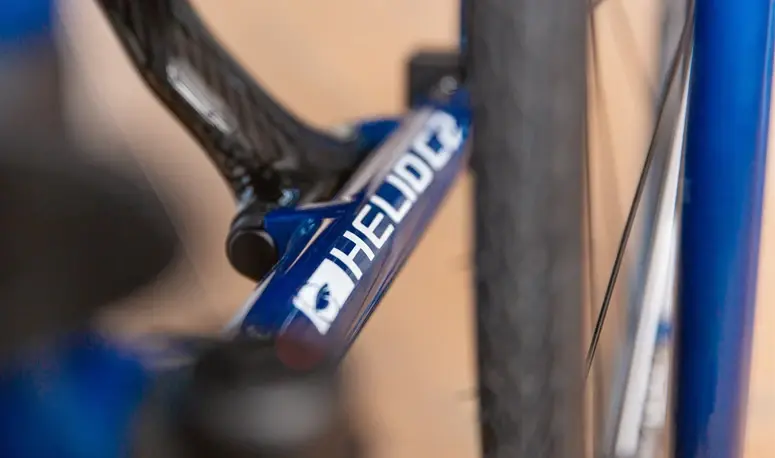

Save Your Energy To Go Further

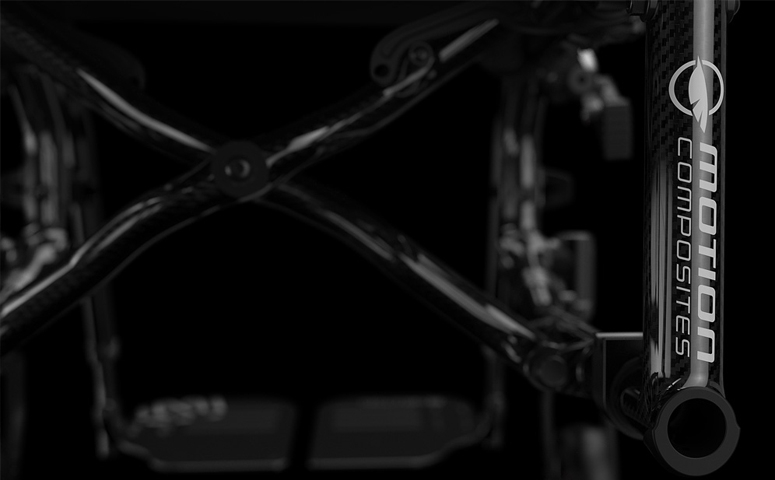

The symmetrical cross brace and rigid unibody frame distribute forces equally throughout the frame for superior energy transfer and propulsion. Our unique Ultrarigid Folding system (UFS) maximizes the chair’s overall stability, while the vertical axle plates increase rear wheel stiffness for optimal energy efficiency.

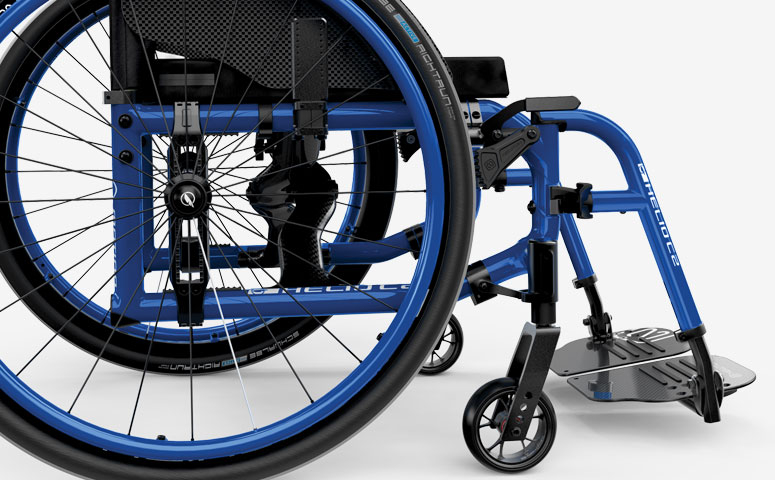

Optimal Seat-To-Floor Height

The frame’s innovative design allows you to achieve a super-low 12-inch (30.5-cm) front seat-to-floor height. In addition to easier contact with the floor, this feature provides better foot propulsion. Or, move it beyond 20 inches (50.8 cm) to meet your most challenging needs.

Uncompromising Realiability

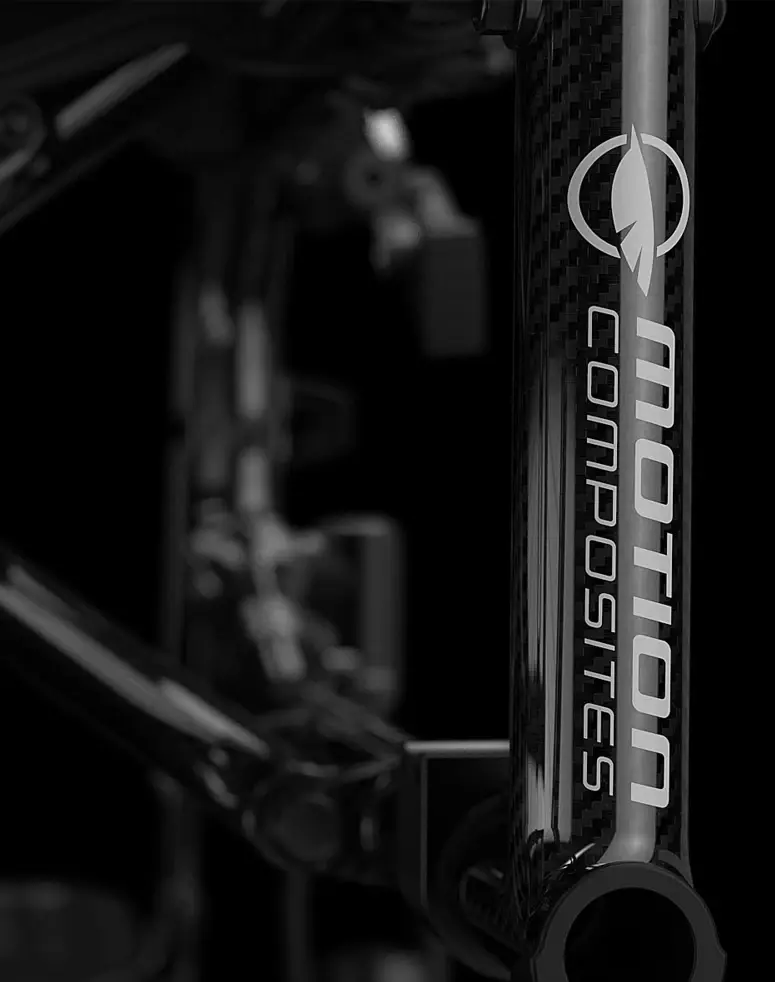

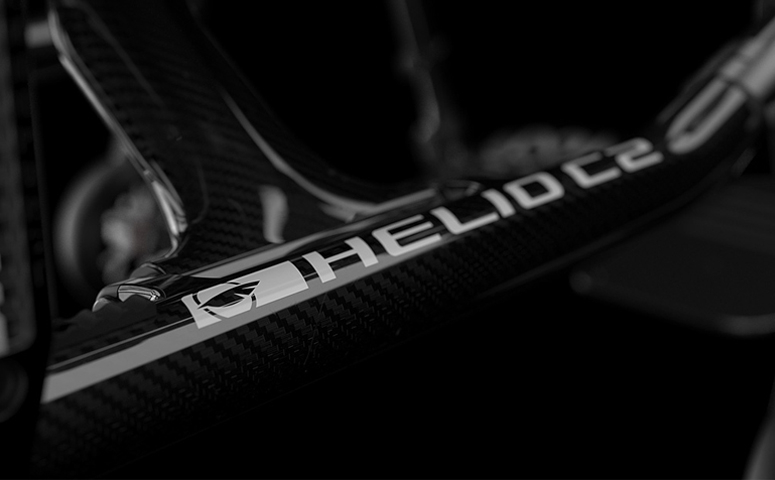

Because carbon fiber is both very strong and very light, it is an ideal material for making wheelchairs. It also has superior fatigue resistance and can withstand extreme temperatures. This ensures exceptional durability, for a chair that will serve you for many years to come.

Technologies

Unlimited

Lifetime

Warranty

Unlimited lifetime warranty on all Motion Composites carbon fiber frames!

Carbon fiber has superior fatigue resistance compared to metals. This means that components made of carbon fiber will resist the repetitive stress of everyday use. During the NSI/RESNA* fatigue strength test of durability, Motion Composites’ carbon fiber wheelchairs withstood double the minimum number of cycles required!

Read more Read less

Resources

HELIO C2 brochure 1.70 MB HELIO C2 HD brochure 1.64 MB HELIO C2 Orderform 1.72 MB Folding wheelchair User Manual 4.20 MB Limited Warranty-INT 0.03 MB

Technical

Specifications

Structure

Dimensions

Frame	Folding
Material	High-tensile strength T700 carbon fiber
Transport Weight	9.5 lb. \| 4.3 kg (16 × 16 without rear wheels, wheel locks, armrests, cushion, anti-tippers and footrest). Lightest configuration: 19.4 lb. \| 8.8 kg (with wheel locks and wheels)
Weight Limit	265 lb. \| 120 kg — 350 lb. \| 159 kg – HD Kit

Seat width

Seat depth

Front seat to floor

Rear seat to floor

Back height

Armrest height

Front frame angle

Back angle

Wheel camber

Center of gravity

Overall width

14 in. to 22 in.
35.6 cm to 55.9 cm

14 in. to 20 in.
35.6 cm to 50.8 cm

13 in. to 21 ½ in.
33 cm to 54.6 cm

12 ½ in. to 20 ¼ in.
31.8 cm to 51.4 cm

9 in. to 21 in.
22.9 cm to 53.3 cm

6 in. to 14 in.
15.2 cm to 35.6 cm

60°, 70°, 80°, 90°

85° to 110°

0°, 3°, 6°

1 in. to 4 in.
2.5 cm to 10.2 cm

20 ¾ in. min – 33 ½ in. max.
52.7 cm min – 85.1 cm max.

Quick

Ship

Quick Ship stocked package available!

Explore our collection of motion composites products, HELIO C2 is in stock and ready to ship at a moment’s notice. Skip the wait and dive straight into the world of seamless solutions. We make sure you get top-quality products delivered to your doorstep in record time.

Read more Read less
