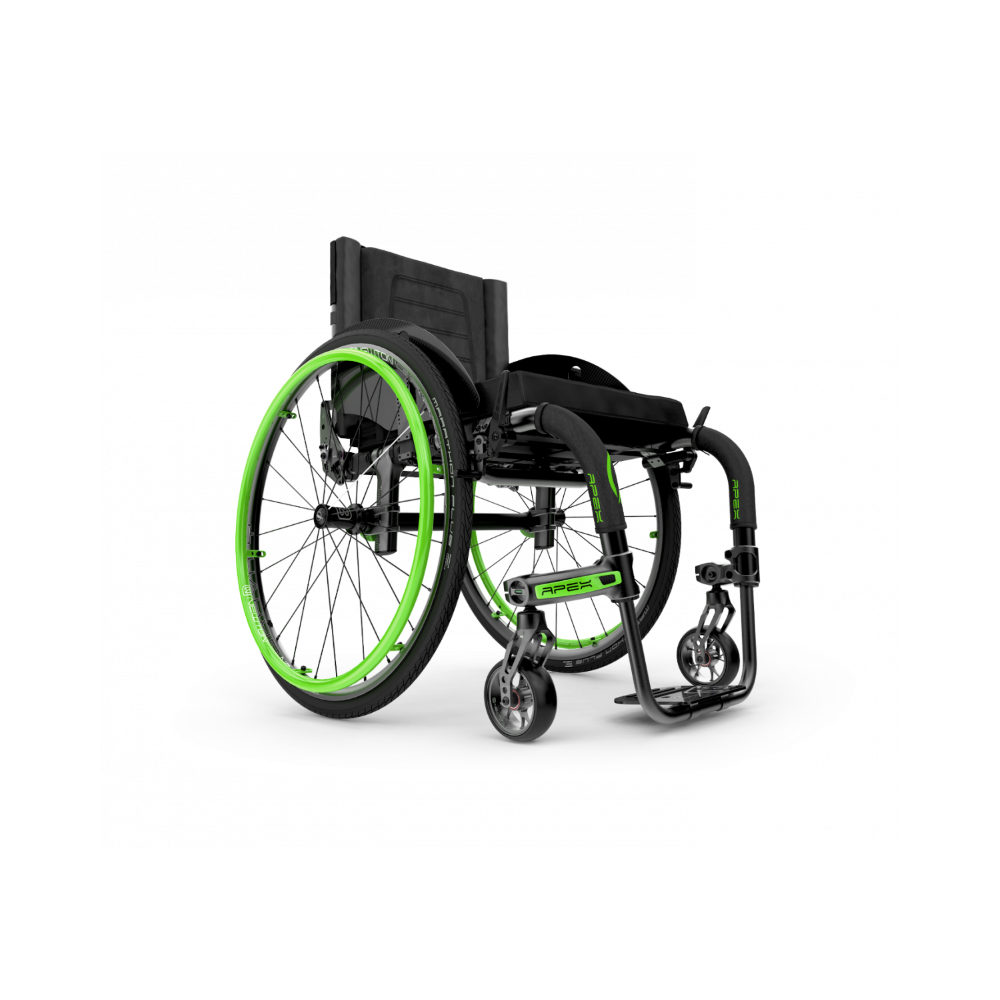

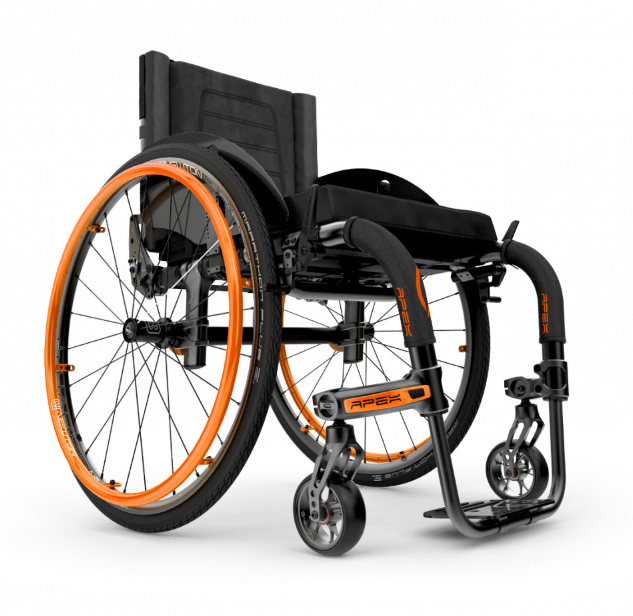

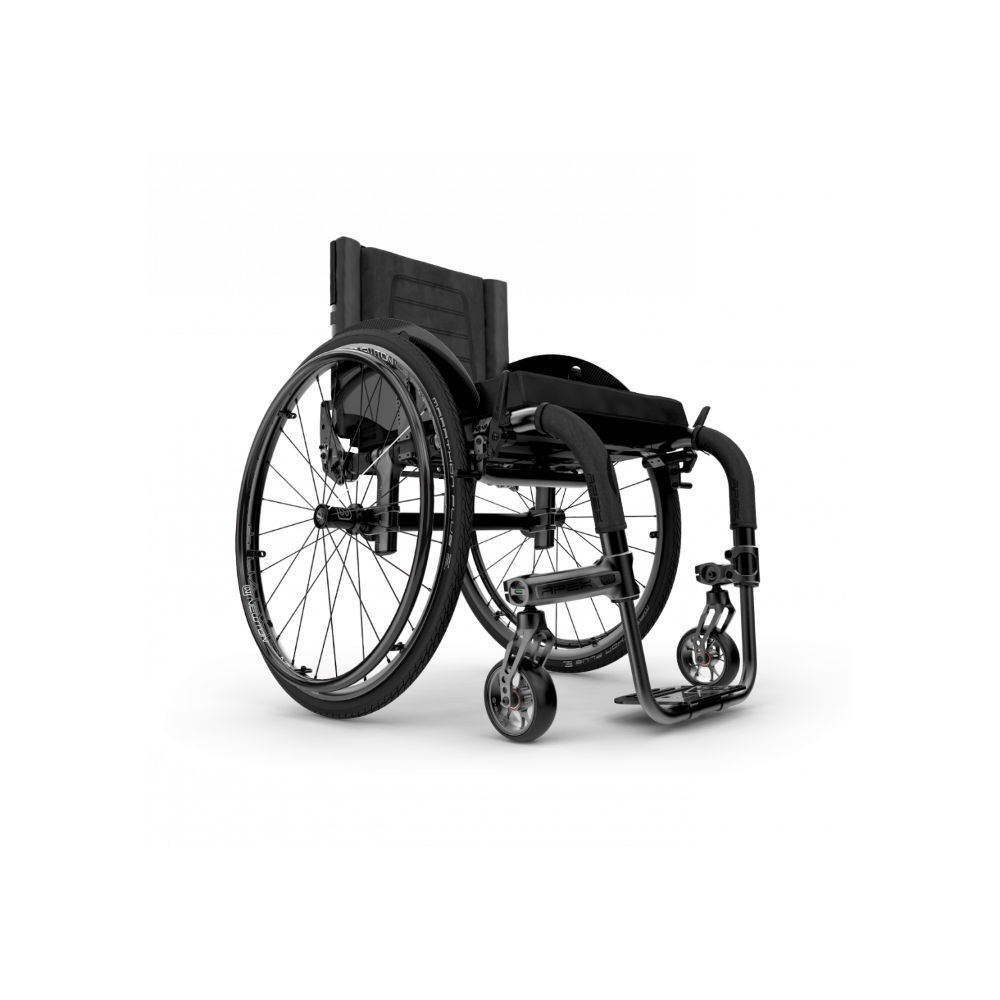

Select a colour

Motion Composites – APEX A – Aluminum Rigid Wheelchairs

Make an Enquiry

Motion Composites

APEX A

NOTHING LESS THAN GREATER MOBILITY

The bold design and innovative approach behind the APEX Aluminum have redefined perceptions of rigid wheelchairs. The triple-butted aluminum and strategic touch of carbon fiber strike a perfect balance making this chair an example of modernity and lightness.

Read more Read less

Gallery

Functional

Benefits

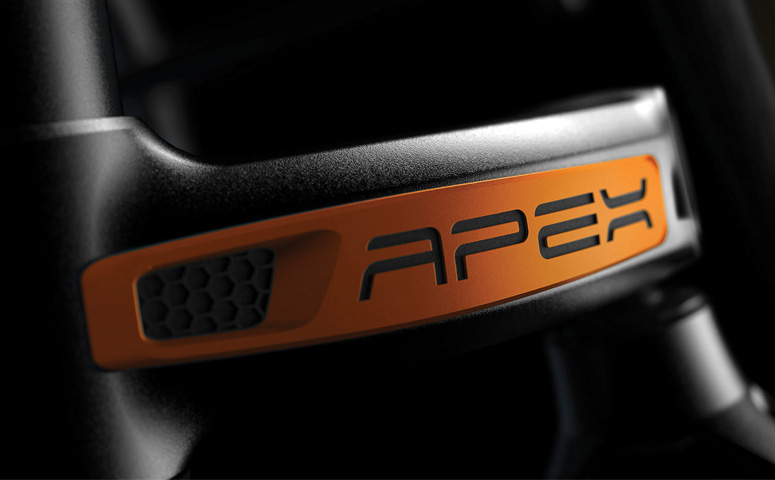

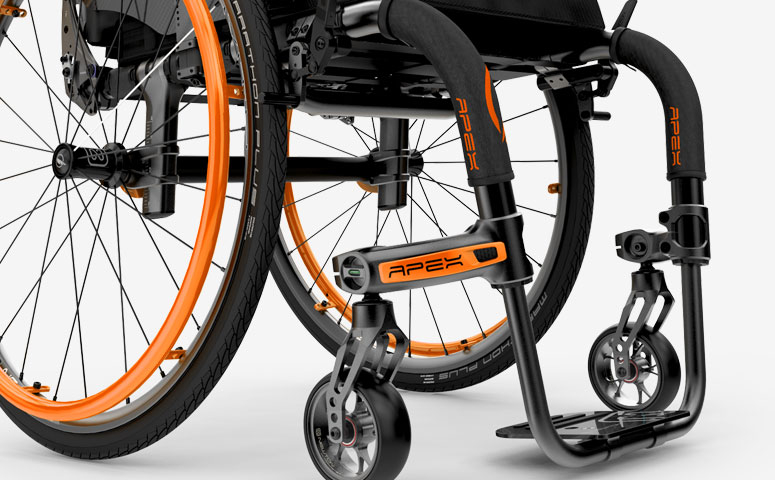

Alulite: A Stronger And Lighter Aluminium Alloy

The APEX A combines the advantages of triple-butted aluminum with those of carbon fiber for unbeatable strength and lightness. The result is a wheelchair that is easy to handle and transport with an ease of propulsion that makes it easier to get where you want to go.

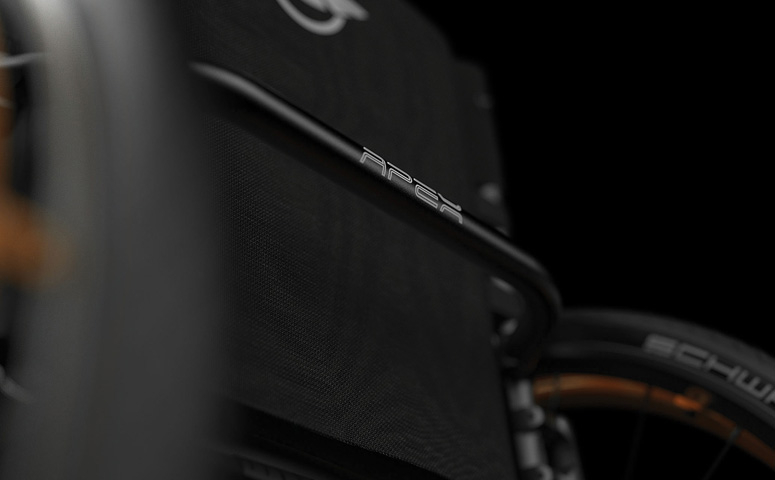

Uncompromised Stability

APEX Aluminum is an easily maneuverable rigid wheelchair that offers safe and high-performance handling. The unique rigidizing bar maximizes stability while preserving reactivity. This rigidity reduces lateral movement and offers optimal propulsion for greater mobility.

Bold, Modern And Refined Design

While technology and function are important, so are design and aesthetics. Each detail of the APEX Aluminum chair was carefully considered and thoughtfully designed to create a head-turning chair that challenges all wheelchair stereotypes.

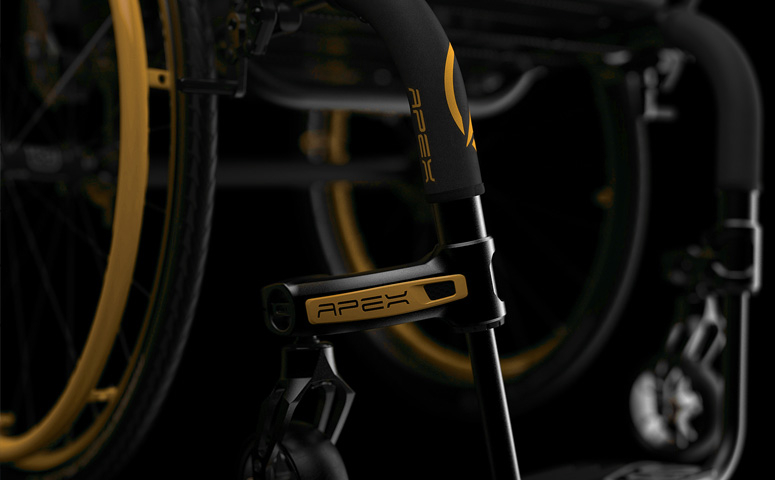

The Industry's Most Perfected Materials

AluLite aluminum alloy and triple-butted aluminum make this chair considerably lighter and remarkably strong. Thanks to the quality of the components and the touch of carbon fiber, the APEX Aluminum is highly durable to serve you for many years to come.

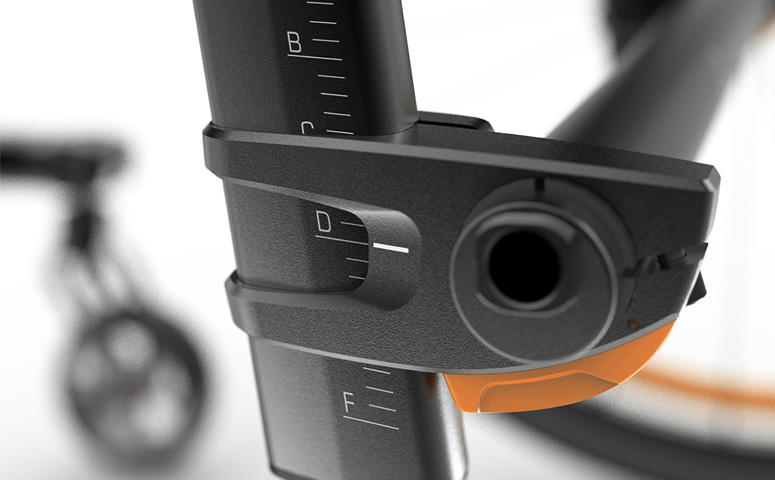

Infinitely Adjustable

The APEX Aluminum wheelchair offers a wide range of settings for a completely customized experience. Fully modular, the back angle, seat-to-floor height and rear wheel positions can all be adjusted for your comfort. Laser-etched markings make it easier to adjust key components and specify exact positioning. Simple. Quick. Adaptive.

Technologies

Alulite Aluminium Alloy

Stronger and lighter than 7005 aluminum.

Clamped Rigidizing System

Patented modular system that enhances versatility and rear frame stiffness.

Tripple-Butted Aluminium

Reduces weight while maintaining strength. We put the strength where its counts!

Standard Carbon Fiber Camber Tube

Provides a responsive ride without added weight.

Laser Etched Markings

Allow for quick and easy symmetrical adjustments.

Bubble Levels

Built-in highly accurate and calibrated gauges make caster adjustments quick and precise.

Newton Accessories

Parts and accessories designed to be lighter with improved functionality.

Resources

APEX A brochure 0.76 MB APEX Orderform 1.48 MB APEX User Manual 3.43 MB Limited Warranty-INT 0.03 MB

Technical

Specifications

Structure

Dimensions

Frame	Rigid
Material	Triple-butted aluminum
Transport Weight	10.6 lb \| 4.8 kg (16 x 16 without rear wheels, wheel locks, armrests, cushion and anti-tippers). Lightest configuration: 18.0 lb \| 8.2 kg (with wheel locks and wheels).
Weight Limit	265 lb \| 120 kg

Seat width

Seat depth

Front seat to floor

Rear seat to floor

Back height

Armrest height

Front frame angle

Back angle

Wheel camber

Center of gravity

Overall width

12 in to 20 in
30.5 cm to 50.8 cm

14 in to 21 in
35.6 cm to 53.3 cm

14 in to 20 in
35.6 cm to 50.8 cm

9 in to 21 in
22.9 cm to 53.3 cm

6 in to 14 in
15.2 cm to 35.6 cm

70°, 75°, 80°, 85°, 90°

80° to 101°

0°, 2°, 4°, 6°, 8°

0 in to 6 in
0 cm to 15.2 cm

18 ¾ in min. 31 ½ in max.
47.6 cm min. 80 cm max.

Quick

Ship

Quick Ship stocked package available!

Explore our collection of motion composites products, APEX A is in stock and ready to ship at a moment’s notice. Skip the wait and dive straight into the world of seamless solutions. We make sure you get top-quality products delivered to your doorstep in record time.
