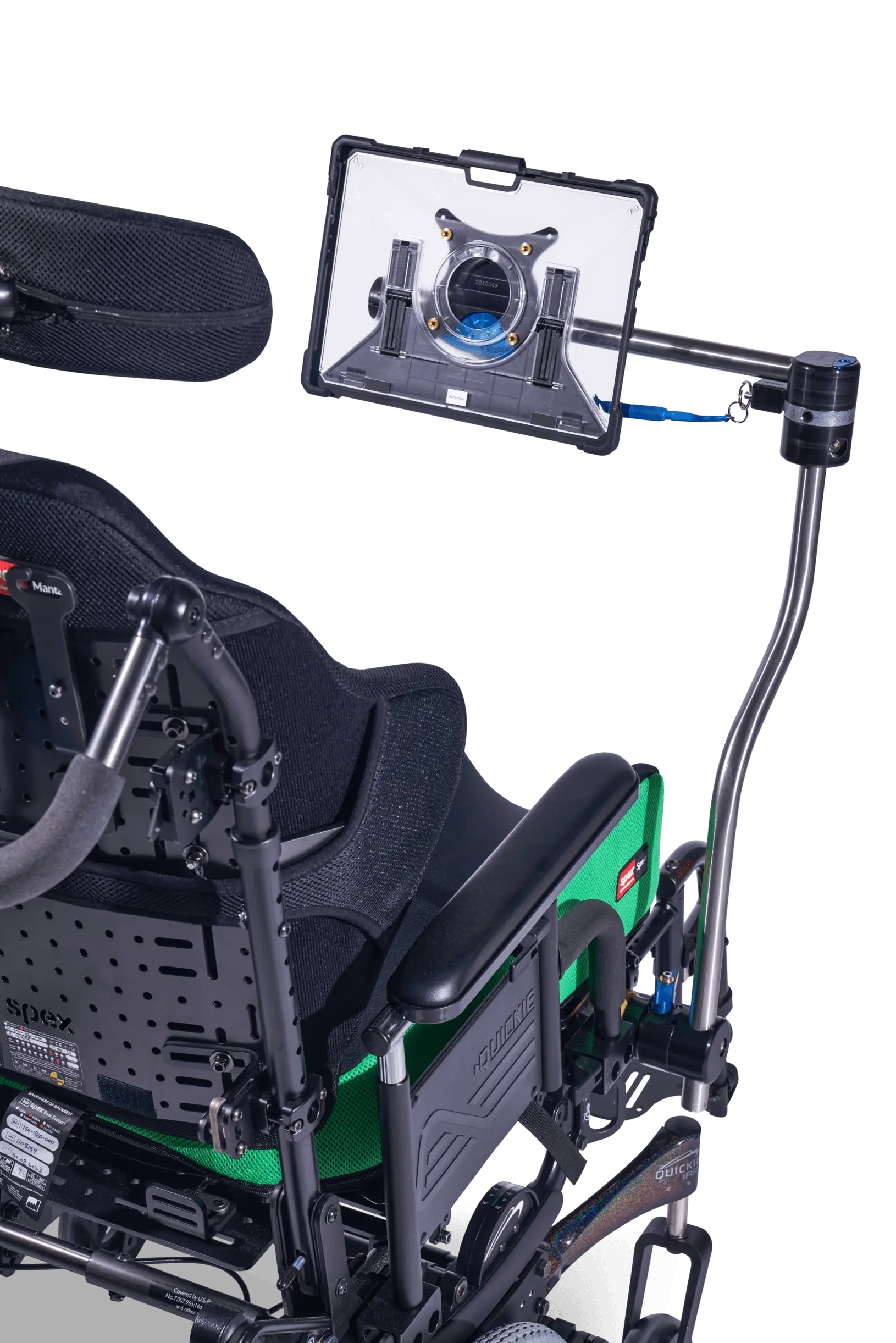

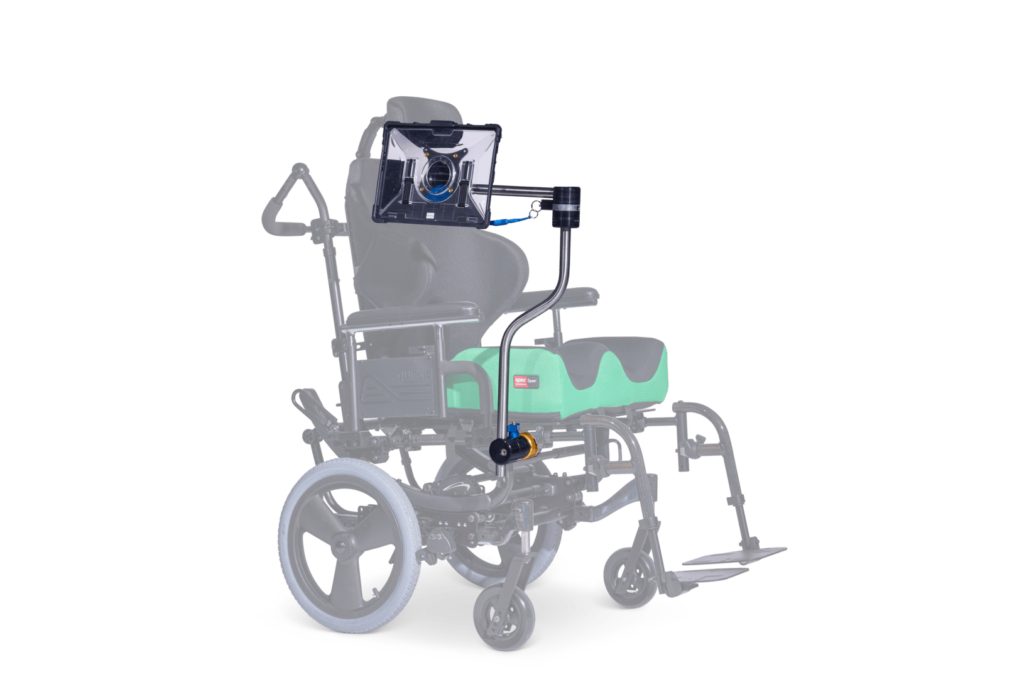

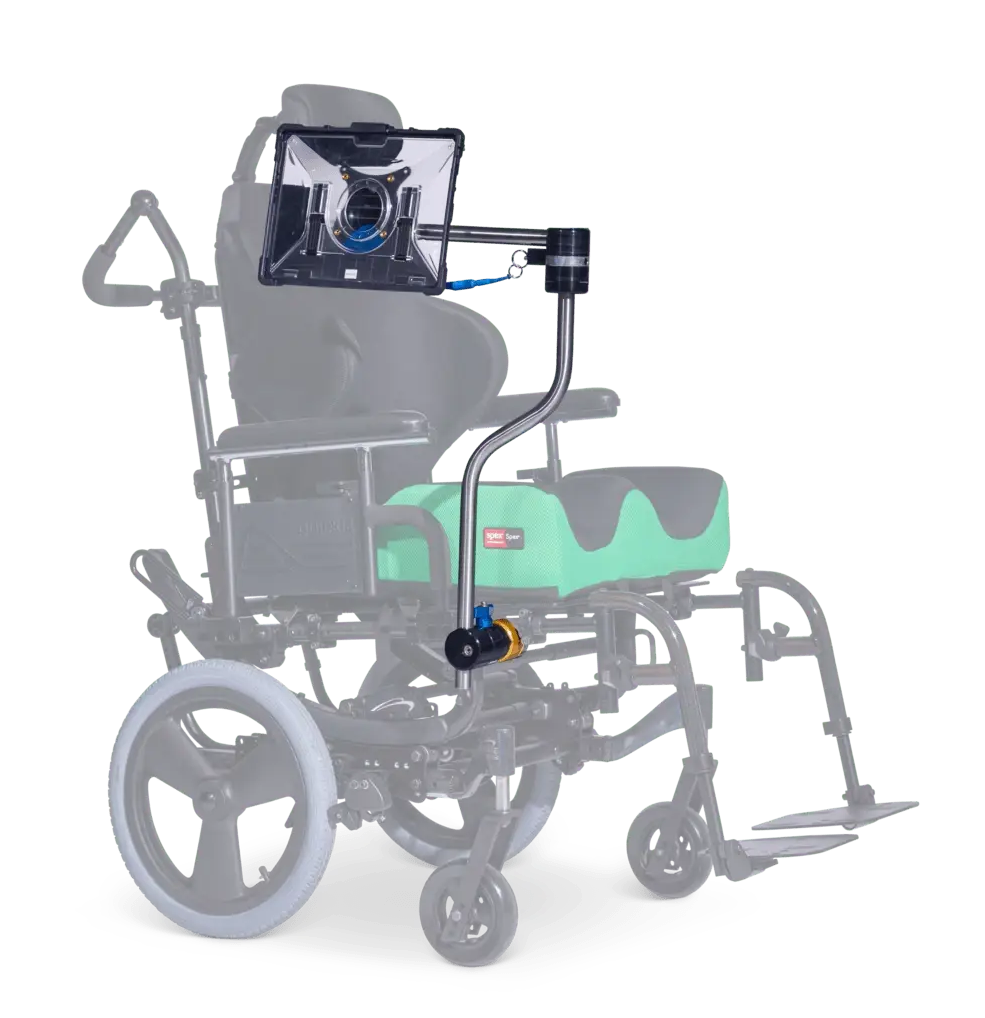

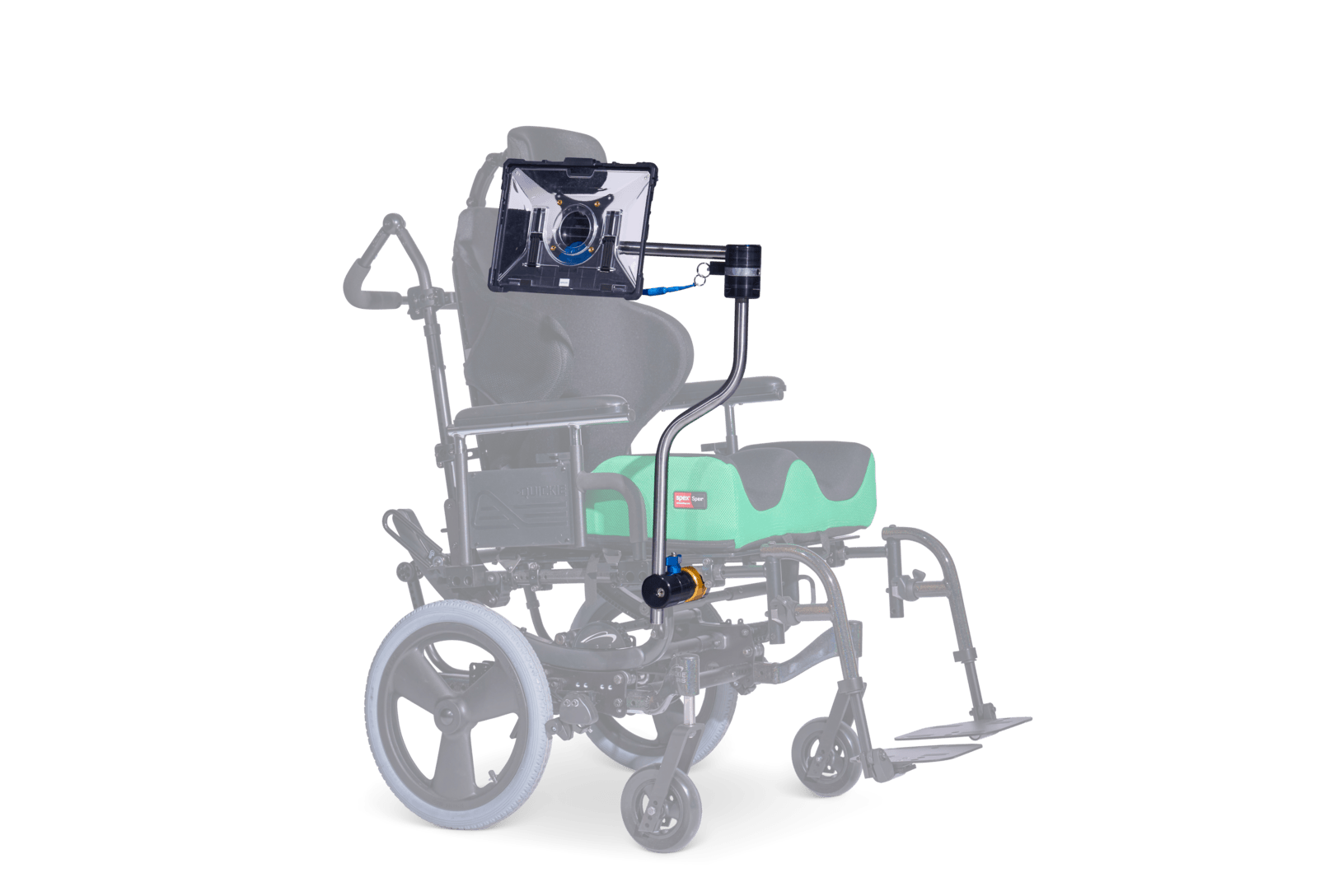

For greater independence, the user may release the lock pin to swing the mount away. It’s easily removed from the wheelchair and consists of two lengths of stainless-steel tube joined to form a right-angle structure, that is supported on the wheelchair by a frame clamp
assembly, which is permanently attached to either the left or right side of the wheelchair. The design of this mount allows use on a tilt seat system.
The Swing-Aside Mount for a manual wheelchair contains:
- Frame Clamp: Frame Clamp Inner Piece 1″ Round. (Refer to Spare Parts for other frame clamp options. Requires full access to the round tube)
Frame Clamp Inner Piece 1″ Round (Standard)
Mounted at the lower portion of the side frame on wheelchair frame.
Product Code: 1611-9101-000
The Swing-Aside Mount for a power wheelchair contains:
- TNUT: Universal T-Nut/+Nut for Power Wheelchair Seat Rails. (Refer to Spare Parts for other TNUT options)
- Seat rail attachment options: Multi-hole 2″ Inner Piece Adapter. (Refer to Spare Parts for other seat rail attachment options)
Universal T-Nut/+Nut for Power
For wheelchair seat rails. Fits the Quickie Q series, Invacare TDX, Quantum.
Product Code: 1601-0020-M6SS
Multi-hole 2″ Small Inner Piece Adapter
The MH2 part has five countersunk 1/2″-spaced bolt holes and two rows of five 1/2″-spaced threaded holes.
Product Code: 1611-0049-000

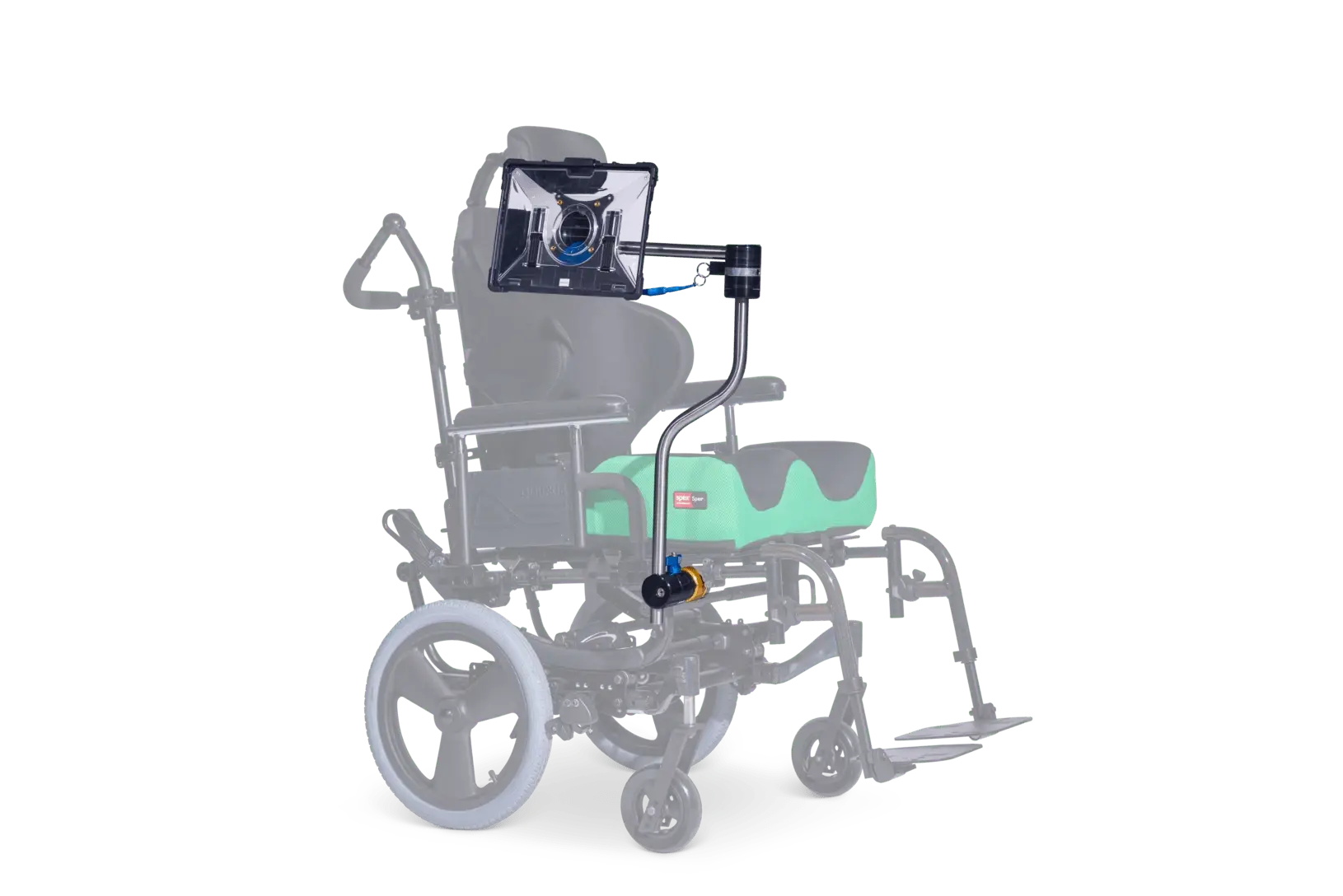

The Swing-Aside Mount Right Angle Tube Option contains:
- Locking Swing Away Outer Piece
- Index Clamp for Locking Swing-Away (not recommended for wheelchairs that have a tilt function).
- Release Cable Assembly with 90° Tube.
Locking Swing-Away Outer Piece
The Locking Swing Away Outer Piece receives the vertical tube of the Locking Swing Away Mount DLSA7 and has the three pin holes into which the lock pin of the Locking Swing Away Index Clamp fits.
Product Code: 1611-0045-000

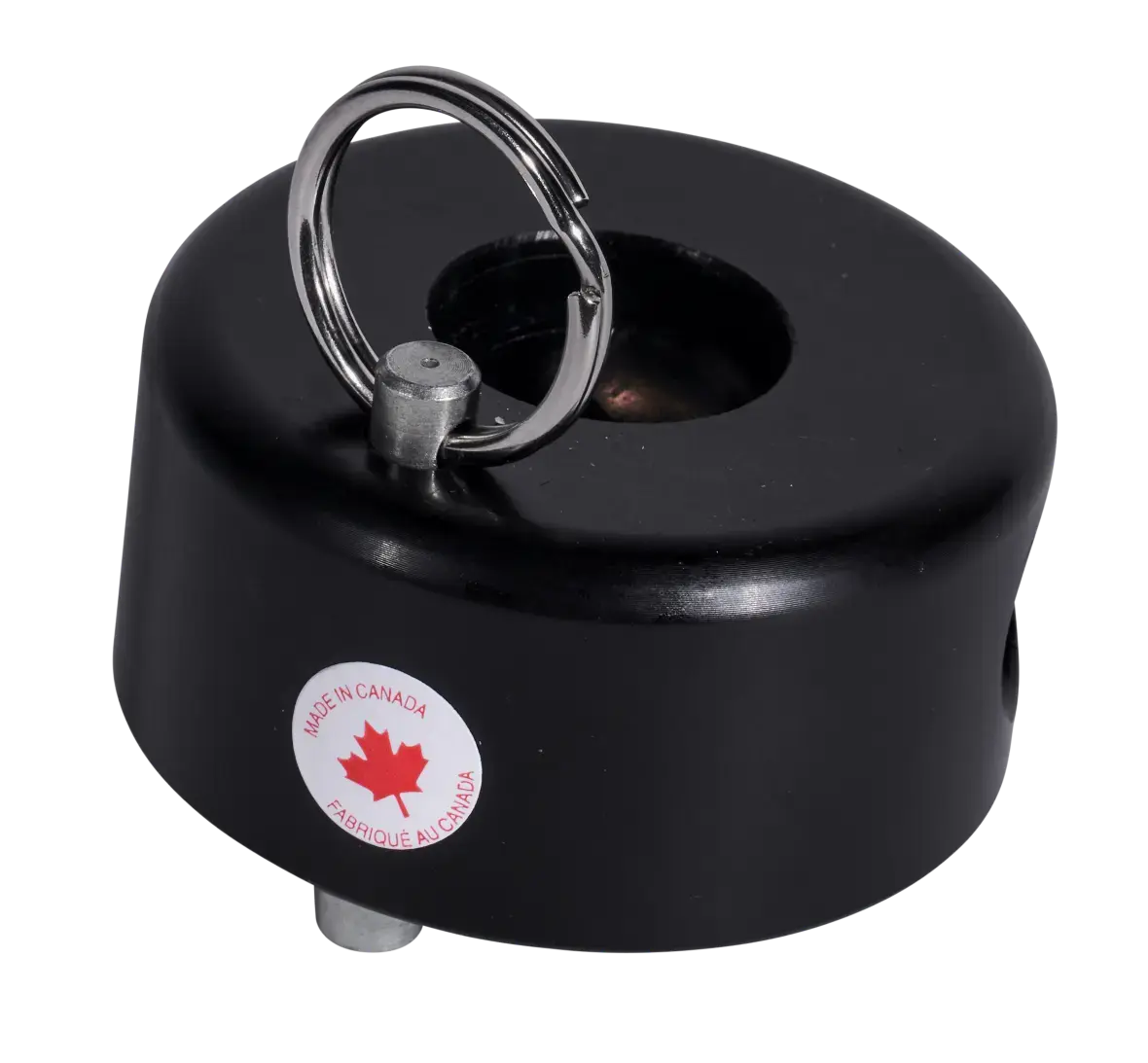

Locking Swing Away Index Clamp
The Locking Swing Away Index Clamp attaches to the vertical portion of the Right angle Tube used on the Locking Swing Away Mount DLSA7 and provides the locking function for this assembly.
Product Code: 1611-0035-000

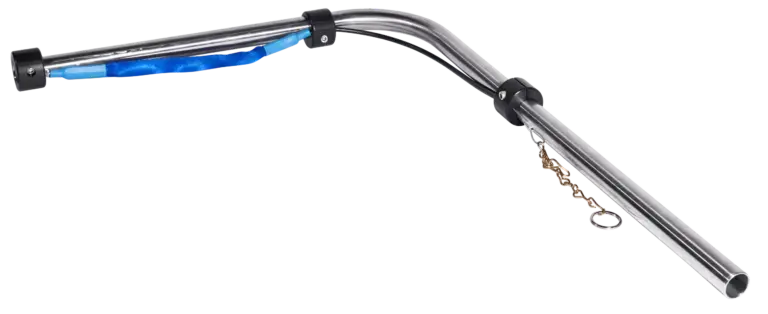

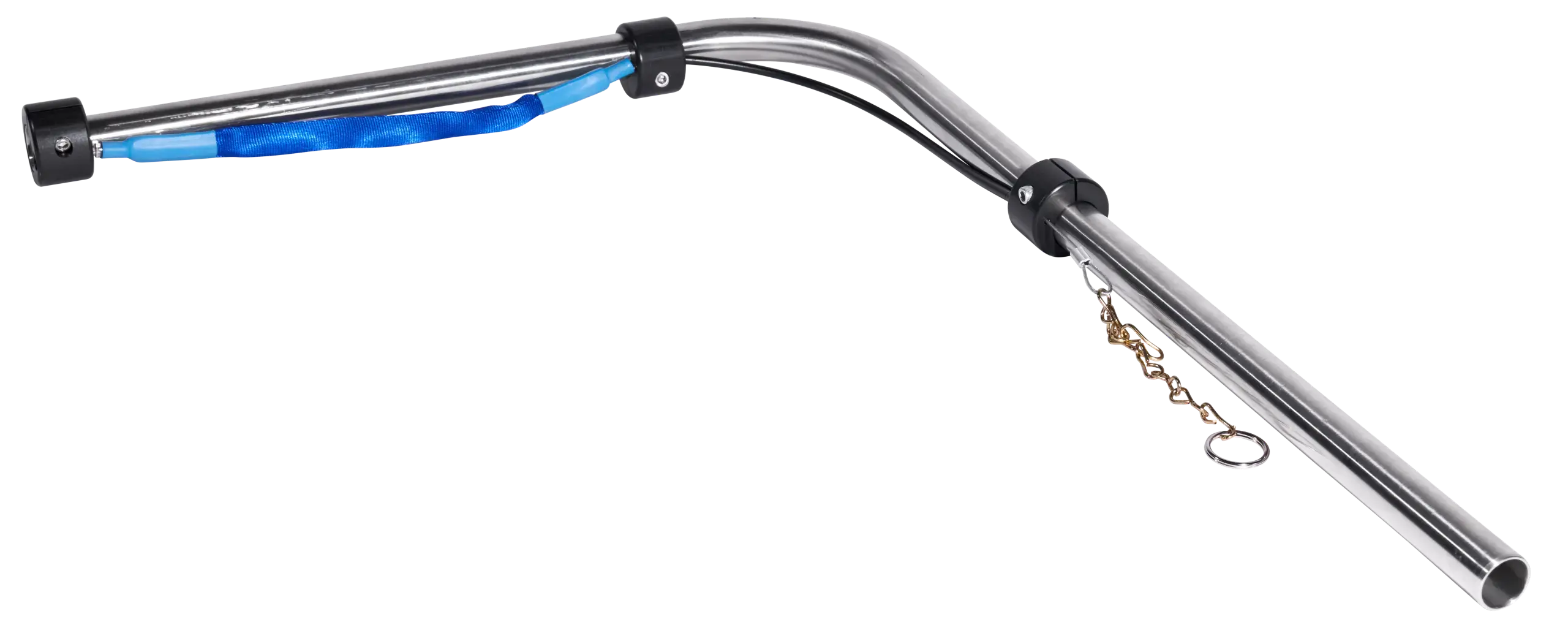

Locking Swing Away Index Clamp
LSAOP and ICLSA is required. Main component for Swing-Aside Set-up.
Product Code: 1611-0148-000

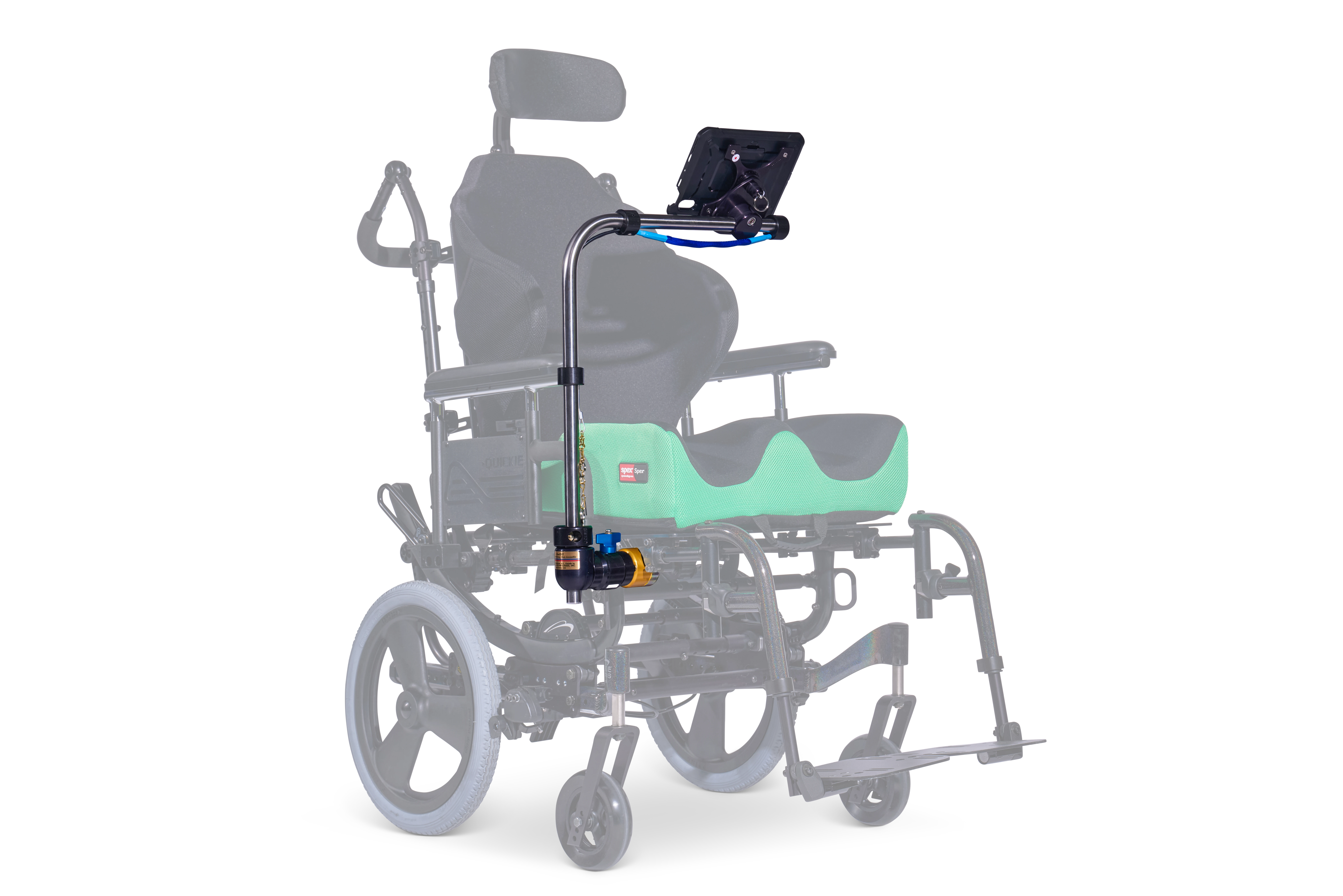

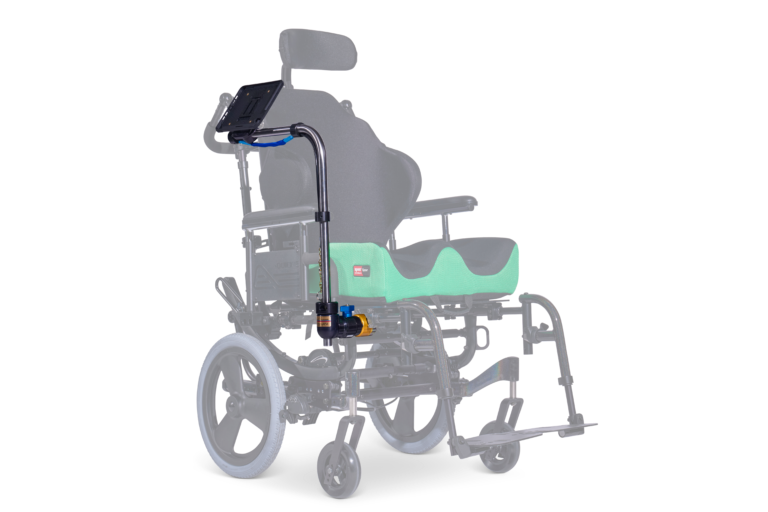

The Swing-Aside Mount Straight-Vertical Option contains:
- Complete Swing-Aside Arm Consisting of a Rotate Head, TGube Mount, 16″ Tube and Release Cable for the Swing-Aside Mount.
- Removable Frame Clamp Receiver
- Removable Outer Piece
Removable Frame Clamp Receiver
The RFCR is used with the ROP or RFCI. This is recommended primarily on wheelchairs with a tilting seat system. It provides the receiver for the mount assembly and locking mechanism to secure the mount in place.
Product Code:1611-0071-000
Removable Outer Piece Connector
The ROP is used with the RFCR. The ROP is installed onto the vertical tube of the mount assembly and provides positioning and height adjustment. It allows the mount assembly to be attached to any location when the RFCR is installed.
Product Code: 1611-0076-000
Horizontal Tube Assembly with Rotate Head
Complete Swing-Aside Arm consisting of a Rotate Head, Tube Mount, 16″ Tube and Release Cable for the Swing-Aside Mount.
Product Code: 1611-0046-000
Daessy Folding Quick Release Base
The Folding Quick Release Base provides quick adjustment of the angle of the attached device by rotation around the horizontal tube and locking in 6 stop positions.This can be used with all of the mounting systems.
Product Code: 1611-0128-000
Daessy Rehadapt
Universal Device Socket with separate Quick Shift clamping of ball joint and tube fixation. Can be used with all of the mounting systems.
Product Code: 1611-9008-000
Daessy Offset Link
Offsets the Outer Piece 3″ away from the Frame Clamp Inner Piece. Suits a Swing-Aside Mount, Rear Folding/Lockable Rear Folding Mount and Positioner Mount
Product Code: 1611-0054-000

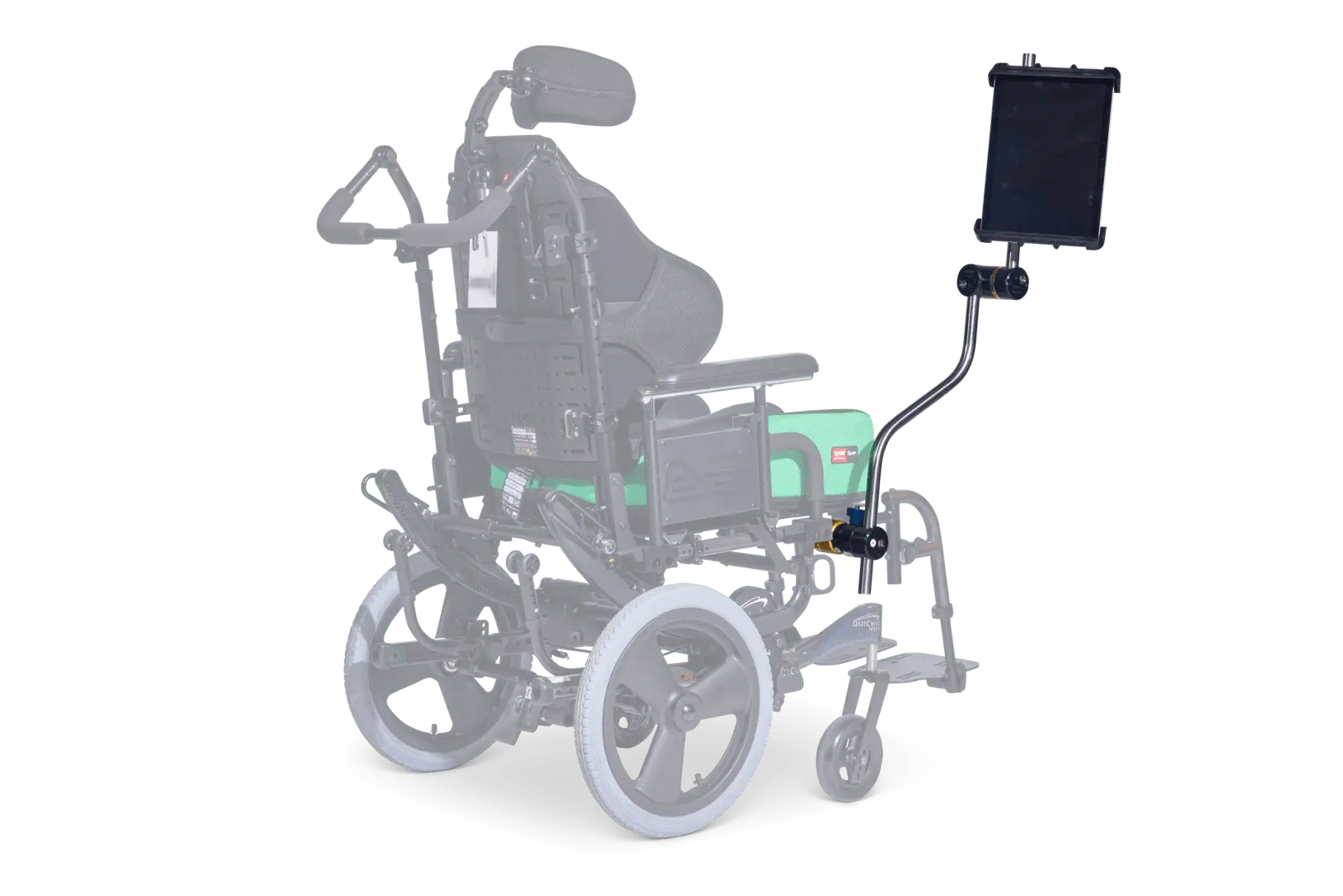

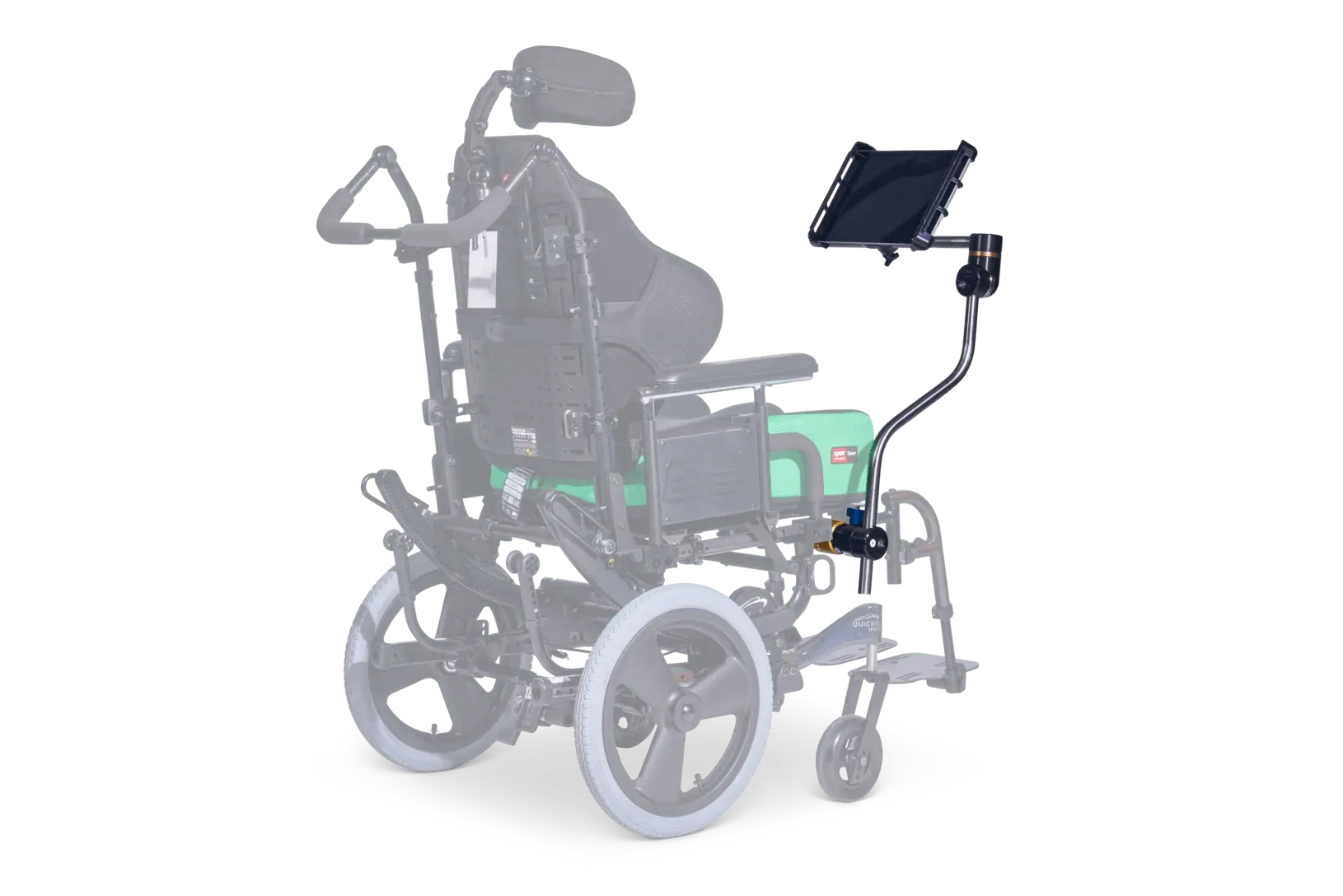

Daessy Custom S-Bend Tube
L = Overall length
O = Offset S-bend
S = Straight before bend
Recommended size for Eyegaze:
22×14, 28×16, 30×18, 32×16
The shortest possible S-Bend Tube overall length L is 14″.
The minimum S-Bend Tube offset O is 3″.
The shortest straight length on a S-Bend Tube S is 4″.
This is an alternative option for the Swing-Aside Mount
