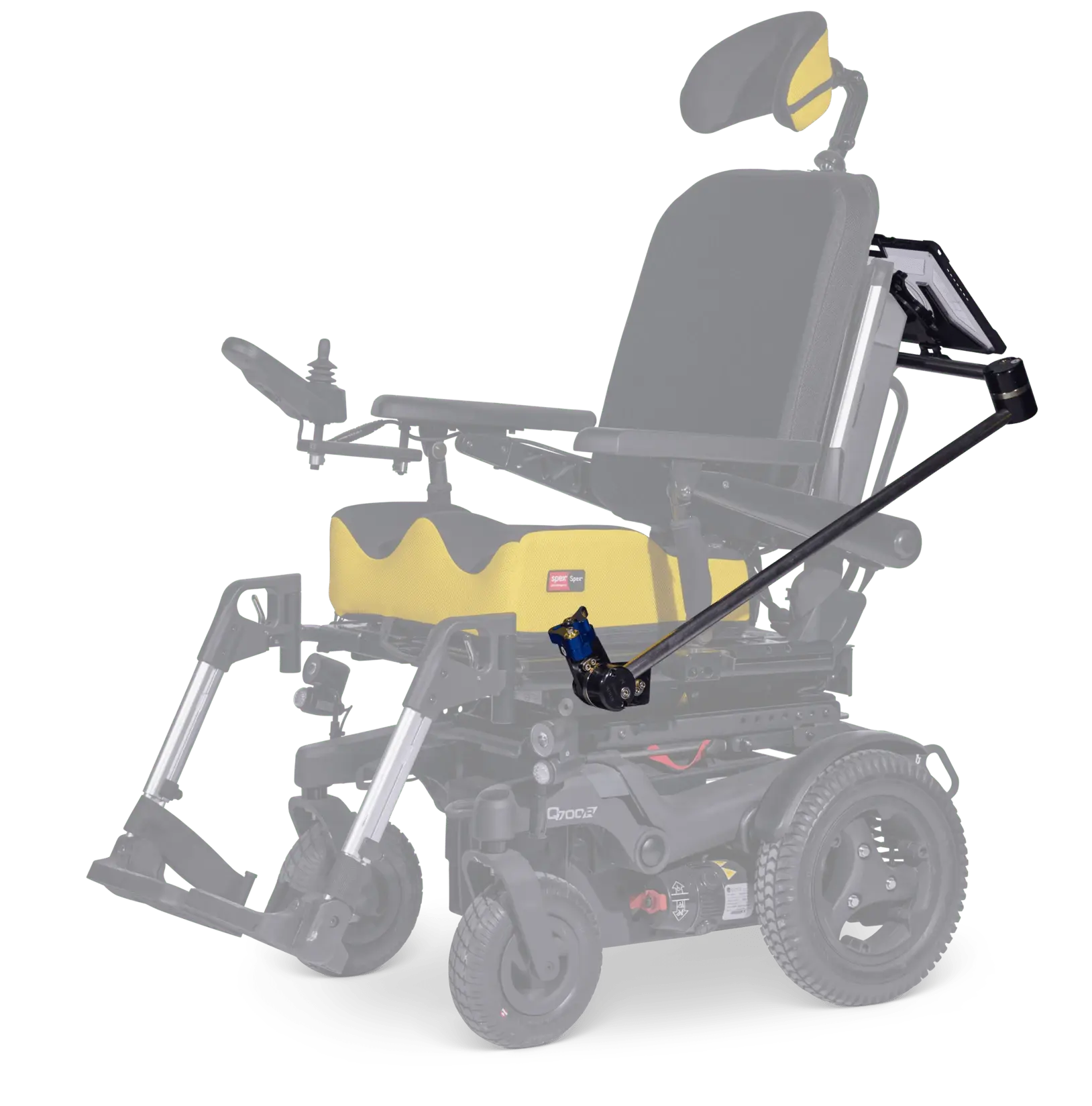

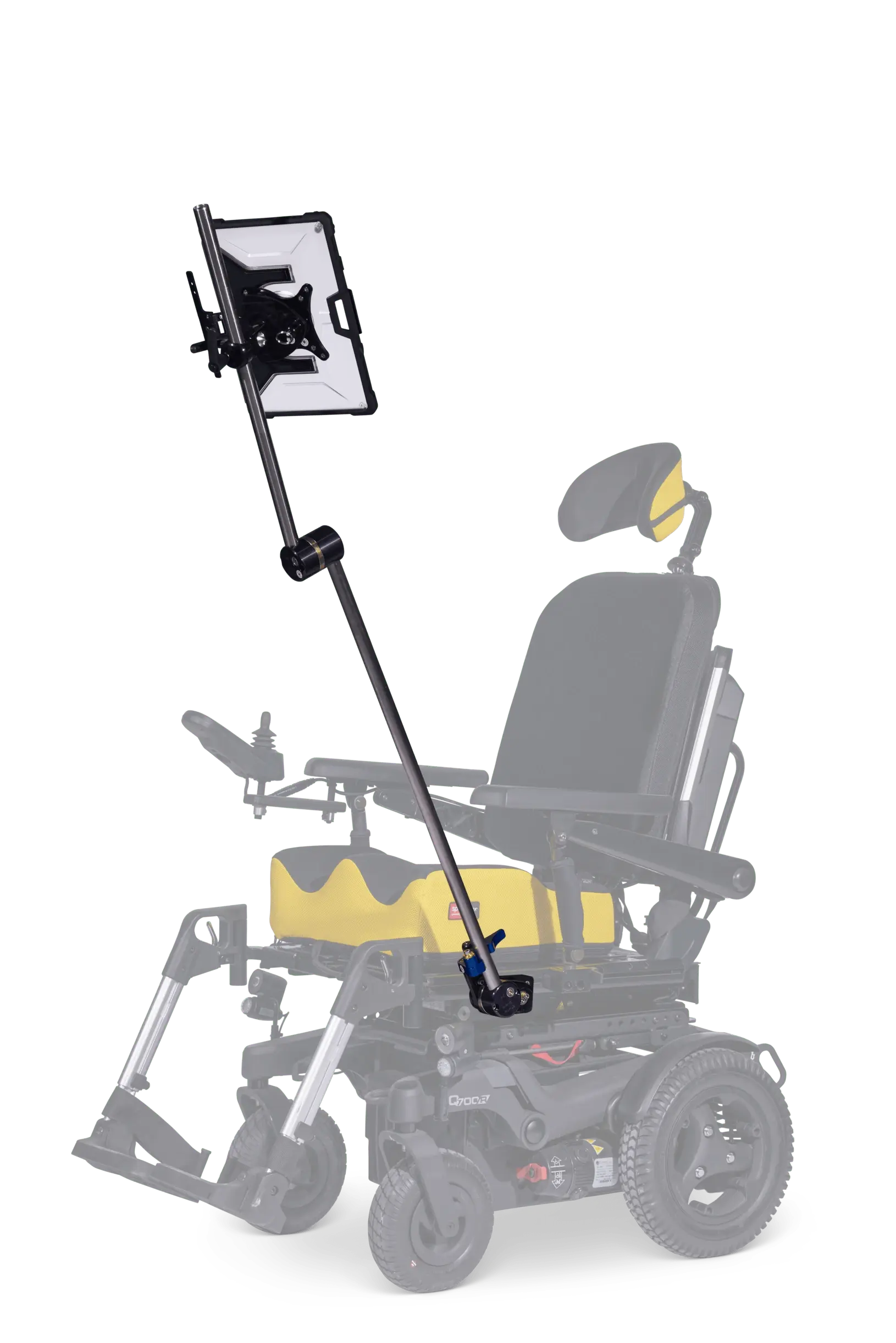

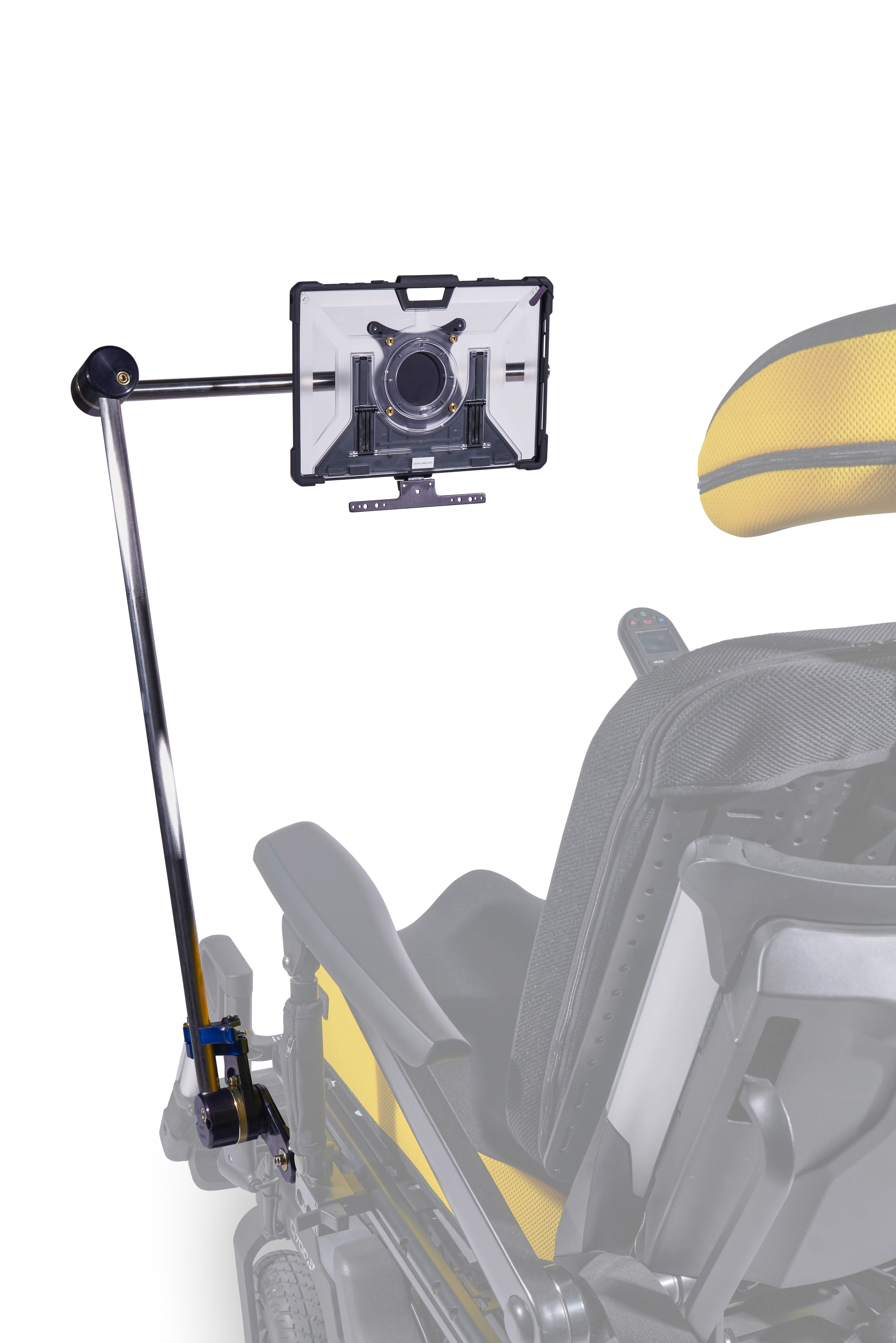

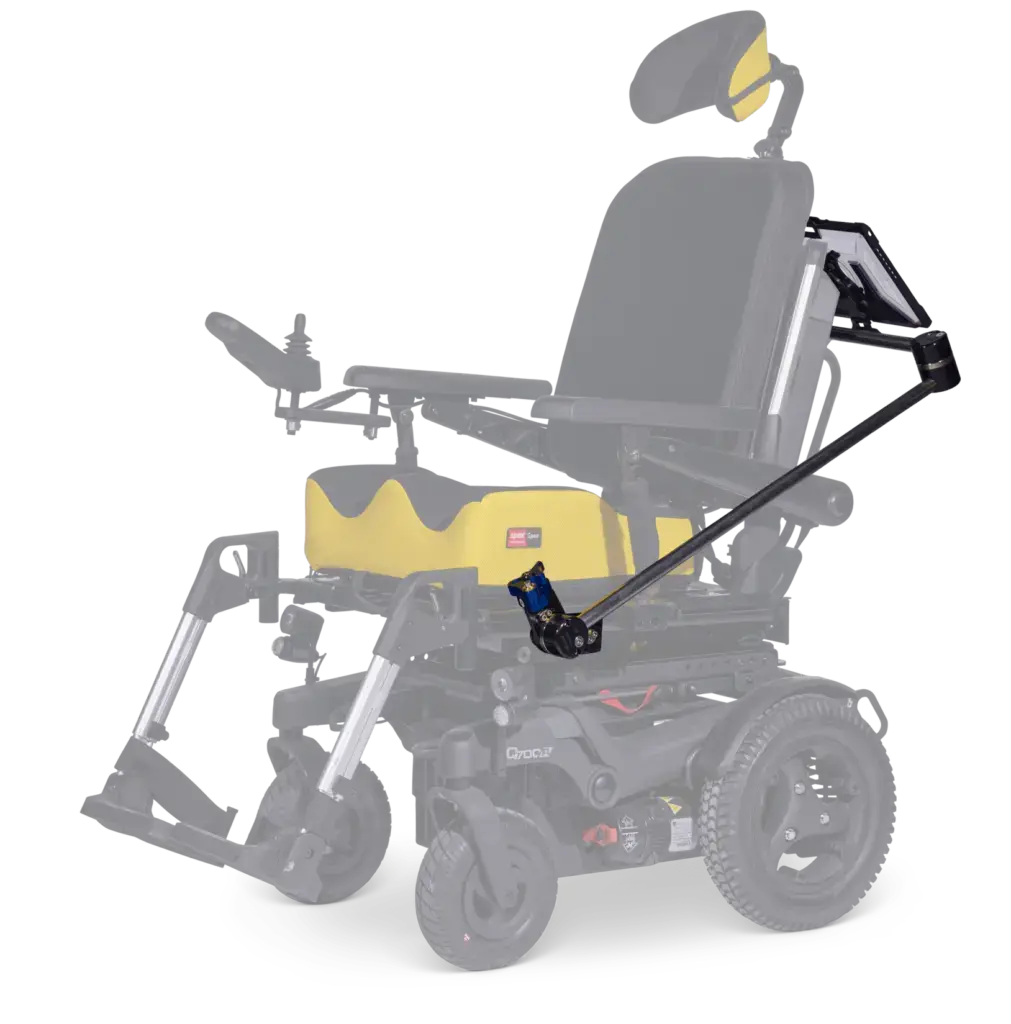

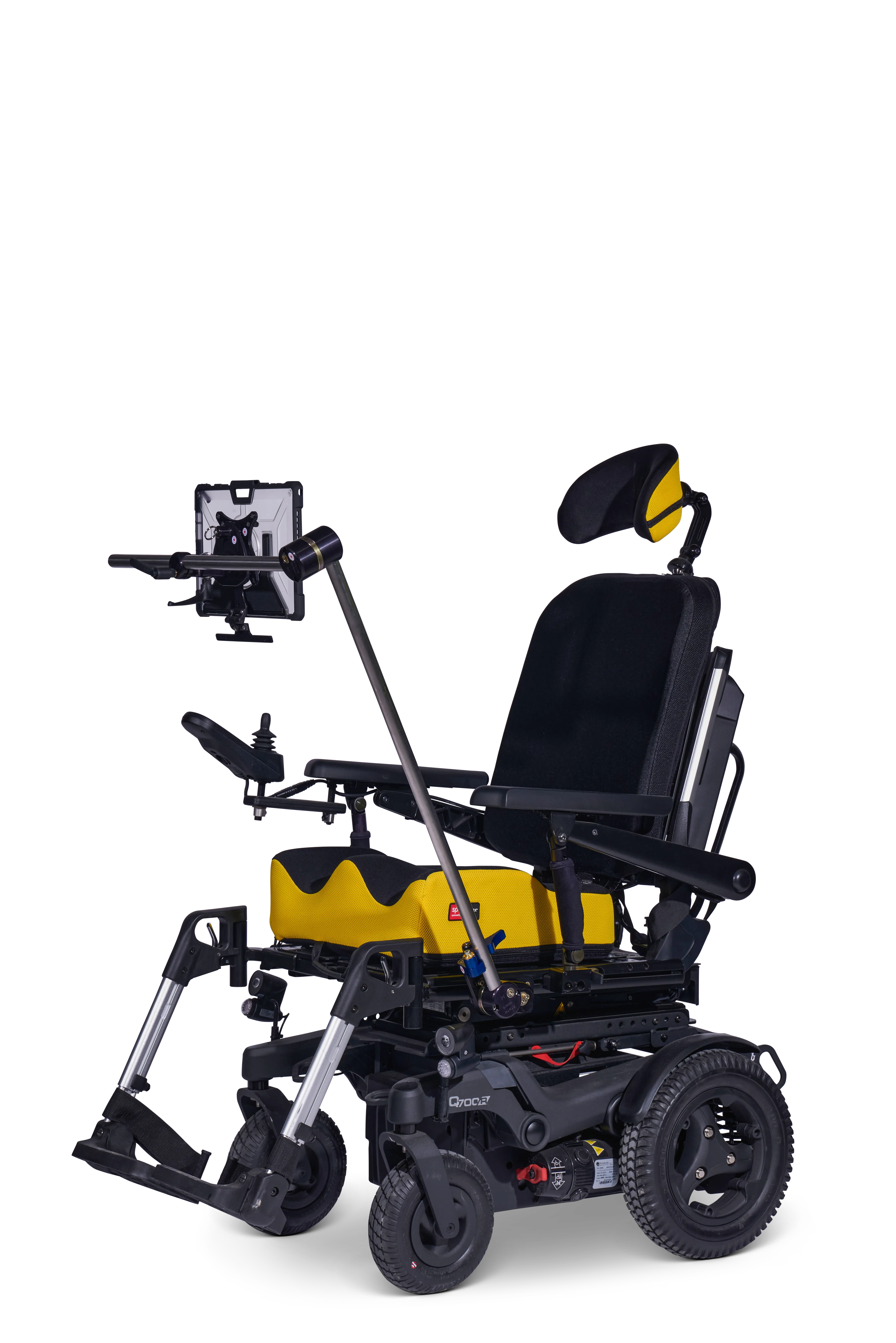

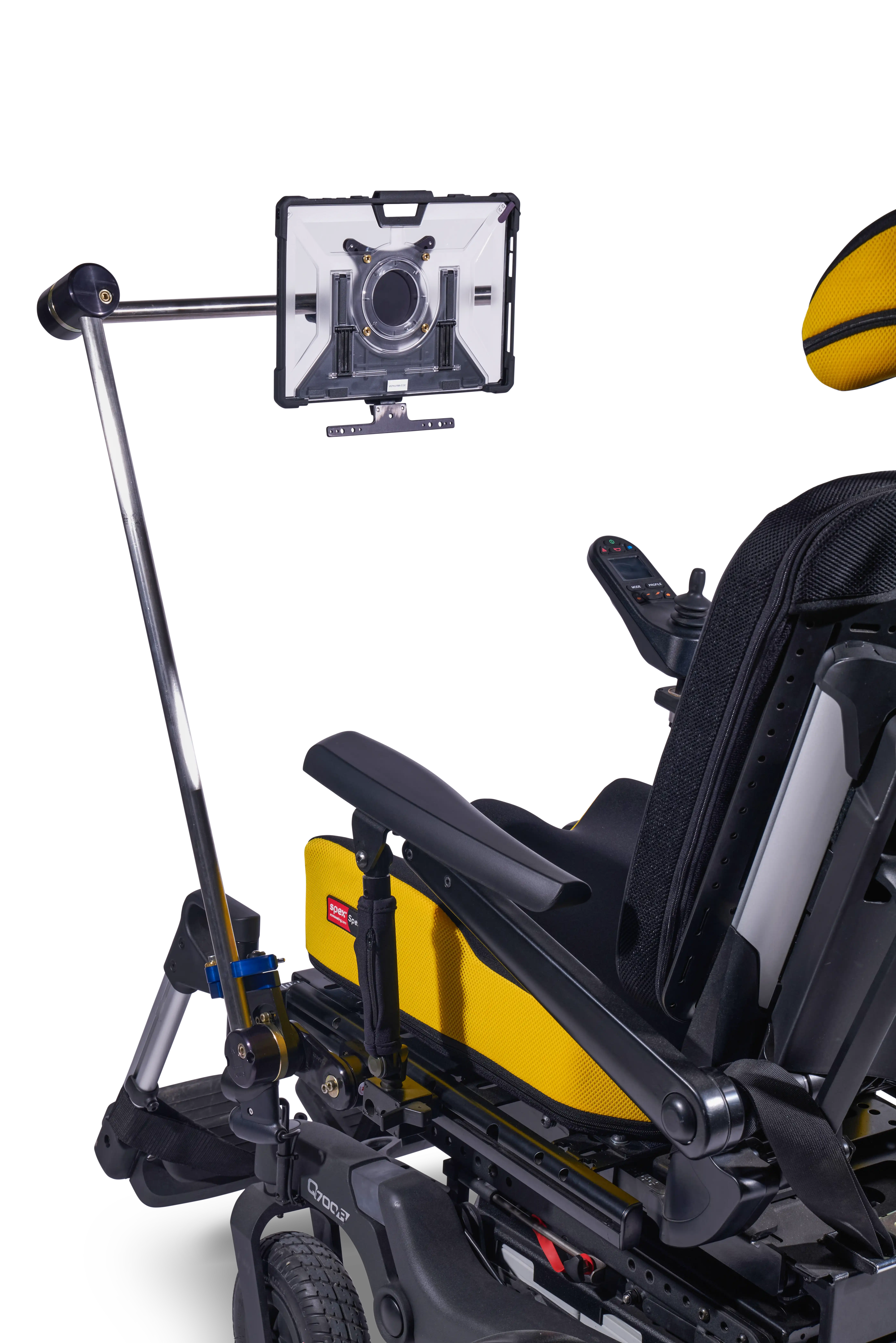

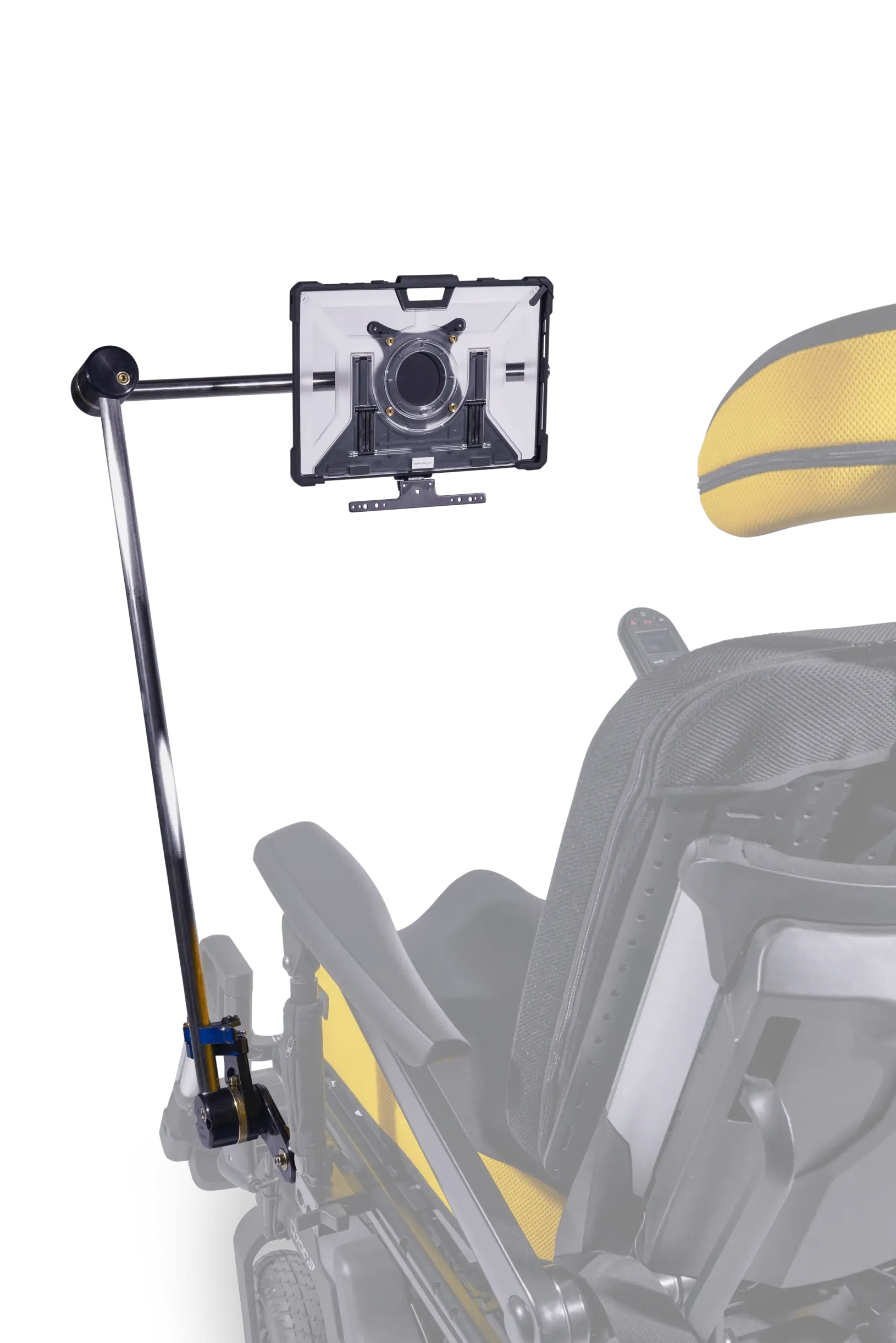

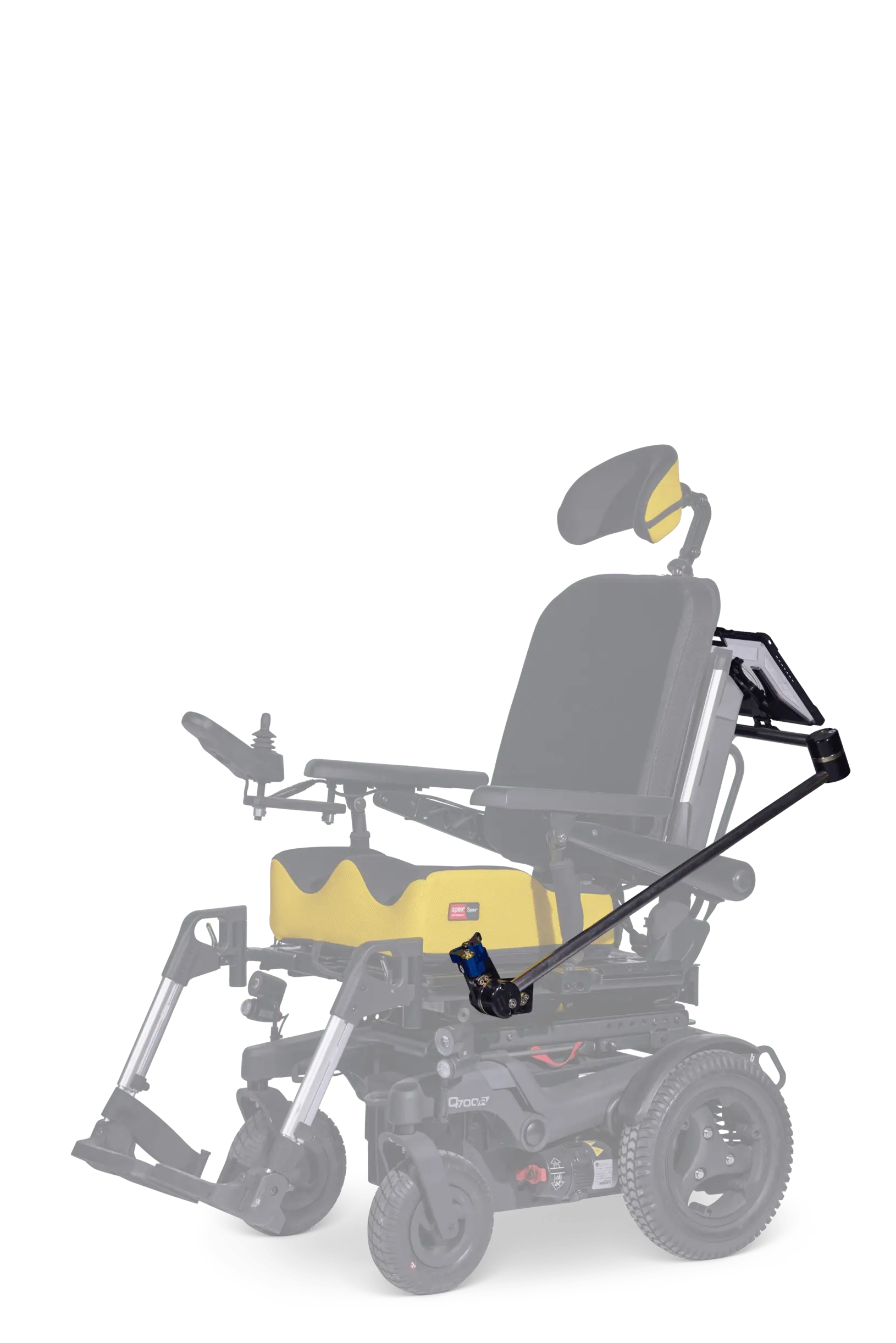

Daessy Rear Folding Mount or Lockable Rear Folding Mount folds from front to behind, protecting the device and remaining attached to the wheelchair. The Lock Mechanism allows this Mount assembly to be used with a tilting seat system. This set-up is directional and the attachment side of the wheelchair must be specified at the time of order to receive the correct Lock Mechanism.
The Rear Folding/Lockable Rear folding Mount for a manual wheelchair contains:
- Main Component: Elbow Rotate Head and Tube Mount
- Frame Clamp: Frame Clamp Inner Piece 1″ Round. (Refer to Spare Parts for other frame clamp options. Requires full access to the round tube)
- Standard Straight Tube 16″ Length 1/8″ OD
- Standard Straight Tube 22″ Length 1/8″ OD
Elbow Rotate Head and Tube Mount
This is a component of the Rear Folding Mount and the Lockable Rear Folding Mount. It provides the first rotation of the rearward folding sequence allowing the horizontal tube to be rotated up through 90°.
Product Code: 1611-0026-000
Frame Clamp Inner Piece 1″ Round (Standard)
Mounted at the lower portion of the side frame on wheelchair frame.
Product Code: 1611-9101-000
Standard Straight Tube 7/8″ OD
| Size | Code |
| 16″ Long | 1611-0093-000 |
| 22″ Long | 1611-0094-000 |
| 32″ Long | 1611-0200-000 |
The Rear Folding/Lockable Rear folding Mount for a power wheelchair contains:
- Main Component: Elbow Rotate Head and Tube Mount
- TNUT: Universal T-Nut/+Nut for Power Wheelchair Seat Rails. (Refer to Spare Parts for other TNUT options)
- Seat Rail Attachments: Multi-hole 2″ Inner Piece Adapter. (Refer to Spare Parts for other seat rail attachment options)
- Standard Straight Tube 16″ Length 1/8″ OD
- Standard Straight Tube 22″ Length 1/8″ OD
Elbow Rotate Head and Tube Mount
This is a component of the Rear Folding Mount and the Lockable Rear Folding Mount. It provides the first rotation of the rearward folding sequence allowing the horizontal tube to be rotated up through 90°.
Product Code: 1611-0026-000
Universal T-Nut/+Nut for Power
For wheelchair seat rails. Fits the Quickie Q series, Invacare TDX, Quantum.
Product Code: 1601-0020-M6SS
Multi-hole 2″ Small Inner Piece Adapter
The MH2 part has five countersunk 1/2″-spaced bolt holes and two rows of five 1/2″-spaced threaded holes.
Product Code: 1611-0049-000
Standard Straight Tube 7/8″ OD
| Size | Code |
| 16″ Long | 1611-0093-000 |
| 22″ Long | 1611-0094-000 |
| 32″ Long | 1611-0200-000 |
The Rear Folding/Lockable Rear folding Mount removable option contains:
- Removable Frame Clamp Receiver
- Removable Frame Clamp Insert
Removable Frame Clamp Receiver
The RFCR is used with the ROP or RFCI. This is recommended primarily on wheelchairs with a tilting seat system. It provides the receiver for the mount assembly and locking mechanism to secure the mount in place.
Product Code:1611-0071-000
Removable Frame Clamp Insert
Used with RFCR. The RFCI can be installed within the frame clamp assembly of a Rear Folding Mount or Lockable Rear Folding Mount to allow easy removal of the mount from the wheelchair.
The Rear Folding/Lockable Rear folding Mount non-lockable option contains:
- Rear Folding Adapter and Tube Mount.
Rear Folding Adapter and Tube Mount
The Rear Folding Adapter is the outermost component of the Frame Clamp Assembly for the Daessy Rear Folding Mount DRFM6. Rotating Tube Mount RTHTM holds the Side Tube of the DRFM6. Within the RFA are a series of holes and two adjustable Stop Pins that are set to control the forward and rearward limits of rotation of the Side Tube.
Product Code: 1611-0069-000
The Rear Folding/Lockable Rear folding Mount non-lockable option contains:
- Tube Mount with Lock Mechanism & Offset Link

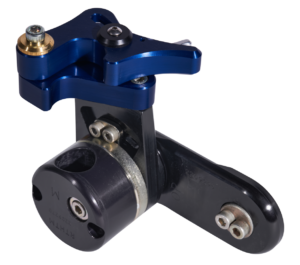

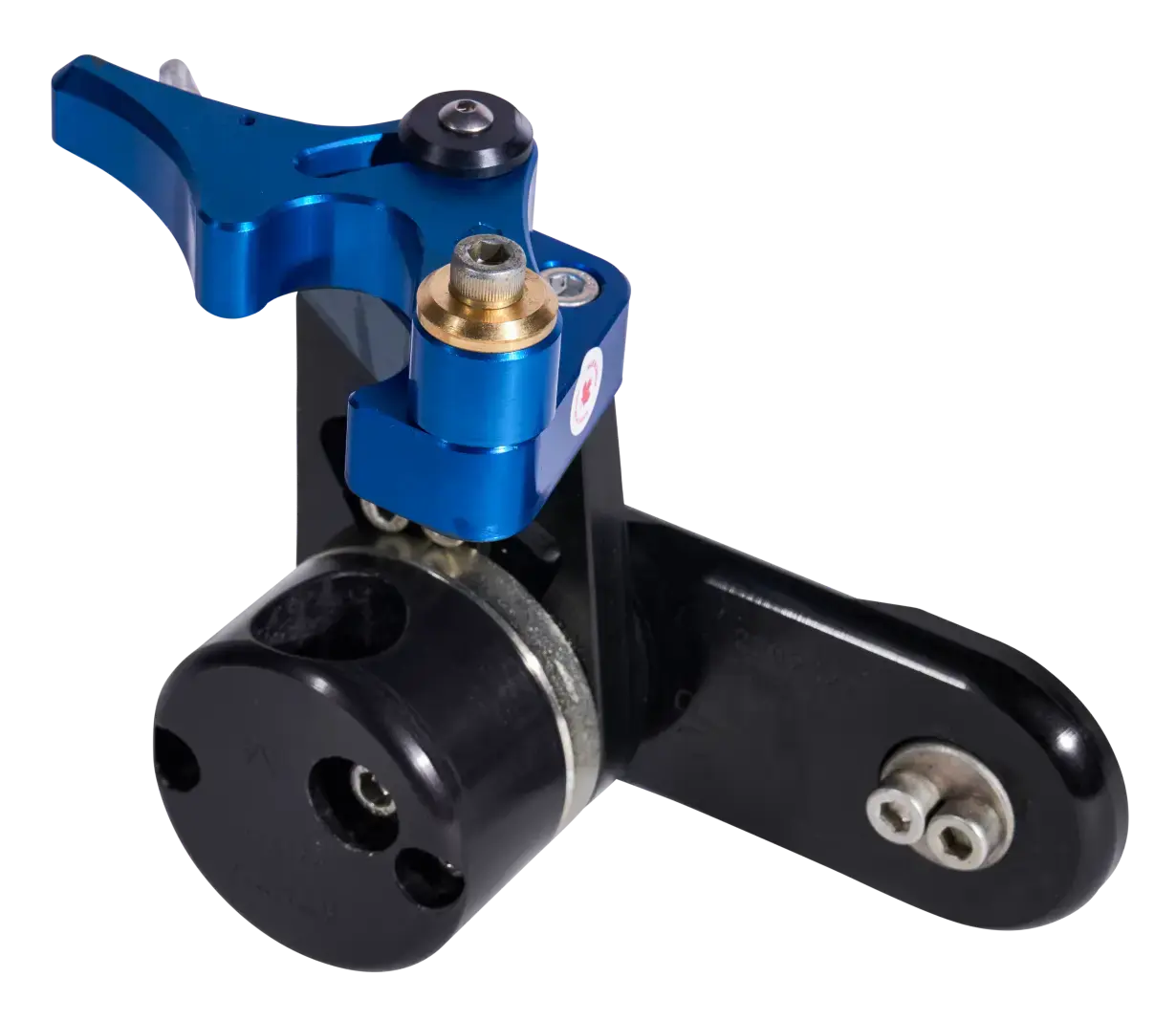

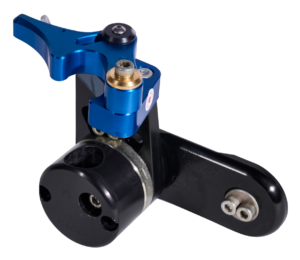

Tube Mount with Lock Mechanism & Offset Link
Attaches to the frame clamp assembly of the Lockable Rear Folding Mount DLRFM8 the Locking Rear Folding Adapter & Tube Mount holds the Side Tube and provides the rear folding motion of the folding sequence. The Lock Mechanism secures the mount in the forward position. This component is supplied with one Offset Link O3L.
| Right | 1611-0044-000 | |
| Left | 1611-0159-000 |  |
Daessy Folding Quick Release Base
The Folding Quick Release Base provides quick adjustment of the angle of the attached device by rotation around the horizontal tube and locking in 6 stop positions.This can be used with all of the mounting systems.
Product Code: 1611-0128-000
Daessy Rehadapt
Universal Device Socket with separate Quick Shift clamping of ball joint and tube fixation. Can be used with all of the mounting systems.
Product Code: 1611-9008-000
Daessy Offset Link
Offsets the Outer Piece 3″ away from the Frame Clamp Inner Piece. Suits a Swing-Aside Mount, Rear Folding/Lockable Rear Folding Mount and Positioner Mount
Product Code: 1611-0054-000
