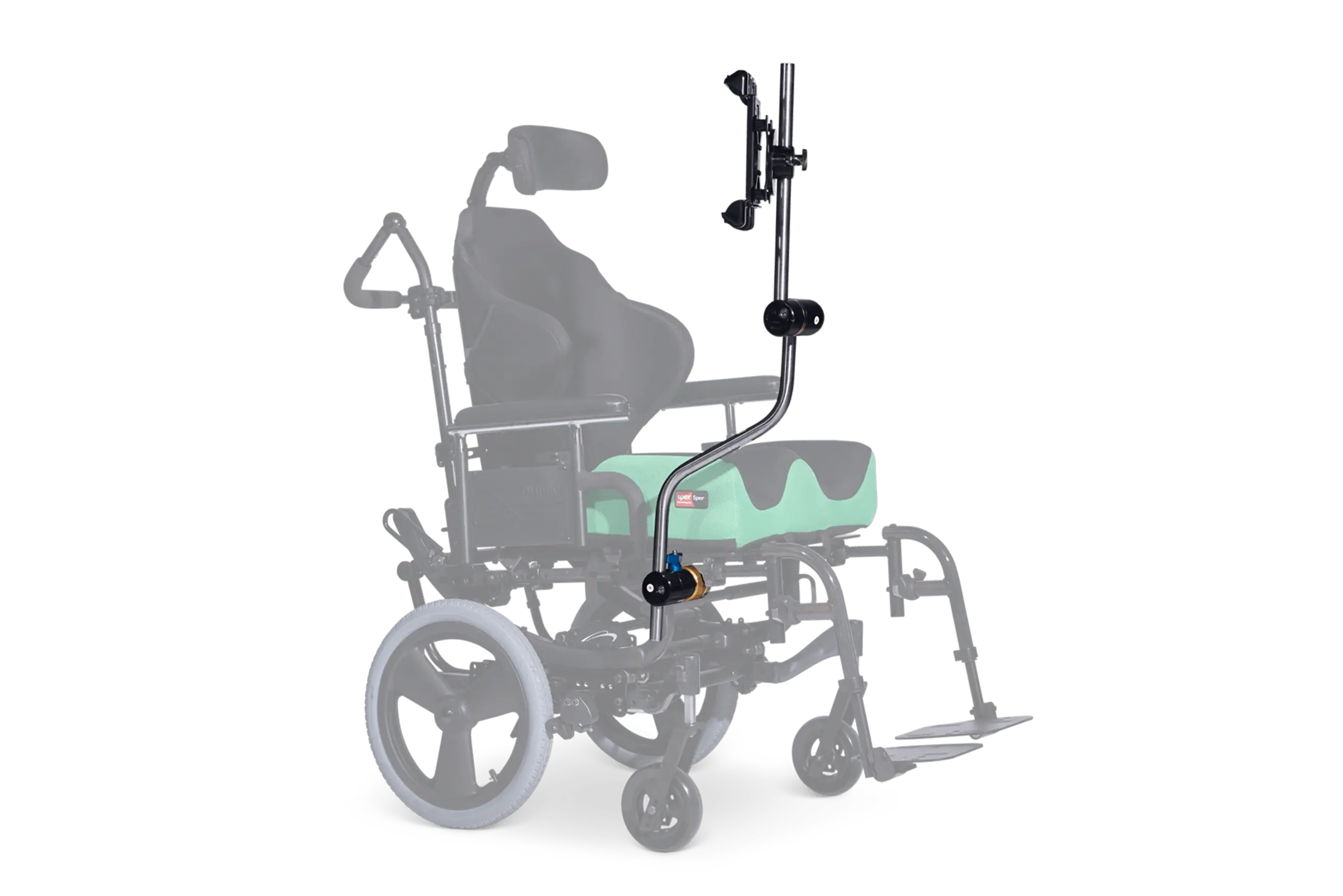

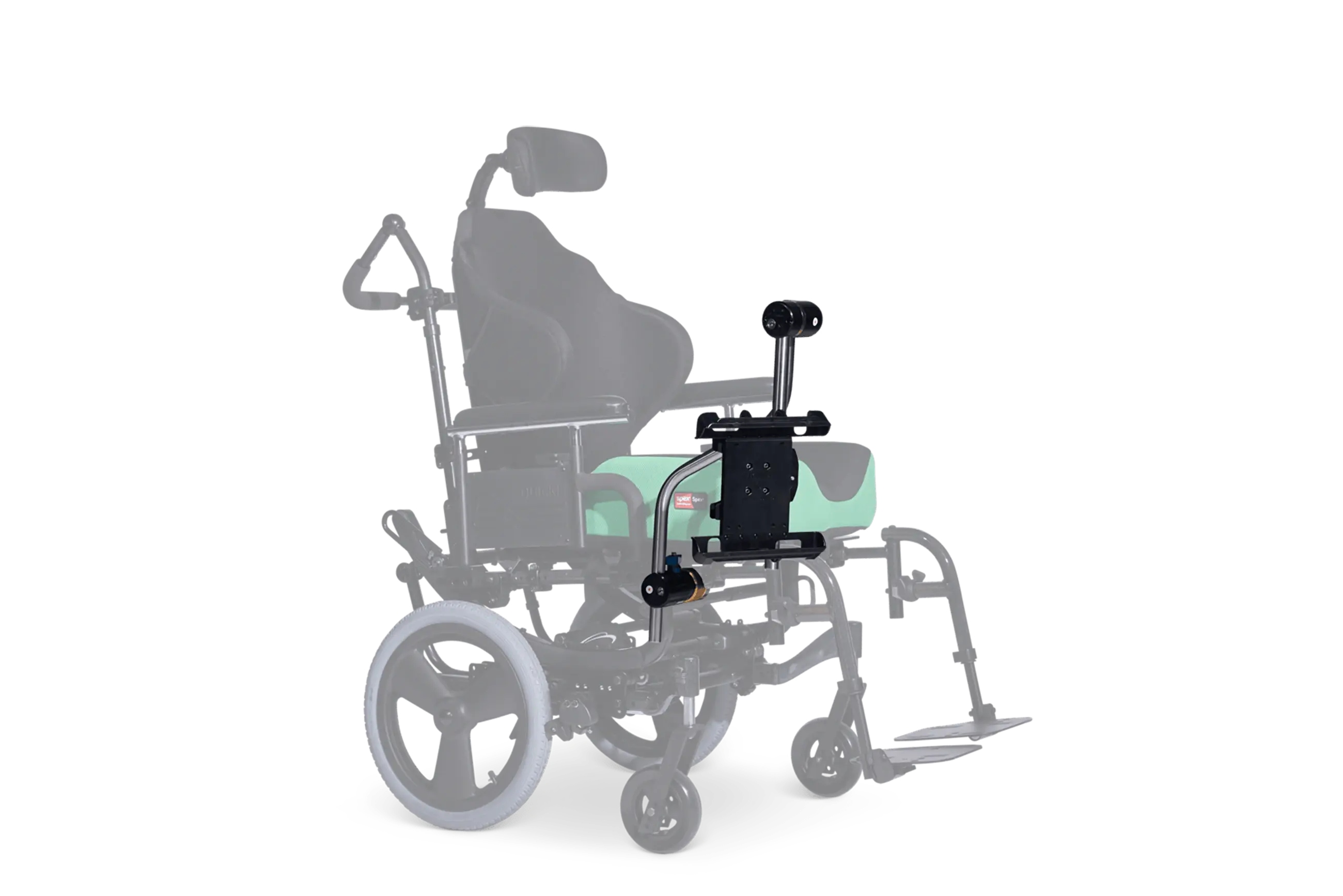

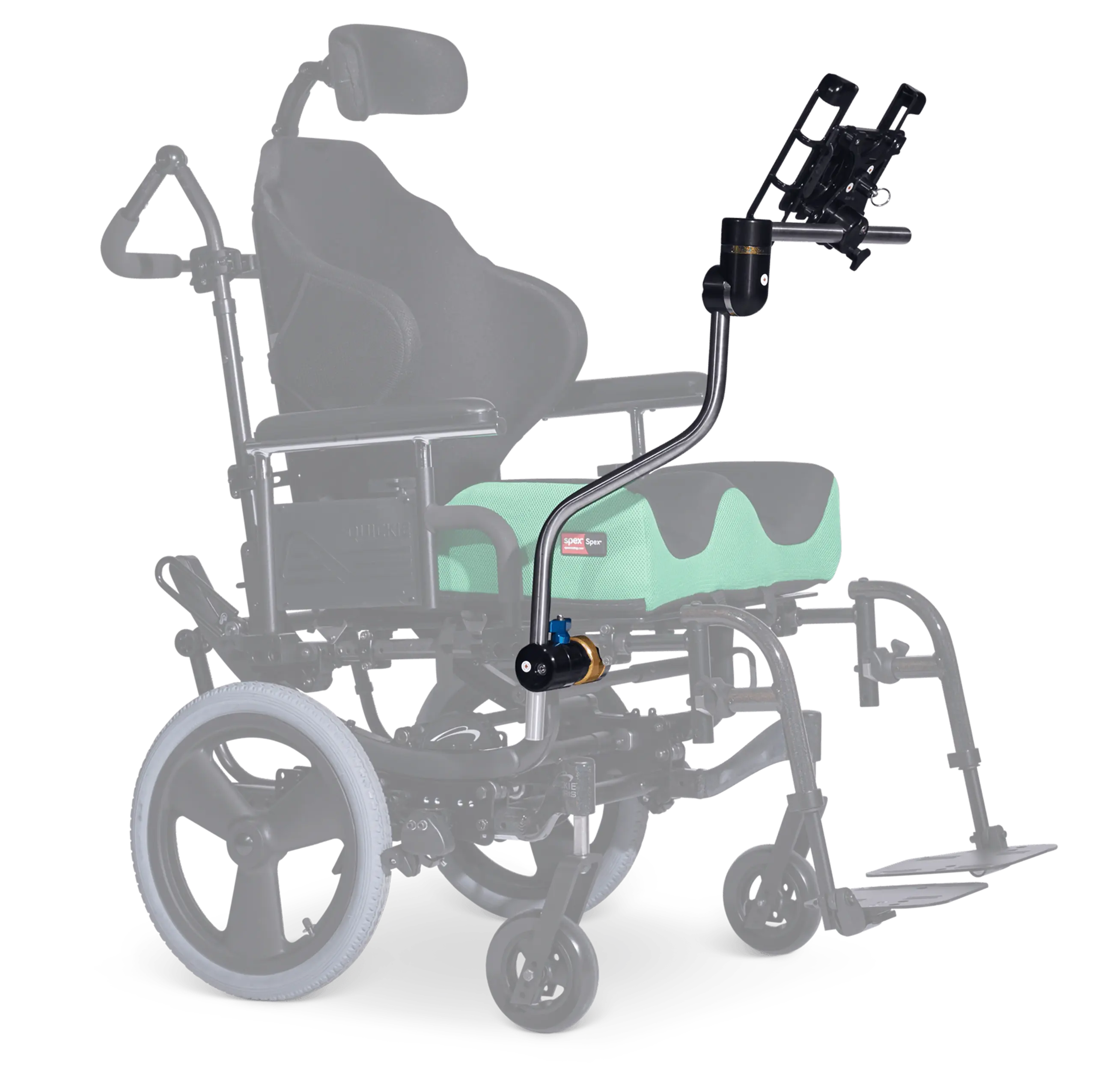

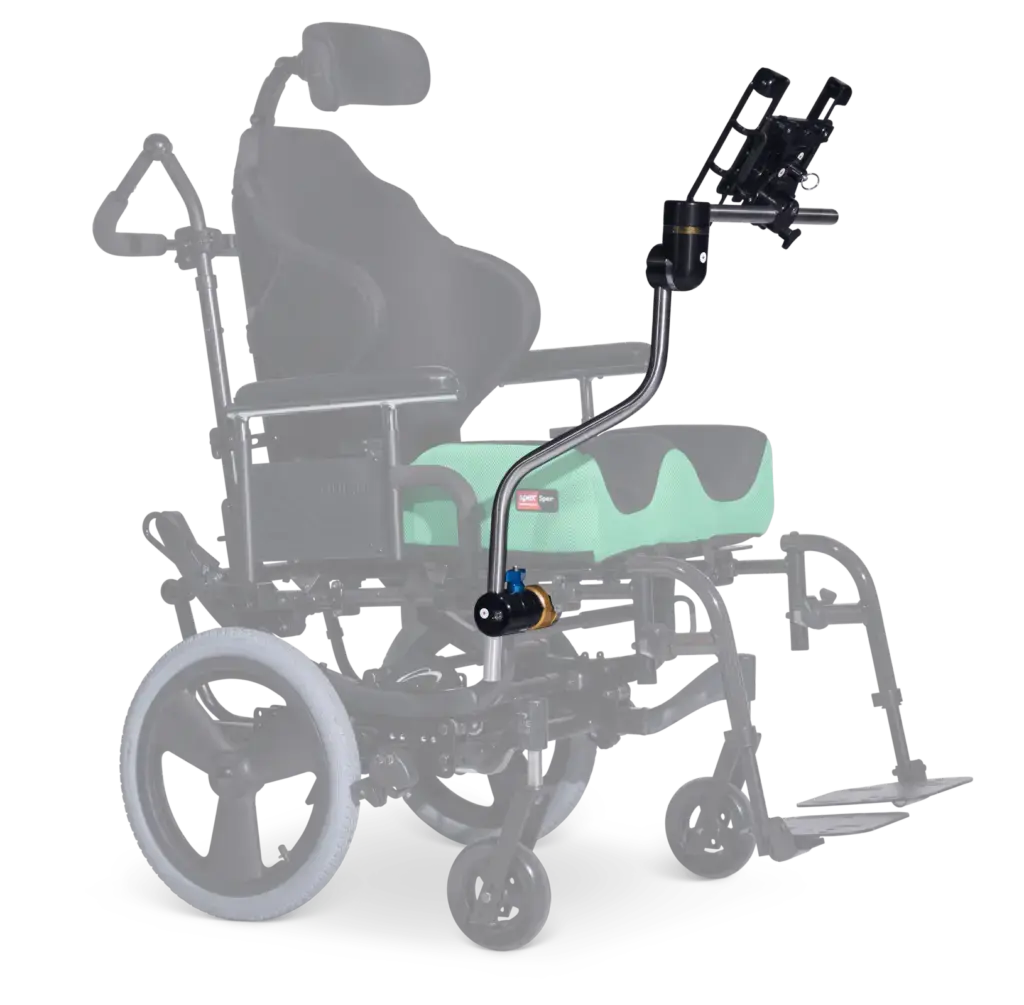

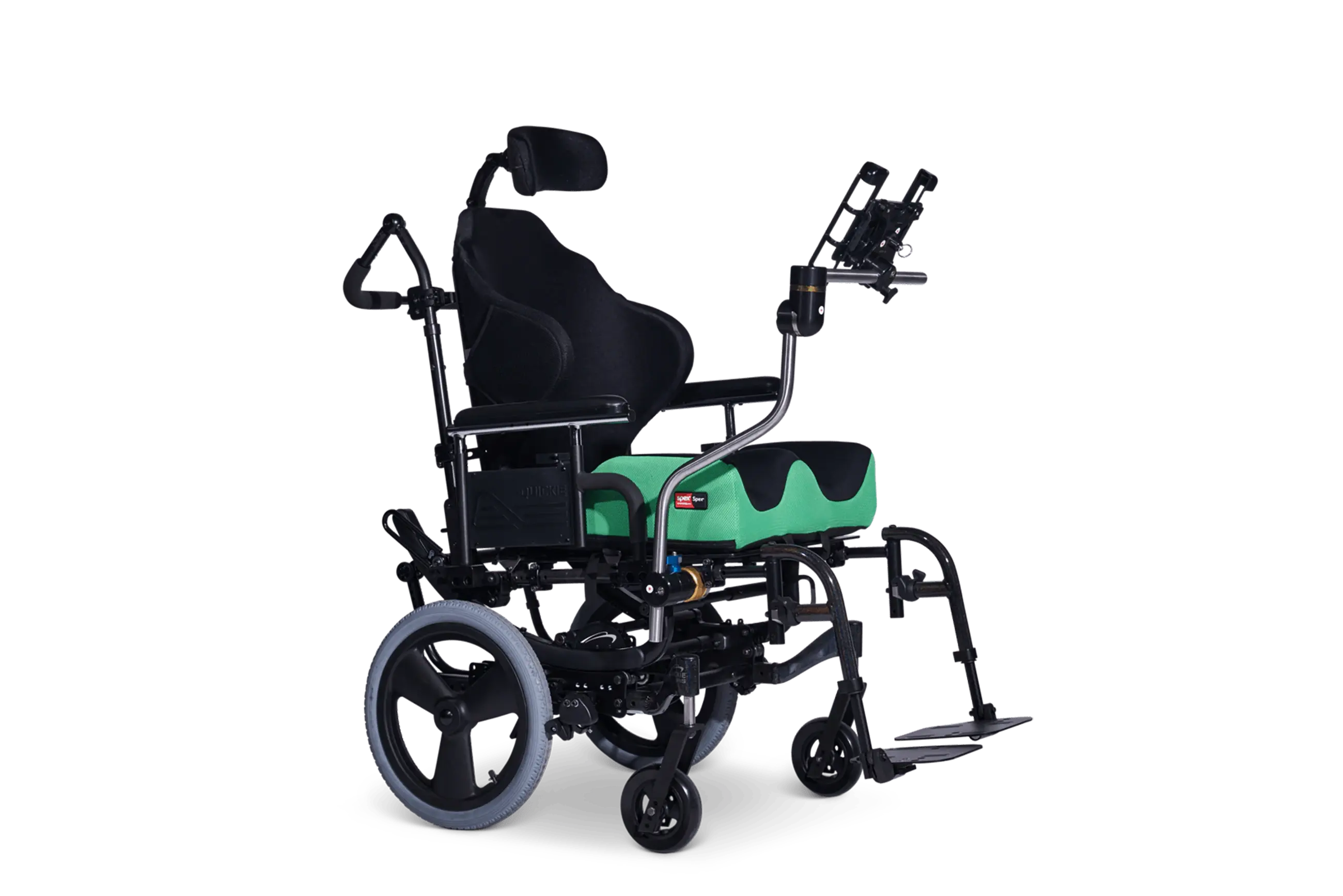

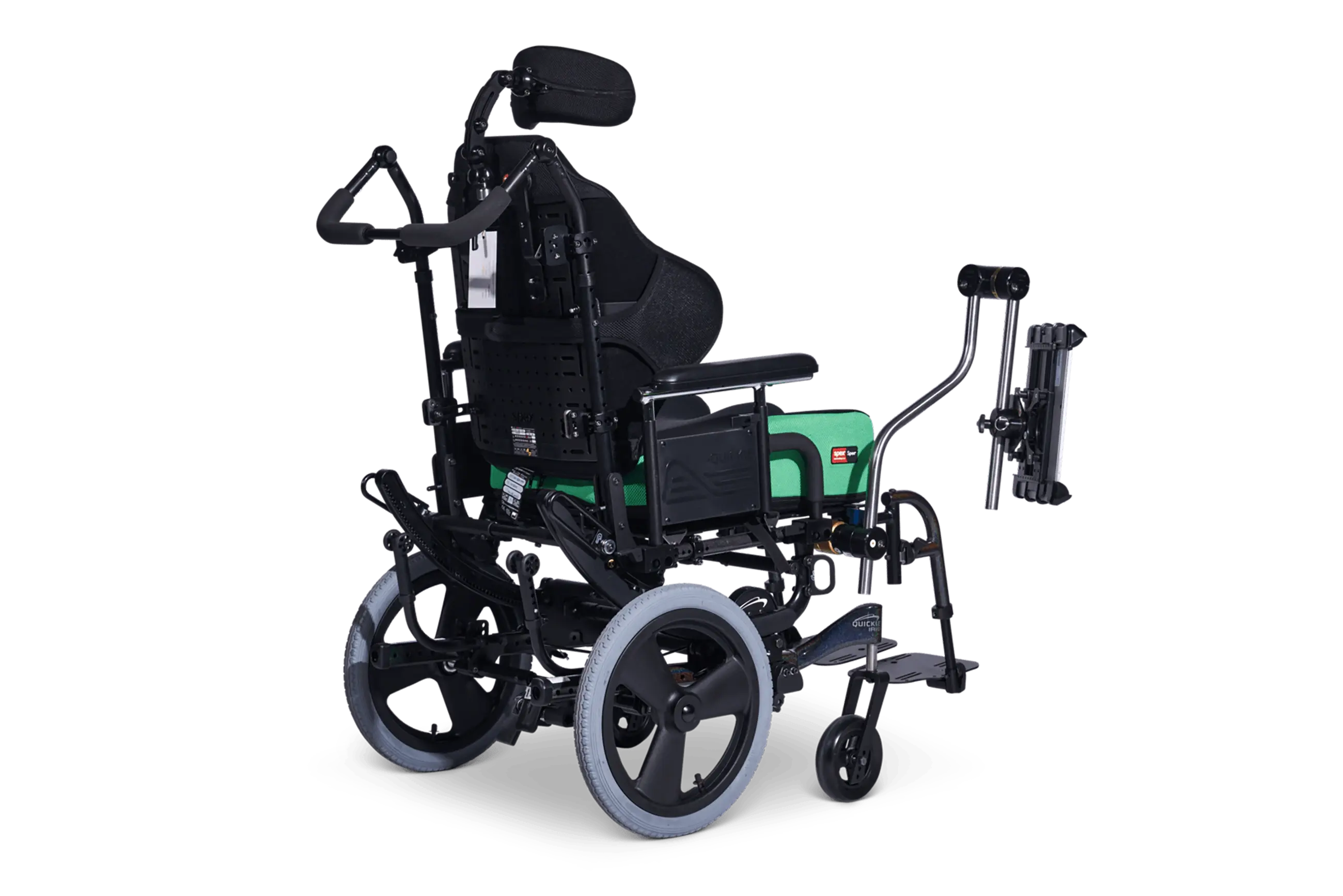

The Folding Mount can quickly and easily be removed from the wheelchair. It folds from in front, down to the side of the wheelchair. It consists of two lengths of stainless-steel tube joined by a folding mechanism. The horizontal tube can be lifted through an angle of 90° and rotated down 180° to place the horizontal tube and vertical tube parallel along the side of the wheelchair.
The Folding Mount for a manual wheelchair contains:
- Main Component: Folding Mechanism with tube mounts
- Frame Clamp: Frame Clamp Inner Piece 1″ Round. (Refer to Spare Parts for other frame clamp options. Requires full access to the round tube)
- S-Bend Tube: Standard S-Bend Tube 22″ length x 3″ offset. (Refer to Spare Parts for other S-Bend Tube sizes or custom tubes)
- Standard Straight Tube 16″ Length 7/8″ OD

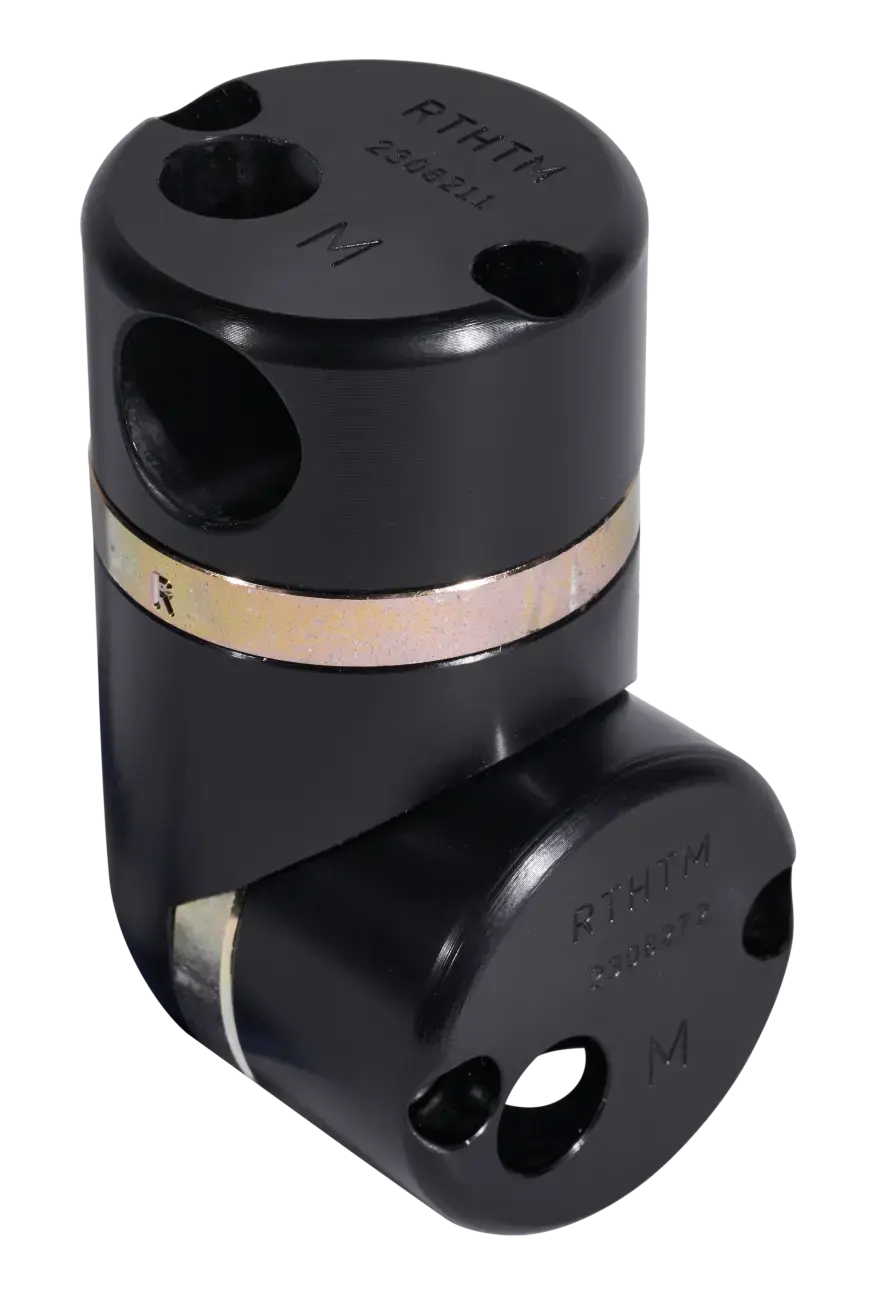

Side Folding Mechanism
The Folding Mechanism with 2 Tube Mounts connects the vertical and horizontal tubes of the Folding Mount.
Product Code: 1611-0078-000
Frame Clamp Inner Piece 1″ Round (Standard)
Mounted at the lower portion of the side frame on wheelchair frame.
Product Code: 1611-9101-000

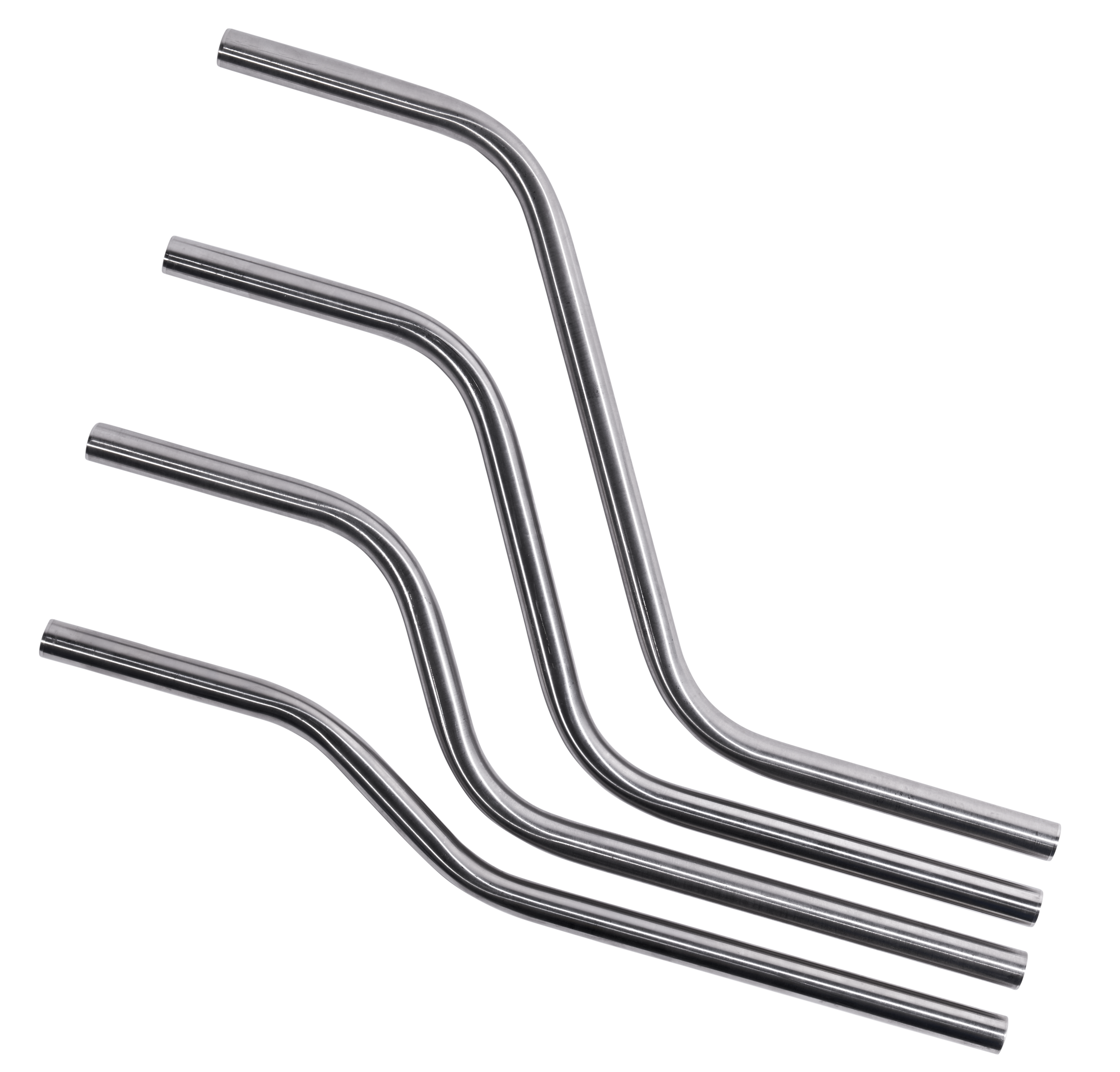

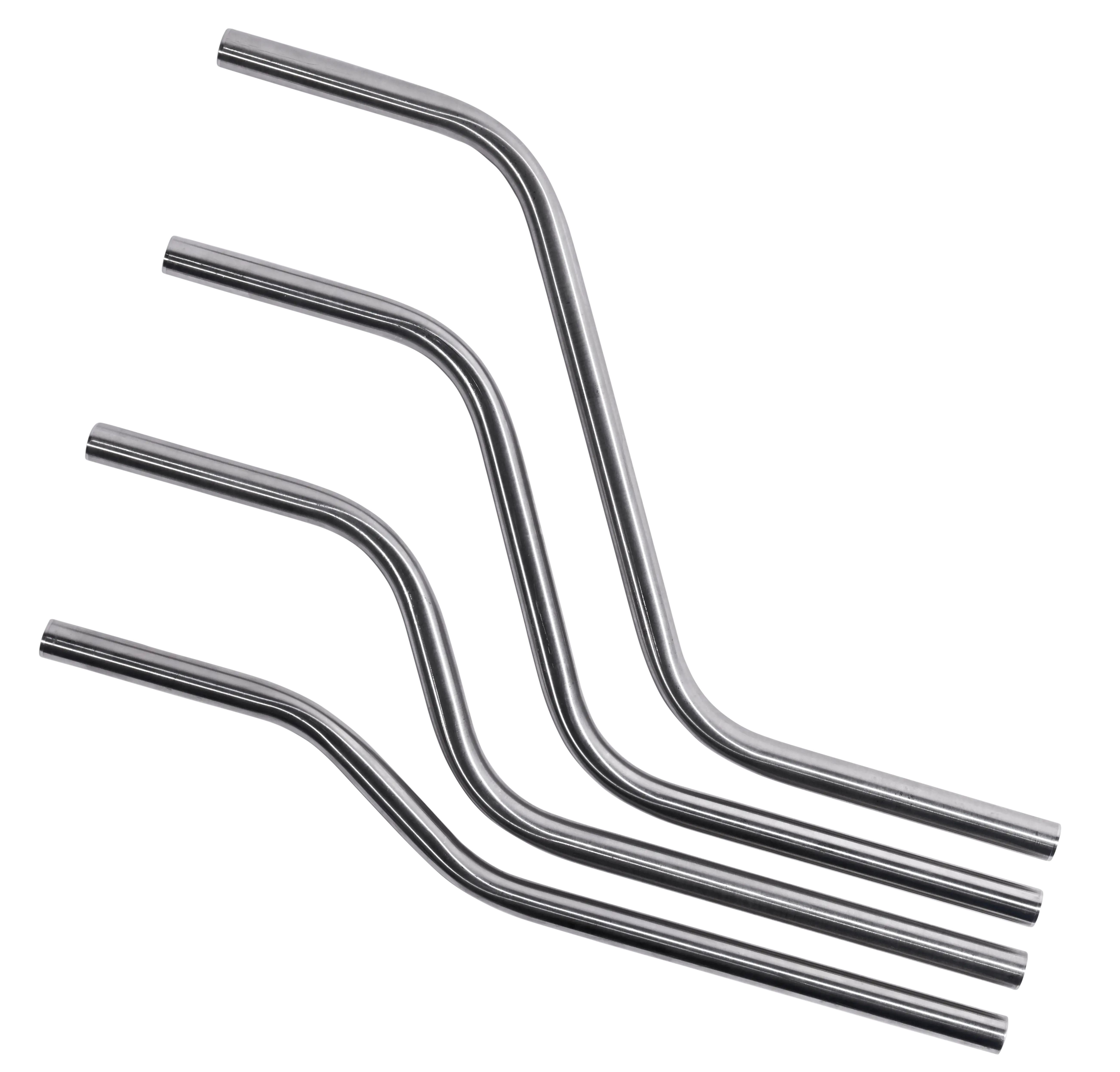

Daessy S-Bend Tubes
The S-Bend Tube is a length of stainless-steel tube with closely placed bends that produce an offset between the ends of the tube. This is used with the Rigid Mount and the Folding Mount to set the vertical height and front-to-back horizontal position of the Horizontal Tube and attached device or laptop. It can also be used to set the sideways position of the connection between the Side Tube and Horizontal Tube when there are obstructions on the wheelchair that the mount has to pass
around. The 7/8″ Stainless Steel tube is available in a standard lengths and shapes. All tube-ends are machined to remove sharp edges. The ends of the stainlesssteel tube provided by Daedalus Technologies, Inc. are fully machined and chamfered to minimize sharp edges. We strongly disapprove of the tube being cut to length by purchasers. Cutting the stainless-steel tube by any method produces very sharp and hazardous edges.
| Size | Code |
| 22 x 12 mm | 1611-0214-000 |
| 22 x 9 mm | 1611-0218-000 |
| 22 x 6 mm | 1611-9033-000 |
| 22 x 3 mm | 1611-9064-000 |

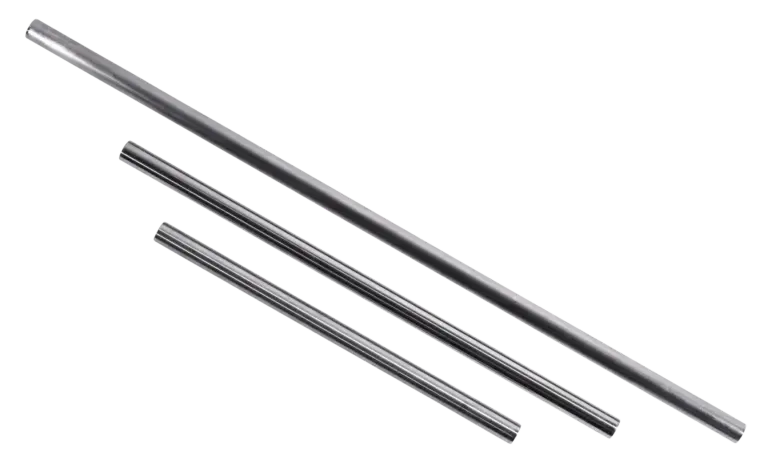

Standard Straight Tube 7/8″ OD
| Size | Code |
| 16″ Long | 1611-0093-000 |
| 22″ Long | 1611-0094-000 |
| 32″ Long | 1611-0200-000 |
The Folding Mount for a power wheelchair contains:
- Main Component: Folding Mechanism with tube mounts
- TNUT: Universal T-Nut/+Nut for Power Wheelchair Seat Rails. (Refer to Spare Parts for other TNUT options)
- Seat rail attachment options: Multi-hole 2″ Inner Piece Adapter (Refer to Spare Parts for other seat rail attachment options)
- S-Bend Tube: Standard S-Bend Tube 22″ length x 3″ offset. (Refer to Spare Parts for other S-Bend Tube sizes or custom tubes)
- Standard Straight Tube 16″ Length 7/8″ OD
Side Folding Mechanism
The Folding Mechanism with 2 Tube Mounts connects the vertical and horizontal tubes of the Folding Mount.
Product Code: 1611-0078-000

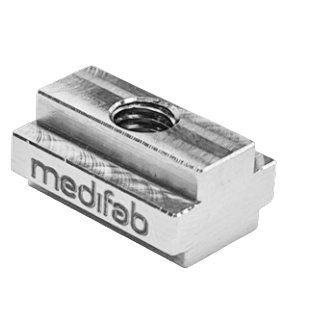

Universal T-Nut/+Nut for Power
For wheelchair seat rails. Fits the Quickie Q series, Invacare TDX, Quantum.
Product Code: 1601-0020-M6SS

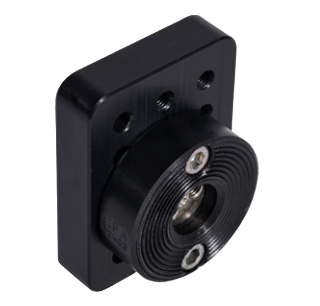

Multi-hole 2″ Small Inner Piece Adapter
The MH2 part has five countersunk 1/2″-spaced bolt holes and two rows of five 1/2″-spaced threaded holes.
Product Code: 1611-0049-000
Daessy S-Bend Tubes
The S-Bend Tube is a length of stainless-steel tube with closely placed bends that produce an offset between the ends of the tube. This is used with the Rigid Mount and the Folding Mount to set the vertical height and front-to-back horizontal position of the Horizontal Tube and attached device or laptop. It can also be used to set the sideways position of the connection between the Side Tube and Horizontal Tube when there are obstructions on the wheelchair that the mount has to pass
around. The 7/8″ Stainless Steel tube is available in a standard lengths and shapes. All tube-ends are machined to remove sharp edges. The ends of the stainlesssteel tube provided by Daedalus Technologies, Inc. are fully machined and chamfered to minimize sharp edges. We strongly disapprove of the tube being cut to length by purchasers. Cutting the stainless-steel tube by any method produces very sharp and hazardous edges.
| Size | Code |
| 22 x 12 mm | 1611-0214-000 |
| 22 x 9 mm | 1611-0218-000 |
| 22 x 6 mm | 1611-9033-000 |
| 22 x 3 mm | 1611-9064-000 |
Standard Straight Tube 7/8″ OD
| Size | Code |
| 16″ Long | 1611-0093-000 |
| 22″ Long | 1611-0094-000 |
| 32″ Long | 1611-0200-000 |
The Folding Mount for a fixed wheelchair contains:
- Frame Clamp Outer Piece
- Index Clamp
Frame Clamp Outer Piece
The Frame Clamp Outer Piece is connected to the Frame Clamp Inner Piece with a Swivel Clamp. The Swivel clamp bolts are accessed through the long axial hole in the UFCOP. This is not recommended for Wheelchairs with Tilting Function.
Product Code: 1611-0122-000

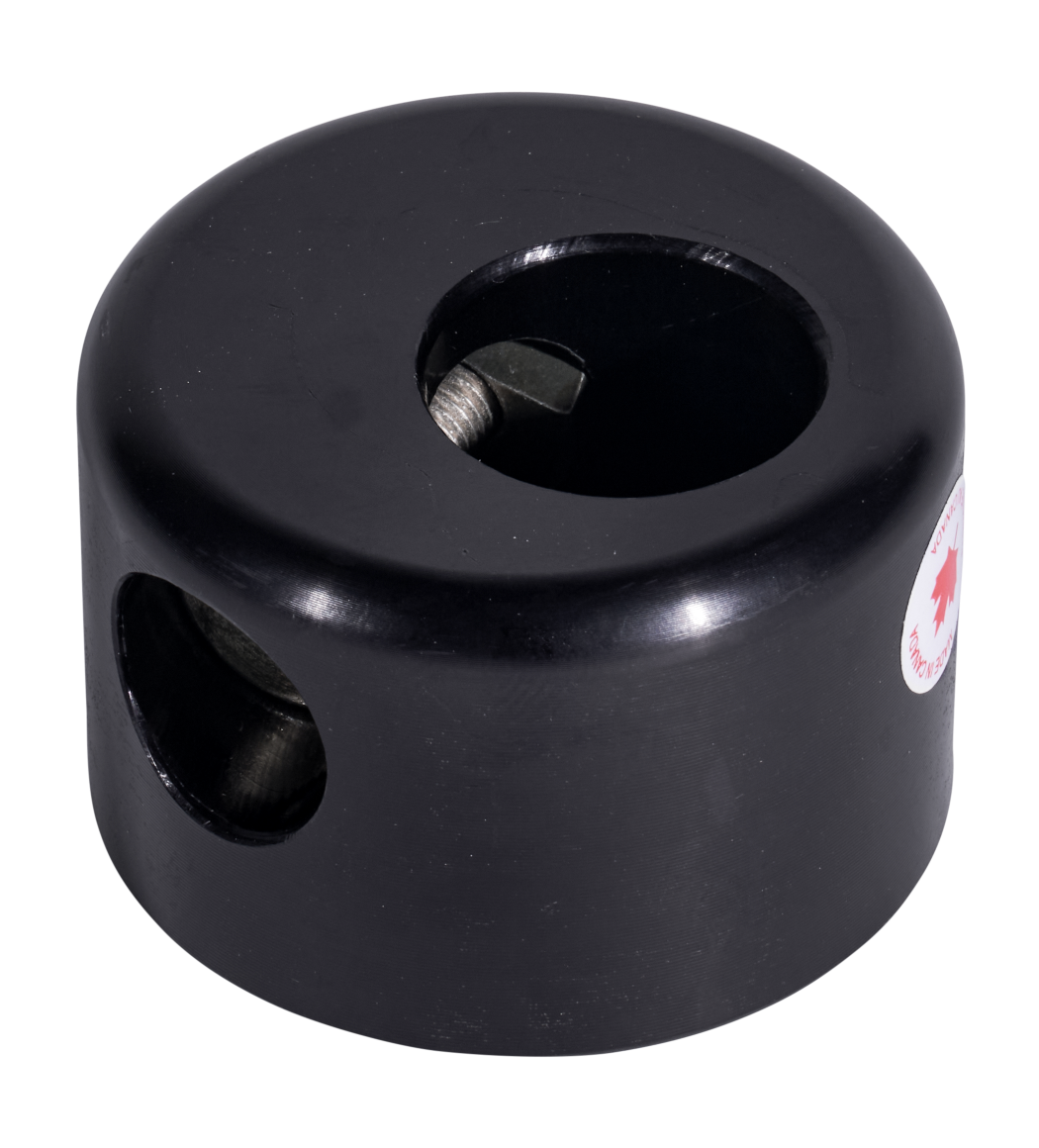

Index Clamp
This component is attached to the lower end of the vertical tube of the mount and connects with the Basic Frame Clamp Outer Piece UFCOP attached to the wheelchair by docking with the raised pin on the UFCOP.
Product Code: 1611-0034-000
The Folding Mount for a fixed wheelchair contains:
- Removable Frame Clamp Receiver
- Removable Outer Piece
Removable Frame Clamp Receiver
The RFCR is used with the ROP or RFCI. This is recommended primarily on wheelchairs with a tilting seat system. It provides the receiver for the mount assembly and locking mechanism to secure the mount in place.
Product Code:1611-0071-000

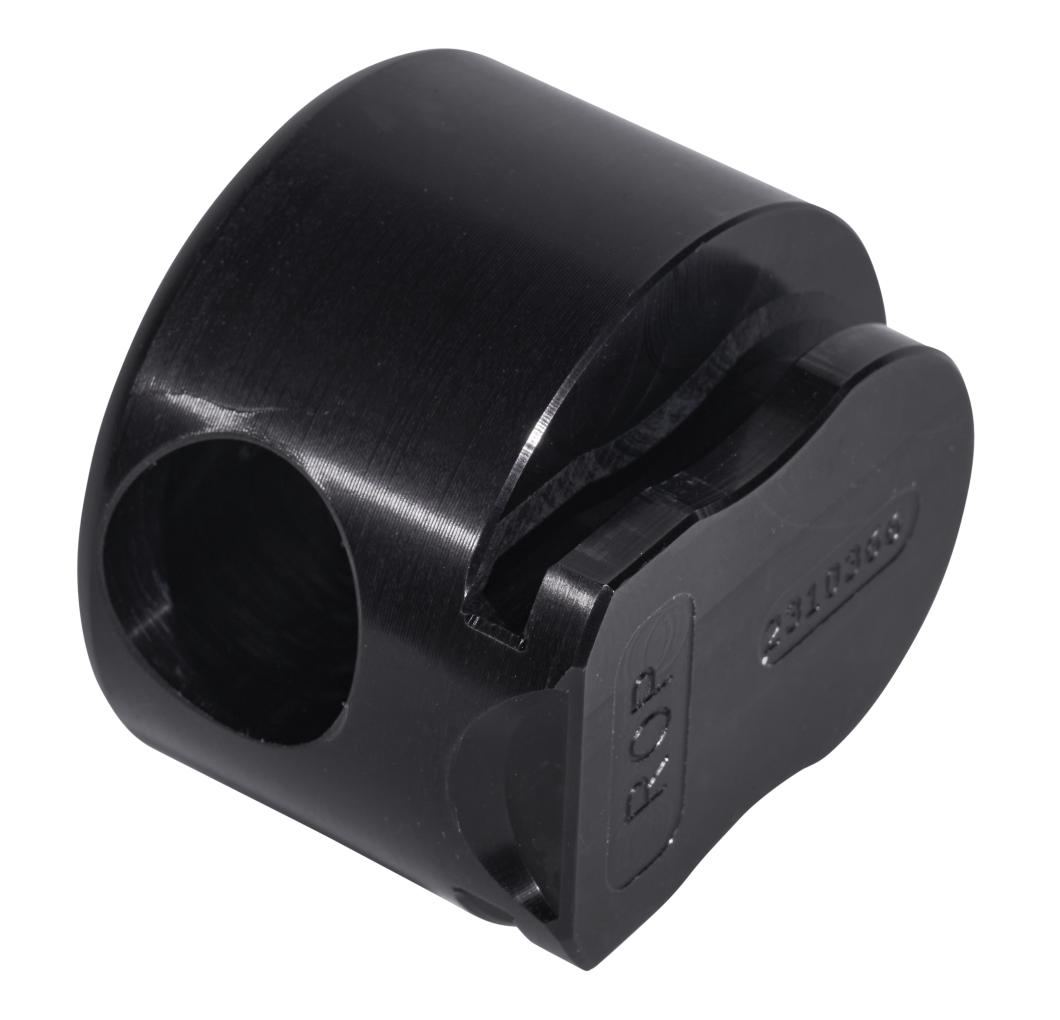

Removable Outer Piece Connector
The ROP is used with the RFCR. The ROP is installed onto the vertical tube of the mount assembly and provides positioning and height adjustment. It allows the mount assembly to be attached to any location when the RFCR is installed.
Product Code: 1611-0076-000

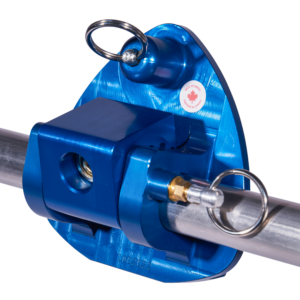

Daessy Folding Quick Release Base
The Folding Quick Release Base provides quick adjustment of the angle of the attached device by rotation around the horizontal tube and locking in 6 stop positions.This can be used with all of the mounting systems.
Product Code: 1611-0128-000

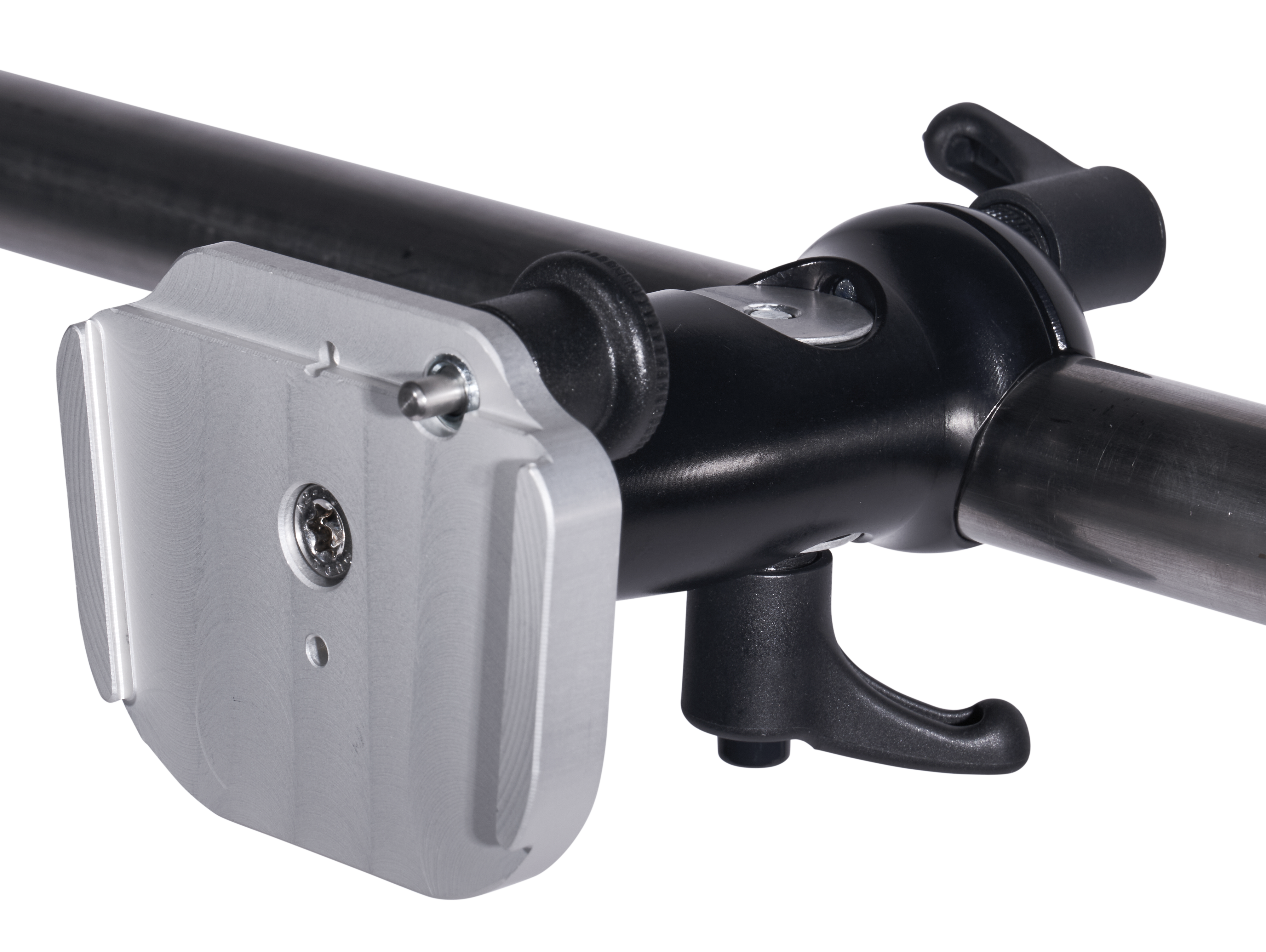

Daessy Rehadapt
Universal Device Socket with separate Quick Shift clamping of ball joint and tube fixation. Can be used with all of the mounting systems.
Product Code: 1611-9008-000
