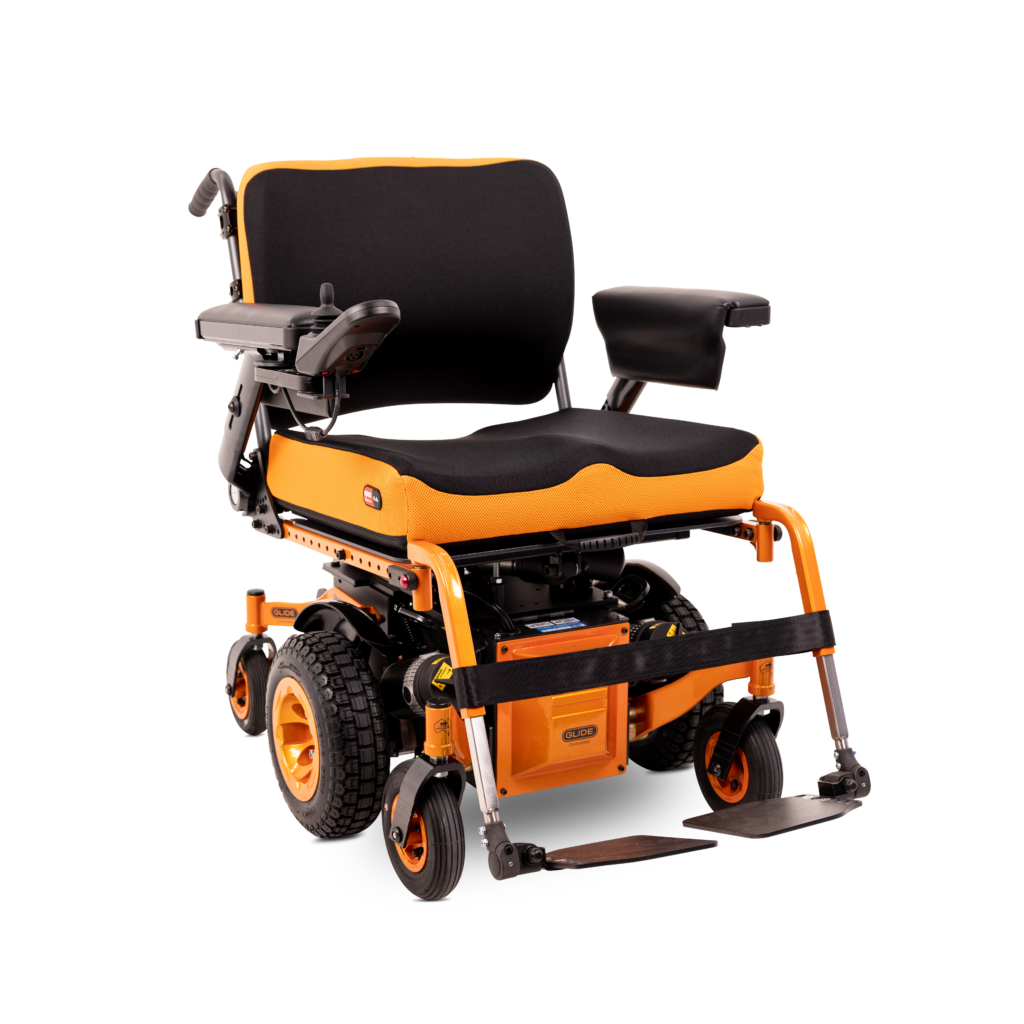

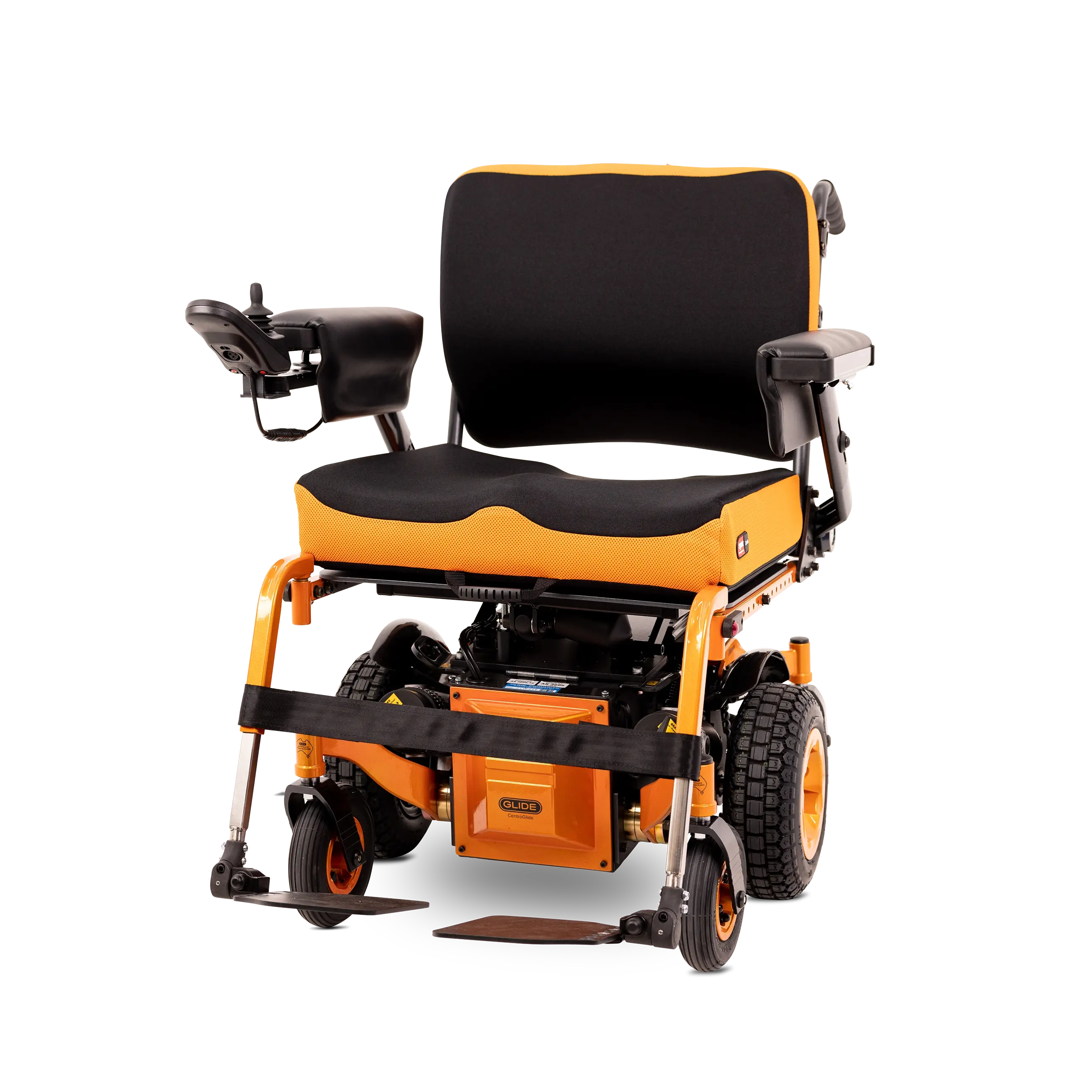

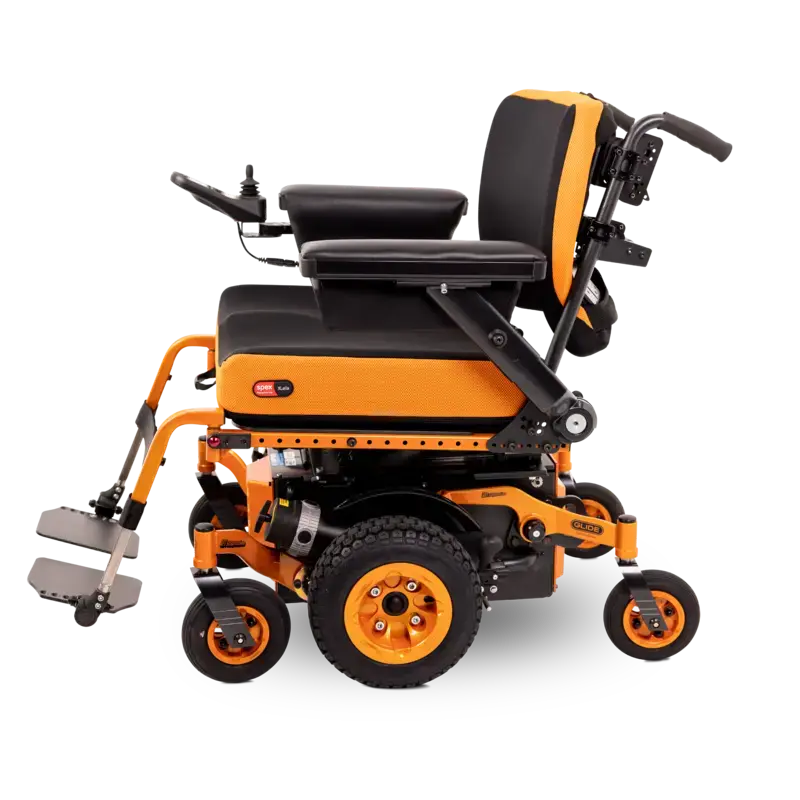

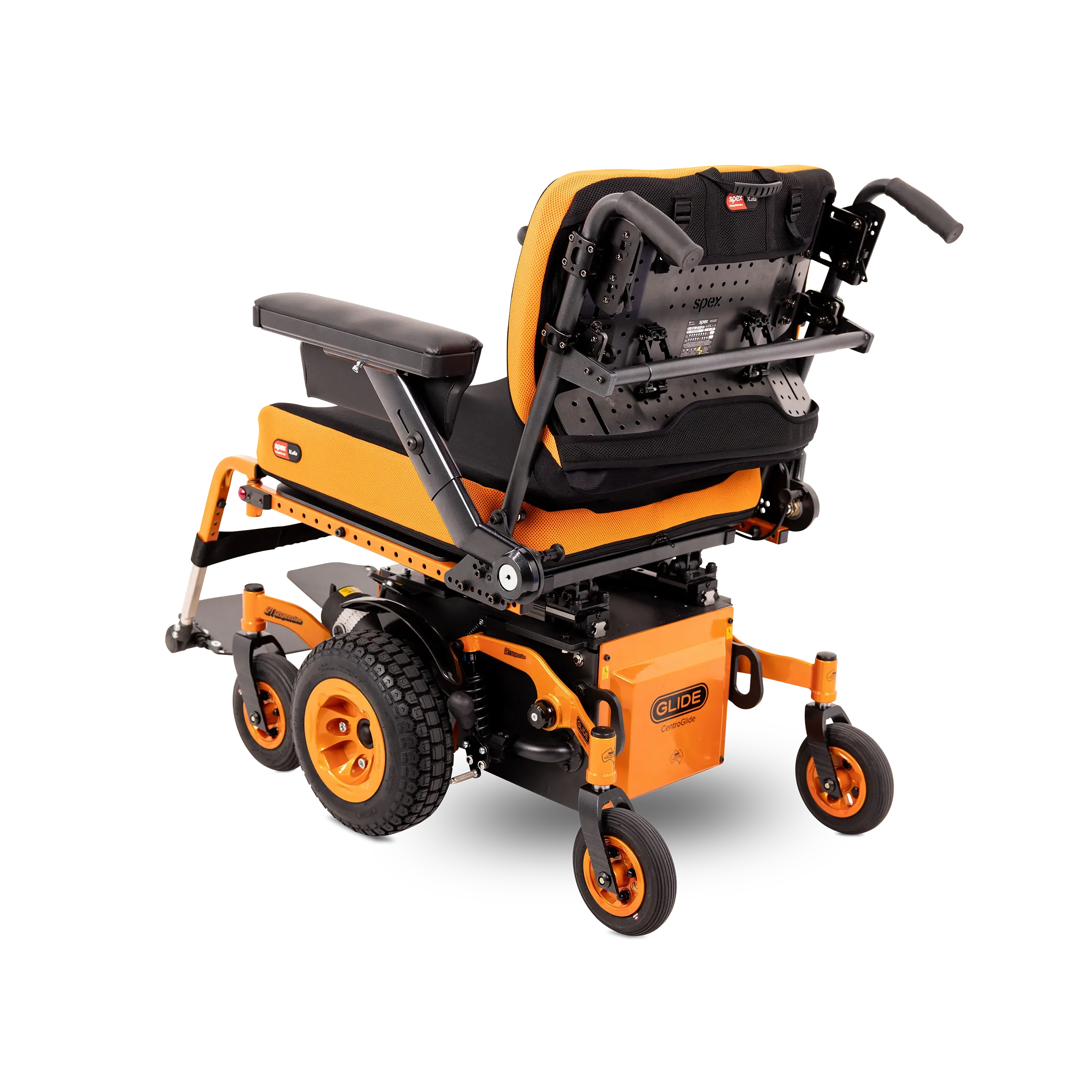

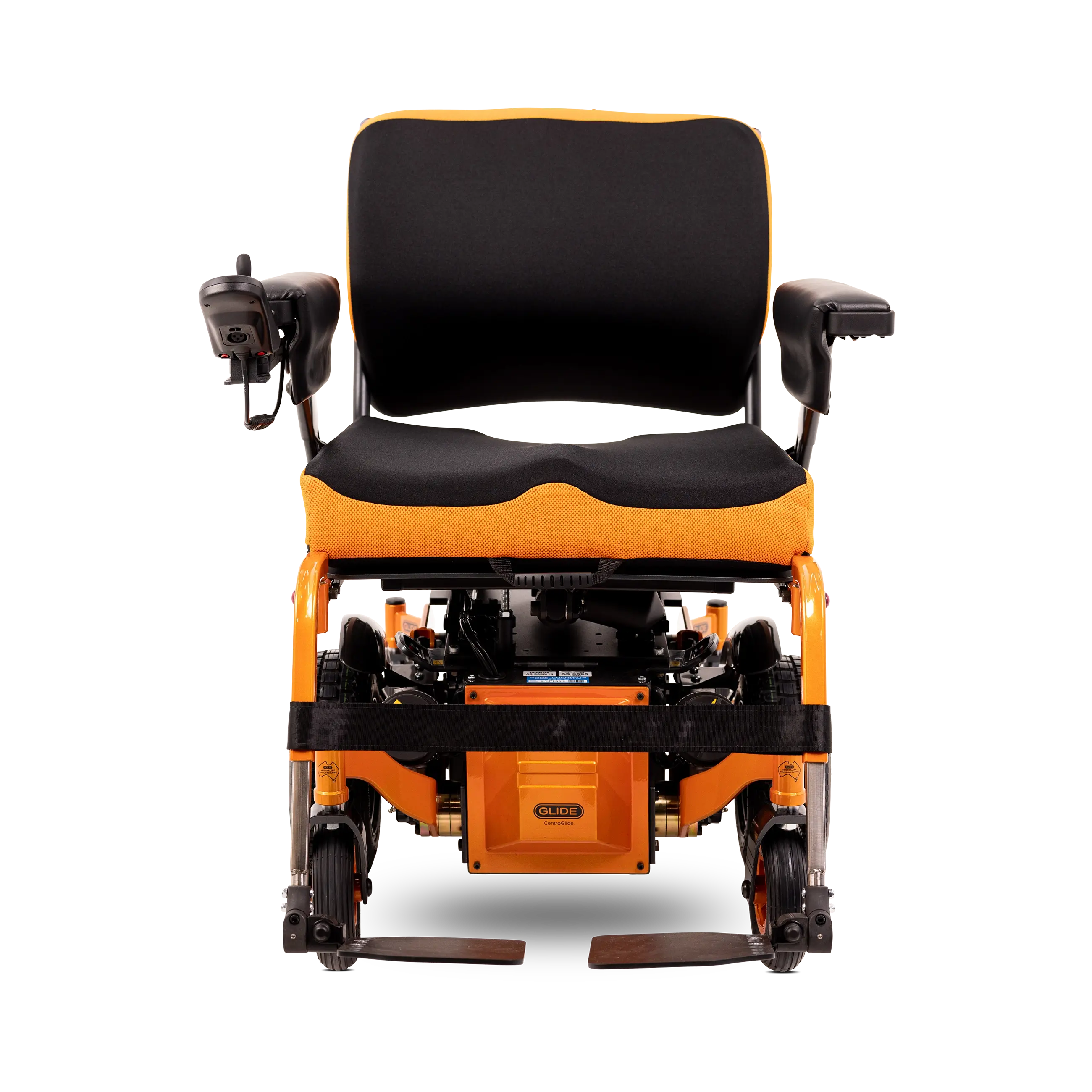

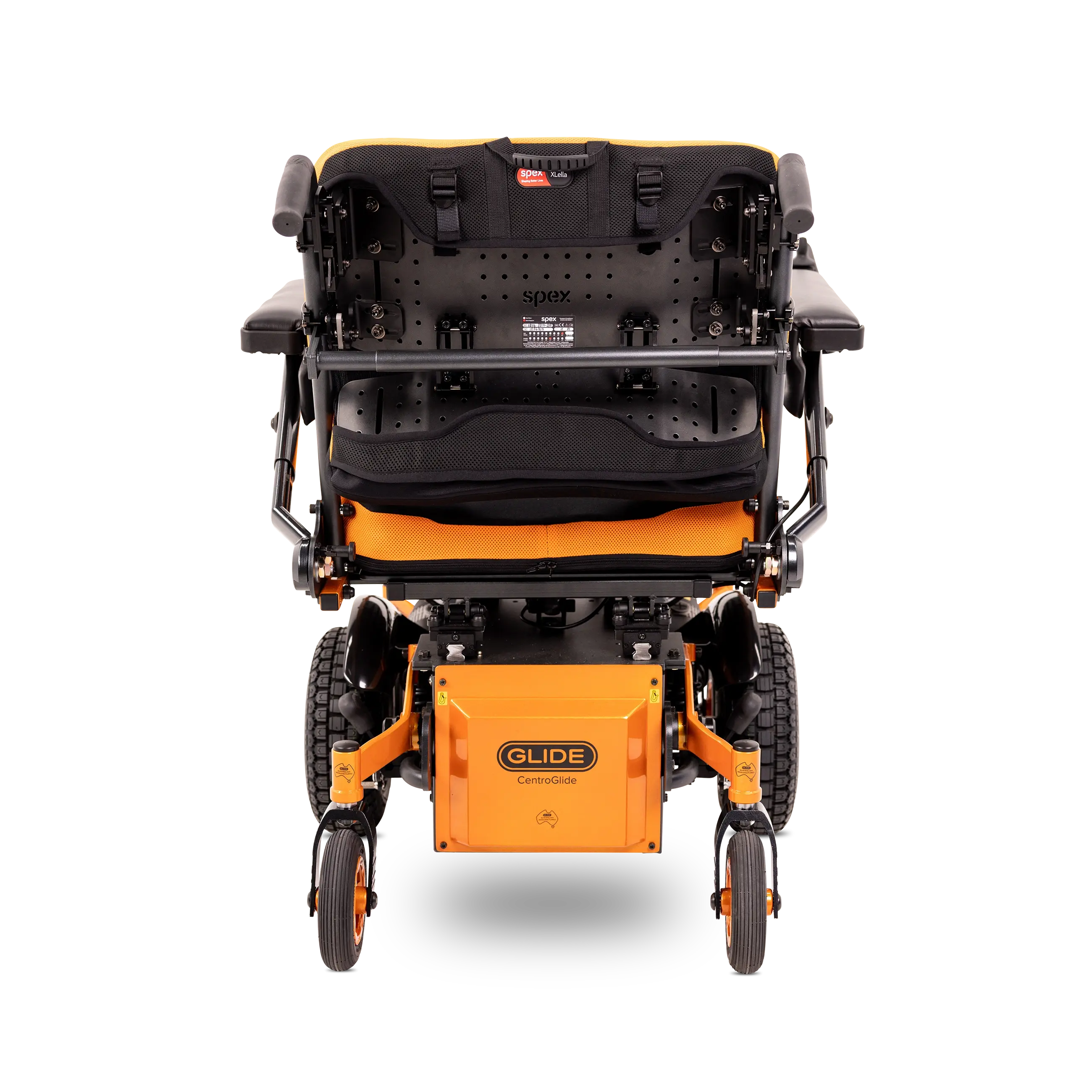

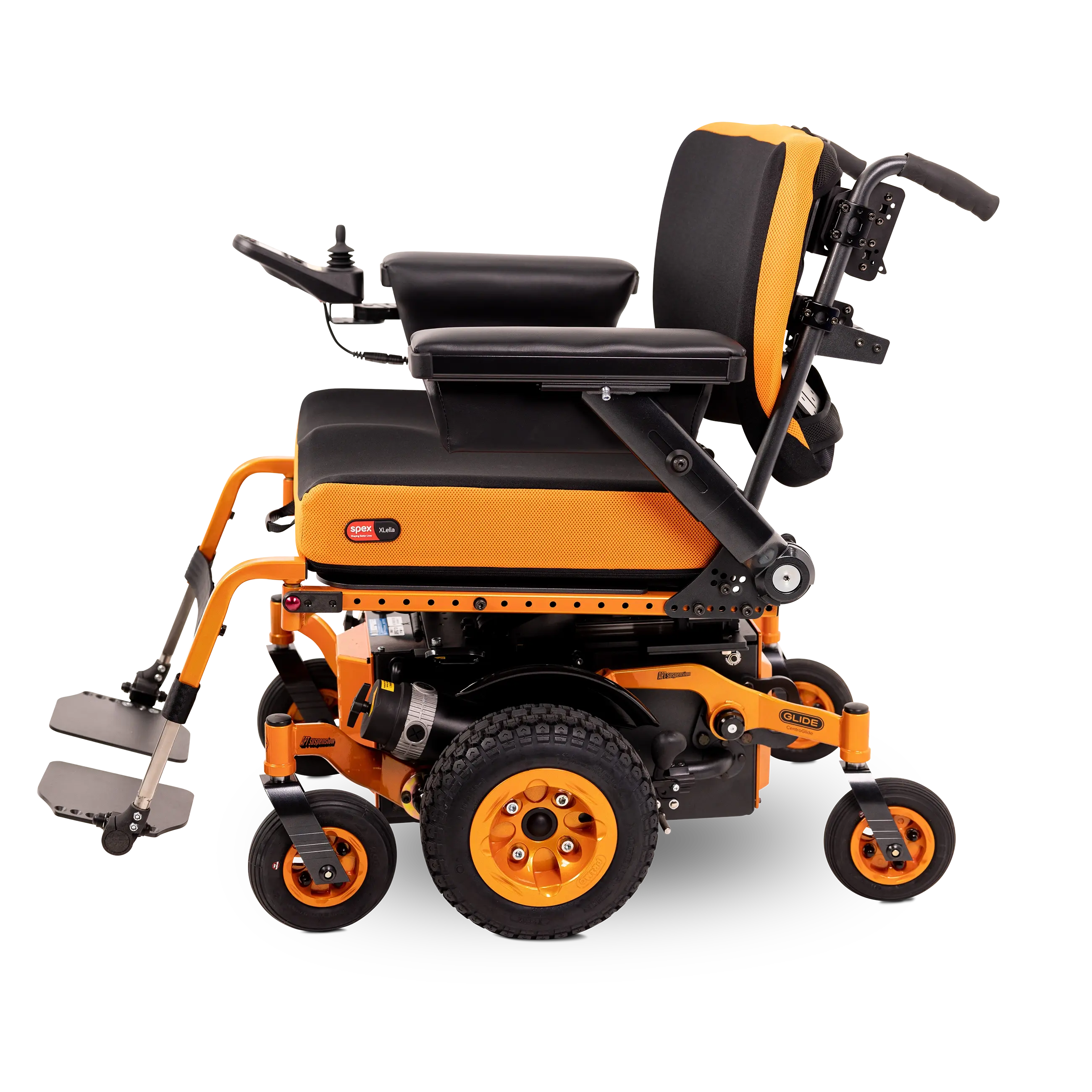

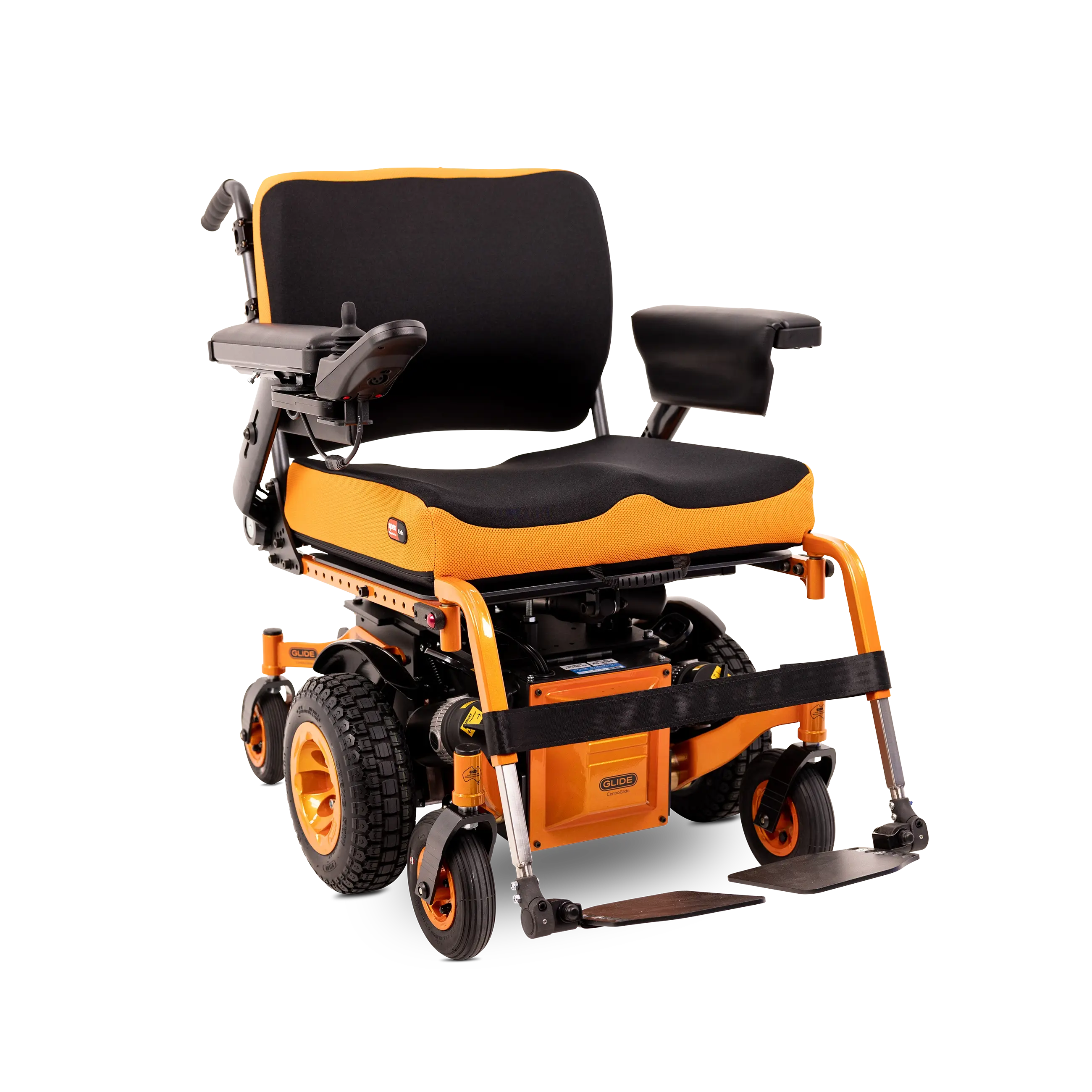

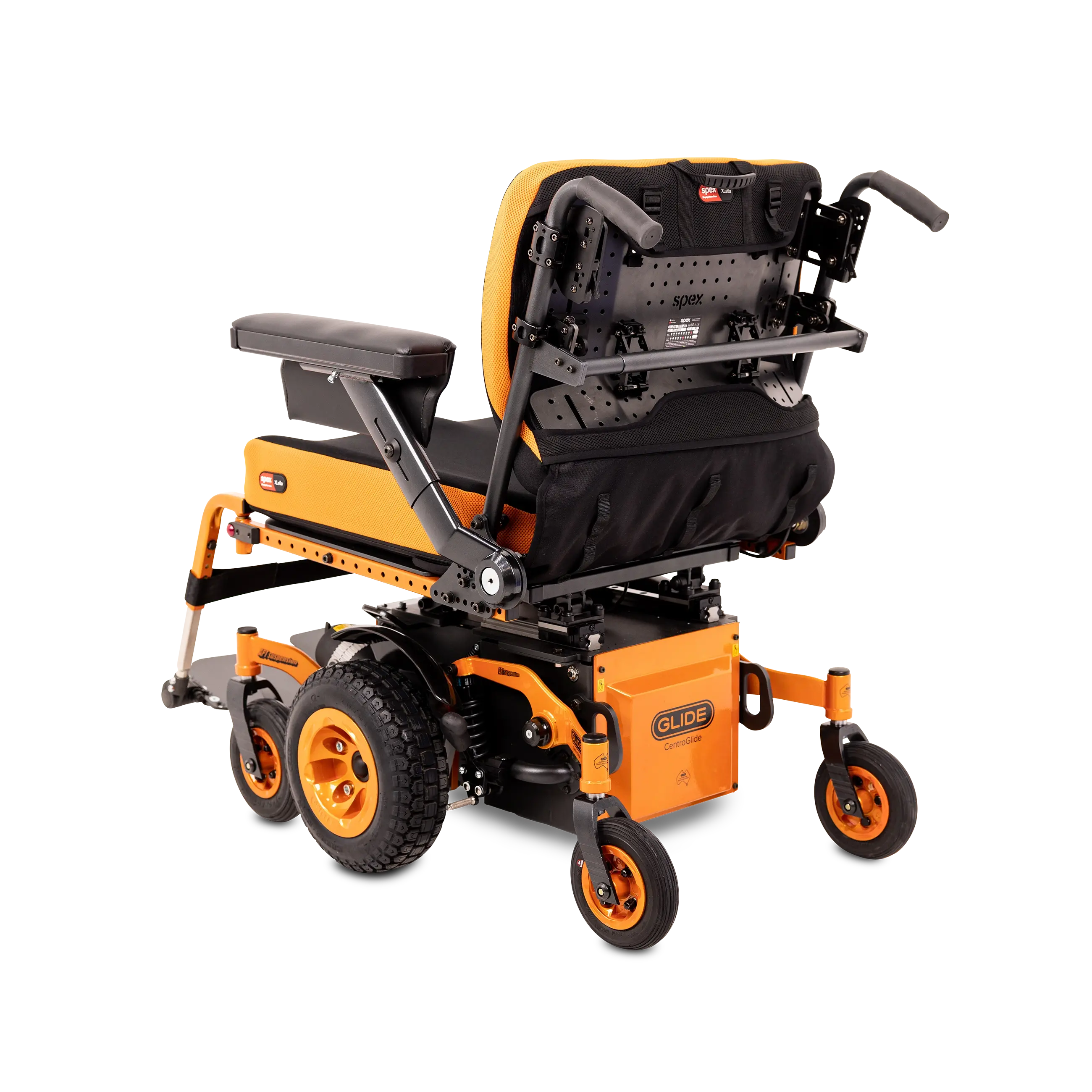

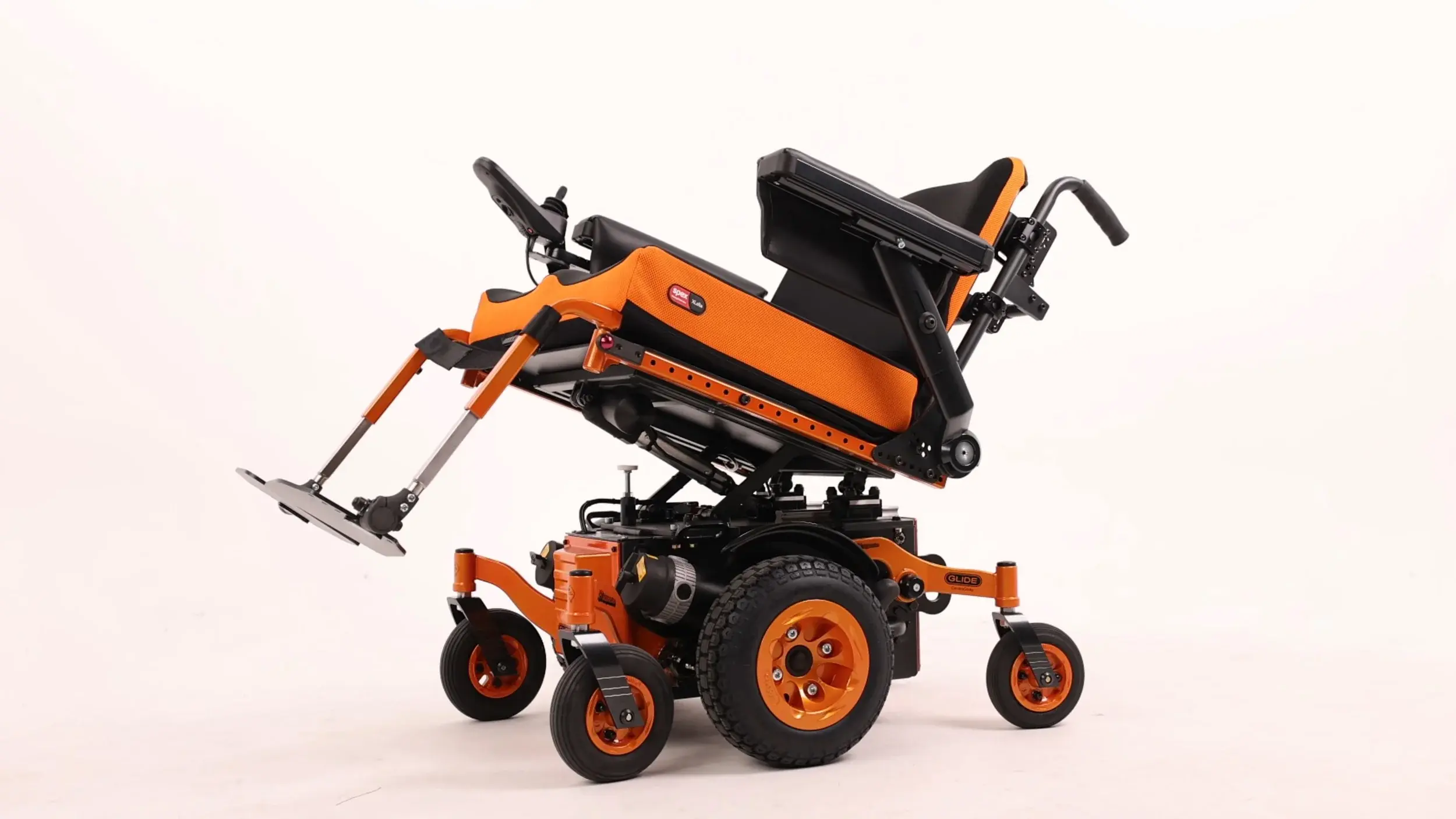

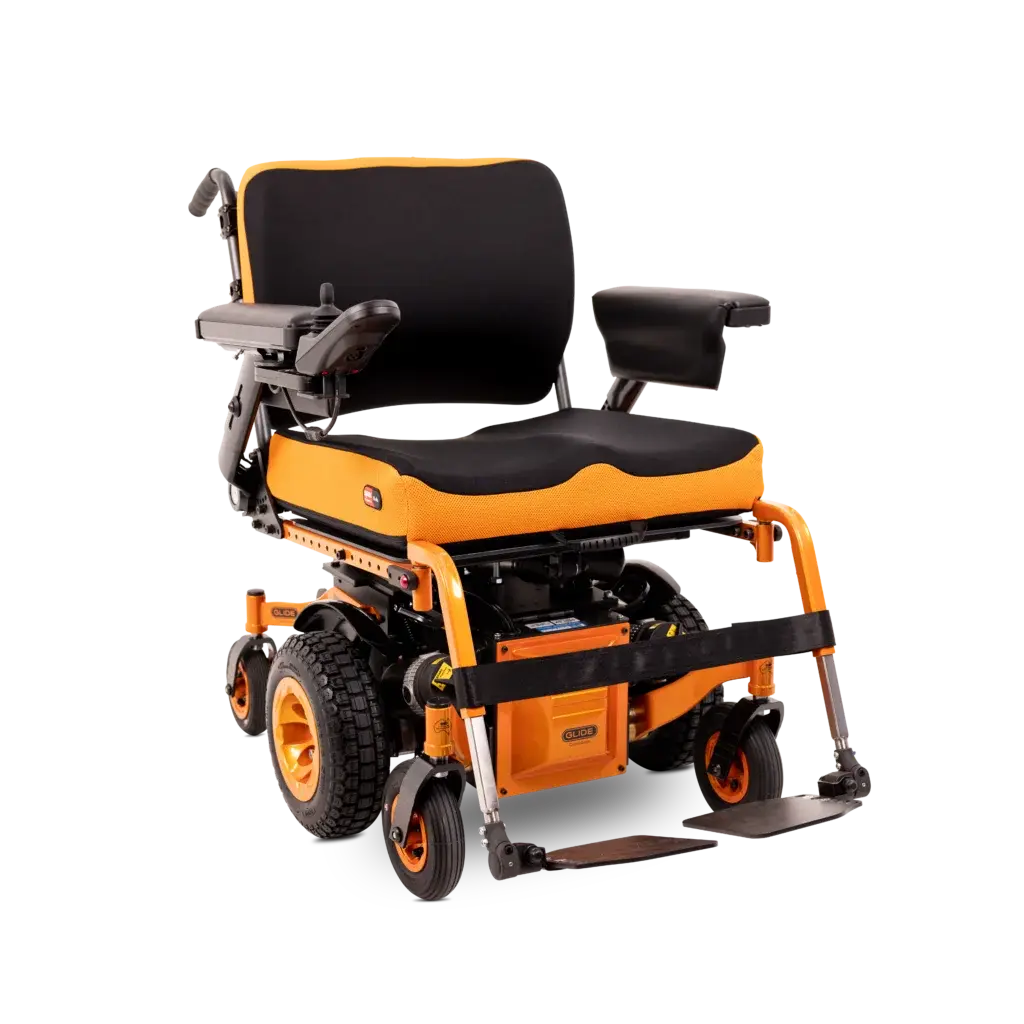

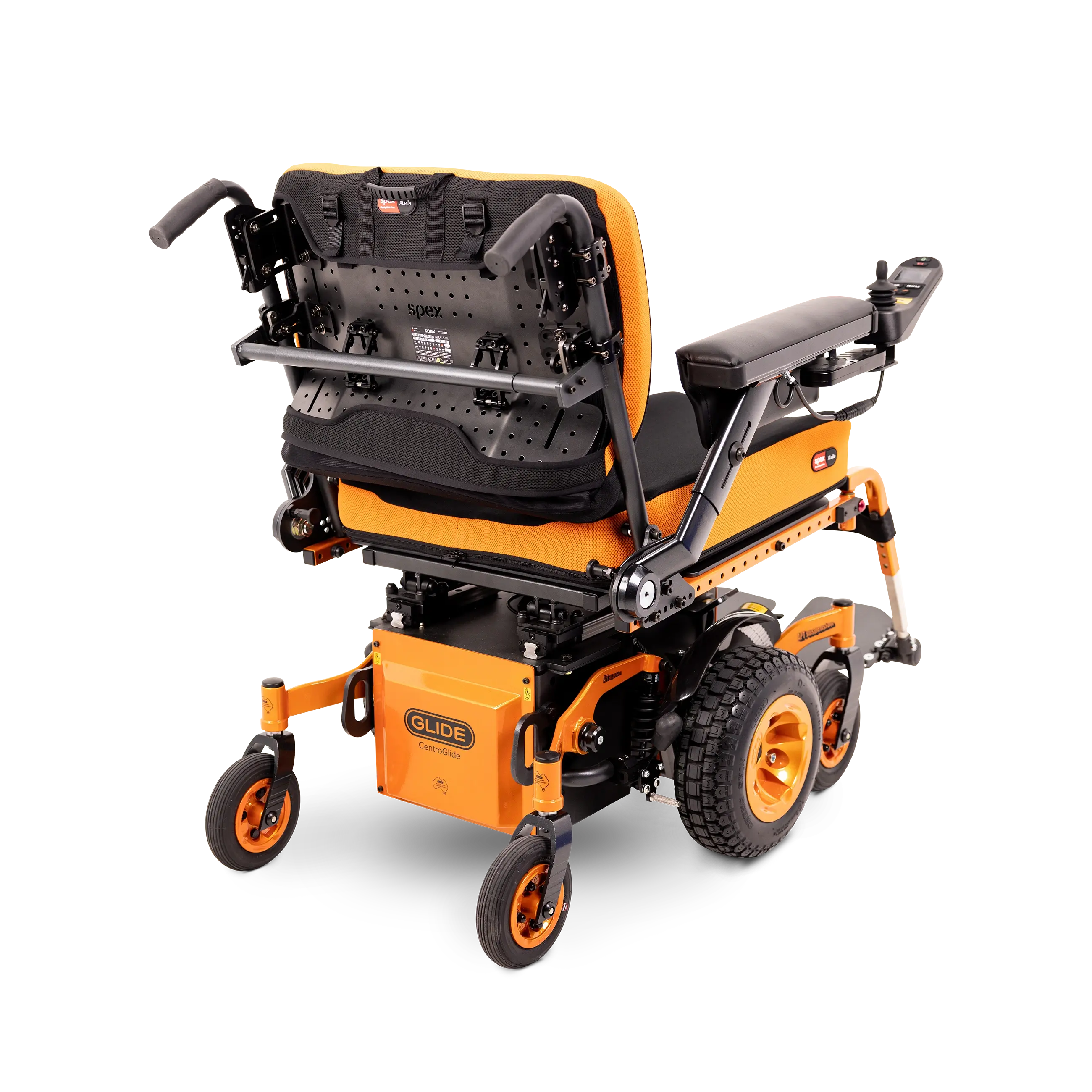

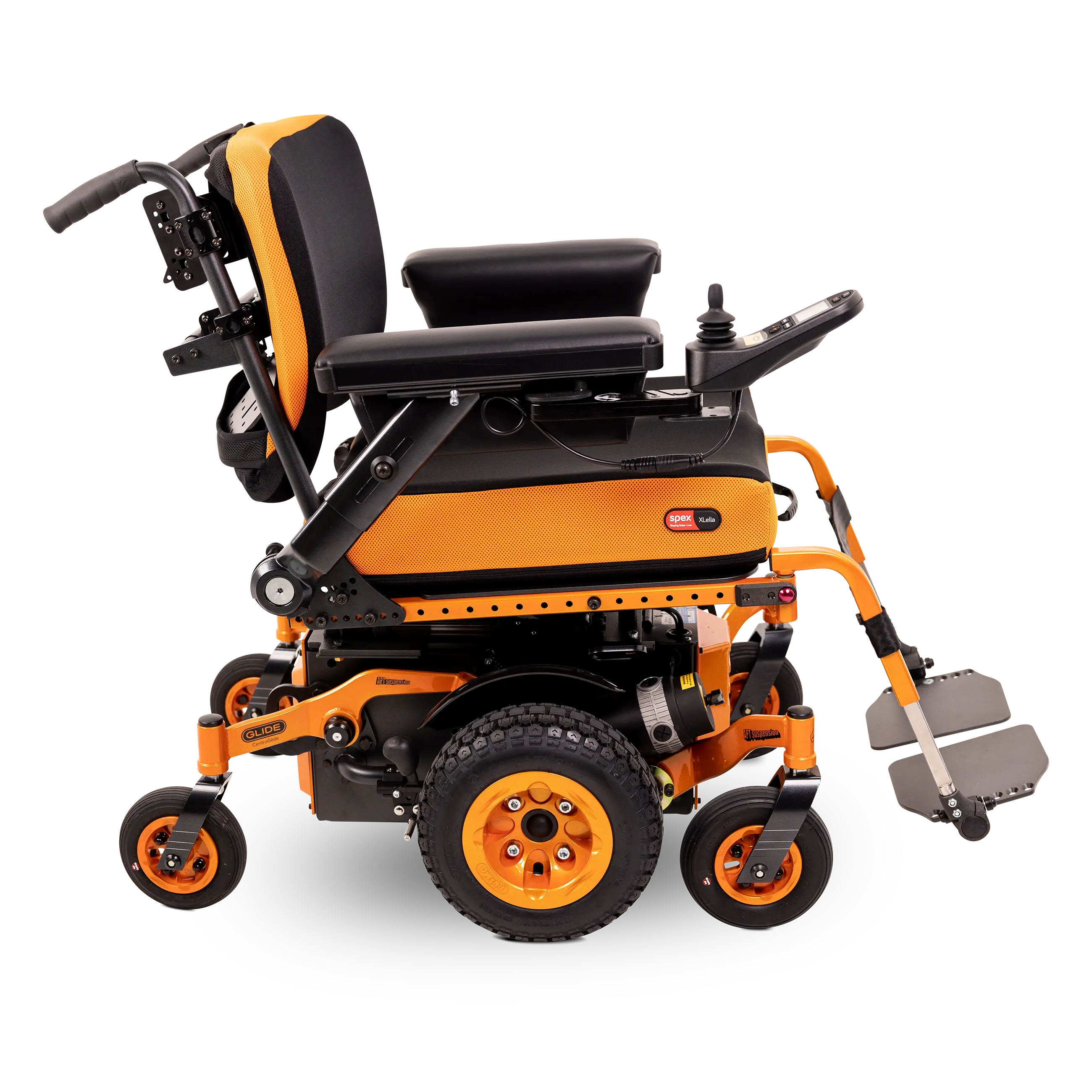

Mid Wheel Drive Bariatric Wheelchair

The CentroGlide Bariatric is a heavier-duty version of the standard CentroGlide. This model caters for larger and heavier users.

With its safe working load of 250kg and a seat width of up to 73cm, the CentroGlide Bariatric wheelchair is suitable for heavier patients. All features and options of standard CentroGlide are available for the bariatric version.

Manoeuvrable for a perfect blend of indoor and outdoor performance. All CentroGlide Bariatric Wheelchairs come with a completely customisable seating platform.


Frame Colours
Specifications Glide Bariatric
Max Recommended User Weight 250kg
Weight 85kg
Operation Weight 134-142kg
Rear Castors 7″ pneumatic (optional 6″or 8″)
Front Castors 8″ pneumatic (opt 7″)/ 8″solid fill
Drive Wheels 4.10/3.50-6 (12″)
Suspension APT
Overall Length 900mm (foot plate removed)
Overall Width 620mm (wheelbase)
Seat Width 49, 52, 55, 58, 61, 64, 67, 70, 73cm (custom width available)
Seat Depth 40, 43, 46, 49, 52, 55, 58, 61cm
Seat Height 46cm (top of the rail using 0-46 set up)
Low Seat Height Option N/A
Back Height 1030mm Top of push handle (custom height available)
Seat Tilt 4-50std (optional 0-46 degree)
Arm Rest Flip-up (adjustable)

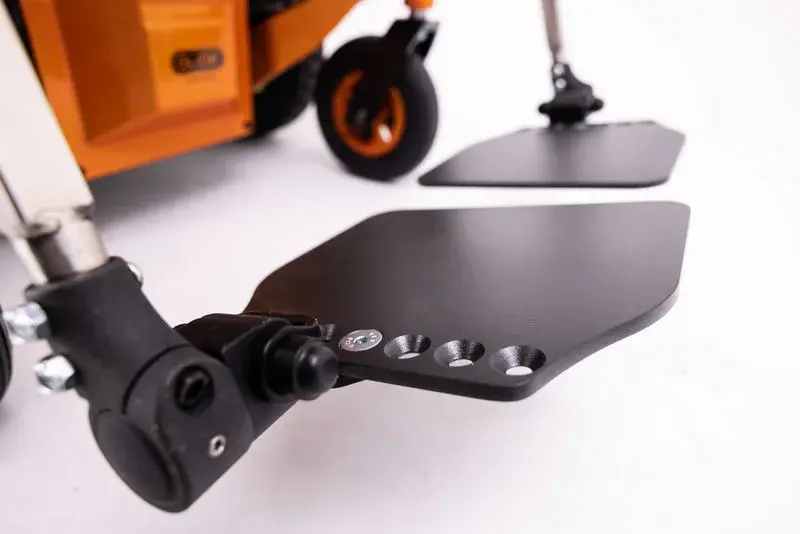

Leg Rest Drop-in swing-away detachable
Frame Colour Choice
Brakes Electronic and manual park

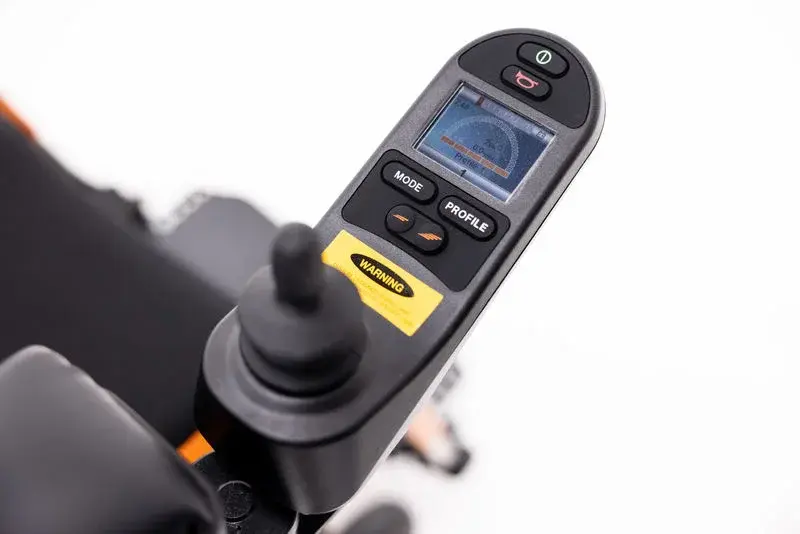

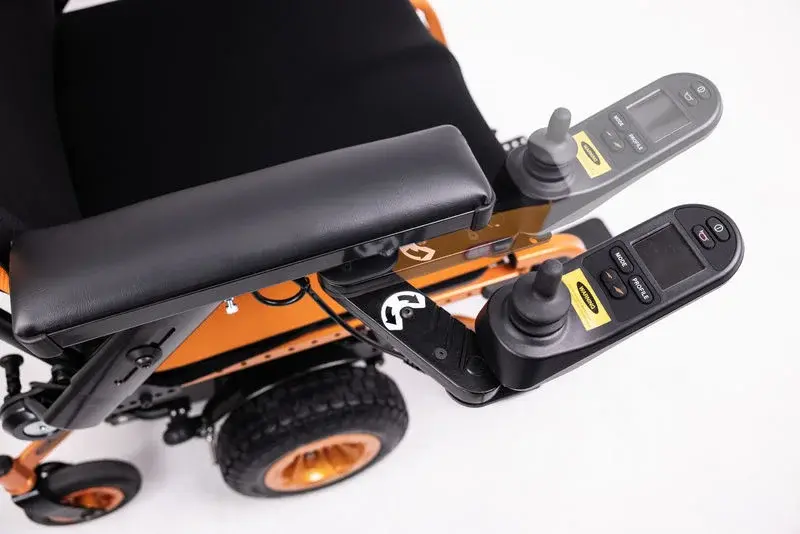

Controls R-net LCD std
Battery (260Lx170Wx220H) 70-90 amp/hr, Sealed
Range 40km max. with 70amp/hr
Crash Tested to AU Standards YES

*AS3695 Full compliance

CentroGlide Bariatric
Power Tilt 0-46 or 5-50
Anterior Tilt Available
Anterior Tilt with reach N/A
Vertical Lift N/A
Power Recline Available
Centre Mount Power Elevating Leg Rest Available
Swing Away Power Elevating Leg Rest Available

Choose from an extensive colour palette for the ultimate customisation.

Textured Black Gloss Black Black Onyx Vivid Orchid White Yellow
Merlot Red Firestorm Red Outback Red Horizon Blue Electric Blue Island Blue
Fluro Pink Samurai Sunset Acid Green Emerald Green Mist Green Silver Shadow
Neon Yellow
