CentroGlide Bariatric Wheelchair

Make an enquiry

CentroGlide

Bariatric

Mid Wheel Drive Bariatric Wheelchair

The CentroGlide Bariatric is a heavier-duty version of the standard CentroGlide. This model caters for larger and heavier users.

With its safe working load of 250kg and a seat width of up to 73cm, the CentroGlide Bariatric wheelchair is suitable for heavier patients. All features and options of standard CentroGlide are available for the bariatric version.

Manoeuvrable for a perfect blend of indoor and outdoor performance. All CentroGlide Bariatric Wheelchairs come with a completely customisable seating platform.

Watch video

Gallery

Functional

Benefits

Controller Options

Select from range of R-Net Controllers

Robust Swing-away Joystick Mount

Allows for ease of transfers from wheelchair

Angle-Adjustable Footplates

For optimum foot positioning in the wheelchair

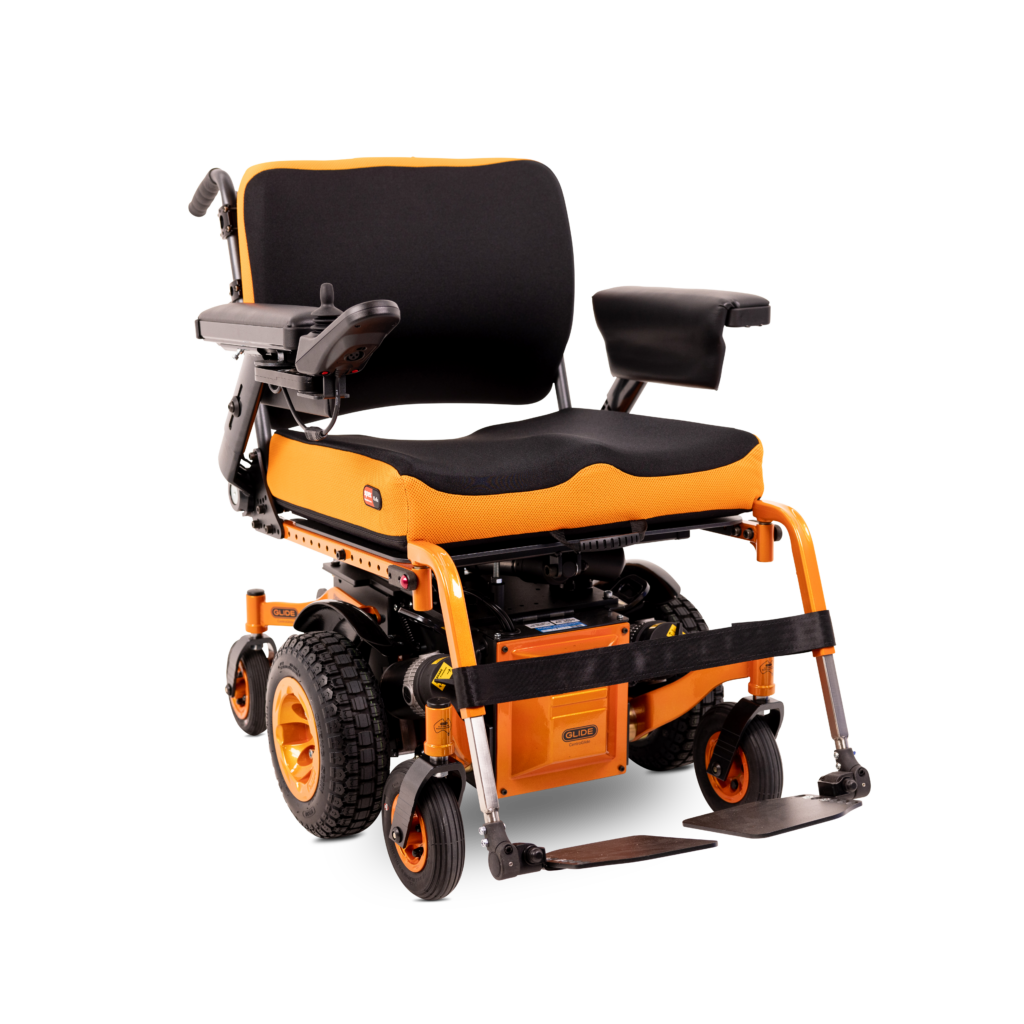

XLella Glide Wheelchair with orange detailing

Great paired with XLella Bariatric Seating

XLella is Spex Seating's dedicated Bariatric Seating range

Resources

CentroGlide Brochure 0.66 MB CentroGlide Bariatric Brochure 0.66 MB CentroGlide User Manual 1.37 MB R-NET Technical Manual 1.73 MB Medifab Comparison Chart (NZ) - Powered Wheelchairs 1.19 MB

Specifications

Options

Frame Colours

Specifications	Glide Bariatric
Max Recommended User Weight	250kg
Weight	85kg
Operation Weight	134-142kg
Rear Castors	7″ pneumatic (optional 6″or 8″)
Front Castors	8″ pneumatic (opt 7″)/ 8″solid fill
Drive Wheels	4.10/3.50-6 (12″)
Suspension	APT
Overall Length	900mm (foot plate removed)
Overall Width	620mm (wheelbase)
Seat Width	49, 52, 55, 58, 61, 64, 67, 70, 73cm (custom width available)
Seat Depth	40, 43, 46, 49, 52, 55, 58, 61cm
Seat Height	46cm (top of the rail using 0-46 set up)
Low Seat Height Option	N/A
Back Height	1030mm Top of push handle (custom height available)
Seat Tilt	4-50std (optional 0-46 degree)
Arm Rest	Flip-up (adjustable)
Leg Rest	Drop-in swing-away detachable
Frame Colour	Choice
Brakes	Electronic and manual park
Controls	R-net LCD std
Battery (260Lx170Wx220H)	70-90 amp/hr, Sealed
Range	40km max. with 70amp/hr
Crash Tested to AU Standards	YES

*AS3695 Full compliance

	CentroGlide Bariatric
Power Tilt	0-46 or 5-50
Anterior Tilt	Available
Anterior Tilt with reach	N/A
Vertical Lift	N/A
Power Recline	Available
Centre Mount Power Elevating Leg Rest	Available
Swing Away Power Elevating Leg Rest	Available

Choose from an extensive colour palette for the ultimate customisation.


Textured Black	Gloss Black	Black Onyx	Vivid Orchid	White	Yellow

Merlot Red	Firestorm Red	Outback Red	Horizon Blue	Electric Blue	Island Blue

Fluro Pink	Samurai Sunset	Acid Green	Emerald Green	Mist Green	Silver Shadow

Neon Yellow
