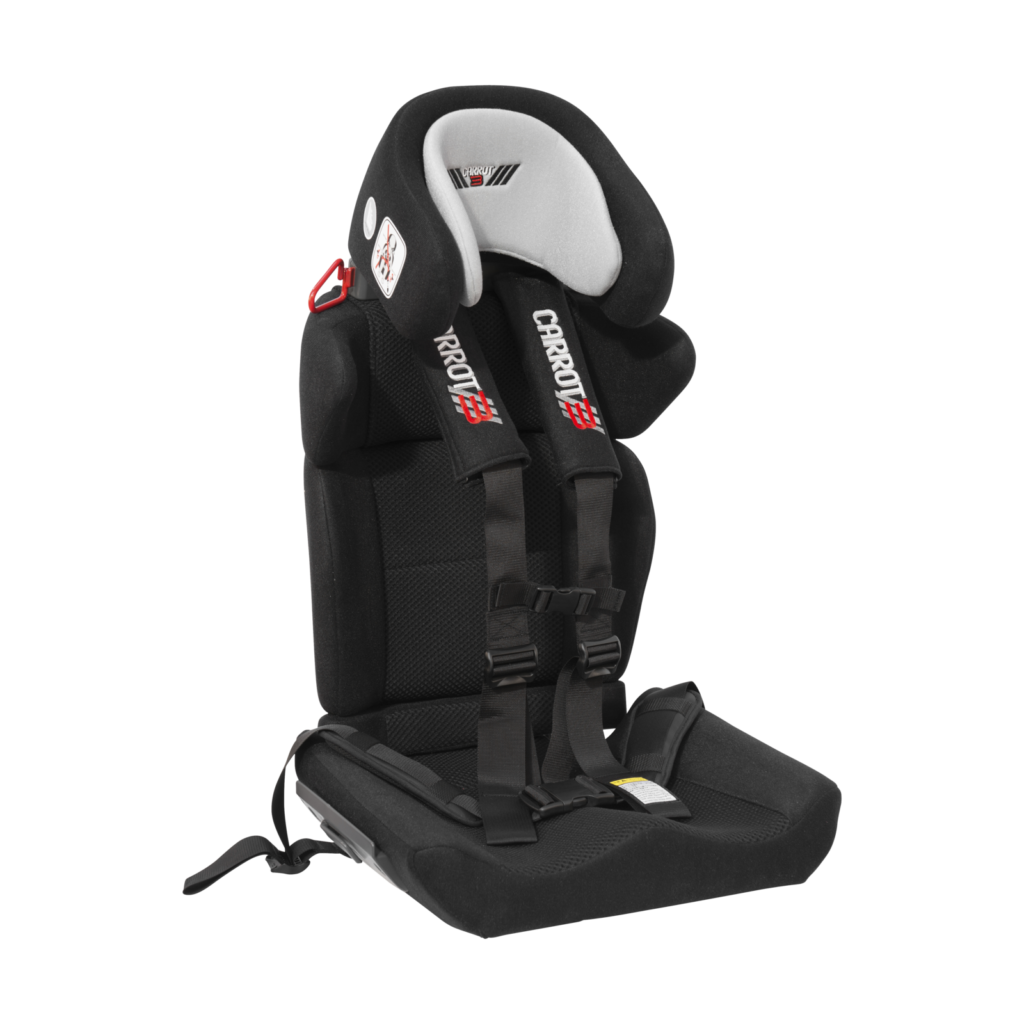

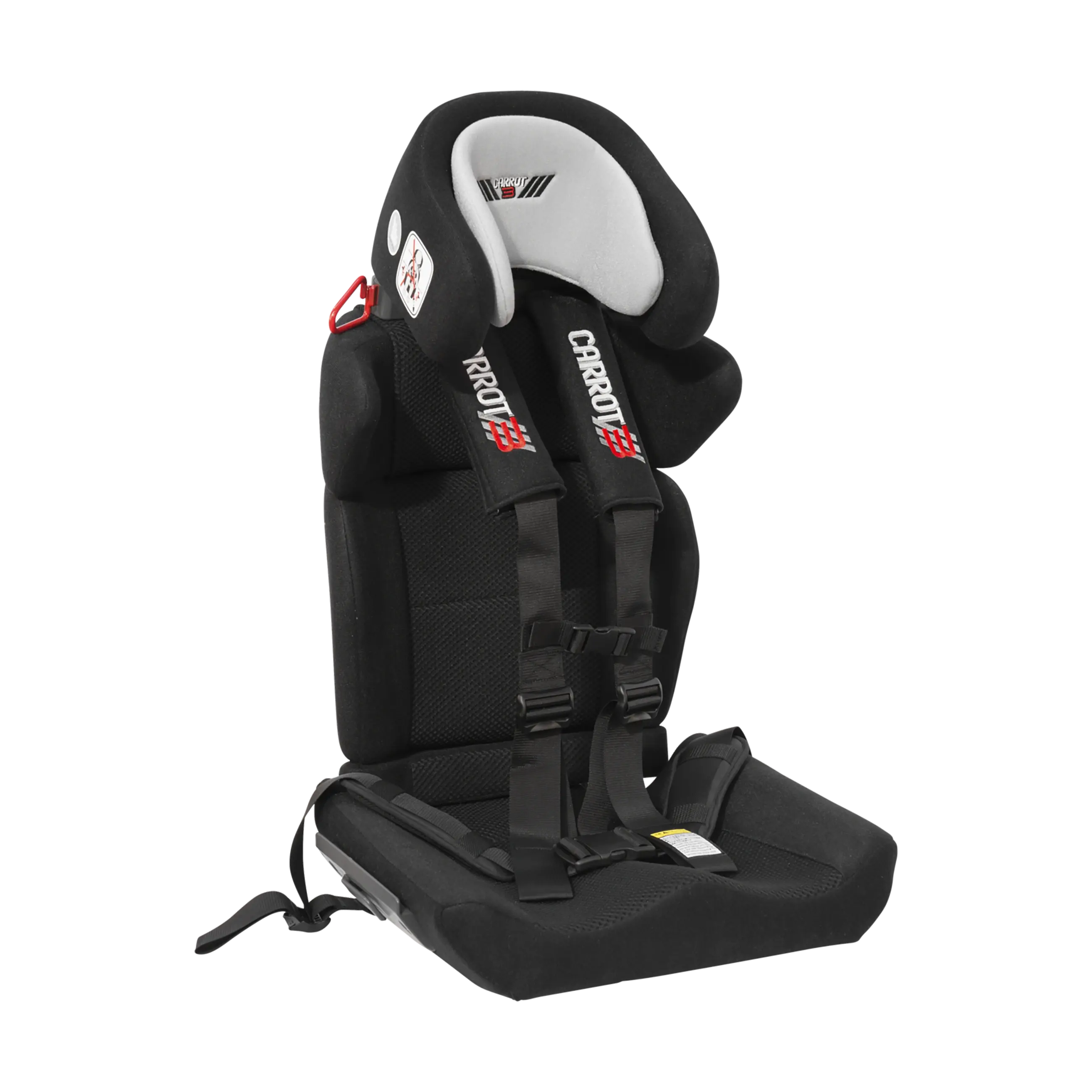

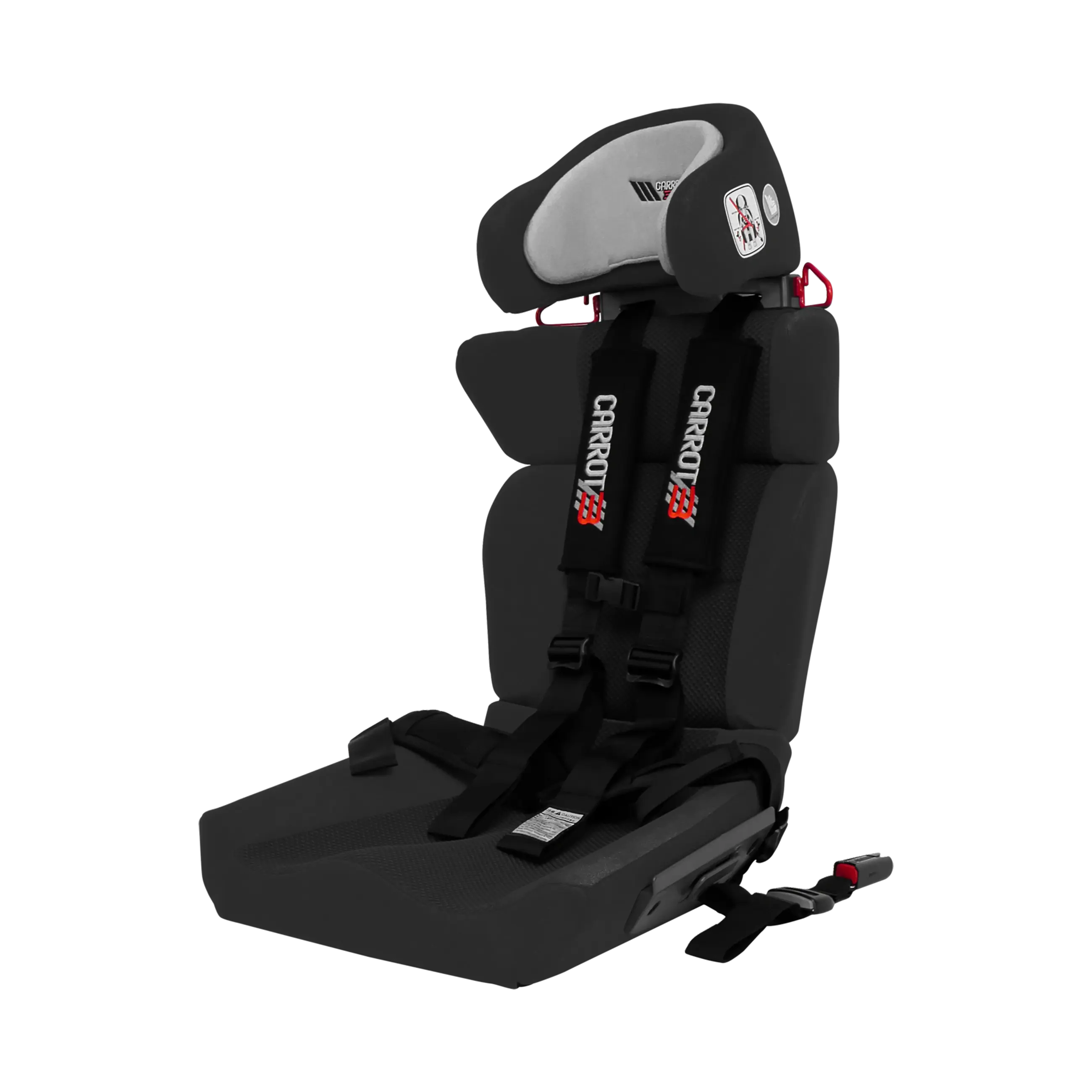

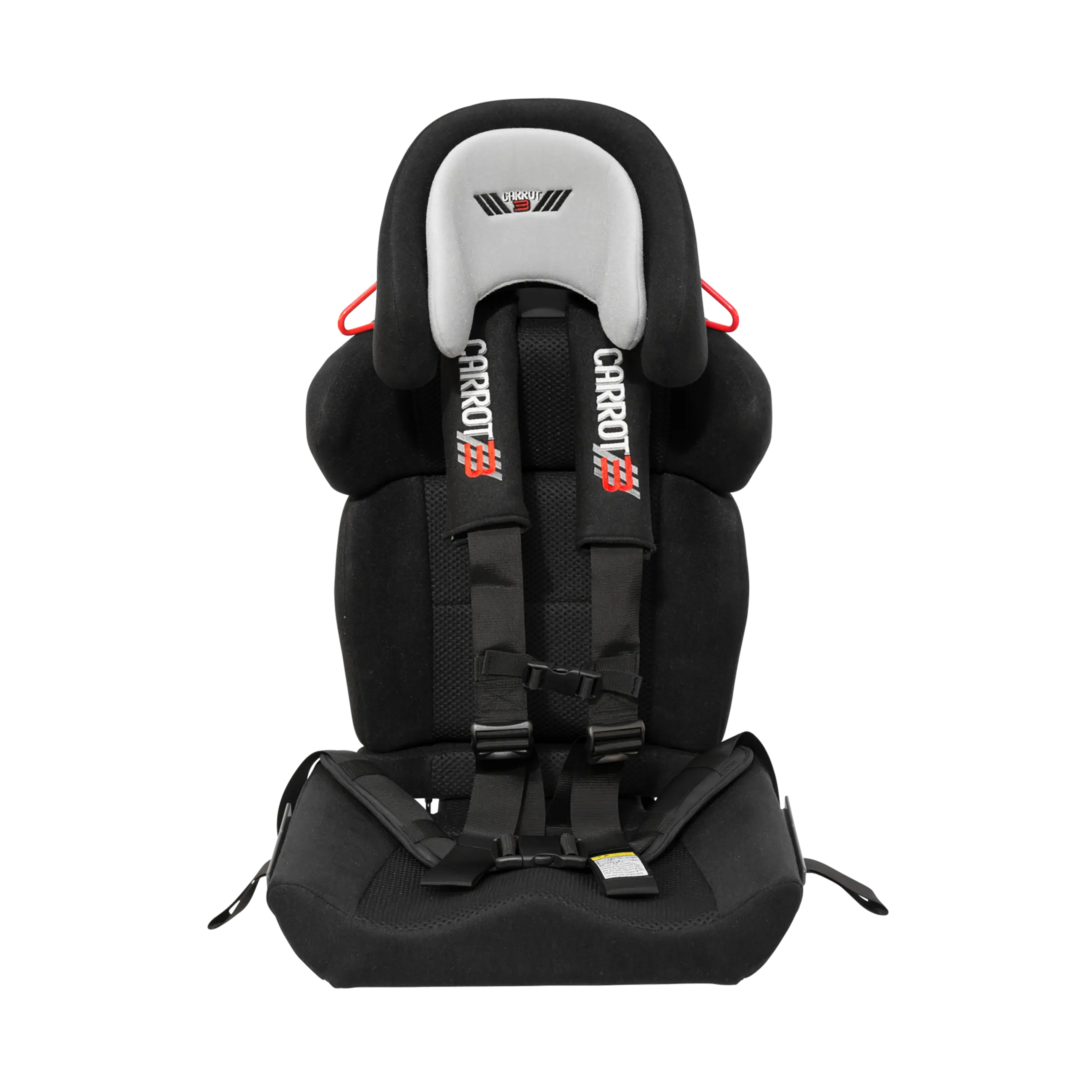

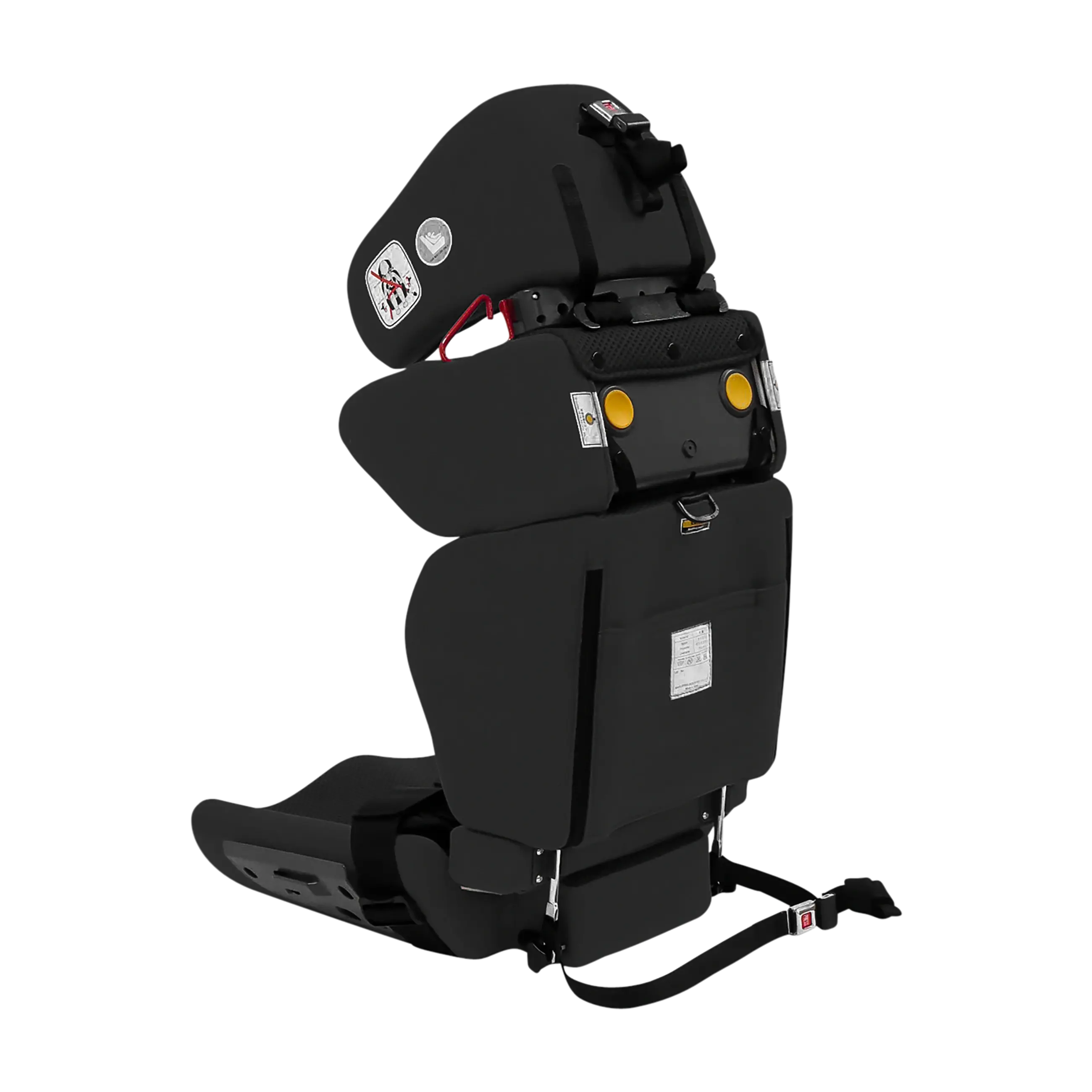

Larger version of the popular Carrot 3000 Car Seat
Carrot XL caters for safety and the importance of keeping the user in a supported posture for travel. This larger sized car seat is suitable for older children and adult users who will not fit into the Carrot 3000.

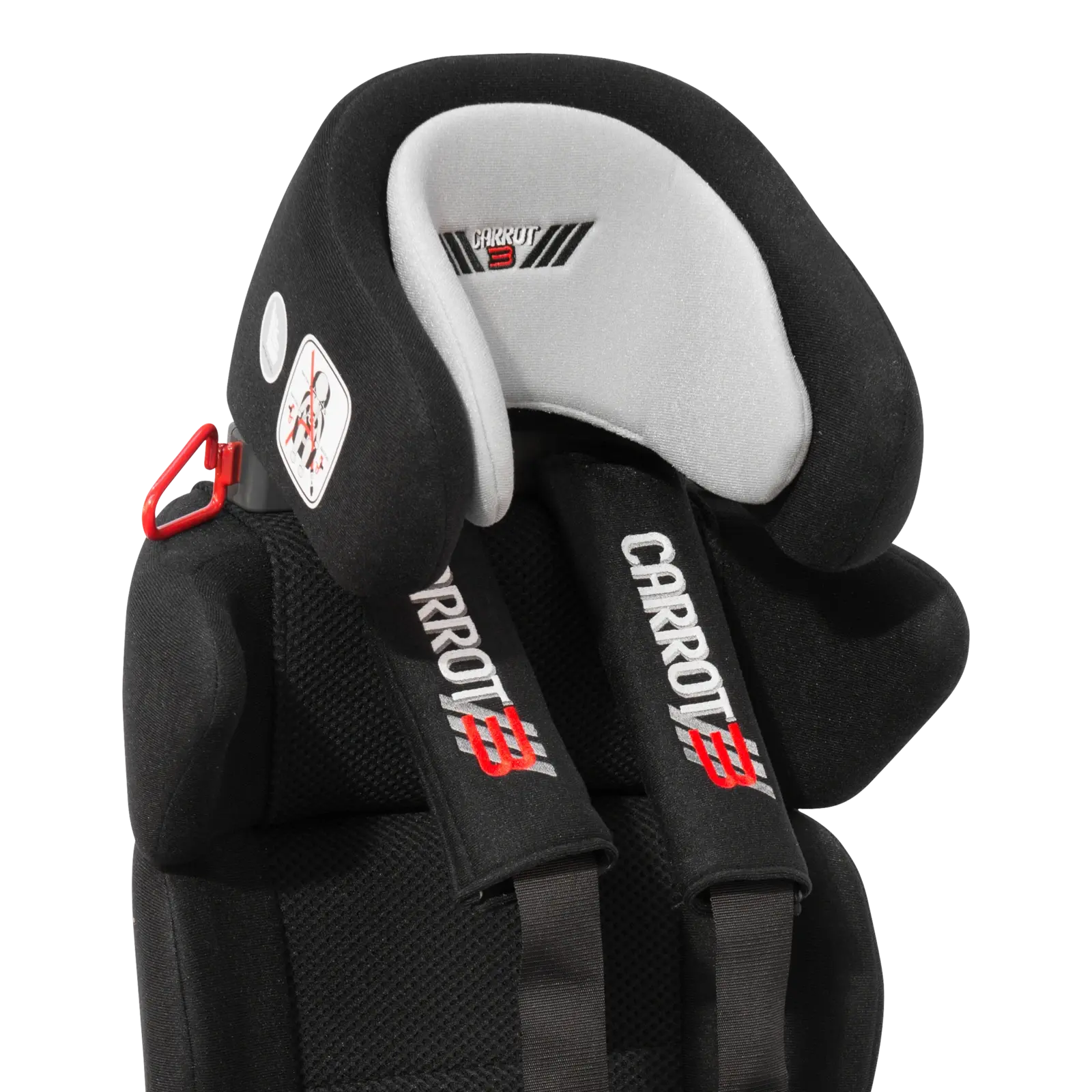

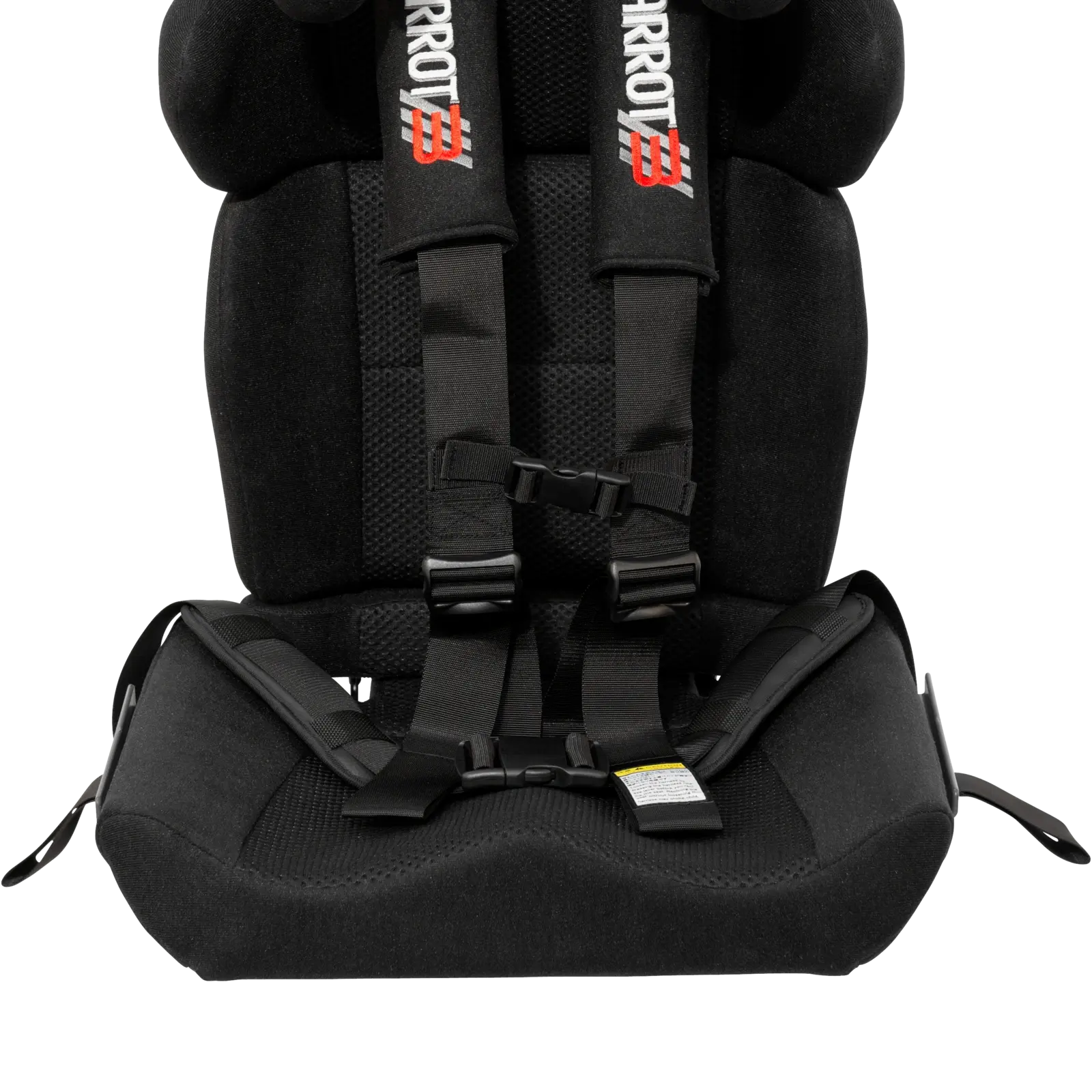

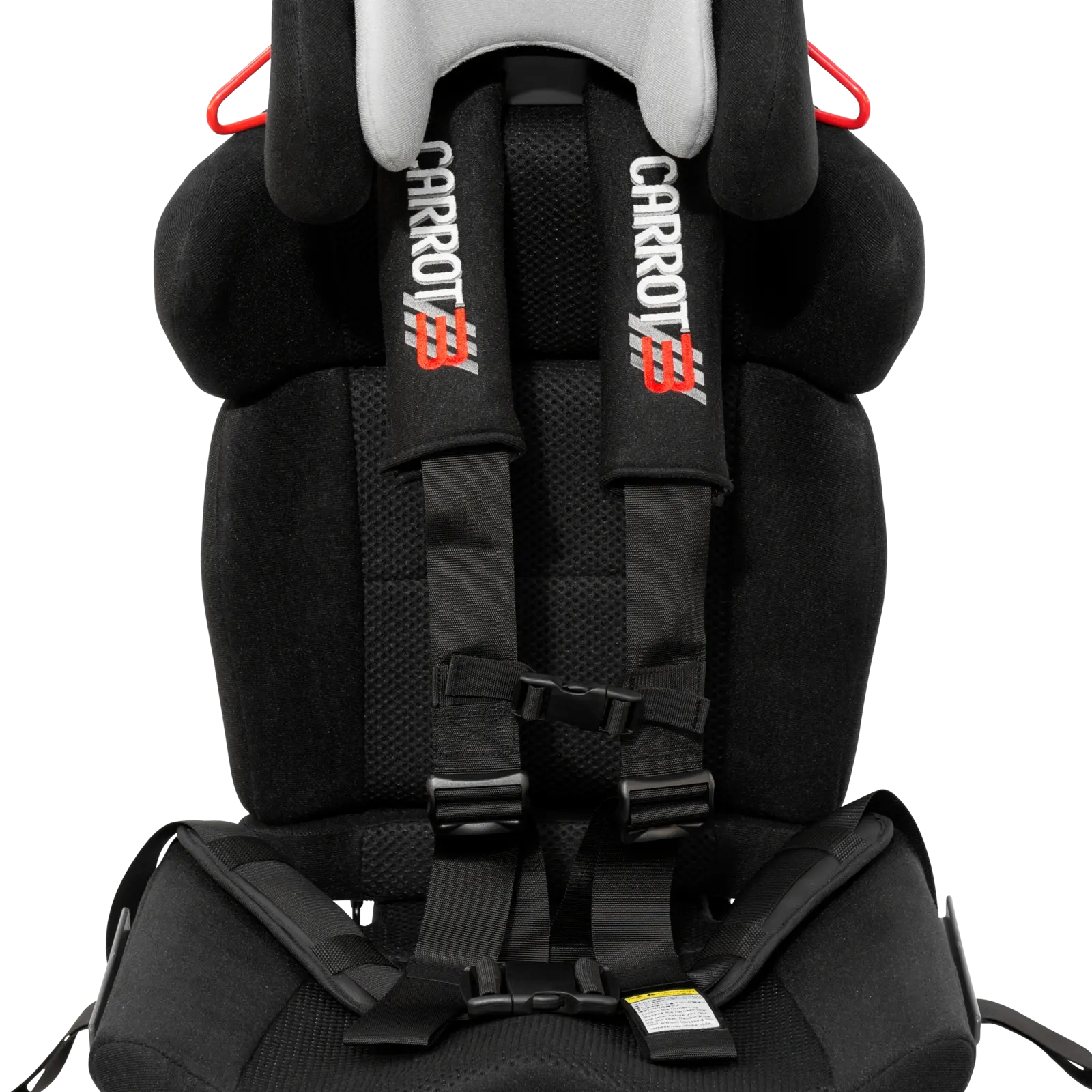

Equipped as standard with the low profile wide seat base, large size headrest, shoulder protector wings, and 50 mm backrest extension.
Extendable shoulder protector wings hold and protect the body from side impacts and centrifugal forces.
Tether options include additional security tether for the top of backrest or ISOfix latch connectors. These may be required by your local authorities.

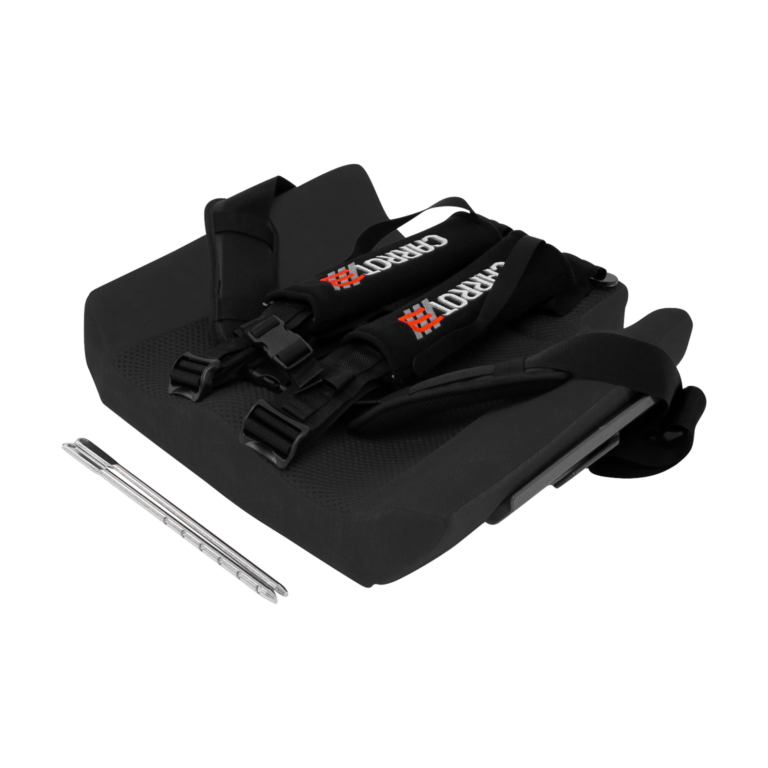

Carrot XL Upgrade kit can be purchased to upgrade an existing Carrot 3000 Car Seat to an XL version, instead of purchasing a whole new car seat when the child grows out of the existing seat. Kit includes:
- XL Low profile wide Seat Base
- Longer metal rods for base
- H-Harness
- Hip belt
#4116-0030-259
Please note that the XL Upgrade Kit must be fitted by Medifab Ltd or an authorised Medifab distributor.
When upgrading to an XL version the Carrot Shoulder Protector Wings and the 50mm Back Support Infill’s should already been in place. Also please note that the upgrade does not include a larger Head Support option.

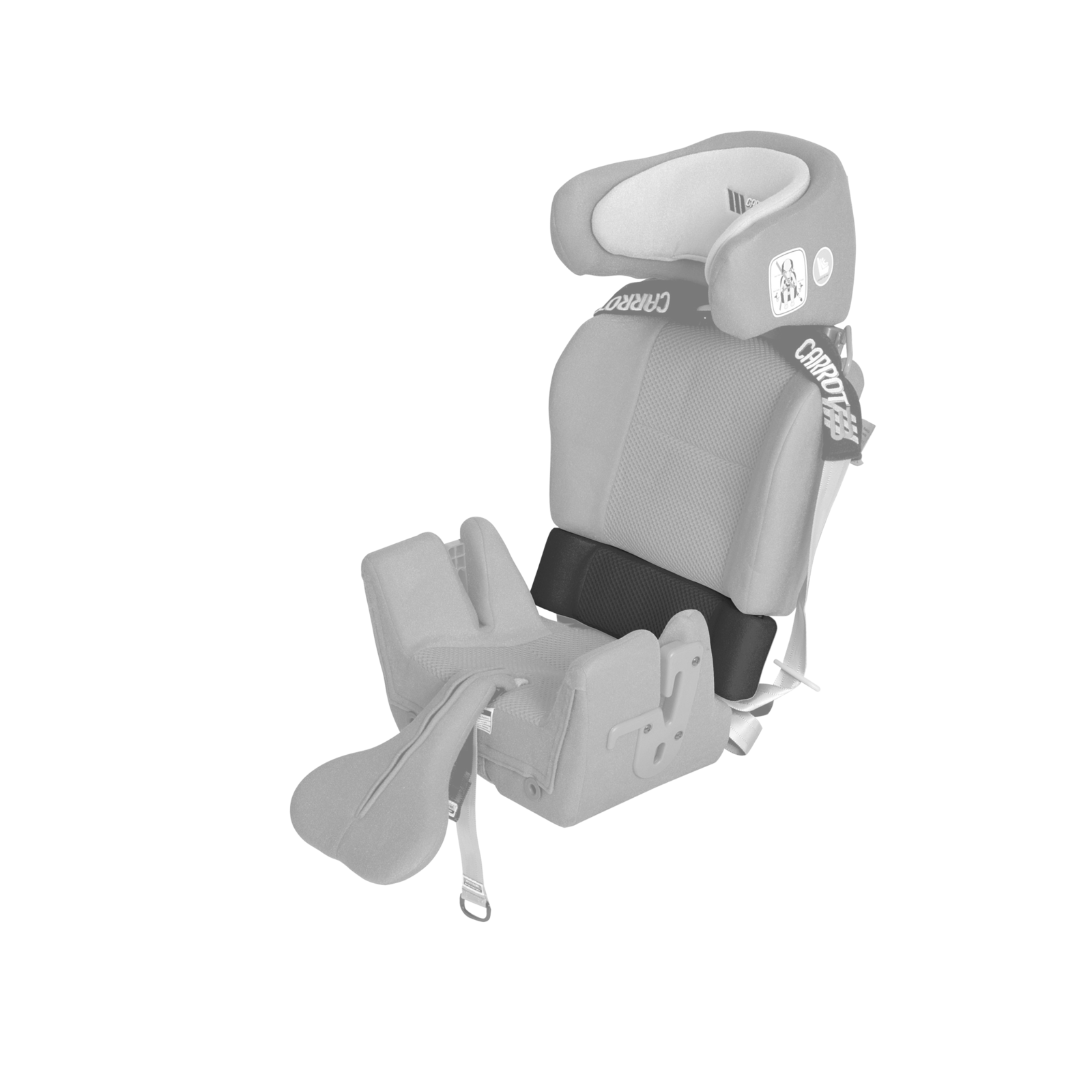

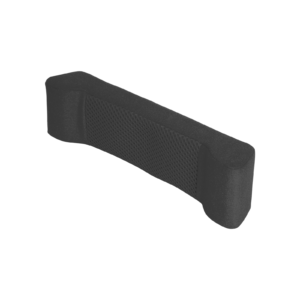

Carrot 100mm Back Support Extension
Extension pad to increase the back support height by 100mm
Product Code:
4116-2482-259

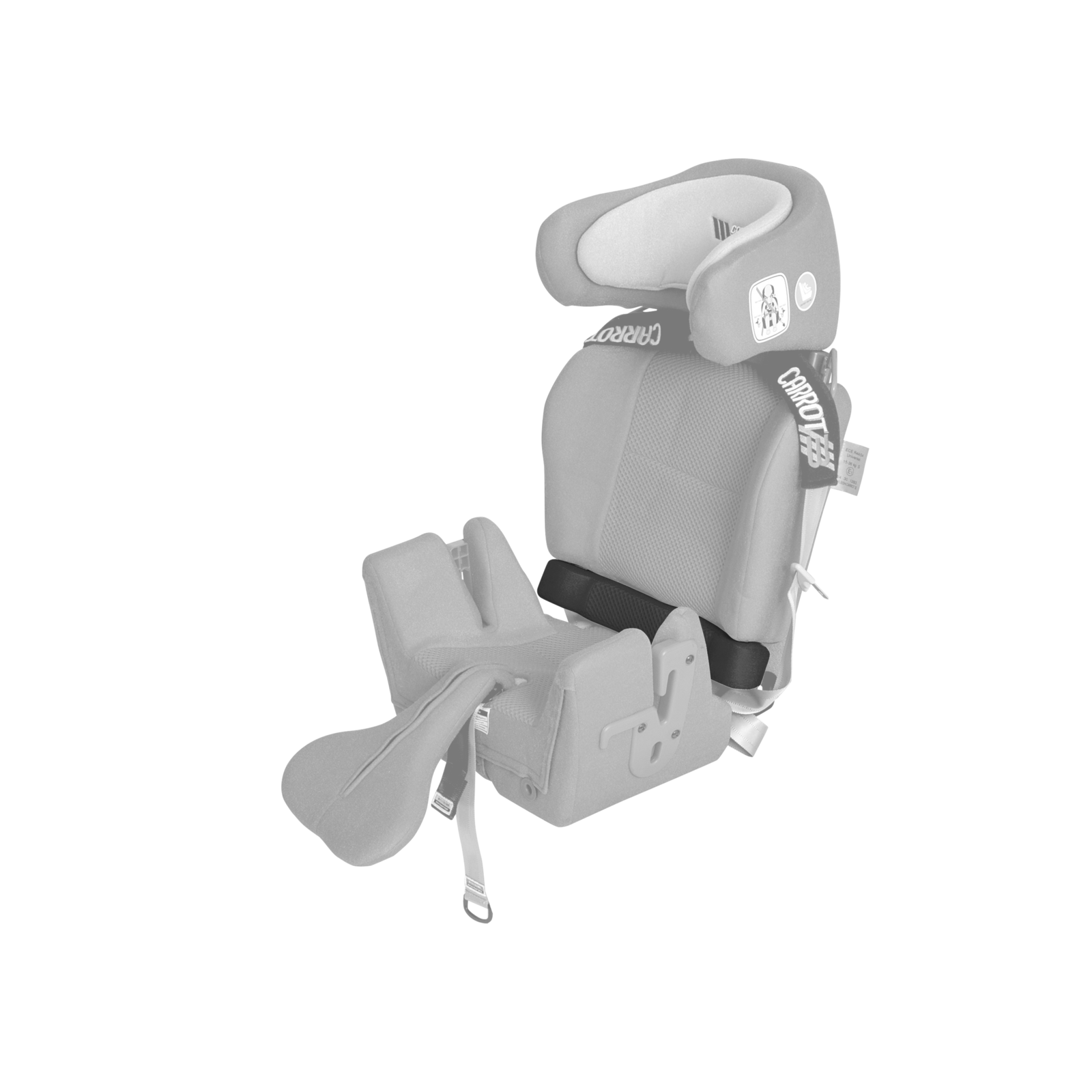

Carrot 50mm Back Support Extension
Extension pad to increase the back support height by 50mm.

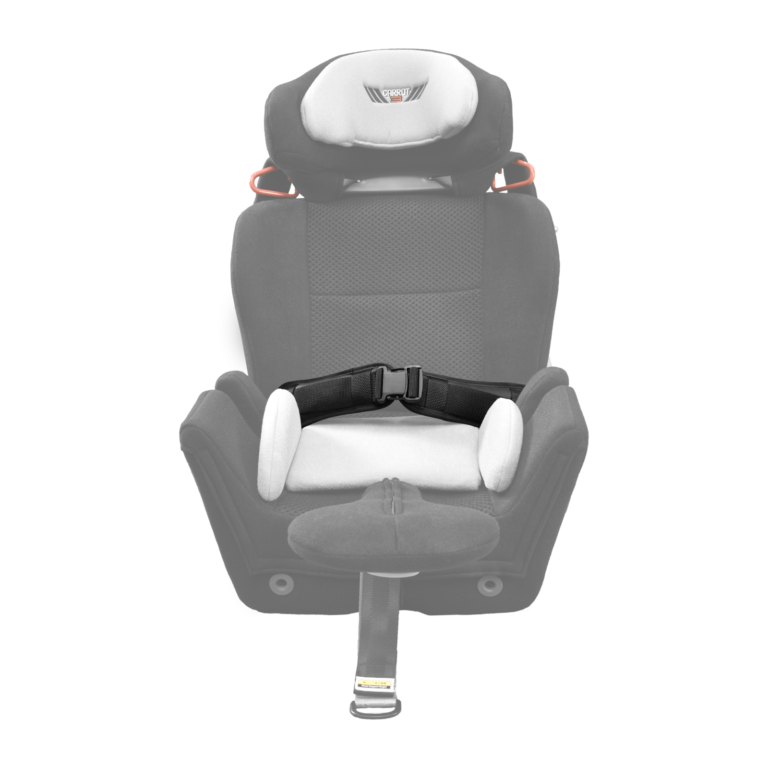

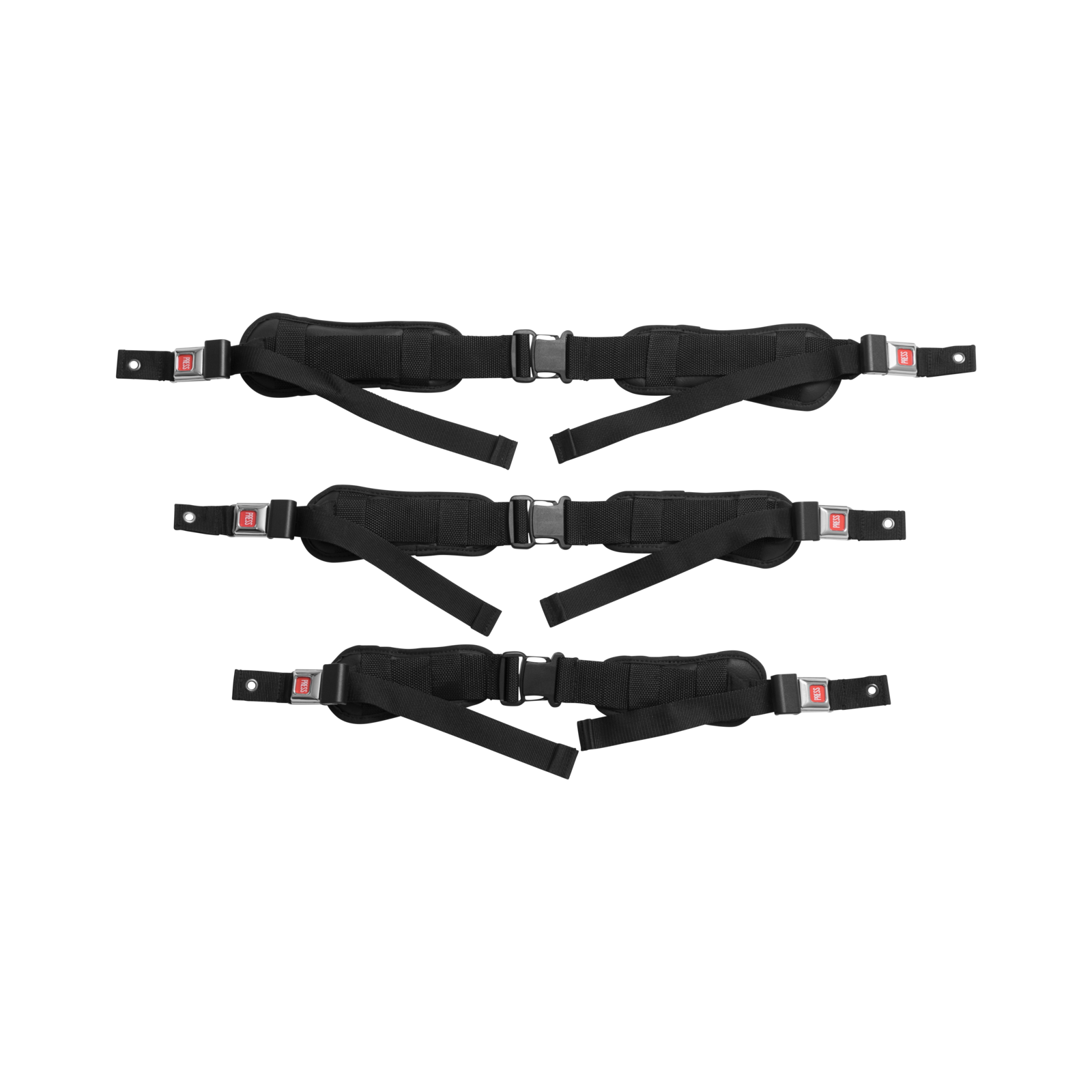

Carrot Pelvis Lock Hip Belt
Product Code:
Small: 4116-6531-027,
Medium: 4116-6532-027,
Large: 4116-6533-027

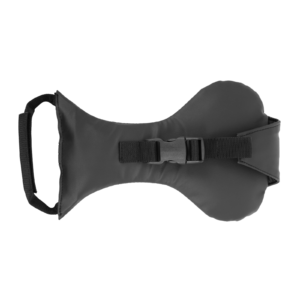

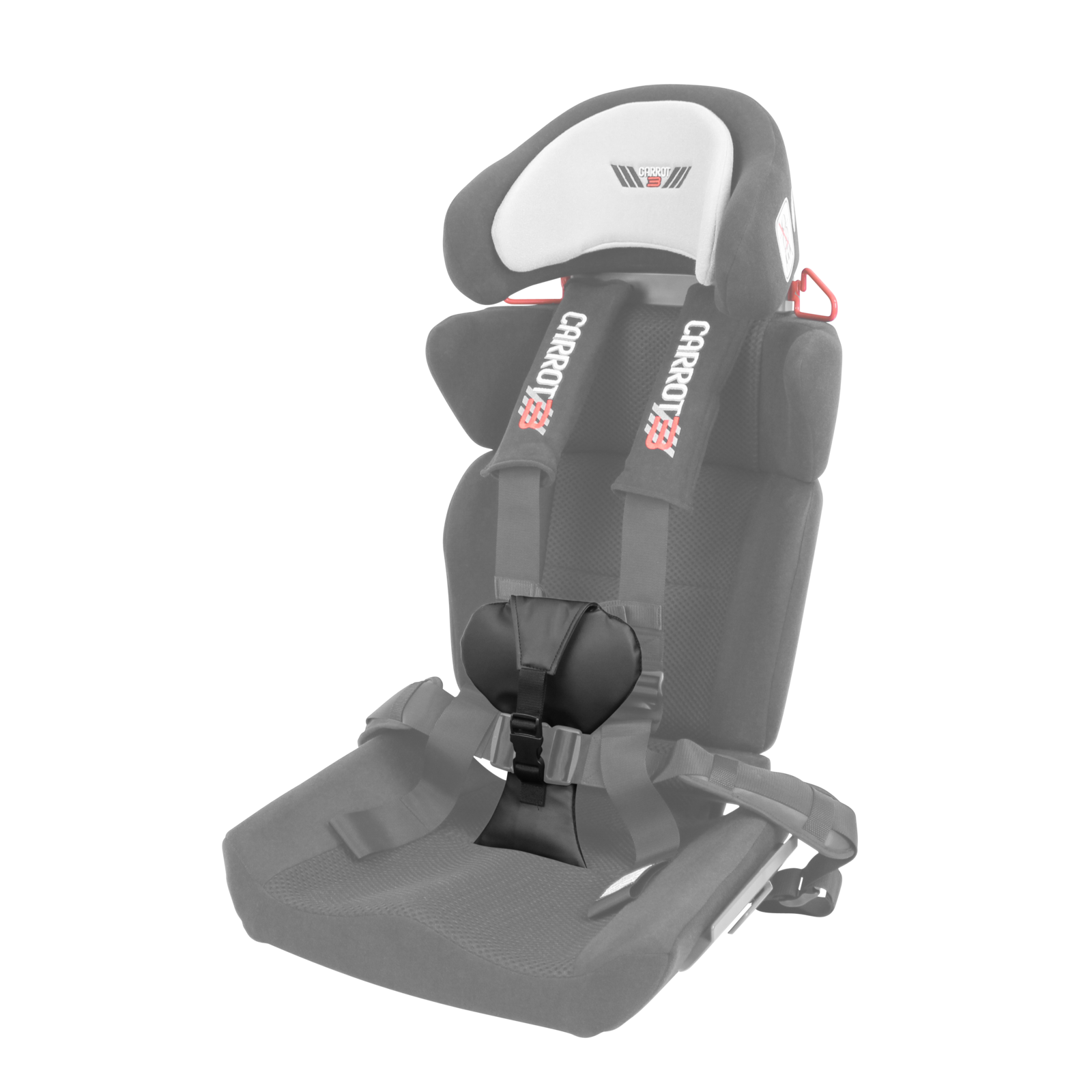

Carrot XL Crotch Belt
Can be retro-fitted in the field to models that include a slot in the seat cushion.
Product Code:
4116-6320-000

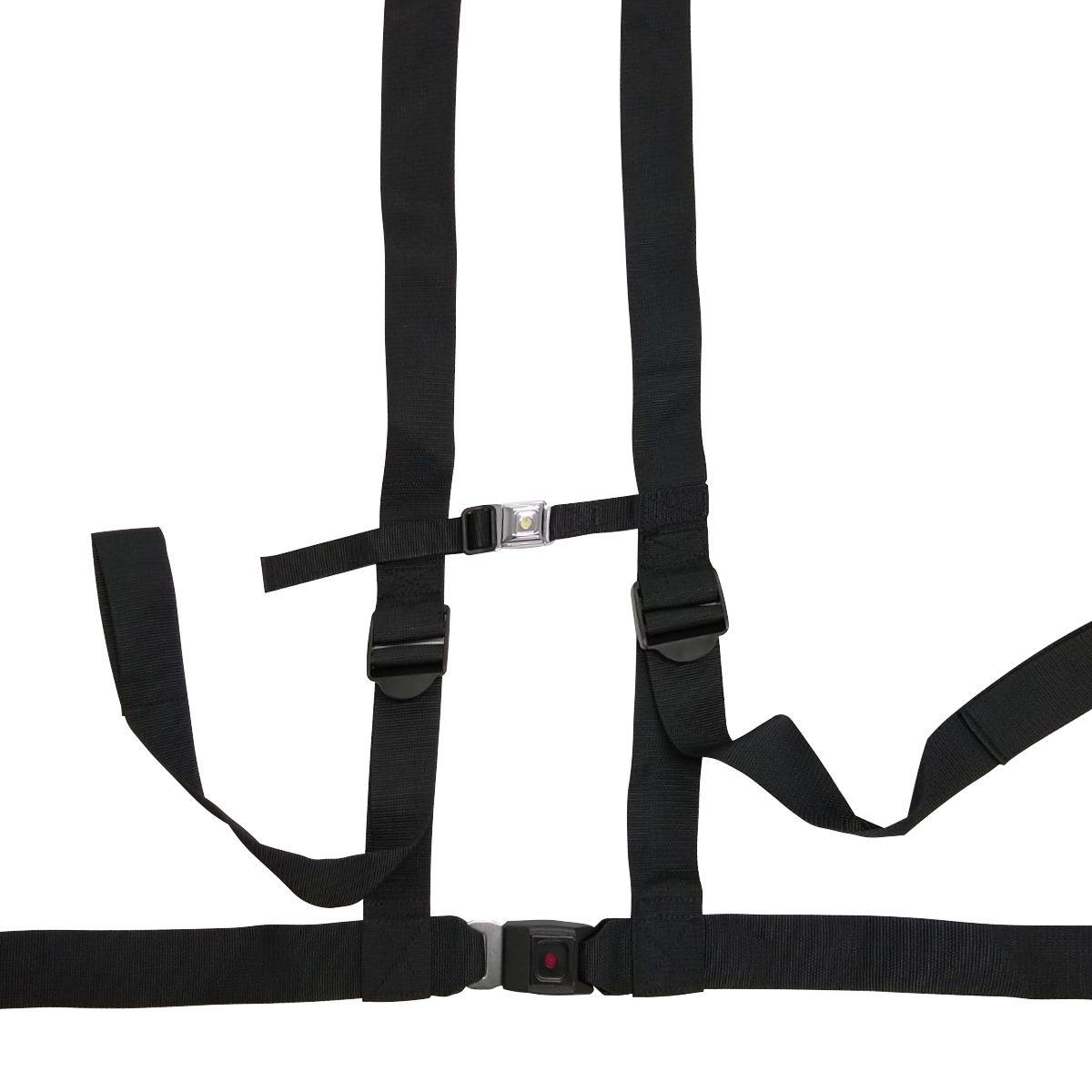

Carrot XL Pen Release Harness
Complete harness with pen key release (for upgrading existing Carrot XL with standard harness). Includes release tool.
Product Code:
4116-6125-256

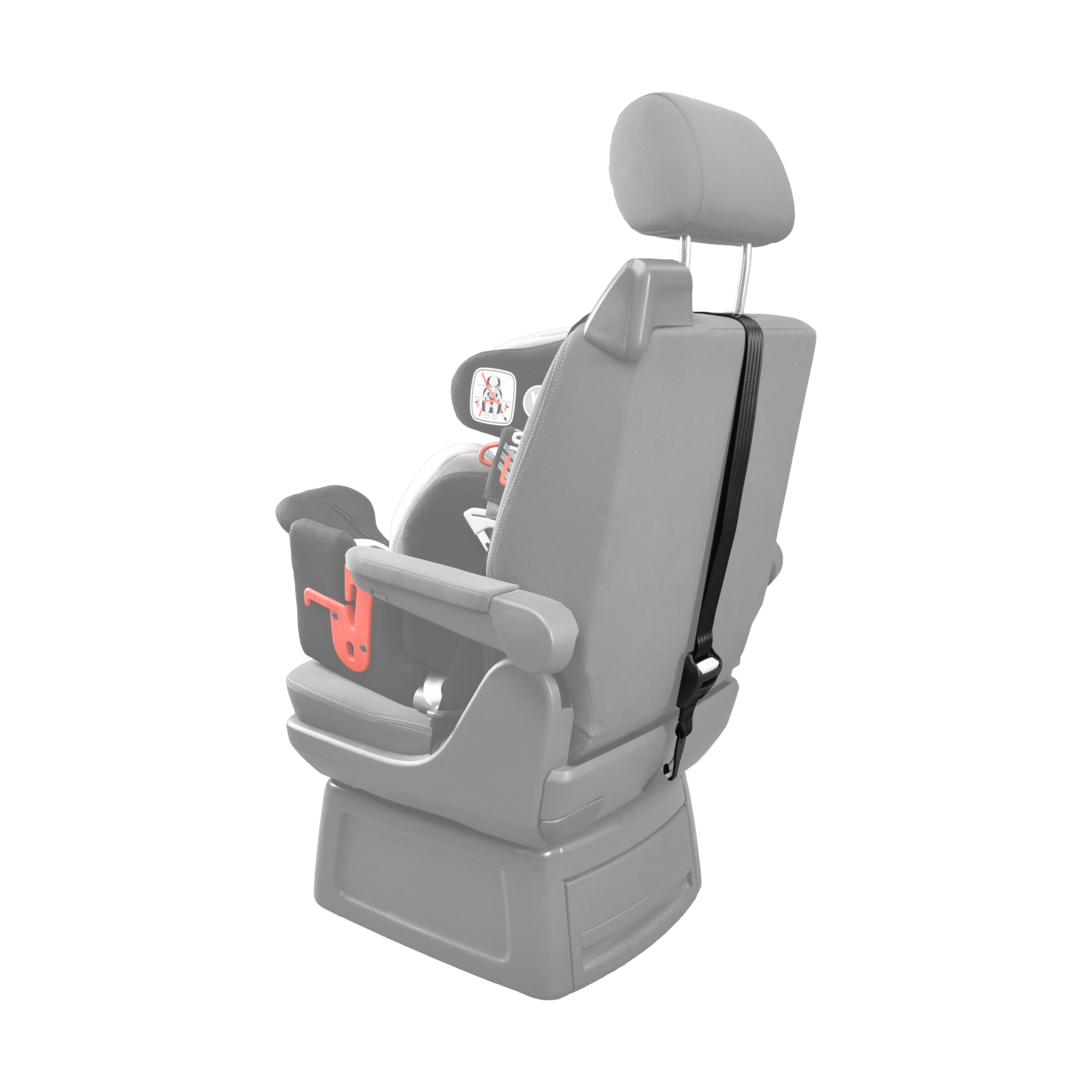

Carrot Tether Strap
Top tether strap
Product Code:
4116-6953-017

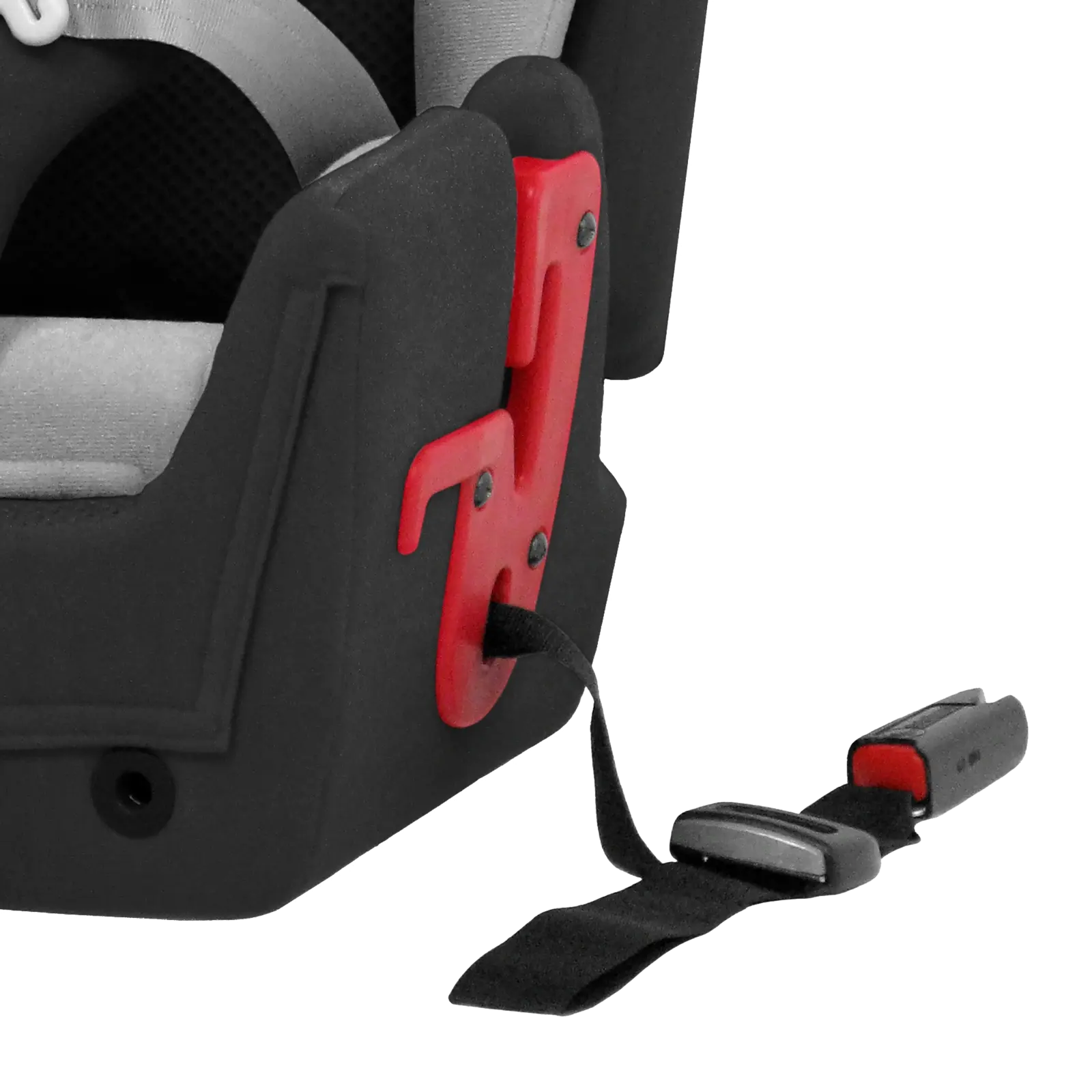

Carrot ISOfix latch connectors
When connected to the car seat’s ISOfix, please transport your child with the five-point seat belt of the Carrot and with the three-point seat belt of the car.
Product Code:
4116-6910-000

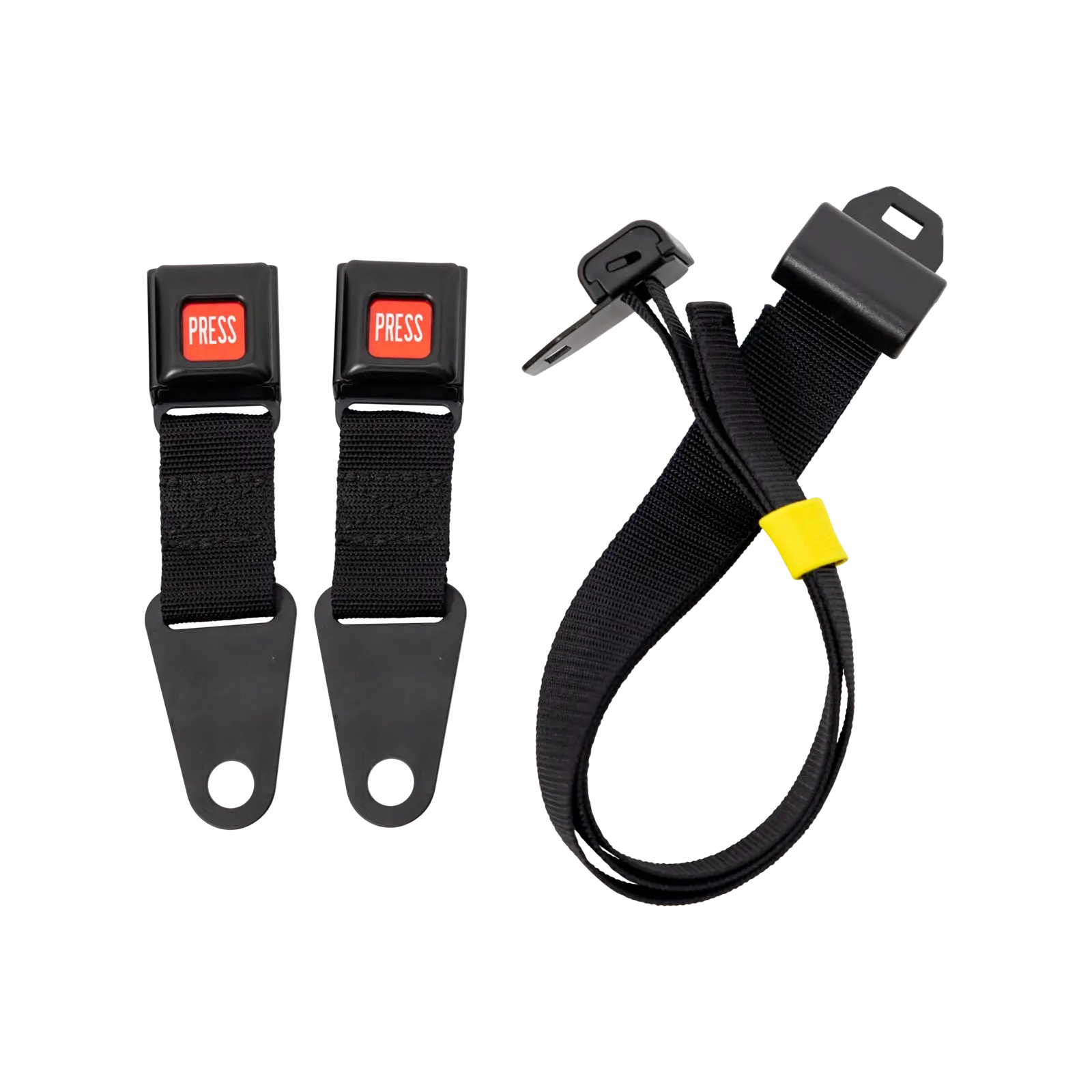

Carrot Fixing Strap for Aircraft Seat
Horizontal Carrot 3000 fixing attachment strap for securing the Car Seat to an aircraft seat. This is compatible with the Carrot 3000 and the Carrot XL car seats.
Product Code:
4116-6960-017

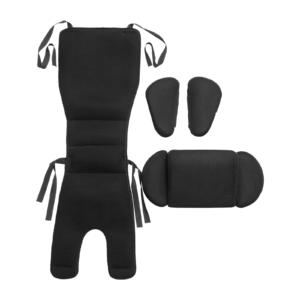

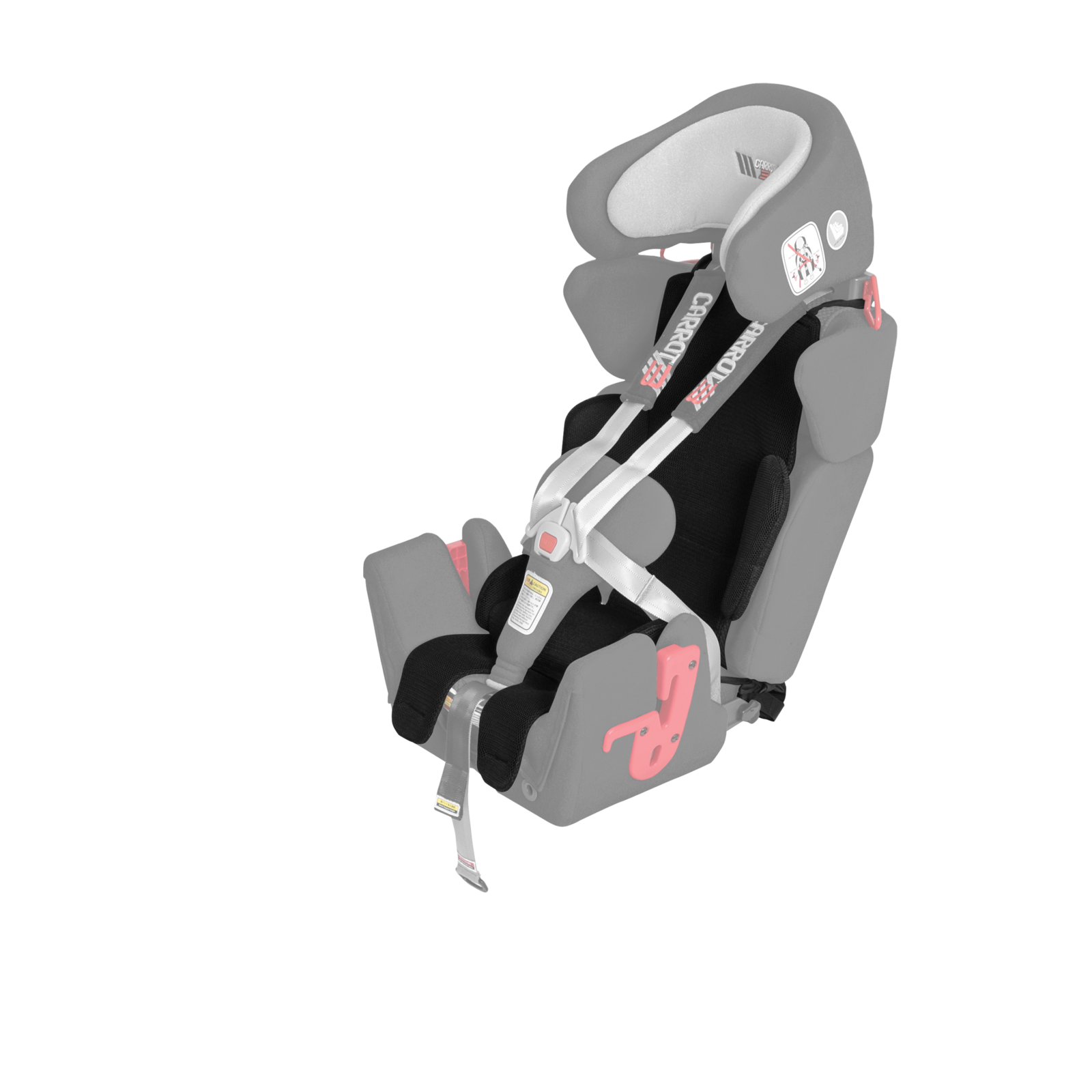

Carrot Air Mesh Cushions
Air mesh cushion pad set in black.
Product Code:
4116-8880-099

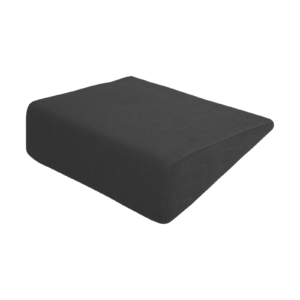

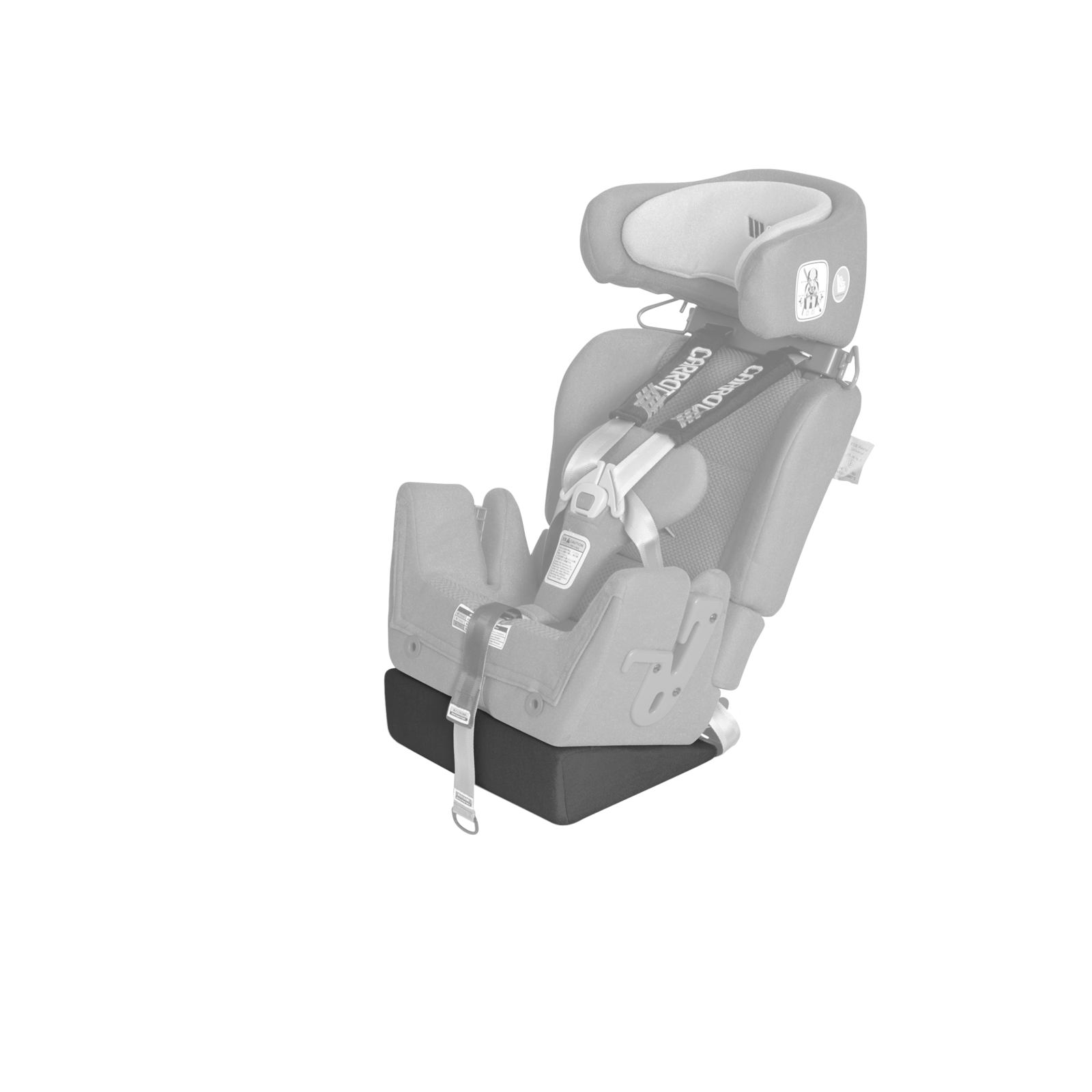

Carrot Tilt Wedge
For 20° additional tilt to provide increased head control.
Product Code:
4116-0291-259

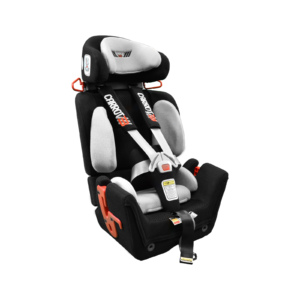

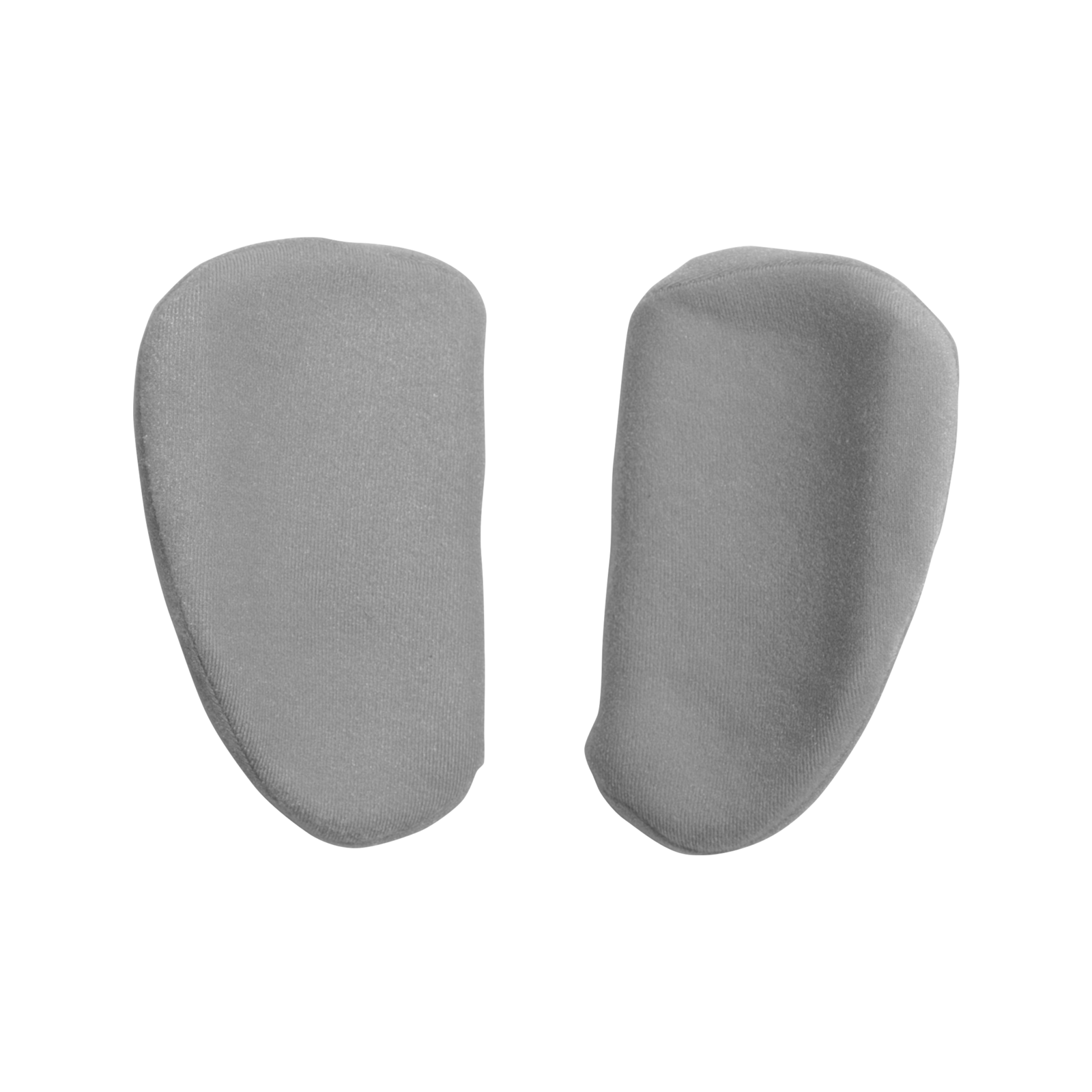

Carrot Trunk Positioning Pads

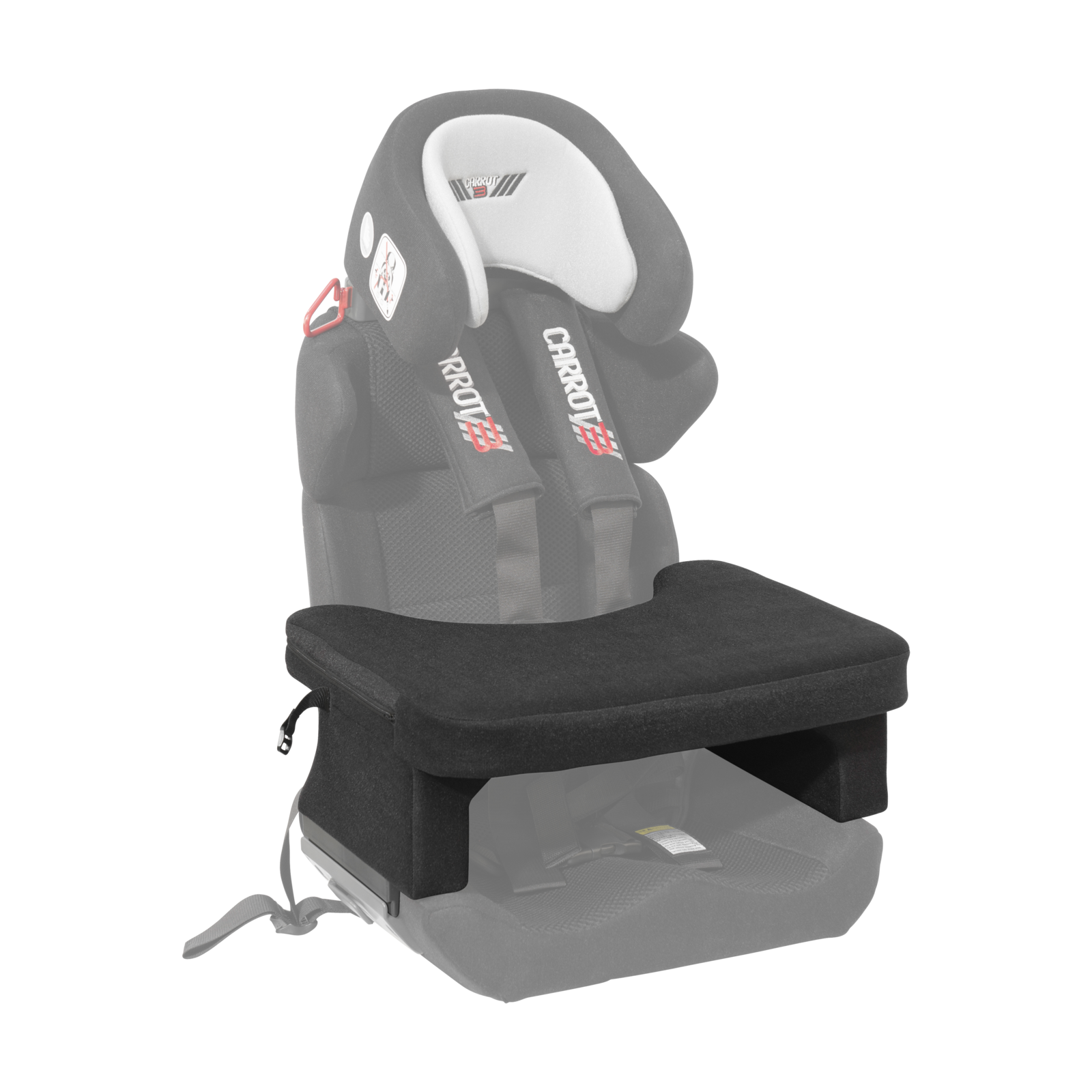

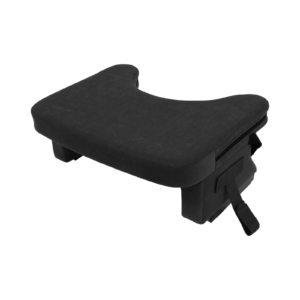

Carrot XL Tray Table
Tray table to support the forearms.
Product Code: 4116-5544-259
Carrot 100mm Back Support Extension
Extension pad to increase the back support height by 100mm
Product Code:
4116-2482-259
Carrot 50mm Back Support Extension
Extension pad to increase the back support height by 50mm.
Carrot Pelvis Lock Hip Belt
Product Code:
Small: 4116-6531-027,
Medium: 4116-6532-027,
Large: 4116-6533-027
Carrot XL Crotch Belt
Can be retro-fitted in the field to models that include a slot in the seat cushion.
Product Code:
4116-6320-000
Carrot XL Pen Release Harness
Complete harness with pen key release (for upgrading existing Carrot XL with standard harness). Includes release tool.
Product Code:
4116-6125-256
Carrot Tether Strap
Top tether strap
Product Code:
4116-6953-017
Carrot ISOfix latch connectors
When connected to the car seat’s ISOfix, please transport your child with the five-point seat belt of the Carrot and with the three-point seat belt of the car.
Product Code:
4116-6910-000
Carrot Fixing Strap for Aircraft Seat
Horizontal Carrot 3000 fixing attachment strap for securing the Car Seat to an aircraft seat. This is compatible with the Carrot 3000 and the Carrot XL car seats.
Product Code:
4116-6960-017
Carrot Air Mesh Cushions
Air mesh cushion pad set in black.
Product Code:
4116-8880-099
Carrot Tilt Wedge
For 20° additional tilt to provide increased head control.
Product Code:
4116-0291-259
Carrot Trunk Positioning Pads
Carrot XL Tray Table
Tray table to support the forearms.
Product Code: 4116-5544-259
Carrot 100mm Back Support Extension
Extension pad to increase the back support height by 100mm
Product Code:
4116-2482-259
Carrot 50mm Back Support Extension
Extension pad to increase the back support height by 50mm.
Carrot Pelvis Lock Hip Belt
Product Code:
Small: 4116-6531-027,
Medium: 4116-6532-027,
Large: 4116-6533-027
Carrot XL Crotch Belt
Can be retro-fitted in the field to models that include a slot in the seat cushion.
Product Code:
4116-6320-000
Carrot XL Pen Release Harness
Complete harness with pen key release (for upgrading existing Carrot XL with standard harness). Includes release tool.
Product Code:
4116-6125-256
Carrot Tether Strap
Top tether strap
Product Code:
4116-6953-017
Carrot ISOfix latch connectors
When connected to the car seat’s ISOfix, please transport your child with the five-point seat belt of the Carrot and with the three-point seat belt of the car.
Product Code:
4116-6910-000
Carrot Fixing Strap for Aircraft Seat
Horizontal Carrot 3000 fixing attachment strap for securing the Car Seat to an aircraft seat. This is compatible with the Carrot 3000 and the Carrot XL car seats.
Product Code:
4116-6960-017
Carrot Air Mesh Cushions
Air mesh cushion pad set in black.
Product Code:
4116-8880-099
Carrot Tilt Wedge
For 20° additional tilt to provide increased head control.
Product Code:
4116-0291-259
Carrot Trunk Positioning Pads
Carrot XL Tray Table
Tray table to support the forearms.
Product Code: 4116-5544-259
Carrot 100mm Back Support Extension
Extension pad to increase the back support height by 100mm
Product Code:
4116-2482-259
Carrot 50mm Back Support Extension
Extension pad to increase the back support height by 50mm.
Carrot Pelvis Lock Hip Belt
Product Code:
Small: 4116-6531-027,
Medium: 4116-6532-027,
Large: 4116-6533-027
Carrot XL Crotch Belt
Can be retro-fitted in the field to models that include a slot in the seat cushion.
Product Code:
4116-6320-000
Carrot XL Pen Release Harness
Complete harness with pen key release (for upgrading existing Carrot XL with standard harness). Includes release tool.
Product Code:
4116-6125-256
Carrot Tether Strap
Top tether strap
Product Code:
4116-6953-017
Carrot ISOfix latch connectors
When connected to the car seat’s ISOfix, please transport your child with the five-point seat belt of the Carrot and with the three-point seat belt of the car.
Product Code:
4116-6910-000
Carrot Fixing Strap for Aircraft Seat
Horizontal Carrot 3000 fixing attachment strap for securing the Car Seat to an aircraft seat. This is compatible with the Carrot 3000 and the Carrot XL car seats.
Product Code:
4116-6960-017
Carrot Air Mesh Cushions
Air mesh cushion pad set in black.
Product Code:
4116-8880-099
Carrot Tilt Wedge
For 20° additional tilt to provide increased head control.
Product Code:
4116-0291-259
Carrot Trunk Positioning Pads
Carrot XL Tray Table
Tray table to support the forearms.
Product Code: 4116-5544-259
Specifications | Carrot XL |
---|---|
Code | 4116-0020-259 |
User Height | 140-175 cm |
User Weight | 36-75 kg |
Seat Depth | 45 cm |
Seat Width | 48 cm |
Shoulder Height | 45-67 cm (with Shoulder Protector Wings) |
Seat Weight | 10.5 kg |
Overall Seat Depth | 46 cm |
Overall Seat Width | 52 cm |

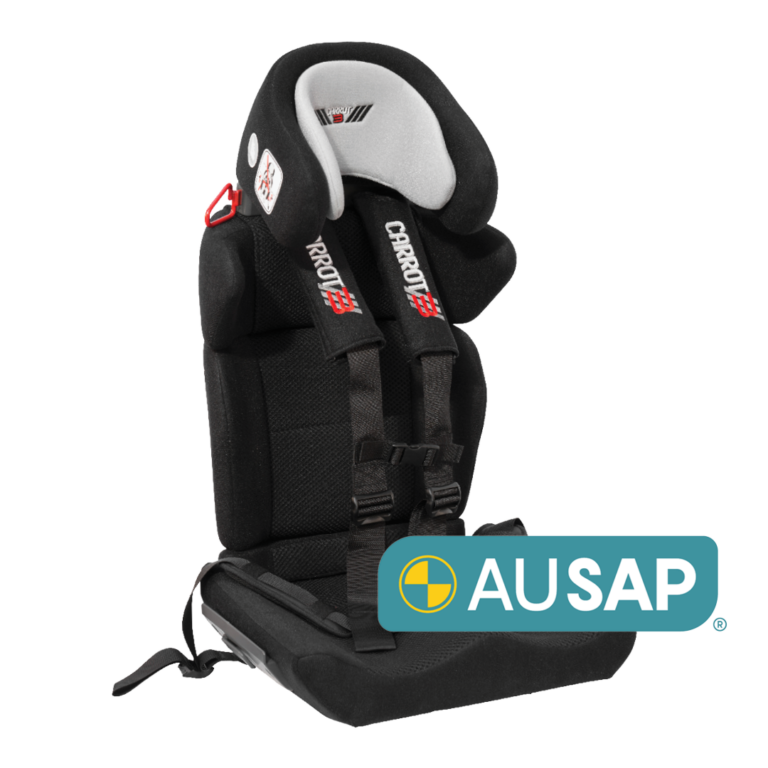

The Australian Safety Assessment Program (AuSAP) independently assessed the Carrot XL Car Seat in 2021/22, in accordance with the AuSAP Test and Assessment Protocol. For more information about AuSAP visit www.macahub.org
MACA’s Australian Safety Assessment Program (AuSAP) independently assesses vehicle restraint options used by children with disabilities and medical conditions. AuSAP is not a certification program but aims to advance knowledge about the safety and design of restraint systems for children with disabilities and medical conditions.
