Adventure Gained. Nothing Lost

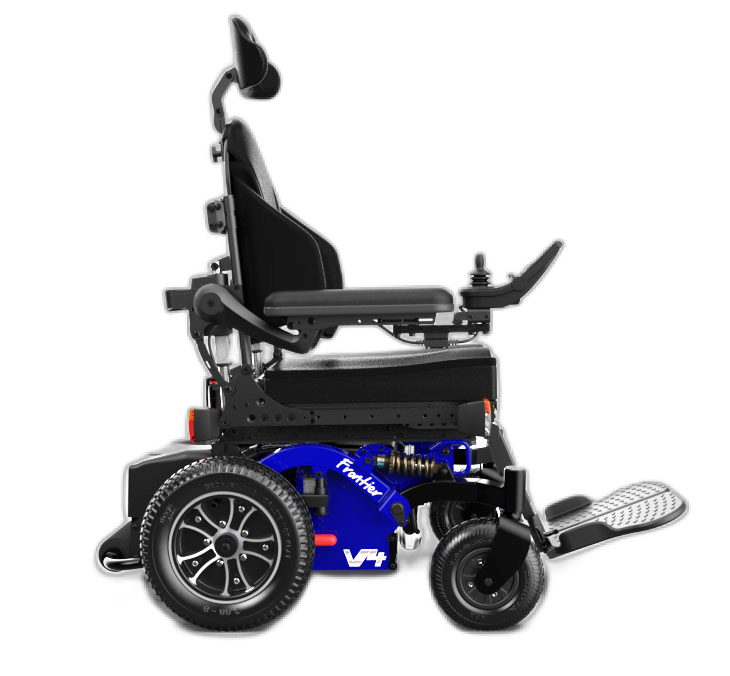

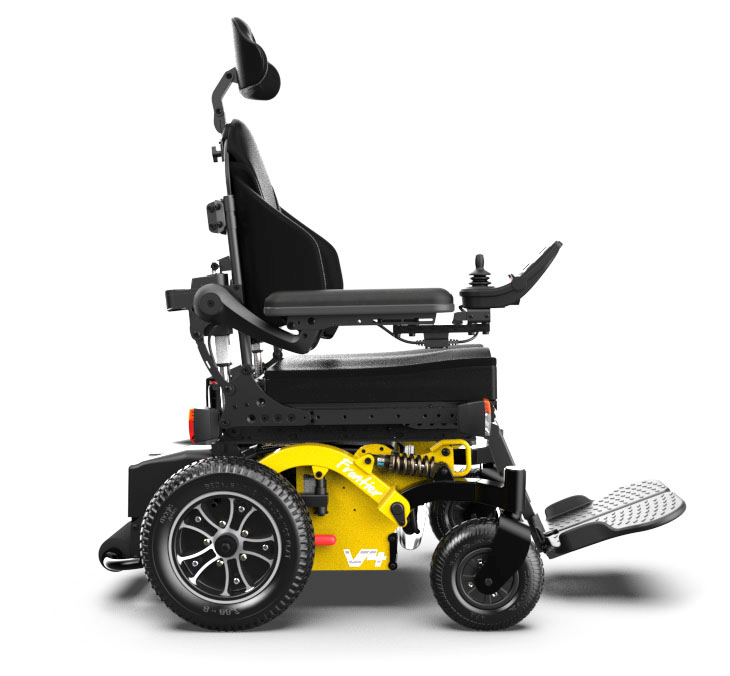

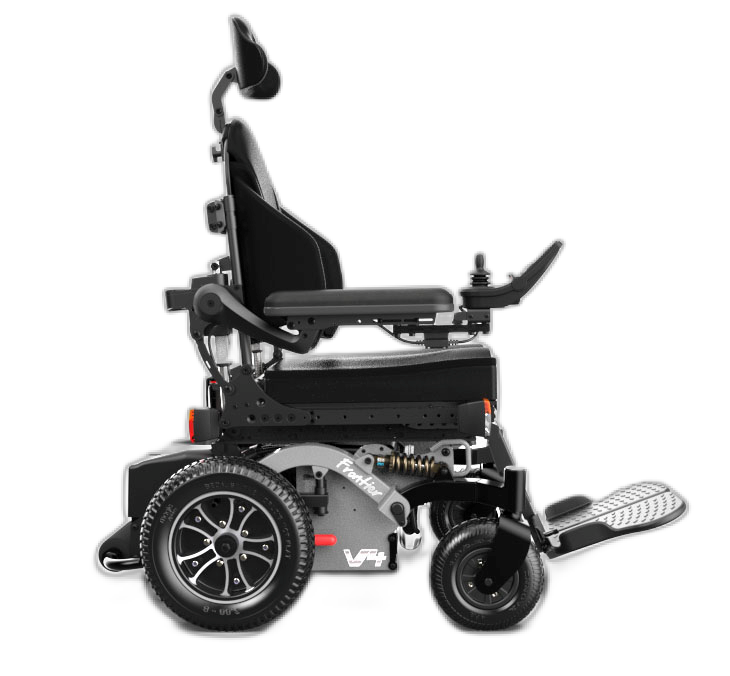

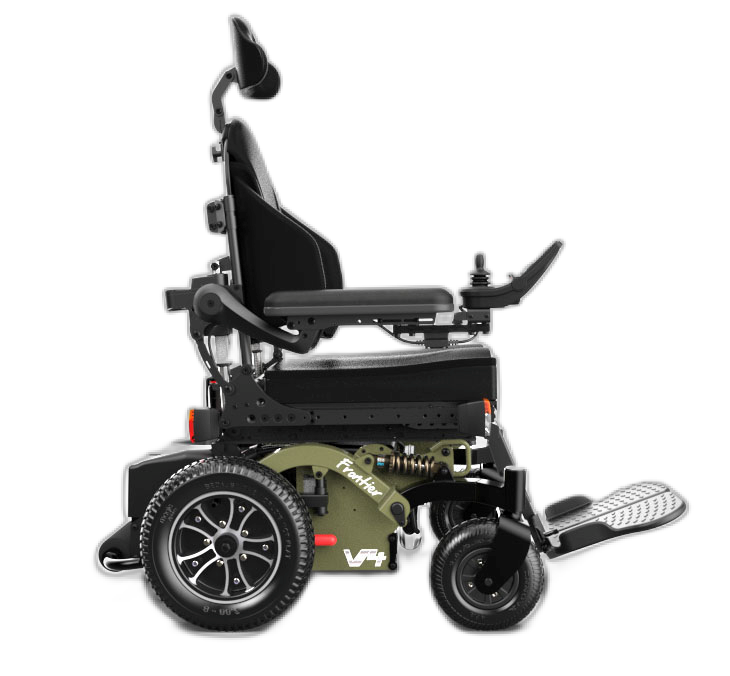

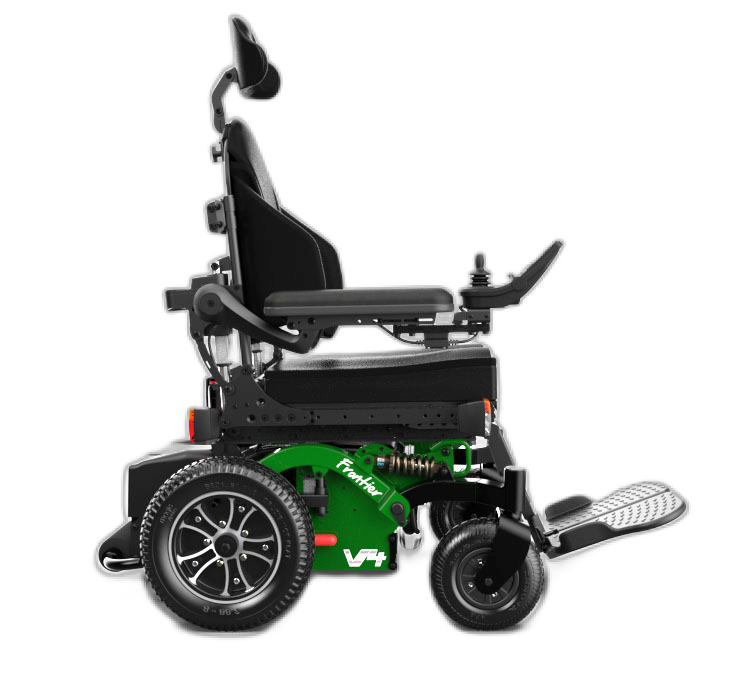

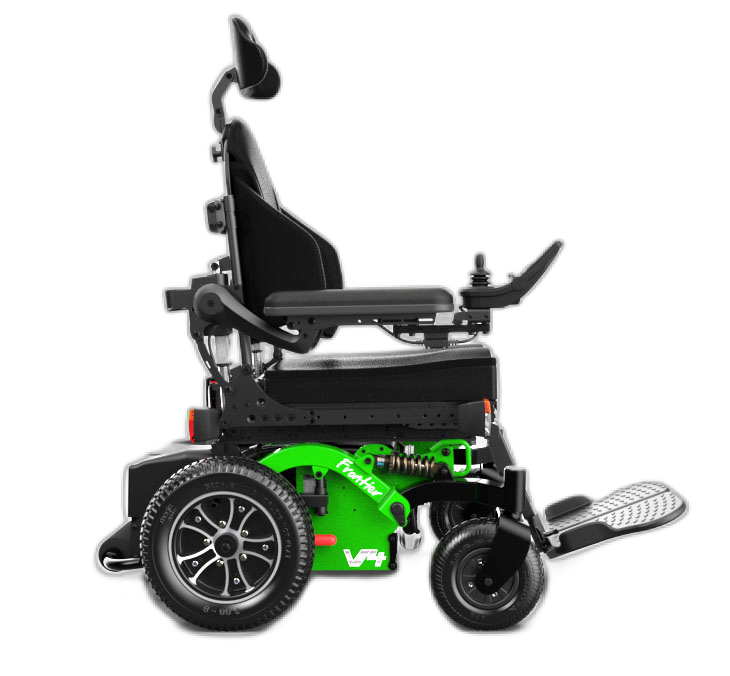

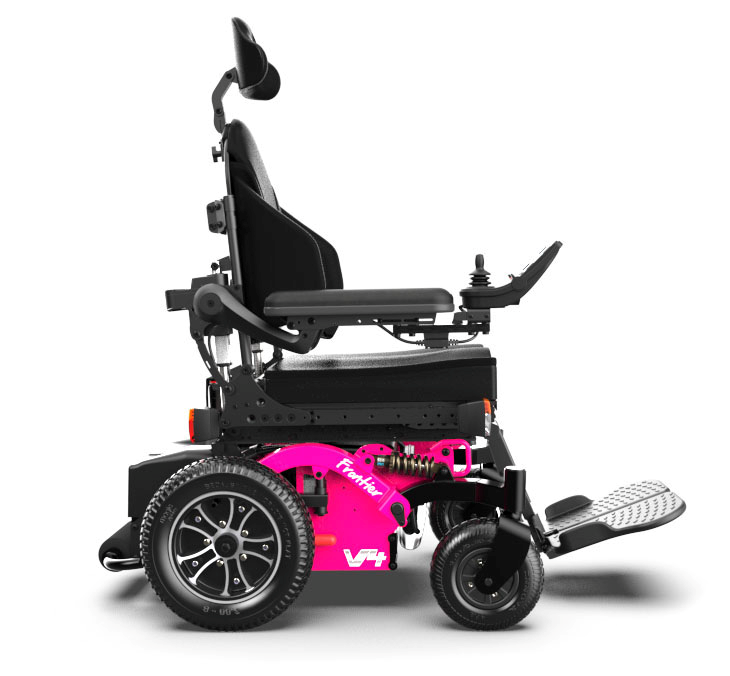

A powered wheelchair for those who know what they want. The thinking person’s chair, the V4 Rear Wheel Drive (RWD) is designed for those who are asking themselves the question about getting around the street or off-road, as well as indoors. Swap your off-road tyres to either Crossover or Urban tyres to ensure you get the best powered wheelchair for your lifestyle.
- Drive mode: Rear wheel drive
- Motors: 68 Nm Torque, 2 x 800W, Gear in line
- Environments: Everyday off-road, Urban outdoors and roomy indoors
Resources
| Features | Specifications |
|---|---|
| *Length of base | 930mm (*legrest choice and seating size may increase chair length/width) |
| *Width of base | 640mm (710mm with off-road wheels, 700mm with crossover wheels) |
| Floor to top of seat pan height | 435mm |
| *Minimum turning radius | 915-940mm (*legrest choice may increase turning circle) |
| Weight limit | 182kg (400lbs), 155kg (340lbs) with lift or tilt |
| Top speed | 10kph (6.2mph) |
| Motors | 68Nm Torque, 800W, Gear in Line |
| Motor IP Rating 54 (splash resistant but not waterproof) | The wheelchair has electric motors and must not be driven through water, into rivers, creeks and the sea |
| Wheels – Urban | 14″x3” black or grey (solid or pneumatic) |
| Wheels – Off-road | 14″ black (note silver rims not available in the USA) |
| Castors | Ø220mm (280/250-4), black or grey (solid or pneumatic) |
| Batteries | Gel |
| Controller | Penny & Giles with LCD display (R-net) or LED option |
| Legrest options | Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating |
| Backrest and seat | Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options |
| Tie down points | Crash test compliant |
