Extreme X8 – 4×4 Electric Wheelchair

Select a colour

Make an Enquiry

Extreme X8

- 4×4 Electric Wheelchair

Off-Road and off the map

The Magic Mobility Extreme X8 provides the freedom you’ve always wanted.

The X8 is your partner to almost any destination. Sand, snow and every terrain you can throw at it. With unrivalled off-road performance and reliability, the X8 is perfect for outdoor adventurers, explorers and rural workers. If the great outdoors is where you want to be, the Extreme X8 is waiting to take you there.

Drive mode: 4 x 4
Motors: 4 x 700W Gear in Line
Environment: Challenging outdoor exploration and rural work

Read more Read less

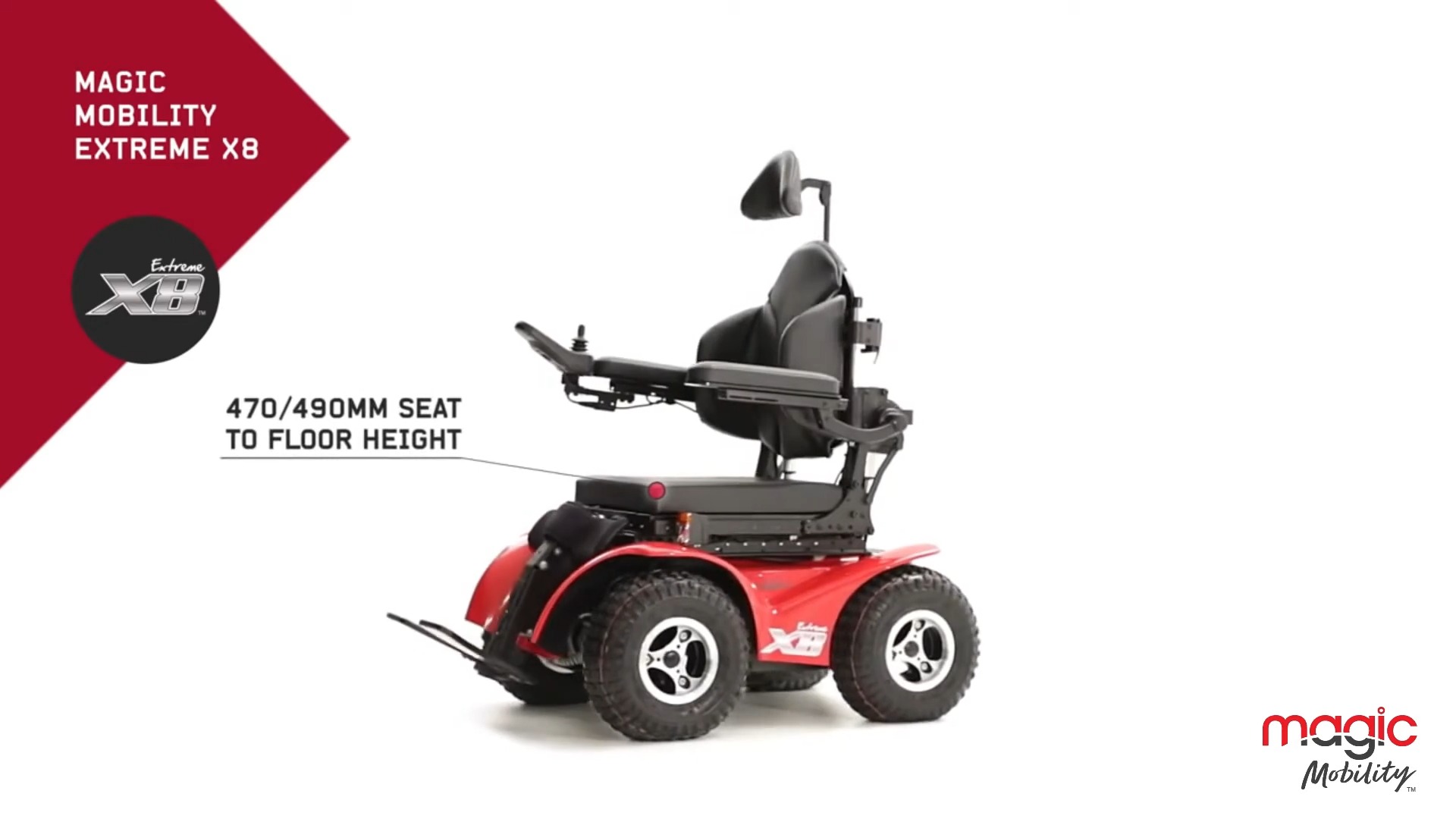

Watch

Gallery

Functional

Benefits

Four independent, high speed, high torque and high efficiency motors

A top speed of 10 km/h (6.2 mph), the motors provide more than just speed. Four high torque, powerful motors, enable you to confidently ascend a wide variety of challenging terrain. These highly efficient motors help maximise battery life providing you the confidence to really get adventurous.

Articulating front frame with low pressure knobby tyres

Exceptional suspension keeps all four driving wheels on the ground, giving you an ultra smooth and jolt-free ride. Combined with low-pressure off-road knobby tyres you'll experience the smoothest ride yet as you traverse the bumps and changes in terrain with confidence.

Unbeatable kerb and step climbing ability

The Extreme X8 eats kerbs and small steps for breakfast, driven by four independent motors, off-road low pressure knobby tyres and articulating front suspension.

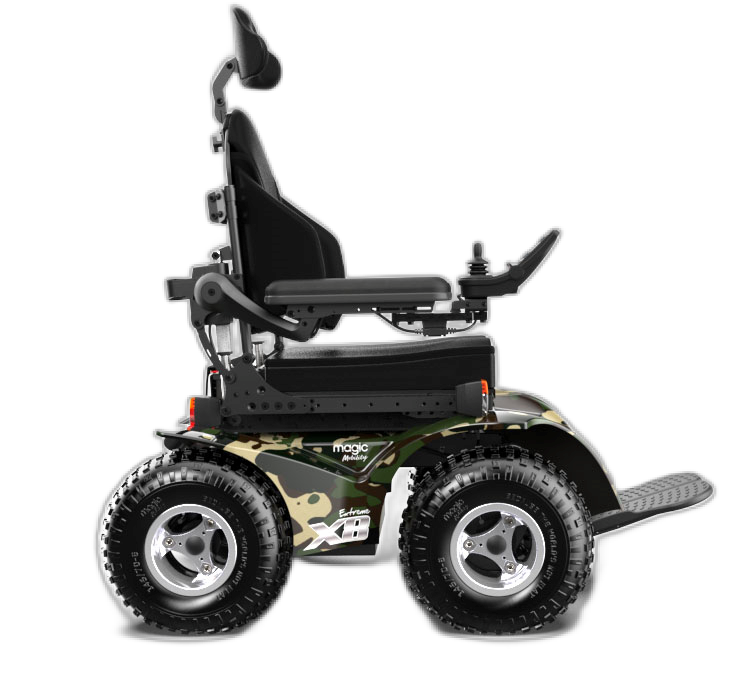

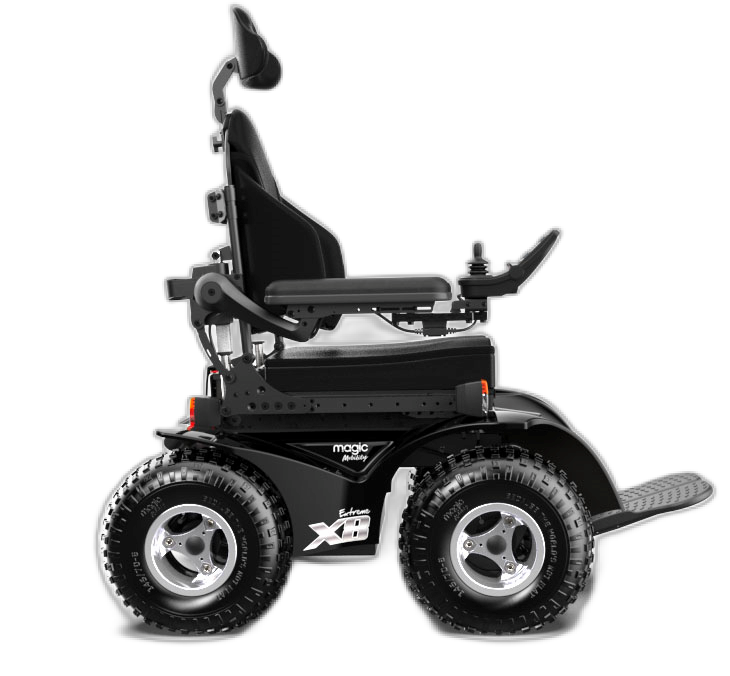

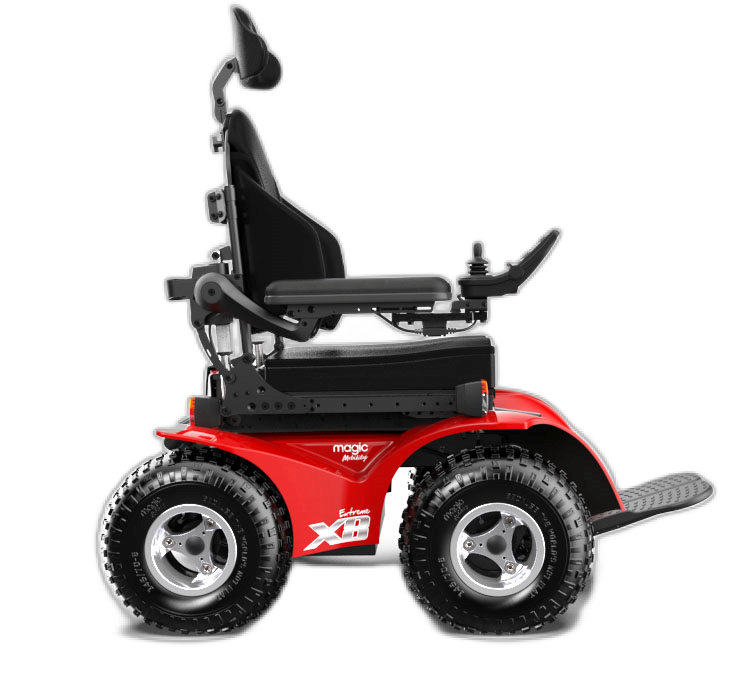

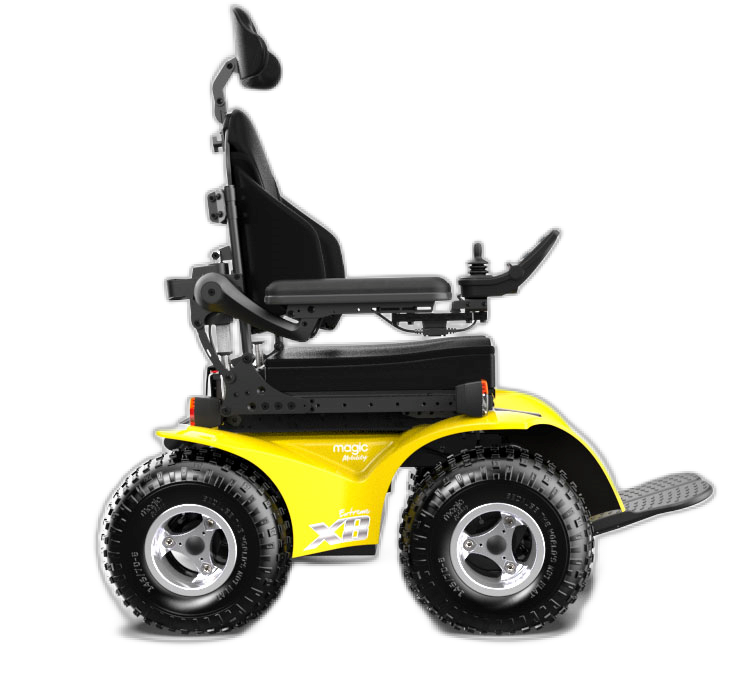

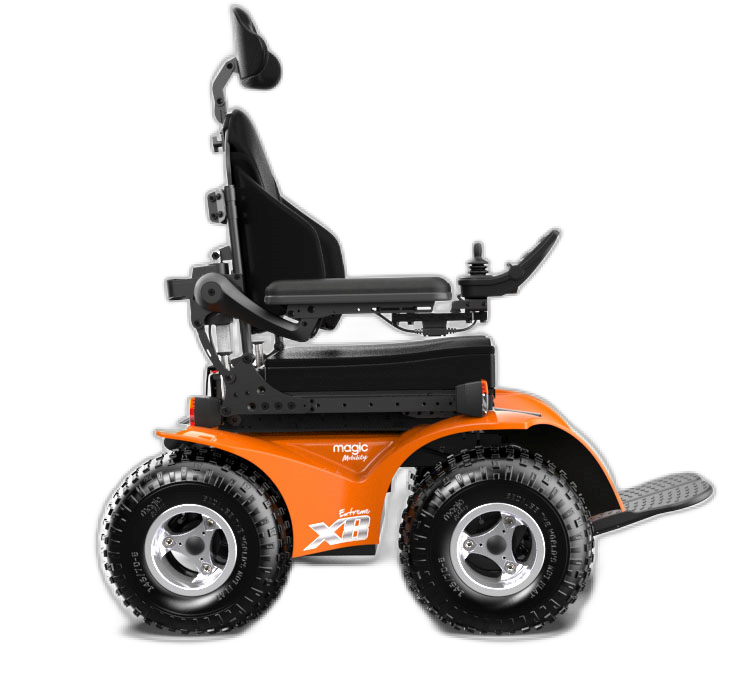

Colour and finish options

Choose from six vibrant colours and two specialised hydro graphic wraps. Or choose your own colour from the Dulux colour range at extra cost. We can also cater to more custom finishes, including decals.

Proudly Australian made

Since 1994, we have been designing, engineering and manufacturing highly robust, all terrain powerchairs in Melbourne, Australia so that active users can experience a world that’s not flat.

Splash resistant (not waterproof)

Please remember, the wheelchair has electric motors and must not be driven through water, into rivers, creeks, or the sea. Magic Mobility wheelchairs meet Australian Standards 3696 and ISO7176.

Resources

Extreme X8 Brochure 0.66 MB Extreme X8 - Frequently Asked Questions 0.20 MB EN_AU-Powerchair-Owners-Manual 13.81 MB Magic Comparison Chart 5.65 MB Medifab Comparison Chart (NZ) - Powered Wheelchairs 1.19 MB

Specifications

Technical Specifications

Wheel Options

Feature	Specification
*Length of base	1030mm (*legrest choice and seating size may increase chair length/width)
*Width of base	700mm
Floor to top of seat pan height	470mm (490mm with swingaway legrests)
*Minimum turning radius	1415-1470mm (*legrest choice may increase turning circle)
Weight limit	182kg (400lbs), 155kg (340lbs) with lift and/or tilt
Top speed	10kph (6.2mph)
Motors	68Nm Torque, 700W, Gear In Line
Motor IP rating 54 (splash resistant but not waterproof)	The wheelchair has electric motors and must not be driven through water, into rivers, creeks and the sea.
Wheels	Off-road 14″ (145/70-6) black (note silver rims not available in the USA)
Batteries	Gel: 70Ahr (C20) – standard, or 90Ahr (C20) – optional upgrade
Controller	Penny & Giles controller with LCD display (R-Net) or LED option
Legrest options	Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating
Backrest and seat	Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options
Colours	Additional costs will apply for hydrographic wraps (forest camo, army camo and flames) and custom colours
Tie down points	Crash test compliant

Select Wheels:
OFF-ROAD
Select Tyre & Rim Colours:
BLACK/SILVER or BLACK/BLACK

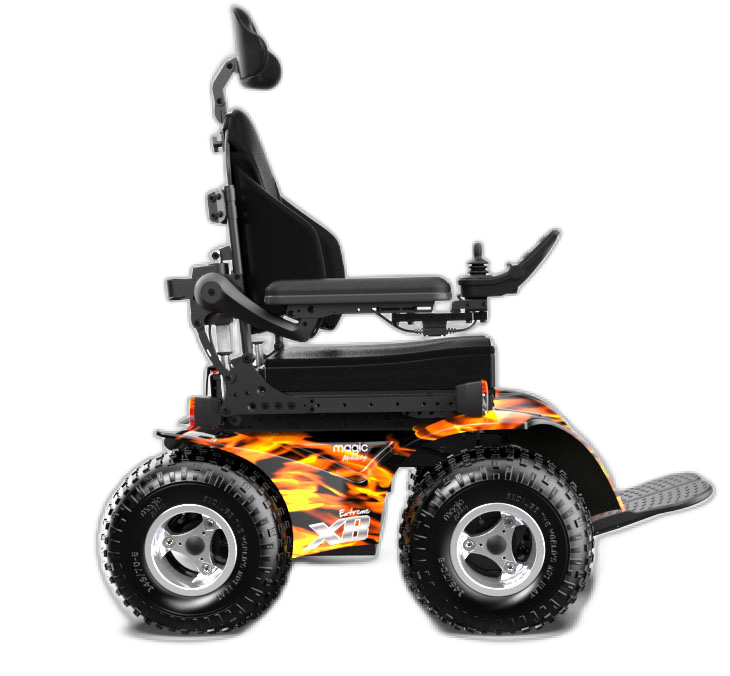

*Premium hydro wraps (including Flames Fury, Forest Camo and Army Camo) will incur an additional cost.

Disclaimer – Actual colours and designs may vary slightly over time due to differences in product finishes. Please refer to physical examples for accurate representation.
