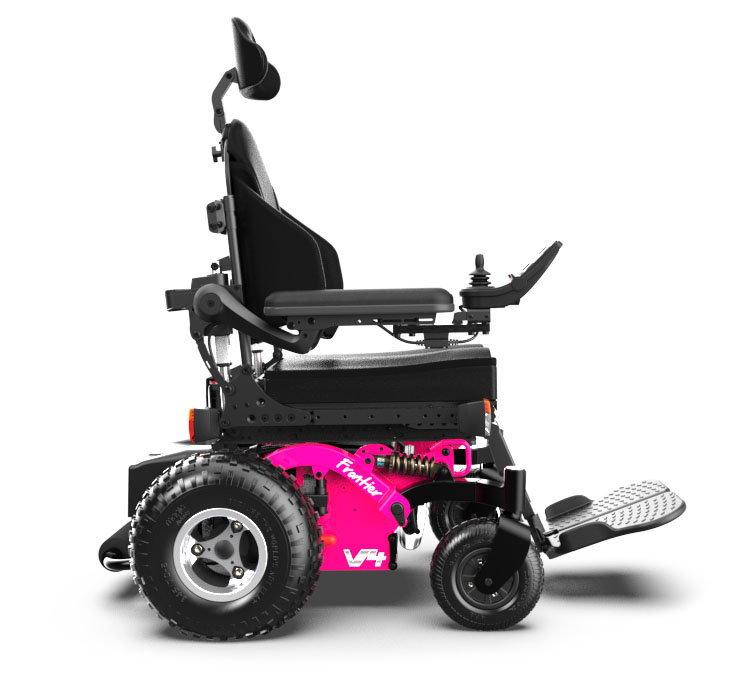

Frontier V4 - RWD
Electric Wheelchair

Adventure Gained. Nothing Lost

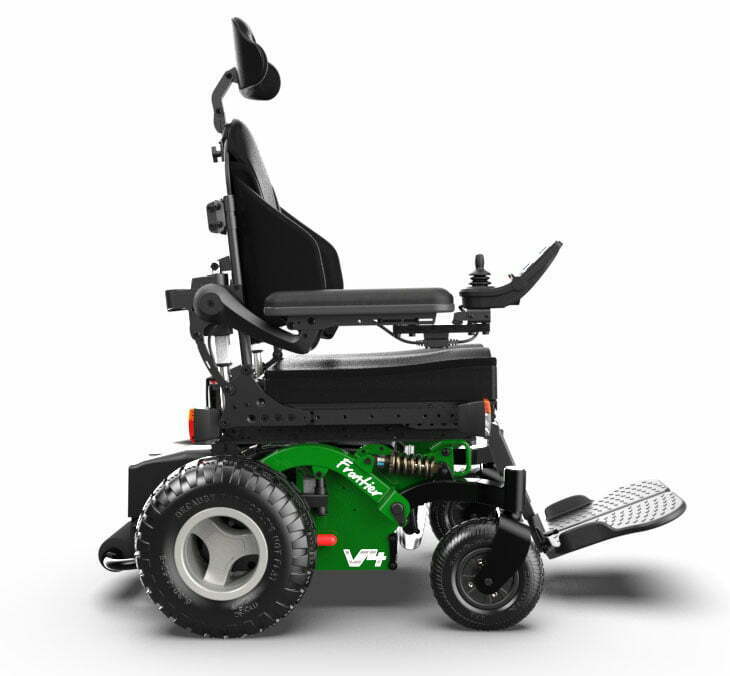

A powered wheelchair for those who know what they want. The thinking person’s chair, the V4 Rear Wheel Drive (RWD) is designed for those who are asking themselves the question about getting around the street or off-road, as well as indoors. Swap your off-road tyres to either crossover or hybrid tyres to ensure you get the best powered wheelchair for your lifestyle.

  • Drive mode: Rear wheel drive
  • Motors: 68 Nm Torque, 2 x 800W, Gear in line

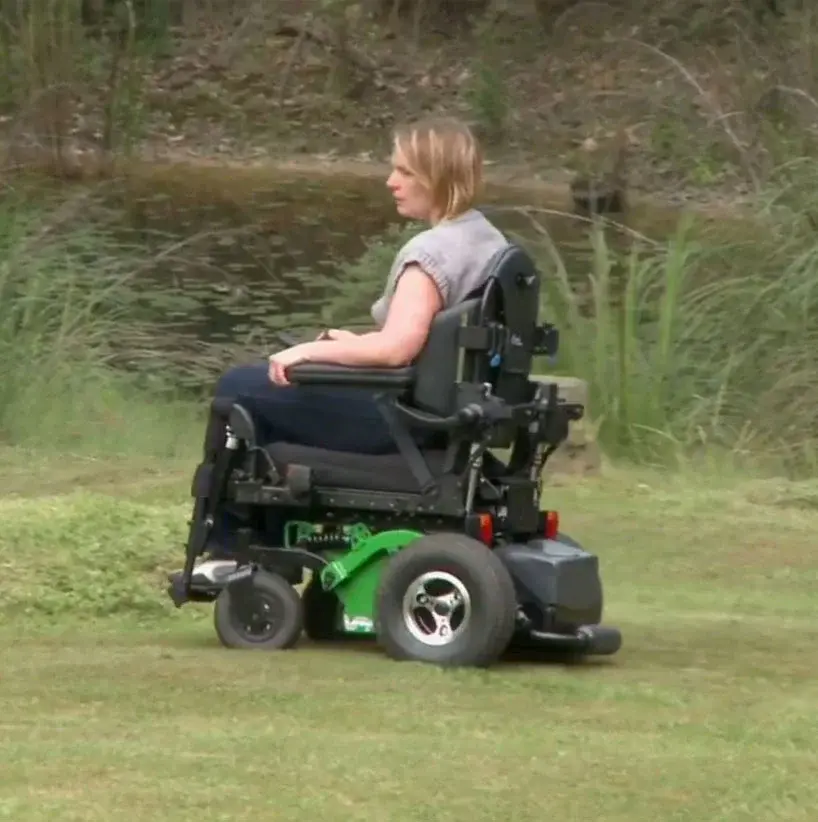

  • Environments: Everyday off-road, Urban outdoors and roomy indoors
Features Specifications
*Length of base 930mm (*legrest choice and seating size may increase chair length/width)
*Width of base 640mm (710mm with off-road wheels, 700mm with crossover wheels)

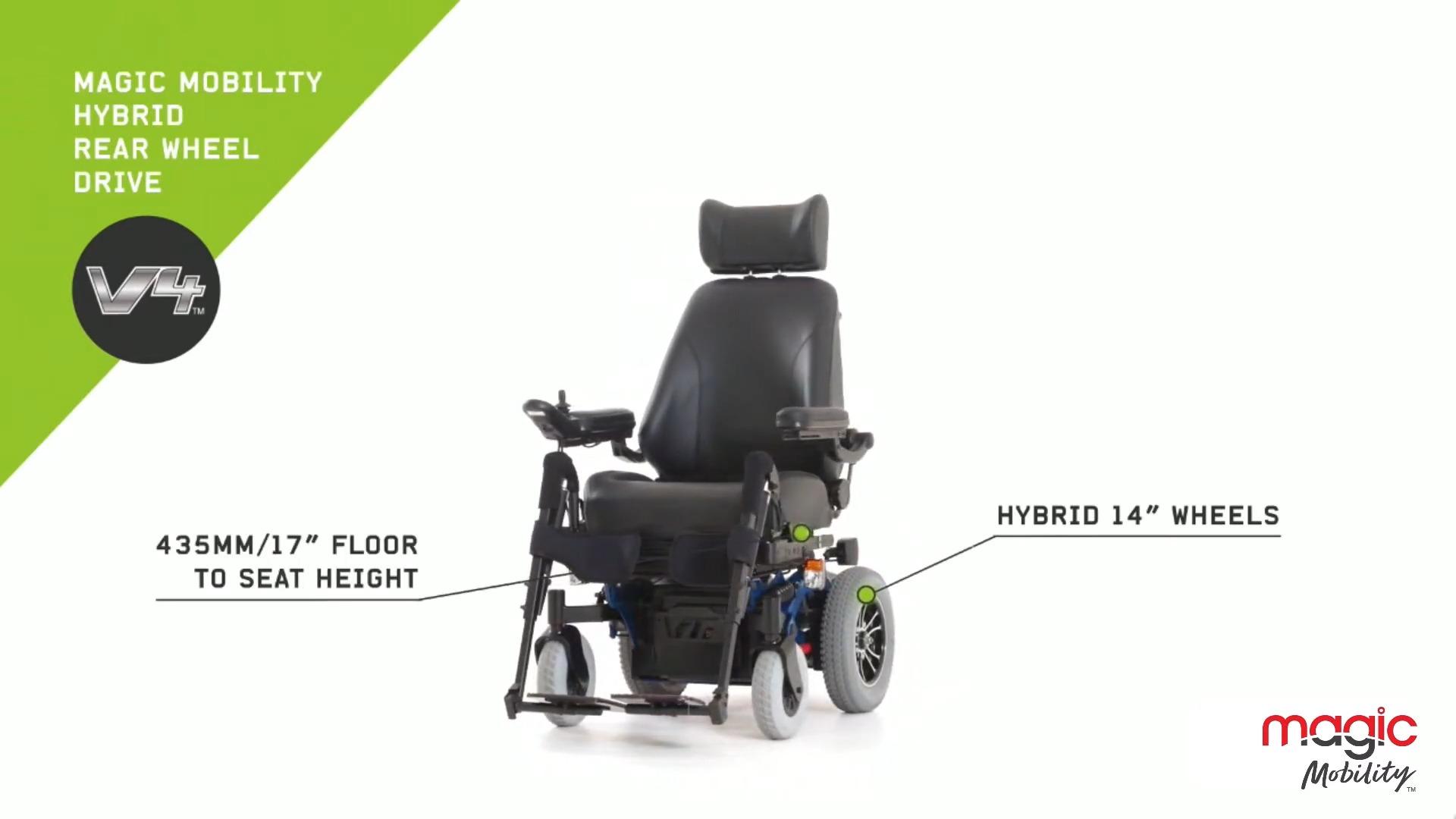

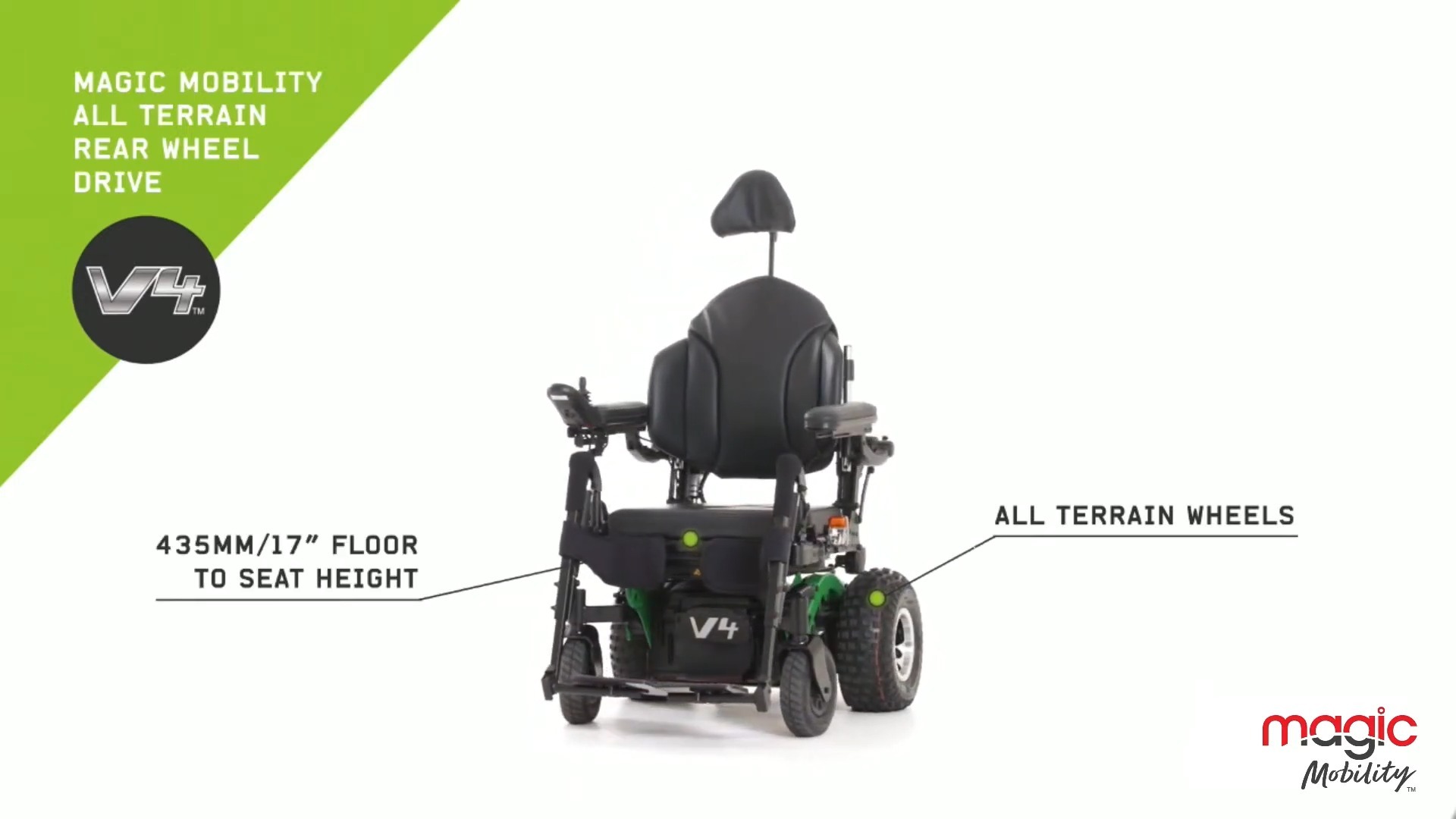

Floor to top of seat pan height 435mm
*Minimum turning radius 915-940mm (*legrest choice may increase turning circle)
Weight limit 182kg (400lbs), 155kg (340lbs) with lift or tilt
Top speed 10kph (6.2mph)
Motors 68Nm Torque, 800W, Gear in Line
Motor IP Rating 54 (splash resistant but not waterproof) The wheelchair has electric motors and must not be driven through water, into rivers, creeks and the sea

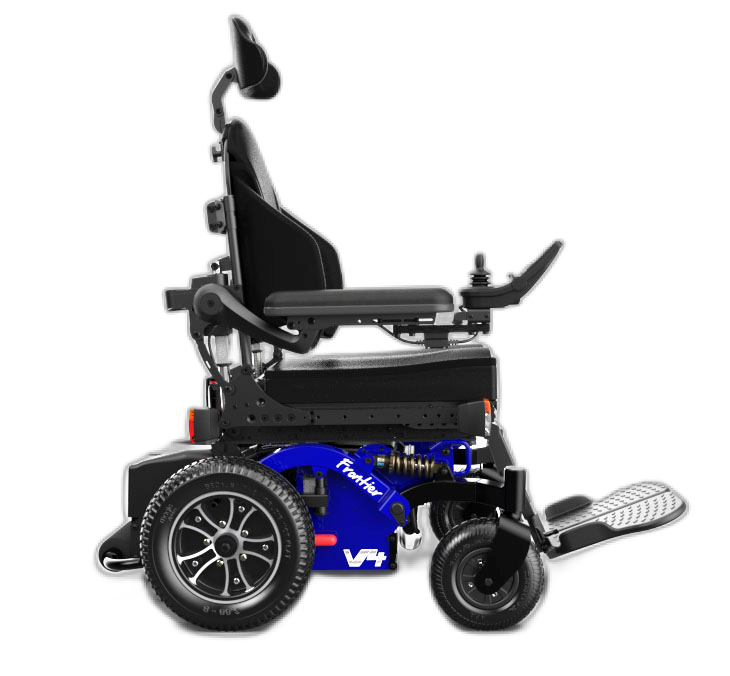

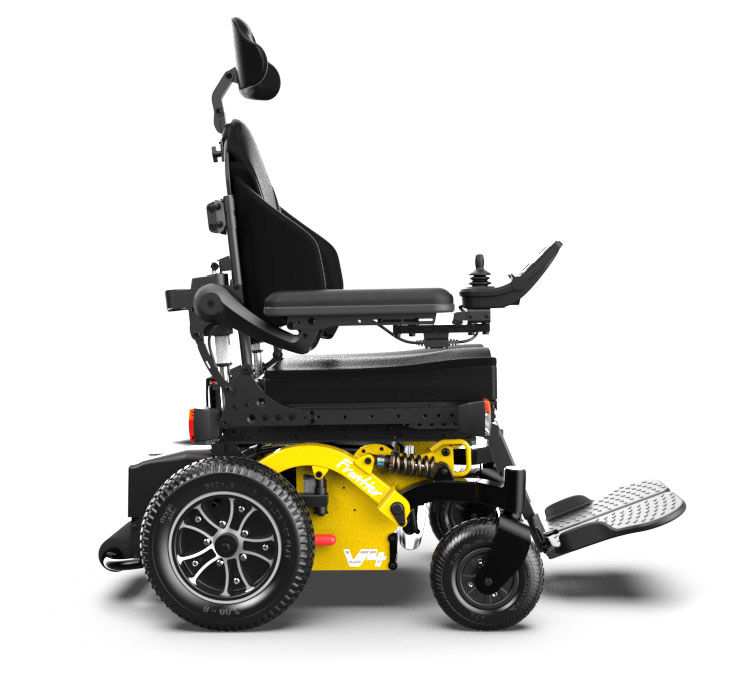

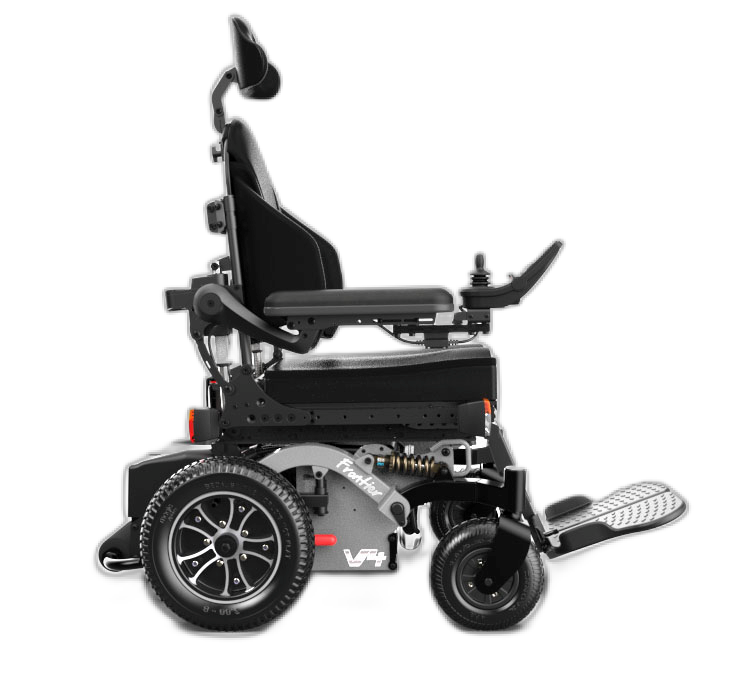

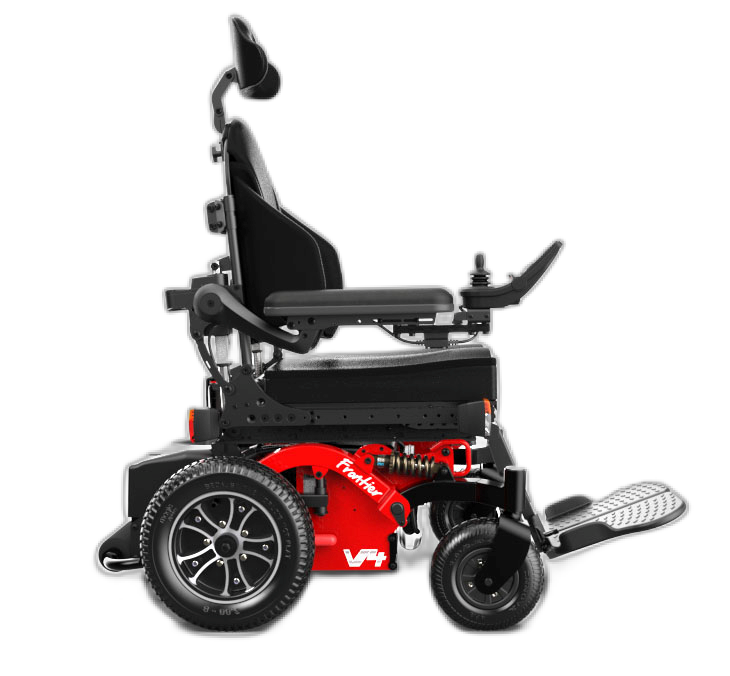

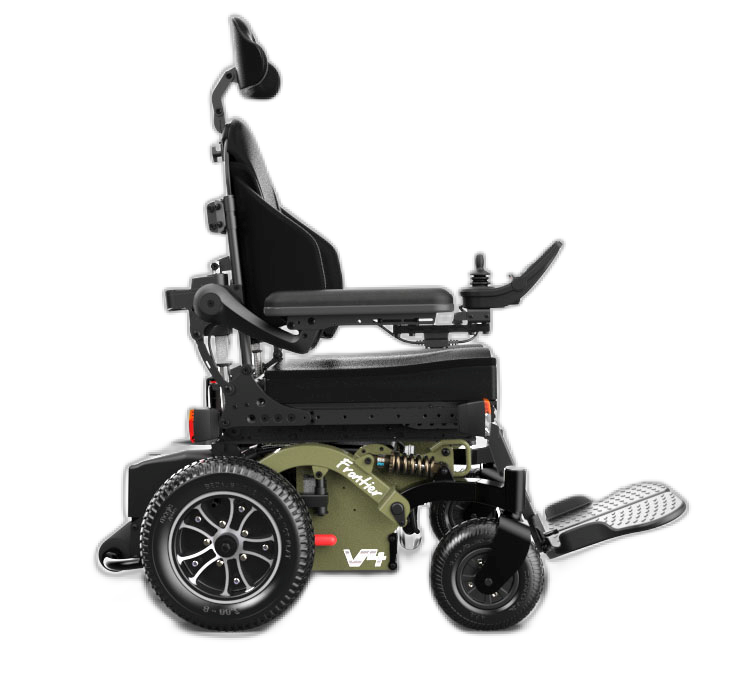

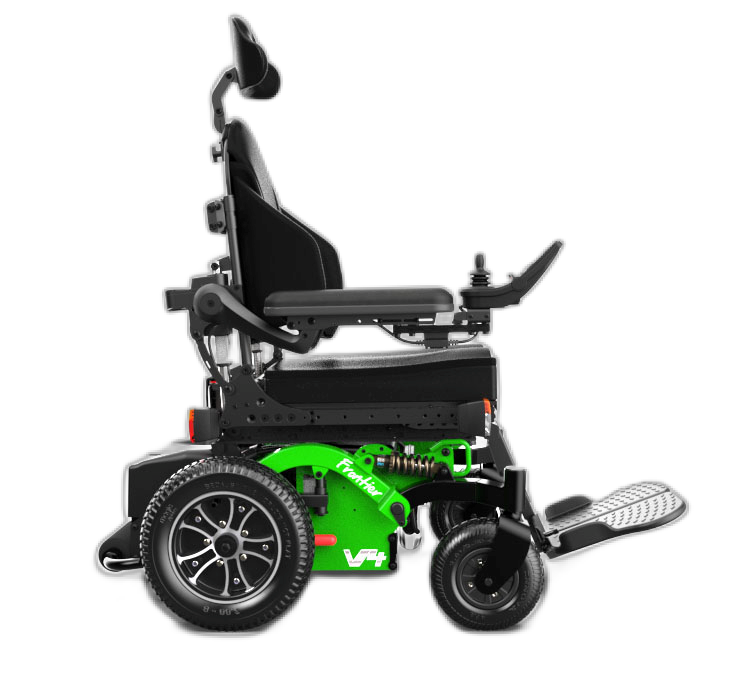

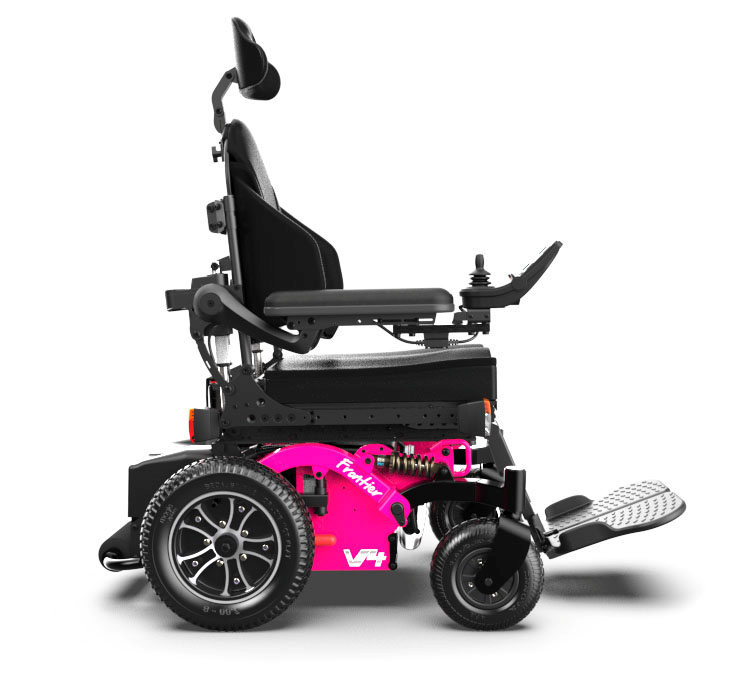

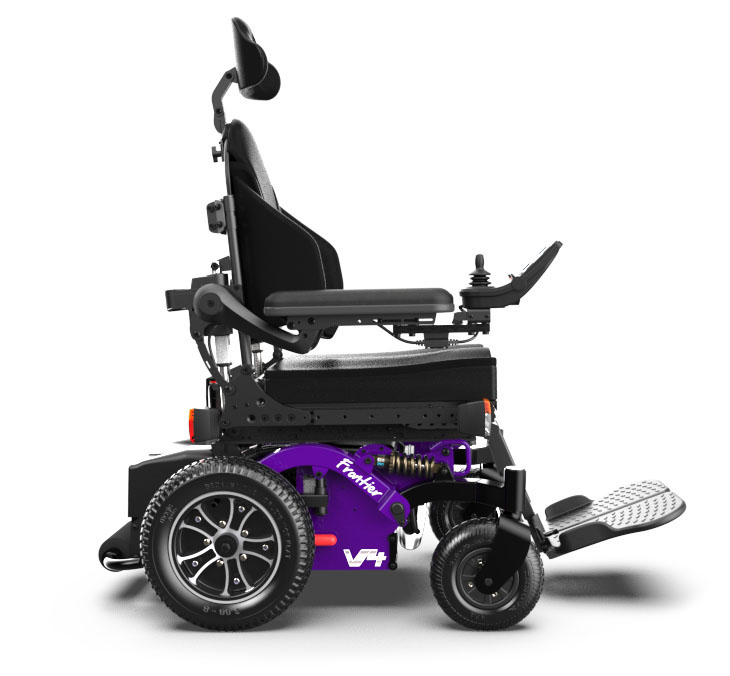

Wheels – Hybrid 14″x3” black or grey (solid or pneumatic)
Wheels – Off-road 14″ black (note silver rims not available in the USA)
Castors Ø220mm (280/250-4), black or grey (solid or pneumatic)
Batteries Gel
Controller Penny & Giles with LCD display (R-net) or LED option
Legrest options Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating
Backrest and seat Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options
Tie down points Crash test compliant
