Provides the correct support structure with patented mechanically rotational system.
Struggling to find an effective lateral trunk support solution for wheelchair users that present with complex postures?

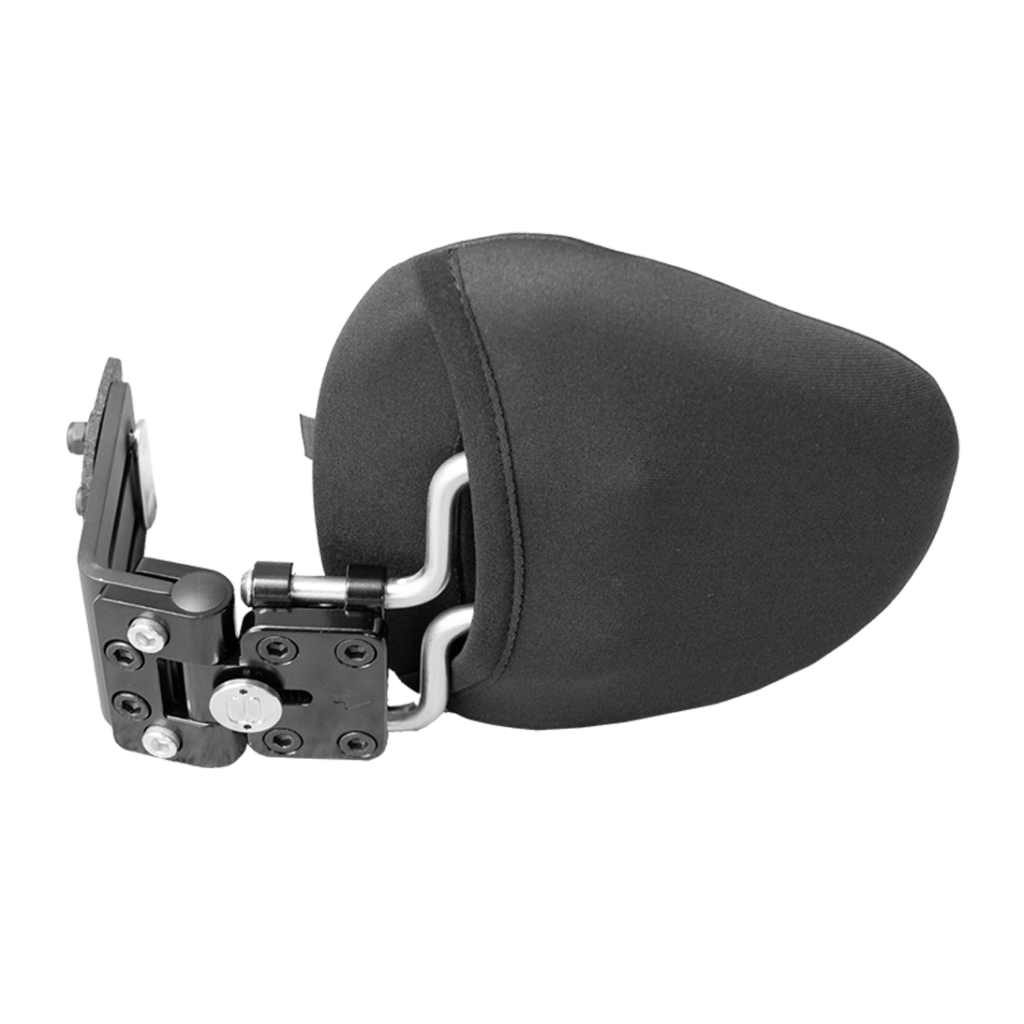

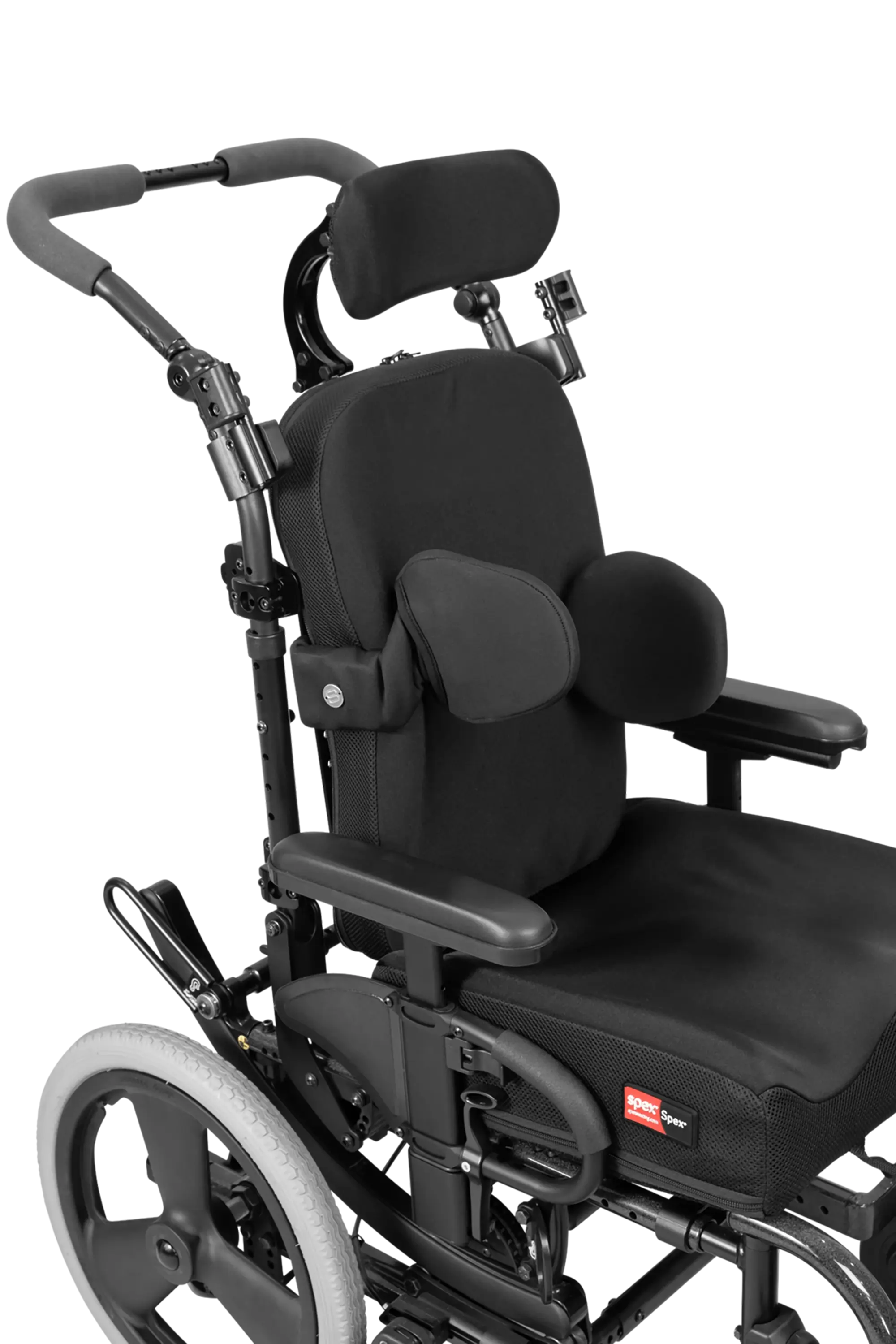

The Spex Axial Swing-Away Lateral Hardware, with its patented mechanically rotational system ensures that the user’s trunk is always kept well supported even in the most challenging positions. A well-fitting lateral support will improve balance, posture, and comfort in the wheelchair.

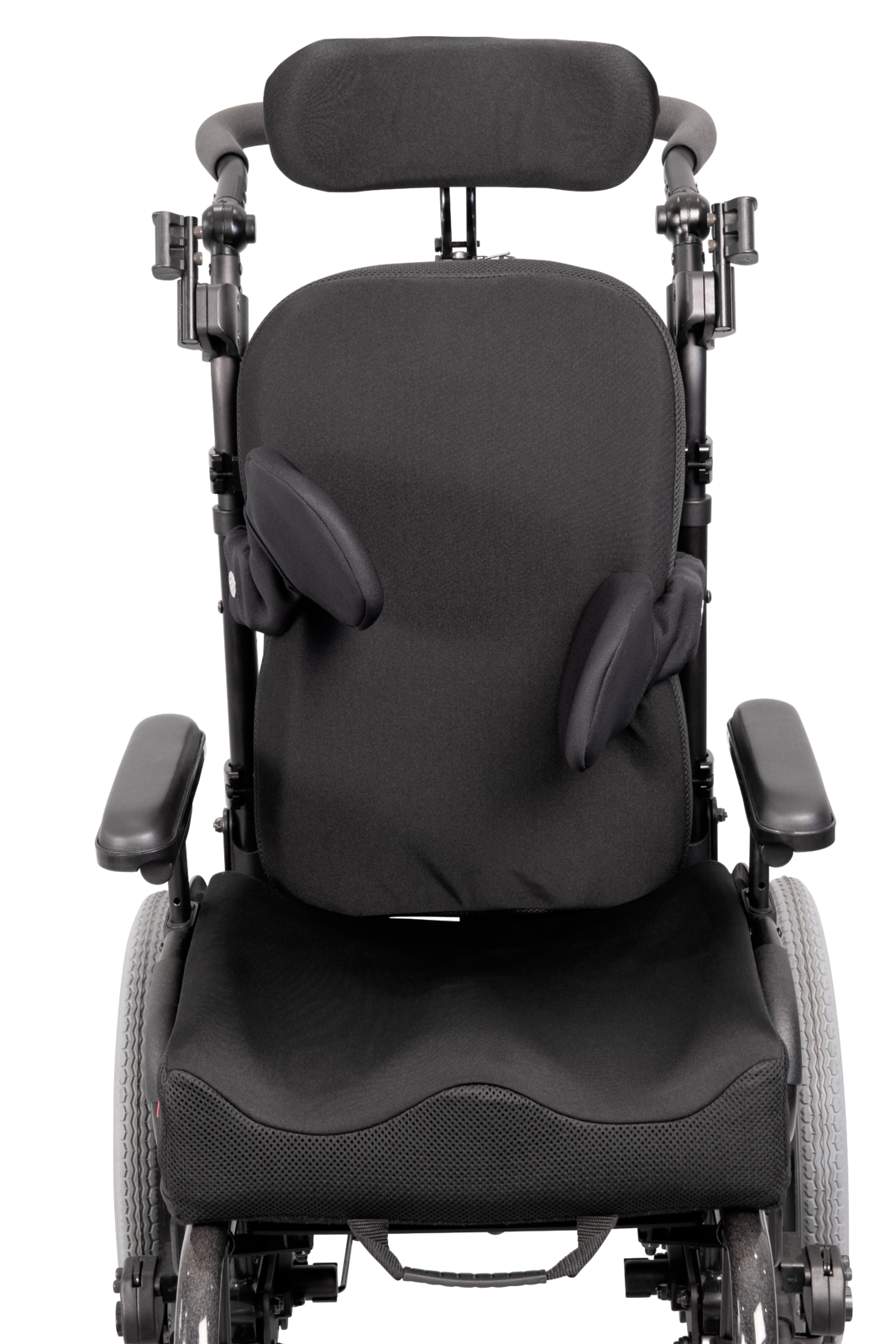

Allowing movement in all support surface planes enables the lateral pad to rotate to correctly align to the user’s trunk, regardless of complexity of posture.

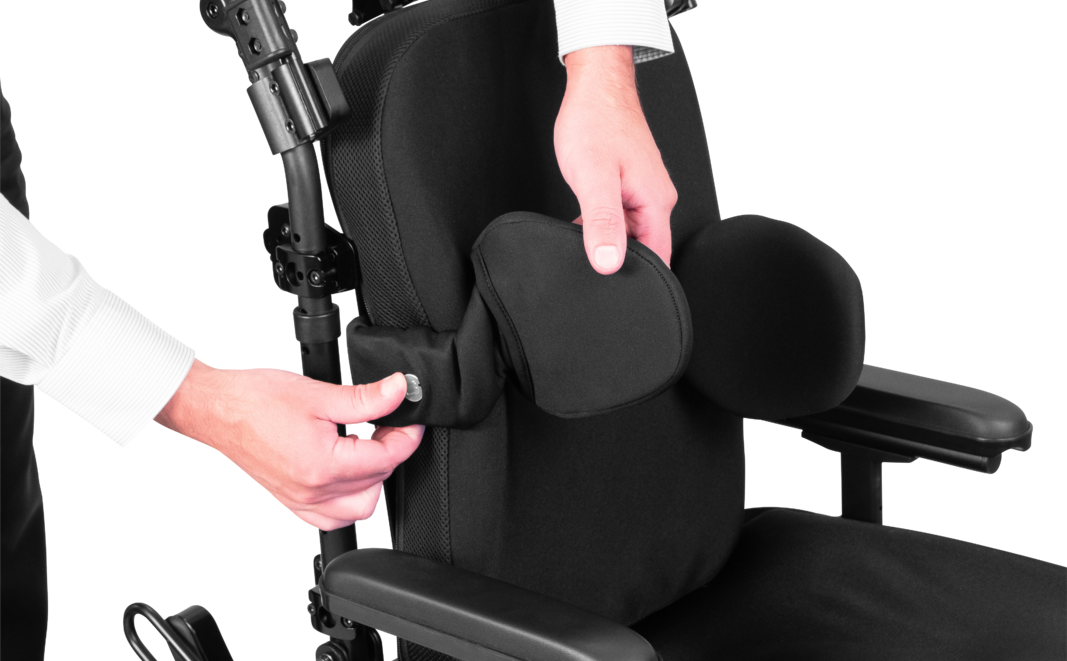

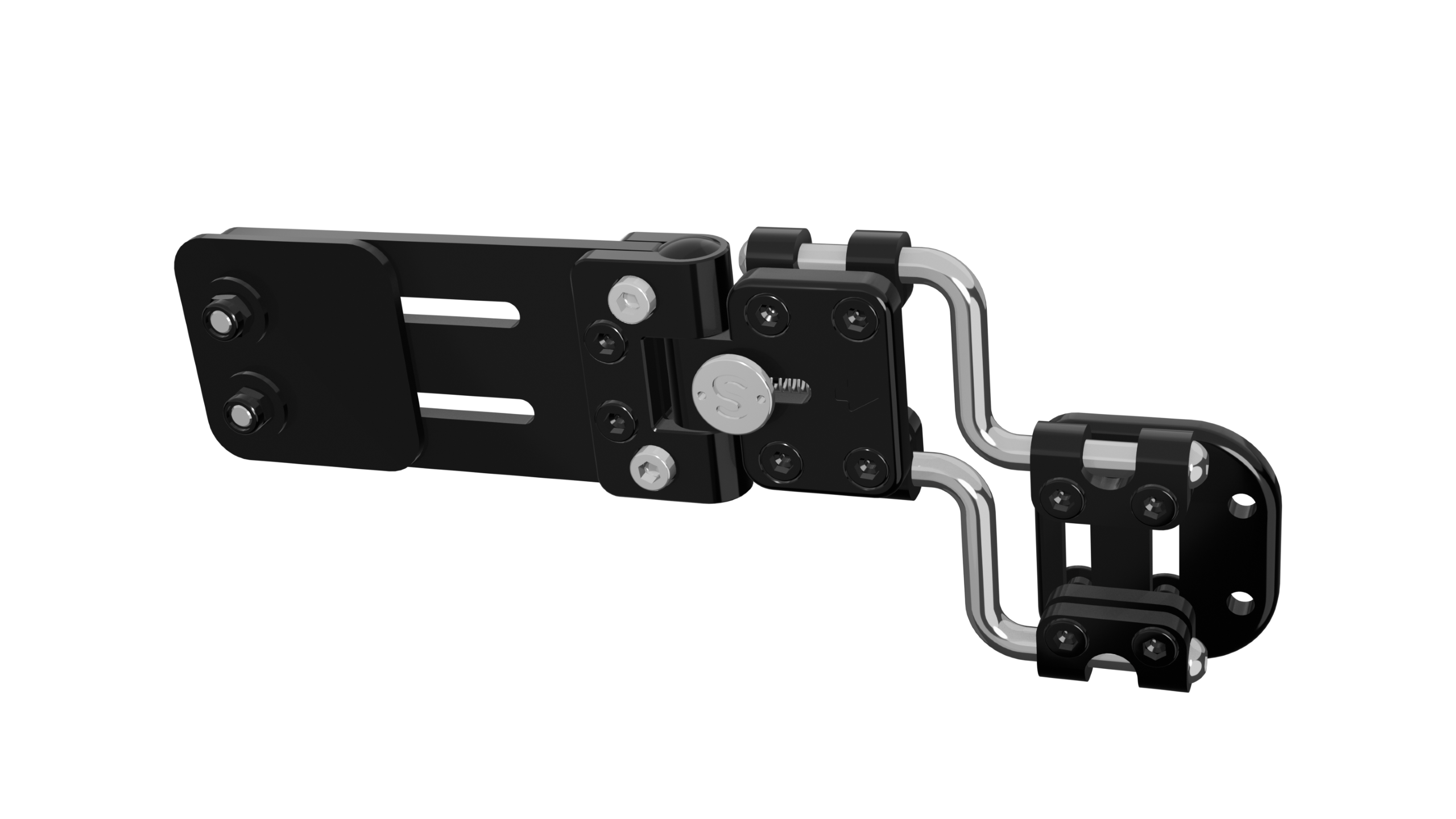

As well as offering width and depth adjustment that all Spex Lateral Supports provide, the innovative mechanism of the Axial Swing-Away enables multi-angular adjustability of the support pad.

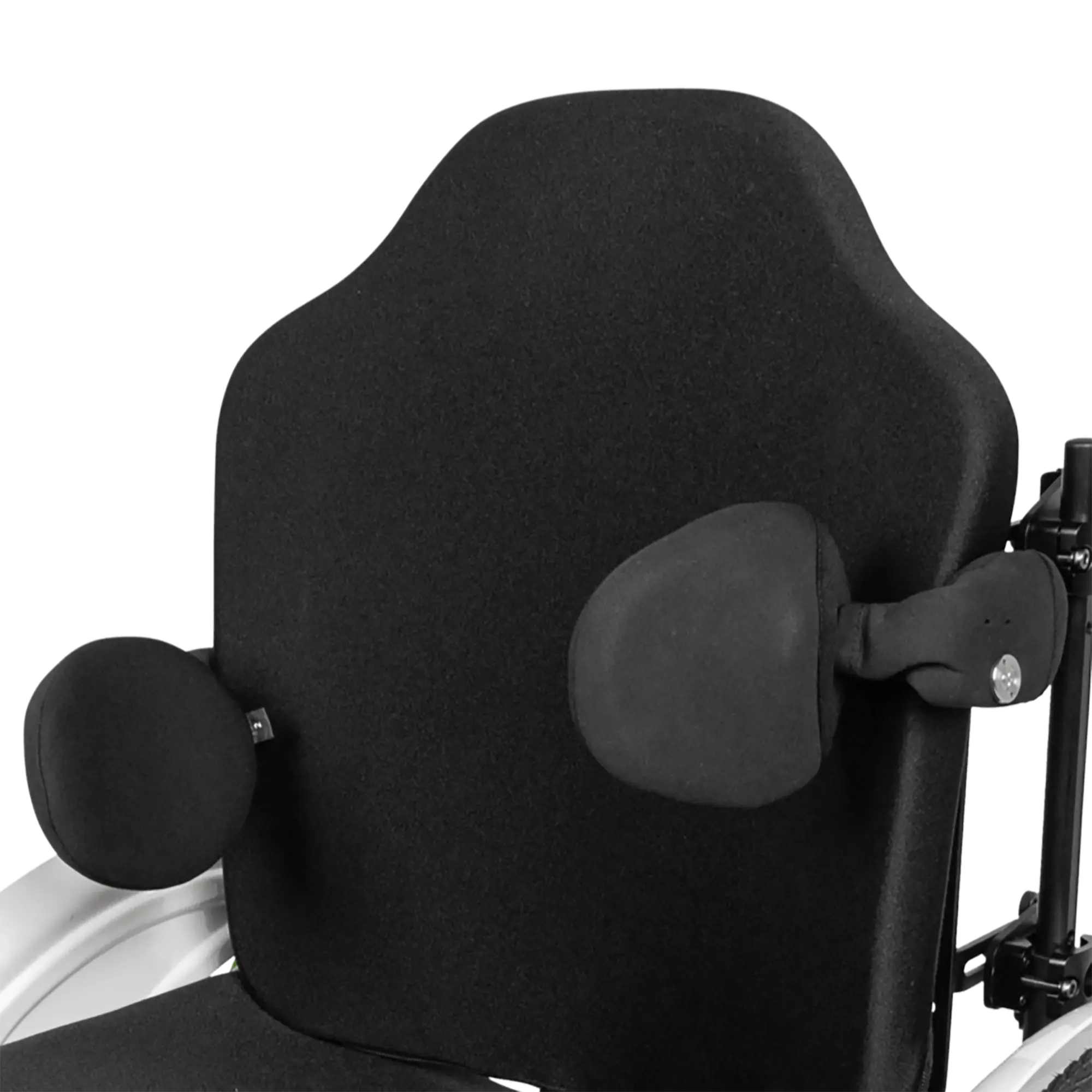

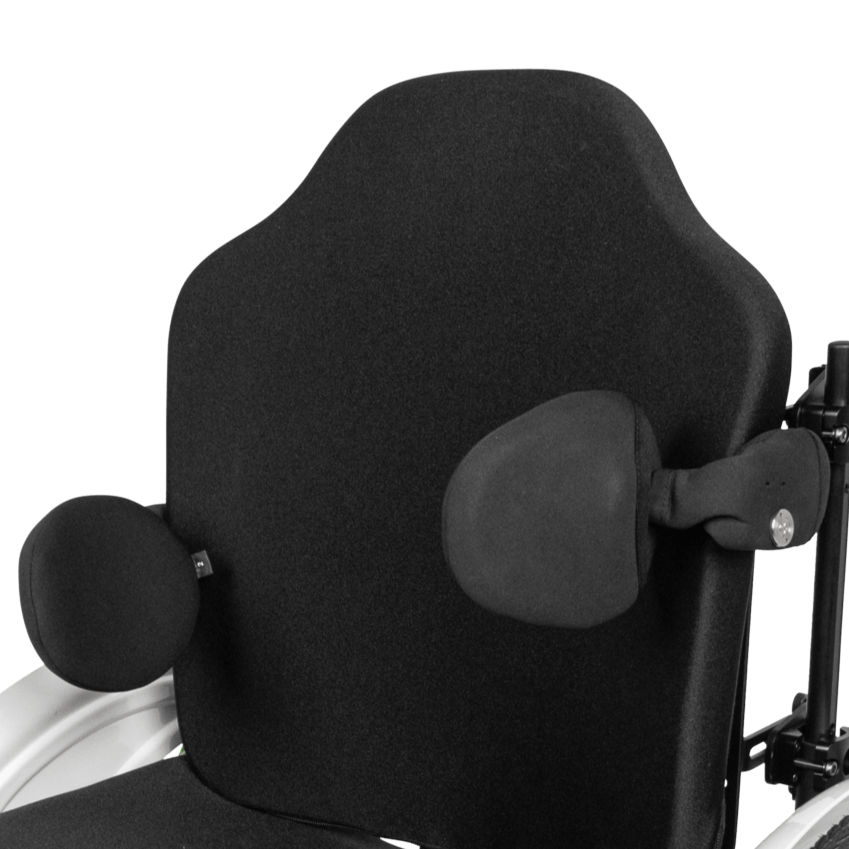

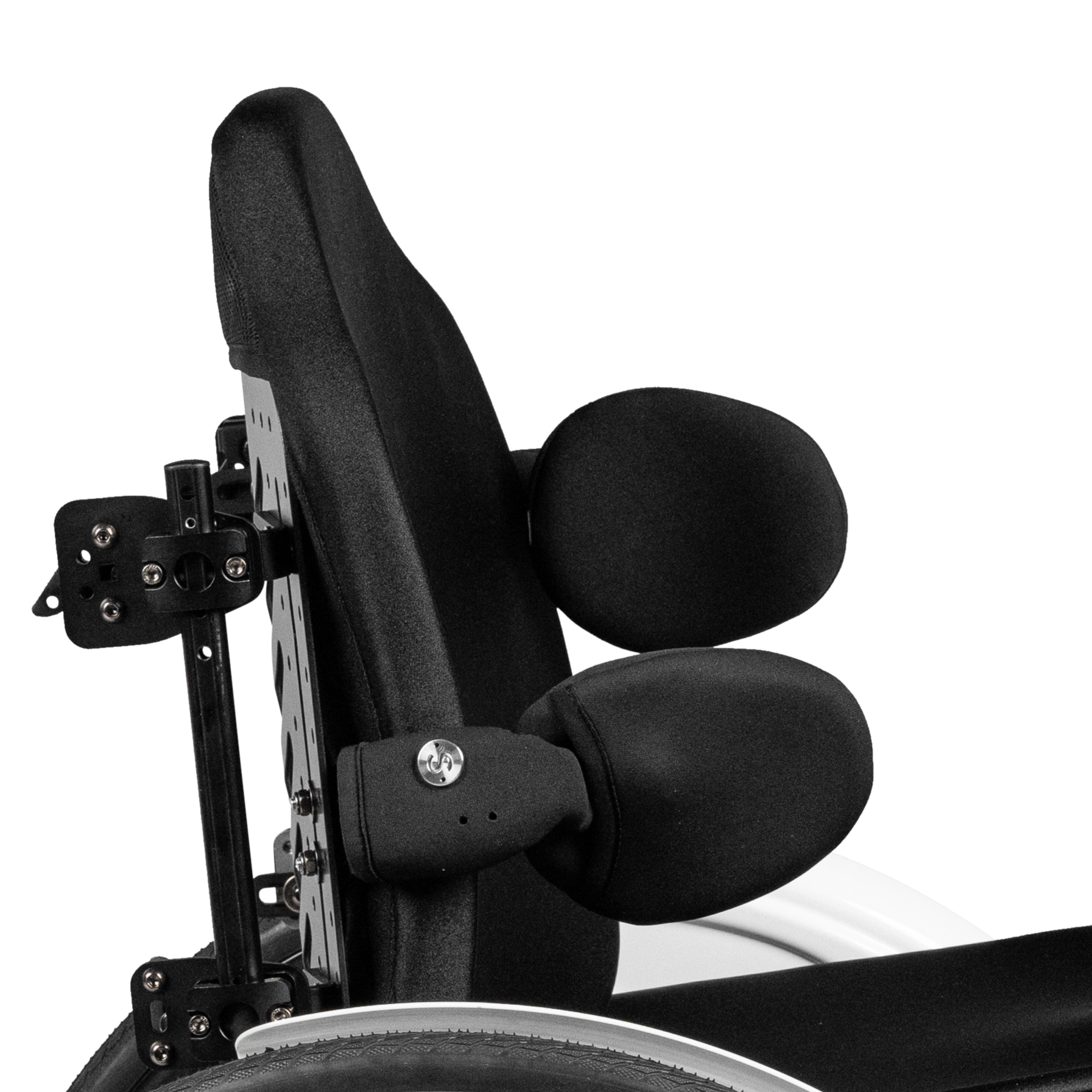

Complete your Lateral Trunk Support solution by selecting from our large variety of lateral support pads. The optimum fit to the user’s body shape and postural requirements can be achieved through a range of shapes, sizes, overlays and covers.

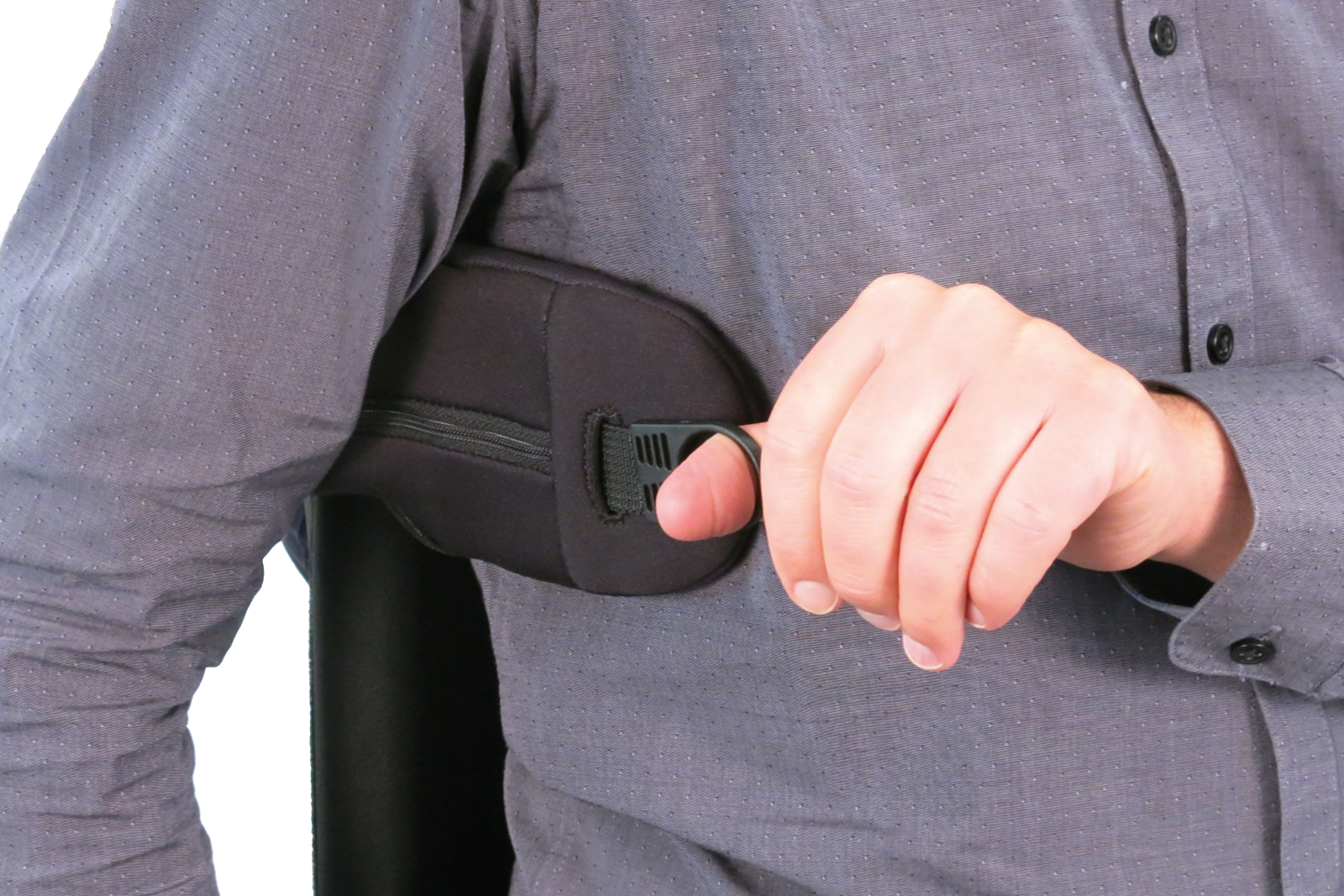

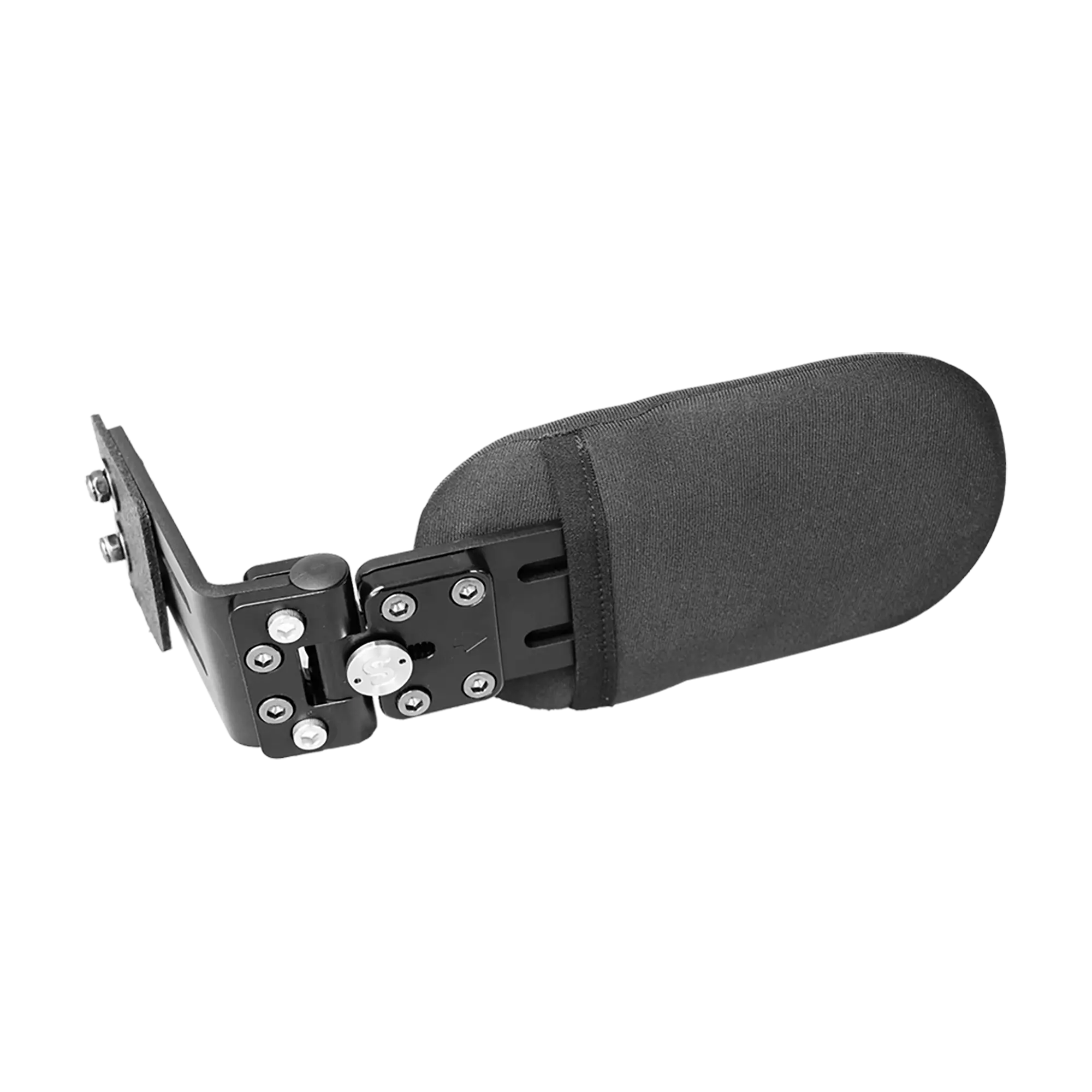

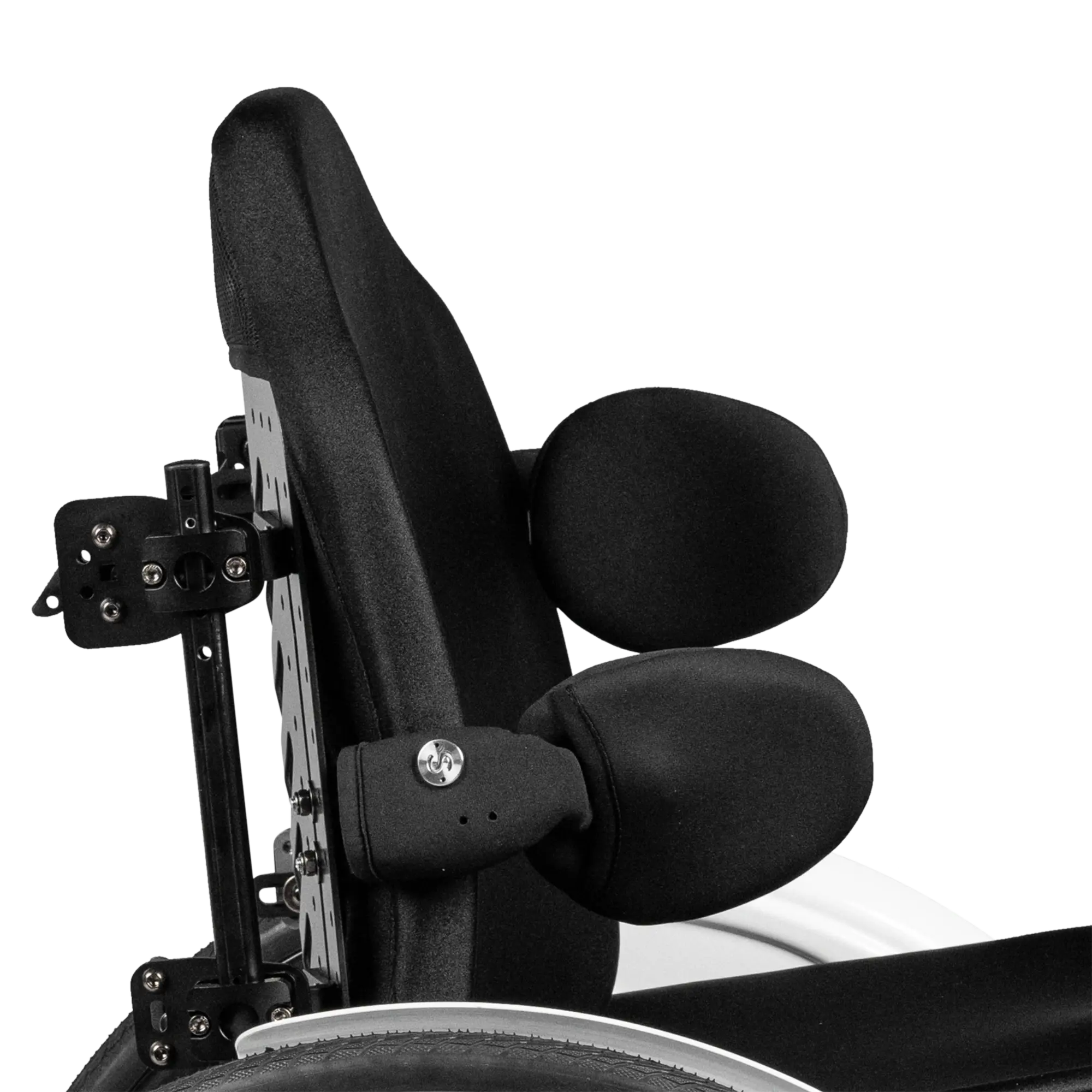

Axial lateral mechanisms are provided with a comfy protective sleeve that ensures the user’s arms are protected from any hard surfaces.

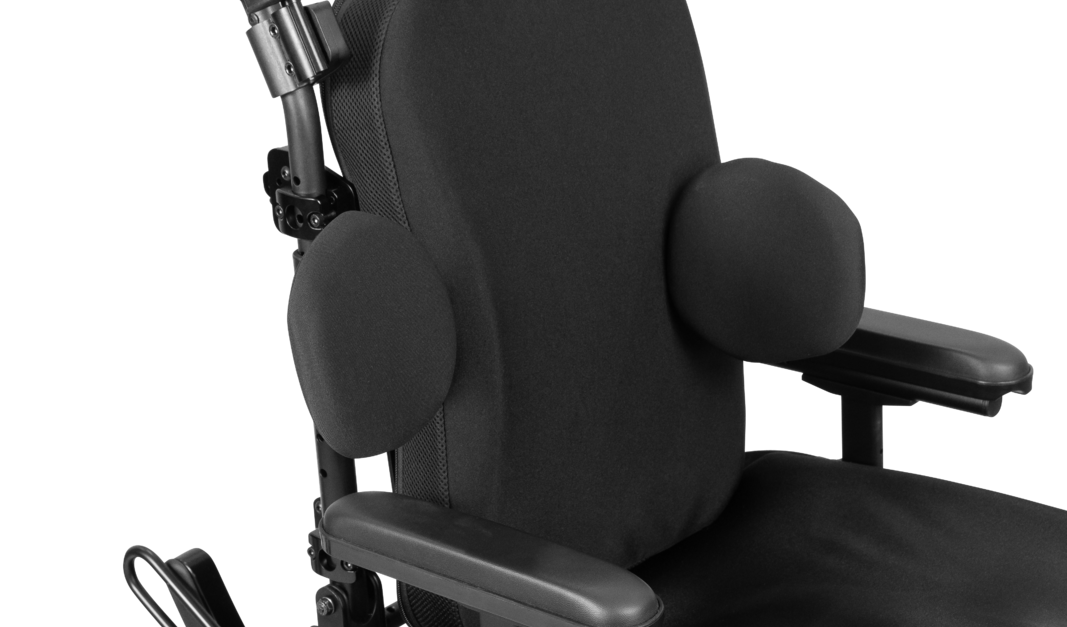

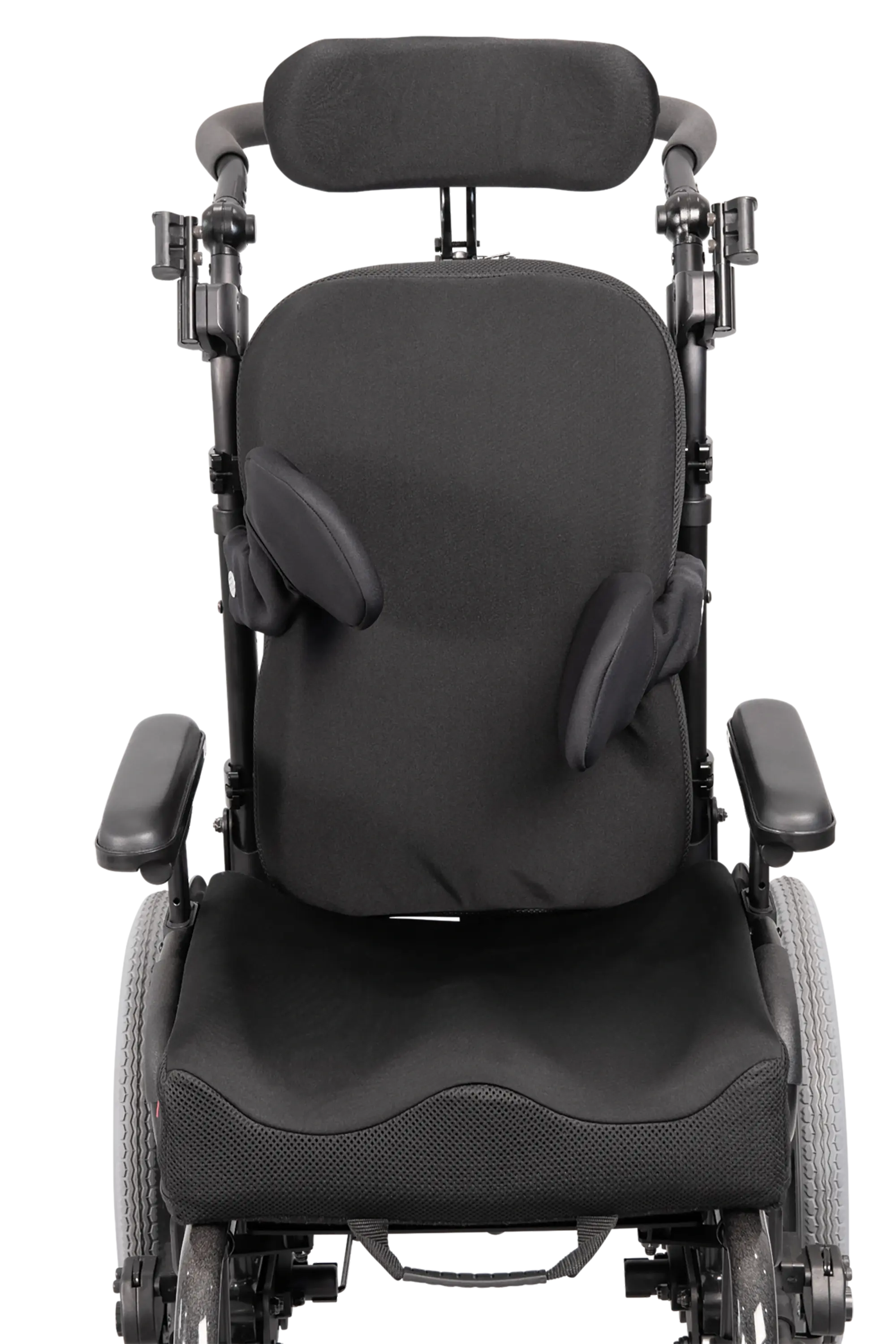

The Axial Swing-Away Lateral Supports are multi-adjustable and provide the ultimate positioning for clients with complex postural needs. It’s patented rotational system allows for the lateral pad to be positioned virtually anywhere assuring postural control, balance and improve of function for its users. If gradual trunk alignment is required, the axial lateral supports can be endlessly adjusted for gentle and progressive correction towards neutral.

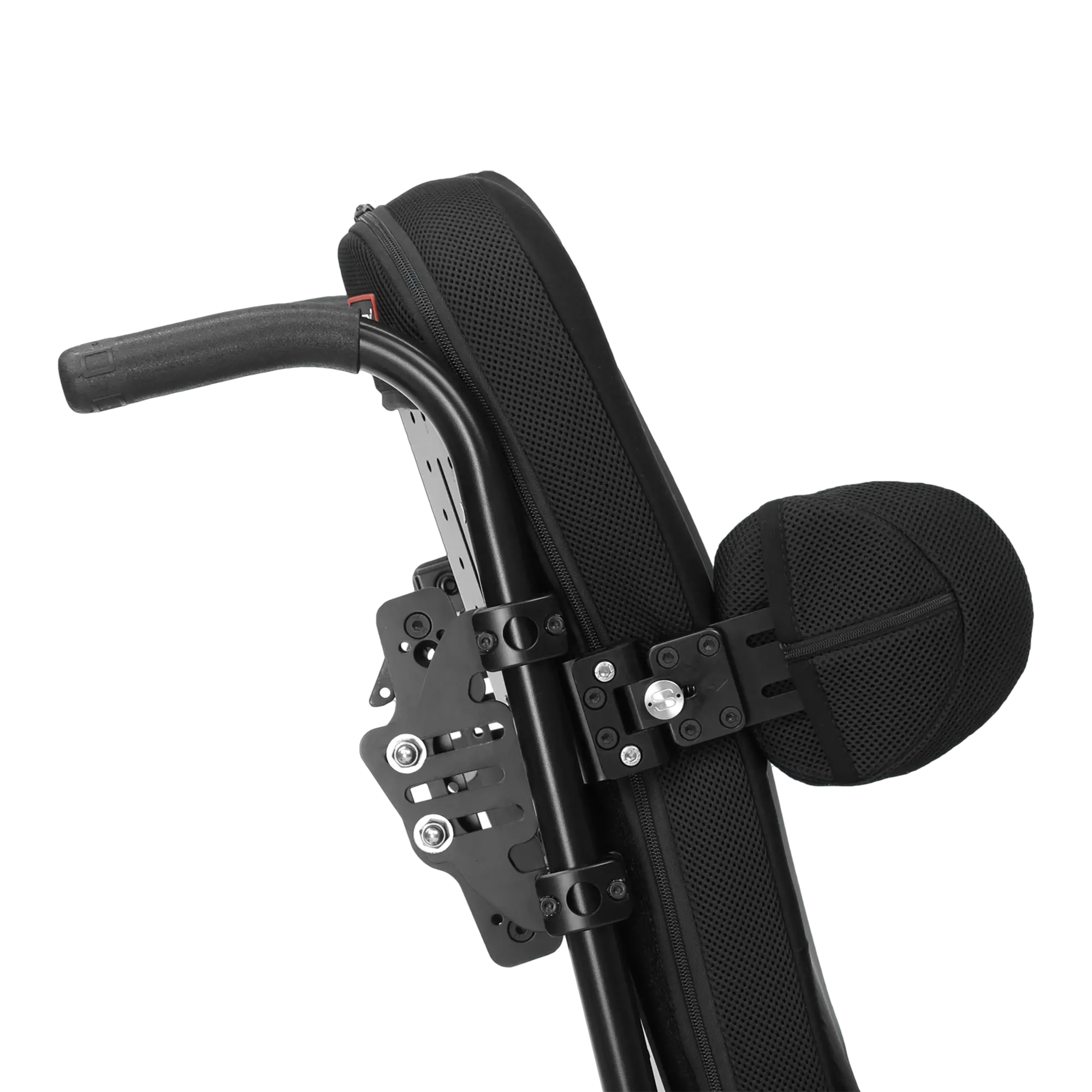

Left Cane Mount Upgrade
For attachment directly to the wheelchair canes. Not available on Paediatric Brackets.
Right Cane Mount Upgrade
For attachment directly to the wheelchair canes. Not available for Paediatric brackets.
Lateral Reinforcement Plate
Recommended for clients with forceful side leaning or who weight over 100kg.
Deep Contour Bracket Kit
Increases depth by 30mm.
Deep Contour Extended Bracket Kit
Increases depth by 115mm. Generally used with SuperShape Back Supports with extensive contouring.

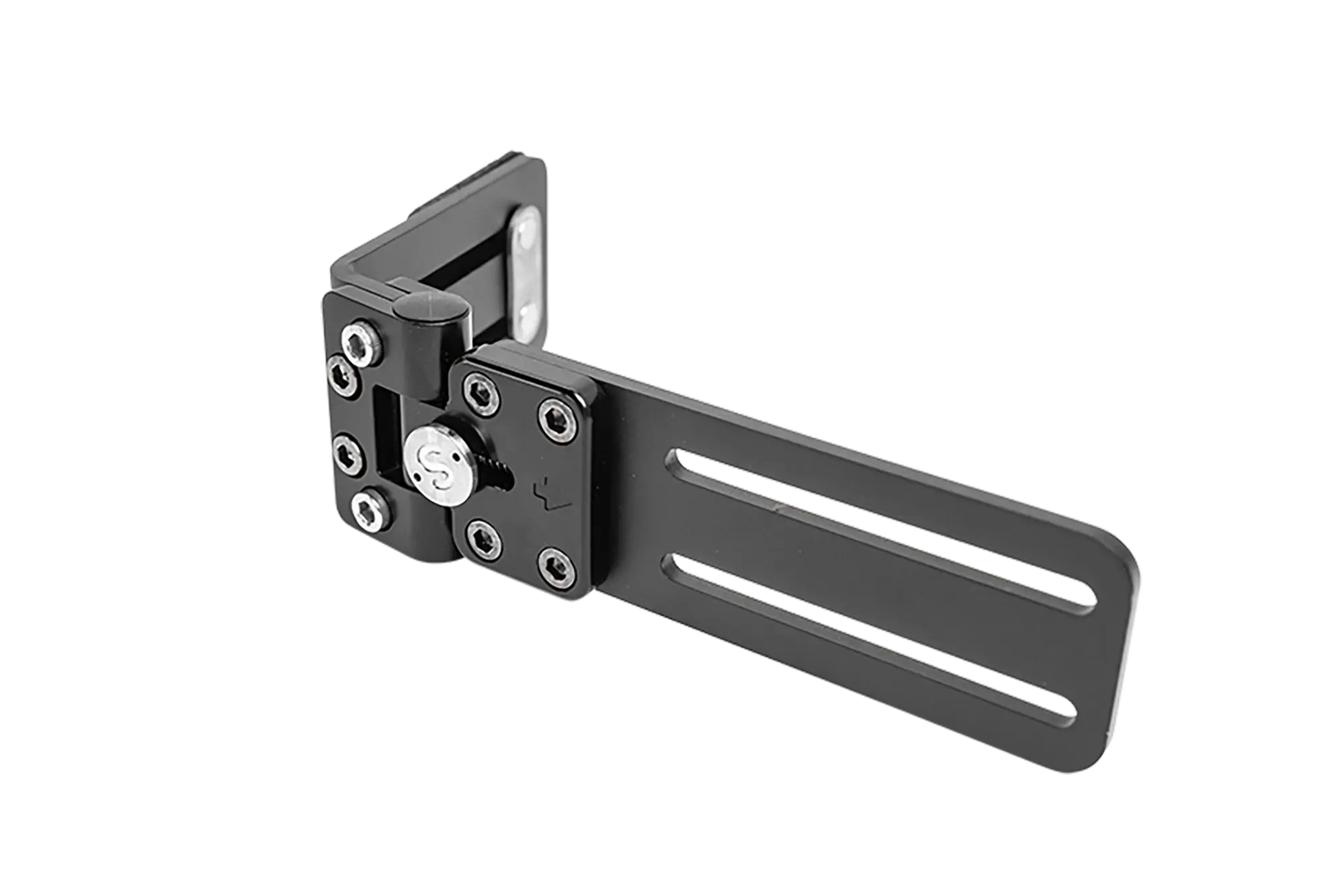

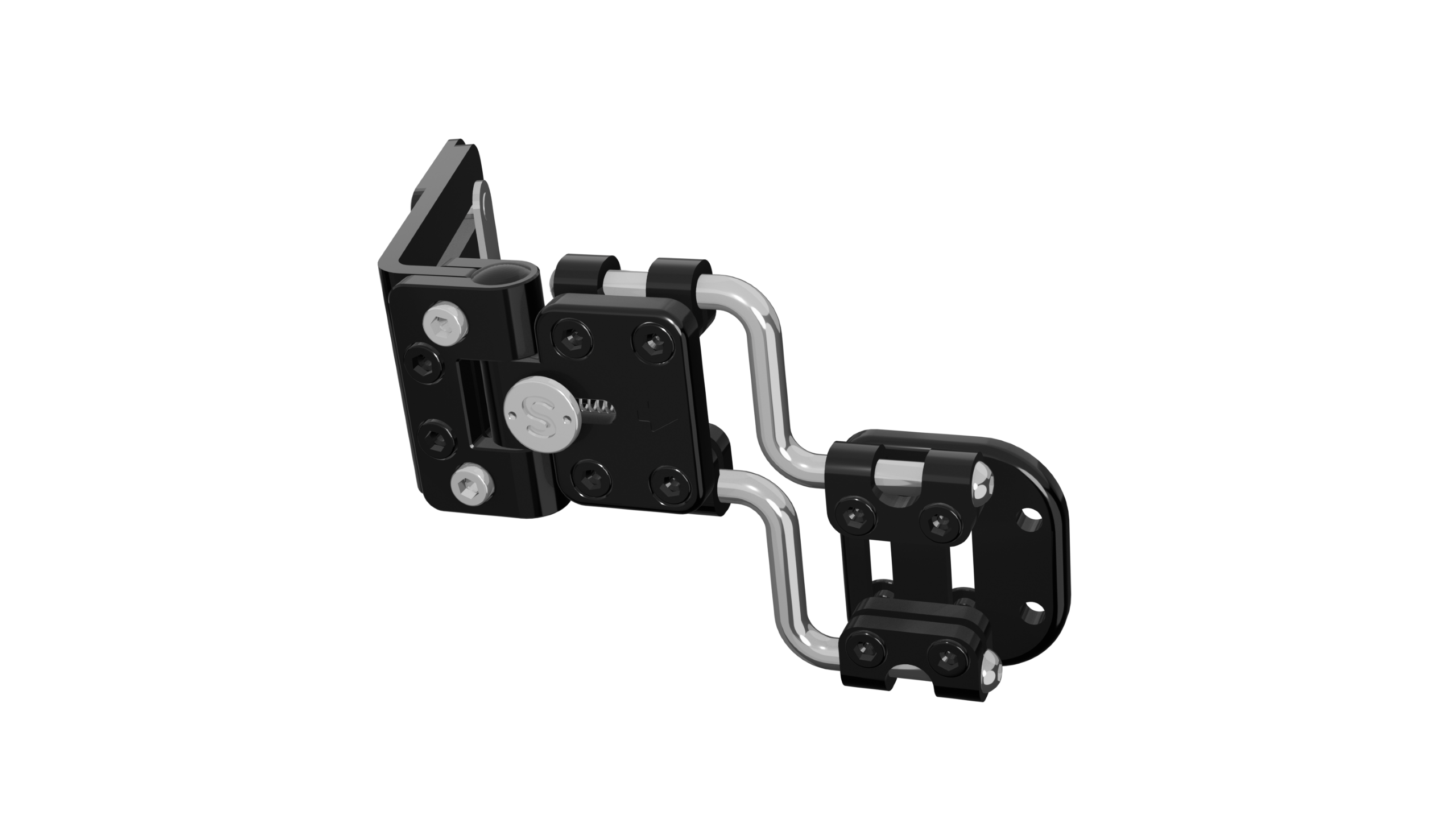

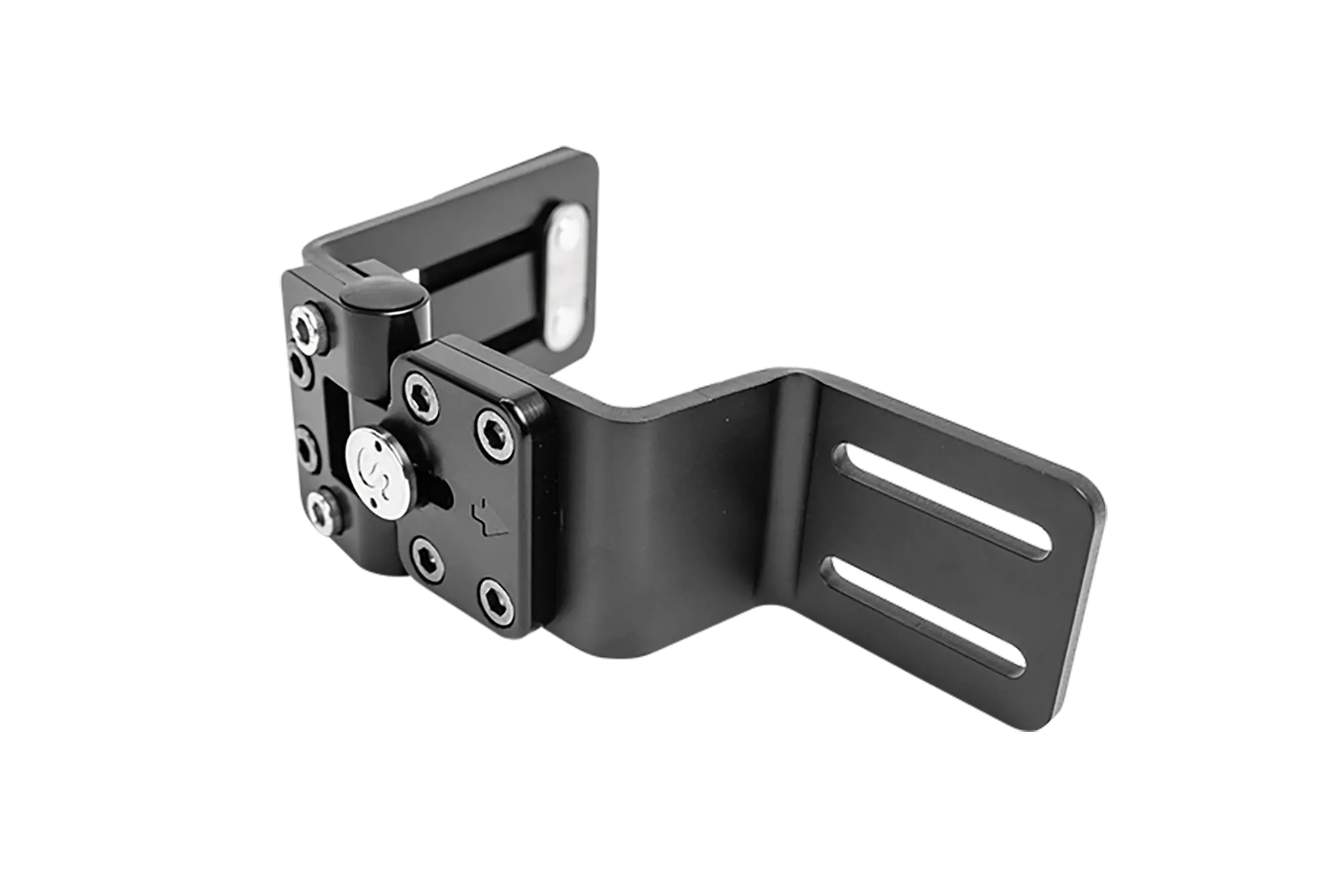

1. Swing-Away Axial Bracket
|Adult lateral bracket with Axial adjustment||1266-2301-100|
Choose from standard covers or comfy-covers to protect the user’s arms from the lateral hardware.
|Pad Style||Height||Depth||Pad with Standard Cover||Pad with Comfy Cover|
|Narrow Straight 0||85 mm||115 mm||1266-3010-400||1266-3010-800|
|Narrow Straight 1||95 mm||145 mm||1266-3011-400||1266-3011-800|
|Narrow Straight 2||95 mm||180 mm||1266-3012-400||1266-3012-800|
|Narrow Straight 3||115 mm||210 mm||1266-3013-400||1266-3013-800|
|Narrow Straight 4||115 mm||240 mm||1266-3014-400||1266-3014-800|
|Narrow Curved 1||95 mm||145 mm||1266-3021-400||1266-3021-800|
|Narrow Curved 2||95 mm||180 mm||1266-3022-400||1266-3022-800|
|Narrow Curved 3||115 mm||210 mm||1266-3023-400||1266-3023-800|
|Narrow Curved 4||115 mm||240 mm||1266-3024-400||1266-3024-800|
|Broad 1||105 mm||130 mm||1266-3031-400||1266-3031-800|
|Broad 2||125 mm||140 mm||1266-3032-400||1266-3032-800|
|Broad 3||140 mm||150 mm||1266-3033-400||1266-3033-800|
|Broad 4||160 mm||155 mm||1266-3034-400||1266-3034-800|
|Broad 5||195 mm||165 mm||1266-3035-400||1266-3035-800|
|Broad 6||230 mm||175 mm||1266-3036-400||1266-3036-800|
You can extend the mechanism forward if the backrest foam is thick:
|1266-2420-100||Deep contour bracket kit||30mm|
|1266-2430-100||Deep contour extended bracket kit||Up to 115mm|
