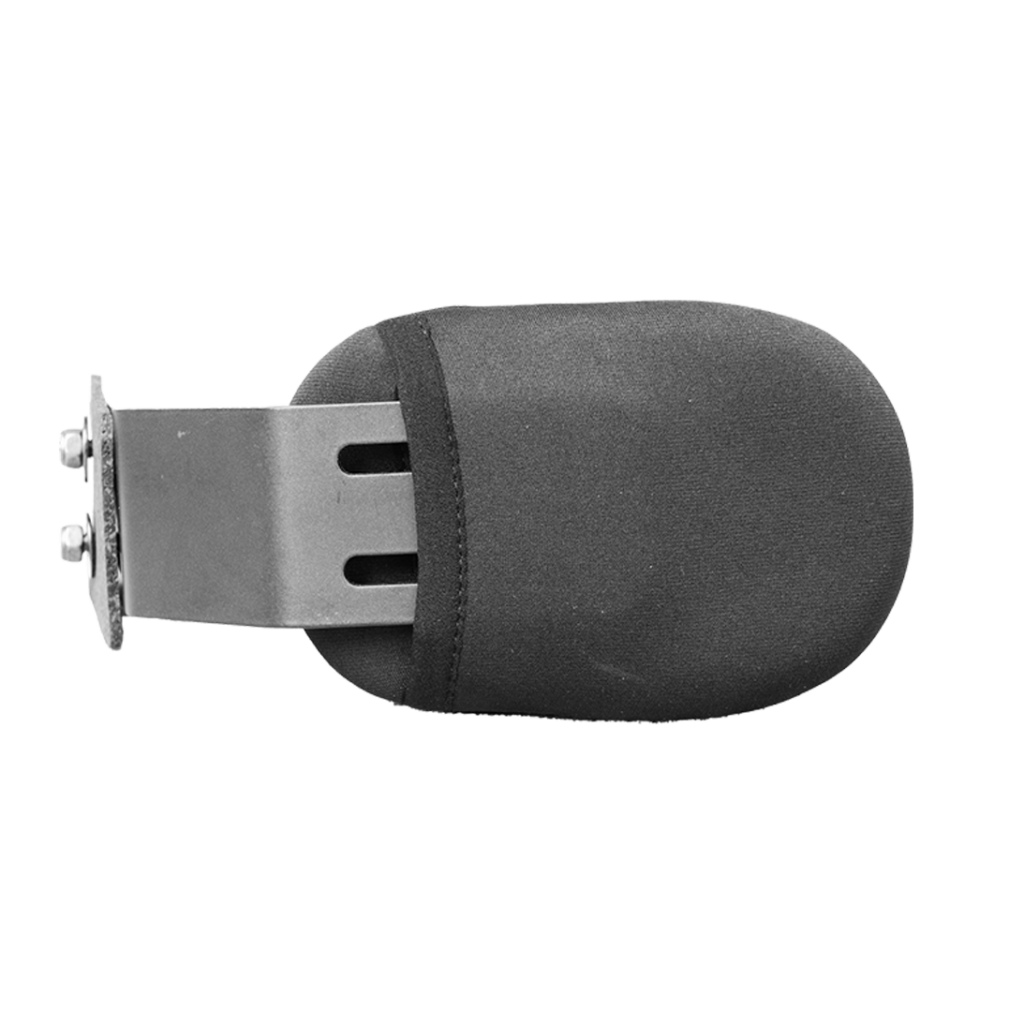

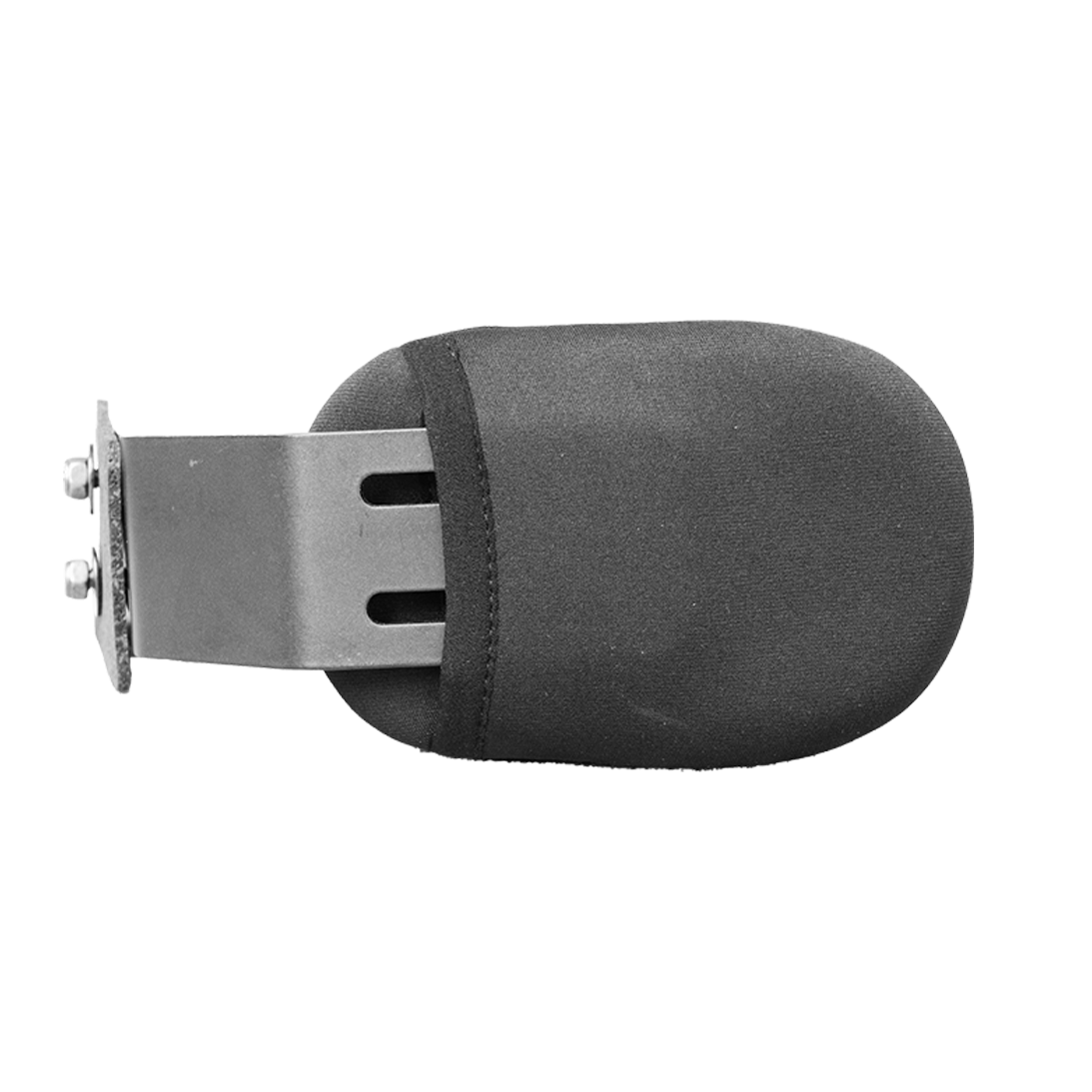

Spex Fixed Lateral Trunk Support

Make an enquiry

Spex Lateral Trunk Support:

Fixed Bracket

Spex lateral trunk supports offer adjustability, comfort and positioning

Wheelchair lateral trunk supports that are width and depth adjustable.

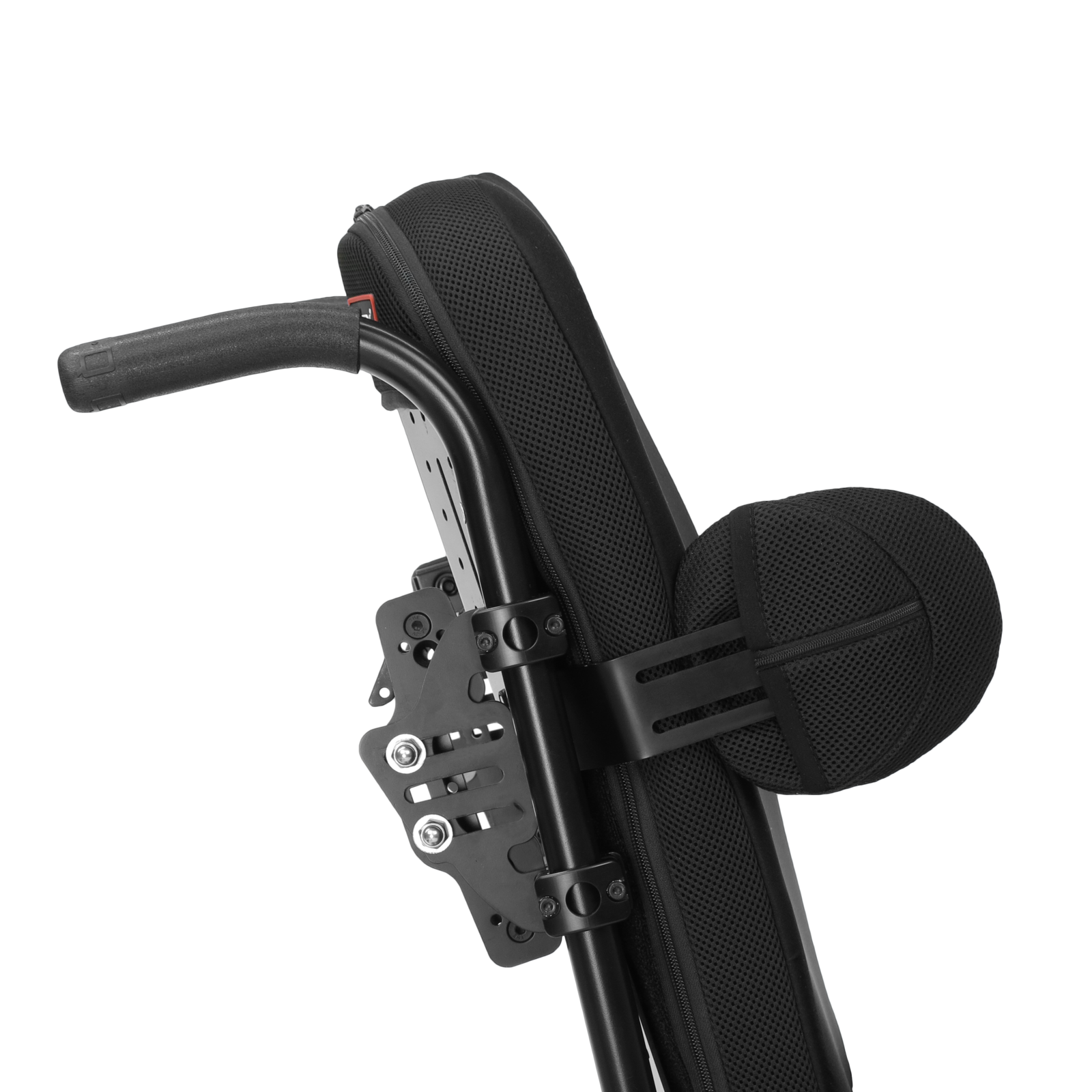

Sturdy yet lightweight fixed brackets are reversible to provide two length options for the support pad. Bracket design includes slots for adjustability and ease of installation.

Made from robust aluminium, Spex fixed lateral support hardware has no moving parts for strength and durability.

Select lateral pad from a huge range available to provide the exact snug fitting that is required.

Gallery

Clinical

Modular lateral supports provide optimum trunk control whilst improving balance, posture and comfort
Offset correction can be applied to an asymmetric trunk to bring better trunk alignment for enhanced function

Functional

Super comfortable pressure-reduction padding for moulding to user shape
Removable and washable covers
Brackets are adjustable in all planes: height, width, depth and lateral angle for ultimate trunk orientation
Provide trunk control and stability with the ability to install a lateral in multiple positions on the back support

Media

How to script Spex Lateral Trunk Supports

Watch video

Resources

Lateral Trunk Supports Technical Specifications 0.39 MB Spex Lateral Trunk Supports User Manual 1.54 MB

Specifications

Select Hardware

Select Pad

Measurements

Style	Code
Fixed	1266-2101-100
Kidz Fixed	1266-2111-100

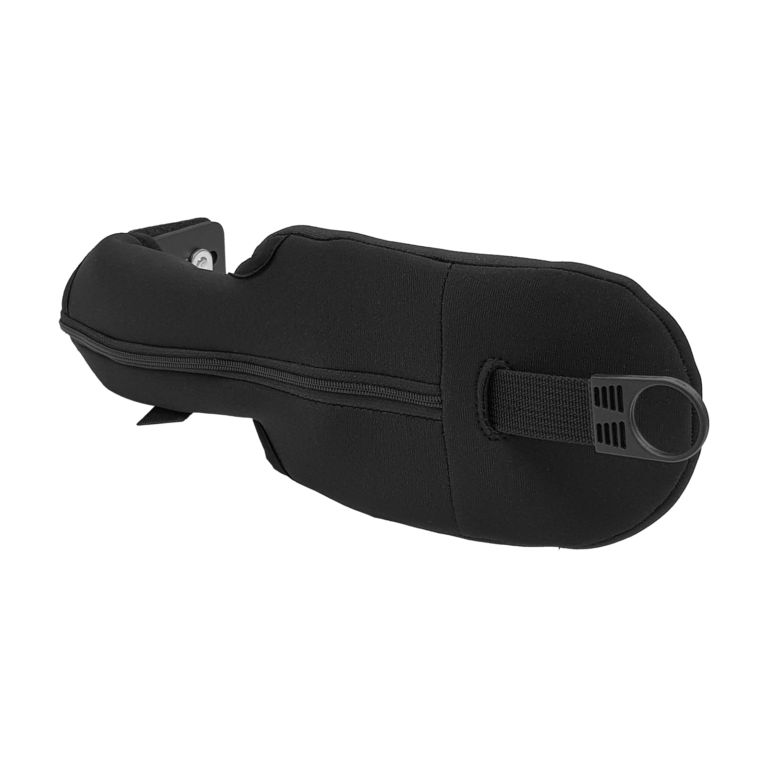

Standard	Comfy-cover

Select lateral support pad from Narrow Straight or Broad pad ranges here.

Pad Style	Height	Depth	Pad with Standard Cover	Pad with Comfy Cover
Narrow Straight 0	85 mm	115 mm	1266-3010-400	1266-3010-800
Narrow Straight 1	95 mm	145 mm	1266-3011-400	1266-3011-800
Narrow Straight 2	95 mm	180 mm	1266-3012-400	1266-3012-800
Narrow Straight 3	115 mm	210 mm	1266-3013-400	1266-3013-800
Narrow Straight 4	115 mm	240 mm	1266-3014-400	1266-3014-800
Broad 1	105 mm	130 mm	1266-3031-400	1266-3031-800
Broad 2	125 mm	140 mm	1266-3032-400	1266-3032-800
Broad 3	140 mm	150 mm	1266-3033-400	1266-3033-800
Broad 4	160 mm	155 mm	1266-3034-400	1266-3034-800
Broad 5	195 mm	165 mm	1266-3035-400	1266-3035-800
Broad 6	230 mm	175 mm	1266-3036-400	1266-3036-800
