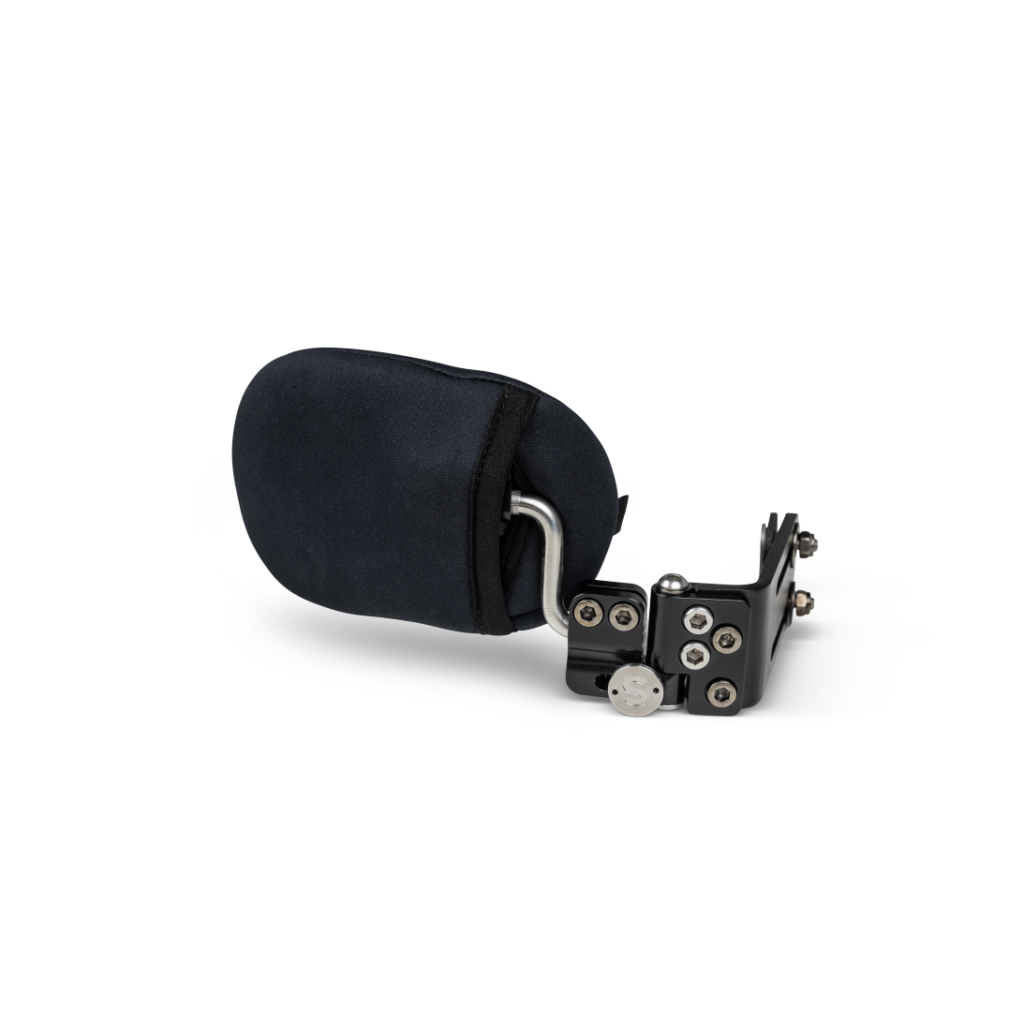

Spex Paediatric Lateral Trunk Support

Make an enquiry

Paediatric Lateral Support

Fitting all the benefits of the renowned Spex lateral supports into a small package suited perfectly for kids!

It’s slim componentry allows for easier placement of the lateral support because positioning lateral supports can be tricky on paediatric wheelchairs where there is limited space for additional accessories and attachments.

Read more Read less

Media

Introducing the Spex Paediatric Lateral Support

Watch video

Gallery

Functional

Benefits

Renowned Axial Technology

Featuring the popular Axial technology that is known and loved from Spex, this allows you to achieve the correct support structure through a unique mechanically rotational system where the lateral pad can be placed in the optimum position for correct alignment of the user’s trunk.

Wheelchair transfers made easy

The Paediatric Lateral Support has a clever swing-away feature, much like that found on the existing adult lateral supports, which allows unimpeded transfers in and out of the chair.

Versatile mounting options

- Forward Mount: For mounting on thicker back supports. It mounts directly to the back shell, allowing for some width adjustment on the support.
- Standard (Rear Mount): For a snug fit on thinner back supports. It mounts directly to the back shell, allowing for some width adjustment on the support. This is the default Paediatric Lateral mounting option.
- Cane Mount: Mounts directly to the back support canes of the wheelchair for greater flexibility when installing.

Invertible mounting capabilities

The Paediatric Lateral Support has invertible mounting capability depending on where you want the Swing-Away release button to be positioned. These are available in left hand and right hand configurations where the Swing-Away release button is positioned on the lower side of the bracket. However, these can be used on either left hand or right hand side.

Resources

Paediatric Lateral Support Flyer 1.67 MB Spex Lateral Trunk Supports User Manual 1.54 MB

Accessories

Broad Lateral Support Pad

Narrow Straight Lateral Support Pad

Narrow Curved Lateral Support Pad

Lateral Support Pad with Comfi-Cover

Narrow Curved Lateral Support Pad

Anterior support: For increased comfort and spinal extension.

Lateral Support Pad with Comfi-Cover

Extended padding over mechanism to protect arms from metal hardware. Code: -800

Specifications

Mount Types

Paediatric Lateral Dimensions

Axial Adjustment

	Standard (Rear Mount)	Forward Mount	Cane Mount
Left Hand Side	1266-2623-100-L	1266-2623-200-L	1266-2623-300-L
Right Hand Side	1266-2623-100-R	1266-2623-200-R	1266-2623-300-R
Bracket Weight	0.15-0.25kg

Range of adjustment available within the Aixal lateral hardware. The top lateral is using the Forward Mount and below is the Standard (Rear Mount) option.
