Quickie Q700 M Power Wheelchair

Make an enquiry

Quickie

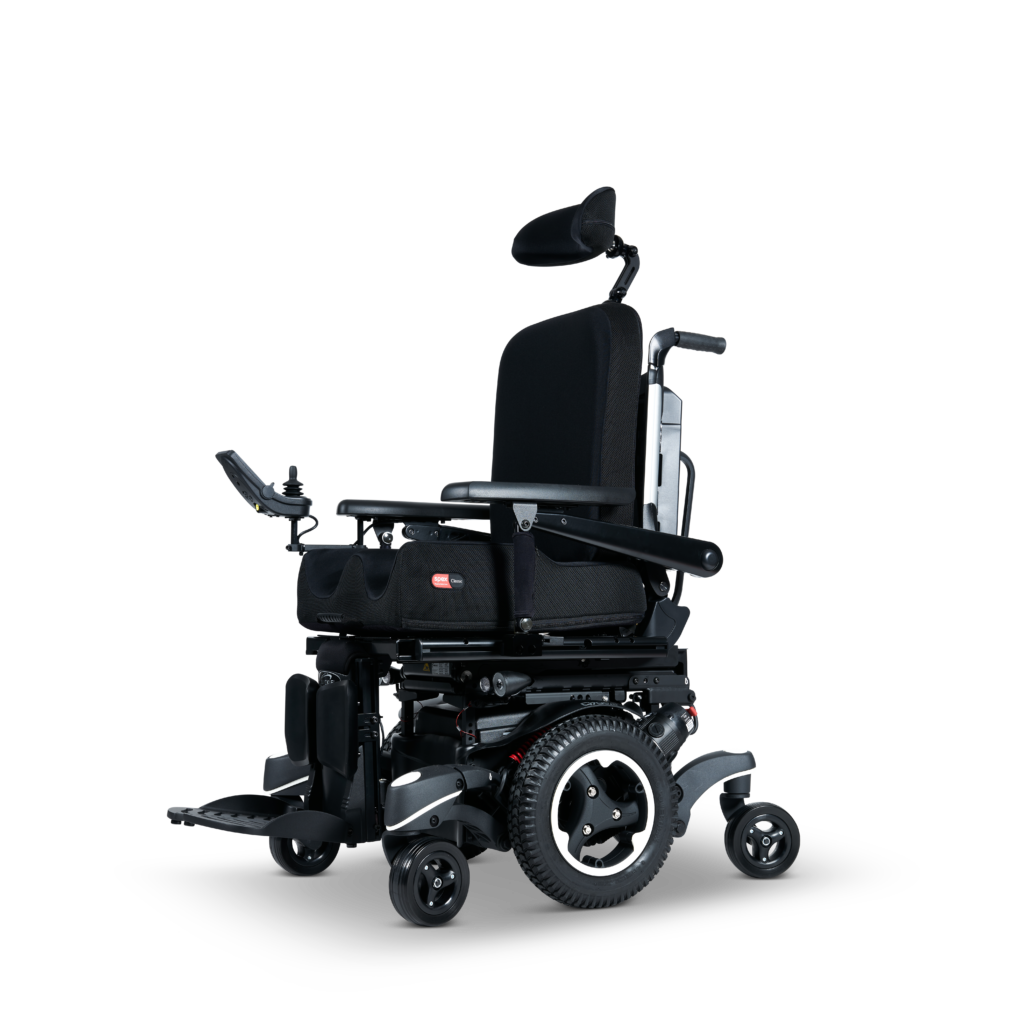

Q700 M

Mid-wheel powered wheelchair

Enjoy the ultimate driving experience with the Q700 M, Quickie’s most advanced mid-wheel drive powered wheelchair! Featuring NEW SpiderTrac™ 2.0 suspension, with either the advanced Sedo Ergo biomechanical seating system, innovative controls and the ability to travel at your own pace when elevated with C-ME or the supremely comfortable – and suitable for all – Sedeo Pro seating system and innovative controls.

Gallery

The benifits of the Spex Quickie Q700M Power Recline

Quickie Q700M Power Recline Spex Benefits

Quickie Q700M Power wheelchair with reclinable Spex products

Back view of the Spex Quickie Q700M Power Recline

Back view of the Spex Q700M Power Recline

Quickie Q700M Power-Recline Spex wheelchair that is Reclinable

Functional

Benefits

Superb indoor agility

Turning on its own axis, enjoy intuitive driving and excellent manoeuvrability in tight compact spaces with its narrow (620 mm) base and a 1100 mm turning circle. Also, easily sit under tables and access Wheelchair Adaptive Vehicles (WAVs) with a low seat height from just 445 mm.

High-performance outdoor suspension

Climb kerbs of up to 100 mm (4") and enjoy a stiffer, more responsive ride with the revolutionary SpiderTrac™ 2.0 suspension. With its independent movement of all six wheels, the front and rear wheels gives it the ability to crawl up and down steep obstacles whilst keeping all 6 wheels to the ground - even when ascending gradients of up to 10 degrees.

The power to get you where you want to go

Enjoy power and speed at your fingertips with the 4-pole high torque motors. Choose from 6 kph high torque or 10 kph standard for the ultimate performance. Plus, with a choice of 60 Ah or 72 Ah batteries, you can maximise your range of up to 40 km and experience outdoor performance like never before!

Timeless design that leaves a lasting impression

Style, it's a personal thing - that's why you have a choice of 7 vibrant colour in-lays to suit your personality. With hidden wiring and components combined with sharp-tailored upholstery, it's a powered wheelchair that provides a truly sleek and minimalist silhouette from every angle.

Tilt and Lift

The Tilt and Lift function on the Q700 allows for a user to be tilted with ease, as well as allowing the user to drive at an elevated height.

Resources

Quickie Q-Series Power Wheelchairs Range Brochure 2.75 MB Q700 Powerchair Script Form 0.19 MB Q700M Spare Parts Manual 40.47 MB Comparison Chart (NZ) - Q-Series Powered Wheelchairs 0.75 MB Comparison Chart (NZ) Power Wheelchairs 0.96 MB Crash Test Brochure_AUS_2023 9.22 MB Q700 User Manual 9.00 MB Medifab Enable-Whaikaha Catalogue 3.73 MB

Specifications

	Q700 M
Drive Configuration	Mid-Wheel Drive
Overall Base Width	63cm	24.8″
Overall Base Length (not including footrests)	86cm	33.8″
Turning Circle Turning radius (QMFM) vs diameter (QUP)	56cm	22″
Ground Clearance	7.5cm	2.9″
Seat to Floor Heights	41.5cm	16.3″
Max Speed	8,10kph
Range	40km
Drive Wheel Size	35.5cm	14″
Castor Wheel Size	15.2cm	6″
Seat Frame Options	Sedeo Ergo/Sedeo Pro
Third Party Seating	Yes with Special Mounting
Seating Sizes	40.6 – 50.8cm (W) 40.6 – 55.8 (D)	16″ – 20″ (W) 16″ – 22″ (D)
Lift	30cm	11.8″
Tilt	50°
Power Recline	90° – 150°
Power Leg Elevate	Yes/Swing Away or PCM
Manual Recline	90° – 130°
Electronics	R-Net
Specialty Controls	Yes
Suspension	Spider Trac
Motors	4 Pole
Battery Size	60Ah/72Ah
Chair Weight	140/165kg
Max. User Weight	160kg – Tilt Only 136kg – Tilt and Elevate
Transit Tested	Yes

Sedeo Pro

High-end fully adjustable and configurable seating frame with a wide range of comfort cushions and positioning options. Aimed at meeting moderate to complex clinical needs. With a wide range of armrests, armpads, legrests, seat and back cushions, headrests and positioning accessories, Sedeo Pro offers great flexibility to adapt to the individual user needs.

Sedeo Ergo

Sedeo Ergo is a high-end biomechanical seating system, with many programmable seating positions. This system covers the most demanding clinical needs with 180 mm antishear back movement, biometric repositioning function, infinitely adjustable seat and back, easy entry system, 90º knee angle in seated position and pressure relief reminders.
