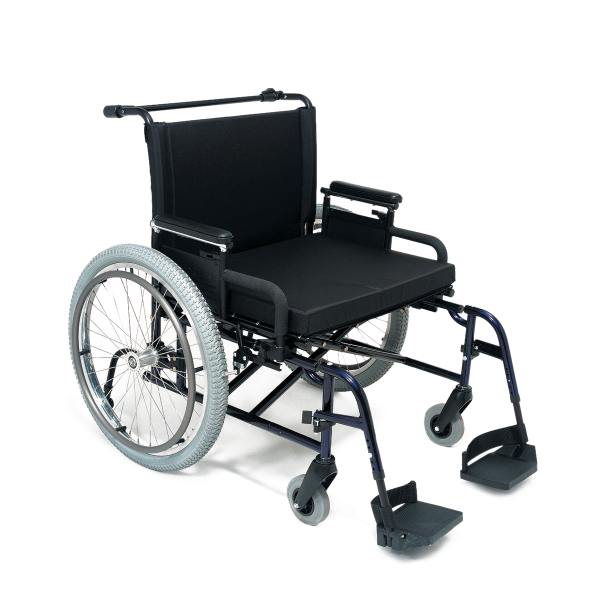

Quickie M6 Heavy Duty Wheelchair

Make an enquiry

Quickie M6

Heavy Duty

Wheelchair

The ideal solution for bariatric clients weighing up to 295 kg and a seat width up to 75 cm

The Quickie M6 is a Bariatric wheelchair with a weight capacity of 295 kg. The Quickie M6 is made of high strength steel and weighs approximately 24 kg, 26″ x 20″ with pneumatics and hangers.

It’s modelled on the Q2, offering function and style options uncommon in a bariatric chair.

Functional

Benefits

Modular, High-Strength Frame

The M6's modular frame, modelled after the industry favourite Quickie 2, features high strength steel for increased durability. Its interchangeable, heavy duty components accommodate changing conditions with simple parts replacements. Back height is adjustable.

Custom Frame Setup

Each M6 is built to keep you active by individually maximising comfort and efficiency. Its adjustable axle plate allows for better wheel access, while low seat heights increase access to the floor for foot propulsion. Select from a range of casters, front hangers, back heights and hand rims to suit your individual needs and lifestyle.

Locking Cross Brace and Stabilizing Bar for custom frame.

Locking Cross Brace and Stabiliser Bar

The M6 utilises a double locking cross brace and stabiliser bar to minimise frame flex and create a more rigid ride quality. This ensures that more energy transfers directly from your arms or feet to the axles for the most efficient propulsion.

Resources

Quickie M6 Heavy Duty Script Form 0.21 MB Sunrise Bariatric Seating Range 1.85 MB Comparison Chart (NZ) - Manual Wheelchairs 0.44 MB Medifab Trial Order Form 0.07 MB Quickie M6 User Manual 0.27 MB Crash Test Brochure_AUS_2023 9.22 MB

Accessories

JAY Arm Trough

JAY Foot Box

JAY Stump Support

JAY Flexi-Feet Wheelchair Shoe Holder

JAY Arm Trough

JAY Arm Troughs help maintain a comfortable and optimal position of the forearms and hands to improve overall upper body posture and head control. The Arm Trough’s contoured design and soft foam also help to reduce the risk of skin breakdown.

Size	14″ Long	18″ Long	22″ Long
Arm Trough	1451-5514-400	1451-5518-400	1451-5522-400
With Fixed Hardware	1451-5614-0FX	1451-5618-0FX	1451-5622-0FX
With Swing Away Hardware	1451-5614-0SA	1451-5618-0SA	1451-5622-0SA

Product Code:

14″ Long: 1451-5514-400

14″ Long with fixed hardware: 1451-5614-0FX

14″ Long with swing away hardware: 1451-5614-0SA

18″ Long: 1451-5518-400

18″ Long with fixed hardware: 1451-5618-0FX

18″ Long with swing away hardware: 1451-5618-0SA

22″ Long: 1451-5522-400

22″ Long with fixed hardware: 1451-5622-0FX

22″ Long with swing away hardware: 1451-5622-0SA

JAY Foot Box

Designed to protect the lower extremities from injury and skin breakdown resulting from periods of high tone, JAY Foot Boxes offer three styles to suit individual client needs.

Size	Height	Code	With Divider
Single	Standard	1453-5001-STD	–
Single	Tall	1453-5001-TAL	–
12″ Full	Standard	1453-5012-STD	–
14″ Full	Standard	1453-5014-STD	–
16″ Full	Standard	1453-5016-STD	1453-5116-STD
16″ Full	Tall	1453-5016-TAL	1453-5116-TAL
18″ Full	Standard	1453-5018-STD	1453-5118-STD
18″ Full	Tall	1453-5018-TAL	1453-5118-TAL
20″ Full	Standard	1453-5020-STD	1453-5120-STD
20″ Full	Tall	1453-5020-TAL	1453-5120-TAL
22″ Full	Standard	1453-5022-STD	1453-5122-STD
22″ Full	Tall	1453-5022-TAL	1453-5122-TAL

Product Code:

Single Standard: 1453-5001-STD

Single Tall: 1453-5001-TAL

12″ Full Standard: 1453-5012-STD

14″ Full Standard: 1453-5014-STD

16″ Full Standard: 1453-5016-STD

16″ Full Tall: 1453-5016-TAL

16″ Full Standard With Divider: 1453-5116-STD

18″ Full Standard: 1453-5018-STD

18″ Full Tall: 1453-5018-TAL

18″ Full Standard With Divider: 1453-5118-STD

20″ Full Standard: 1453-5020-STD

20″ Full Tall: 1453-5020-TAL

20″ Full Standard With Divider: 1453-5120-STD

22″ Full Standard: 1453-5022-STD

22″ Full Tall: 1453-5022-TAL

22″ Full Standard With Divider: 1453-5122-STD

JAY Stump Support

Stump support kit option by Jay Seating, which can be fitted to any of the range of Quickie wheelchairs.

Pad Size	User Side	Code
Standard (8″ x 6″)	Right	1453-1852-0RH
Standard (8″ x 6″)	Left	1453-1852-0LH
Large (10″ x 8″)	Right	1453-1853-0RH
Large (10″ x 8″)	Left	1453-1853-0LH

JAY Flexi-Feet Wheelchair Shoe Holder

JAY Flexi-Feet are a dynamic construction to accommodate clients who may experience frequent periods of tone or involuntary movements.

Product Code:

1453-32600L

Specifications

Measurements

Colour Chart

Code	1575-0000-000
Seat Width	22 -30″ (56 – 75 cm)
Seat Depth	18 – 22″ (45 – 55 cm)
Front Seat Height	18.5 – 20″ (47 – 50 cm)
Rear Seat Height	18.5 – 19.5″ (47 – 49.5 cm)
Back Height	17 – 20″ (42.5 – 51 cm)
Total Width	SW + 8.5″ (69 – 98 cm)
Seat Angle	0º
Camber	0º
Max. User Weight	295 kg
Product Weight	From 24 kg*
Upholstery Colours	Black
Frame Colours	4 colours
