Quickie Iris
Wheelchair

Superior standard for rotation-in-space technology

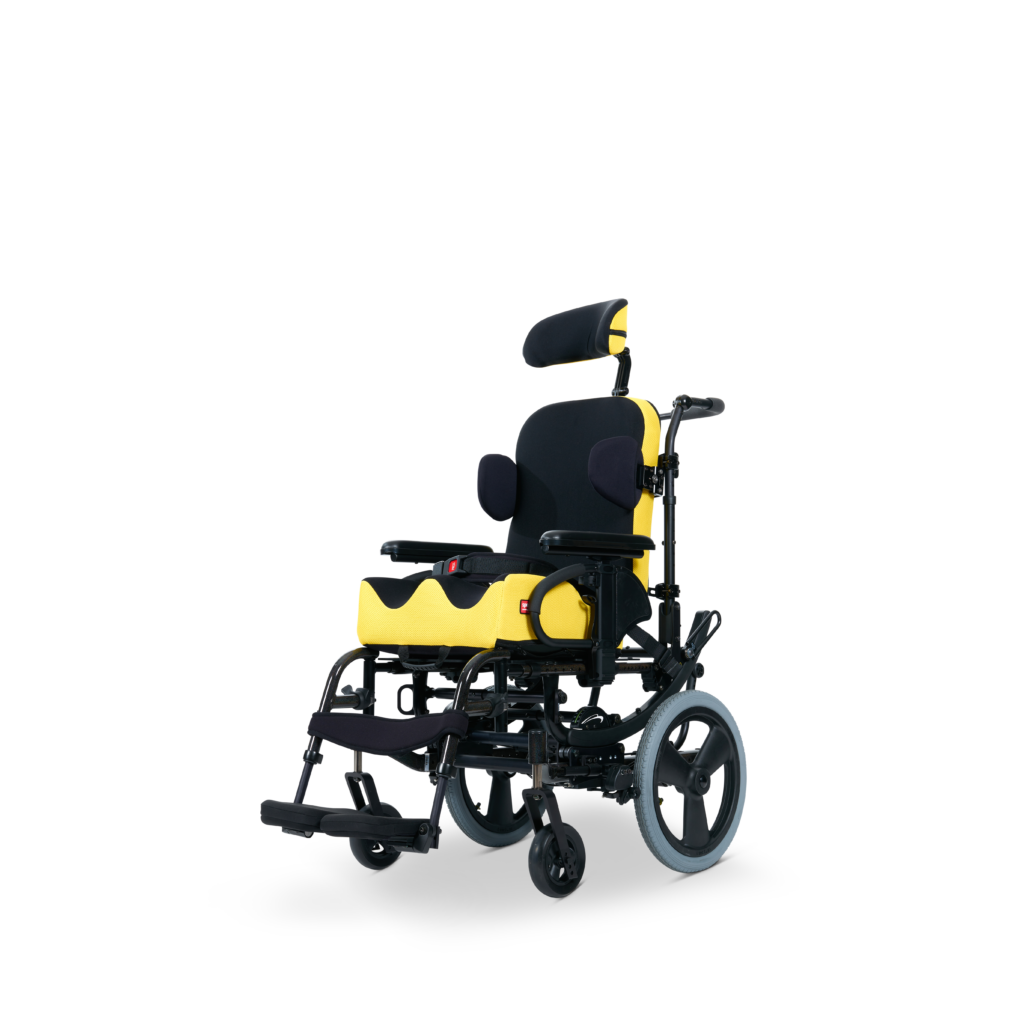

The Quickie IRIS Manual Tilt Wheelchair, ultimate tilt-in-space wheelchair, features up to 55° of Intelligent Rotation in Space Technology.



It also brings the broadest range of positioning and caregiver options, numerous adjustments, and is one of the lightest tilt-in-space wheelchairs available.

Script your Iris wheelchair seating from the Spex range for the ultimate chair set-up!



Gallery
Functional
Benefits
40° or 55° of Intelligent Rotation in Space Technology
Intelligent Rotation in Space technology means the seat frame rotates around the user's center of gravity. This results in a smooth tilting motion that is easy for you to control and allows for the shortest possible wheelbase that is easy for you to maneuver. The IRIS manual wheelchair features 40° or 55° rotation ranges that can be set to achieve up to 45° or 60° of posterior rotation for superior positioning.
New Intuitive Hanger Designs
Swing-in/Swing-out hanger design features an intuitive bi-directional release lever that follows your hand's movement. A tapered locking mechanism prevents the hanger from loosening over time. The Elevating/Articulating Legrest (pictured) includes 2" of height adjustment to better align with the knee joint for a natural motion. Audible clicks index its position as it is elevated.
Script with Spex Adjustable Seating
Script your Iris with the Spex range of adjustable wheelchair seating to suit the user's requirements
Numerous Caregiver Options available
To make your job as caregiver that much easier! For cable-free tilting, choose the Foot Release Tilt Actuator. The hands-free Attendant Wheel Lock also uses a foot pedal to engage. Standard with every IRIS, the Angle Adjustable Stroller Handle can be easily adjusted to differing caregiver heights for easy handling.
(Foot Release Tilt Actuator and Attendant Wheel Lock pictured right)
Rocker Arm Technology and Width Adjusting Struts
The IRIS' rocker arm includes a cover to prevent debris from collecting on the hardware. Innovative locking pin engagement and precision matching of parts within the tilt mechanism reduces side to side movement and increases durability. An easy-to-read tilt angle gauge is attached to the rocker arm.
The IRIS also features optional width-adjustable strut tubes which allow for changes in chair width to accommodate user needs without replacement parts.
Client
Gallery
Clinical
Benefits


Clinical Benefits of Tilt in Space

Learn about the clinical benefits of tilt in space as seen on the Quickie Iris.

LEARN MORE

Clinial Benefits of Tilt in space
Media
Meet Jane
Quickie Footrest
Watch
Watch
Resources
Quickie Iris Brochure 1.22 MB Quickie Iris Script Form Interactive 2.93 MB Quickie Iris Script Form 1.59 MB Comparison Chart (NZ) - Manual Wheelchairs 0.44 MB Medifab Trial Order Form 0.07 MB Quickie Iris Spare Parts Manual 15.73 MB Quickie Iris User Manual 4.36 MB
Accessories
Reverse Configuration Optional
Iris Elevating Leg support
Iris Swing-Away Hangers
JAY Stump Support
JAY Arm Trough
JAY Foot Box
JAY Flexi-Feet Wheelchair Shoe Holder
Contracture Platform Footrest

Reverse Configuration Optional

Reverse configuration of the Iris seat top on the base frame combined with 24” wheels can allow the user to better self-propel in some situations.

Iris Elevating Leg support

Iris Swing-Away Hangers

JAY Stump Support

Stump support kit option by Jay Seating, which can be fitted to any of the range of Quickie wheelchairs.

Pad Size User Side Code
Standard (8″ x 6″) Right 1453-1852-0RH
Left 1453-1852-0LH
Large (10″ x 8″) Right 1453-1853-0RH
Left 1453-1853-0LH

JAY Arm Trough

JAY Arm Troughs help maintain a comfortable and optimal position of the forearms and hands to improve overall upper body posture and head control. The Arm Trough’s contoured design and soft foam also help to reduce the risk of skin breakdown.

Size 14″ Long 18″ Long 22″ Long
Arm Trough 1451-5514-400 1451-5518-400 1451-5522-400
With Fixed Hardware 1451-5614-0FX  1451-5618-0FX 1451-5622-0FX
With Swing Away Hardware 1451-5614-0SA 1451-5618-0SA  1451-5622-0SA
Product Code:
14″ Long: 1451-5514-400
14″ Long with fixed hardware: 1451-5614-0FX
14″ Long with swing away hardware: 1451-5614-0SA
18″ Long: 1451-5518-400
18″ Long with fixed hardware: 1451-5618-0FX
18″ Long with swing away hardware: 1451-5618-0SA
22″ Long: 1451-5522-400
22″ Long with fixed hardware: 1451-5622-0FX
22″ Long with swing away hardware: 1451-5622-0SA

JAY Foot Box

Designed to protect the lower extremities from injury and skin breakdown resulting from periods of high tone, JAY Foot Boxes offer three styles to suit individual client needs.

Size Height Code With Divider
Single Standard 1453-5001-STD –
Tall 1453-5001-TAL –
12″ Full Standard 1453-5012-STD –
14″ Full Standard 1453-5014-STD –
16″ Full Standard 1453-5016-STD 1453-5116-STD
Tall 1453-5016-TAL 1453-5116-TAL
18″ Full Standard 1453-5018-STD 1453-5118-STD
Tall 1453-5018-TAL 1453-5118-TAL
20″ Full Standard 1453-5020-STD 1453-5120-STD
Tall 1453-5020-TAL 1453-5120-TAL
22″ Full Standard 1453-5022-STD 1453-5122-STD
Tall 1453-5022-TAL 1453-5122-TAL



Product Code:
Single Standard: 1453-5001-STD
Single Tall: 1453-5001-TAL
12″ Full Standard: 1453-5012-STD
14″ Full Standard: 1453-5014-STD
16″ Full Standard: 1453-5016-STD
16″ Full Tall: 1453-5016-TAL
16″ Full Standard With Divider: 1453-5116-STD
18″ Full Standard: 1453-5018-STD
18″ Full Tall: 1453-5018-TAL
18″ Full Standard With Divider: 1453-5118-STD
20″ Full Standard: 1453-5020-STD
20″ Full Tall: 1453-5020-TAL
20″ Full Standard With Divider: 1453-5120-STD
22″ Full Standard: 1453-5022-STD
22″ Full Tall: 1453-5022-TAL
22″ Full Standard With Divider: 1453-5122-STD

JAY Flexi-Feet Wheelchair Shoe Holder

JAY Flexi-Feet are a dynamic construction to accommodate clients who may experience frequent periods of tone or involuntary movements.

Product Code:

1453-32600L

Contracture Platform Footrest

Allows for very tight knees, placement of feet underneath the chair. Length, knee angle, footplate position are all adjustable. Contracture Footplates are positioned underneath and backward (more than 90 degrees reverse).



Outside mount: Hanger is attached laterally on the chair

Short Medium Long
14″ 1568-5170-14S 1568-5170-14M 1568-5170-14L
16″ 1568-5170-16S 1568-5170-16M 1568-5170-16L
18″ 1568-5170-18S 1568-5170-18M 1568-5170-18L
20″ 1568-5170-20S 1568-5170-20M 1568-5170-20L

Tip: System does not swing away for transfers.

Specifications
Weight
Measurements
Colour Options
Specifications Quickie Iris
Code 1567-0000-000
Frame Style Rotation-in-Space
Wheelchair Weight From 17.7 kg*
Frame Material Aluminium
User Weight Capacity Standard: 136kg
Heavy Duty: 180kg
Transit Approved Yes
* Frame weight only in the lightest configuration with no wheels, armrests or seating.
Frame & Feature Specifications Quickie Iris
Seat Widths 14″ – 22″
Seat Depths 14″ – 22″
Frame Angle N/A
Front Seat-to-Floor Height 12.5″ – 19″
Rear Seat-to-Floor Height 12.5″ – 19″
Lower Leg Length Setting N/A
Back Height 15″ – 21″ or 18″-24″
Angle Adjustable Backrest Adjustment Range -30º – 5º
Camber 0º
Centre of Gravity (COG) Adjustment N/A
Tilt Range 40º
55º
