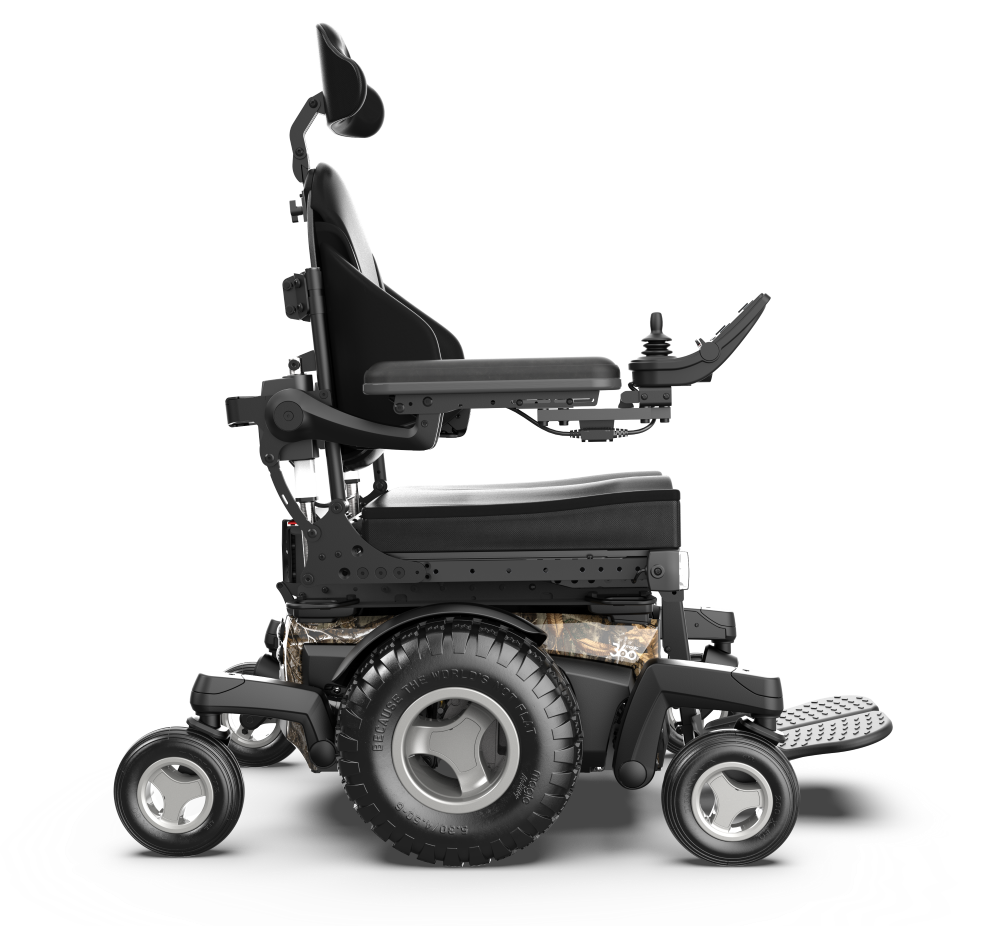

Magic 360 -
MWD Compact
Electric Wheelchair

Get ready to go your own way in the Magic 360

The ultimate powerchair has now arrived!

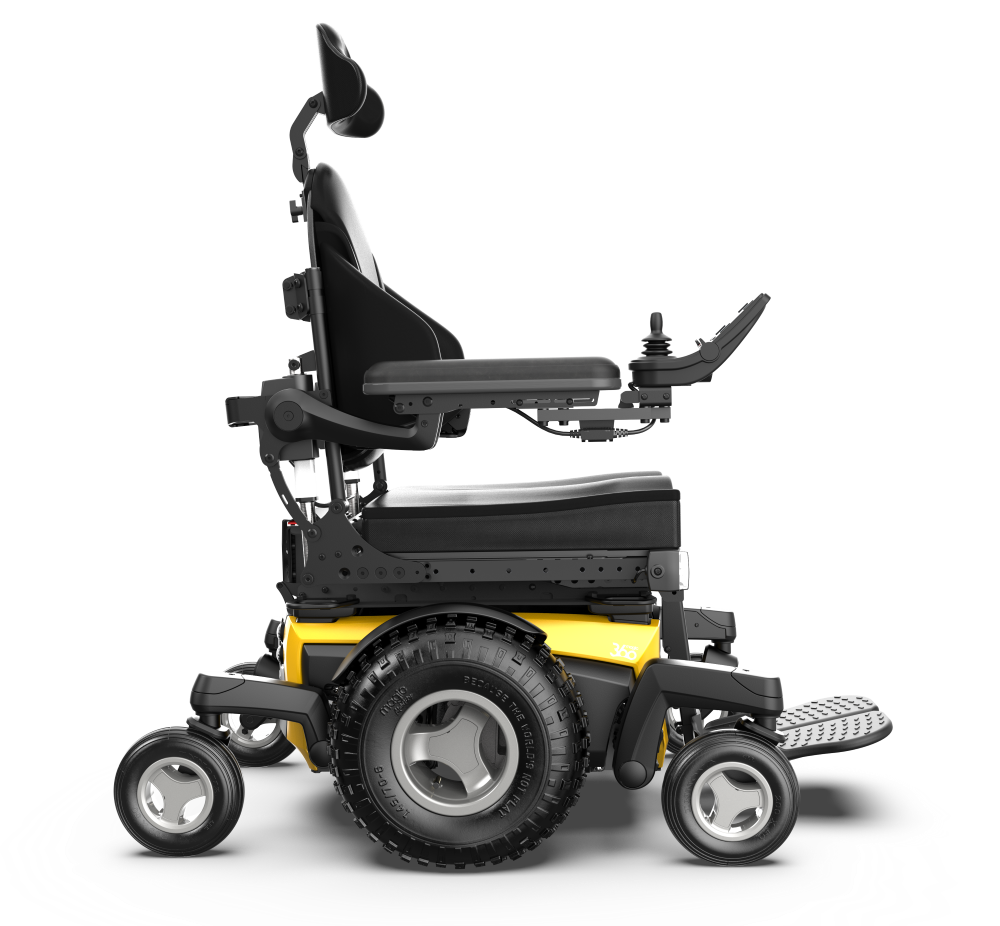

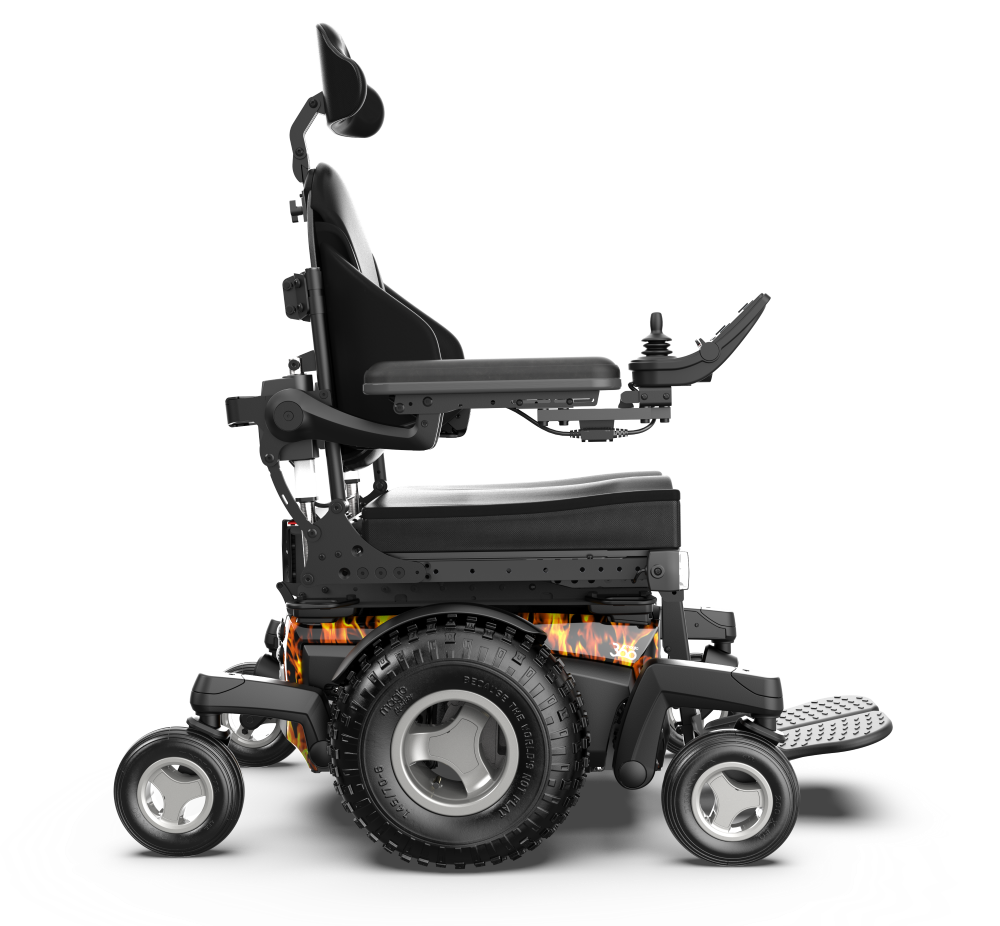

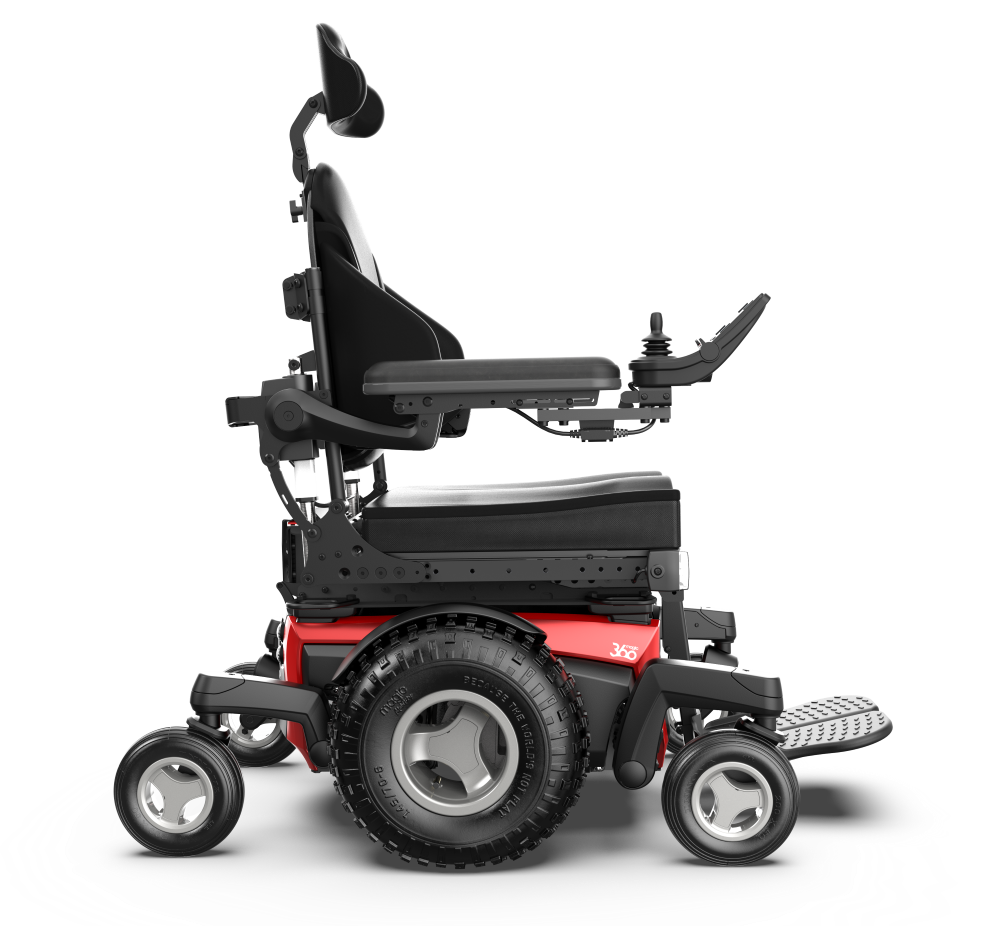

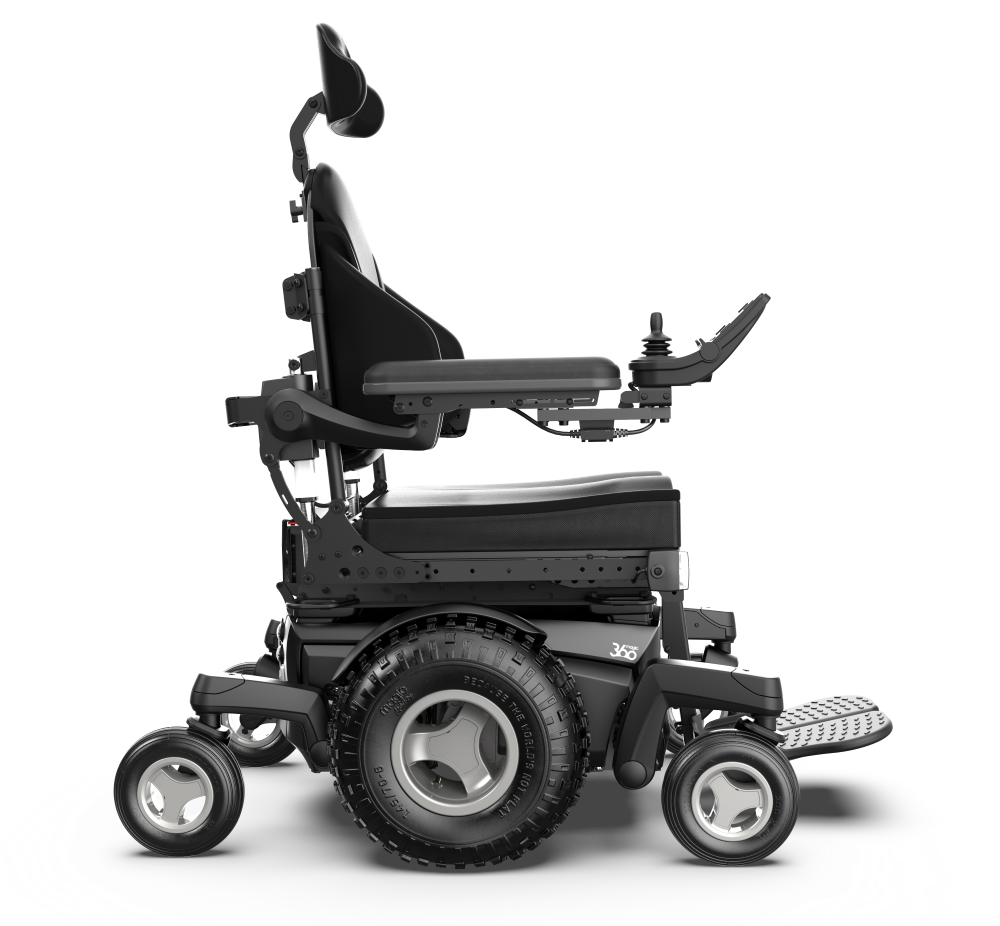

Tailored for the world you live in. The Magic 360 lets you choose the life you want. Configure the body colour to suit your style. Select the wheels for the adventures you choose.

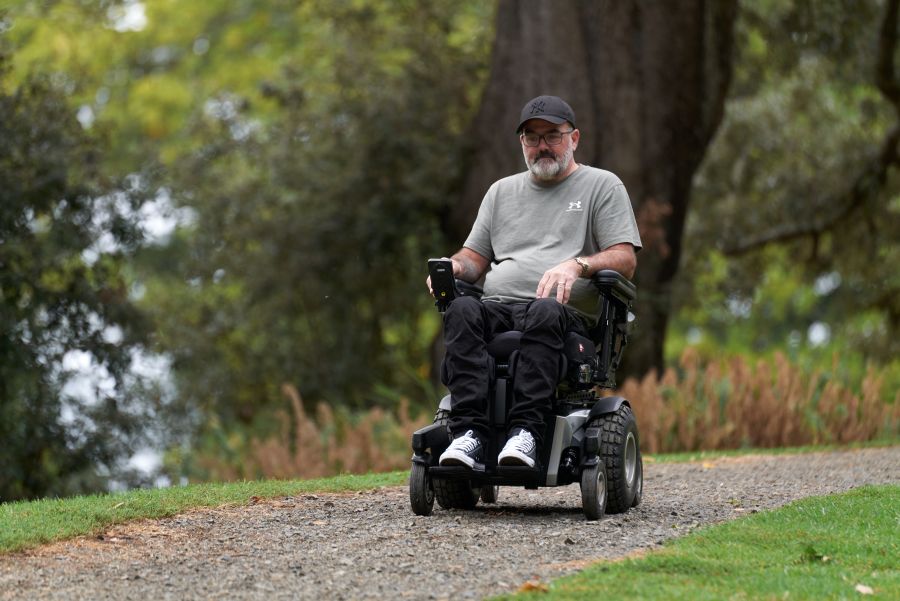

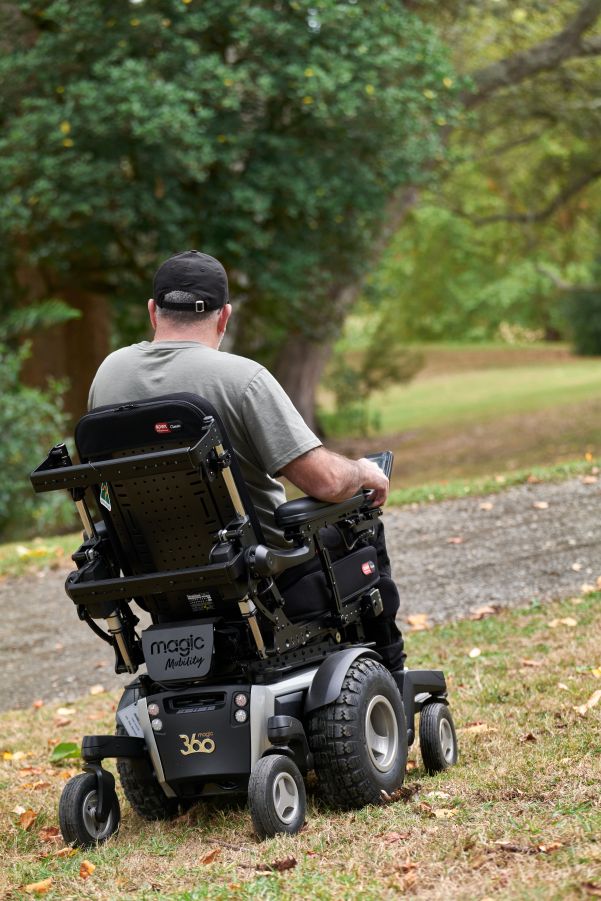

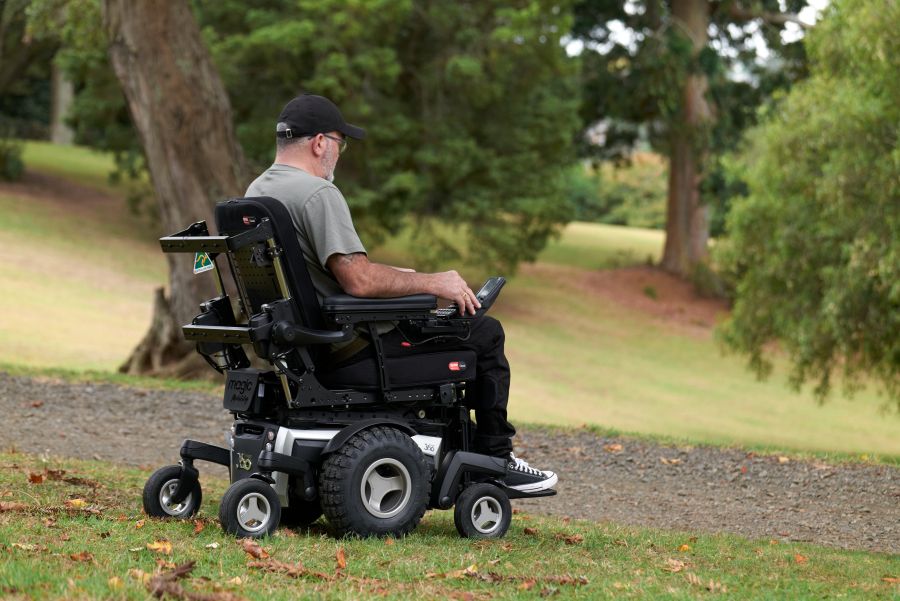

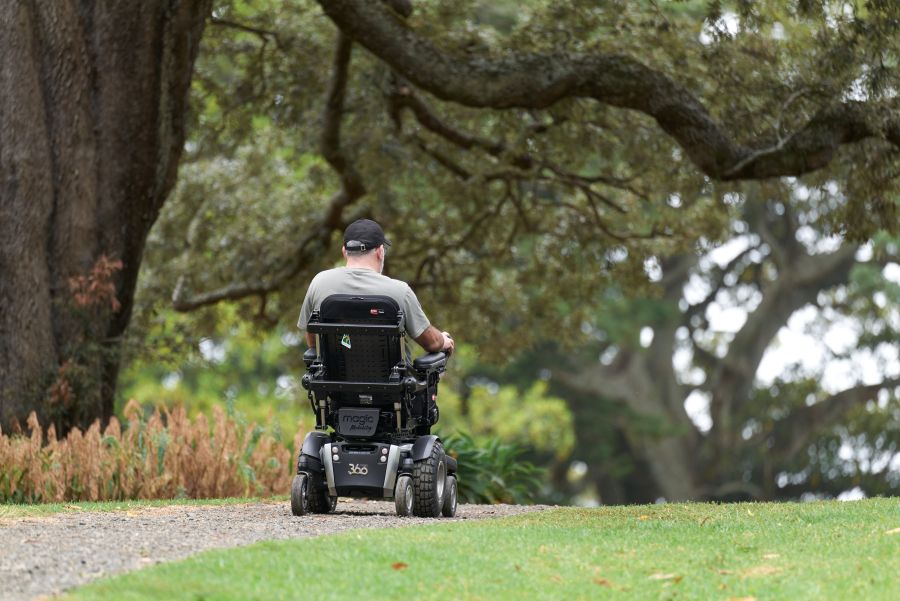

Finally a true all-terrain powerchair that truly responds to whatever adventure you’re seeking, tackling off-road challenges to indoor obstacles.

This is your chair and your choice.

Specifications
Features Specifications
*Length of base 983mm (*legrest choice and seating size may increase chair length/width)
*Width of base 610mm (24″) with Urban wheels 635mm (25″) with Crossover wheels 660mm (26″) with Off-road wheels
Floor to top of seat pan height 435mm (17″)
*Minimum turning radius 615-665mm (*legrest choice may increase turning circle)
Weight limit 160kg (350lbs)
Top speed 10kph (6.2mph) / 5kph (3mph) with 12″ powerlift
Motors 68Nm Torque, 800W, Gear In Line
Motor IP Rating 54 (splash resistant but not waterproof) The wheelchair has electric motors and must not be driven through water, into rivers, creeks and the sea
Wheels – Off-road 14″ (145/70-6), black pneumatic (puncture resistant tyres liners available)
Wheels – Crossover 14” (5.30/4.50-6) black or grey (pneumatic only)
Wheels – Urban 14″x 3” black or grey (solid or pneumatic)
Castors Ø220mm/8″ (2.80/2.50-4), black or grey (solid)
Batteries Gel
Controller Penny & Giles controller with LCD display (R-Net) or LED option
Legrest options Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating
Seating and backrests Adjustable seat pan (12” deep to 22” wide) to fit MPS / Rehab or aftermarket seating options
Tie down points Crash test compliant
Exclusions No transfer tilt
