Alternative drive controls for users who cannot use standard power wheelchair controls.
While many products used for wheelchair applications are borrowed from other industries, SWITCH-IT products are designed specifically for their intended use on power wheelchairs, so they operate safely and effectively.
State-of-the art technology is used for components and SWITCH-IT drive controls are designed to work with the majority of power wheelchairs in a plug and play fashion, so setting up for wheelchair driving is quick and easy.
Our SWITCH-IT range includes:
- Joysticks
- Head Controls
- Drive & Power Seating Controls
Use the tabs below to explore our range of SWITCH-IT power wheelchair joysticks.

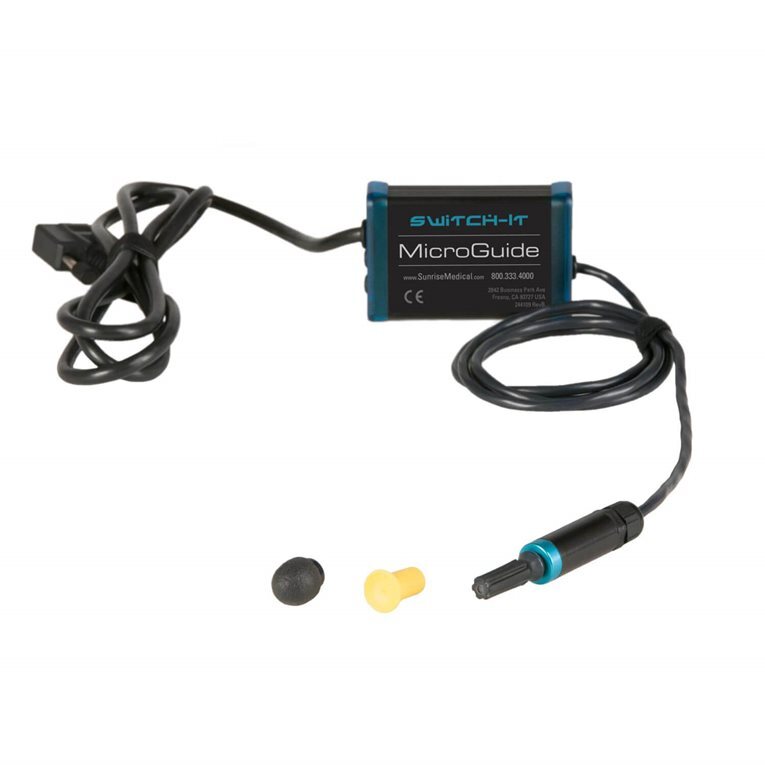

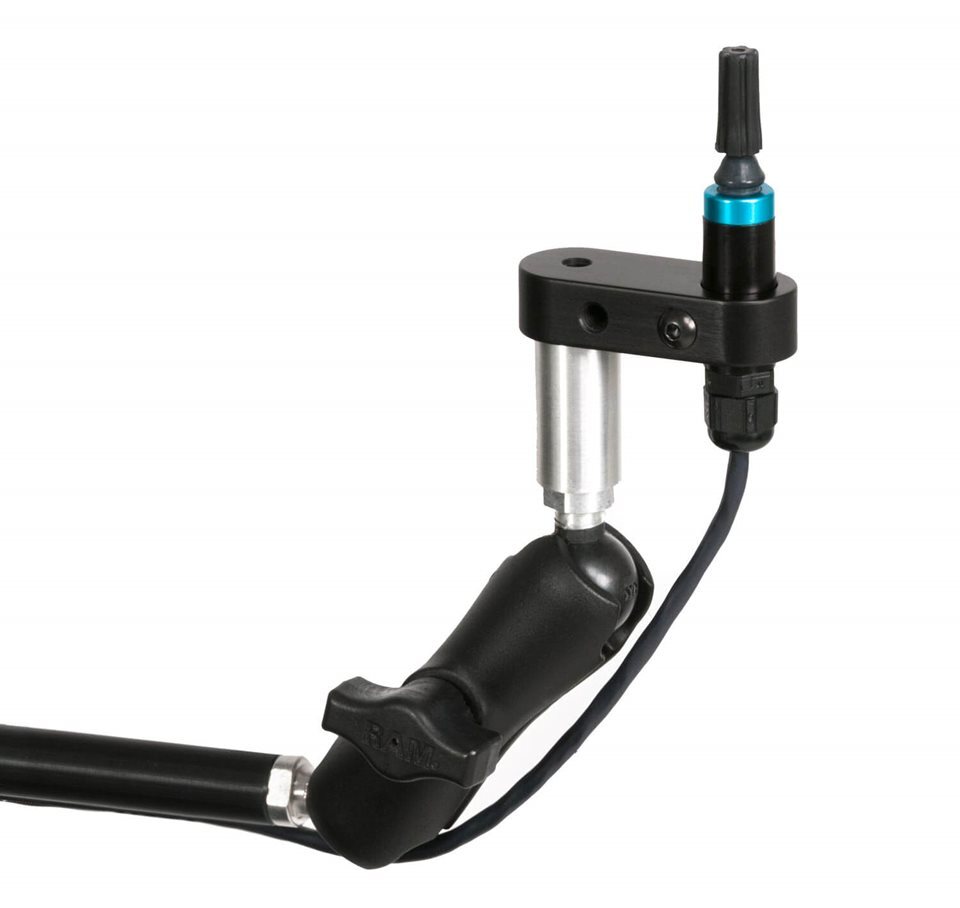

MicroGuide
Light-touch proportional control
The MicroGuide is a light-touch proportional power wheelchair drive control: the harder you push, the faster the chair will go. The device gives the user the ability to operate their wheelchair with 360° of control as well as the full range of the wheelchair’s drive parameters (speed, acceleration, etc.).
- Deflection-based technology offers physical joystick throw for users who prefer the feedback from movement.
- Metal construction offers a significant durability advantage.
- The MicroGuide is ideal for clients who require the sensitivity of a light-touch drive control as well as the feedback of joystick displacement.
VersaGuide
Compact proportional control
The VersaGuide is a fully proportional and durable compact joystick that can be mounted virtually anywhere. Its unlimited mounting options are what give the versatile VersaGuide its name.
- The VersaGuide provides for proportional control (forward, reverse, left, and right)
- It has two built-in connections for mode and on/off on the underside of the joystick, called SmartJacks, which are unique to the VersaGuide.
- The SmartJack sensor input will automatically adapt to both proximity and mechanical switches.
VersaGuide EZ
Light-touch compact proportional control
The VersaGuide EZ offers a lighter force and shorter throw for users with difficulty reaching maximum movement for full proportional control.
- The VersaGuide EZ provides for proportional control (forward, reverse, left, and right).
- It can be mounted virtually anywhere.
- It provides two built-in connections for mode and on/off on the underside of the joystick.
- The SmartJack sensor input will automatically adapt to both proximity and mechanical switches.
![](https://medifab.com/wp-content/uploads/2024/08/SpaceDisk.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/Armrest-and-Midline-Mount-with-MicroGuide.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/Armrest-and-Midline-Mount.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/Flex-Switches.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/Chin-or-Mouth-Control-Mount.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/Swing-Away-Chin-Boom.jpg)
Switch-It’s proximity head arrays offer comfortable covers and soft foam padding preferred by many users. Any of our head arrays can be combined with all of the Whitmyer head positioning accessories to provide the most comprehensive head control setup in the industry.
Use the tabs below to explore our SWITCH-IT head controls range.

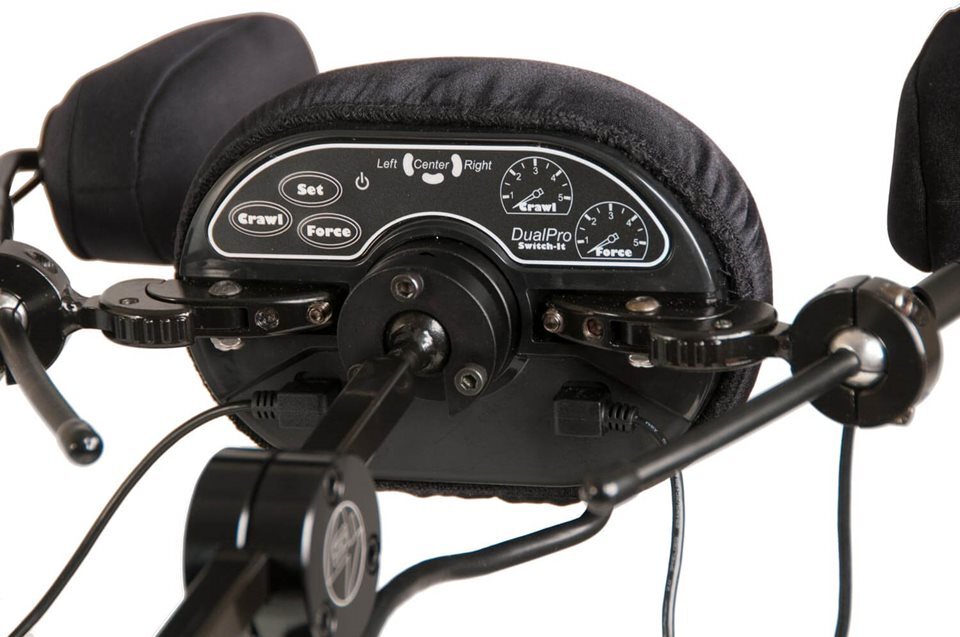

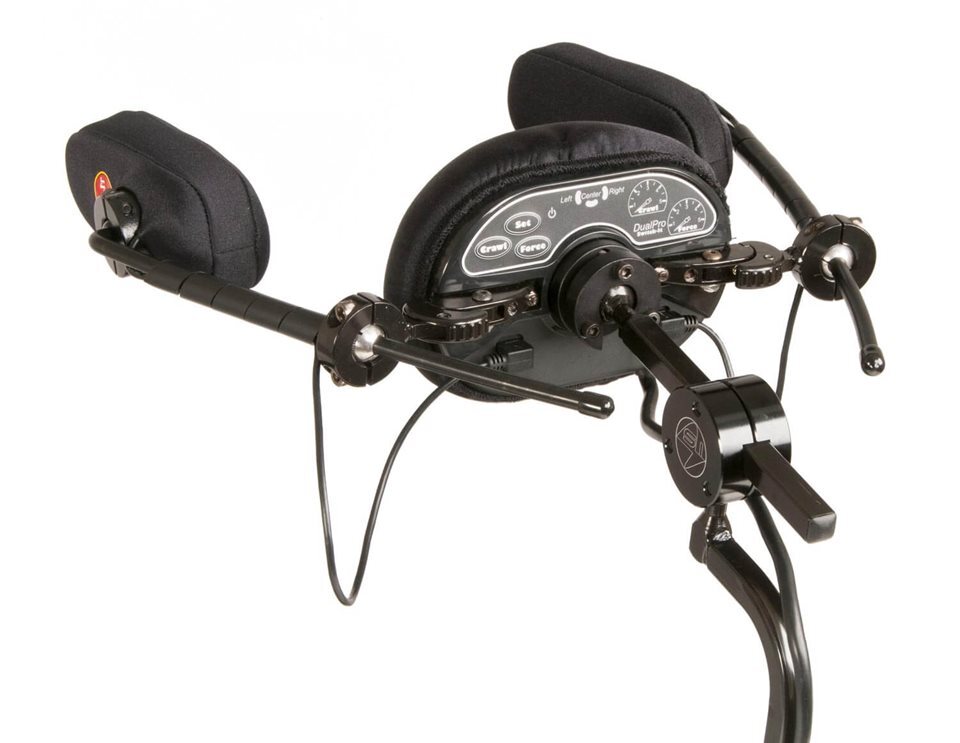

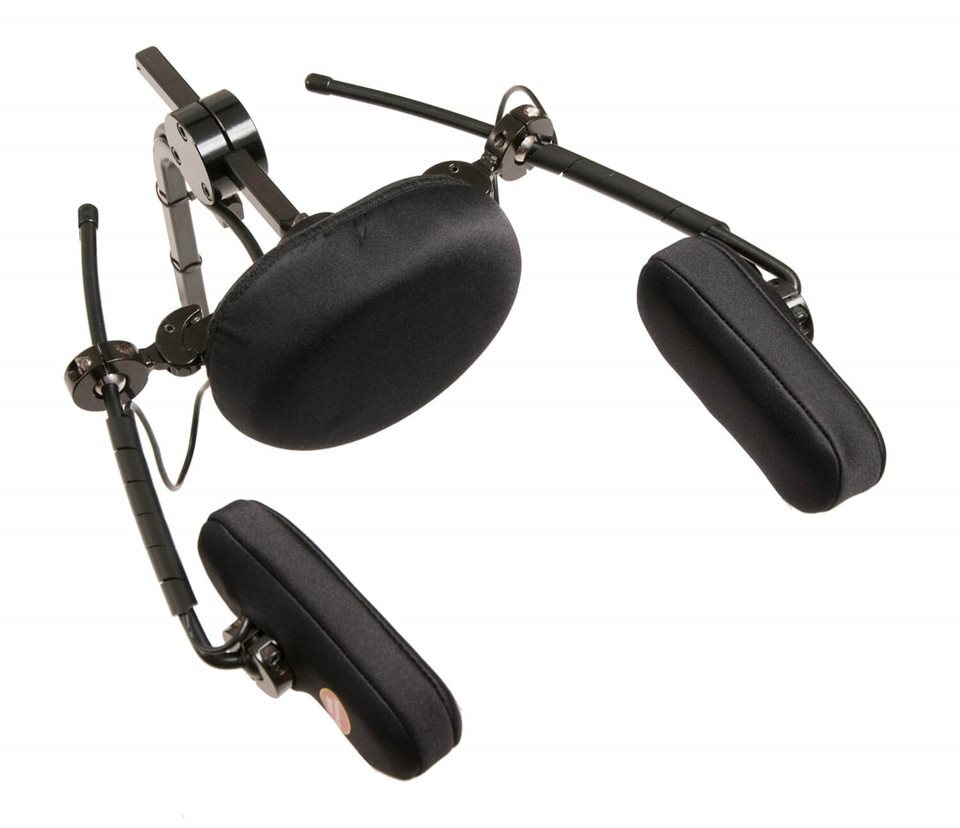

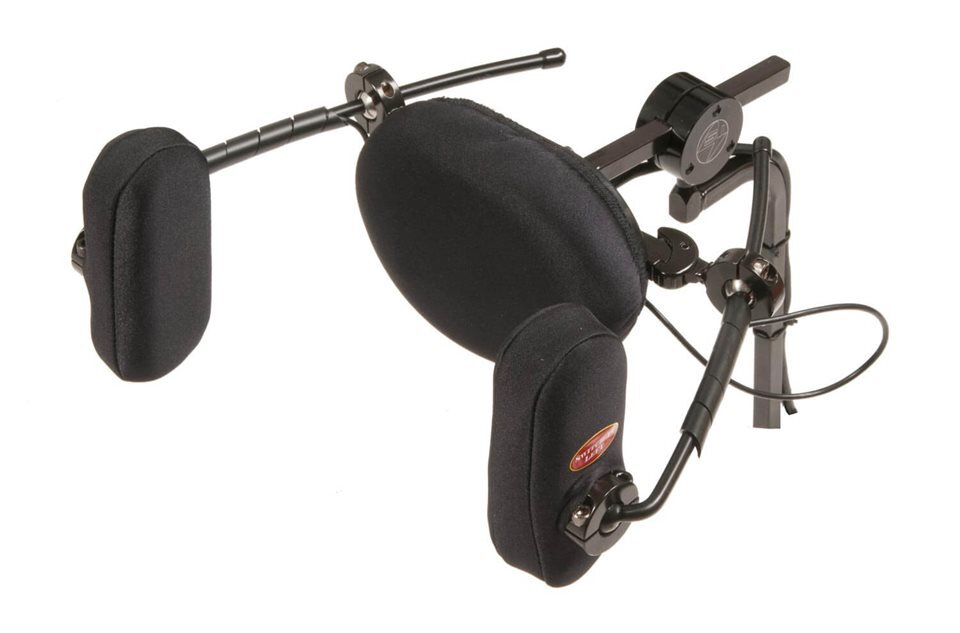

Dual Pro
Truly proportional head array for intuitive driving
For the most precise control through a head array, the SWITCH-IT Dual Pro® offers full proportional control the likes of which has never been available before. The Dual Pro is a truly proportional head array with fine-tuned adjustments and configurability to provide the user an easy-to-learn, precise, and intuitive driving experience.
Switched Head Arrays![](https://medifab.com/wp-content/uploads/2024/08/Switched-Head-Arrays-1-300x300.jpg)

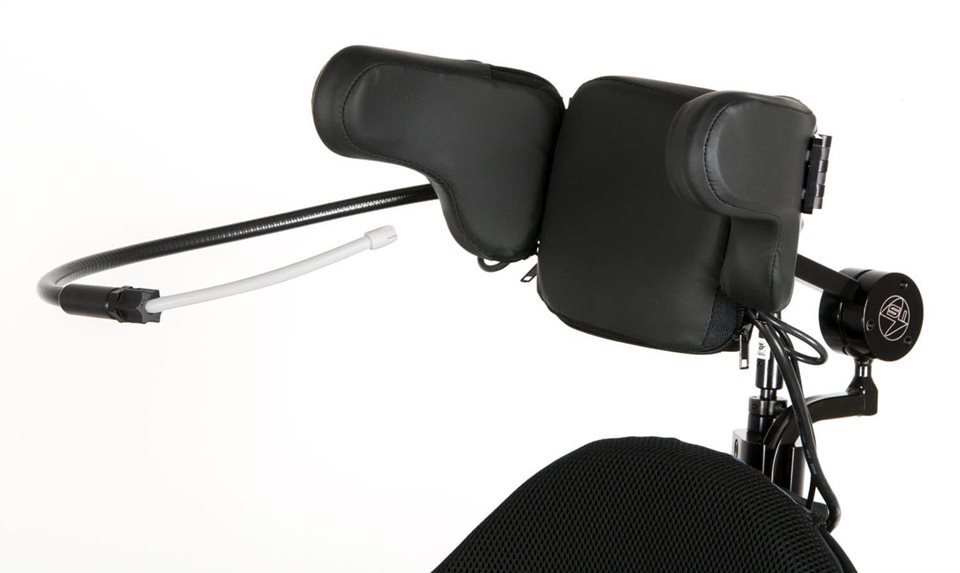

Switched Head Control
Switch-It traditional switched head arrays use zero-touch proximity sensors which are specifically designed for power wheelchair application and are less susceptible to interference from high electromagnetic fields generated by power wheelchairs.

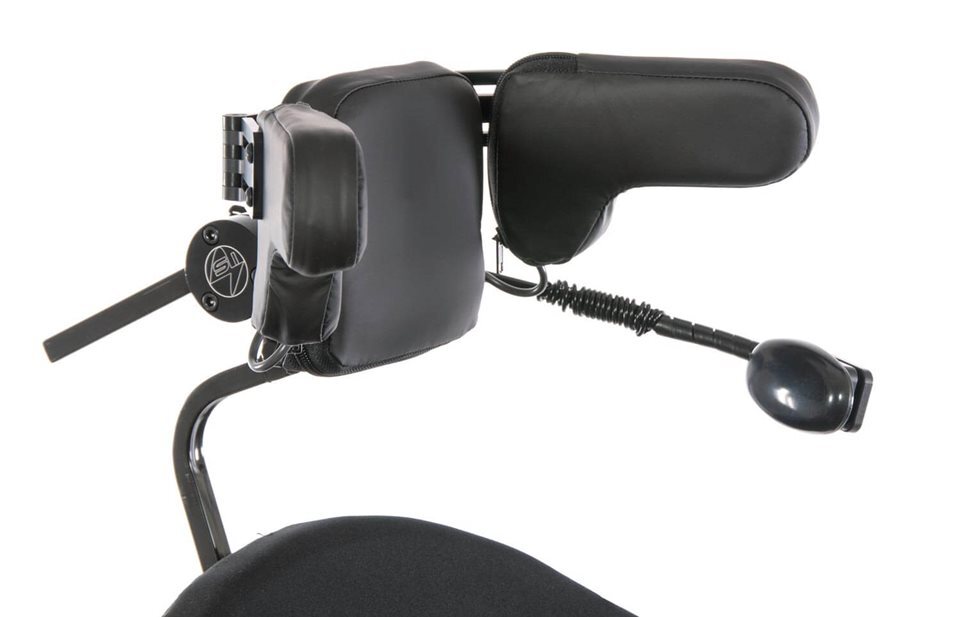

The HDR-4M2 is a 3-switch head array with two ⅛” monojack ports for a dedicated external mode switch to provide the 4th and 5th functions as desired. HDR-5 is a 5-switch head array with a dedicated sensor for reverse (choose -RL for reverse on left wing or -RR for reverse on right wing) and a dedicated sensor for mode in the opposite wing. A dipswitch panel on the back of the head array gives the ability to turn the sensor on or off.

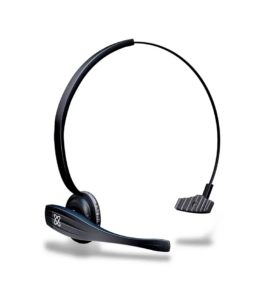

Vigo ![](https://medifab.com/wp-content/uploads/2024/08/Vigo-255x300.png)
Empowering independence with subtle movements

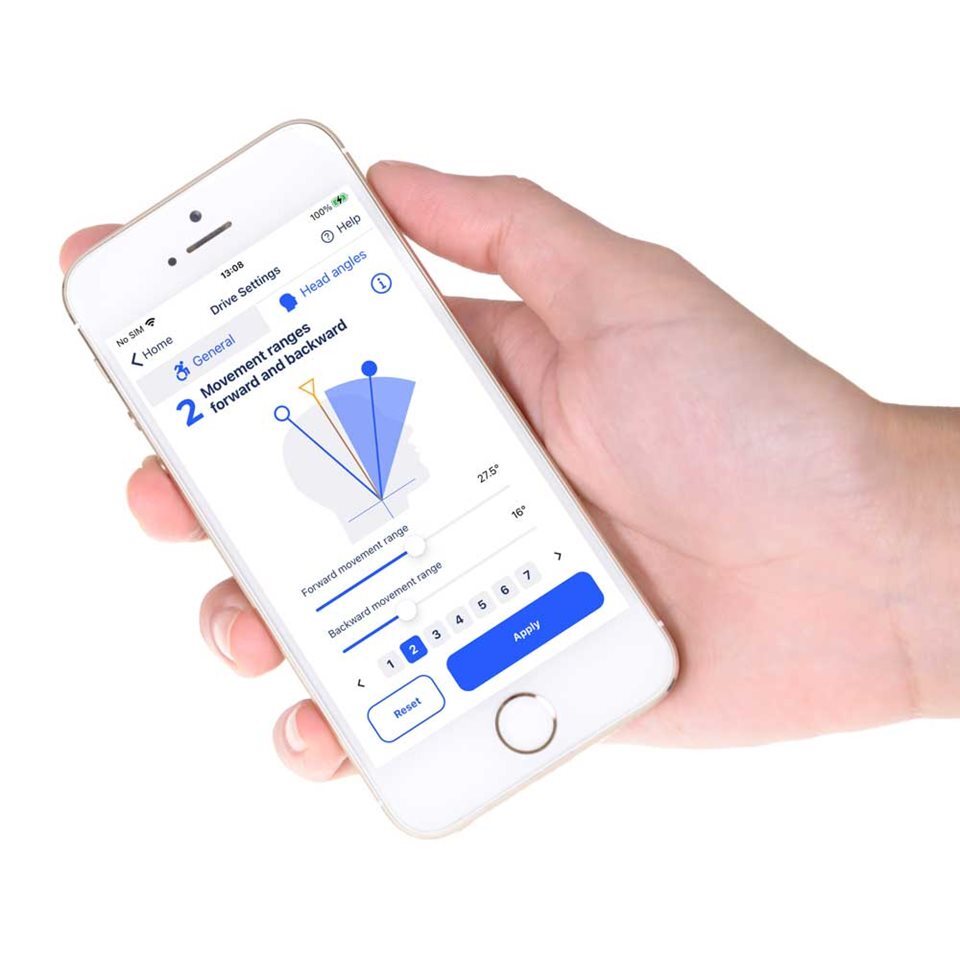

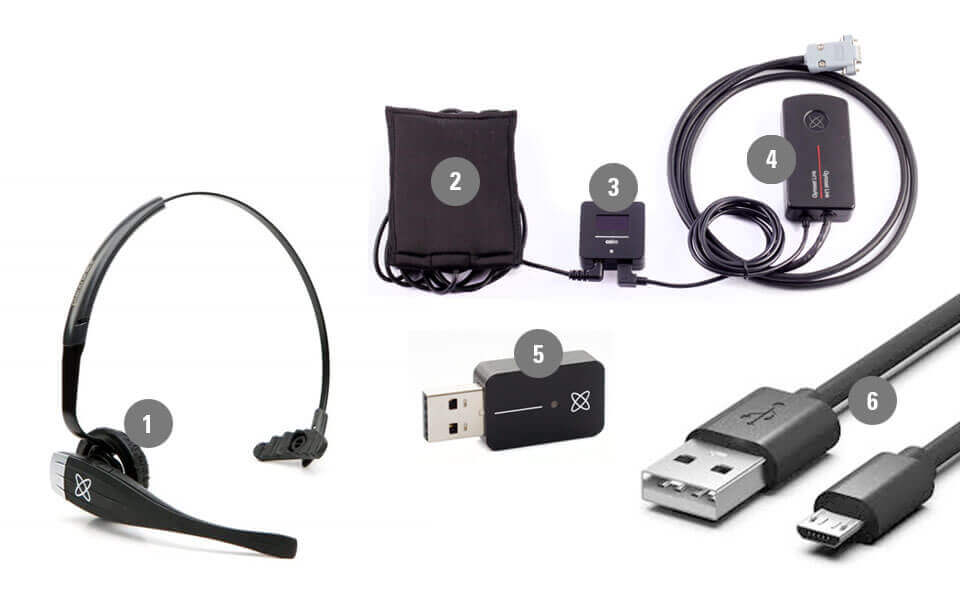

The SWITCH-IT Vigo Head Control is a wireless proportional head control that allows drivers to effortlessly navigate their power wheelchairs and other devices using intuitive head movements. With 14 hours of battery life, you can drive all day and charge overnight!
![](https://medifab.com/wp-content/uploads/2024/08/DualPro.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/Dual-Pro2.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/Dual-Pro-3.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/Dual-Pro-4.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/Switched-Head-Arrays-1-1.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/Mode-Switches.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/vigo-head-control-4.webp)
![](https://medifab.com/wp-content/uploads/2024/08/Vigo-Wireless.webp)
![](https://medifab.com/wp-content/uploads/2024/08/mobile-app.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/power-seating-functions.webp)
![](https://medifab.com/wp-content/uploads/2024/08/perfectly-positioned.jpg)
![](https://medifab.com/wp-content/uploads/2024/08/feature-included.jpg)
No two wheelchair users are the same. That’s why SWITCH-IT offers a wide variety of switches and buttons to help navigate the day-to-day operation of a power wheelchair. SWITCH-IT offers a number of different individual switches which can be used as inputs for drive control systems, multiple seating functions, or any other need.
The SWITCH-IT Cool Cube offers unique driving setups to even the most challenging clients. Offering independent power wheelchair control is the goal of any drive control.
Click the tabs below to explore our SWITCH-IT Drive & Power Seating Controls.

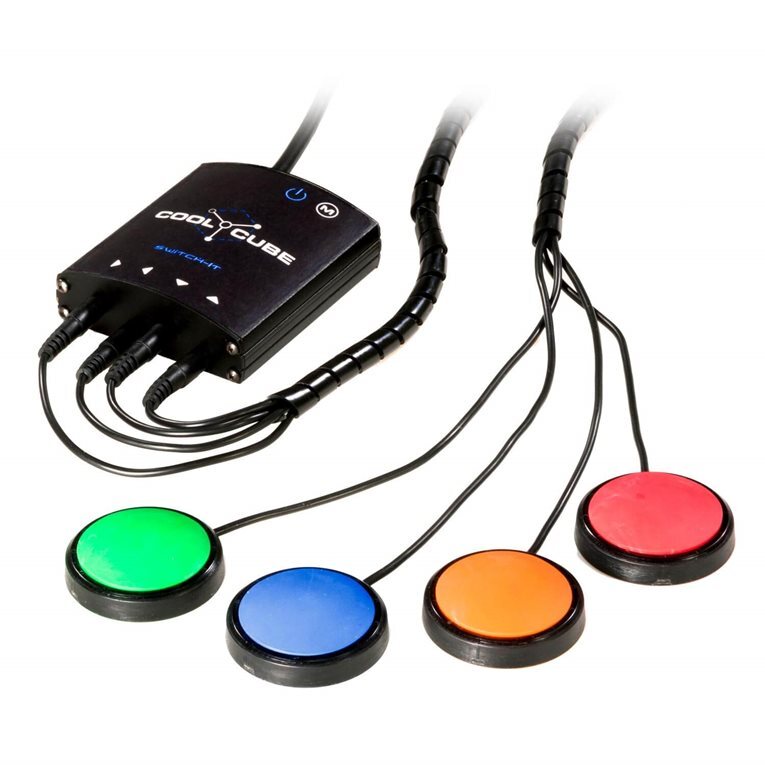

Cool Cube![](https://medifab.com/wp-content/uploads/2024/08/Cool-Cube-300x300.jpg)
Switch-It Cool Cube™ with Pro Spot™ Proportional Switches
The Cool Cube™ and the Pro Spot™ proportional switch system has been designed to meet the varying levels of ability faced by users today.
The Cool Cube central hub input ports interface with multiple types of switches and can effectively control the various desired switch functions.
In addition to full compatibility with many of the current standard proximity and mechanical switches available in the market today, the Cool Cube system includes the industry-first Pro Spot proportional switches. Only Pro Spot switches provide users with precise, proportional control of their power wheelchair’s speed and turn speed. In addition, Pro Spot proportional switches feature multiple mounting options to meet the needs of each client.
The Cool Cube™ – Pro Spot™ system truly provides a smart alternative for managing your power wheelchair control needs!
2.5″ Single Switch
The 2.5″ Single Switch is a durable and reliable single switch that requires only the slightest touch of its 2.5″ (6.4 cm) surface for activation. Features a 5 ft (152 cm) cable with a ⅛” (3.5 mm) right angle mono plug.
Colours available:
- Black
- Green
- Red
- Blue
1″ Single Switch![](https://medifab.com/wp-content/uploads/2024/08/PikoButton-300x259.jpg)
Extremely durable and sensitive ability switch. This miniature ½” x 1⅛” (13mm x 29mm) switch requires just 4.5 ounces (125 grams) of force to activate and is made of lightweight but durable materials to stand up to the constant use and abuse an ability switch must endure. Features a 5 ft (152 cm) cable with a ⅛” (3.5 mm) right angle mono plug.
Colours available:
- Black
- Green
- Red
- Blue
- Yellow
- Orange
Micro Light Switch![](https://medifab.com/wp-content/uploads/2024/08/MicroLight-300x200.jpg)
Activated by pressing down on the top of the 1.7″ x ½” (45mm x 13mm) switch with a feather-light touch – just 0.4 ounces (11.3 grams) of pressure required!
Single input mechanical button switch. Activation occurs at one end of the target area with any downward movement. Provides tactile and auditory feedback. Threaded inserts on bottom for mounting and positioning. Features a 5 ft (152 cm) cable with a ⅛” (3.5 mm) right angle mono plug.
Colours available:
- Black
Spec Switch![](https://medifab.com/wp-content/uploads/2024/08/SpecSwitch-300x195.jpg)
With a 1⅜” (3.5 cm) activation surface, the Spec Switch is small enough to be worn, but is most often used as a mounted switch. The Spec Switch includes a space-saving flush base and takes only 3.5 ounces (100 grams) of force to activate. Features a 6 ft (183 cm) cable with a ⅛” (3.5 mm) right angle mono plug.
Colours available:
- Black
- Green
- Red
- Blue
- Yellow
Mini Button![](https://medifab.com/wp-content/uploads/2024/08/Mini-Button-300x174.jpg)
The Mini Button, as its name implies, is a small and easily accessible button which features a soft-touch ½” (13mm) diameter membrane to easily access functions of any power wheelchair. Available in 1-, 2-, or 4-button styles, these versatile switches can be used for a variety of different functions. Features a 6 ft (183 cm) cable with a ⅛” (3.5 mm) mono plug for each button.
Colours available:
- 1 Button: Blue, Green, Red
- 2 & 4 Button: Standard with Red and Green buttons
Egg Switch
The Egg Switch is a durable and reliable single switch that requires only the slightest touch for activation – from anywhere on the 1.6875″ x 2¾” (42.5 mm x 70mm) surface! The Egg Switch is sealed, helping to prevent food or other spillage from penetrating the switch.
Integral threaded inserts in the base for secure mounting and positioning. Features a 4.5 ft (140 cm) cable with a ⅛” (3.5 mm) right angle mono plug.
Colours available:
- Black
- Green
- Red
- Blue
- Yellow
Wobble Switch![](https://medifab.com/wp-content/uploads/2024/08/WobbleSwitch-1-300x220.jpg)
The Wobble Switch is activated by moving its flexible arm. The flexible arm moves 360° for activation with almost any swiping motion or gross motor movement by the user. The Wobble Switch can also be activated by pushing the flexible arm down and into the base of the switch. After the flexible arm is activated, it automatically returns to its original position and is ready to be activated again. Features a 6 ft (183 cm) cable with a ⅛” (3.5 mm) mono plug.
Colours available:
- Black
Ctrl+5![](https://medifab.com/wp-content/uploads/2024/08/CTRL5-300x199.jpg)
The Ctrl+5 box allows you to easily access power seating controls right at your fingertips. Designed with five buttons or toggles, this box can be programmed to control up to 10 separate power seating functions! The Ctrl+5 is equipped with the R-NET bus connector, making setup a snap. Features a 4’8″ (150 cm) cable with R-NET male bus connector.
Comes standard with a powered USB port, making it easy to charge cell phones or other electronic devices.
Available colours:
- Black
Dimensions
Diameter Housing | 0.625″ (15.87 mm) |
Height Overall | 3.15″ (80 mm) |
Stem Diameter | 0.062″ (1.57 mm) |
Performance
Alternative Control Type | Proportional/Analog |
Activation Type | Displacement |
Activating Force | ~40g |
Feedback | Displacement/Movement of Joystick Knob |
Connector | DB9 Connector to Wheelchair Omni or Enhanced Display |
Compatibility |
|
Mode Switch Inputs |
|
Mounting Options |
|
Dimensions
Diameter Housing | 2.59″ L x 2.14″ W x 5″ H |
Height Overall | 5″ |
Stem Diameter | 0.25″ |
Travel Before Activation | 22° |
Performance
Alternative Control Type | Proportional |
Activation Type | Displacement |
Activating Force | 240g |
Feedback | Displacement/Movement of Joystick Knob |
Connector | DB9 Connector to Wheelchair Omni or Enhanced Display |
Compatibility |
|
Mode Switch Inputs |
|
Mounting Options |
|
Dimensions
Diameter Housing | 2.59″ L x 2.14″ W x 5″ H |
Height Overall | 5″ |
Stem Diameter | 0.25″ |
Travel Before Activation | 12° |
Performance
Alternative Control Type | Proportional |
Activation Type | Displacement |
Activating Force | 120g |
Feedback | Displacement/Movement of Joystick Knob |
Connector | DB9 Connector to Wheelchair Omni or Enhanced Display |
Compatibility |
|
Mode Switch Inputs |
|
Mounting Options |
|
Dimensions
Back Pad Size | 6.5″ x 4″ |
Side Pad Size | 5″ x 2″ |
Proximity Range | 10mm |
Performance
Compatibility |
|
Mode Switch Inputs |
|
Mounting Options |
|
Dimensions
Back Pad Size | 2″ x 1″ (50 x 25 mm) |
Long Lateral Pads | 4″ x 2″ (100 x 50 mm) |
Short Lateral Pads | 2″ x 1″ (50 x 25 mm) |
Performance
Alternative Control Type | Switched |
Activation Type | Proximity |
Feedback | Wheelchair Movement |
Connector | DB9 Connector to Wheelchair Omni or Enhanced Display |
Compatibility |
|
Mode Switch Inputs |
|
Mounting Options | Headrest mounting hardware included: ½” square hardware with 1″ mounting ball or Whitmyer hardware (Axys) with ¾” mounting ball. Other mounting hardware available upon request for an upcharge. |
Performance
Connector | Connect any 3.5mm jack external switch |
Compatibility | PG’s OMNI2, OMNI, and Input/Output Module |
Product Weight | 37g |
Batteries | Up to 14 hours of battery life; USB charging |
Dimensions
Cool Cube Interface | 3.5″ L x 3.12″ W x 1.06″H |
Pro Spot Switches | 2.10″ diameter x 0.50″ H |
Performance
Alternative Control Type | Proportional |
Activation Type | Pressure |
Activation Force | 150g – 300g |
Feedback |
Auditory (can be disabled)
|
Connector | DB9 Connector to Wheelchair Omni or Enhanced Display |
Compatibility |
|
Mode Switch Inputs |
|
Mounting Options |
|
Dimensions
2.5″ Single Switch | 2.5″ (6.4 cm) diameter |
1″ Single Switch | 13mm x 29mm |
Egg Switch | 1 11/16″ x 2¾” x ¾” (4.25 x 6.99 x 19.05 cm) |
Performance
Activation Type |
|
Activation Force |
|
Feedback |
|
Connector |
|
Mounting Options |
|
