Spinergy is the premium brand of wheelchair wheels in the world over with wheels that are as tough as nails and ultralight. Using patented PBO spoke technology and precision engineering Spinergy wheels combine ultimate performance and quality.
Every PBO spoke contains over 30,000 strands of polyphenylene bensobisoxazole fibers, delivering 3-times the strength of stainless steel at just half the weight.
 |
 |
 |

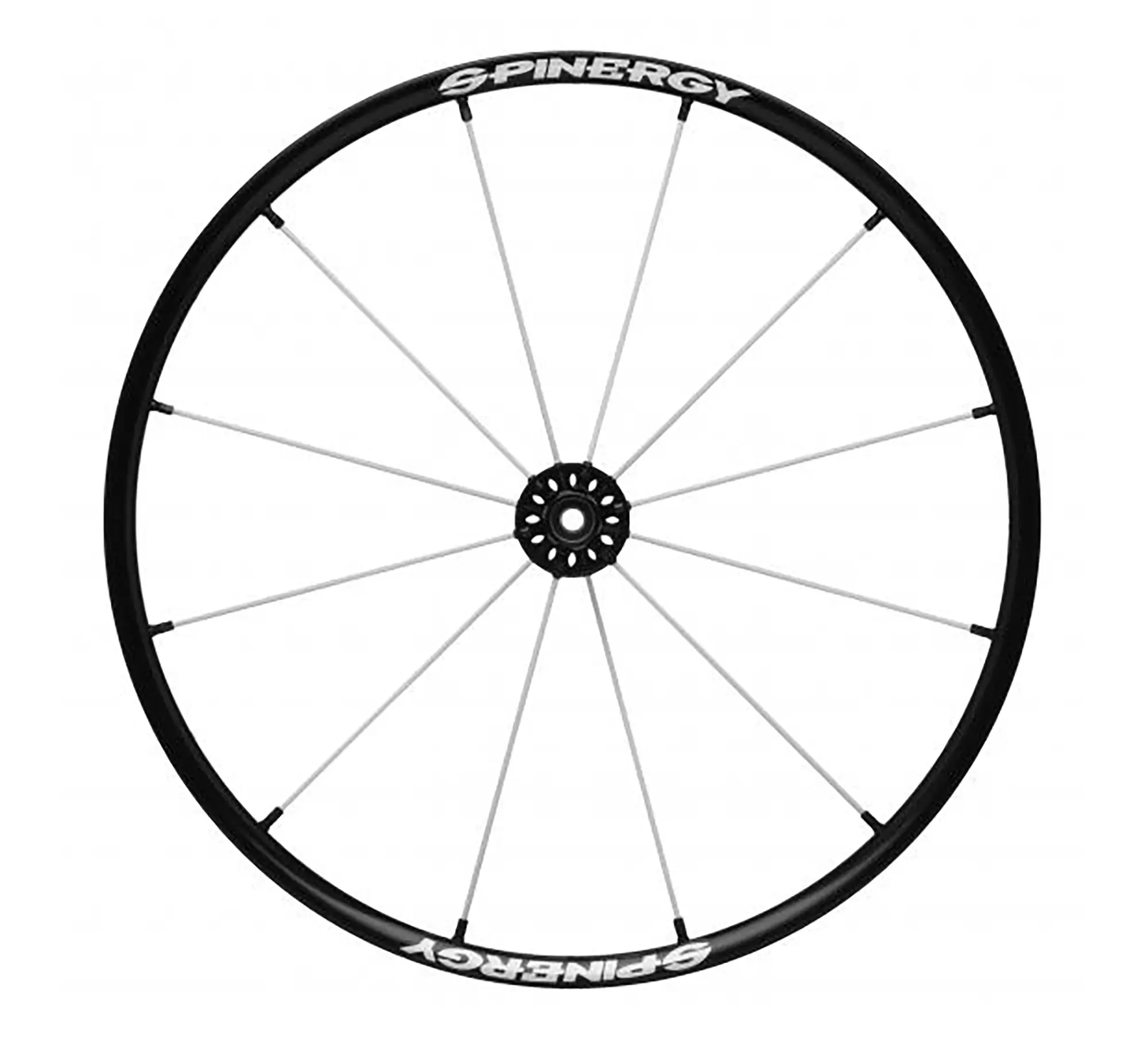

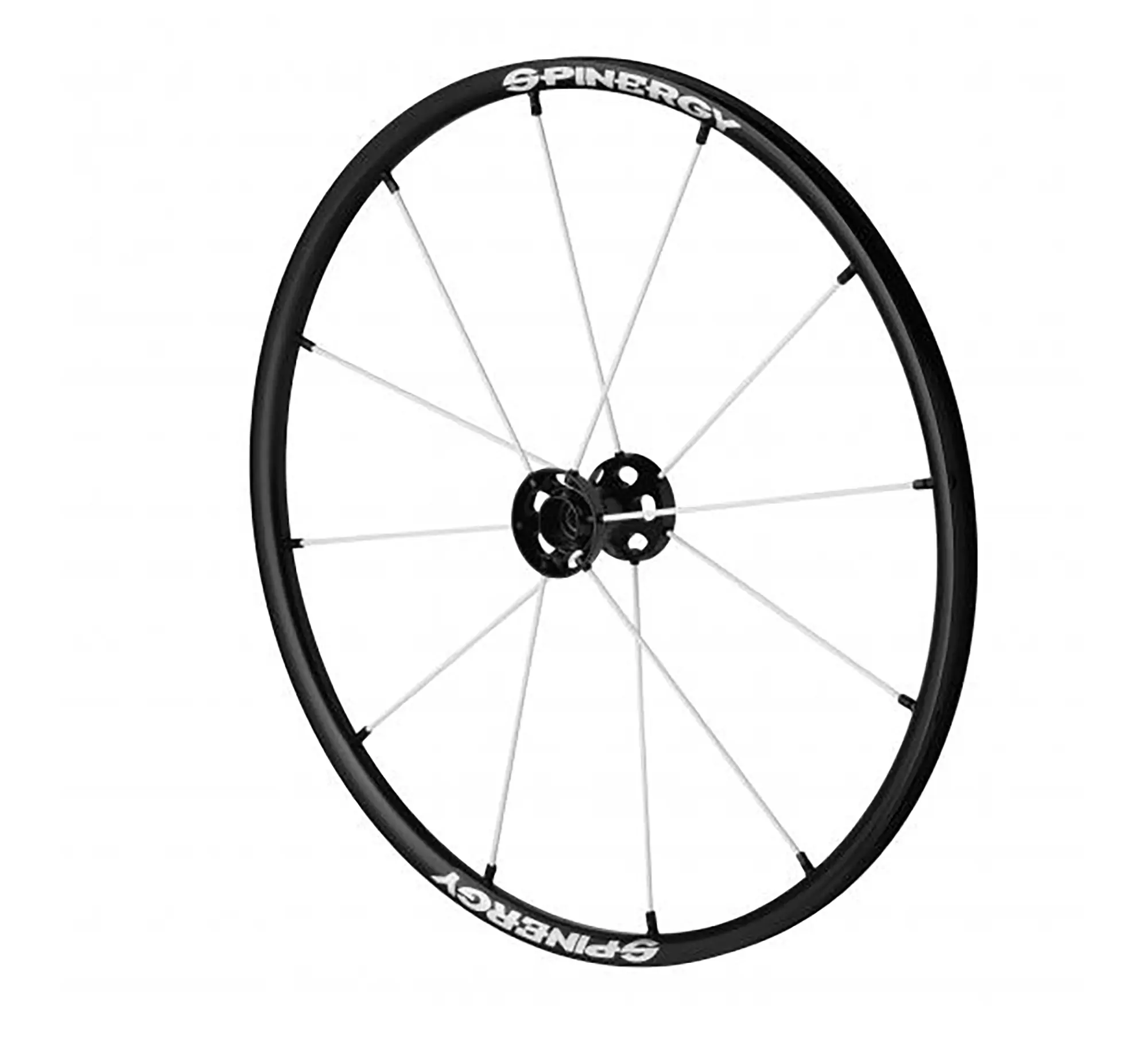

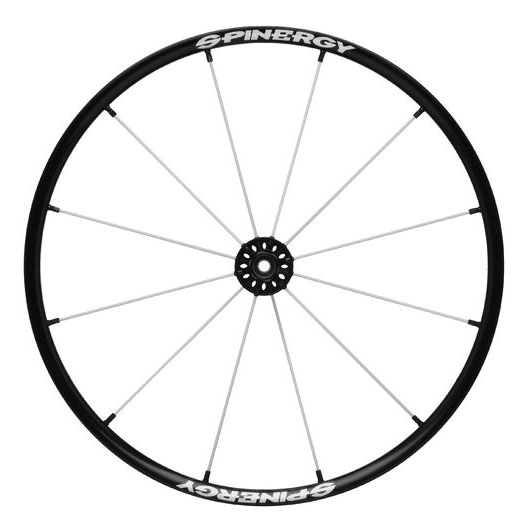

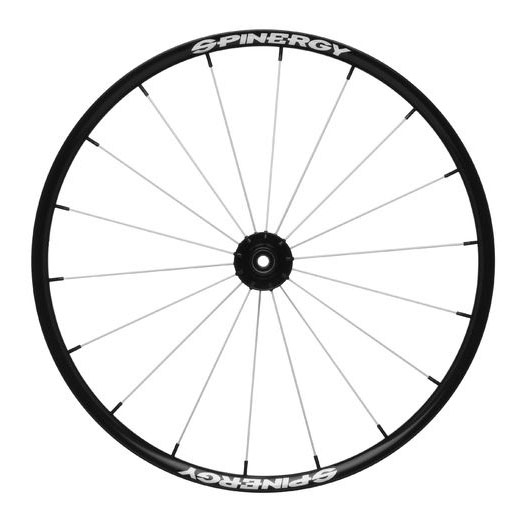

| CLX | Spox Everyday | Lite Extreme “LX” |
|---|---|---|

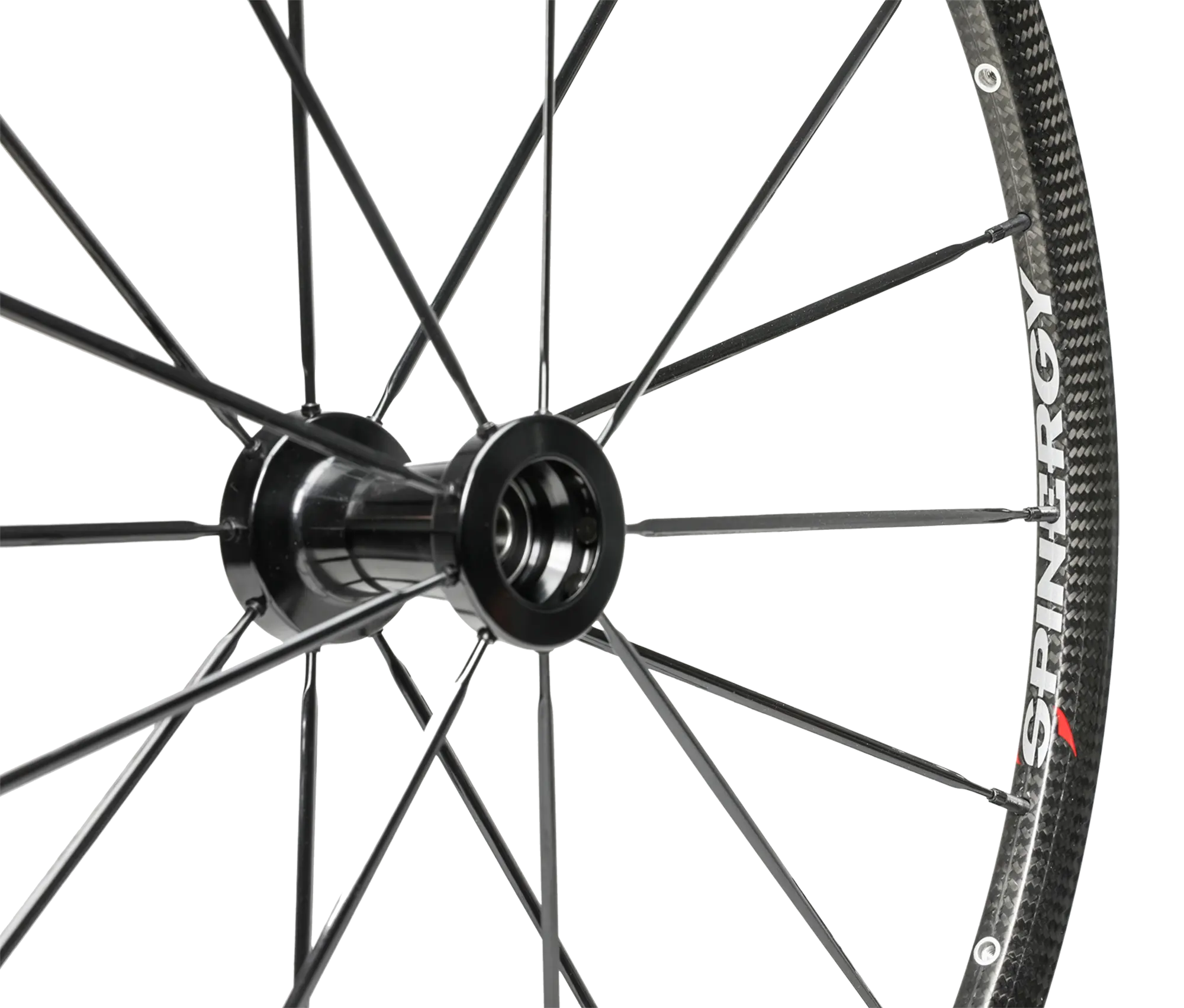

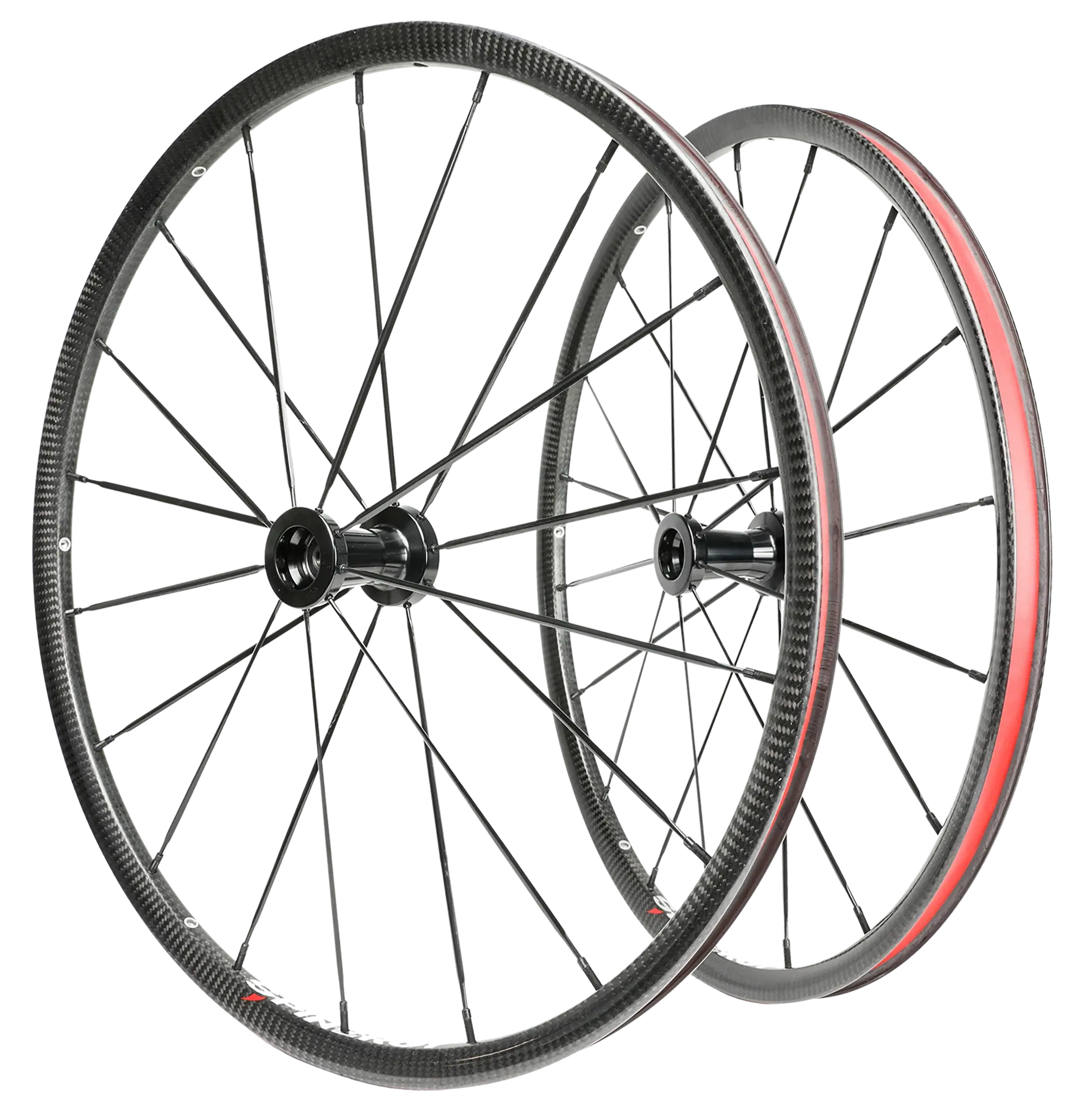

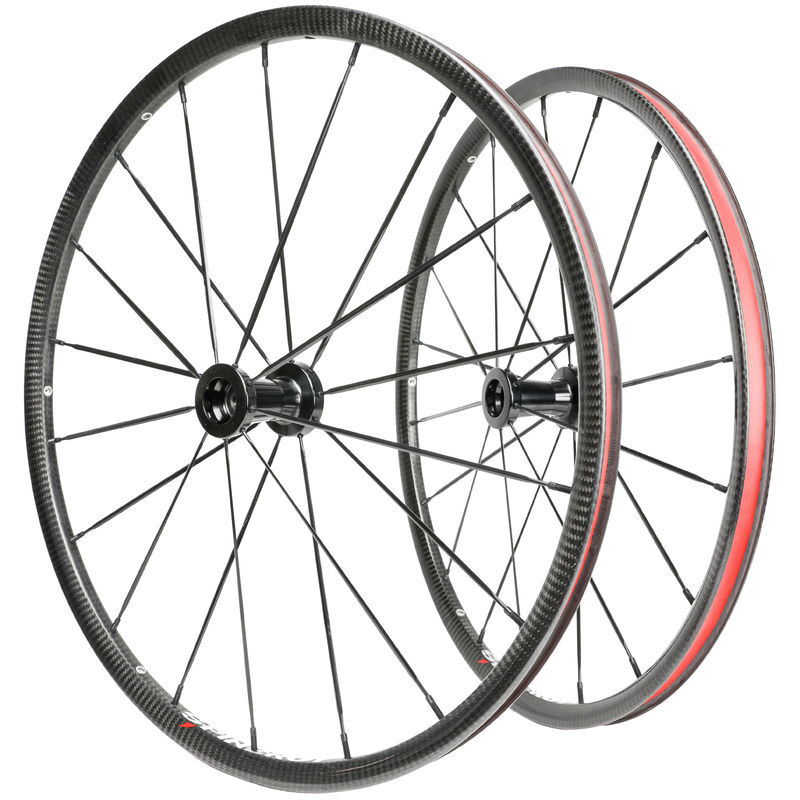

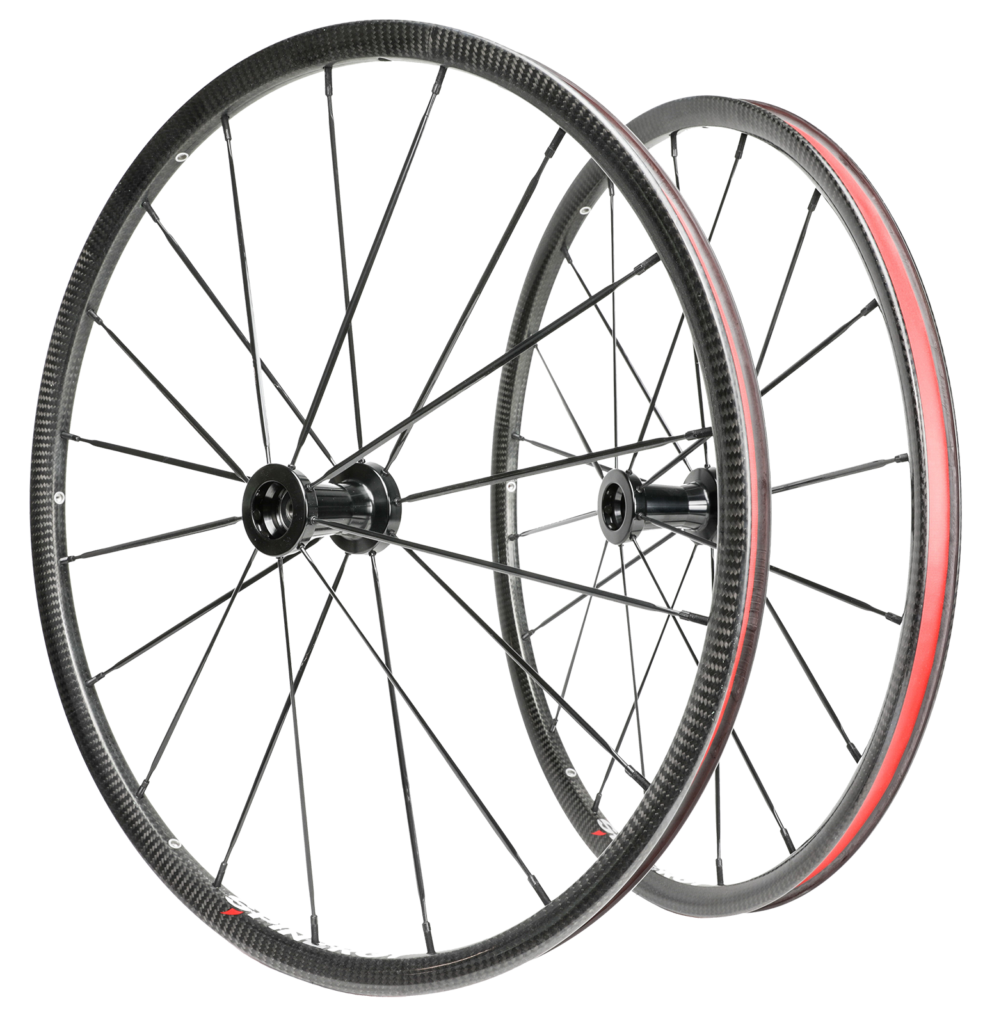

| The CLX is a super lightweight carbon performance wheelchair wheel. These are your next wheels if you want super lightweight combined with Spinergy reliability. Developed as an incredibly stylish and aesthetically pleasing wheel with a clean design of its own, never sacrificing performance and durability. The CLX features a 19mm bead width rim, a new stylishly designed hub and of course our patented PBO fiber spokes. Hands down this wheel performs. | The most trusted wheel on the market. A great wheel for your everyday needs. It’s quiet, attractive and extremely reliable. | Same reliability as the SPOX Model, but with fewer spokes and a more cutting-edge appeal. |
 |
 |
 |

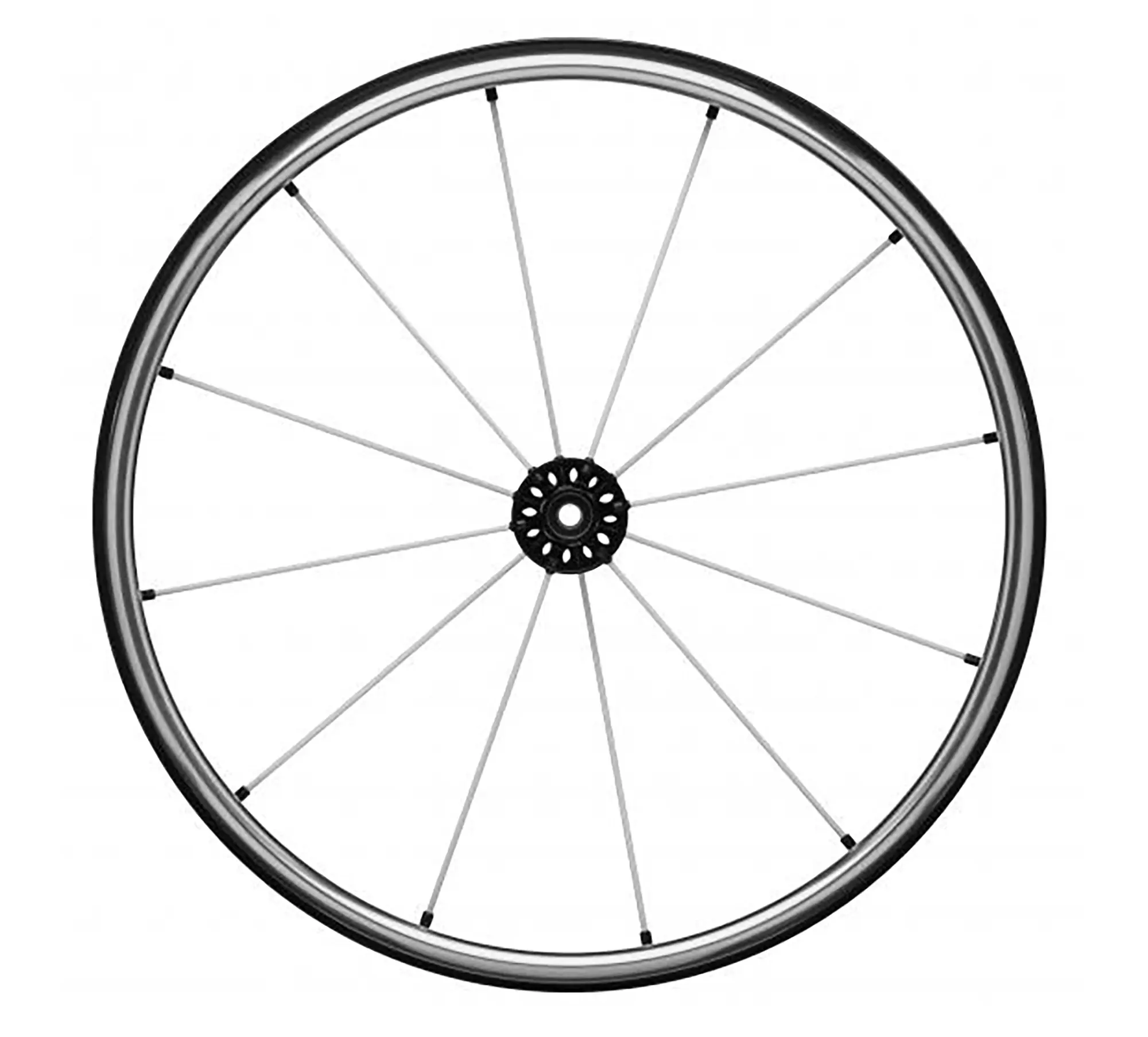

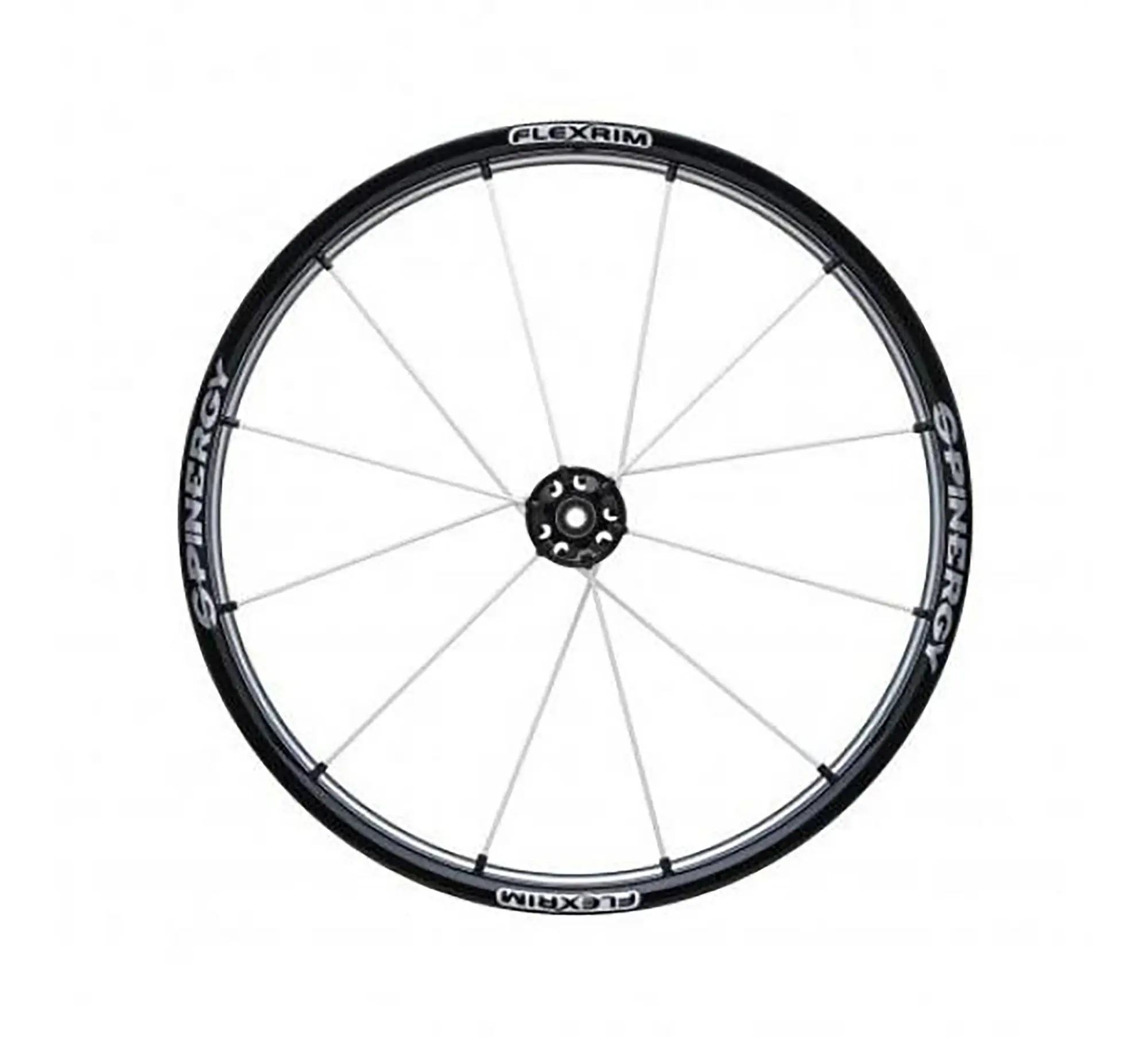

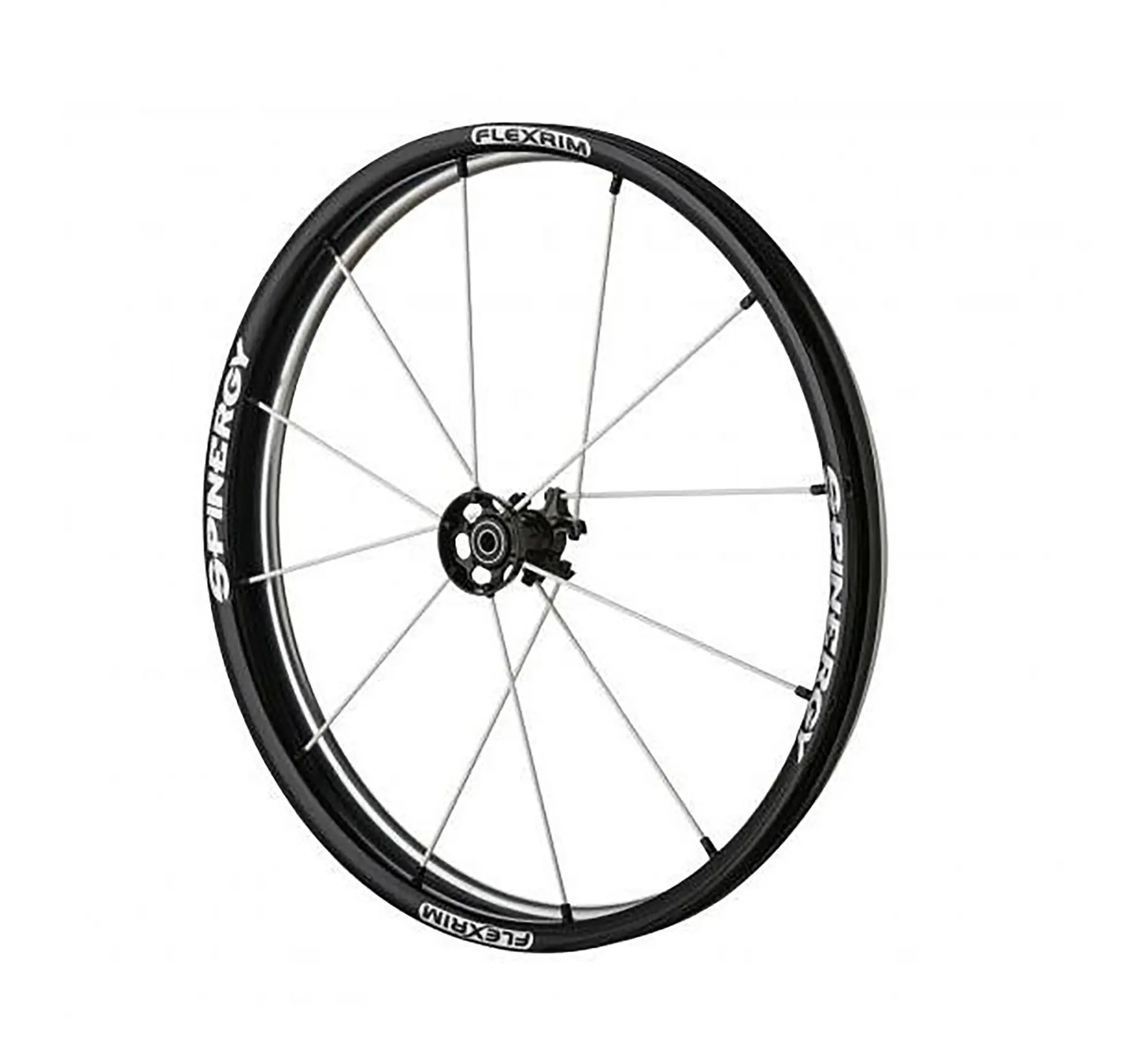

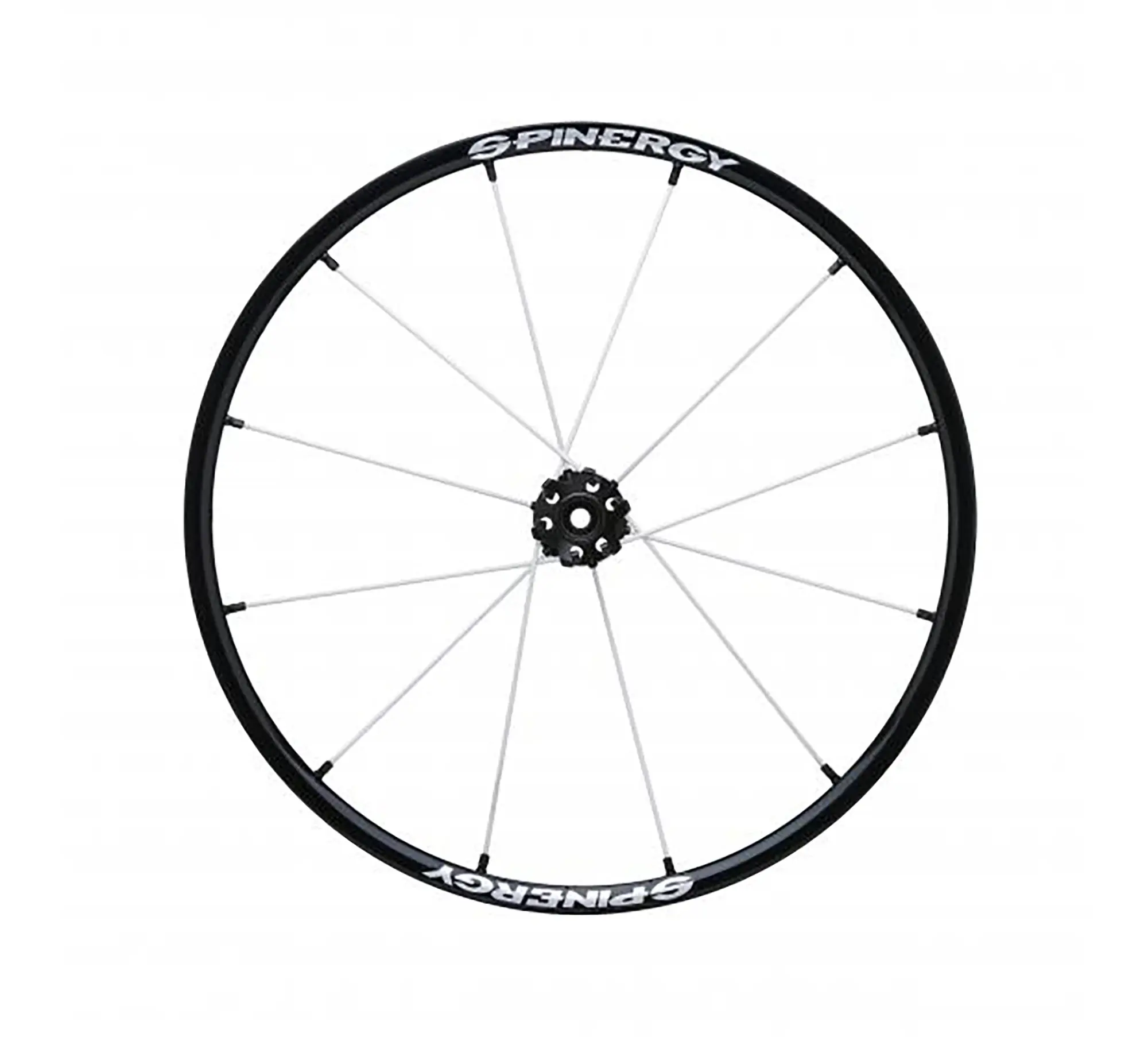

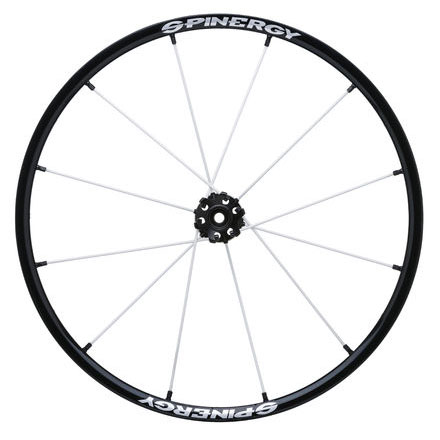

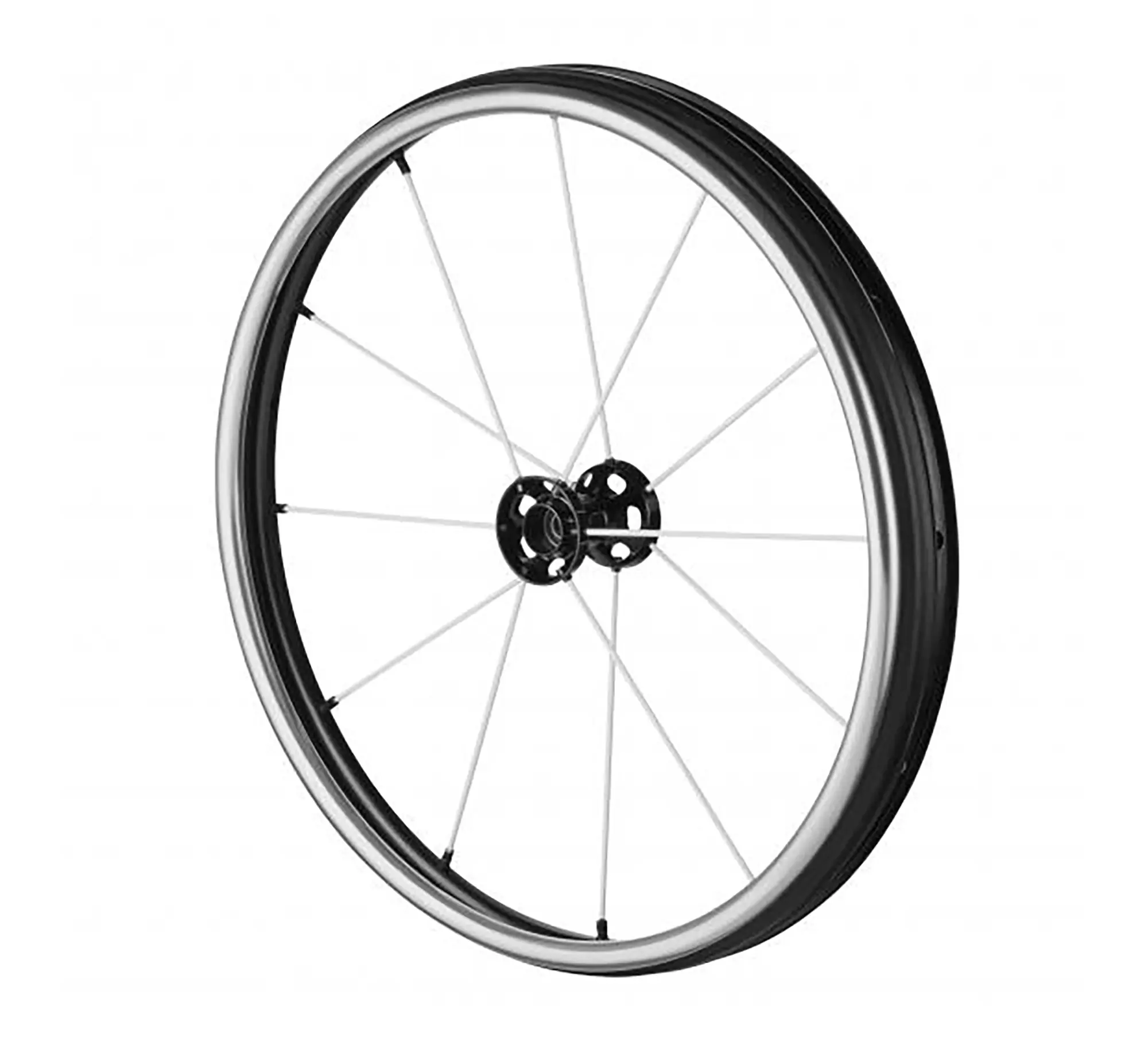

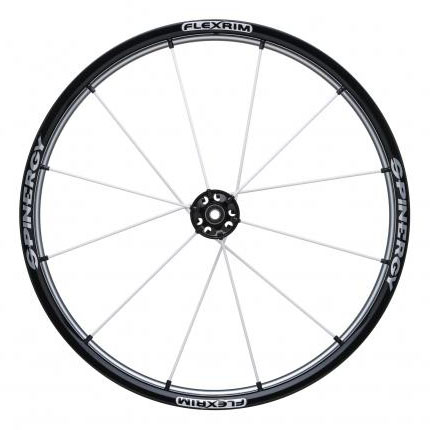

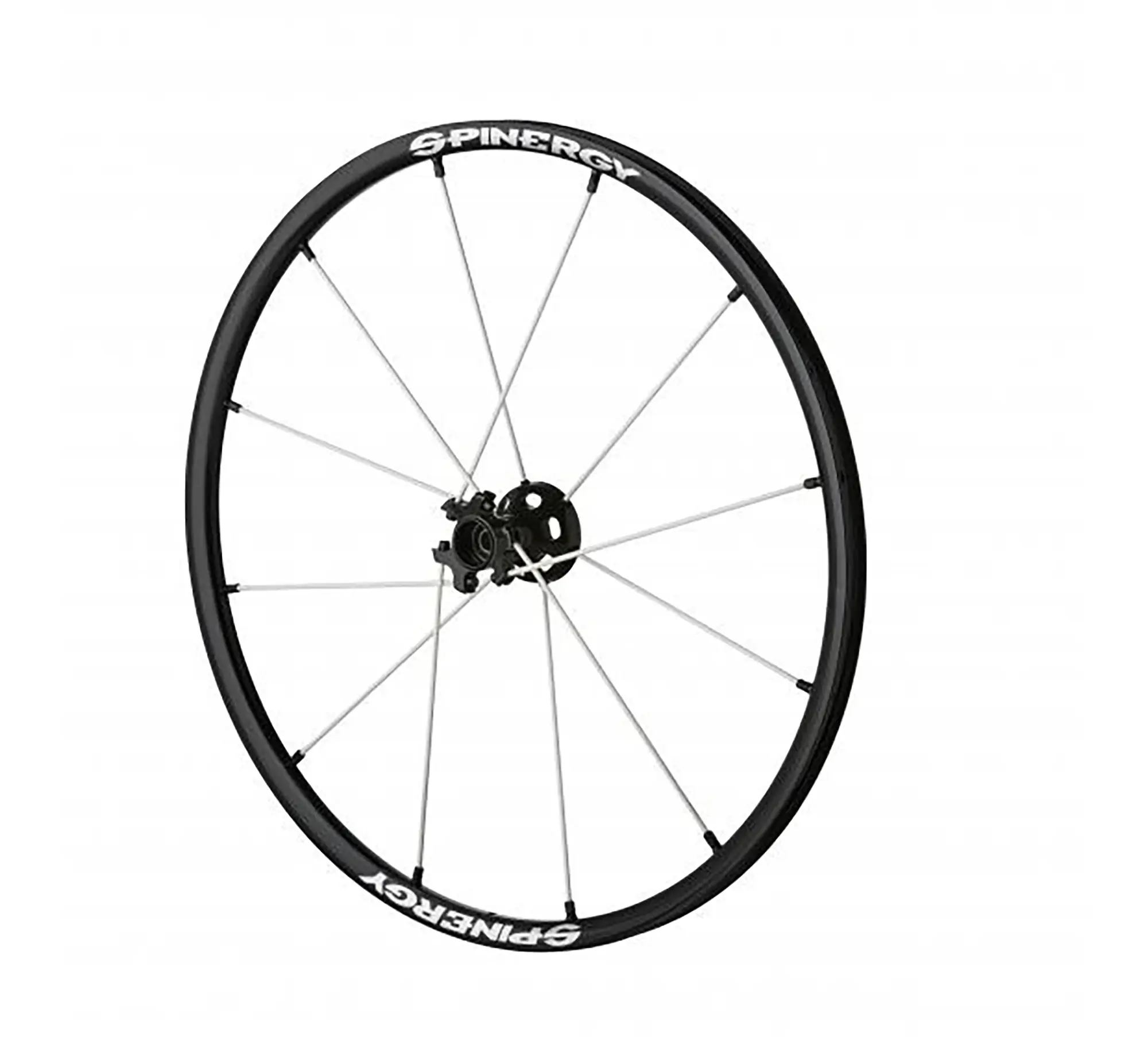

| LX Flexrim | Lite Extreme X-Laced “XLX” | X-Laced Lite Extreme Flexrim “XLX” |

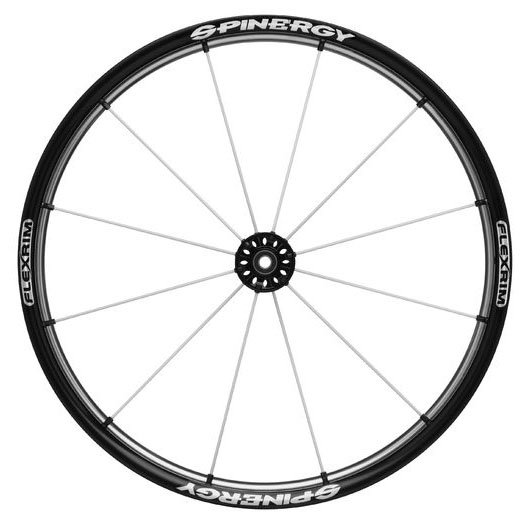

| The Spinergy FLEXRIM is a revolutionary product that is changing the way people roll. With the urethane material holding the pushrim onto the rim, it allows the user to push with out ever touching the tire. The ultra-light and extremely strong material allows the pushrim to flex in and give the wheelchair user an extra inch or so when squeezing into very tight doorways. This product is unlike anything offered by any other company and a must have for everyday users of wheelchairs. | The X-Laced wheel is designed for maximum torsional stiffness and responsiveness. Same reliability as the SPOX Model, but with fewer spokes and a more cutting-edge appeal. | The Spinergy FLEXRIM is a revolutionary product that is changing the way people roll. With the urethane material holding the pushrim onto the rim, it allows the user to push with out ever touching the tire. The ultra-light and extremely strong material allows the pushrim to flex in and give the wheelchair user an extra inch or so when squeezing into very tight doorways. This product is unlike anything offered by any other company and a must have for everyday users of wheelchairs.
|
 |
 |
|

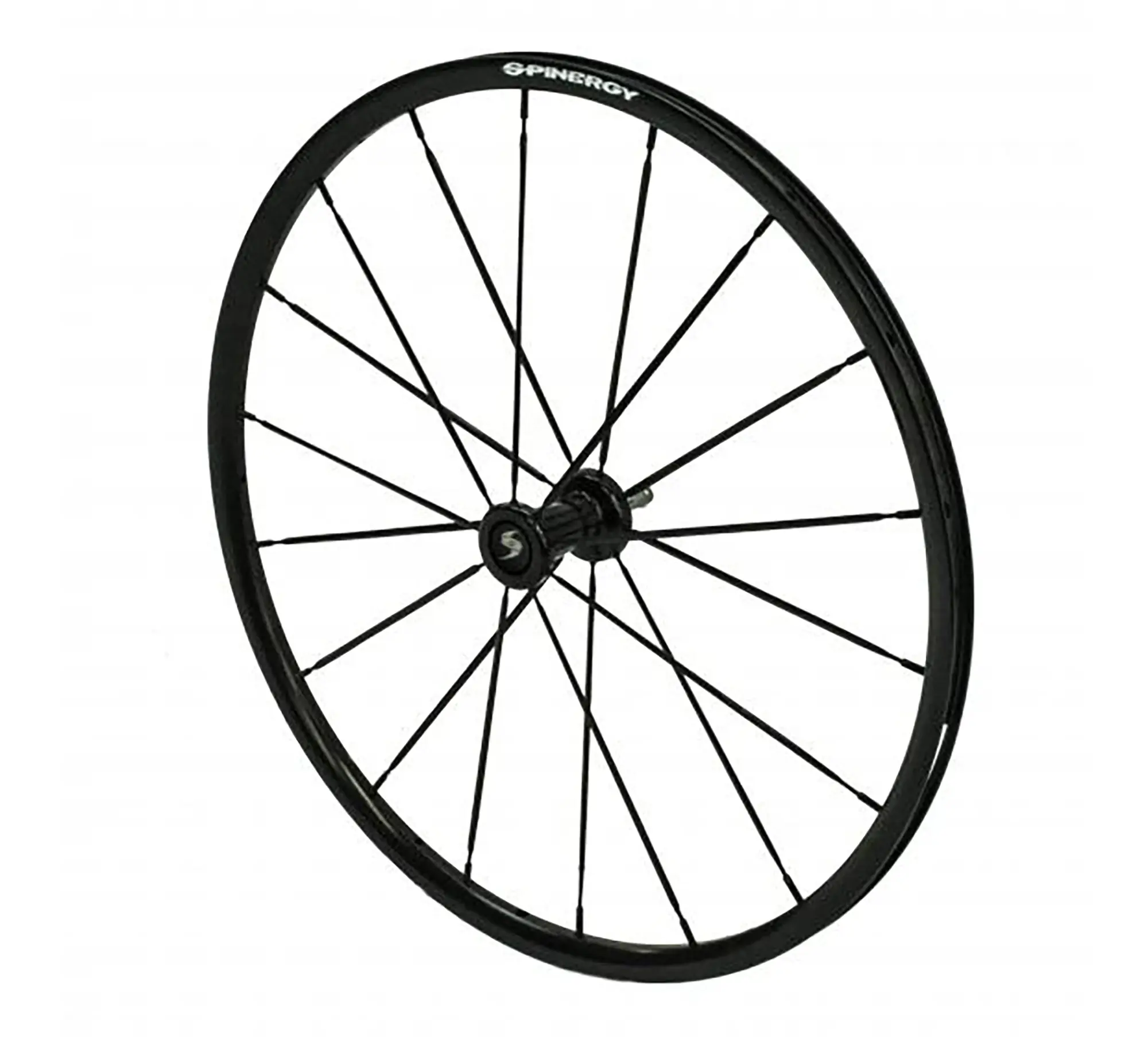

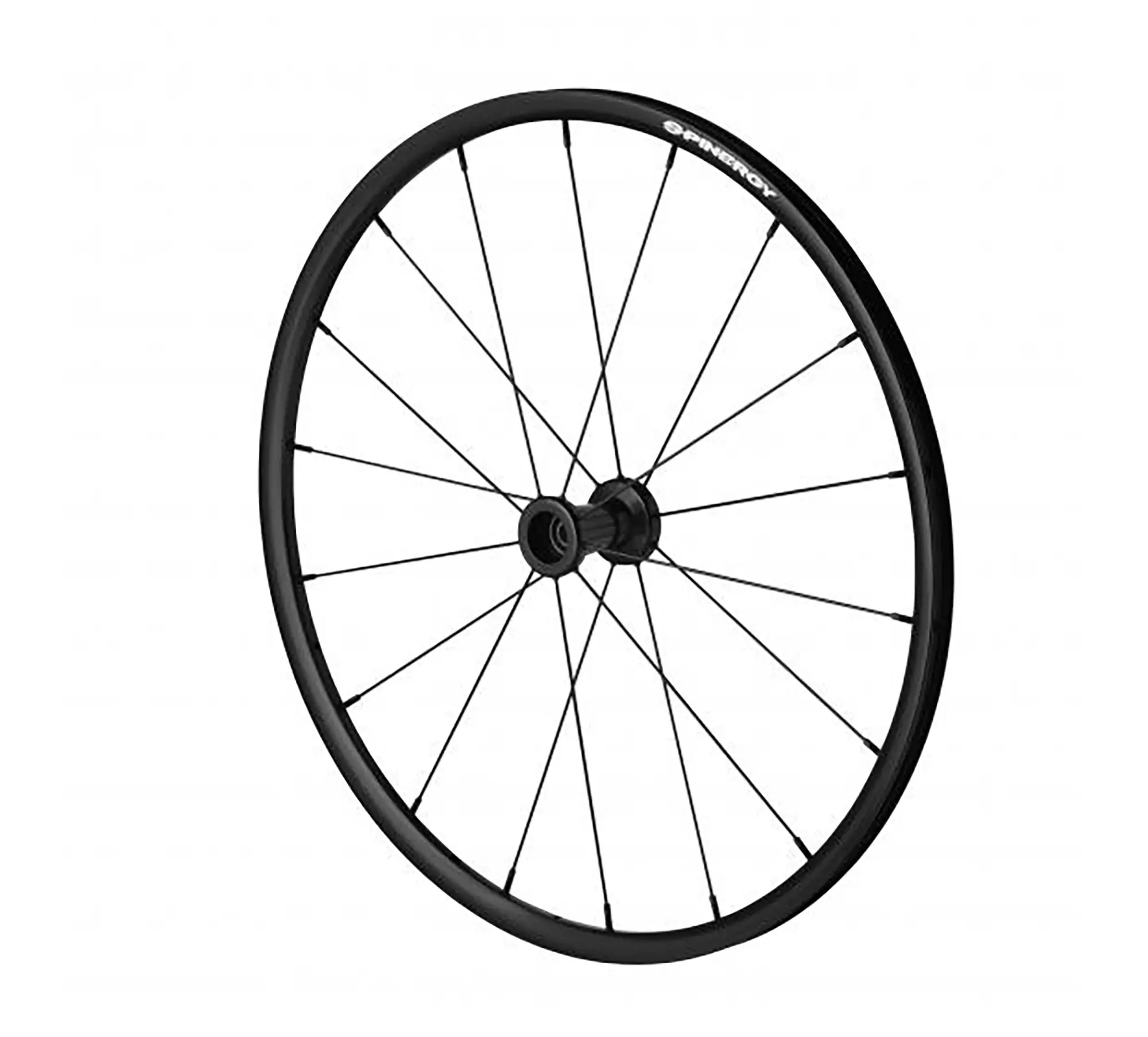

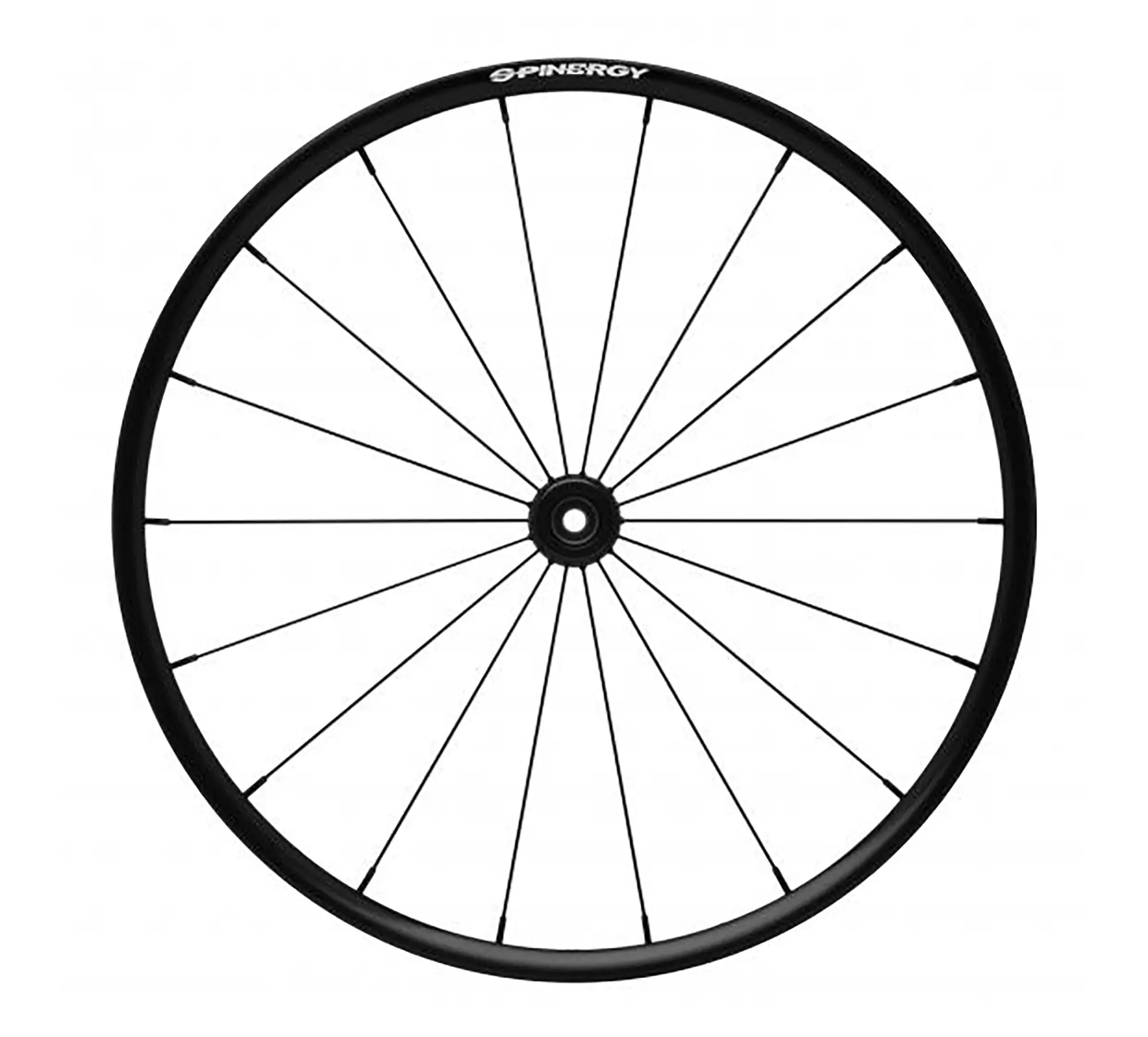

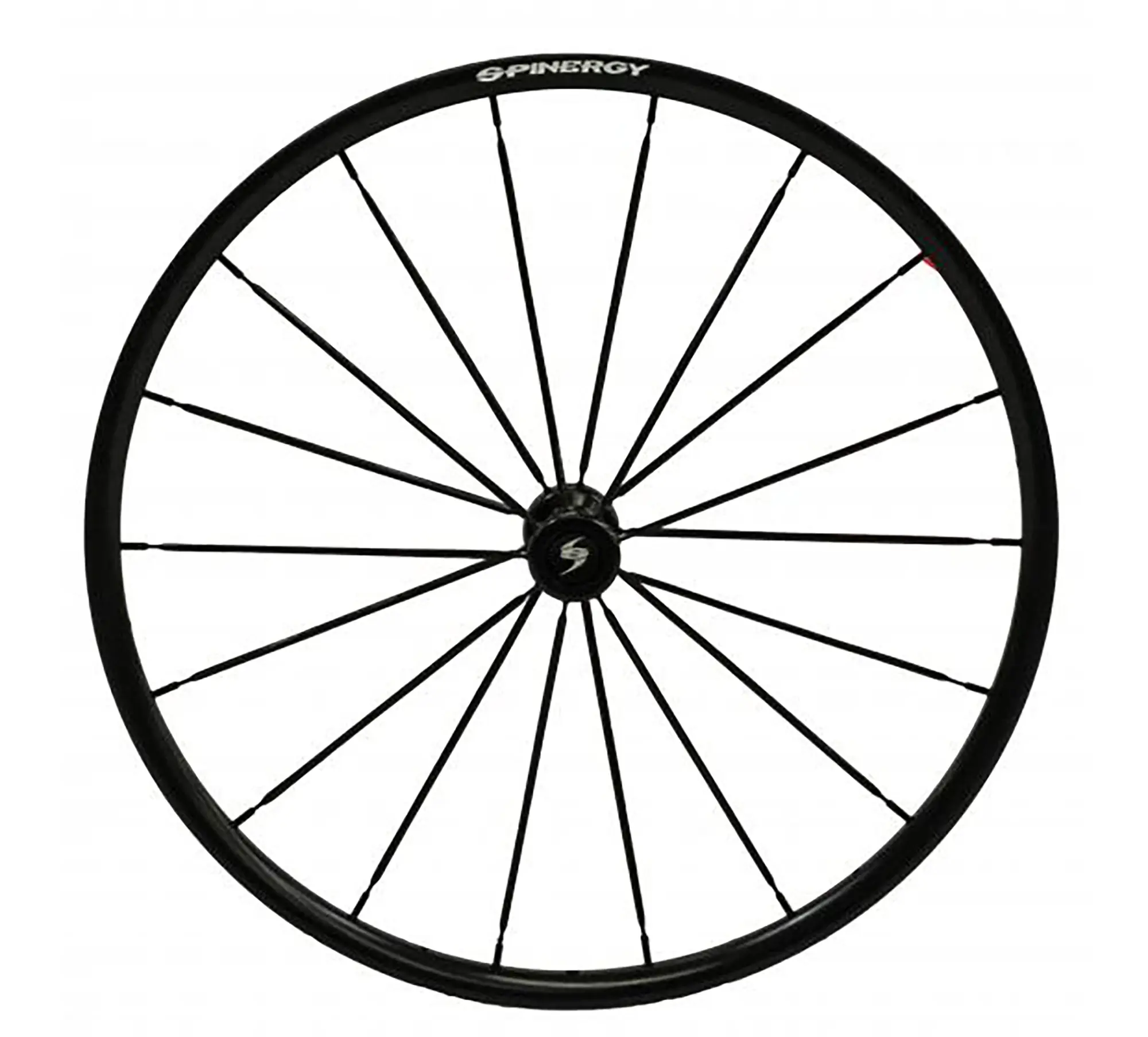

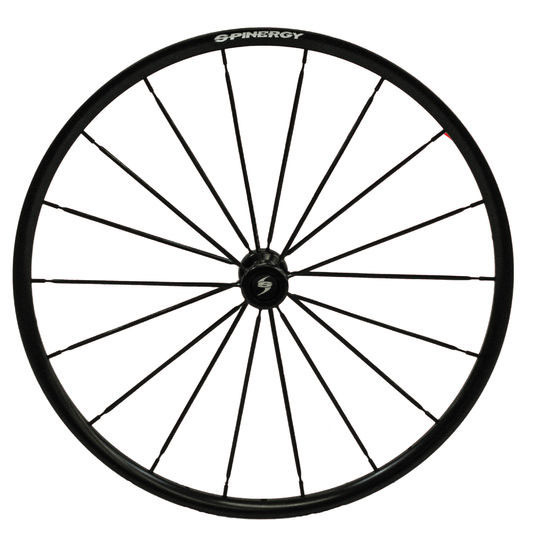

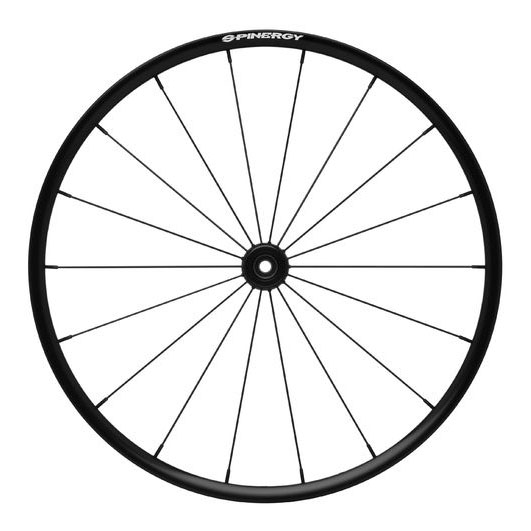

| Extra Lite Extreme Everyday “LXL” | Blade LXL | |
| The same design features as the “BLADE LXL” model, but with round spokes instead of bladed. | The lightest performance wheelchair wheel on the market. Developed as an incredibly stylish and aesthetically pleasing wheel with a clean design of its own, never sacrificing performance and durability. Each spoke is a bladed shape to add sleek and cutting edge styling similar to high-end aero bicycle wheels. |
IRC Exeracer Pro Tyre
The Exeracer Pro tire offers several benefits no other tire has. They mix silica into their tread compound to achieve a unique grip and performance that only IRC has. They don’t lose their grip over time and and stay on the rim better than any other brand. The rubber is also antibacterial!
| Sizes | 24″(540), 25″(559), 26″ (590), 700/28″(622) |
|---|---|
| Width | 1″ (25mm) |
| Colours | Red, Grey |
| Tread | Small channels (700c size is slick tread), Silica based compound |
| Puncture protection | n/a – not necessary, and would only add unwanted weight |
| Other | Anti-bacterial rubber |
IRC Exeracer Tyre
The Exeracer tire offers several benefits no other tire has. The silica-mix compound achieves a unique grip and performance that only IRC has. They don’t lose their grip over time and and stay on the rim better than any other brand. The rubber is also antibacterial!
| Sizes | 24″(540), 25″(559) |
|---|---|
| Width | 1″ (25mm) |
| Colours | Black (34″only), Grey (25″only) |
| Tread | Semi deep grooves, silica based compund, non-marking |
| Puncture protection | Moderate due to tread thickness |
| Other | Anti-bacterial rubber, marks floors and walls less than any other brand |
TC Stainless Steel Handrim
Introducing Spinergy’s new Tactical Control Pushrim made from a revolutionary new lightweight stainless steel. Offered in sizes 22″ (501), 24” (540), 25” (559), & 26” (590).
| Look | Unique clean appearance |
|---|---|
| Wear | Stays looking great |
| Feel | Non-sticky, cool even in hot sun, non-burning on down slope/low friction |
| Grip | Embossed texture |
| Hygiene | Easy clean surface |
| Grip marking | Does not transfer to skin |
| Quality | Spinergy design + testing (2 years field test) |
Aluminum Handrims – Hard Anodized Grey
Hard anodized aluminum is going to resist dents and scratches better than any treatment, making them ideal for contact sports. Spinergy’s hard anodized handrims are inspected for quality and backed by our commitment to quality.
| Sizes | 24″(540) 6-tab, 25″(559) 6 tab, 26″ (590) 6-tab, 700c (622) 12-tab – sometimes known as 27″ or 28″ |
|---|---|
| Diameter | 3/4″ |
| Finish | Hard anodized, grey |
| Mounting | 6 Q-tab (24-26″)/ 12 Q-tab (700c), 2 mount holes in each tab |
Aluminum Handrims – Silver
Precision-made handrims for the best fit to your Spinergy wheels. No need to bend tabs with these handrims! Helpful tip: Pair these up with our rivnut system to make it super easy to install and replace these handrims without having to take your tires off!
| Sizes | 20″ (451), 22″ (501), 24″ (540), 25″ (559), 26″ (590) |
|---|---|
| Diameter | 3/4″ |
| Finish | Brushed aluminum – clear anodized |
| Mounting | 6 Q-tab, 2 holes, protective sleeve |
Kenda Nevegal Tyre
The Kenda Nevegal tire mounted on our LX wheel model makes an excellent outdoor wheel set-up. Select the right tire and wheel size and you can dial in a set of these to be interchangeable with your normal street wheels! The Nevegal’s rugged tread pattern make it the ultimate tire for all conditions – loose, hard pack, and wet surfaces. The knobs are specially designed to penetrate and hold on rugged surfaces, while keeping rolling resistance to a minimum. That is perfect for anyone wanting to take on the challenge of different terrains without overtaxing their shoulders! Taking it further, the 22″ and 24″ sizes contain a special additive in the compound to make it the least marking black knobby tire available.
| Sizes | 22″ (501), 24″ (540), 25″ (559) |
|---|---|
| Width | 22″ x 1.95″, 24″x 2.1″, 25″ x 1.95″ |
| Colour | Black |
| Tread | Knobby, non-marking compound in 22″ & 24″ |
| Puncture Protection | “Iron Cap” |
Kenda Koncept “Iron Cap” Tyre
Kenda “Iron Cap” tires are primarily used as a sport tire, but can be used for standard daily use as well. The Iron Cap puncture resistance technology and the universally designed tread makes them the jack of all trades.
| Sizes | 24″(540), 25″(559), 26″(590) |
|---|---|
| Width | 1″ |
| Colour | Red or Blue |
| Maximum Pressure | 110 psi |
| Tread | Smooth/grooved, non-marking |
| Puncture Protection | Ïron Cap” |
| Other | “Koncept”version comes in 24” and 25″size. “Kotender” version comes in 26″ size. |
Natural Fit – LT Oval
The Natural-Fit LT uses a reduced weight, smaller profile oval. The LT is designed for those looking for a reduction in weight or a smaller gripping surface (for those with smaller hands). The LT is more than 17% lighter than the original Natural-Fit.
Available Sizes: 22″, 24″, 25″, 26″
Natural Fit – Original Oval
The Natural-Fit has a contoured thumb piece and an oval component that together create an optimal ergonomic grip. Size and coating options allow for better customisation.
Available Sizes: 22″, 24″, 25″, 26″
Natural Fit – Q-Grip
The Q-Grip is a fully-coated handrim that sets itself apart due to its unique coating surface and superior durability. The Q-Grip™ redefines what a coated handrim can be. The Q-Grip uses an exclusive anti-slip, latex-free, neoprene coating that makes a difference on every push.
Available Sizes: 22″, 24″, 25″, 26″
Natural Fit – Standard Thumb Guard
Both the Natural-Fit and the Natural-Fit LT come with Standard Grip or Super Grip coating options for the thumb piece. The Standard Grip uses a powder coat on the thumb piece that provides a low friction surface to go along with the smooth braking surface on the oval. For those users interested in the ergonomic features of the Natural-Fit but who do not like high friction surfaces, then the standard grip may be your best choice. For users who want both the ergonomic benefits of the Natural-Fit along with a grippier propulsion surface, the Super Grip will be the better choice.
Available Sizes: 22″, 24″, 25″, 26″
Natural Fit – Super Thumb Guard
Both the Natural-Fit and the Natural-Fit LT come with Standard Grip or Super Grip coating options for the thumb piece. The Super Grip uses an advanced copolymer coating that provides a higher friction surface on the thumb piece (it is similar to a vinyl coating). This provides a grippier propulsion surface for your thumb. For those users interested in the ergonomic features of the Natural-Fit but who do not like high friction surfaces, then the standard grip may be your best choice. For users who want both the ergonomic benefits of the Natural-Fit along with a grippier propulsion surface, the Super Grip will be the better choice.
Available Sizes: 22″, 24″, 25″, 26″
Natural Fit – Surge
The Surge is an all-in-one, single component handrim with a Gription Strip, a rubber strip that goes all the way around the top surface of the oval for increased friction while leaving the side surface smooth for braking.
Available Sizes: 22″, 24″, 25″, 26″
Natural Fit – Surge LT
The Surge is a lightweight, all-in-one oval handrim with a Gription™ Strip that improves traction on every push. The Surge does not add any width to your chair and can be mounted in the close-in or wide position.
Available Sizes 22″, 24″, 25″, 26″
Pr1mo Sentinel HD Solid Tyre
Pr1mo has long been the go-to brand for dependable and price-conscious street tires. We’re excited to offer their new Sentinel HD (High Density) solid model. The fit is great, the looks rock, and if you’re gonna go solid look no further!
- Pr1mo sentinel solid tires are not compatible with the following wheel models: Blade LXL or LXL wheels
| Sizes | 22″, 24″(540), 25″(559), 26″(590) |
|---|---|
| Width | 1″ |
| Colour | Black |
| Tread | Smooth/grooved |
| Puncture Protection | Solid tire (no tube required) |
Schwalbe MPE Tyre
Schwable quickly entered the wheelchair scene in 2004 with their innovative Marathon Plus Evolution tire. Dreamt up by wheelchair athletes, it remains the benchmark in puncture protection and overall reliability. The Marathon Plus Evolution model is great for the active user that requires peace of mind and performance. Schwalbe also took on the challenge of producing this model with mostly natural rubber – doing one for the environment.
| Sizes | 24″ (540), 25″(559), 26″(590) |
|---|---|
| Width | 1″(25mm) |
| Colour | Black |
| Maximum Pressures | 145 psi |
| Tread | Semi deep grooves, non-marking “Black’n Roll” |
| Puncture Protection | Maximum due to “Smart Guard” |
| Other | Anti-aging sidewall compound – sidewalls won’t dry and crack prematurely or from under inflation |
Schwalbe RightRun Tyre
Schwalbe’s entry level tire with some nice bonus features. The RightRun’s attractive 2 color compound and 2 grip side walls set them apart from other “standard” tires right away. Schwalbe’s “KevlarGuard” helps prevent flats and the “Black’n Roll” means you’re not scuffing up your friend’s new hardwood floor. They are also rated up to 145 psi so their rollability will make your shoulders and therapist happy.
| Sizes | 20″ (451), 22″ (501), 24″ (540), 25″ (599), 26″ (590) |
|---|---|
| Width | 1″(25mm) |
| Colour | Black/Grey, Blue/Grey, Red/Grey |
| Maximum Pressure | 145 psi |
| Tread | Slick with shallow grooves |
| Puncture Protection | Minimum to Moderate Level 3 K-Guard (extra layer of natural rubber and Kevlar) |
Steel Axle – 1/2″
Our Spinergy axles are designed for performance and style. The stylish push button proudly features a laser etched Spinergy “S” logo. The business end of the axle is 100% stainless steel and CAD designed to exacting tolerances. These axles look great and take functionality to the next level.
Our ½” steel axles instill a sense quality and reliable performance that you don’t get with other axles. They are 100% stainless steel so you don’t have to worry about rust – not all axles can say that! The nylock nut is adjustable so you can dial in the grip length for zero slop.
| Grip Length | 3.75″, 4.00″, 4.25″, 4.50″, 4.75″ |
|---|---|
| Diameter | 1/2″ |
| Length Adjustable | Yes, threaded Nylock nut |
| Push Button | Large, black with laswer etched Spinergy “S” |
| Installation | Quick Release |
| Shaft Material | Steel |
| How to measure your axles |  |
Steel Axle – 5/8″
Our 5/8″ thick axles give you the peace of mind you need to stay focused on the game. These are primarily used in wheelchair basketball and quad rugby, but can benefit any player that is concerned about bending axles. Our line of “R10″ wheels are built with the complementary 5/8″ bearings.
These 5/8″ axles are tough! If you bend 1/2″ axles and have a chair or plan on getting a wheelchair that can accommodate 5/8” axles, these are your secret weapon. Hold one in your hand, and you’ll immediately know these are the solution!
| Grip Length | 4.25″, 4.75″ |
|---|---|
| Diameter | 5/8″ |
| Length Adjustable | Yes, threaded Nylock nut |
| Push Button | Small |
| Installation | Quick Release, 4 release balls |
| Shaft Material | Steel |
| How to measure your axles | |
Titanium Axle – 1/2″
Our Spinergy axles are designed for performance and style. The stylish push button proudly features a laser etched Spinergy “S” logo. Our Titanium axles feature a titanium shaft which make them noticeably lighter than steel axles. These axles look great, are super lightweight and perform superbly.
Our ½” titanium axles scream quality! They are super lightweight, look great and offer excellent performance and reliability. The shaft is titanium, while the inner spindle/springs/balls are stainless steel for superb resistance against rust. The nylock nut is adjustable so you can dial in the grip length for zero slop.
| Grip Lengths | 3.75″, 4.00″, 4.25″, 4.50″, 4.75″ |
|---|---|
| Diameter | 1/2″ |
| Length Adjustable | Yes, threaded Nylock nut |
| Push Button | Large, black with laswer etched Spinergy “S” |
| Installation | Quick-Release |
| Shaft Material | Titanium |
| How to measure your axles | |
XSLX Hub Cap
Our new XSLX Hub Cap easily snaps over the hub in order to provide a smooth and round outer surface. Generally used in contact sports like basketball, but can be used in any sport or application. Only compatible with the XSLX model.
| Size | One size fits all |
|---|---|
| Diameter | 3.75″ (96mm) |
| Colour | Black (nylon) |
| Installation | Snap on (see demonstration video link below) |
| Compatibility | All XSLX wheels (X-Laced SLX) using 1/2″or 5/8″axles |
| XSLX | 1/2″ axles |
| XSLX R10 | 5/8″axles |
View Installation Video
1579-94-A700019
 |
 |
 |

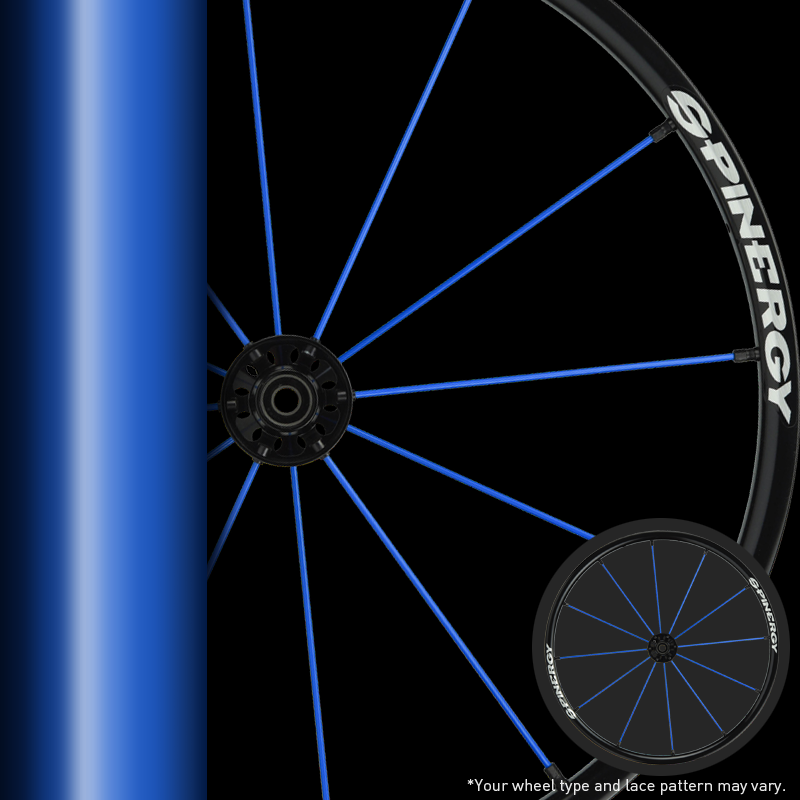

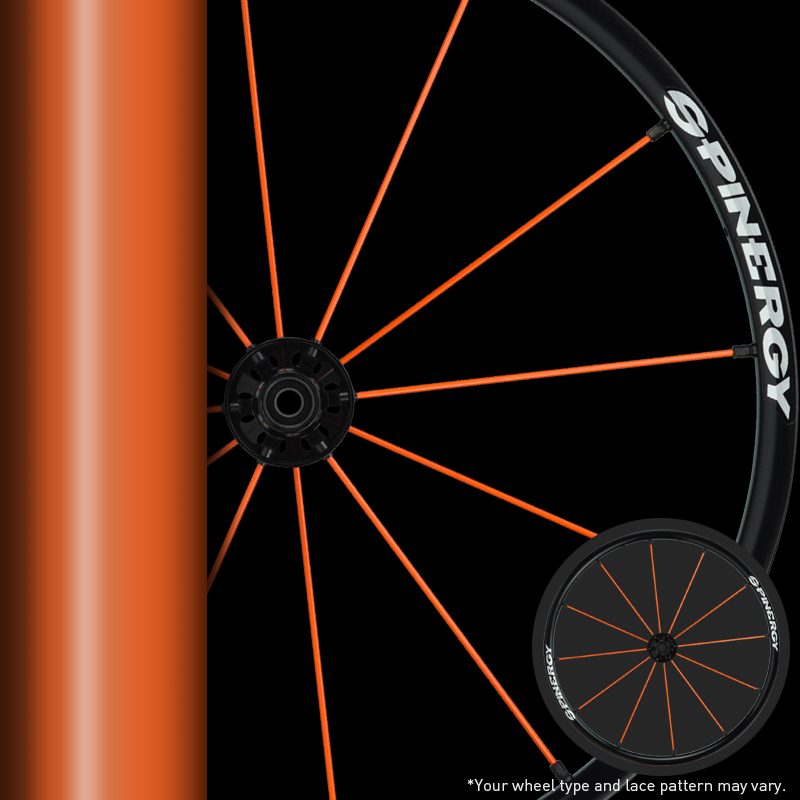

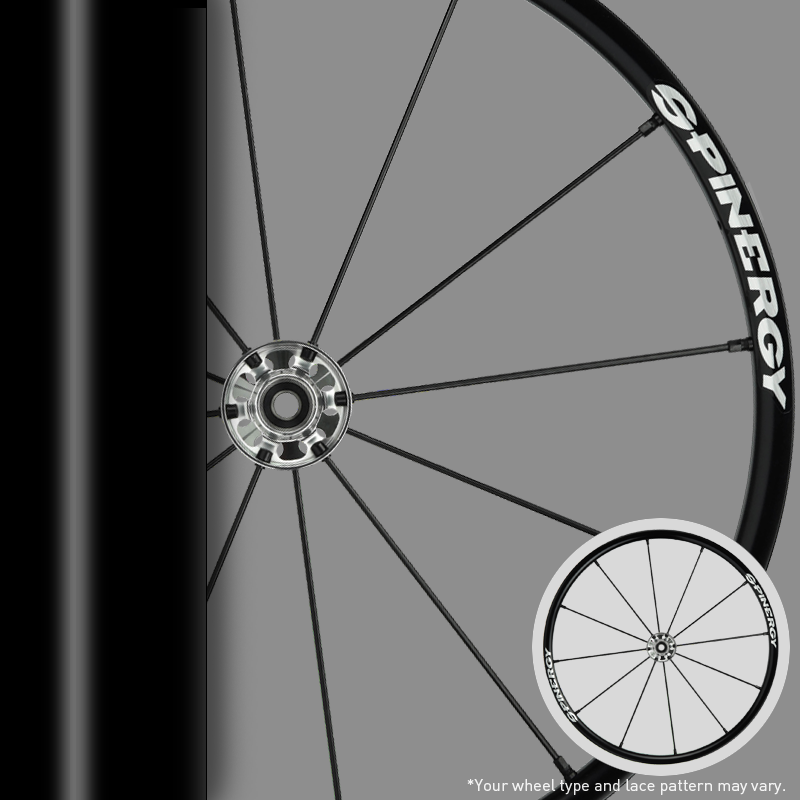

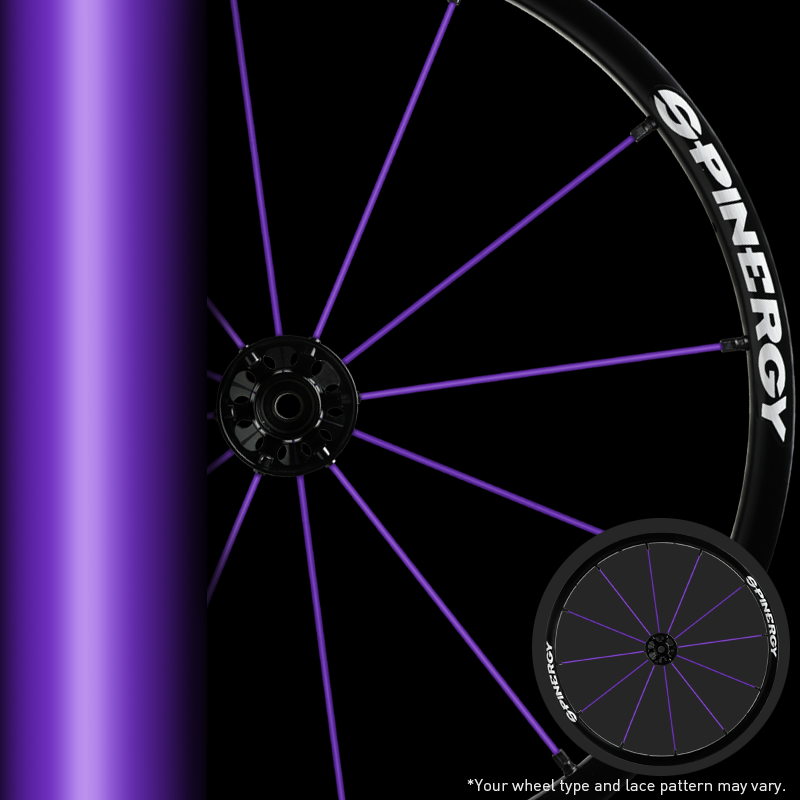

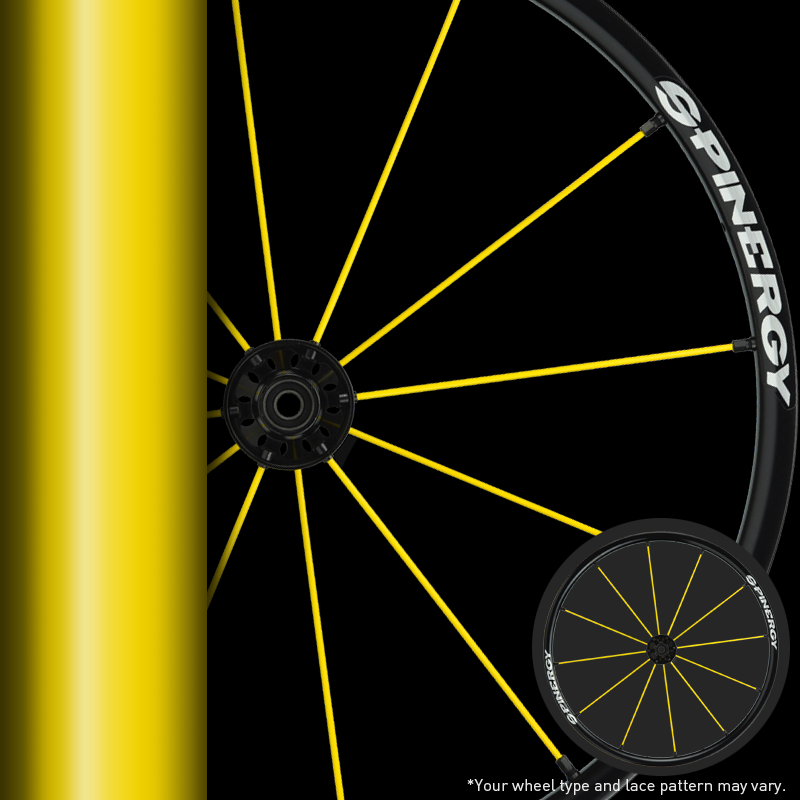

| Black (111) | Blue (122) | Green (177) |
|---|---|---|
 |
 |
 |
| Orange (166) | Pink (188) | Red (133) |
 |
 |
 |
| White (155) | Yellow (144) | Purple (211) |
Custom colour options are available
