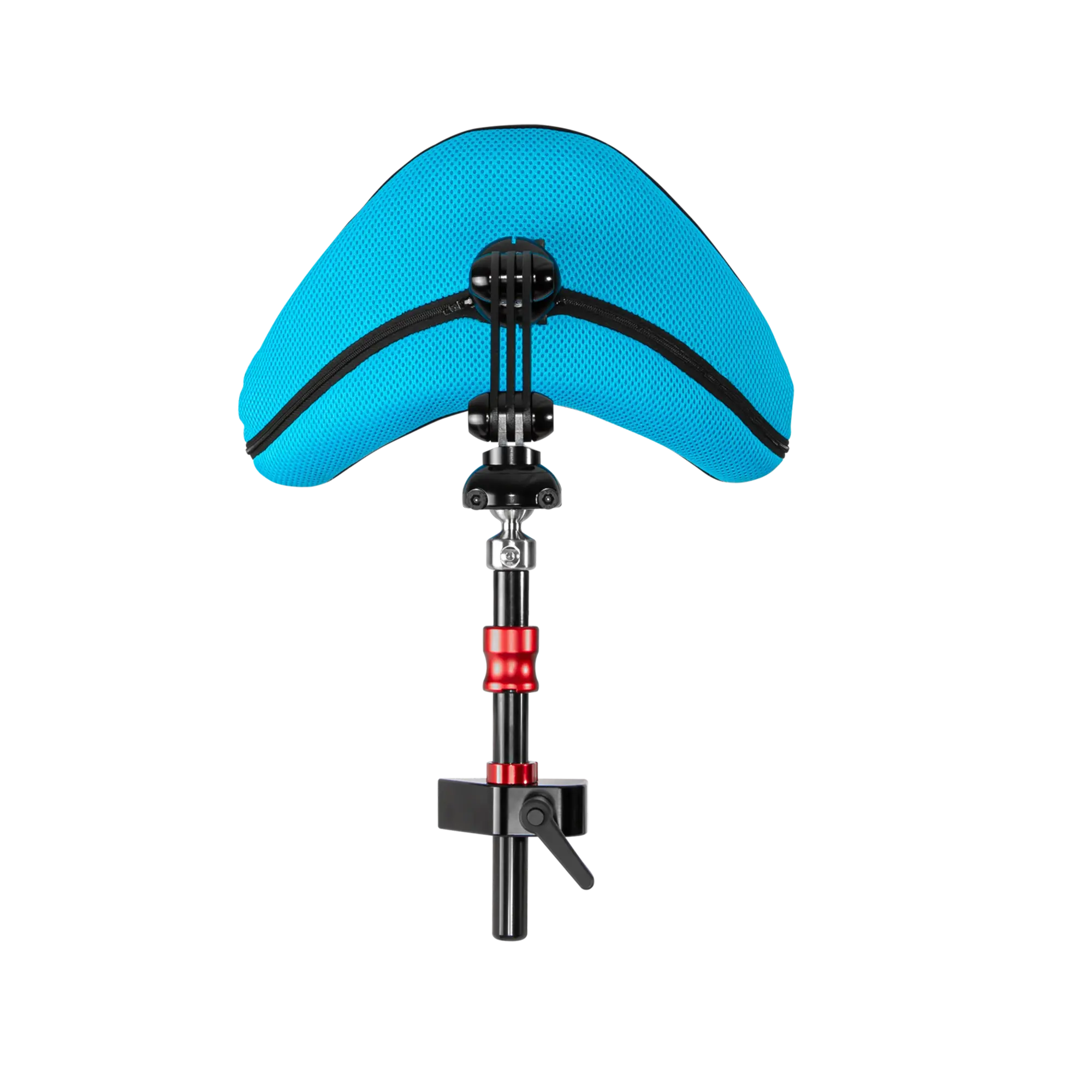

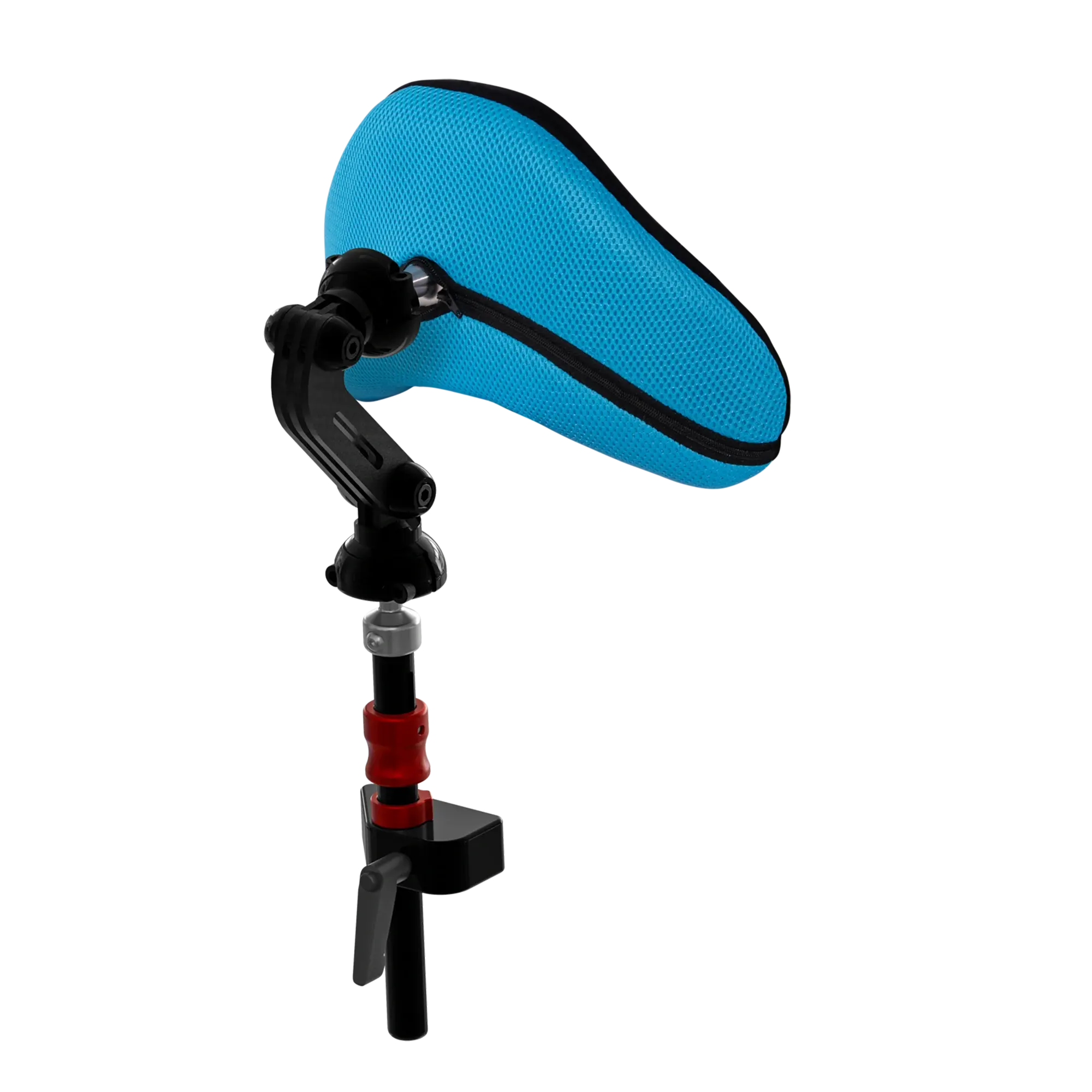

For the simple, yet adjustable and adaptable head positioning solution
Stylo 160 is crafted to achieve the best of both worlds: simplicity and ease of adjustment, yet highly adjustable and versatile.

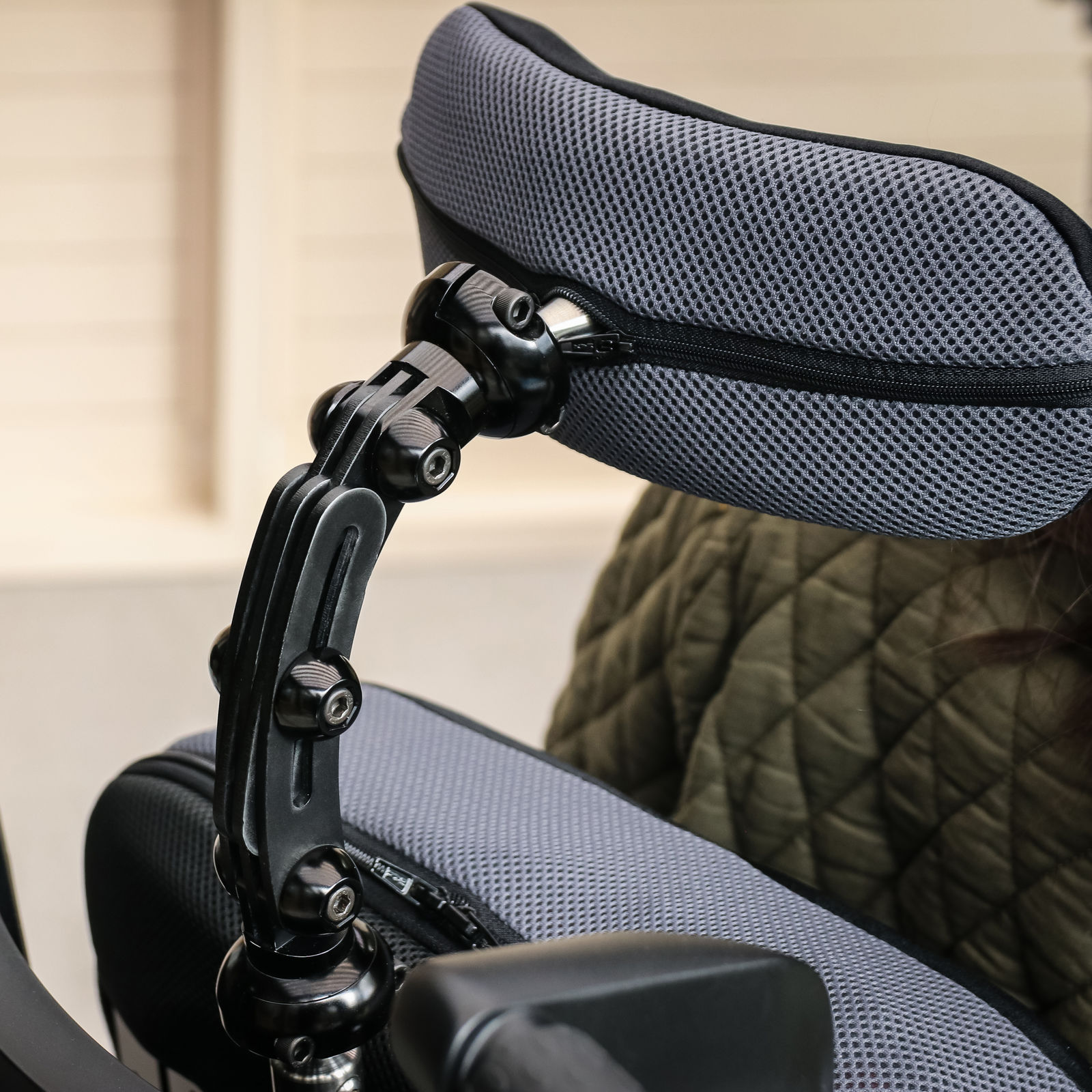

Clever use of twin ball joints means the head pad can be orientated to where the optimal support is required, through an available 45° of pitch; coupled with two hinge joints that offer infinite up and down, and forward and backward adjustment. The finished product… an extremely versatile mechanism that allows true adjustment of the pad position, creating a solution that is completely adaptable to the user.
Available in flip-back option for ease of transfers.
The Stylo Head Support is transport approved.
Designed for the individual who:
- Presents with increased thoracic or lumbar curvature of the spine and therefore requires the head support to be placed afar from the back support.
- Presents with rotation or lateral flexion of the trunk and may require the head support to be positioned in a specific spot, offset from the back support.
Circle Head Support Pad
Unique minimal head support providing direct posterior support for users with good head control.
| Style | Circle 150 | Circle 250 |
|---|---|---|
| Code | 1275-0011-000 | 1275-0012-00 |
Comfort Head Support Pad
General use head support pad suited for transit and travel.
| Style | Comfort 250 | Comfort 350 |
|---|---|---|
| Code | 1275-0031-000 | 1275-0032-000 |
Contour Head Support Pad
Contoured shaped pad for superior occipital and suboccipital support.
| Style | Contour 250 | Contour 350 |
|---|---|---|
| Code | 1275-0021-000 | 1275-0022-000 |
Standard Lateral Head Support Pad
One-piece lateral head support solution for moderate head positioning needs.
| Style | Paediatric Standard | Standard |
|---|---|---|
| Code | 1275-0041-000 | 1275-0043-000 |
Extended Lateral Head Support Pad
One-piece lateral head support solution for complex head positioning needs.
| Style | Paediatric Extended | Extended |
|---|---|---|
| Code | 1275-0042-000 | 1275-0044-000 |
Adjustable Lateral Head Support Pad
A superior adjustable lateral head control system with individualised ‘tuning’.
| Style | Adjustable Lateral 150 | Adjustable Lateral 250 |
|---|---|---|
| Code | 1275-0061-000 | 1275-0062-000 |
 |

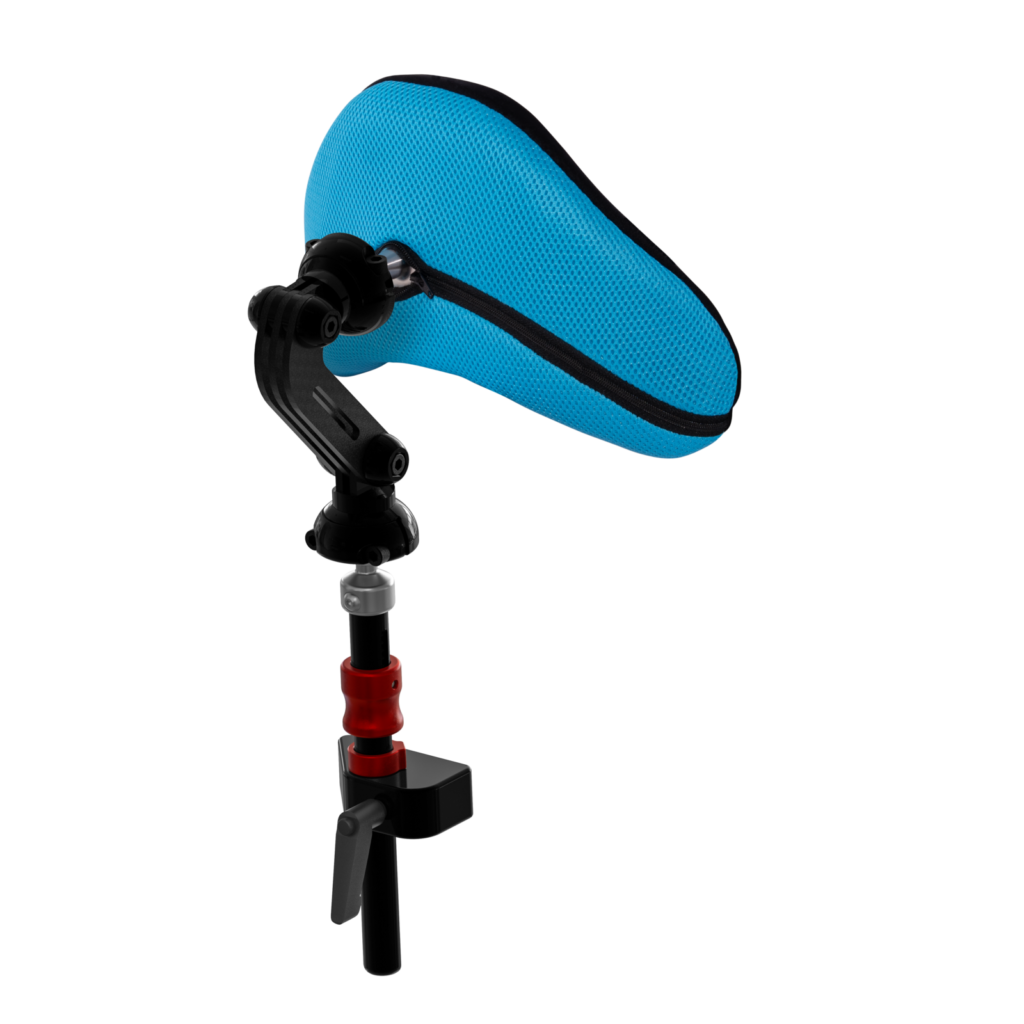

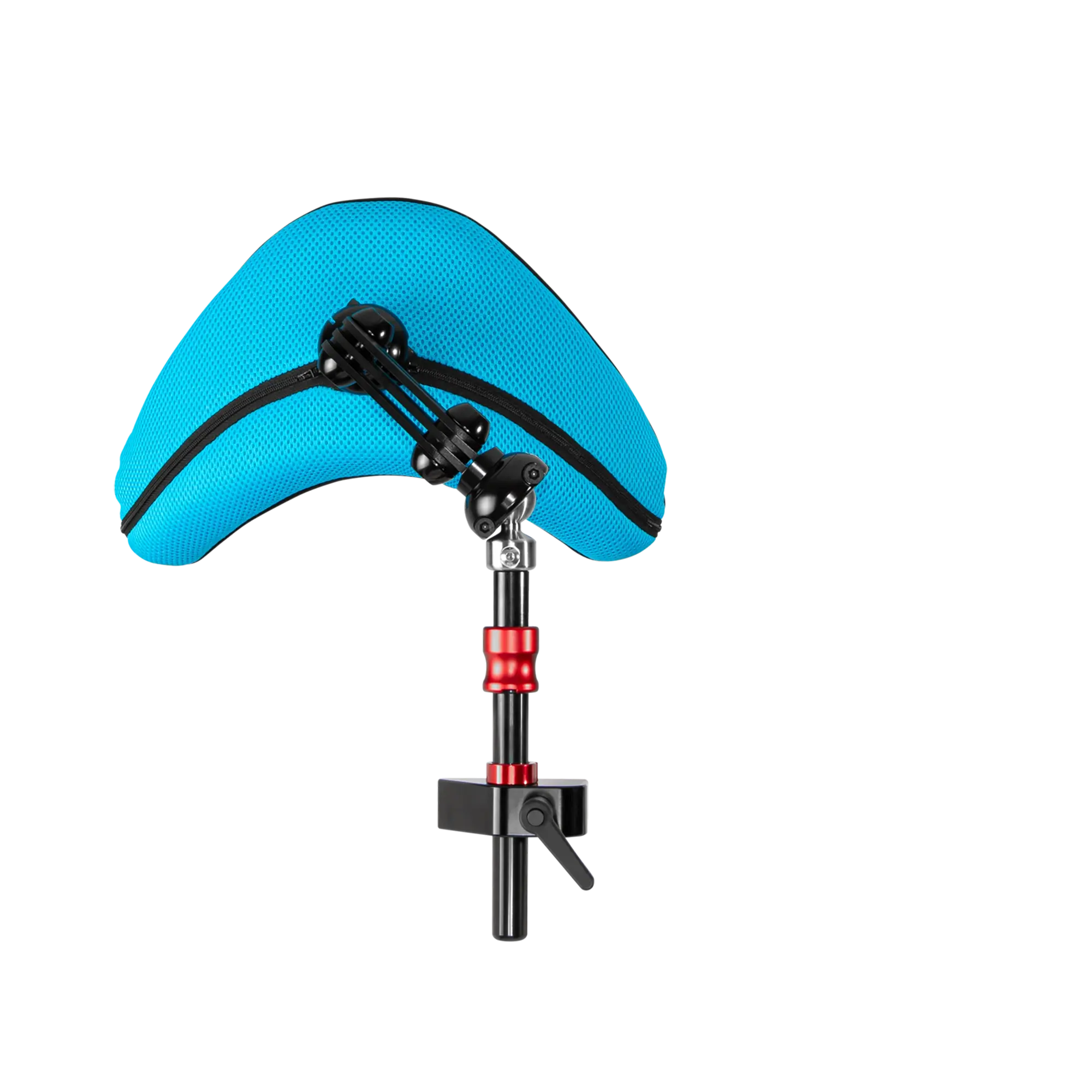

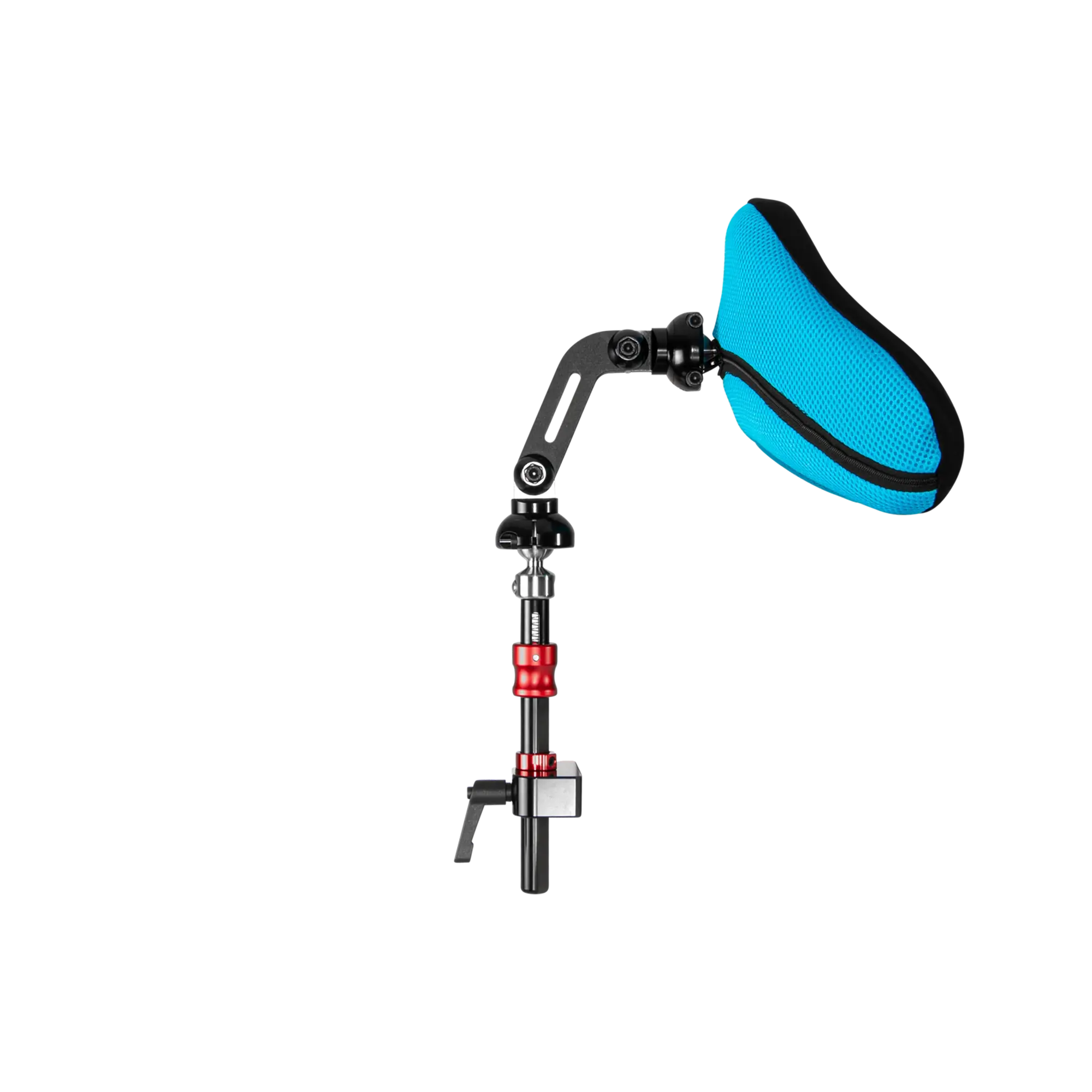

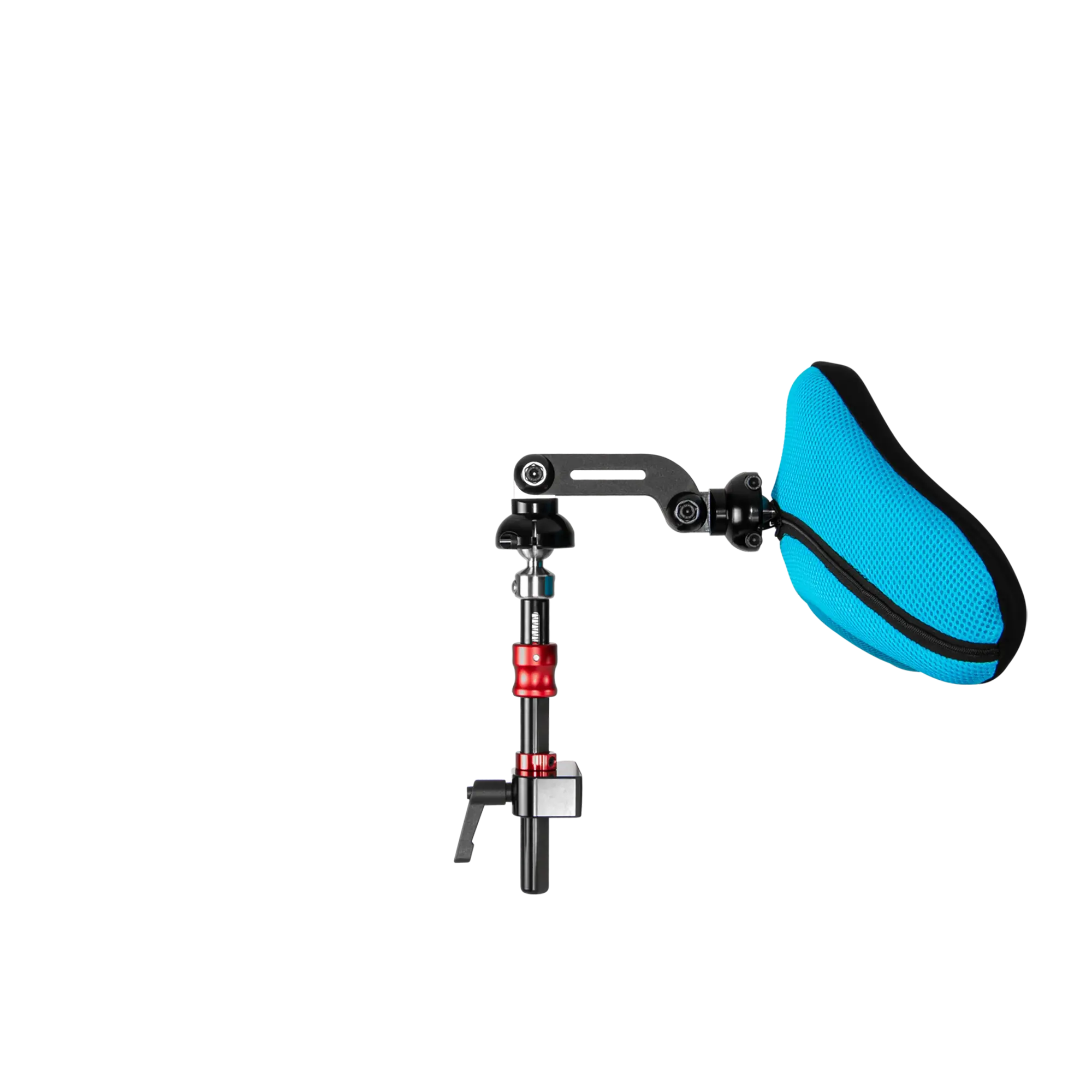

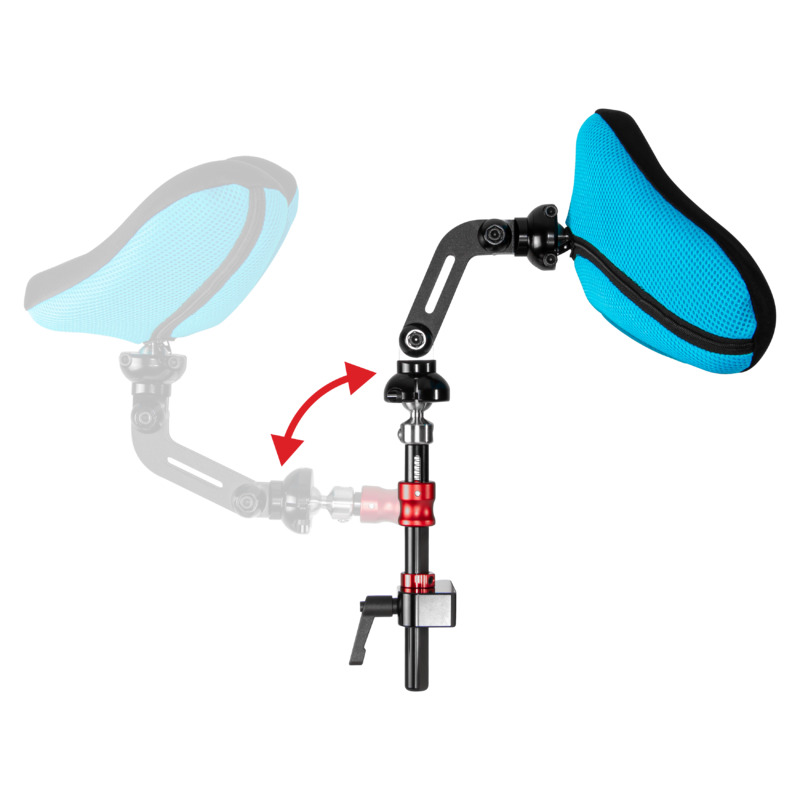

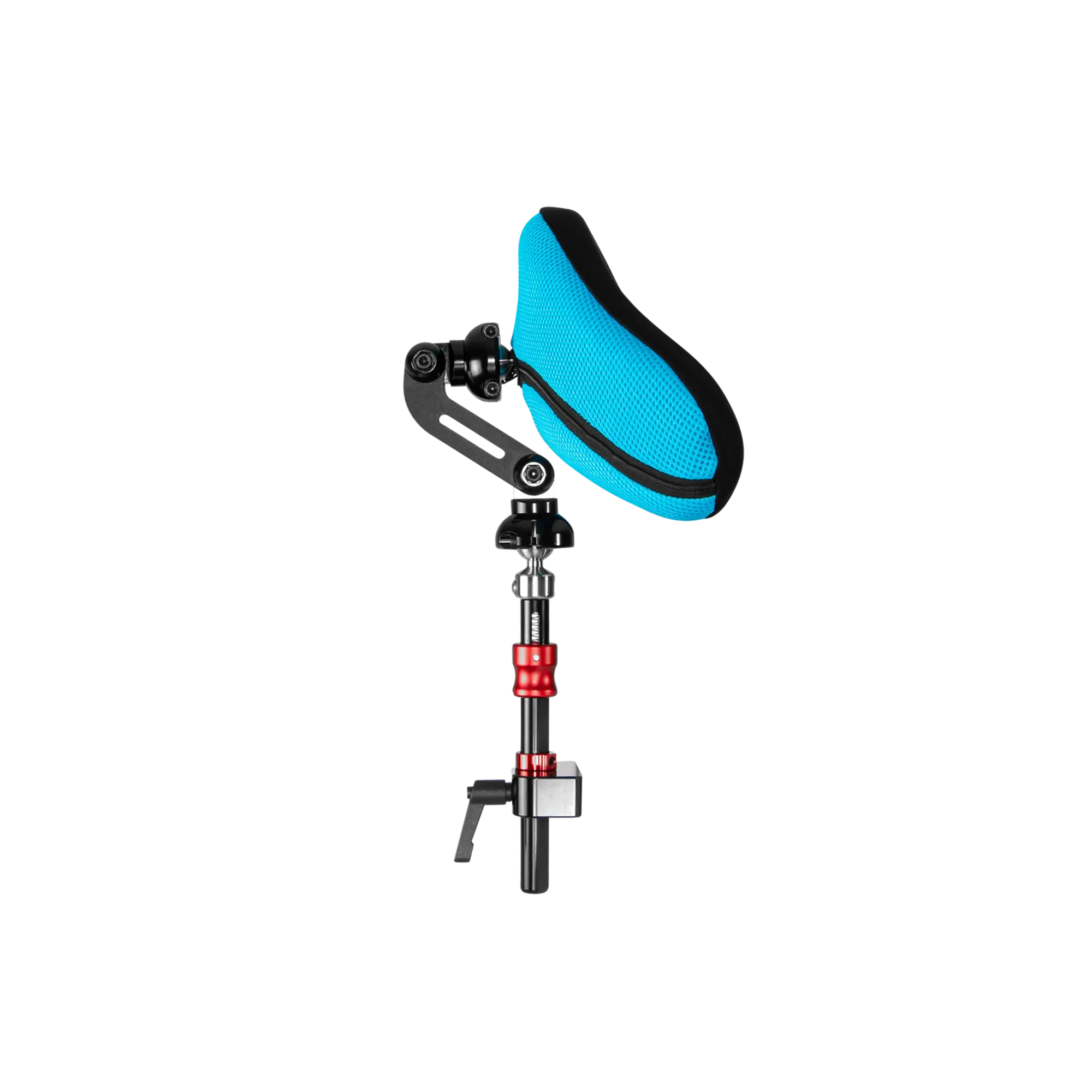

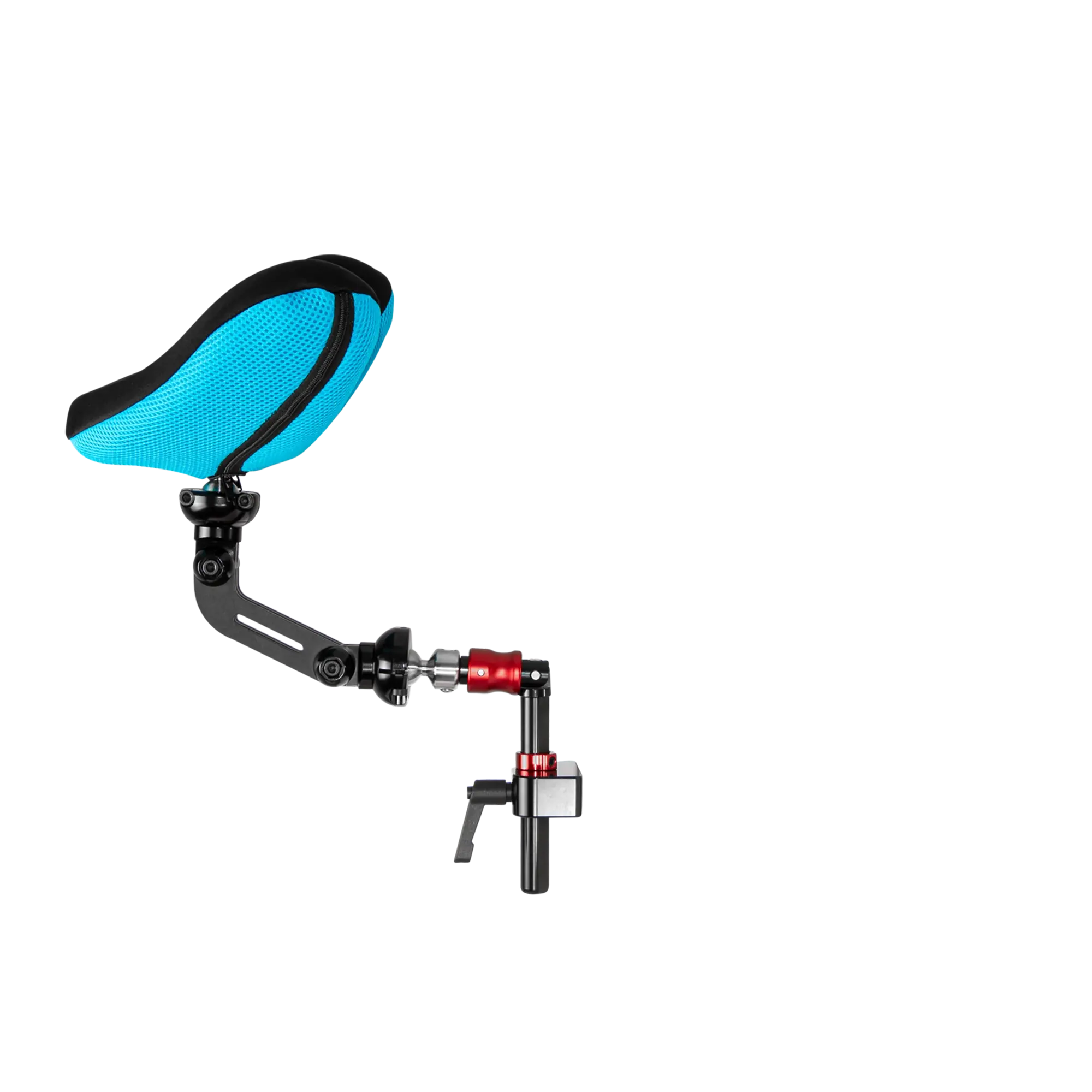

Flip-back optionAvailable on both the Stylo 160 and 260, the flip-back mechanism option is an excellent choice for individuals who require assistance with transfers in and out of the wheelchair. Simply slide the red collar up to disengage the stem and swing backwards. Stylo 160 Standard: 1274-1252-000 Stylo 160 Flip-back: 1274-2252-000 |

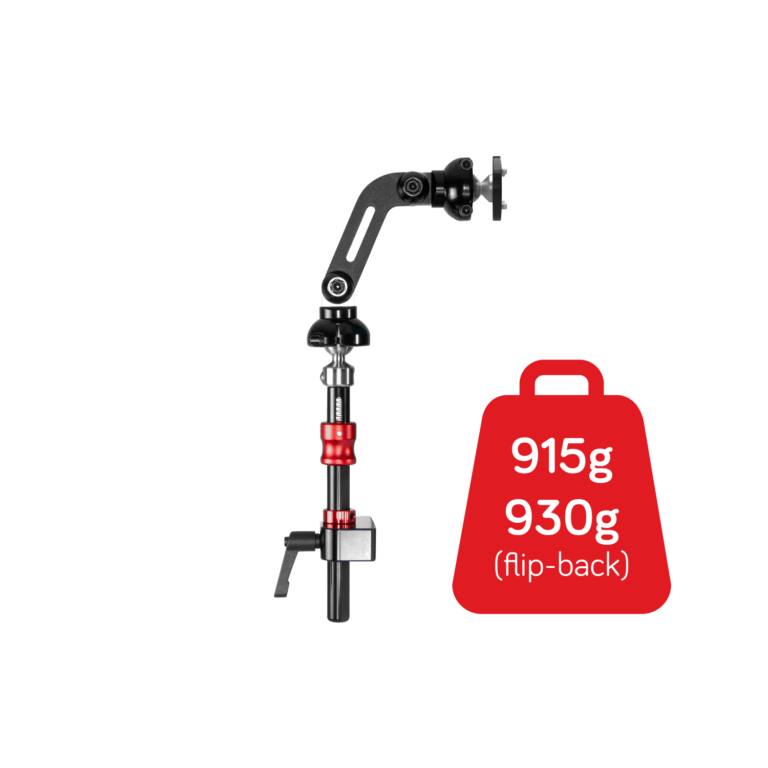

Weight |
| 915 grams (excluding head pad)
(930 grams Flip-back, excluding head pad) |
 |
 |
 |

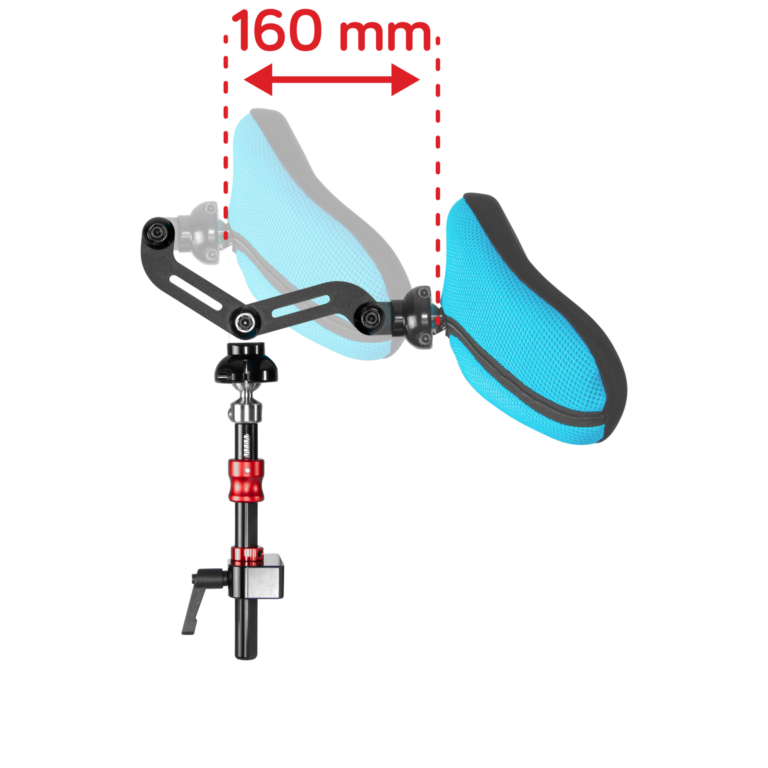

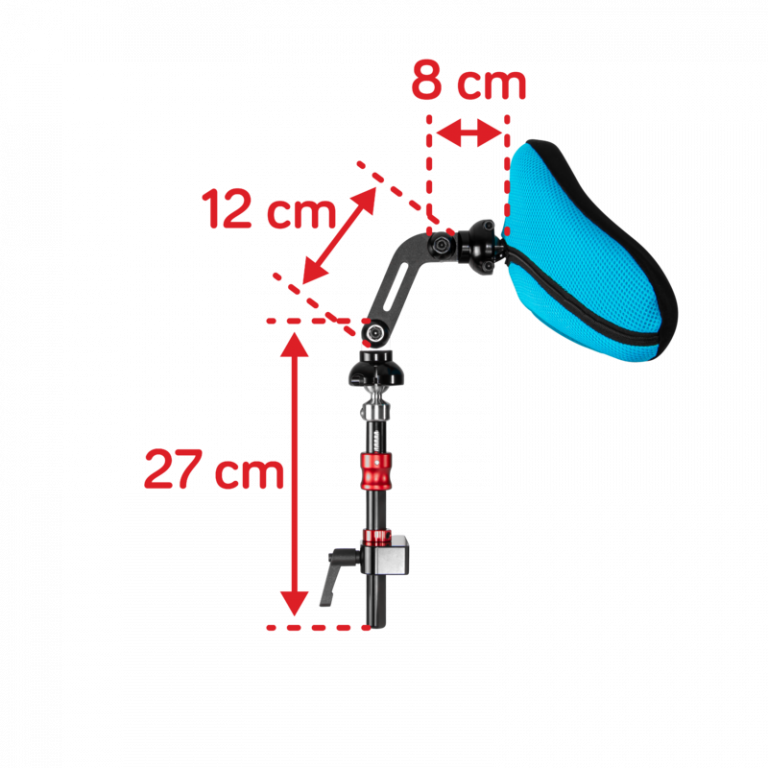

Horizontal Forward Adjustment160mm |

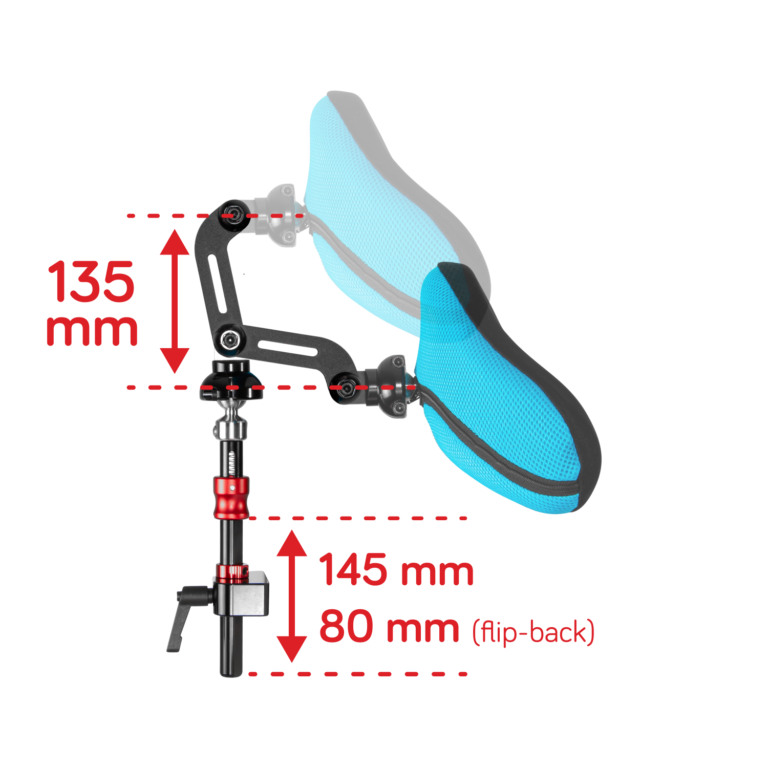

Vertical Adjustment135mm (145mm, 80mm for Flip-back) |

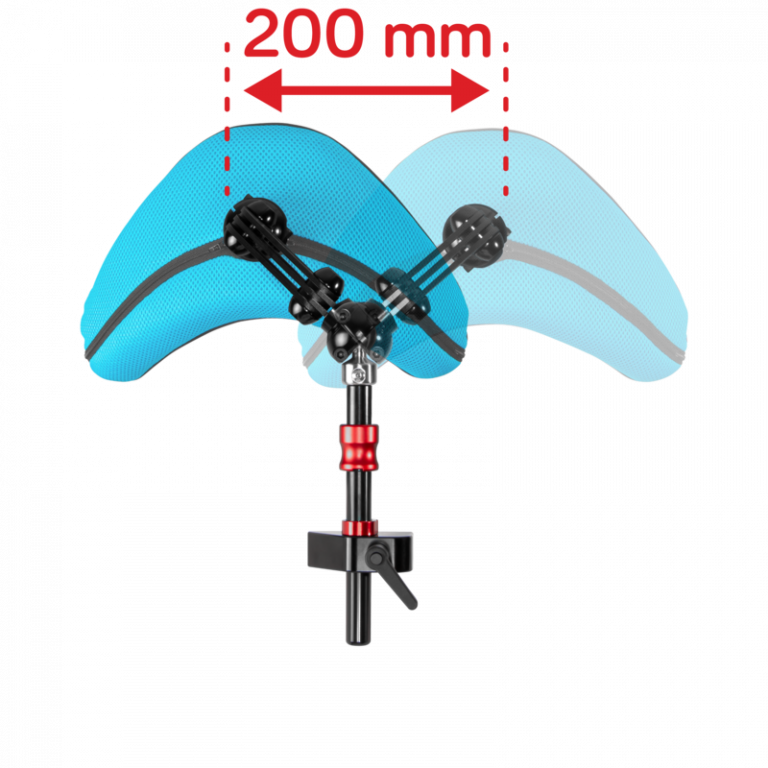

Sideways Adjustment*200mm |
 |
 |
 |

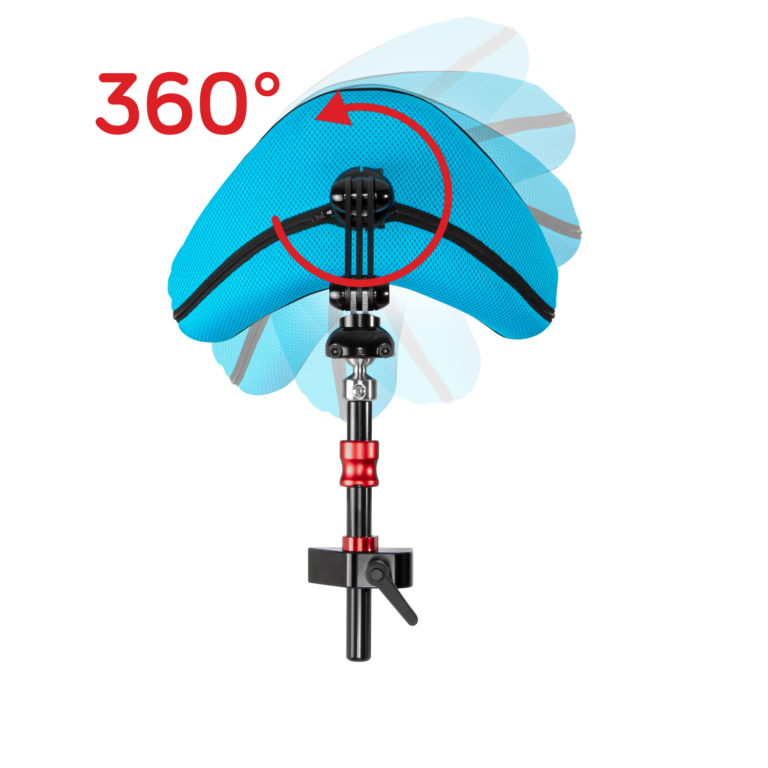

Frontal Angle Adjustment360° |
Sagittal Angle Adjustment180° top hinge + 90° top ball joint 180° bottom hinge + 90° bottom ball joint |

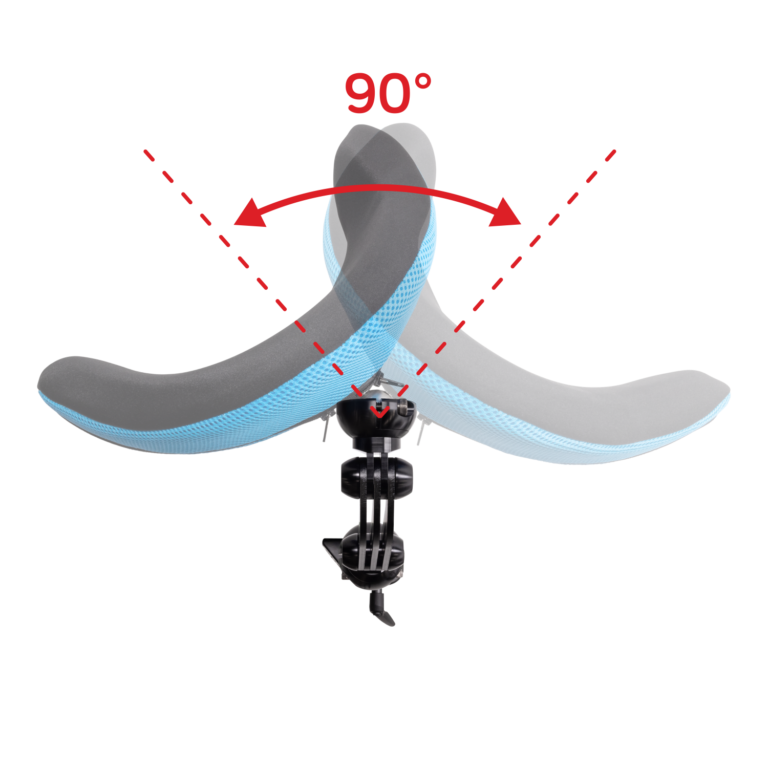

Transverse Angle Adjustment90° |
*Additional sideways adjustment can be achieved using the alternative mounting positions on the grid-base back support shell in 25mm increments.
