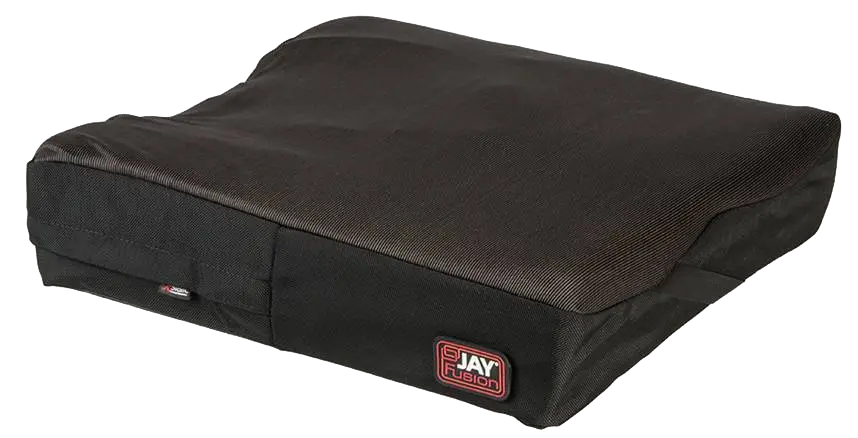

JAY Fusion
Wheelchair Cushion

Combines the J2’s skin protection capabilities with the J3’s maximum stability

The JAY Fusion is an adjustable multi-layer wheelchair cushion that features JAY Flow Fluid or Air insert options on the surface of the base to provide a high level of pressure protection whilst providing support, stability and comfort.

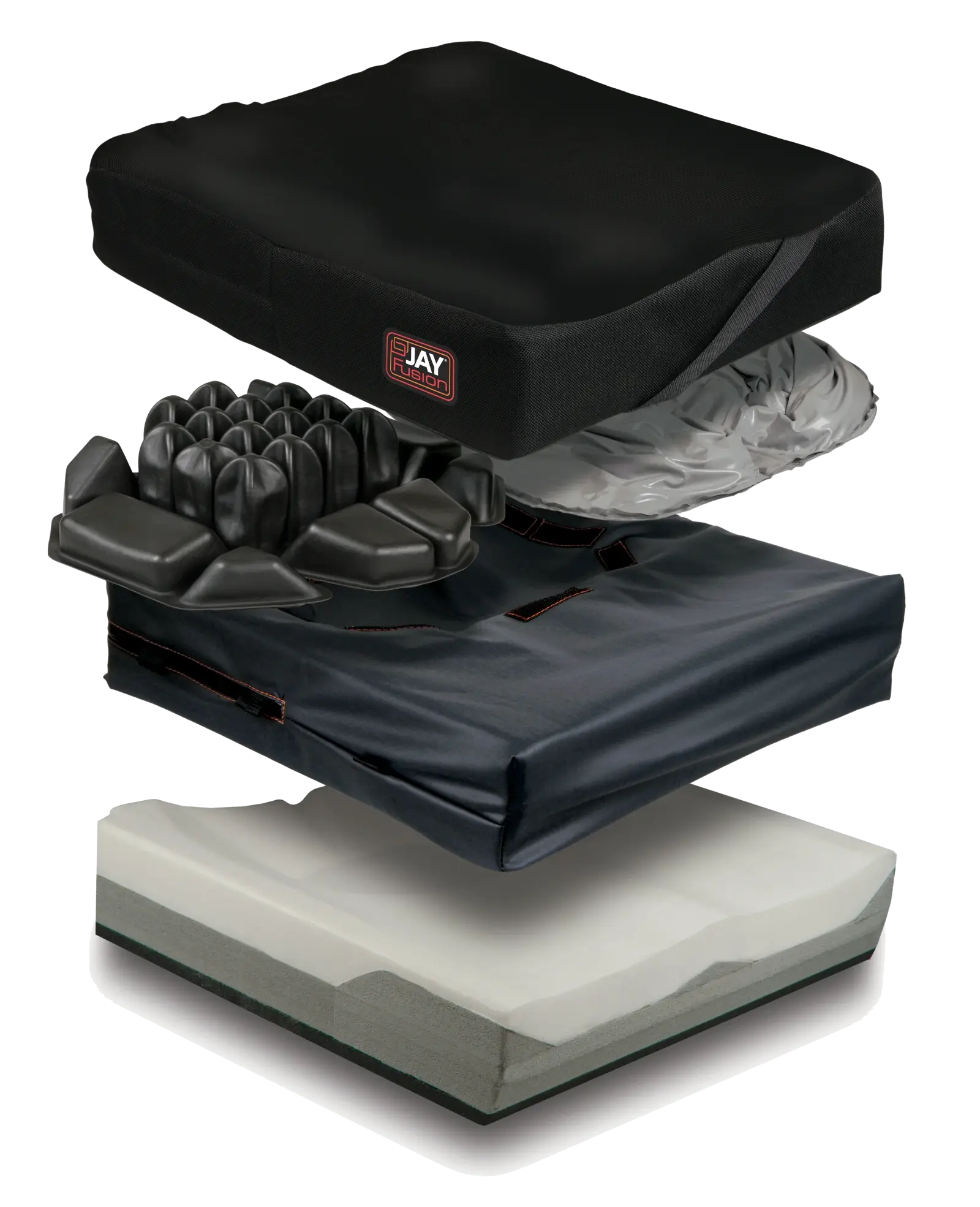

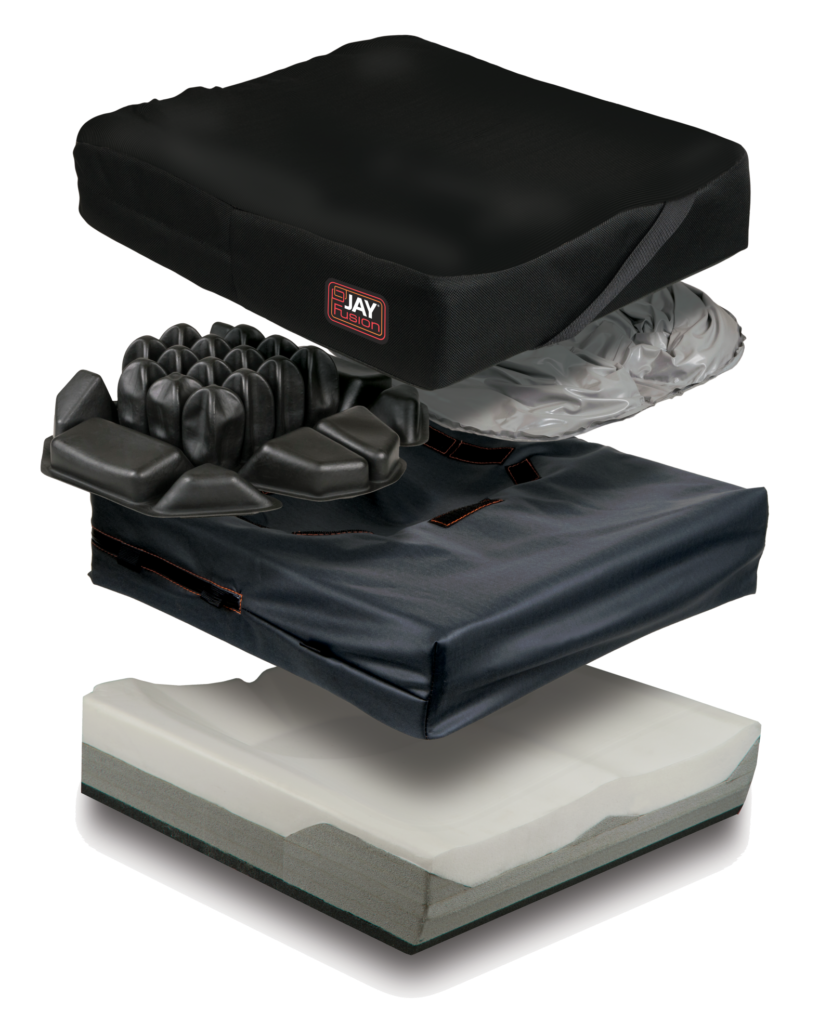

Fusion features a multi-layer pre-contoured closed cell foam base with a soft foam overlay. This base provides a comfortable yet high level of positioning for users. Soft upper base foam and well fits user comfortably and effectively throughout entire cushion surface.

Fluid Jay Flow bladder or Air Insert is located on top of the foam base. This allows for good pelvic emersion into the cushion – minimising the risk of skin breakdown.

Inner cover with Aquaguard™ moisture resistant zipper assists with incontinence and moisture management.

The outer cover provides good air flow whilst the X-static silver threads help to minimise bacteria buildup (and thus minimise odour). This cover also helps to reduce shear.

Discomfort Level

This cushion is ideal for users who are uncomfortable, need postural support and are at a high level of pressure risk.  The pre-contoured base encourages a neutral pelvic position and can minimise the user sliding forward into a slouched position. The fluid pad allows for direct emersion into the cushion – dispersing weight across the users’ bottom and thighs. The user will still need to perform weight shifts, but could be dependent on others.

Common Client Characteristics

  • May be at high risk of skin breakdown
  • May not be able to perform independent weight shifts
  • May have changing postural needs over time
  • May have aggressive positioning needs
  • May be in a wheelchair for extended periods of time
  • May experience weight loss
Size Matrix
14- 24″
14- 24″
User Weight
14- 21″: 136 kg
22 – 24″: 225 kg
Max. Product Weight
2.4 kg (16×18″)
Cushion Type
Foam & Fluid Cushion
Foam & Air Cushion
Cover Type
X-static® silver thread stretch. Incontinent & microclimatic options. Standard with 2 covers.
Time Spent in Chair Moderate to longer periods of time. 4+ hours at a time.
Postural Support Moderate to High
Waterlow Score 25+



14″ 15″ 16″ 17″ 18″ 19″ 20″ 21″ 22″ 23″ 24″
14″ 1713-01-JFUSION1414 1713-01-JFUSION1614 N/A N/A
16″ 1713-01-JFUSION1416 1713-01-JFUSION1616 1713-01-JFUSION1816
18″ 1713-01-JFUSION1418 1713-01-JFUSION1618 1713-01-JFUSION1818 1713-01-JFUSION2218
20″ 1713-01-JFUSION1620 1713-01-JFUSION1820 1713-01-JFUSION2020 1713-01-JFUSION2420
21″ 1713-01-JFUSION2421
22″ N/A 1713-01-JFUSION2018 1713-01-JFUSION2022 1713-01-JFUSION2222  1713-01-JFUSION2422
23″ N/A N/A 1713-01-JFUSION2223
24″ N/A N/A N/A N/A 1713-01-JFUSION2224 1713-01-JFUSION2424

Size Guide:

Code Enable NZ List Cushion
Size available to Indent Order
N/A Size Not Available

Above codes listed are for Jay Fusion Cushions with Fluid Insert, to order Jay Fusion Cushions with Air Insert, add “AD” to the end of the code.

For Jay Fusion Cushions with Air Insert, Dual Valve is stocked option. Single Valve Air Inserts are available as Indent Order Cushions.

Every JAY cushion is guaranteed to be free from defects in materials and workmanship for a period of 24 months from the date of purchase, provided normal use.

The removable cover is guaranteed to be free from defects in materials and workmanship for a period of six (6) months from the date of purchase, provided normal use.

For full warranty details refer to the User Manual.




Some cushions use fluid packs that are similar to gel. What are these made from?


The JAY fluid packs are made of a vegetable oil-based fluid and are not considered ‘gel’. They form well around a client’s posture and are excellent at promoting skin protection.


The fluid in the JAY cushion has become stiff/hard. Is this normal?


The fluid pads in JAY cushions may become stiff after 4-5 years of consistent use and will require a direct replacement.
