Applying tessellation method to create contours for seating and positioning
Spex has taken the concept of a tessellation, and applied this method to create contours for seating and positioning.
This system can be added to any back support from the Spex range for additional contouring behind the existing upholstery padding.
Easy and effective back support contouring: stack and configure each component!
- Upgrade Vigour, Manta or Spex back supports in order to maximise stability, positioning and seating tolerance.
- Different densities are colour coded for easy application.
 |
Blue Base Building Block | Firm density shape is used to build a firm foundation for the contouring.
The blue blocks are used to build a firm and stable foundation for contouring and to provide the body surface with sensory feedback to the position of the support. |
 |
White Intermediate Building Block | Medium density shape is used to build up shapes where positioning is required.
The white blocks are designed to layer and build shapes for tailored positioning. |
 |
Charcoal Overlay Block | Softer density shape is used for creating softer overlay over the previous blocks.
The charcoal blocks are used to enhance comfort by providing a softer foam density and smooth out the edges of the underlying building blocks. |
 |
Velcro fastening strips | These are used to smooth over the contours and also to hold it all together. |
Note: The colours of the foam blocks have recently changed. Previously the blue elements were the softest, grey elements were medium density, and the black elements were firmest density.

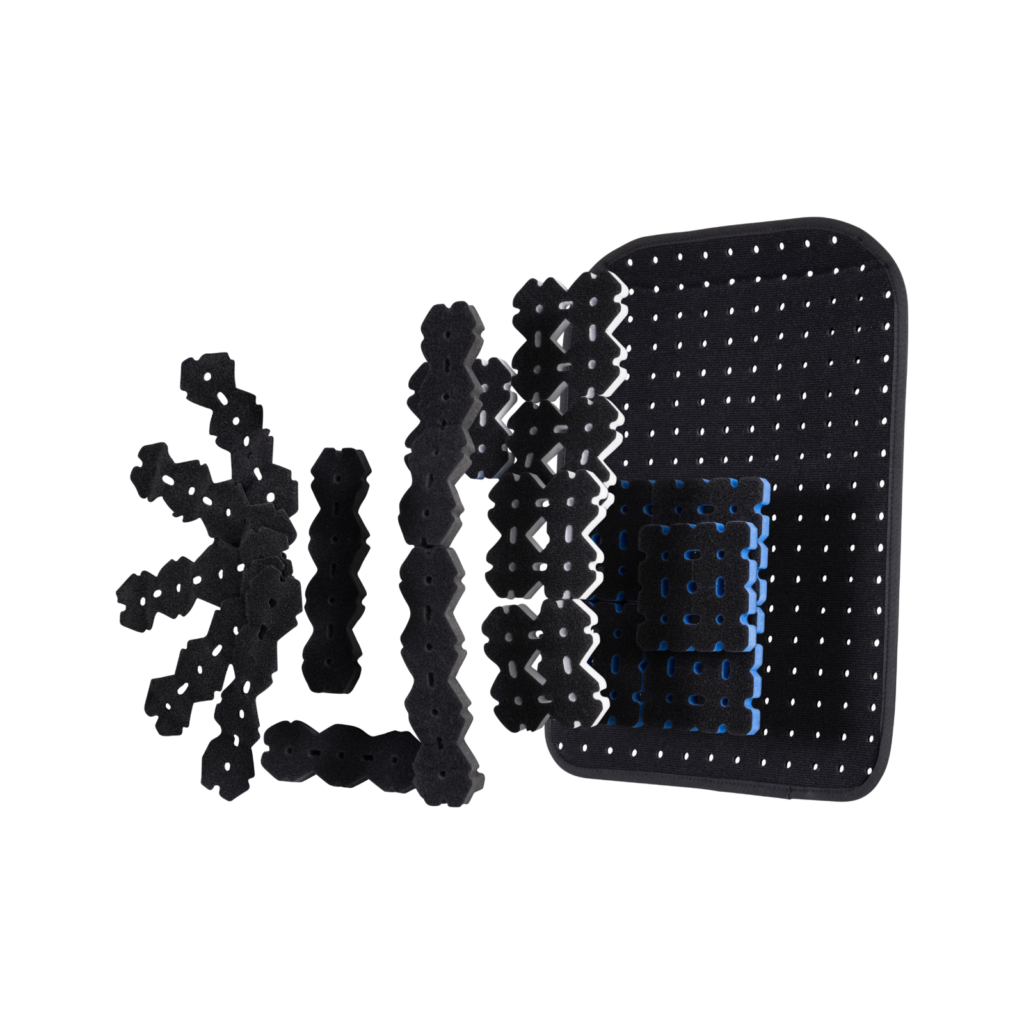

Tessellated Shape System
Whats included:
- 1 x Velcro Backing Board
- 5 x Blue Base Building Blocks
- 5 x White Intermediate Building Blocks
- 5 x Charcoal Overlay Blocks
- 10 x Velcro Fastening Strips
Codes:
| W/C WIDTH | HEIGHT | TESSELLATED SHAPE SYSTEM CODE |
|---|---|---|
| 10″ | 12″ | 1250-1012-000 |
| 10″ | 14″ | 1250-1014-000 |
| 10″ | 16″ | 1250-1016-000 |
| 12″ | 14″ | 1250-1214-000 |
| 12″ | 16″ | 1250-1216-000 |
| 12″ | 18″ | 1250-1218-000 |
| 14″ | 16″ | 1250-1416-000 |
| 14″ | 18″ | 1250-1418-000 |
| 14″ | 20″ | 1250-1420-000 |
| 16″ | 18″ | 1250-1618-000 |
| 16″ | 20″ | 1250-1620-000 |
| 16″ | 23″ | 1250-1623-000 |
| 17″ | 18″ | 1250-1718-000 |
| 17″ | 20″ | 1250-1720-000 |
| 17″ | 23″ | 1250-1723-000 |
| 18″ | 18″ | 1250-1818-000 |
| 18″ | 20″ | 1250-1820-000 |
| 18″ | 23″ | 1250-1823-000 |
| 20″ | 18″ | 1250-2018-000 |
| 20″ | 20″ | 1250-2020-000 |
| 20″ | 23″ | 1250-2023-000 |
TSS Elements
Comprehensive selection and quantity of TSS kit elements for a substantial contouring solution. Suitable for use on Spex Back Supports with a rectangular back surface, e.g. Manta, Vigour, Classic.
What’s included:
- 5 x Blue Base Building Blocks
- 5 x White Intermediate Building Blocks
- 5 x Charcoal Overlay Blocks
- 10 x Velcro Fastening Strips
Product Code: 1250-3959-000
TSS Lite
Selection of key components from the Tessellated Shape System to enable fast contouring solution. Suitable for use on all Spex Back Supports, particularly for Zygo, Adapta and those with non-rectangular/flat surfaces.
What’s included:
- 3 x Blue Base Building Blocks
- 3 x White Intermediate Building Blocks
- 3 x Charcoal Overlay Blocks
- 5 x Velcro Fastening Strips
- 6 x 7.5° Wedges
Product Code:1250-3955-000
