Axial Medial
Thigh Support

The Spex Medial Thigh Support block is a wedge shape that can be attached to the front of the wheelchair seat.

It should be used to keep the user’s legs in the correct position to maintain a neutral pelvis. It doesn’t just swing-down, it can then pull off the mount to allow an unobstructed transfer.

Provides a comfortable yet firm knee and medial thigh support through a soft padding and removable washable cover.

Watch
Gallery

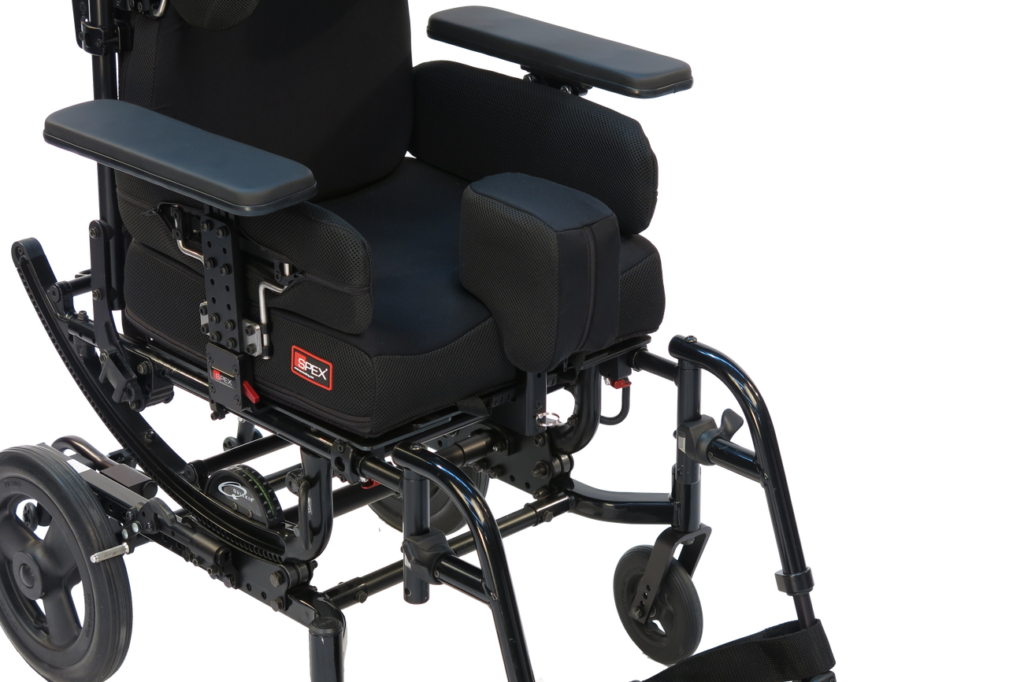

Pommel Axial on chair
SPEX Axial Medial Thigh Support
SPEX Axial Medial Thigh Support small
SPEX Axial Medial Thigh Support small
Spex axial medial thigh support.
Spex axial medial thigh support.
Spex Medial thigh support.
SPEX Axial Medial Thigh Support small
SPEX Axial Medial Thigh Support
SPEX Axial Medial Thigh Support
Spex axial medial thigh support.
Spex Axial medial thigh support.
Functional
Benefits
Pommel axial.
Unimpeded lateral transfers
Axial Medial Thigh Support flips down.
Pommel Axial being removed
Unimpeded frontal transfers
Can be pulled off. Pull-off feature can be locked with a bolt if not required.
Pommel Axial Adjust in a tilted position
Offset and swivel
To accommodate asymmetric positions. Unique expansion fabric cover allows multiple adjustments.
Pommel Axial Adjust
Huge adjustment range
Shown without cover. Unique expansion fabric cover allows multiple adjustments.
Description
Clinical
Functional
  • Should be used with clients who experience a variety of movement disorders, fluctuating muscle tone, spasticity or contractures
  • Assists to align the heads of the femurs with the acetabulum providing symmetrical hip abduction for proper posture
  • Abduction allows equal weight bearing through both ischial turberosities and thighs, thus permitting better pressure distribution
  • Provides a wider, more stable support base for the upper body while limiting contractures and deformities that could interfere with function
  • In hip dysplasia cases, luxation or dislocation; provides comfort & reduces pain
  • Not to be used as a way to prevent or limit forward sliding. Should be installed clear of the groin area
  • Depth adjustable convenience combined with flip down hardware
  • Easy access release hardware which can be mounted to a seat pan
  • Huge height range for high profile cushions
  • 3 sizes available
Media
Spex Hardware
Spex Hardware. Watch
Resources
Spex Medial Thigh Support User Manual 0.47 MB
Specifications
Measurements
Dimensions
Size 1 2 3
Code 1162-1601-000 1162-1602-000 1162-1603-000
A (mm) 70-140 70-140 70-160
B (mm) 145 155 185
C (mm) 95 100 105
D (mm) 50-120 60-140 60-140
E (mm) 40 50 60
F (mm) 65 65 75
Height Adjustment (mm) 61 61 61
Depth Adjustment (mm) 13 13 13
Customisations
Pressure relieving overlay
1/2" Pressure-relieving foam overlay
Stockcode: 1160-1576-000
1/2" Gel-Foam overlay
Stockcode: 1160-1577-000
Custom Fabric
Stockcode: 1160-1579-000
