Empulse R90
Power Add-On

Simple, push-button control and propelling.

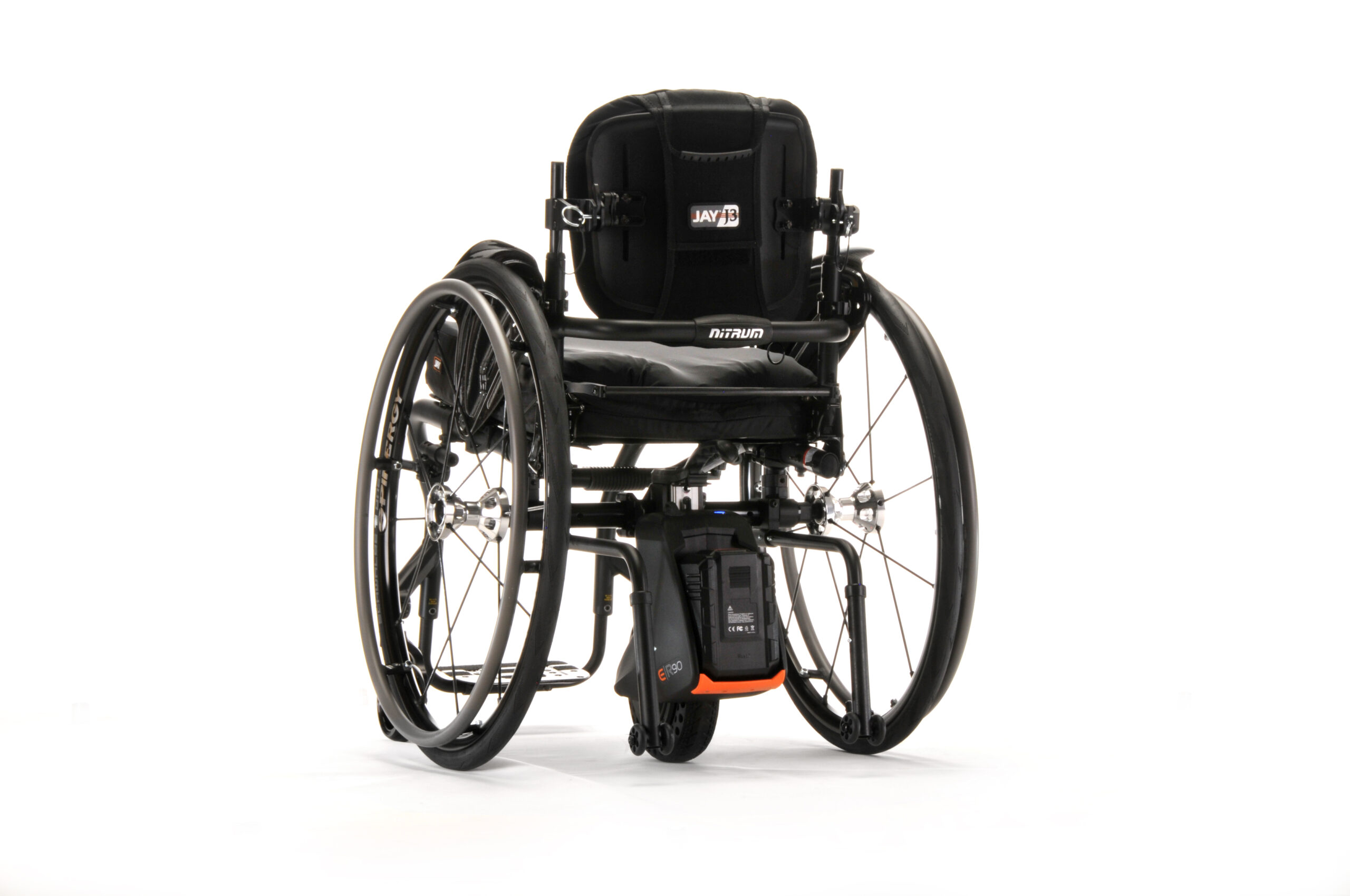

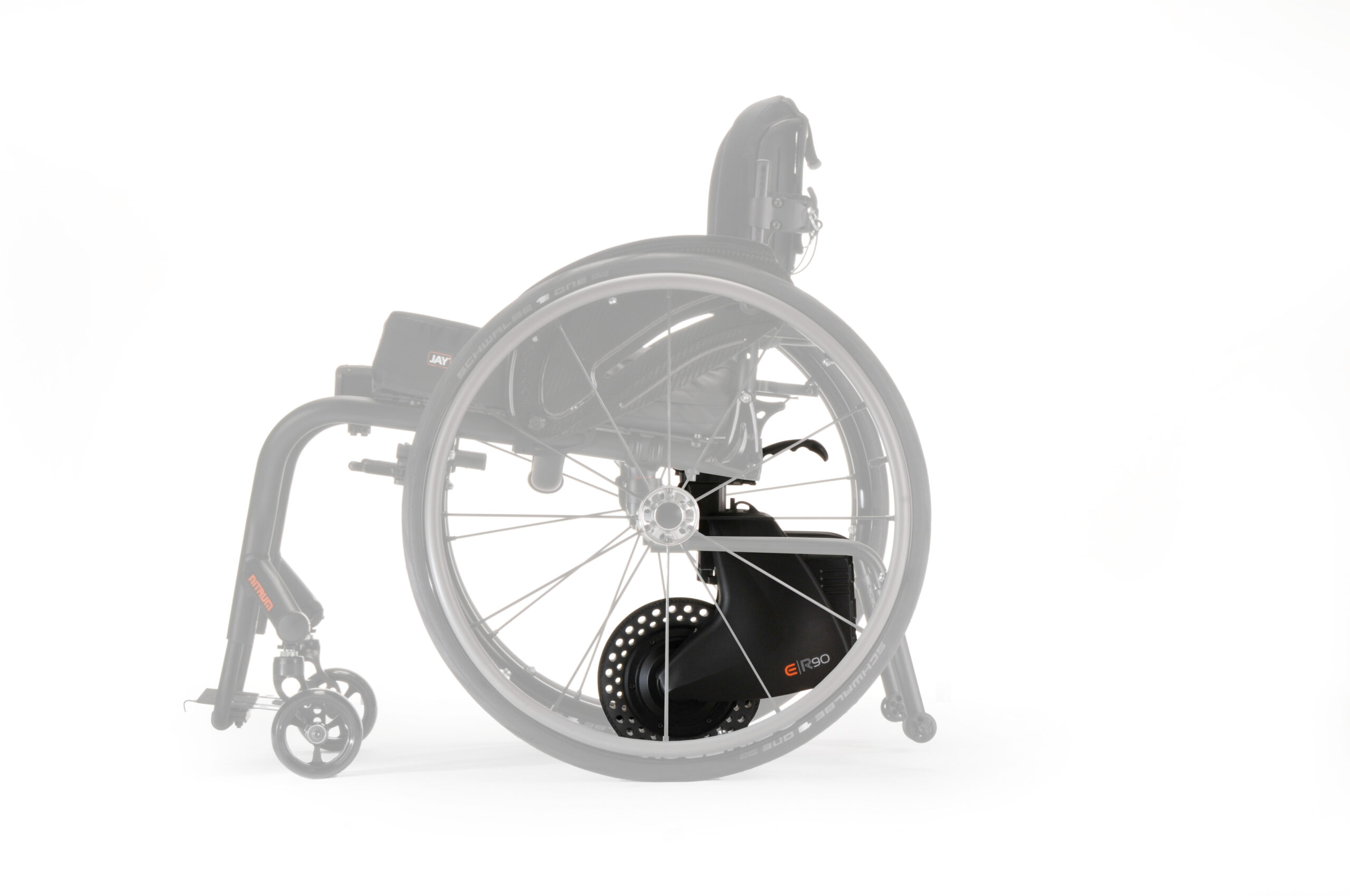

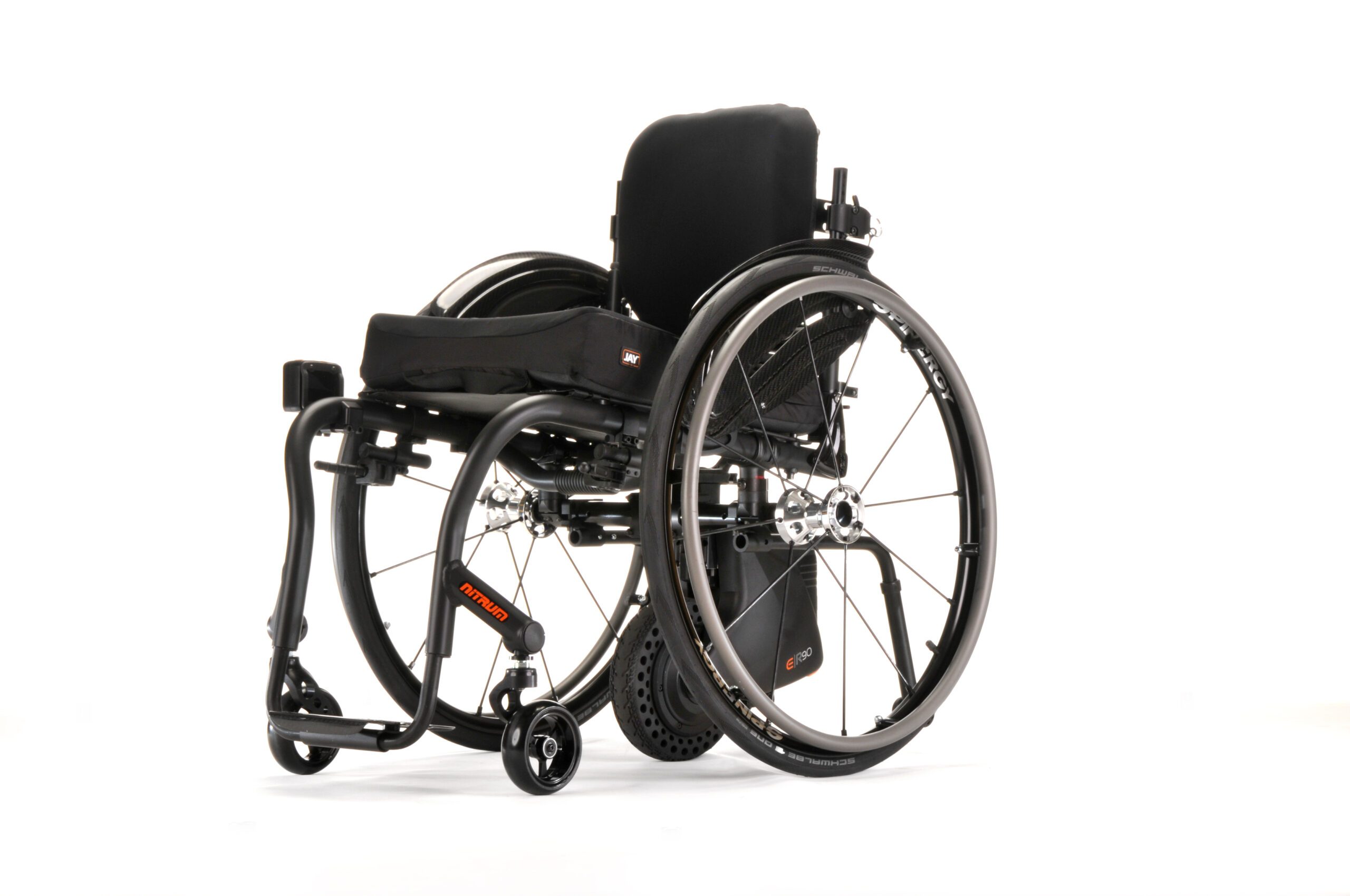

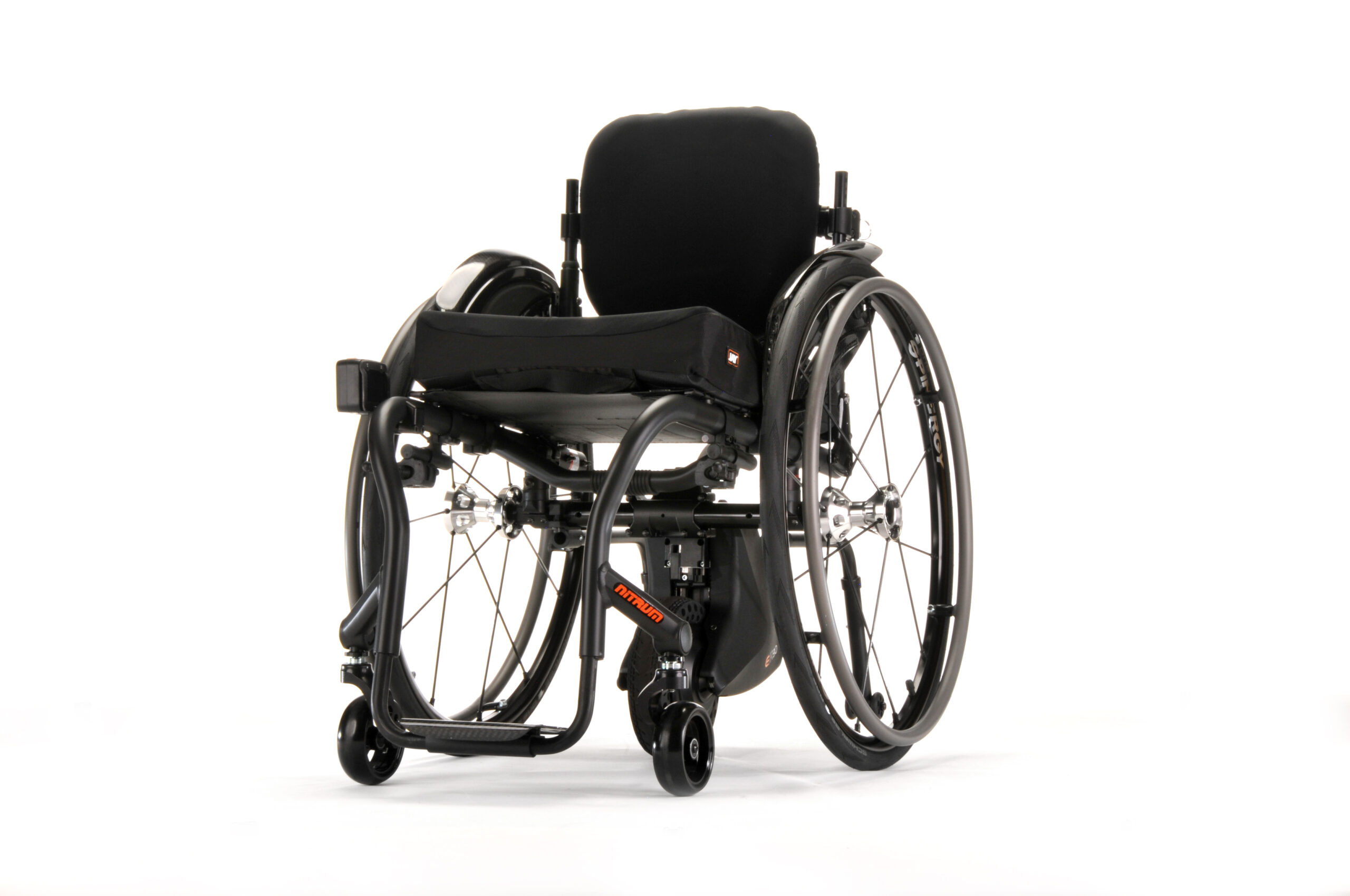

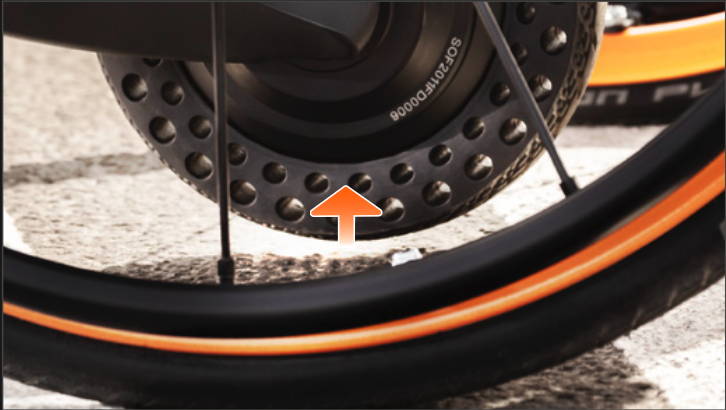

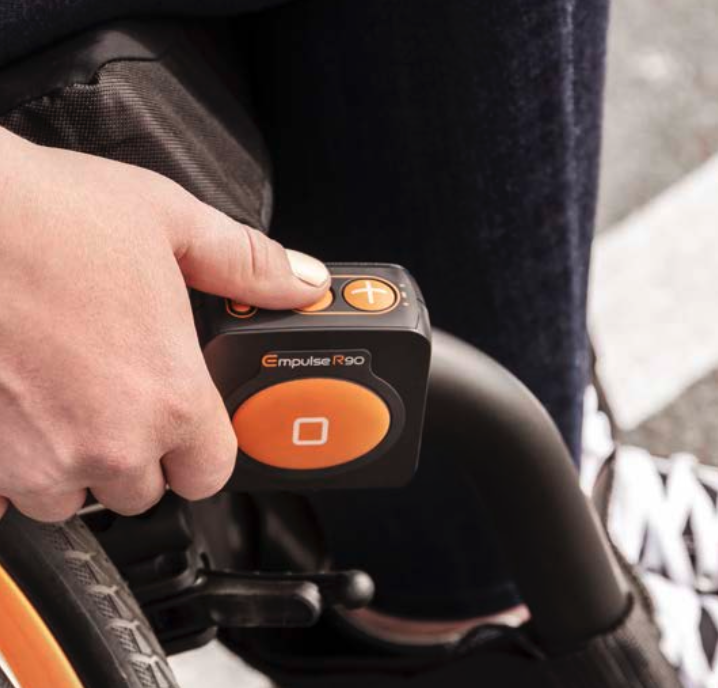

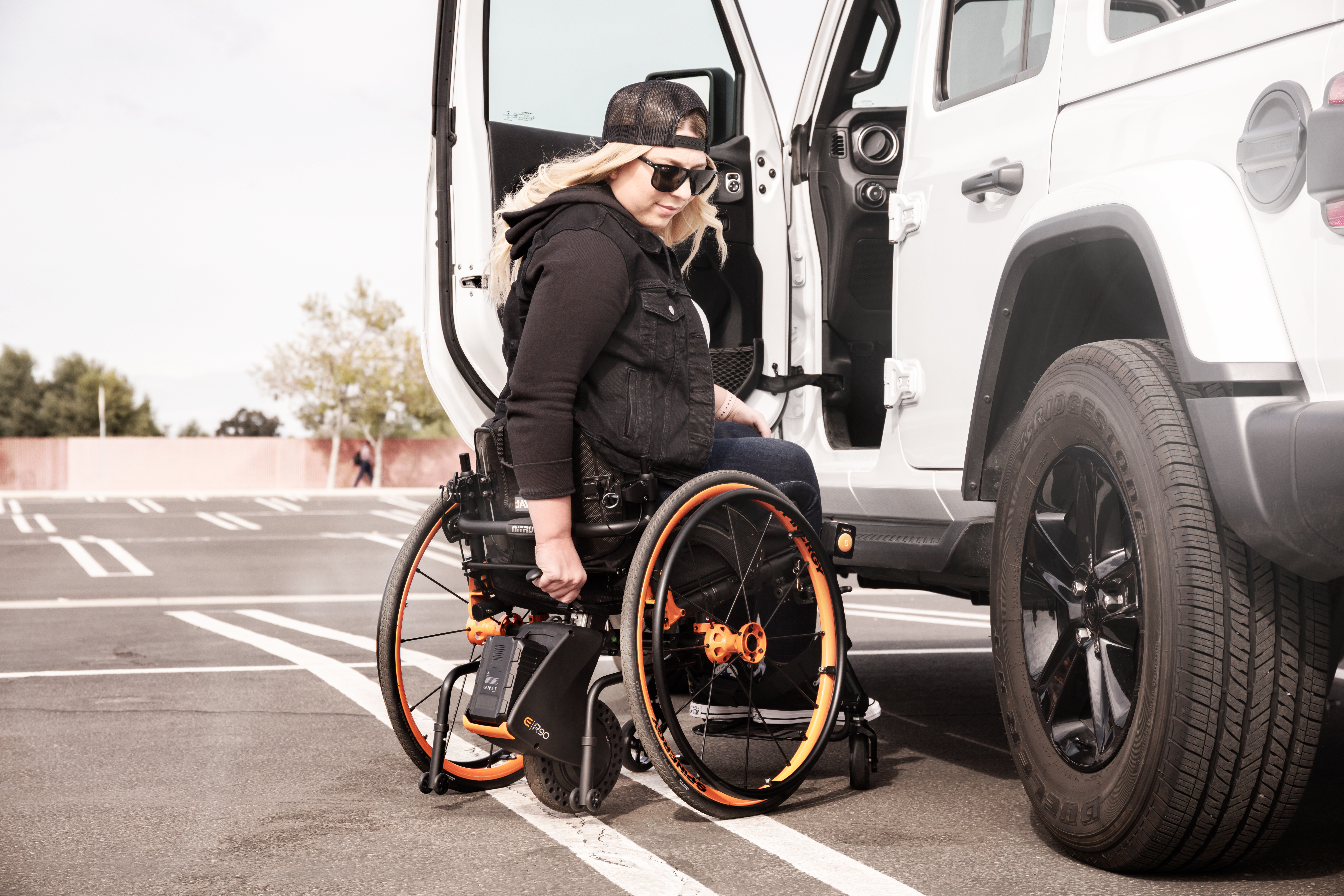

The sleek, simple, and compact design allows the R90 to sit under your chair. It’s inconspicuous & intuitive, and maintains your chair’s size and turning circle. The V-Lock attachment system secures the R90 to most folding and rigid wheelchairs. The simple Control Box enables easy push-button use and can be ergonomically positioned for easy access. When power assist is not needed, simply push a button to raise the wheel up for zero rolling resistance. The Sunrise Intelligence app allows you to select the performance profile that best suits your environment.

Specifications
Weight Capacity 275 lbs (125 kg)
Battery Range*
Standard (2.5 Ah)
Extended (5 Ah)
9.8 miles (15.7 km)
19.5 miles (31.4 km)
Max Slope 6 Degrees
Weight (without battery)
Standard Battery
Extended Battery
13.0 lbs (5.9 kg)
1.5 lbs (0.7 kg)
2.6 lbs (1.2 kg)
Frame Compatibility
Camber Tube Diameter
Axle Height
Width (Folding wheelchairs only. Between axel plates.)
22 mm to 45 mm
283 mm to 336 mm
300 mm to 530 mm
Adjustable Max Speed 5.5 mph (9 KPH)
Electronics Bluetooth/ Wireless
Battery Lithium-Ion 36 V
2.5 Ah/5Ah
Battery Charging Time 1 Hour (for 2.5Ah)
2 Hours (for 5Ah)
Motor 250 W/ 22 Nm
