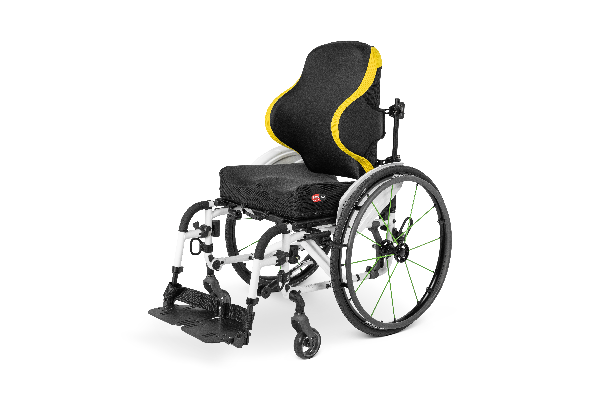

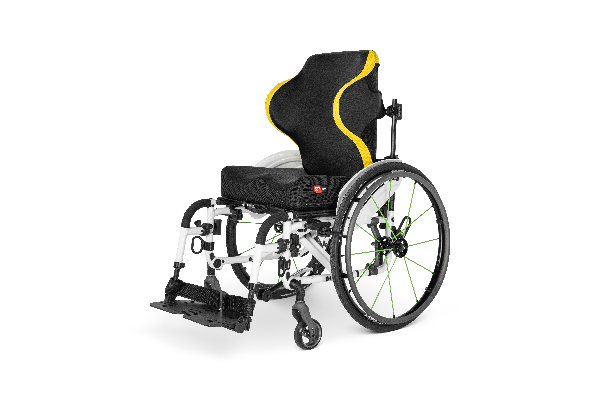

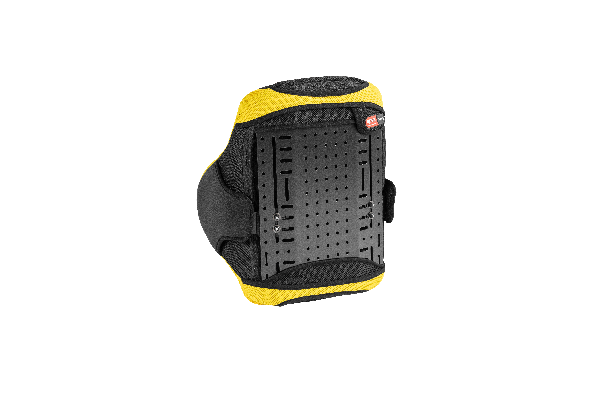

Simplistic to Sophisticated. Effortless to Elaborate. Clean to Complex.

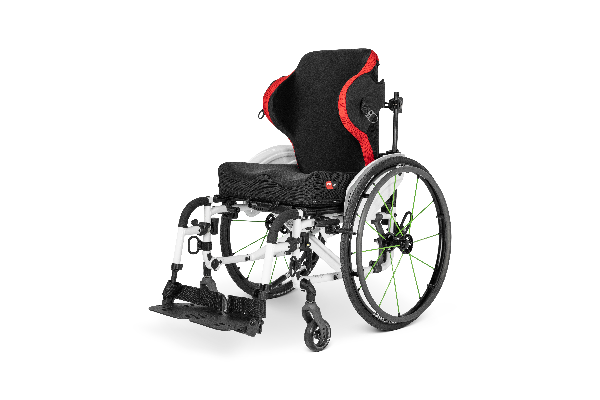

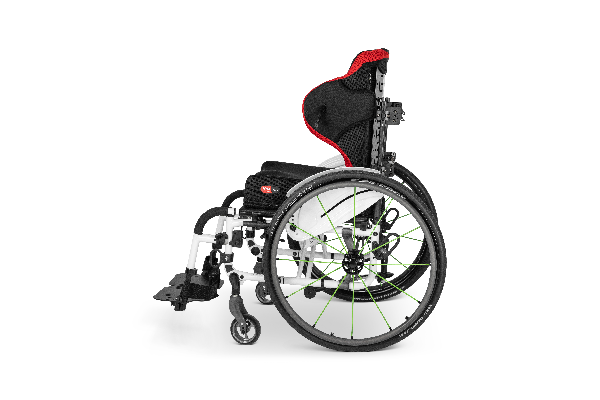

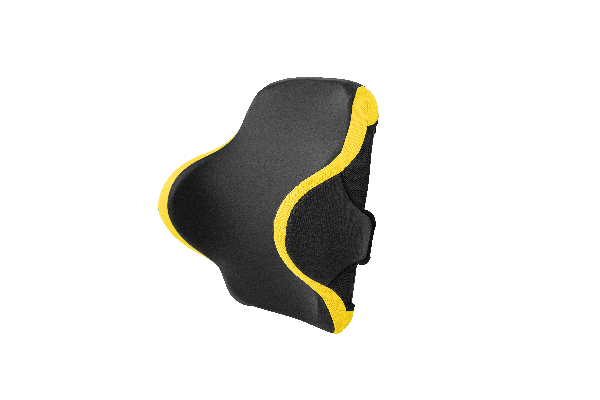

Whatever your needs are, the Spex Manta offers a premium back support solution, whether that be forming a crucial part of a complex seating system, or providing a nice, comfortable and supportive hug for the user of a simplistic set-up.
The Manta has your back!

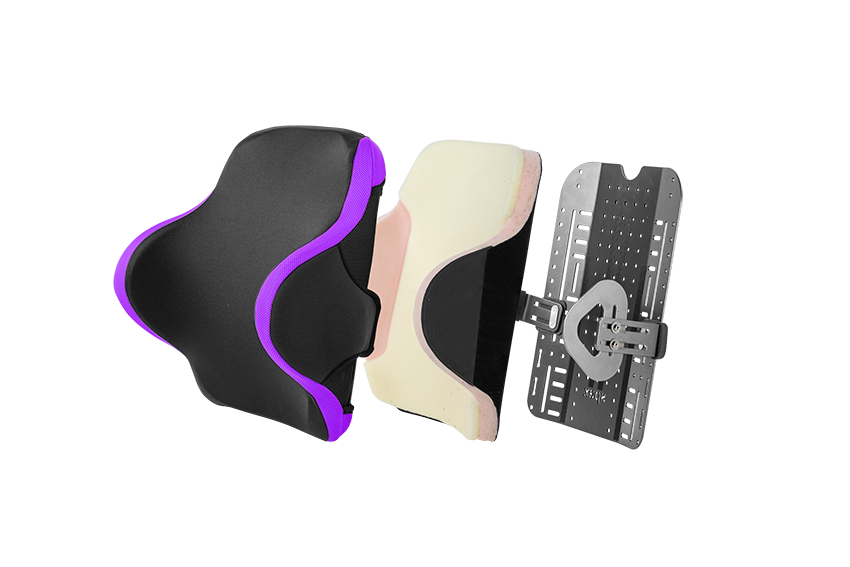

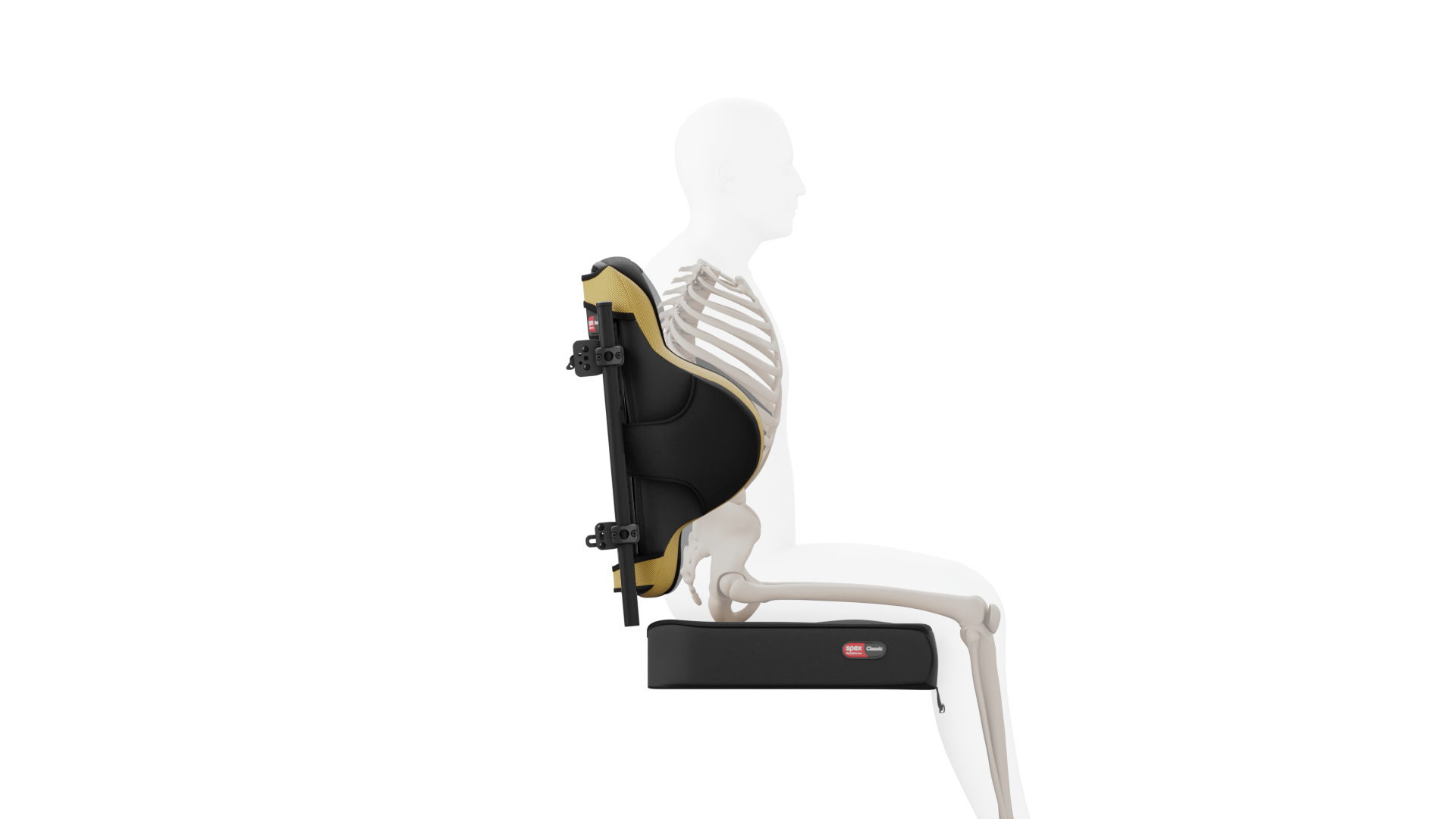

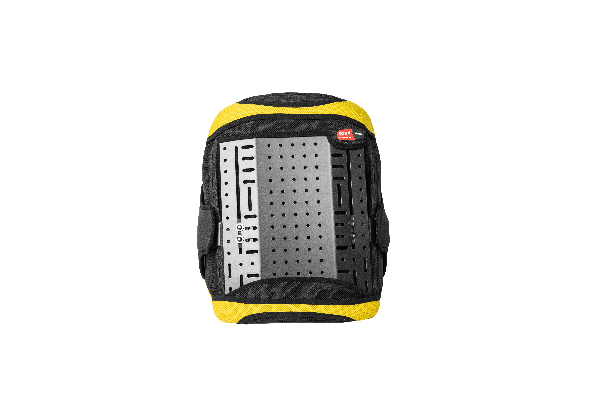

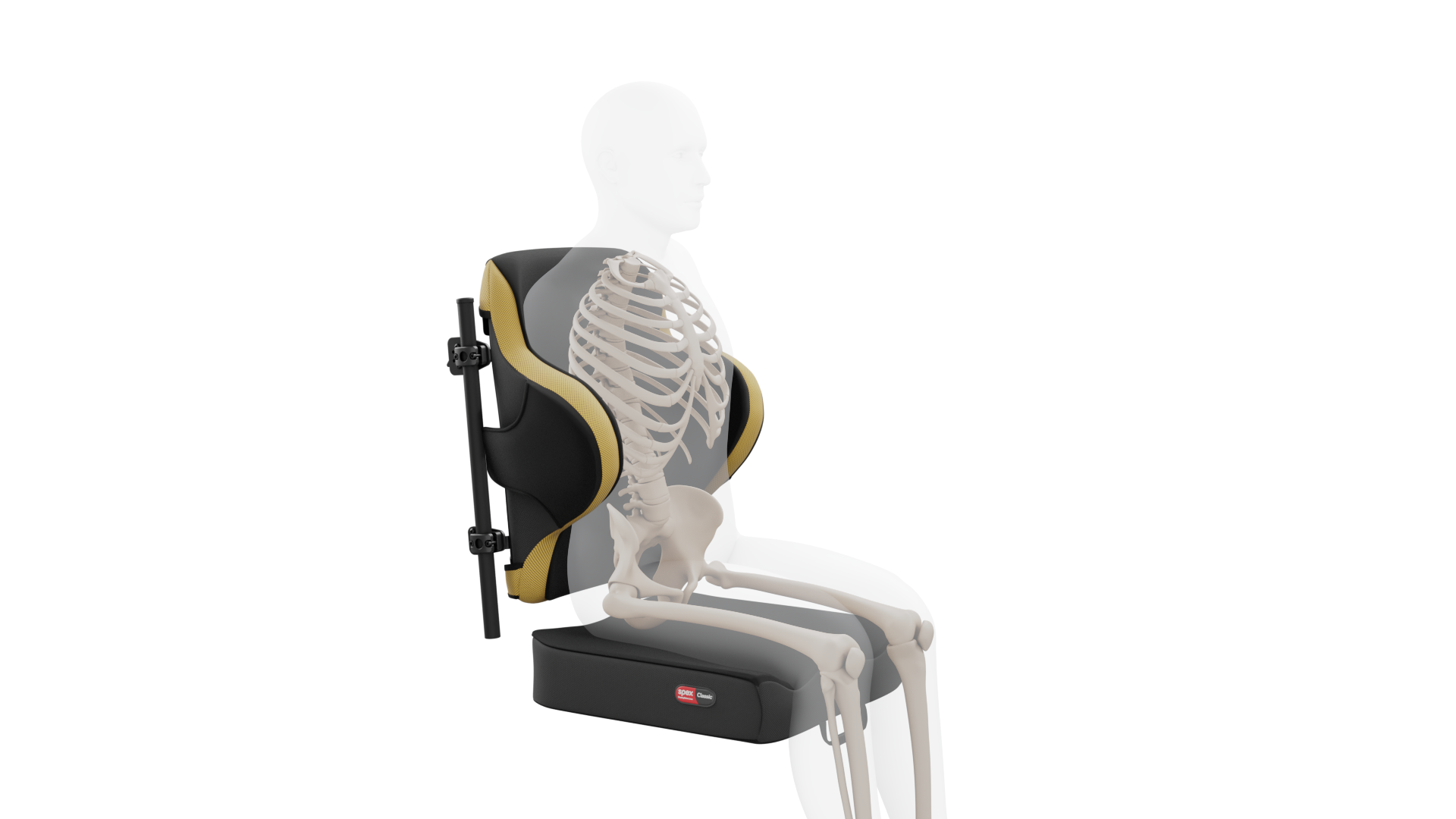

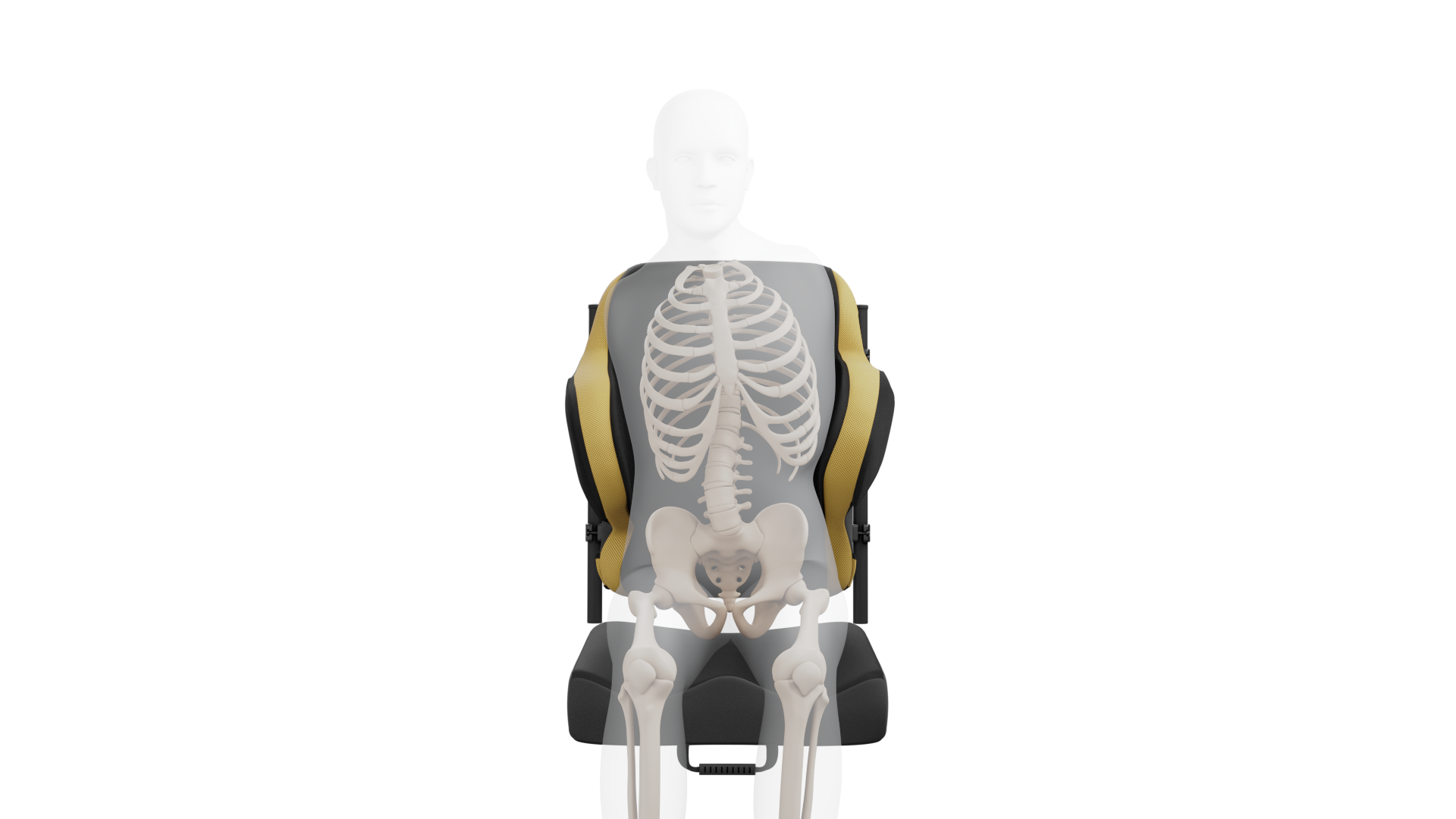

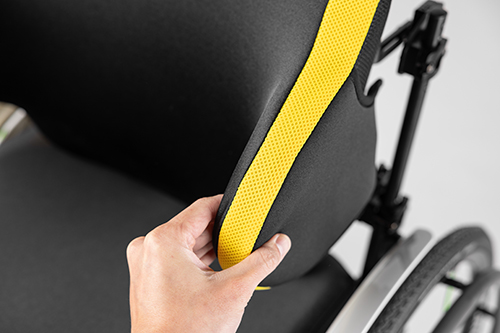

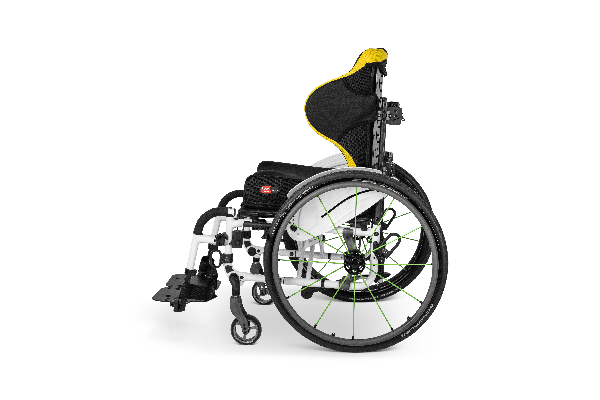

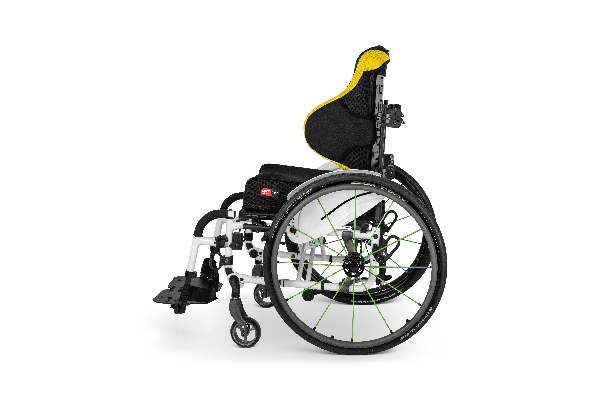

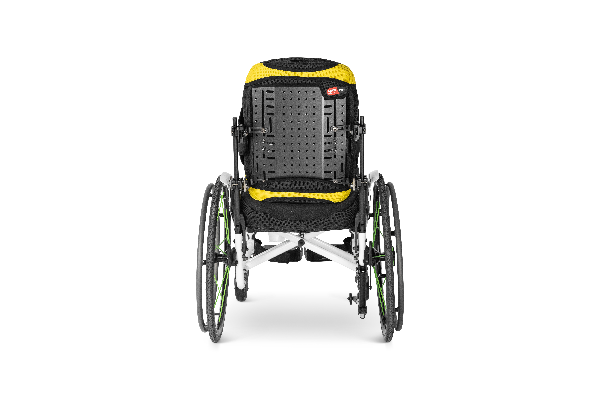

The Manta offers a solid shell with unique built-in lateral wings that are width, height and angle adjustable to give excellent lateral stability. An upholstery wrap offers comfort and secure spine and trunk support.
![](https://medifab.com/au/wp-content/uploads/2023/07/Spex-Manta_Lateral-Depth-Adjustment.png)
![](https://medifab.com/au/wp-content/uploads/2023/07/Spex-Manta_Lateral-Height-Adjustment.png)
![](https://medifab.com/au/wp-content/uploads/2023/07/Spex-Manta_Spine-Trunk-Support.png)
![](https://medifab.com/au/wp-content/uploads/2023/07/Spex-Manta_Head-Support-Add-ons.png)
Manta is designed for the individual who requires:
- A solid back support to support stability needs.
- Shoulder height back support with deep contour lateral support.
- Minimal to high level postural support.
- Improved trunk/pelvic positioning with independently adjustable incorporated lateral supports.
- Has mild-moderate torso asymmetries.
- Greater functionality as there is minimal hardware between the user and the lateral supports.

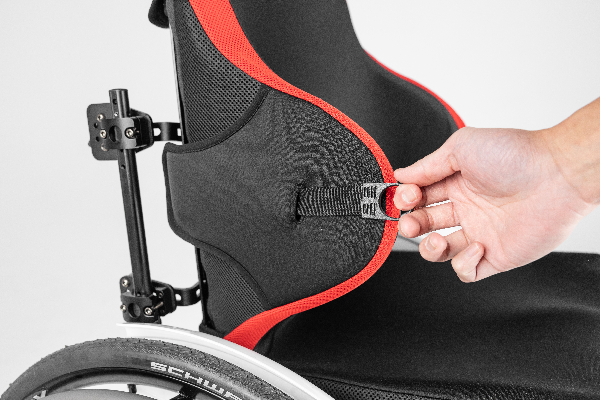

- Fully adjustable and repositionable lateral ‘wings’ means that the therapist/clinician can ensure the right support in the right place for the user.
- Slick and non-obtrusive, yet provides the right amount of spine and lateral stability for many different postural needs.

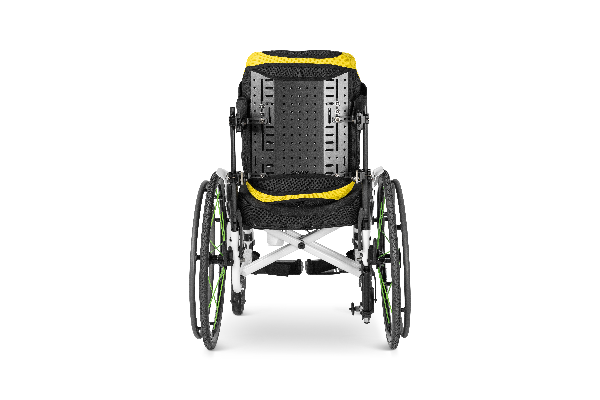

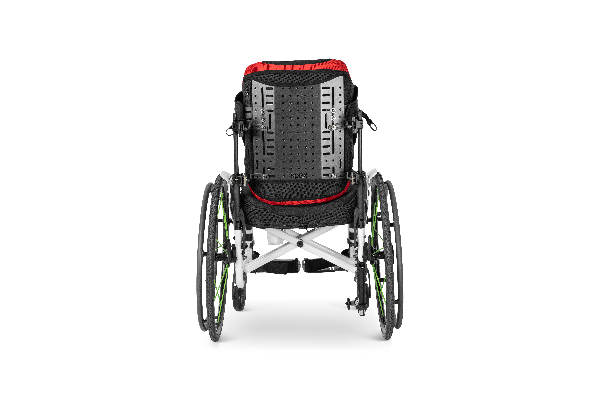

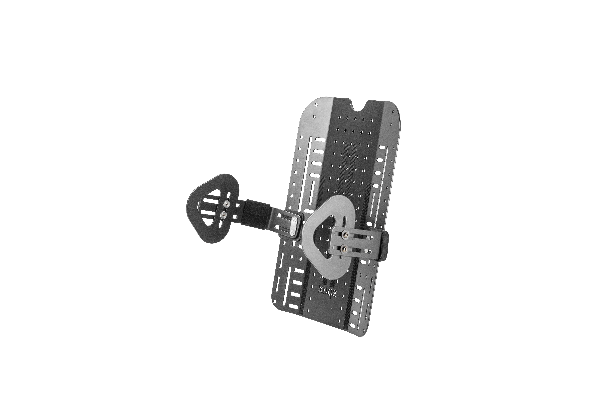

- Lightweight solid aluminum back support with quick-release hardware.

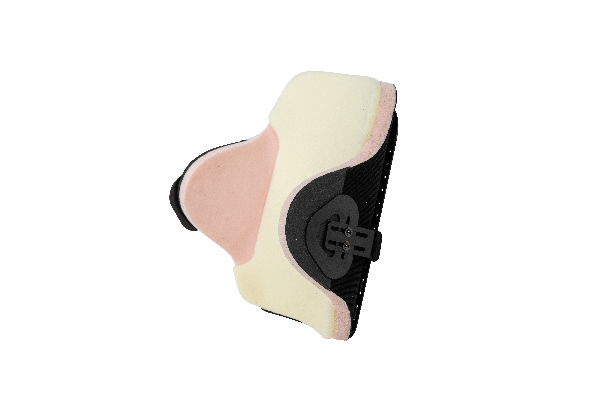

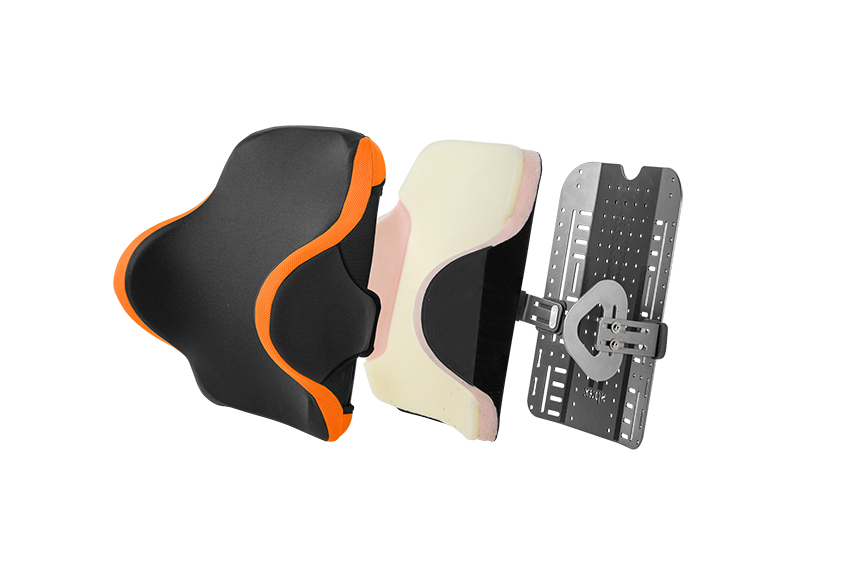

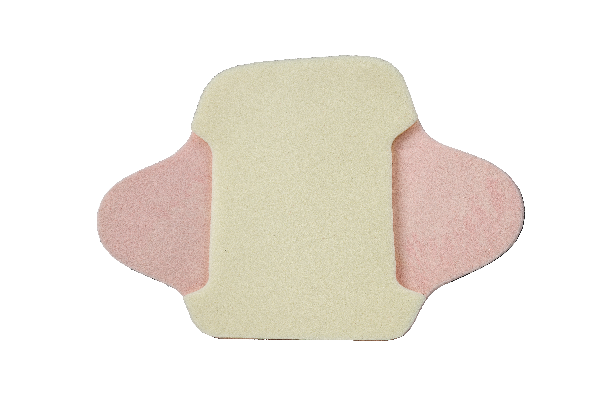

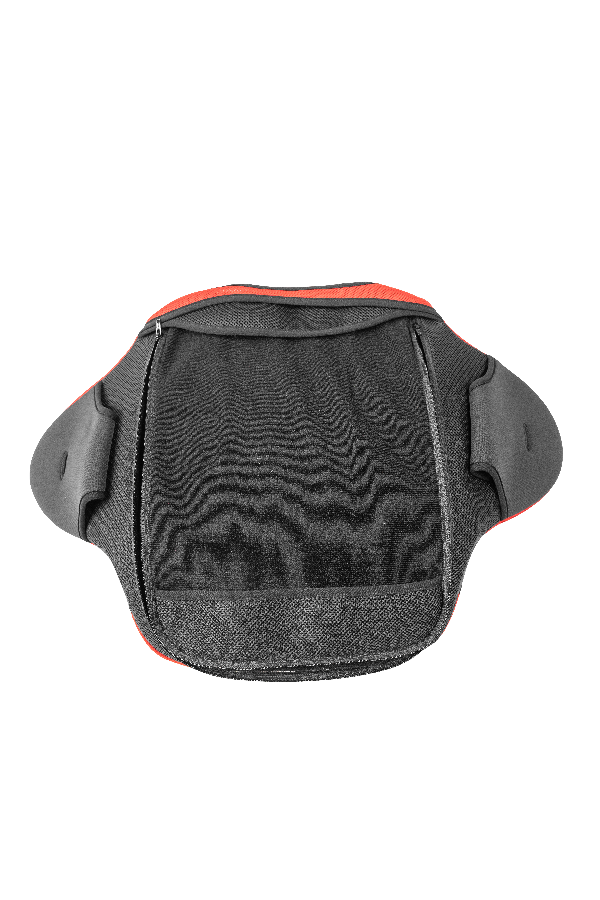

- Wrap upholstery section gives conforming comfort.
- Offers exceptional trunk stability.
- Minimal contouring and includes a positioning kit for further postural enhancements.
- Add head and other positioning supports if more support is required.
![](https://medifab.com/au/wp-content/uploads/2022/11/Spex-Comfort-250-Head-Support-Pad-Client-1-medium.png)
![](https://medifab.com/au/wp-content/uploads/2022/11/Medifab-Laura-Nov-2020-0658-medium.jpg)
![](https://medifab.com/au/wp-content/uploads/2022/11/Spex-QR-Lateral-Support-Wheelchair-6-Axial-Back-Mount-medium.png)
![](https://medifab.com/au/wp-content/uploads/2022/11/Spex-Fixed-Arm-Axial-Thigh-Support-Combo-SD-Pan-Mount-Wheelchair-4-medium.png)
![](https://medifab.com/au/wp-content/uploads/2022/11/Spex-Padded-Forearm-Straps-1-Ghosted-medium.png)
![](https://medifab.com/au/wp-content/uploads/2022/11/Spex-Angle-Adjust-Arm-Support-Wheelchair-3.png)
![](https://medifab.com/au/wp-content/uploads/2022/11/Spex-Axial-Thigh-Support-SD-Pan-Mount-Wheelchair-1-medium.png)
![](https://medifab.com/au/wp-content/uploads/2022/11/Spex-Fixed-Arm-Fixed-Thigh-Support-Combo-QR-Pan-Mount-Wheelchair-4-medium.png)
![](https://medifab.com/au/wp-content/uploads/2022/11/Spex-4-Point-Hip-Belt-Wheelchair-Centre-Pull-Latch-Buckle-medium.png)
![](https://medifab.com/au/wp-content/uploads/2022/11/Spex-Top-Drop-Lock-Tray-Table-1-medium.png)
![](https://medifab.com/au/wp-content/uploads/2022/08/Spex-Back-Support-Incontinence-Cover-medium.png)
![](https://medifab.com/au/wp-content/uploads/2022/10/Spex-Classic-Dual-Layer-Cover-medium.png)
![](https://medifab.com/au/wp-content/uploads/2022/10/Spex-Back-Support-Enhanced-Contour-Wedges.png)
![SPEX Tessellated Shape System 1 Lite Kit](https://medifab.com/au/wp-content/uploads/2022/08/Spex-Tessellated-Shape-System-1-Lite-Kit-small.png)
![Anterior Trunk Support](https://medifab.com/au/wp-content/uploads/2023/05/Website-Category-Thumbnail-Anterior-Trunk-Supports-e1700686193845.png)
Spex Stylo Head Supports
Circle | Comfort | Contour |
![]() |
![]() |
![]() |
Unique minimal head support providing direct posterior support for users with good head control.
Available in two sizes: Circle 150 and Circle 250. |
General use head support pad suited for transit and travel.
Available in two sizes: Comfort 250 and Comfort 350. |
Contoured shaped pad for superior occipital and suboccipital support.
Available in two sizes: Contour 250 and Contour 350. |
Standard Lateral | Extended Lateral | Adjustable Lateral |
![]() |
![]() |
![]() |
One-piece lateral head support solution for moderate head positioning needs.
Available in two sizes: Paediatric and Adult. |
One-piece lateral head support solution for complex head positioning needs.
Available in two sizes: Paediatric and Adult. |
A superior adjustable lateral head control system with individualised ‘tuning’.
Available in two sizes: Adjustable Lateral 150 and Adjustable Lateral 250. |
Custom head supports are available – please contact us for more information.
Spex Medial Thigh Support![](https://www.medifab.com/wp-content/uploads/2022/11/Medifab-Laura-Nov-2020-0658-medium-300x200.jpg)
Swing-Down, Standard Pad
Code | Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F(mm) |
---|---|---|---|---|---|---|---|
1162-1501-000 | 1 | 60 | 145 | 95 | 40 | 40 | 65 |
1162-1502-000 | 2 | 60 | 155 | 100 | 60 | 50 | 65 |
1162-1503-000 | 3 | 60 | 185 | 105 | 60 | 60 | 75 |
Swing-Down, Axial-Adjustable Pad
Code | Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
---|---|---|---|---|---|---|---|
1162-1601-000 | 1 | 70-140 | 145 | 95 | 50-120 | 40 | 65 |
1162-1602-000 | 2 | 70-140 | 155 | 100 | 60-140 | 50 | 65 |
1162-1603-000 | 3 | 70-160 | 185 | 105 | 60-140 | 60 | 75 |
For medial thigh support customisations please contact us.
Spex Lateral Trunk Supports
Select Hardware
- Fixed Bracket
- Standard Swing-Away Bracket
- Axial Swing-Away Bracket
Select Bracket Upgrade
- Cane Mount
- DeepContour backrest bracket
- Extension for DeepContour (commonly used with SuperShape Backrest
Select Comfy-Cover
- Extended padding over mechanism to protect arms from metal hardware
- Clever release strap for operating the swing away movement
- Easy release for users who have limited hand function and need independent use to open the laterals for transfers
Spex Arm & Thigh Hardware
Seat Pan
Each | Quick Release | Swing-Down | Fixed Mount |
---|---|---|---|
Angle-Adjust Arm + Axial Thigh | 1156-0301-110 | 1156-0301-120 | 1156-0301-130 |
Angle-Adjust Arm + Fixed Thigh | 1156-0302-110 | 1156-0302-120 | 1156-0302-130 |
Fixed Arm + Axial Thigh | 1156-0101-110 | 1156-0101-120 | 1156-0101-130 |
Kidz Fixed Arm + Axial Thigh | 1156-0201-110 | 1156-0201-120 | 1156-0201-130 |
Fixed Arm + Fixed Thigh | 1156-0102-110 | 1156-0102-120 | 1156-0102-130 |
Kidz Fixed Arm + Fixed Thigh | 1156-0202-110 | 1156-0202-120 | 1156-0202-130 |
Seat Rail
Each | Quick Release | Swing-Down | Fixed Mount |
---|---|---|---|
Angle-Adjust Arm + Axial Thigh | 1156-0301-210 | 1156-0301-220 | 1156-0301-230 |
Angle-Adjust Arm + Fixed Thigh | 1156-0302-210 | 1156-0302-220 | 1156-0302-230 |
Fixed Arm + Axial Thigh | 1156-0101-210 | 1156-0101-220 | 1156-0101-230 |
Kidz Fixed Arm + Axial Thigh | 1156-0201-210 | 1156-0201-220 | 1156-0201-230 |
Fixed Arm + Fixed Thigh | 1156-0102-210 | 1156-0102-220 | 1156-0102-230 |
Kidz Fixed Arm + Fixed Thigh | 1156-0202-210 | 1156-0202-220 | 1156-0202-230 |
Spex Limb Supports
Padded Forearm Straps
Size | Length | Set of Four | One only |
---|---|---|---|
SML | 150 mm | 1408-6511-017 | 1408-6521-017 |
MED | 180 mm | 1408-6512-017 | 1408-6522-017 |
LGE | 230 mm | 1408-6513-017 | 1408-6523-017 |
Heel Loops
Size | Pair |
---|---|
SML | 1403-6181-017 |
MED | 1403-6182-017 |
LGE | 1403-6183-017 |
Footfast Stabilisers
Size | Circumference | Standard Pair | Pair with Rear Retainer Strap |
---|---|---|---|
SML | 15-23 cm (Inner) | 1401-6161-017 | 1401-6165-017 |
MED | 22-30 cm (Inner) | 1401-6162-017 | 1401-6166-017 |
LGE | 26-38 cm (Inner) | 1401-6163-017 | 1401-6167-017 |
Padded Calf Straps
Code | W/C Width | Height | Code | W/C Width | Height |
---|---|---|---|---|---|
1402-6170-017 | 10″ | 5 cm | 1402-6174-017 | 17″ | 9 cm |
1402-6171-017 | 12″ | 5 cm | 1402-6175-017 | 18 “ | 11 cm |
1402-6172-017 | 14″ | 7 cm | 1402-6176-017 | 20″ | 13 cm |
1402-6173-017 | 16″ | 9 cm |
Spex Arm Support Hardware
Seat Pan
Each | Quick Release | Swing-Down | Fixed Mount |
---|---|---|---|
Fixed | 1156-0100-110 | 1156-0100-120 | 1156-0100-130 |
Fixed Kidz | 1156-0200-110 | 1156-0200-120 | 1156-0200-130 |
Angle-Adjust | 1156-0300-110 | 1156-0300-120 | 1156-0300-130 |
Seat Rail
Each | Quick Release | Swing-Down | Fixed Mount |
---|---|---|---|
Fixed | 1156-0100-210 | 1156-0100-220 | 1156-0100-230 |
Fixed Kidz | 1156-0200-210 | 1156-0200-220 | 1156-0200-230 |
Angle-Adjust | 1156-0300-210 | 1156-0300-220 | 1156-0300-230 |
Spex Thigh Support Hardware
Seat Pan
Each | Quick Release | Swing-Down | Fixed Mount |
---|---|---|---|
Fixed | 1156-0002-110 | 1256-0002-120 | 1156-0002-130 |
Axial | 1156-0001-110 | 1156-0001-120 | 1156-0001-130 |
Seat Rail
Each | Quick Release | Swing-Down | Fixed Mount |
---|---|---|---|
Fixed | 1156-0002-210 | 1156-0002-220 | 1156-0002-230 |
Axial | 1156-0001-210 | 1156-0001-220 | 1156-0001-230 |
Spex Thigh and Arm Support Pads
Thigh Support Pads
Code | Size | A (mm) | B (mm) | E (mm) | PER |
---|---|---|---|---|---|
1156-1010-400 | 10″ | 265 | 90 | 35 | EA |
1156-1012-400 | 12″ | 310 | 95 | 35 | EA |
1156-1014-400 | 14″ | 360 | 130 | 50 | EA |
1156-1016-400 | 16″ | 410 | 135 | 50 | EA |
1156-1018-400 | 18″ | 460 | 145 | 50 | EA |
1156-1020-400 | 20″ | 510 | 160 | 50 | EA |
Arm Supports Pads
Code | Size | A (mm) | B (mm) | PER |
---|---|---|---|---|
1156-5811-400 | 1 Narrow | 40 | 250 | EA |
1156-5812-400 | 2 Narrow | 50 | 300 | EA |
1156-5813-400 | 3 Narrow | 60 | 350 | EA |
1156-5821-400 | 1 Wide | 70 | 250 | EA |
1156-5822-400 | 2 Wide | 80 | 300 | EA |
1156-5823-400 | 3 Wide | 90 | 350 | EA |
For custom arm or thigh supports please contact us.
Spex Hip Belts
2 Point
Centre Pull |
2 Point Dual-Centre Pull | 4 Point Side Pull | 4 Point Centre Pull | 4 Point Dual-Centre Pull |
---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
User or carer operated. Tensions at centre of buckle. Suits clients with low muscle tone or weakness. | User or carer operated. Tensions from both sides at centre of buckle. Suits clients needing greater adjustment. Accommodates clothing/weight changes. | Carer operated. Tensions from the rear of the pad pulling towards the centre, for more severe needs. Suits clients with high muscle tone. | User or carer operated. Tensions at centre of buckle. Suits clients with low muscle tone or weakness. | User or carer operated. Tensions from both sides at centre of buckle. Suits clients needing greater adjustment. Accommodates clothing/weight changes. |
Harnesses
Hip Belt Style | X-Small | Small | Medium | Large |
---|---|---|---|---|
Pad width 30cm | Pad width 36cm | Pad width 46cm | Pad width 56cm | |
2 Point Padded Centre Pull | 1405-6210-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
2 Point Padded Dual Centre Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
4 Point Padded Centre Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
4 Point Padded Dual Centre Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
4 Point Padded Side Pull | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX | 1405-6211-XXX |
The last three digits of the code refer to the buckle type. See below table for buckle options.
Buckle Options
Side Release | Centre Release | Anti-Escape | Pen Popper | Easy Release Latch |
---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
-027 | -028 | -026 | -025 | -023 |
Simple and easy to click together and undo. | Robust design to keep the user positioned and safe. | Prevent users with challenging behaviour from releasing the buckle. | Requires a pen to prod the buckle mechanism to release open. | Simply lift the metal buckle flap and slide the buckle apart. |
Note: These harnesses are a positioning device only. Do not use as a safety restraint in vehicles.
Spex Tray Tables
Size | Width | Depth | Black ABS Tray Top | Clear Polycarbonate Tray Top |
---|---|---|---|---|
Small | 450 mm | 450 mm | 1311-7101-000 | 1311-7111-000 |
Medium | 550 mm | 550 mm | 1311-7102-000 | 1311-7112-000 |
Large | 650 mm | 650 mm | 1311-7103-000 | 1311-7113-000 |
Slide and Lock
Drop and Lock
Back Support Incontinence Cover
Product Code:
1254-WWHH-000-I
Extra Outer Back Support Cover
Product Code:
1254-WW-HH-000-C

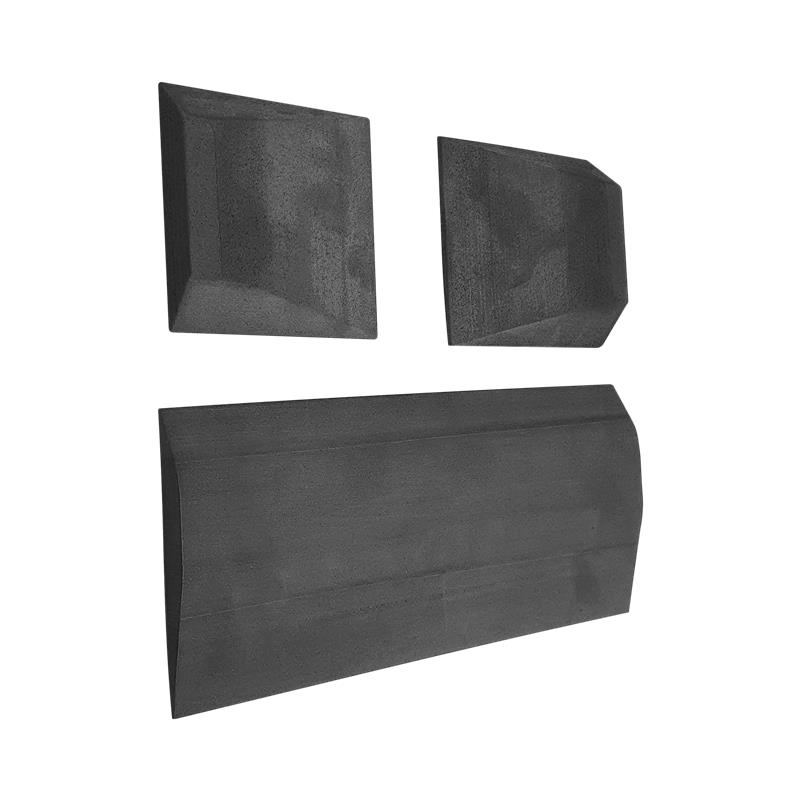

Asymmetric Contour Wedge Kit![](https://www.medifab.com/wp-content/uploads/2022/10/Spex-Back-Support-Enhanced-Contour-Wedges-300x300.png)
Contains four foam wedges to provide greater contouring.
Dimensions:
- 20 x 20 x 4cm
- 20 x 10 x 4cm
- 20 x 10 x 4cm
- 4 x 20 x 40cm
Product Code:
1209-2720-300
TSS Lite Kit![](https://www.medifab.com/wp-content/uploads/2022/08/Spex-Tessellated-Shape-System-1-Lite-Kit-small-300x300.png)
Contouring and positioning kit for use behind Zygo upholstery. Includes selection of TSS
shape elements and foam wedges.
Product Code:
Anterior Trunk Support
Unique harness designs suit a wide scope of requirements for postural restraint and support.
Spex Centrepoint Harness | Spex Retractor Harness | Spex Vest Harness |
![]() |
![]() |
![]() |
With a curved pad construction and unique shape, it is designed to follow natural contours of the body.
Product code: see table below |
Comprising of two individual ‘straps’ to encourage good retraction of the user’s shoulders.
Product code: see table below |
Low neck design for increased safety, and sufficient lower cut-out for optimum stomach clearance and comfort.
Product code: see table below |
Spex H-Harness | Spex Chest Strap | Spex Shoulder Strap Guides |
![]() |
![]() |
![]() |
A minimalist option, featuring a cross strap that is positioned low on the user’s trunk for increased safety.
Product code: see table below |
For users who need firm support around their chest, whilst still providing a high level of comfort.
Product code: see table below |
Recommended for any harness choice to prevent shoulder straps from falling off shoulders.
Product code: 1400-6692-000 |
Product Codes
Spex Centrepoint | Spex Retractor | Spex Vest | Spex H-Harness | Spex Chest Strap | |
---|---|---|---|---|---|
Extra Small | 1409-6660-017 | – | 1409-6610-017 | 1409-6640-017 | – |
Small | 1409-6661-017 | 1409-6621-017 | 1409-6611-017 | 1409-6641-017 | 1409-6821-017 |
Medium | 1409-6662-017 | 1409-6622-017 | 1409-6612-017 | 1409-6642-017 | 1409-6822-017 |
Large | 1409-6663-017 | 1409-6628-017 | 1406-6613-017 | 1409-6643-017 | 1409-6623-017 |
Extra Large | 1409-6664-017 | 1409-6624-017 | – | 1409-6644-017 | – |
Size 0 | Size 1 | Size 2 |
---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Manta Back Support Size | Lateral Wings | Max. Internal Width (A) | Min. Internal Width (A) |
---|---|---|---|
10-12″ | Size 0 | Scripted Back Width -3.5″ (eg. 12″ Manta = 8.5″) |
Scripted Back Width -4.5″ (eg. 12″ Manta = 7.5″) |
13-15″ | Size 1 | Scripted Back Width -3.5″ (eg. 14″ Manta = 12″) |
Scripted Back Width -5″ (eg. 14″ Manta = 9″) |
16″+ | Size 2 | Scripted Back Width -1.5″ (eg. 16″ Manta = 14.5″) |
Scripted Back Width -5″ (eg. 16″ Manta = 11″) |
