Zippie Z500M Mini Power Wheelchair

Enquire now
Z5F7B31-1024x1024-1

Zippie Z500M Mini Power Wheelchair

Zippie Z500M Mini

Allows your child to navigate tight spaces and is capable of tackling tough terrain.

The Z500M Mini combines our ultra compact wheelchair with highly adjustable and customisable seating. End result – a great choice to promote active kids.

The Z500M Mini is our smallest Mid Wheel Drive Base

The Z500M Mini compact base is only 52cm wide for accessing tight indoor spaces. Its mid wheel drive design is intuitive to drive and turns on a dime. The combination allows your child to drive effortlessly through narrow hallways, between desks, and beside friends and family.

Powerful Motors & Batteries

Our reliable and high performance motor package features, 10kph motors that keep up with your child’s most playful and energetic days. The Z500M Mini long-lasting batteries provide the range needed to travel the distance on a single charge.

Medifab is pleased to provide the most comprehensive special purpose car seat we’ve every introduced for children and teenagers, providing various kinds of extension accessories and multi-adjustable features to allow longer use by the child and to suit the wide spectrum of children’s needs.

The Carrot 3000 Car Seat is one of the safest child seats in the world, catering for safety and the importance of keeping the child in a safe and supported posture for travel and was was designed, engineered and built to provide optimal positioning & safety for children with insufficient head, trunk, and pelvic stability.

Functional benefits

JSM2_joystick_DSF0214

R-Net Multi Module Powerchair Control System

When a standard joystick is not the best option for your child, Specialty Input Devices help make independent mobility possible.

Quickie and specialty input device leaders Switch-It®, offer devices such as switch controls, head array/ chin controls that focus on the strengths and capabilities of each child to create a personalised driving platform they can operate with ease.

Z500M-Mini-Spex-4xx

Mini Base

The Z300 M Mini's Micro base is just 52cm wide!

This compact base is perfect for children to move around their environment with ease and efficiency.

Z300M-Mini-Client-Image-2-Edit-medium

Powerful Motor & Battery

Our reliable and high performance motor package features, 10kph motors that keep up with your child's most playful and energetic days. The Z500M Mini's long-lasting batteries provide the range needed to travel the distance on a single charge.

Z500M-Mini-Spex-3xx

Power Tilt

50° of power tilt allows you or your child to change their position and shift weight to reduce the risk of skin breakdown, power tilit will also help reduce development of postural deviations and increase your child's comfort, allowing them to be more active.

Specifications

Power Wheelchair Configuration Category Moderate, High
Drive Drive Wheels 13″ Pneumatic
Castor Wheels Front 7″ Solid / Rear 7″ Solid
Maximum Speed Up to 10 km/h
Ground Clearance 2.75″
Turning Radius 19″
Max Rated Slope 8°
Seating & Positioning Seating System ASAP Seat
Seating Sizes Seat size 1: W 10″-13″ x D 10″-16″
Seat size 2: W 12″-16″ x D 12″-19″
Seat to Floor Heights – Non-Tilt 17″-19″
Seat to Floor Heights – Power Tilt 17.5″-19″
Seat to Floor Heights – Power Tilt & Elevate 18″-19″
Maximum Elevation 12″
Recline Manual 90° – 130°
Electronics & Battery Lights Optional
Battery Size/Type Group 24 (50Ah)
Electronics R-net
Battery Charger 8A Off-Board
Motor Packages 4-Pole Mid-wheel
Dimensions and Weights Battery Weight 2x 15.2kg
Base Weight 93kg
Weight Capacity 75kg
Overall Length 31.5″
Overall Width 20.5″

Warranty

Frame 5 Years
Parts 1 Year



Resources

Zippie Z500M Mini Brochure

2.24 MB

Z500 Mini Powerchair Script Form NZ

0.17 MB

Medifab Comparison Chart (NZ) - Paediatric Wheelchairs

1.67 MB

Medifab Zippie Spoke Guard Options

2.86 MB

Zippie Z500 Mini Spare Parts Manual

19.05 MB

Crash Test Brochure_AUS_2023

9.22 MB

Z500_Z300M Mini User Manual

10.44 MB

Accessories

Z587121-scaled

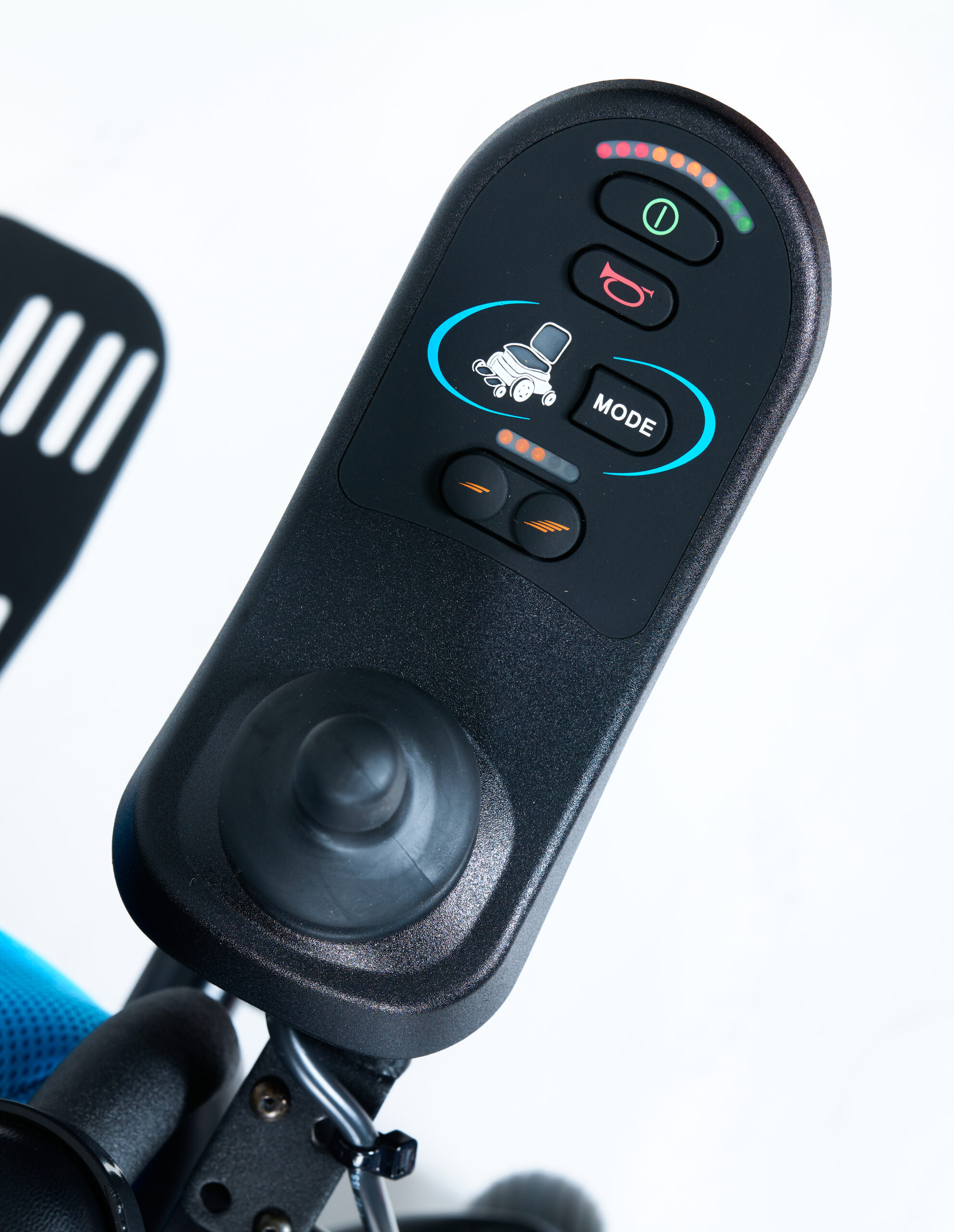

Z 500 Joy Stick

Z 500 Joy Stick

Z500WI2-300x136

Z587121-scaled
