How to fold the Zippie IRIS
Functional benefits
40° or 55° of Intelligent Rotation in Space Technology
With patented Intelligent Rotation in Space technology, the IRIS seat frame rotates around the child's center of gravity. The rotation arm was designed specifically for paediatric users to ensure a smooth tilting motion. It also helps children remain comfortable and secure while tilting, and it is easy for parents and caregivers to control.
Available with 40° or 55° rotation ranges that can be set to achieve up to 45° or 60° of posterior rotation, the IRIS offers superior positioning capabilities.
Optional XLOCK Folding Crossbrace
Now offers the benefits of both rotation-in-space technology and an optional folding frame. Patented XLOCK® folding crossbrace fully locks when unfolded for superior rigidity, and folds into a compact size for convenient transport.
Accessories for Caregiver Convenience
Available with a wide variety of options to help you manage daily activities involving your child's care. The Foot Release Tilt Actuator eliminates exposed cables. Push-button hub locks located on the back canes are compact, easy to access, and easy to operate for any caregiver. Standard with the Height Adjustable Push Handle, the Angle Adjustable Stroller Handle has 260° of angle adjustability to fit varying caregiver heights and to enable pushing from a tilted position.
Growth Capabilities
Designed to maintain proper support for your child as they grow. The folding frame option offers up to 4" of built-in depth growth and 2" of built-in width growth. The rigid frame option is available with width-adjustable strut tubes.
Additionally, through the True Fit Growth program, the original Zippie IRIS owner qualifies for one free growth kit within 5 years. The growth kit includes all parts and components needed to adjust the seat width/depth of the chair. (Not available with the Zippie IRIS SE models.)
Foot Release Tilt Actuator
The Foot Release Tilt Actuator eliminates exposed cables.
Zippie Z-Finity Footplate
Adjustable Zippie Z-Finity footplate to cater for the different needs of the user.
Specifications
- Details
- Measurements
- Colour Options
Specifications
Zippie Iris
Code
1562-0000-000
Frame Style
Tilt (Rigid or Folding)
Chair Weight (without footrests if applicable)
Rigid
Standard: 32 lbs
Transport*: 22.8 lbs
Folding
Standard: 35.8 lbs
Transport*: 26.6 lbs
*excludes footrests, rear wheels, seat pan, armrests and transit
Frame Material
Aluminum
User Weight Capacity
225 lbs
Transit Approved
Yes
Tilt Capability
Yes
Zippie Iris
Frame & Feature Specifications
Overall Chair Width
17.5″ – 25.5″
Seat Widths
Rigid: 10″ – 18″
Folding: 10″ – 16″ (grows to 18″)
Seat Depths
10″ – 18″
Frame Angle
N/A
Front Seat-to-Floor Height
13″ – 19″
Rear Seat-to-Floor Height
13″ – 19″
Back Height
Fixed: 19″, 22″, 25″
Adjustable: 16″-22″, 19″-25″
Reclining: 21″, 24″
Angle Adjustable Backrest Adjustment Range
Fore (-) 5º to Aft (+) 30°
Seat Angle Adjustment
N/A
Camber
N/A
Centre of Gravity (COG) Adjustment
6″
Tilt Range
40° or 55°
Accessories
Contracture Platform Footrest
Iris Elevating Leg support
Iris Swing-Away Hangers
Reverse Configuration Optional
LapStacker for Manual

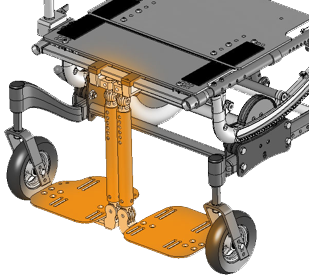

Contracture Platform Footrest
Allows for very tight knees, placement of feet underneath the chair. Length, knee angle, footplate position are all adjustable. Contracture Footplates are positioned underneath and backward (more than 90 degrees reverse).
Outside mount: Hanger is attached laterally on the chair
| Short | Medium | Long | |
|---|---|---|---|
| 14″ | 1568-5170-14S | 1568-5170-14M | 1568-5170-14L |
| 16″ | 1568-5170-16S | 1568-5170-16M | 1568-5170-16L |
| 18″ | 1568-5170-18S | 1568-5170-18M | 1568-5170-18L |
| 20″ | 1568-5170-20S | 1568-5170-20M | 1568-5170-20L |
Tip: System does not swing away for transfers.
Iris Elevating Leg support
Iris Swing-Away Hangers
Reverse Configuration Optional
Reverse configuration of the Iris seat top on the base frame combined with 24” wheels can allow the user to better self-propel in some situations.
LapStacker for Manual
Never Drop Anything Again
With its tensioned, retractable straps, the LapStacker is simple and intuitive to both install and use.
You pull the straps over your lap, clip the buckles together (over the item/s you’re carrying) and roll with confidence! When not in use, it tucks away – and when in use, it makes your life infinitely easier.
Product code:
1579-LAPSTACK2
Works Well With Wonderseat
“Goes together like cupcakes and frosting”
Pair your Zippie Iris with a functional and comfortable seating system! Designed especially for kids who want to explore the wonderful world around them, the Wonderseat Space paediatric seating system from Spex provides the support and comfort your child needs to make the most of their new set of wheels!
