Quickie Iris

Wheelchair

Superior standard for rotation-in-space technology

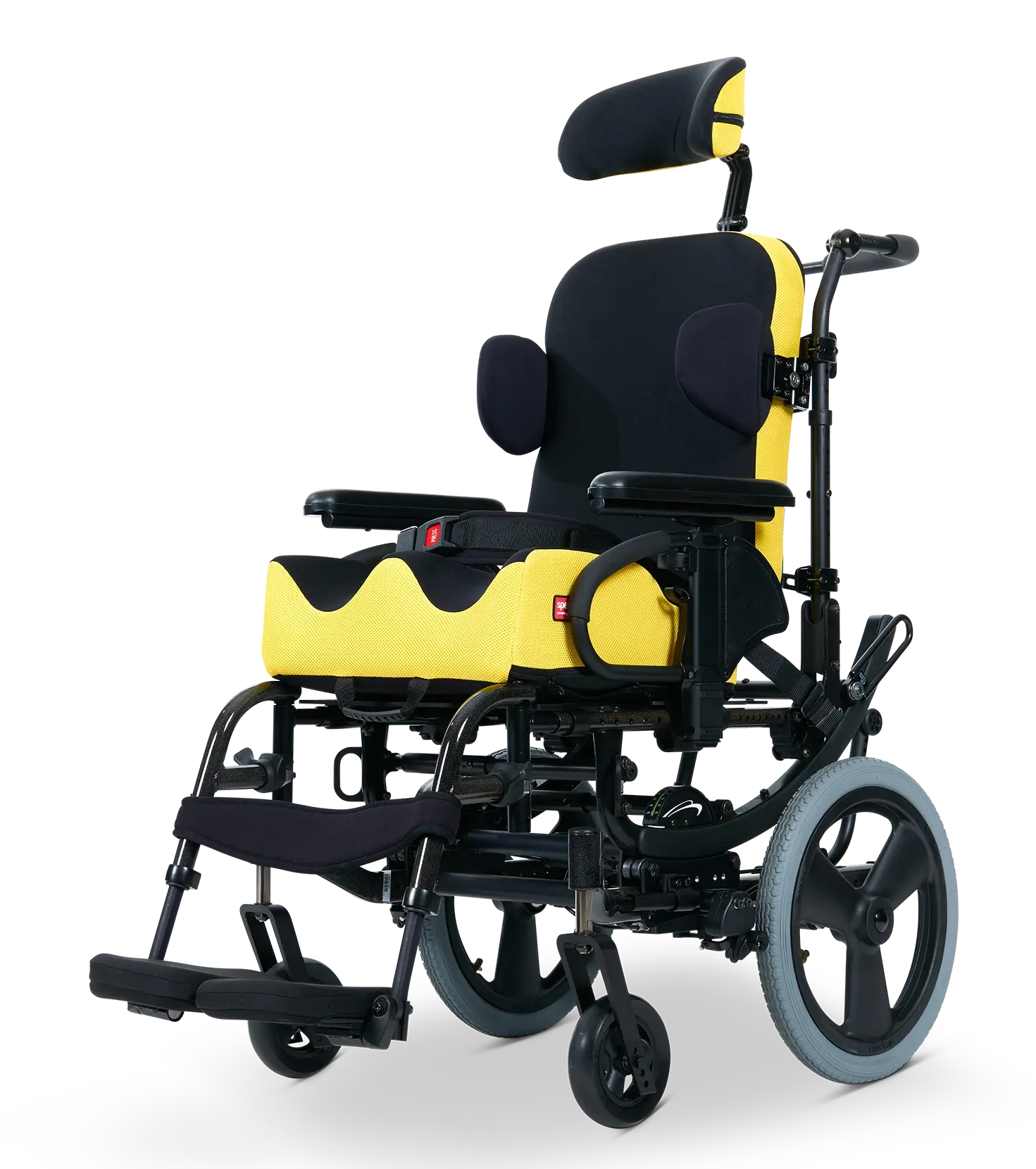

The Quickie IRIS Manual Tilt Wheelchair, ultimate tilt-in-space wheelchair, features up to 55° of Intelligent Rotation in Space Technology.

It also brings the broadest range of positioning and caregiver options, numerous adjustments, and is one of the lightest tilt-in-space wheelchairs available.

Script your Iris wheelchair seating from the Spex range for the ultimate chair set-up!

Gallery

Functional

Benefits

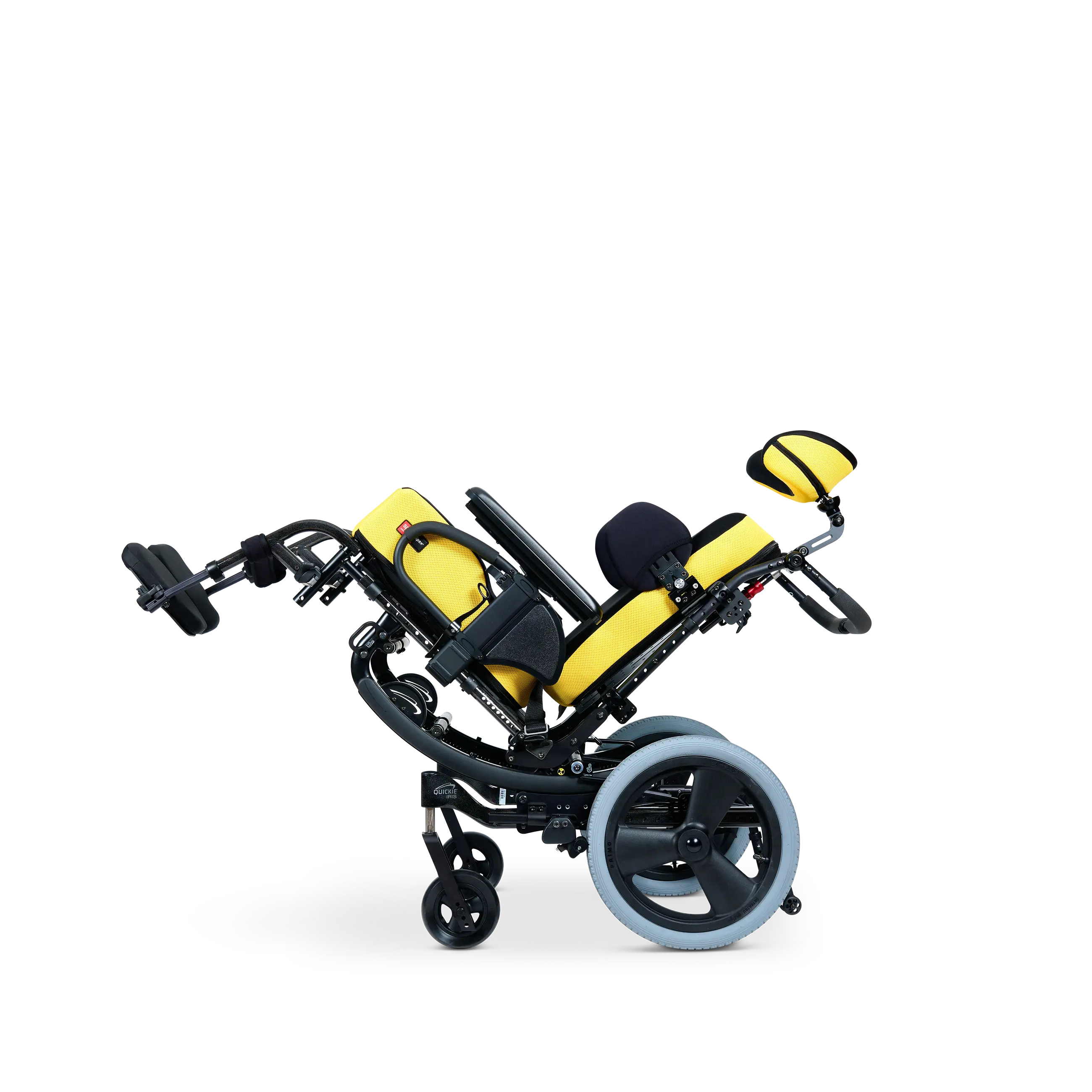

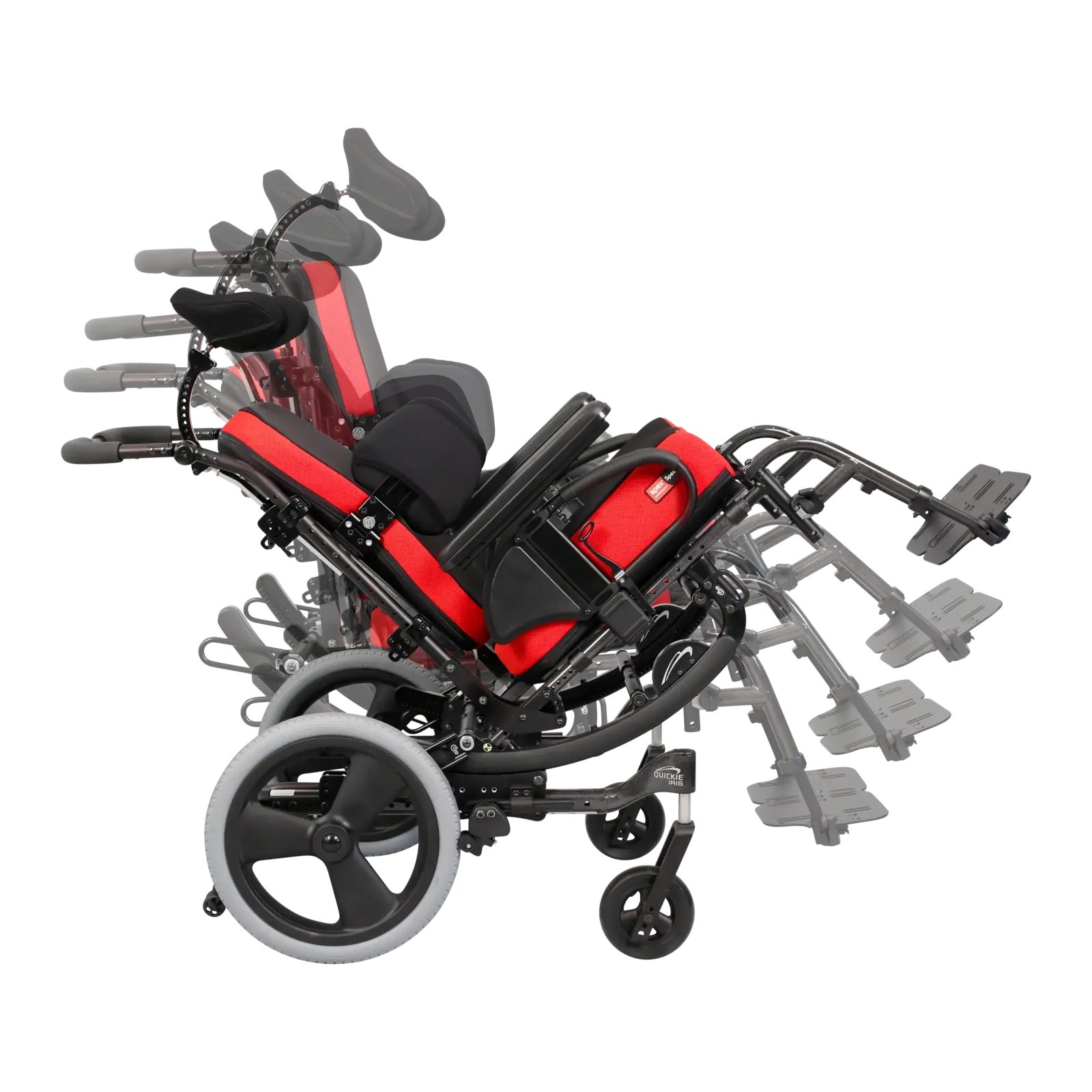

40° or 55° of Intelligent Rotation in Space Technology

Intelligent Rotation in Space technology means the seat frame rotates around the user's center of gravity. This results in a smooth tilting motion that is easy for you to control and allows for the shortest possible wheelbase that is easy for you to maneuver. The IRIS manual wheelchair features 40° or 55° rotation ranges that can be set to achieve up to 45° or 60° of posterior rotation for superior positioning.

New Intuitive Hanger Designs

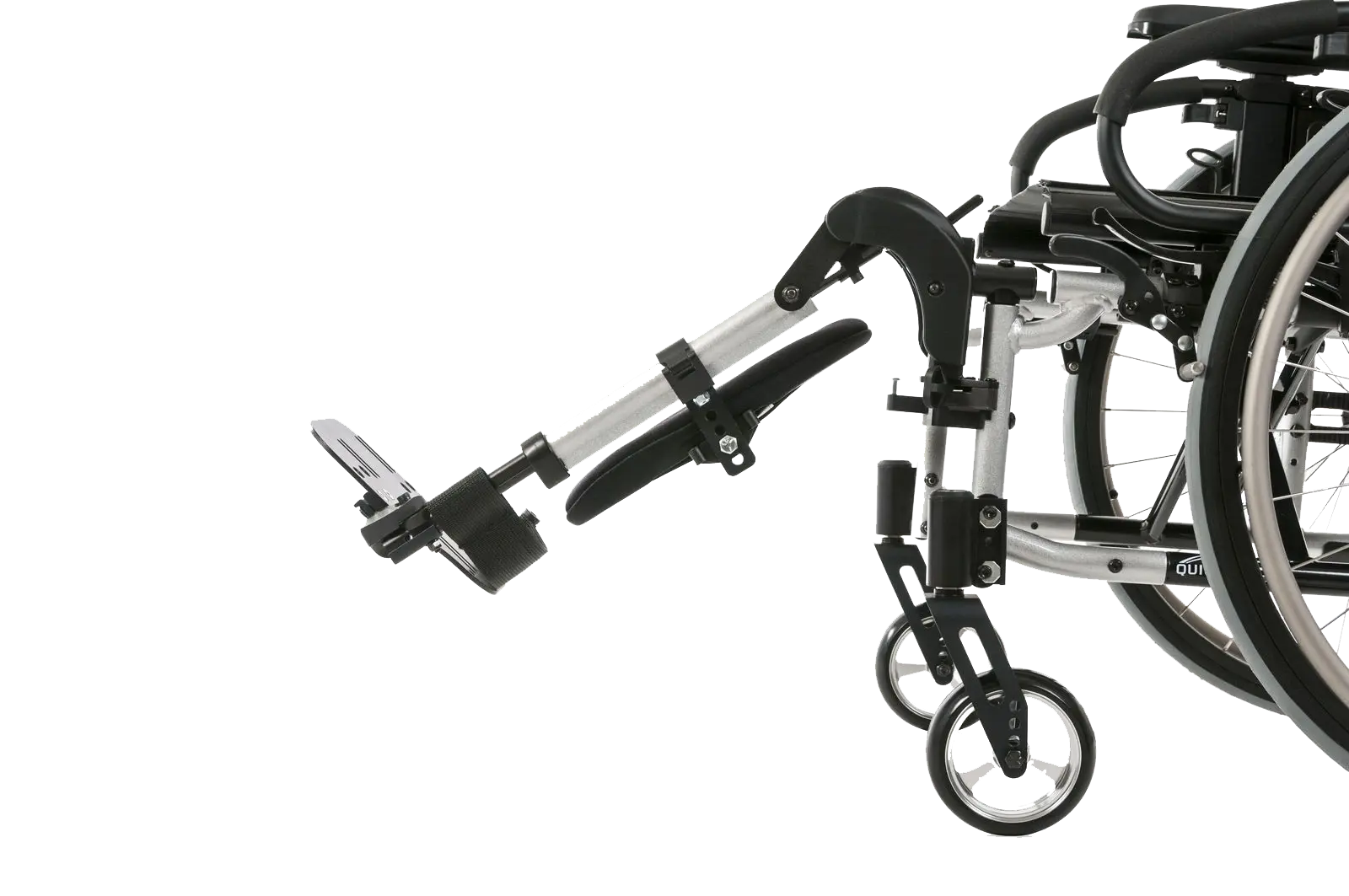

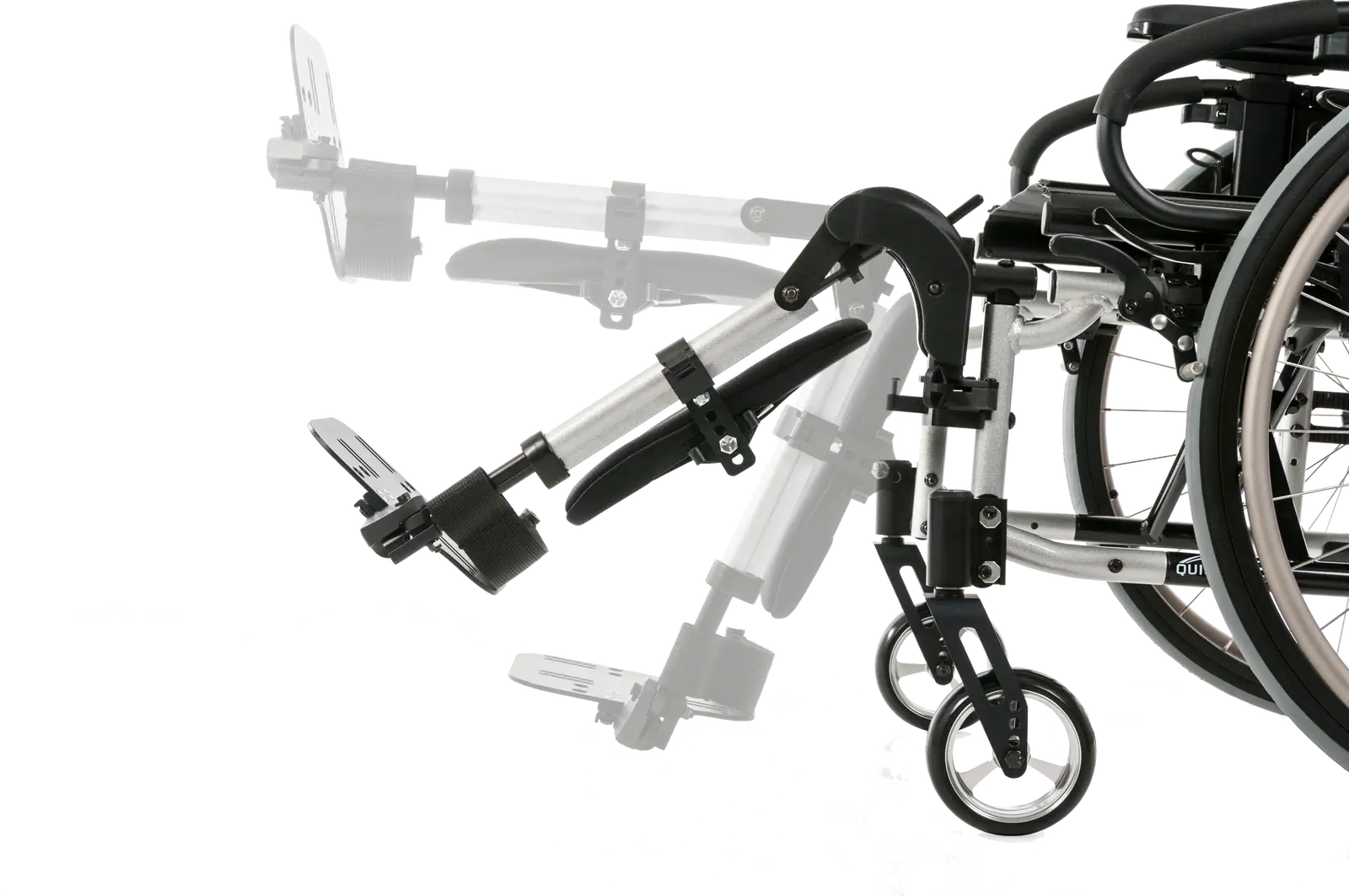

Swing-in/Swing-out hanger design features an intuitive bi-directional release lever that follows your hand's movement. A tapered locking mechanism prevents the hanger from loosening over time. The Elevating/Articulating Legrest (pictured) includes 2" of height adjustment to better align with the knee joint for a natural motion. Audible clicks index its position as it is elevated.

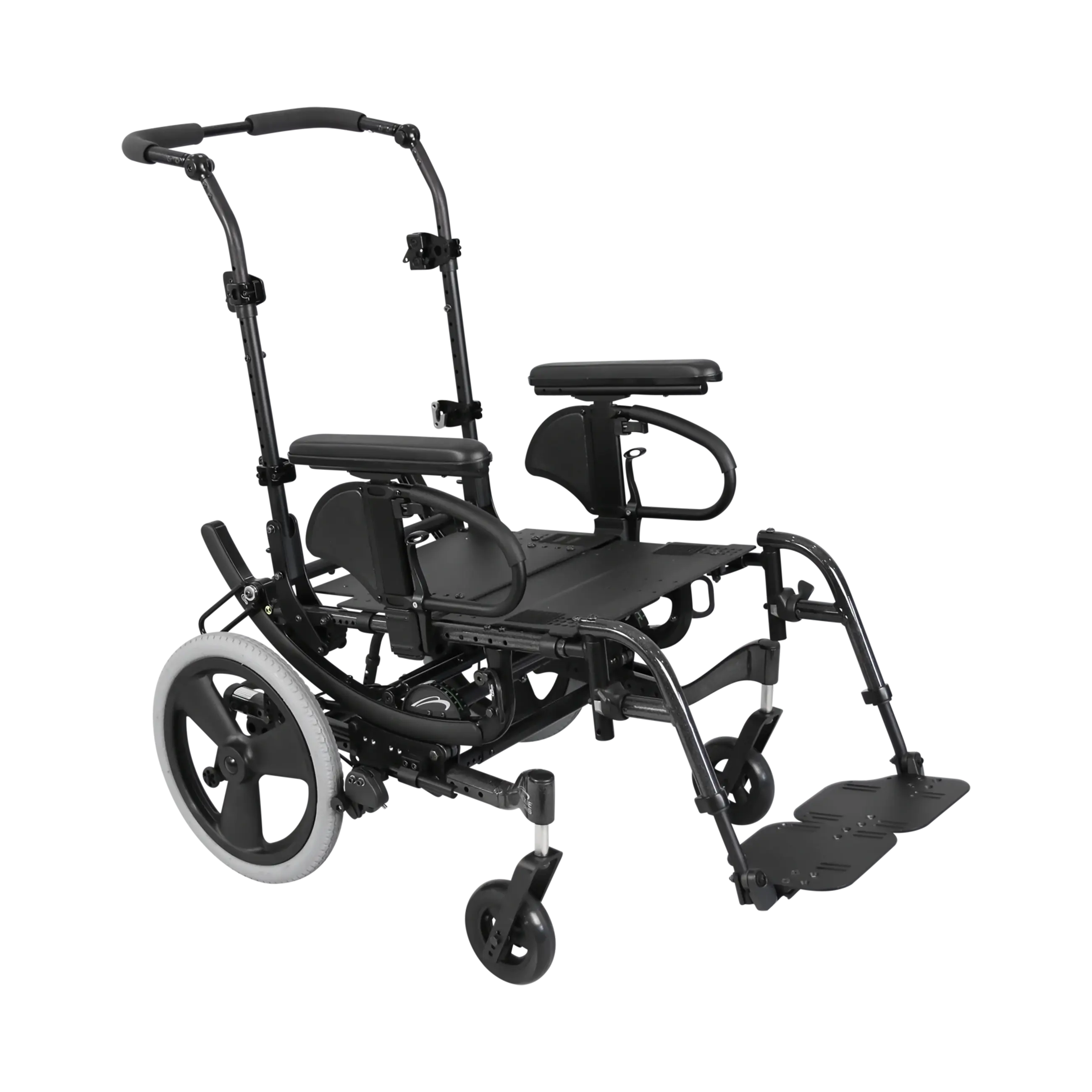

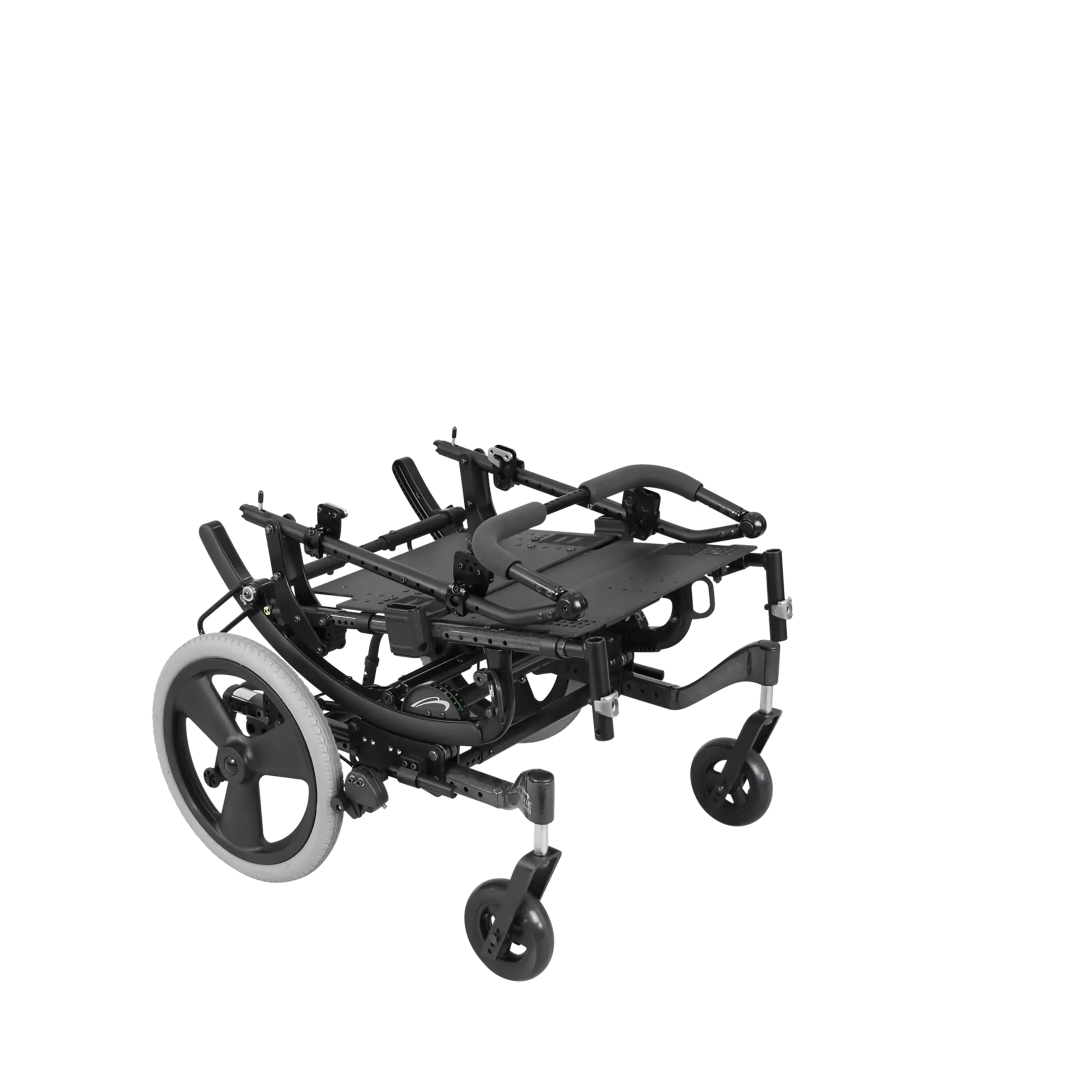

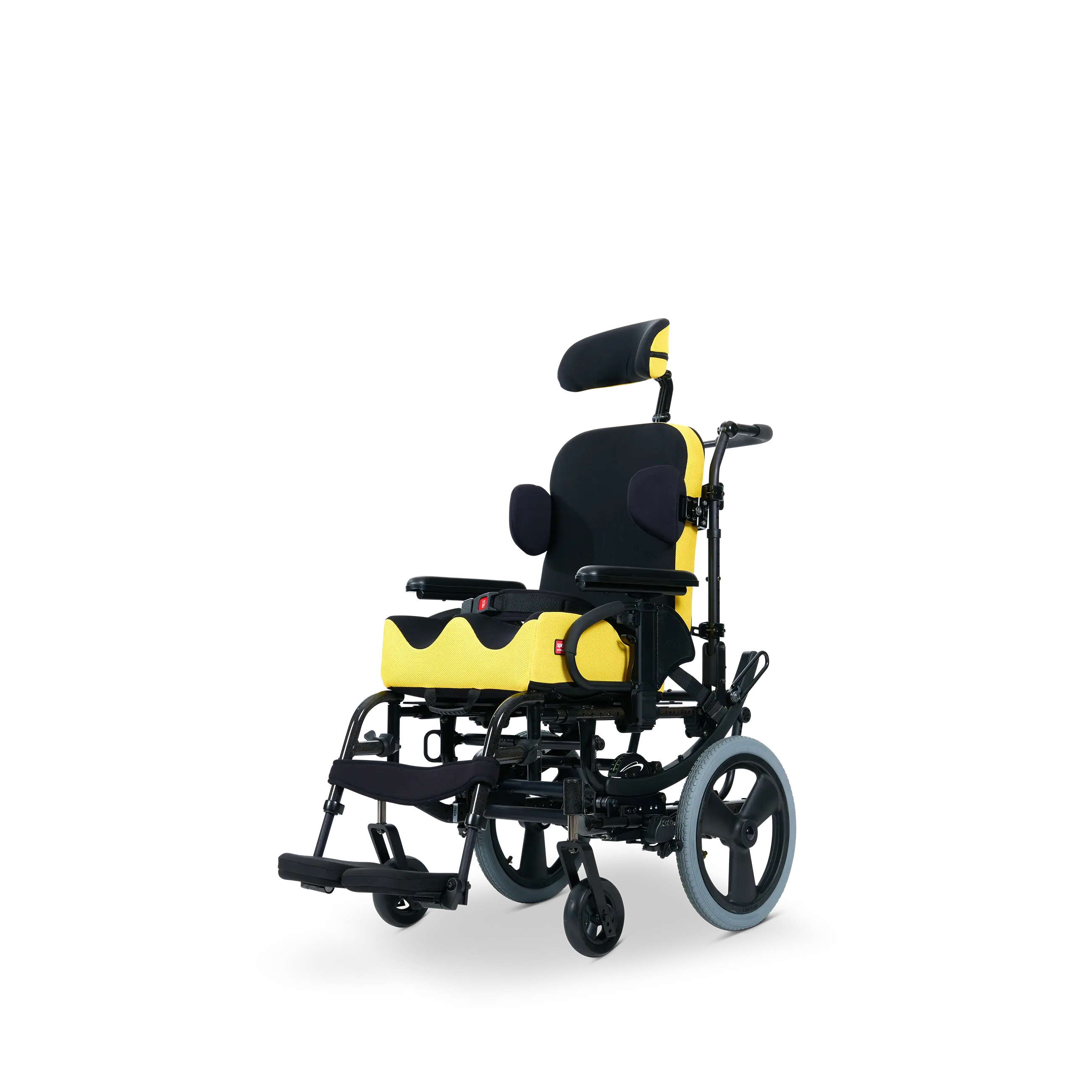

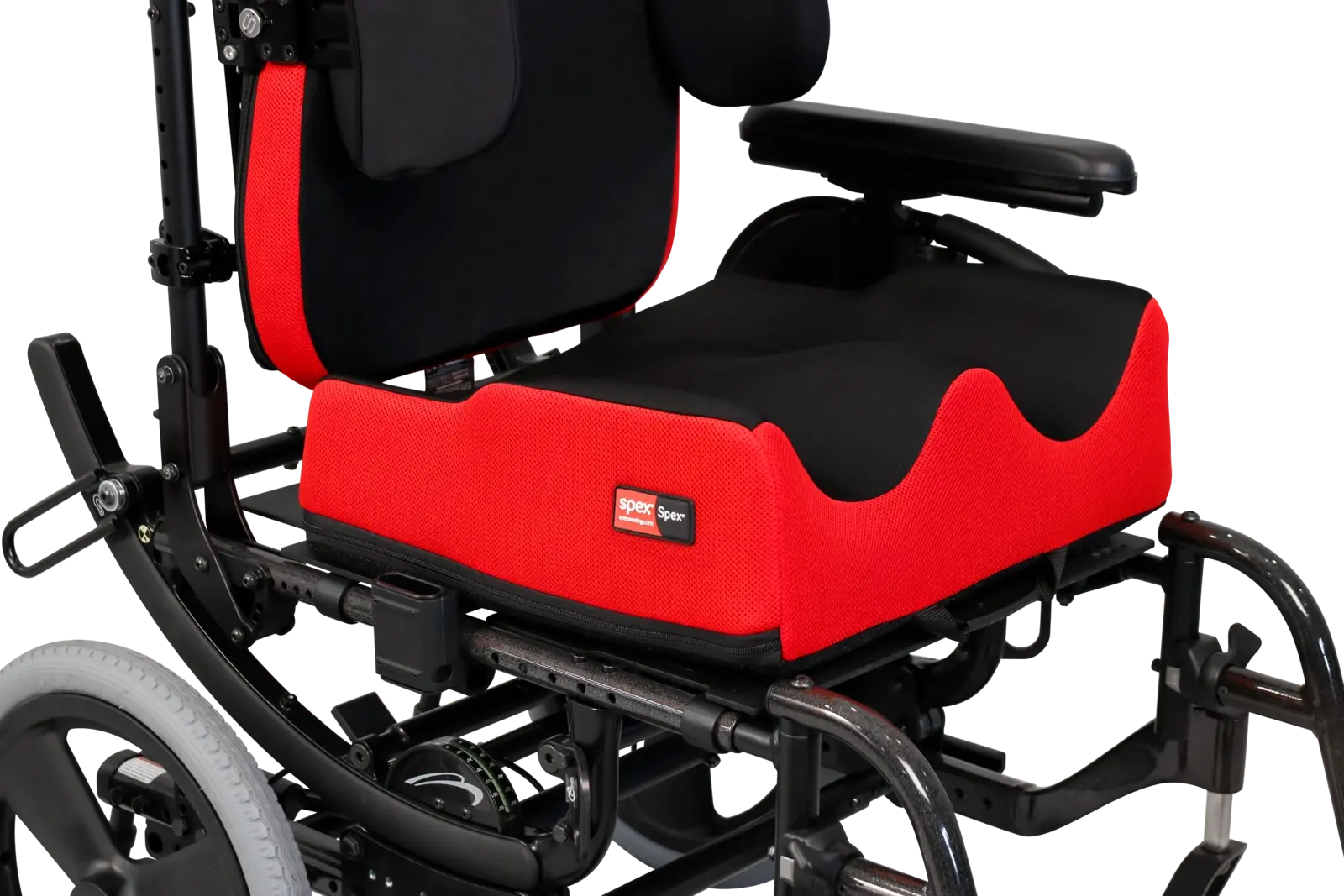

Script with Spex Adjustable Seating

Script your Iris with the Spex range of adjustable wheelchair seating to suit the user's requirements

Numerous Caregiver Options available

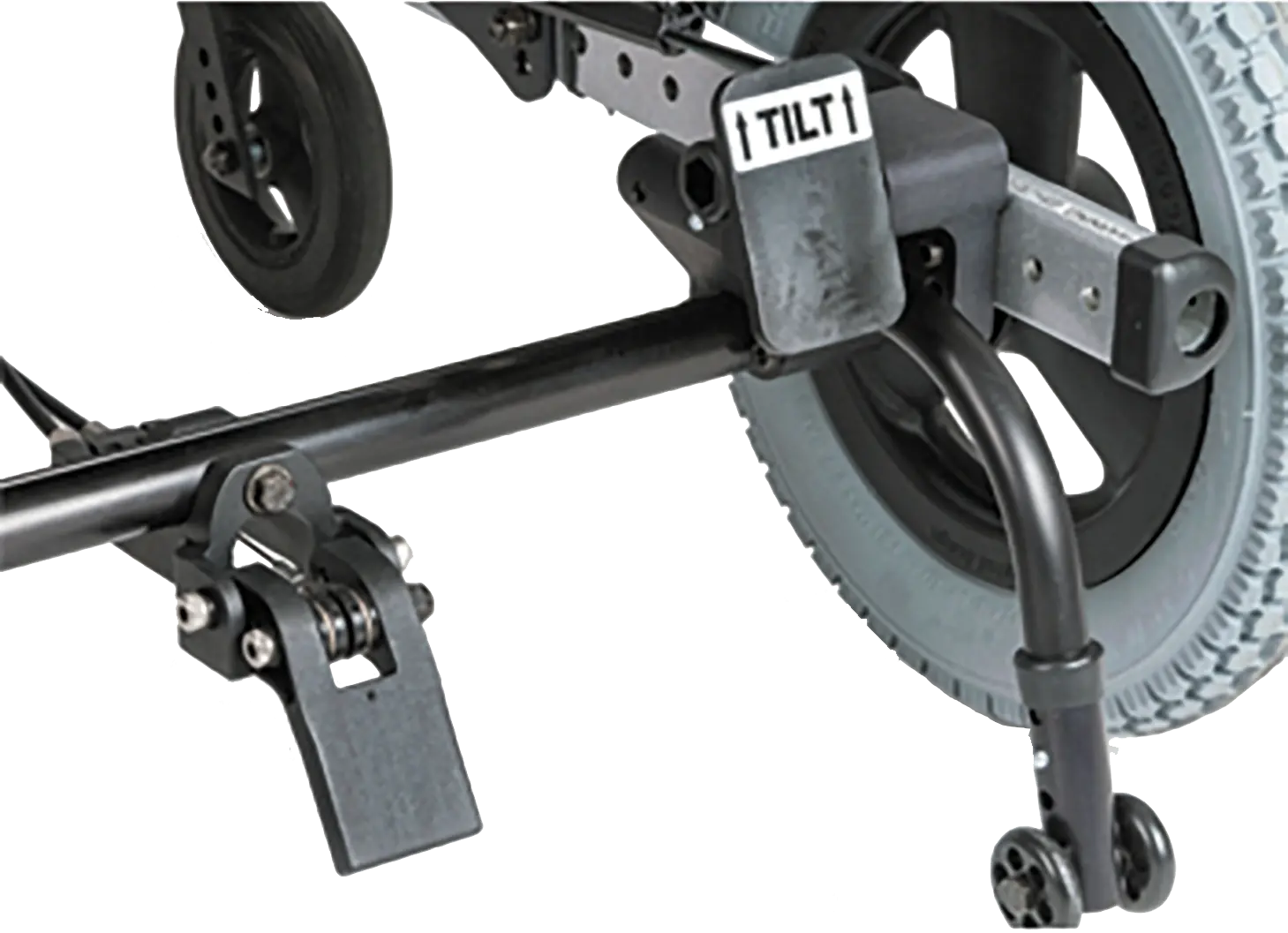

To make your job as caregiver that much easier! For cable-free tilting, choose the Foot Release Tilt Actuator. The hands-free Attendant Wheel Lock also uses a foot pedal to engage. Standard with every IRIS, the Angle Adjustable Stroller Handle can be easily adjusted to differing caregiver heights for easy handling.
(Foot Release Tilt Actuator and Attendant Wheel Lock pictured right)

Rocker Arm Technology and Width Adjusting Struts

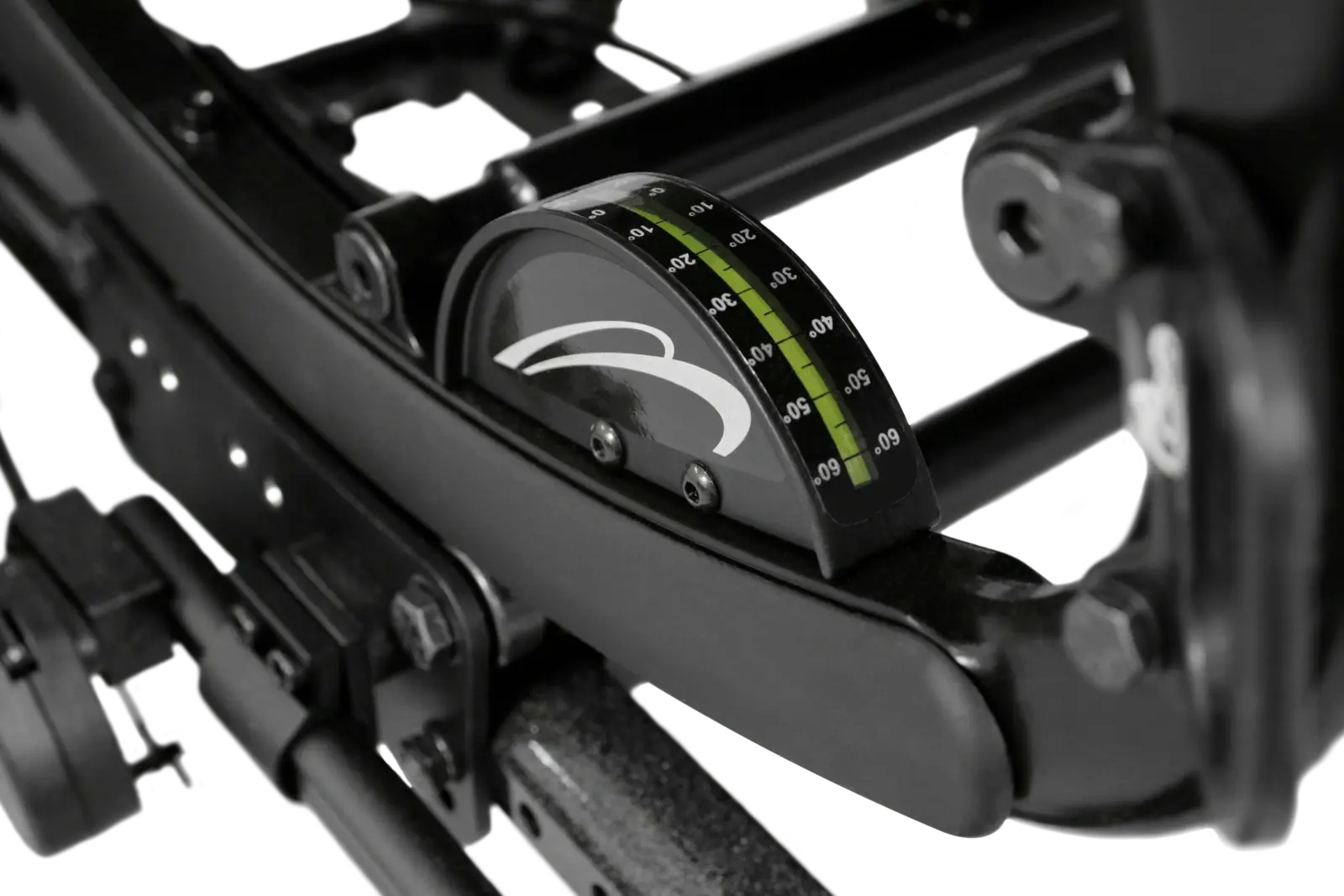

The IRIS' rocker arm includes a cover to prevent debris from collecting on the hardware. Innovative locking pin engagement and precision matching of parts within the tilt mechanism reduces side to side movement and increases durability. An easy-to-read tilt angle gauge is attached to the rocker arm.
The IRIS also features optional width-adjustable strut tubes which allow for changes in chair width to accommodate user needs without replacement parts.

Client

Gallery

Clinical

Benefits

Clinical Benefits of Tilt in Space

Learn about the clinical benefits of tilt in space as seen on the Quickie Iris.

LEARN MORE

Clinial Benefits of Tilt in space

Media

Meet Jane

Quickie Footrest

Watch

Resources

Quickie Iris Brochure 1.22 MB Quickie Iris Script Form Interactive 2.93 MB Quickie Iris Script Form 1.59 MB Comparison Chart (NZ) - Manual Wheelchairs 0.44 MB Medifab Trial Order Form 0.07 MB Quickie Iris Spare Parts Manual 15.73 MB Quickie Iris User Manual 4.36 MB Crash Test Brochure_AUS_2023 9.22 MB Medifab Enable-ACC Catalogue 1.37 MB

Accessories

Reverse Configuration Optional

Iris Elevating Leg support

Iris Swing-Away Hangers

JAY Stump Support

JAY Arm Trough

JAY Foot Box

JAY Flexi-Feet Wheelchair Shoe Holder

Contracture Platform Footrest

Quickie Iris Dynamic Back

Reverse Configuration Optional

Reverse configuration of the Iris seat top on the base frame combined with 24” wheels can allow the user to better self-propel in some situations.

Iris Elevating Leg support

Iris Swing-Away Hangers

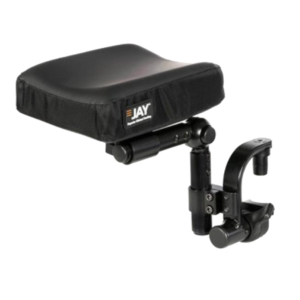

JAY Stump Support

Stump support kit option by Jay Seating, which can be fitted to any of the range of Quickie wheelchairs.

Pad Size	User Side	Code
Standard (8″ x 6″)	Right	1453-1852-0RH
Standard (8″ x 6″)	Left	1453-1852-0LH
Large (10″ x 8″)	Right	1453-1853-0RH
Large (10″ x 8″)	Left	1453-1853-0LH

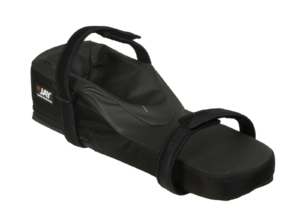

JAY Arm Trough

JAY Arm Troughs help maintain a comfortable and optimal position of the forearms and hands to improve overall upper body posture and head control. The Arm Trough’s contoured design and soft foam also help to reduce the risk of skin breakdown.

Size	14″ Long	18″ Long	22″ Long
Arm Trough	1451-5514-400	1451-5518-400	1451-5522-400
With Fixed Hardware	1451-5614-0FX	1451-5618-0FX	1451-5622-0FX
With Swing Away Hardware	1451-5614-0SA	1451-5618-0SA	1451-5622-0SA

Product Code:

14″ Long: 1451-5514-400

14″ Long with fixed hardware: 1451-5614-0FX

14″ Long with swing away hardware: 1451-5614-0SA

18″ Long: 1451-5518-400

18″ Long with fixed hardware: 1451-5618-0FX

18″ Long with swing away hardware: 1451-5618-0SA

22″ Long: 1451-5522-400

22″ Long with fixed hardware: 1451-5622-0FX

22″ Long with swing away hardware: 1451-5622-0SA

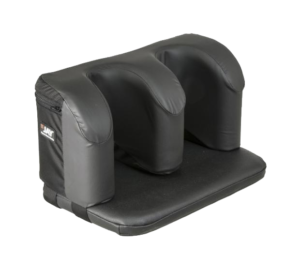

JAY Foot Box

Designed to protect the lower extremities from injury and skin breakdown resulting from periods of high tone, JAY Foot Boxes offer three styles to suit individual client needs.

Size	Height	Code	With Divider
Single	Standard	1453-5001-STD	–
Single	Tall	1453-5001-TAL	–
12″ Full	Standard	1453-5012-STD	–
14″ Full	Standard	1453-5014-STD	–
16″ Full	Standard	1453-5016-STD	1453-5116-STD
16″ Full	Tall	1453-5016-TAL	1453-5116-TAL
18″ Full	Standard	1453-5018-STD	1453-5118-STD
18″ Full	Tall	1453-5018-TAL	1453-5118-TAL
20″ Full	Standard	1453-5020-STD	1453-5120-STD
20″ Full	Tall	1453-5020-TAL	1453-5120-TAL
22″ Full	Standard	1453-5022-STD	1453-5122-STD
22″ Full	Tall	1453-5022-TAL	1453-5122-TAL

Product Code:

Single Standard: 1453-5001-STD

Single Tall: 1453-5001-TAL

12″ Full Standard: 1453-5012-STD

14″ Full Standard: 1453-5014-STD

16″ Full Standard: 1453-5016-STD

16″ Full Tall: 1453-5016-TAL

16″ Full Standard With Divider: 1453-5116-STD

18″ Full Standard: 1453-5018-STD

18″ Full Tall: 1453-5018-TAL

18″ Full Standard With Divider: 1453-5118-STD

20″ Full Standard: 1453-5020-STD

20″ Full Tall: 1453-5020-TAL

20″ Full Standard With Divider: 1453-5120-STD

22″ Full Standard: 1453-5022-STD

22″ Full Tall: 1453-5022-TAL

22″ Full Standard With Divider: 1453-5122-STD

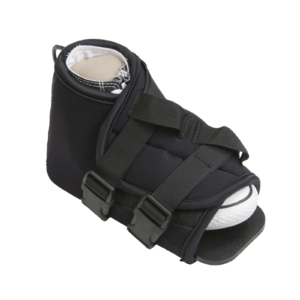

JAY Flexi-Feet Wheelchair Shoe Holder

JAY Flexi-Feet are a dynamic construction to accommodate clients who may experience frequent periods of tone or involuntary movements.

Product Code:

1453-32600L

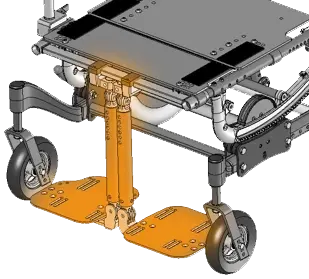

Contracture Platform Footrest

Allows for very tight knees, placement of feet underneath the chair. Length, knee angle, footplate position are all adjustable. Contracture Footplates are positioned underneath and backward (more than 90 degrees reverse).

Outside mount: Hanger is attached laterally on the chair

	Short	Medium	Long
14″	1568-5170-14S	1568-5170-14M	1568-5170-14L
16″	1568-5170-16S	1568-5170-16M	1568-5170-16L
18″	1568-5170-18S	1568-5170-18M	1568-5170-18L
20″	1568-5170-20S	1568-5170-20M	1568-5170-20L

Tip: System does not swing away for transfers.

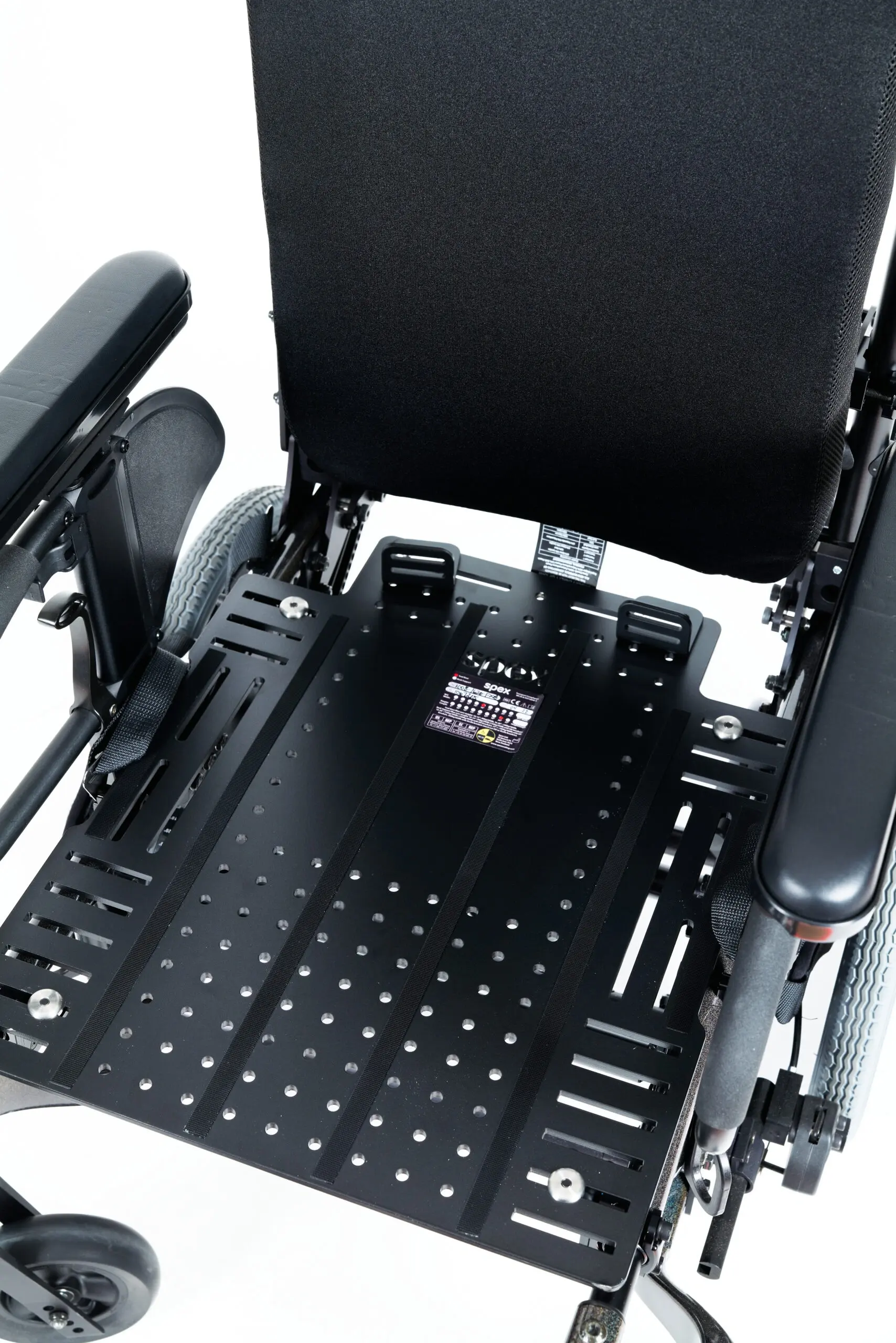

Quickie Iris Dynamic Back

Specifications

Weight

Measurements

Colour Options

Specifications	Quickie Iris
Code	1567-0000-000
Frame Style	Rotation-in-Space
Wheelchair Weight	From 17.7 kg*
Frame Material	Aluminium
User Weight Capacity	Standard: 136kg Heavy Duty: 180kg
Transit Approved	Yes

* Frame weight only in the lightest configuration with no wheels, armrests or seating.

Frame & Feature Specifications	Quickie Iris
Seat Widths	14″ – 22″
Seat Depths	14″ – 22″
Frame Angle	N/A
Front Seat-to-Floor Height	12.5″ – 19″
Rear Seat-to-Floor Height	12.5″ – 19″
Lower Leg Length Setting	N/A
Back Height	15″ – 21″ or 18″-24″
Angle Adjustable Backrest Adjustment Range	-30º – 5º
Camber	0º
Centre of Gravity (COG) Adjustment	N/A
Tilt Range	40º 55º
