Carrot 3000 Car Seat
Medifab’s most adjustable, configurable and growable special purpose car seat.
The Complete Vehicle Safety System
Medifab is pleased to provide the most comprehensive special purpose car seat we’ve every introduced for children and teenagers, providing various kinds of extension accessories and multi-adjustable features to allow longer use by the child and to suit the wide spectrum of children’s needs.
The Carrot 3000 Car Seat is one of the safest child seats in the world, catering for safety and the importance of keeping the child in a safe and supported posture for travel and was was designed, engineered and built to provide optimal positioning & safety for children with insufficient head, trunk, and pelvic stability.
Huge growth to suit infants to older children
Carrot 3000 has a wide growth-adjusting range which extends the range of users from infants to older children through use of extension accessories. Angle and depth adjustable seat and backrest, along with postural support options, make the precise tailoring of the seat for each child possible.
Comfort
The Carrot 3000’s ‘body contouring’ design holds the child in a centered and secure position to ensure optimum support and safety during transport. Ergonomic head support provides added positioning and security.
Shoulder Protector Wings
An optional safety device for a child with shoulder height more than 45 cm, holding the body to protect child from side impacts or centrifugal forces.
Reclining Function
Carrot 3000 has a free reclining back angle, which can be opened in combination with the vehicle seat backrest.
Chest-Support
The large anterior chest-support of the Carrot 3000 provides additional support at the front of the child.
Read moreless
Functional benefits
Superior postural support
Have peace of mind knowing that your child is supported in the best possible way when travelling! Add a tray table for body and forearm support, footplates to support the feet and a tilt wedge to assist with poor head control.
Accessories to support behaviors of concern
Tired of the constant risk that your child will escape the car seat and jeopardise your safety when travelling? Add an anti-escape or pen-popper buckle upgrade to prevent accidental removal of the Carrot's harness.
Grows with your child!
What if my child grows out of the car seat? Need a solution that provides the level of support your child needs as they grow? Consider it done!
Various growth extension accessories and multi-adjustable features are available to ensure that a wide spectrum of needs are accommodated.
Is your child too large for the Carrot 3000?
The Carrot XL car seat accommodates larger users whose measurements fall outside the Carrot 3000 Specifications.
Specifications
- Measurements
- Head and Chest Measurements
| User Age Range | 3-15 years | Shoulder Height (without shoulder wing support) | 30-52 cm |
|---|---|---|---|
| User Weight Range | 13.6-49 kg* | Shoulder Height (with shoulder wing support) | 45-67 cm |
| Min. Seat Depth | 25 cm (or 28 cm) | Footplate Height | Sml: 25-30 cm
Med: 30-40 cm Lge: 40-50 cm |
| Max. Seat Depth | 40 cm | Weight | 8.7 kg |
| Seat Width | 31 cm | Weight of Swivel Base | 10 kg |
Settings shown without shoulder protector wings fitted:
Settings shown with shoulder protector wings fitted:
| Size | Small | Large |
|---|---|---|
| Code | 4116-0010-259 | 4116-0000-259 |

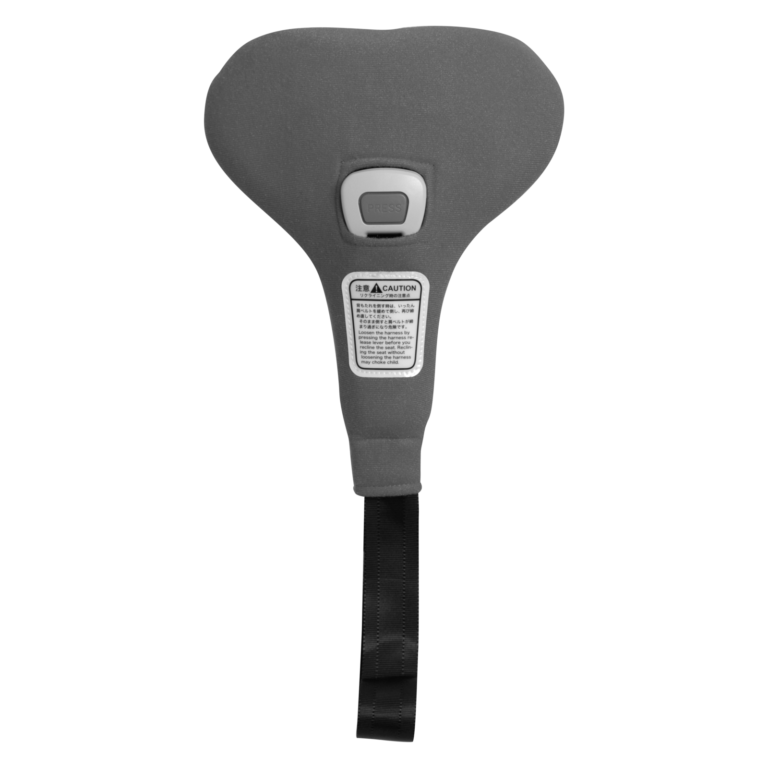

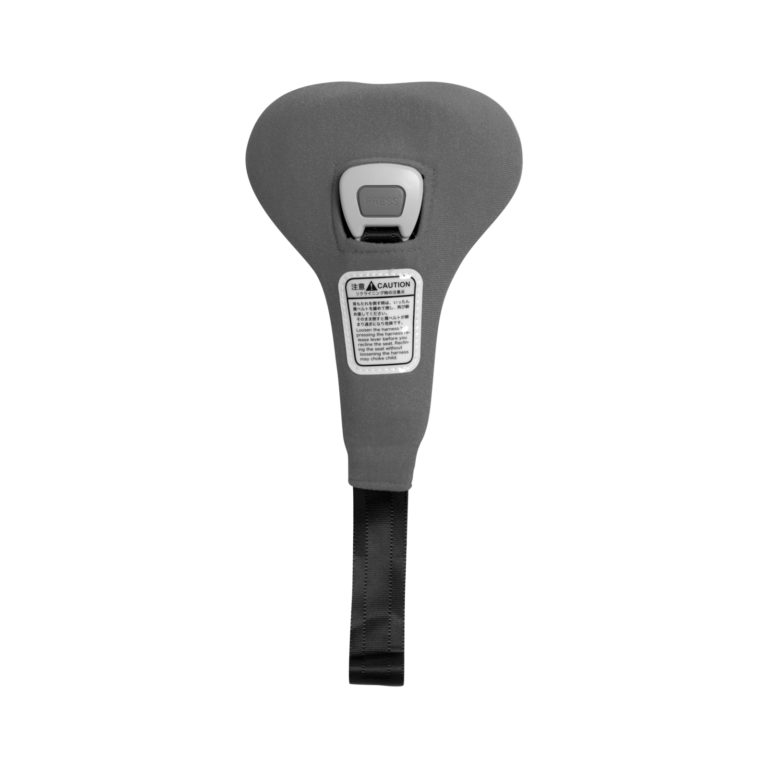

| Chest Pad | 175 mm wide | 230 mm wide |
 |
 |
|

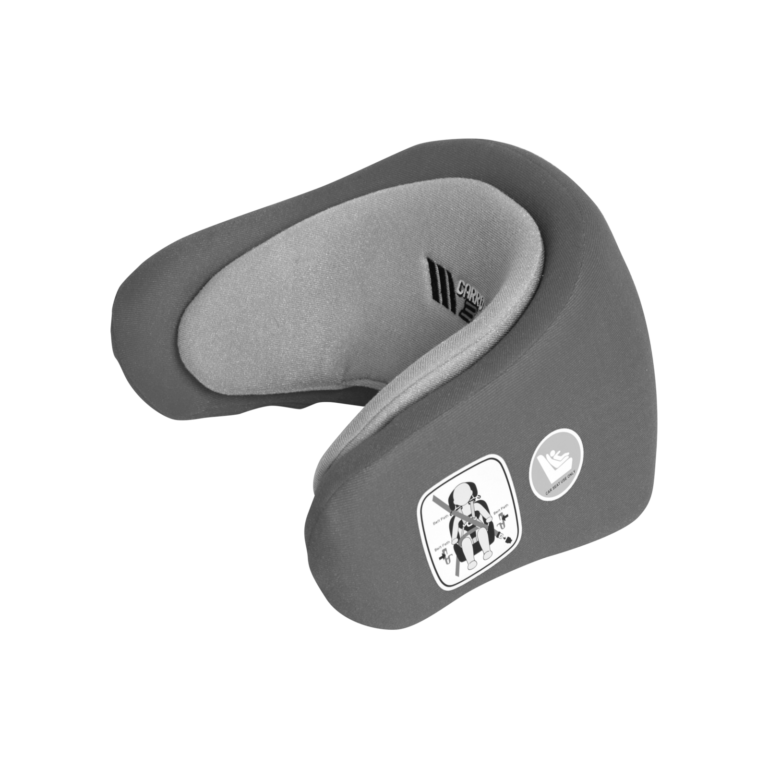

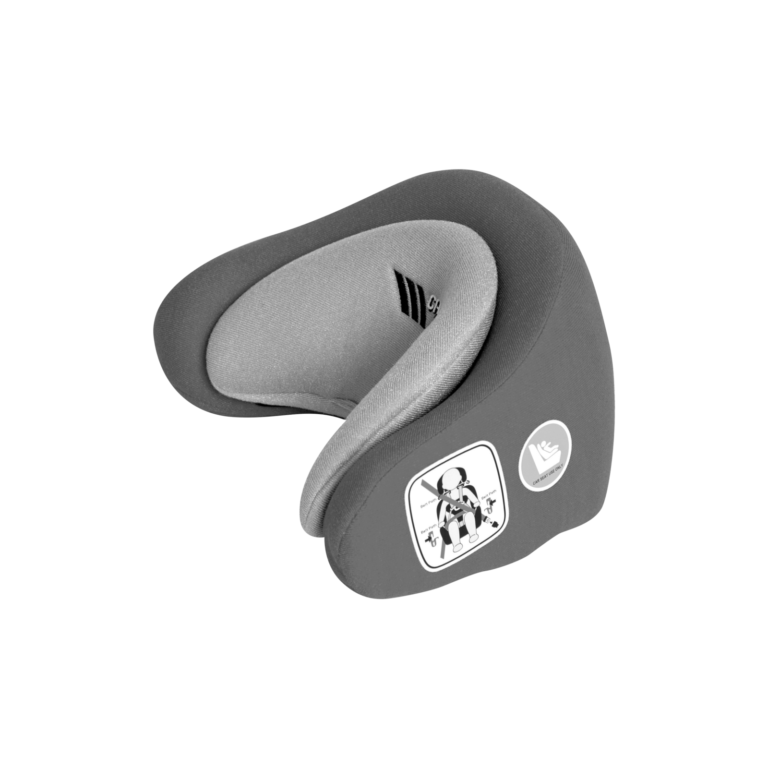

| Head Support Wings | 182 mm high x 205 mm long | 195 mm high x 255 mm long |
 |
 |
The head and chest supports are the only components that change in size between the small and large Carrot 3000 Car Seats.
Accessories
Carrot 3000 50mm Rodded Seat Extension
Carrot 3000 50mm Seat Extension
Carrot 3000 Waterfall Rodded Seat Extension
Carrot 3000 100mm Seat Extension
Carrot 3000 Folding Footplate
Carrot 50mm Back Support Extension
Carrot 100mm Back Support Extension
Carrot 3000 Shoulder Protector Wings
Carrot Tether Strap
Carrot ISOfix latch connectors
Carrot Fixing Strap for Aircraft Seat
Carrot 3000 Removeable Incontinence Cover
Carrot Air Mesh Cushions
Carrot Wipe-Down Cover
Carrot 3000 Seat Belt Holder
Carrot 3000 Shoulder Strap Retainer
Carrot 3000 Cross Strap
Carrot Pelvis Lock Hip Belt
Carrot 3000 Anti-Escape Buckle Upgrade
Carrot 3000 Pen-Popper Buckle
Carrot 3000 Hinge Lock Belt
Carrot 3000 Tray Table
Carrot Tilt Wedge
Carrot Trunk Positioning Pads
Carrot 3000 50mm Rodded Seat Extension
Extension pad to increase the back support height by 50mm.
Product Code: 4116-2481-259
Small
Carrot 3000 50mm Seat Extension
Seat extension to gain 50mm of seat depth.
Product Code:
4116-0285-259
Small
Carrot 3000 Waterfall Rodded Seat Extension
Waterfall style rodded seat extension.
Product Code:
4116-0283-259
Small
Carrot 3000 100mm Seat Extension
Seat extension to gain 100mm of seat depth. Please note, the 100mm seat depth growth pad can only be used in conjunction with footrest or waterfall extension, as these are the only rodded extensions with long enough rods.
Product Code:
4116-0289-259
Small
Carrot 3000 Folding Footplate
Great option for offering support for client’s lower legs spending longer periods of time in their car seat.
Fold up footplates make it possible for siblings and other passengers to get past car seat.
Footplates and calf supports are padded and also includes foot & calf straps for added security.
For seat depth growth adjustment simply add infill spacers.
Height adjustable from 25-30cm lower leg length – Medifab can offer spacer blocks for shorter lower leg lengths.
Small
4116-5241-250
Medium
4116-5242-250
Large
4116-5241-250
Carrot 50mm Back Support Extension
Extension pad to increase the back support height by 50mm.
Product Code:
4116-2481-259
Small
Carrot 100mm Back Support Extension
Extension pad to increase the back support height by 100mm
Product Code:
4116-2482-259
Small
Carrot 3000 Shoulder Protector Wings
For children with over 45 cm shoulder height.
Product Code: 4116-2753-259
Small
Carrot Tether Strap
Top tether strap
Product Code:
4116-6953-017
Carrot ISOfix latch connectors
When connected to the car seat’s ISOfix, please transport your child with the five-point seat belt of the Carrot and with the three-point seat belt of the car.
Product Code:
4116-6910-000
Carrot Fixing Strap for Aircraft Seat
Horizontal Carrot 3000 fixing attachment strap for securing the Car Seat to an aircraft seat. This is compatible with the Carrot 3000 and the Carrot XL car seats.
Product Code:
4116-6960-017
Carrot 3000 Removeable Incontinence Cover
Product Code:
4116-0475-209
Small
Carrot Air Mesh Cushions
Air mesh cushion pad set in black.
Product Code:
4116-8880-099
Small
Carrot Wipe-Down Cover
| Wipe-down seat base | Wipe-down backrest | Tee-pad, Standard | Tee-pad, Large |
| 4116-0476-209 | 4116-2476-209 | 4116-6553-209 | 4116-6558-209 |
Carrot 3000 Seat Belt Holder
Keeps the seat belt away from the neck
Product Code:
4116-6790-017
Carrot 3000 Shoulder Strap Retainer
A thin but strong mesh that keeps the child’s arms through the harness and prevents their arms from slipping out between the harness straps.
Product Code:
Small: 4116-6721-000
Medium: 4116-6722-000
Large: 4116-6723-000
Carrot 3000 Cross Strap
Fits to the Carrot to hold the shoulder straps together and prevent them from slipping off. Also assists in behavioural situations.
| Code | Buckle Type |
|---|---|
| 4604-3004-025 | Pen/Key Release Buckle |
| 4604-3004-026 | Anti-Escape Buckle |
Product Code:
4604-3004-025,
4604-3004-026

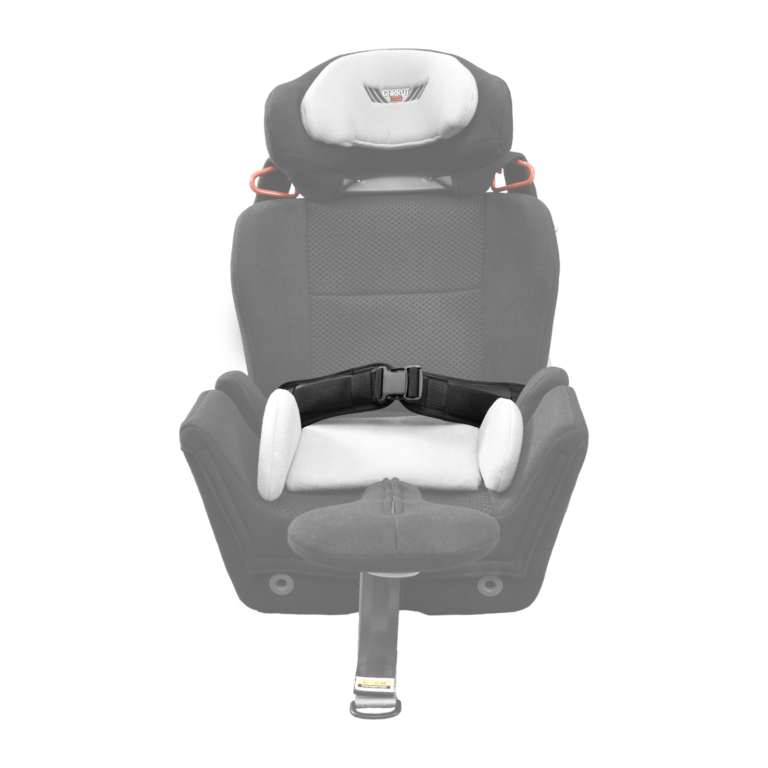

Carrot Pelvis Lock Hip Belt
Product Code:
Small: 4116-6531-027,
Medium: 4116-6532-027,
Large: 4116-6533-027
Carrot 3000 Anti-Escape Buckle Upgrade
Anti-escape buckle upgrade with safety webbing slicer, to prevent accidental removal for those with behavioural issues such as Autism.
Product Code:
4116-6026-259
Carrot 3000 Pen-Popper Buckle
Pen/Key release buckle upgrade with safety webbing slicer and retractable ‘pen’ device for buckle release.
Product Code:
4116-6025-259
Carrot 3000 Hinge Lock Belt
A belt that prevents the backrest from hinging on the seat base and locks it for easy carrying.
Product Code:
4116-8170-000
Carrot 3000 Tray Table
Tray table to support the forearms.
Product Code: 4116-5534-259
Small
Carrot Tilt Wedge
For 20° additional tilt to provide increased head control.
Product Code:
4116-0291-259
Small

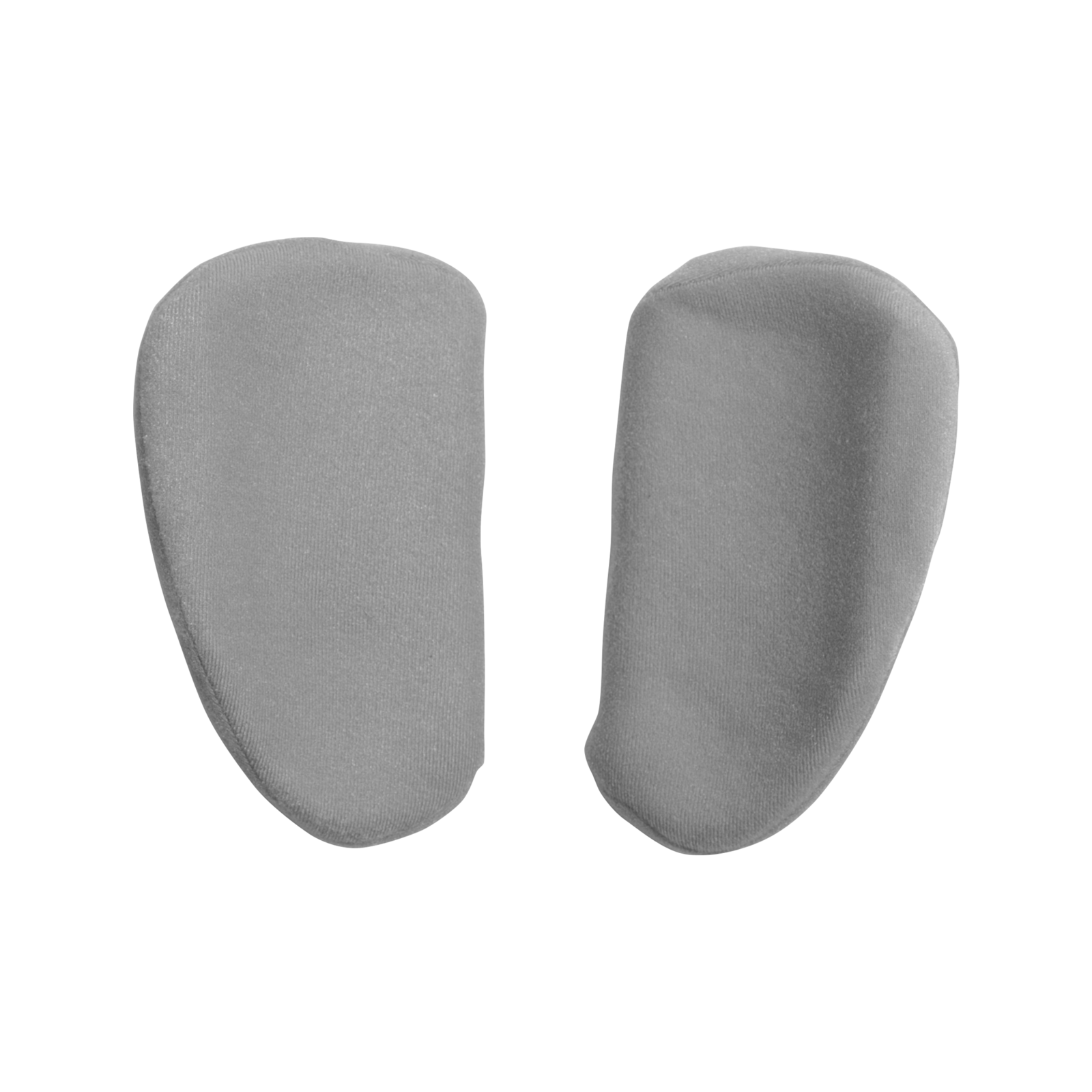

Carrot Trunk Positioning Pads
Product Code: 4116-3250-090
MACA and AuSAP
The Australian Safety Assessment Program (AuSAP) independently assessed the Carrot 3000 Car Seat in 2021/22, in accordance with the AuSAP Test and Assessment Protocol. For more information about AuSAP visit www.macahub.org
MACA’s Australian Safety Assessment Program (AuSAP) independently assesses vehicle restraint options used by children with disabilities and medical conditions.
It aims to support and advance safe motor vehicle transport for children and young people with disabilities and medical conditions.
AuSAP assessed products are published on MACA’s National Product Register.
