Spex Standing Powerchair Adapter Back Support Mount

Make an enquiry

Spex Standing Powerchair

Adapter Mount

Enables fitting of Spex Back Supports to Levo C3 Powered Standing Wheelchair

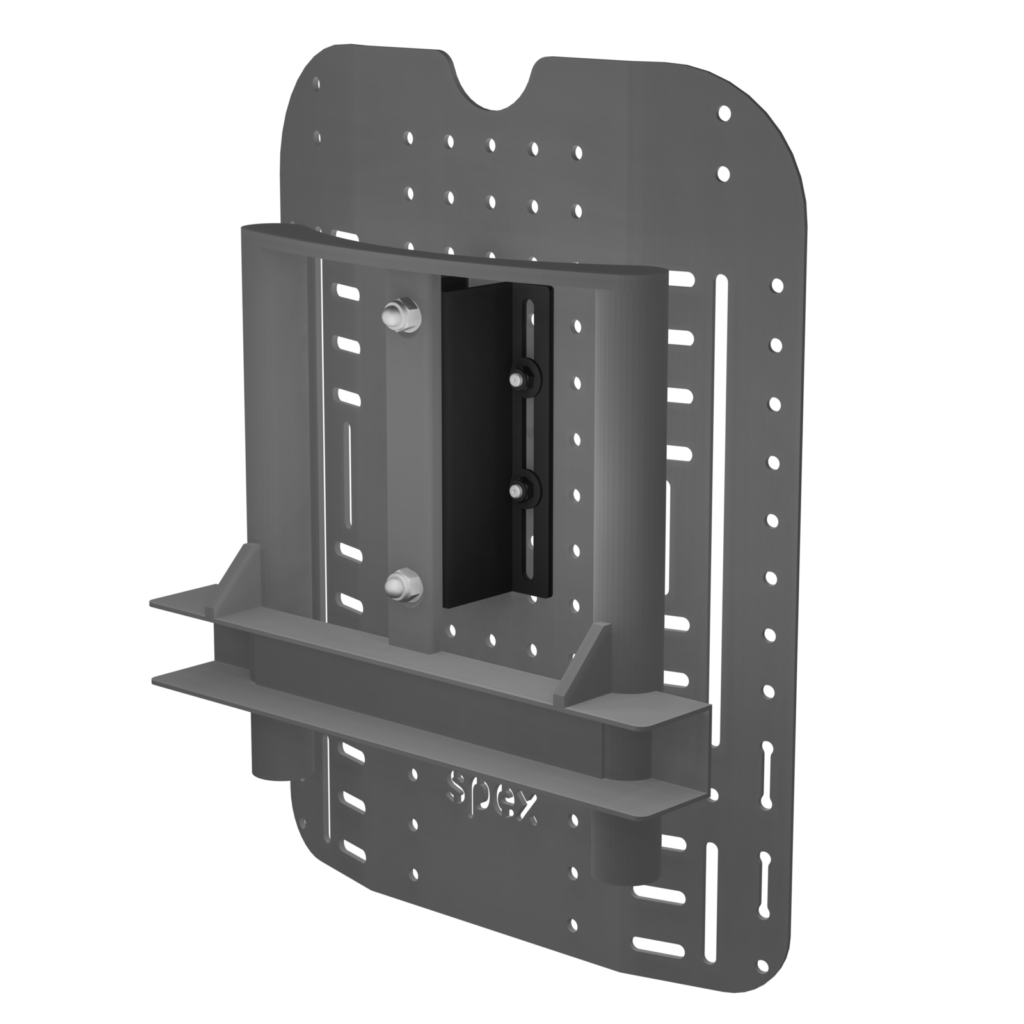

The Spex Standing Powerchair Adapter Mount provides an off-the-shelf hardware solution for mounting Spex back supports to the Levo C³ Powered Standing Wheelchair.

This versatile Adapter Mount empowers clinicians and power wheelchair users by providing an opportunity to select from the Spex seating range to suit individual needs. Featuring a reduced depth profile and built-in height adjustment, this Adapter Mount maintains back support functionality, while providing a compatible solution for attaching to the Levo C³ Powered Standing Wheelchair.

Compatible back supports from the Spex range include:

Spex Classic
Spex SuperShape
Spex Vigour
Spex Manta
Zygo Mid (Active Contour, Deep Contour)

Spex has also developed an alternative mounting system for use with selected models of Power Wheelchair seating systems such as the Quantum TRU-Balance 3 and Sedeo Pro. Regular back support mounting options are also available where power wheelchairs are fitting with back support canes to enable mounting.

Gallery

Functional

Benefits

Low Depth Profile integrates with Anti-Shear function

The slim depth profile of this Adapter Mount has been designed to work with the Levo C3 low shear position adjustment system. This low-depth profile also has the added benefit of minimising seat depth loss, and requires minimal installation space.

Positioning Freedom with Height Adjustment

Back supports can be attached to the Adapter Mount at a range of different heights. For fine-tuning adjustments to the back support position, a further 70mm of continuous height adjustment is available with the Adapter Mount.

Compatibility with a wide range of Spex Back Supports

The Adapter Mount can be used with a variety of Spex Back Support options, including Spex Classic, Spex SuperShape, Spex Vigour, Spex Manta, and Zygo Mid (Active Contour, Deep Contour).

Compatibility with Spex Postural Support Accessories

The Spex Adapter Mount has been designed for compatibility with the standard range of Spex postural support accessories, including head supports and lateral supports. Some smaller back support sizes affect compatibility. See Compatibility Guide for further details.

Transit

Safety

The Spex Seating System has been successfully crash-tested and complies with RESNA WC-4:2012, Section 20 (WC20) and ISO 16840-4:2009. The Spex Seating System is certified for use as a motor vehicle seat when used with an appropriate wheelchair base that conforms to the requirements of ISO 7176-19:2008. Please follow all installation, use, and maintenance instructions as well as transit instructions.

The Spex Seating System complies with standards which evaluate the performance of the seating system independent of a specific model of wheelchair base. The Power Recline Adapter Mount has not been crash tested with a specific wheelchair base. Mounting the Spex Seating System to an appropriate wheelchair base using the Power Recline Adapter Mount may require a qualified professional to configure and install the seating system.

Resources
