Adapta2
Back Support

Supporting complex postures through adaptive Profile Curvature System.

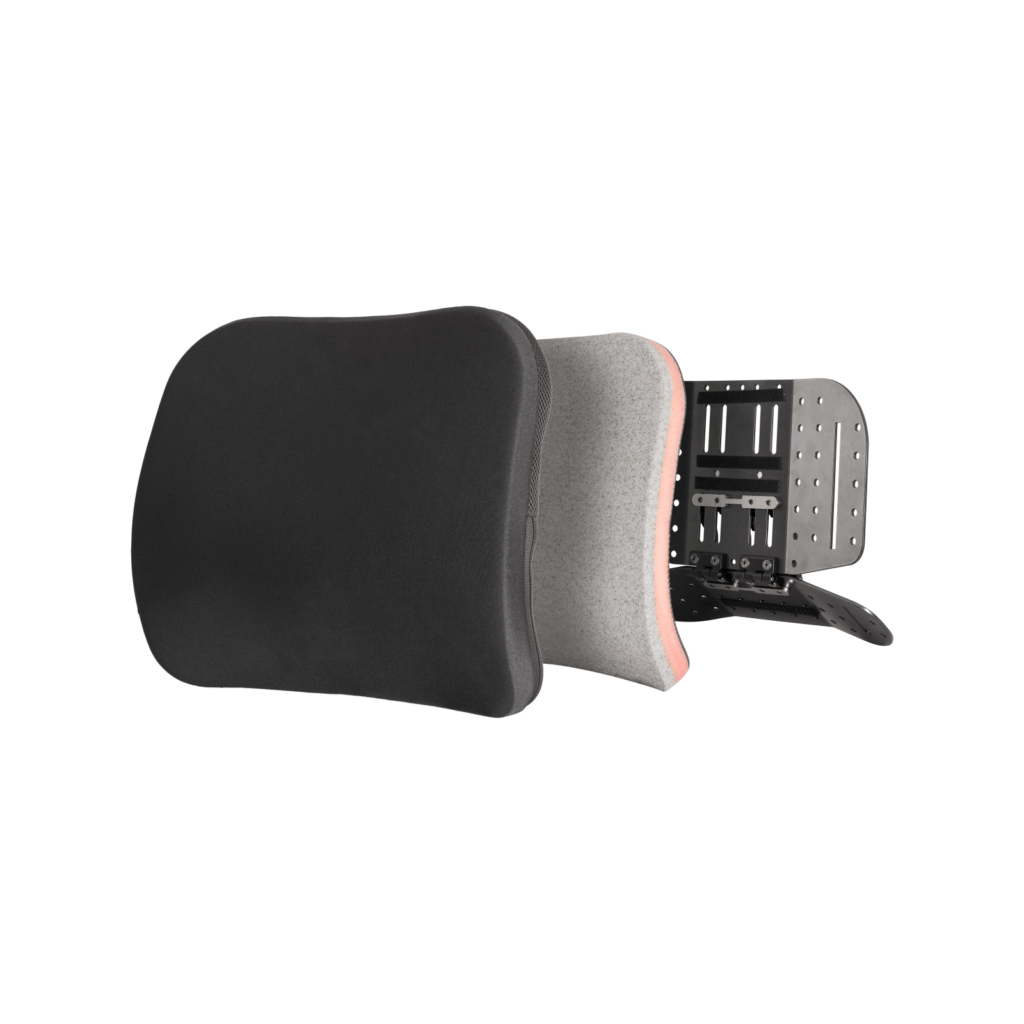

The Adapta² Back Support meets the needs of wheelchair users with complex postural presentations including lordosis, anterior pelvic tilt, and prominent gluteal shelf. The back support splits the rigid aluminium shell into two different sections that can be adjusted to achieve a natural contour to position and support the pelvis and spine. The Adapta² Back Support can provide the shape needed to support the user by contouring the rigid aluminium shell, rather than the foam padding.

Spex Seating currently supply rigid back supports with contour-adjustable padding to support users with complex postural support needs. The new Adapta² Back Support is designed for users who require a back support surface with profile curvature adjustment to accommodate their trunk contour. These needs can be accommodated without excessive foam padding, making it easier to manage temperature and other related issues. The contoured surface remains supportive and holds its shape when the seating system is tilted or adjusted.

Gallery
Functional
Benefits
Positioning with Less Complexity
Provide effective positioning through the adaptive Profile Curvature System that contours to the shape of the individual. Match trunk profile with Adapta-Points and tighten to secure. Once tightened you can be confident the system will stay in place. Adjustments are made through each shell section offering flexibility as positioning needs change over time. Additional contouring can be achieved through positioning wedges provided with the back support as standard.
Less Foam, Less Heat, More Comfort
By contouring to the spine through the adjustable back support shell, foam bulk can be decreased which improves airflow. Soft yet supportive thin-line foam padding combined with breathable upholstery conforms to its section to provide superior comfort and postural support. Contact area distribution is maximised with one foam pad across all sections. These needs can be accommodated without excessive foam padding, making it easier to manage temperature and other related issues.
Easily Provide Additional Positioning
Increased positioning can be achieved through use of the additional wedges included in the kit. Extra contouring can be achieved using the TSS Lit Kit accessory. Accessible cover design: easily insert positioning components through accessible zippers on the side of the padding.
Anatomically Match Spinal Curves With Height Adjustment
The Adapta3 Back Support features a height adjustable top section. Enabling precise position of the back support curves to match the user’s trunk shape. The top Adapta-Point on all sizes can adjust up to 2 inches of additional height. Standard with all Adapta3 Back Supports.
Adjustable Even When the Client Is Sitting
The Profile Curvature System, positioned at the rear of the back support, allows for all adjustments to be made while the wheelchair user is seated and avoiding the need to transfer out of the chair.
Flip-Back Mechanism for Easier Transfers
The Adapta3 Back Support is available with a flip-back upper section (and head support if attached) which swings away to aid with transfers for kyphotic clients, giving easy access for slings and other aids. Scripted option for Adapta3 Back Supports.
Clinically
Correct

Adapta2 Back Support is designed for the individual who:

  • Presents with Lordosis and Anterior Pelvic Tilt and require extra support on the lumbar spine.
  • Requires greater lumbar support with specific pressure relieving to accommodate a gluteal shelf.
  • Requires specific contouring to accommodate lumbar & thoracic spine.

Select
Hardware

Configurable mounting hardware options:

Dual Mount Forward Dual Mount Forward Extended Dual Mount Single Mount
1259-2205-100 1259-2210-100 1259-2215-100 1259-2100-100
Media
Adapta by Spex... Positioning with Less Complexity!
Nikayla's Story
Watch video
Watch video
Resources
Spex Adapta Back Support Flyer 10.00 MB Spex Adapta Back Support Script Form 3.09 MB Spex Adapta Fitting Guide 0.54 MB Spex Comparison Chart - Back Supports (International) 0.40 MB
Accessories
Depth Reduced Lateral Trunk Support
Spex Shoulder Strap Guides
SPEX Tessellated Shape System 1 Lite Kit
TSS Lite Kit

Depth Reduced Lateral Trunk Support

If the user requires further lateral stability, add depth reduced lateral

trunk supports with a flat bracket that is suitable for use with Adapta slimline padding.

1266-2331-100

Spex Shoulder Strap Guides

Recommended for any harness choice to prevent shoulder straps from falling off shoulders.

The Spex Harness Guides are height adjustable and fit both 1″ and 1.5″ straps. Package includes

a pair of 5mm aluminium strap guides and attachment hardware.

Product Code:
1400-6692-000

TSS Lite Kit

Contouring and positioning kit for use behind Zygo upholstery. Includes selection of TSS

shape elements and foam wedges.

Product Code:

1250-3955-000
Specifications
Adapta Style Adapta2 Back Support
Weight (without hardware, 16″ back) 1.6kg
Weight Capacity 136kg
Angle Adjustment Capability – Top N/A
Angle Adjustment Capability – Bottom 40° Anterior & 60° Posterior
Height Adjustment N/A
Overall Thickness (Including Cover) 35mm
Code 1257-WWHH-200
Flip-Back Version Code N/A

Adapta2 Sizing Chart

To order, replace the HH and WW in the code, with the appropriate size required.

Transport Certified All Adapta Back Supports and hardware configurations are suitable for transport in a vehicle when mounted on an appropriate wheelchair frame.
