CLX

The CLX is a super lightweight carbon performance wheelchair wheel. These are your next wheels if you want super lightweight combined with Spinergy reliability. Developed as an incredibly stylish and aesthetically pleasing wheel with a clean design of its own, never sacrificing performance and durability. The CLX features a 19mm bead width rim, a new stylishly designed hub and of course our patented PBO fiber spokes. Hands down this wheel performs.

CLX

Spox Everyday

The most trusted wheel on the market. A great wheel for your everyday needs. It’s quiet, attractive and extremely reliable.

SPOX-Everyday-small

Lite Extreme “LX”

Same reliability as the SPOX Model, but with fewer spokes and a more cutting-edge appeal.

Lite-Extreme-LX-small

LX Flexrim

The Spinergy FLEXRIM is a revolutionary product that is changing the way people roll. With the urethane material holding the pushrim onto the rim, it allows the user to push with out ever touching the tire. The ultra-light and extremely strong material allows the pushrim to flex in and give the wheelchair user an extra inch or so when squeezing into very tight doorways. This product is unlike anything offered by any other company and a must have for everyday users of wheelchairs.

Lite-Extreme-LX-FLEXRIM-back-small

Lite Extreme X-Laced “XLX”

The X-Laced wheel is designed for maximum torsional stiffness and responsiveness. Same reliability as the SPOX Model, but with fewer spokes and a more cutting-edge appeal.

Lite-Extreme-XLX-X-Laced-small

X-Laced Lite Extreme Flexrim “XLX”

The Spinergy FLEXRIM is a revolutionary product that is changing the way people roll. With the urethane material holding the pushrim onto the rim, it allows the user to push with out ever touching the tire. The ultra-light and extremely strong material allows the pushrim to flex in and give the wheelchair user an extra inch or so when squeezing into very tight doorways. This product is unlike anything offered by any other company and a must have for everyday users of wheelchairs.

X-Laced-Lite-Extreme-XLX-Flexrim-back

Extra Lite Extreme Everyday “LXL”

The same design features as the “BLADE LXL” model, but with round spokes instead of bladed.

Extra-Lite-Extreme-Everyday-LXL-small

Blade LXL

The lightest performance wheelchair wheel on the market. Developed as an incredibly stylish and aesthetically pleasing wheel with a clean design of its own, never sacrificing performance and durability. Each spoke is a bladed shape to add sleek and cutting edge styling similar to high-end aero bicycle wheels.

Blade-LXL-small

Spinergy
Wheels

Spinergy is the premium brand of wheelchair wheels in the world over with wheels that are as tough as nails and ultralight. Using patented PBO spoke technology and precision engineering Spinergy wheels combine ultimate performance and quality.

Every PBO spoke contains over 30,000 strands of polyphenylene bensobisoxazole fibers, delivering 3-times the strength of stainless steel at just half the weight.

Medifab is pleased to provide the most comprehensive special purpose car seat we’ve every introduced for children and teenagers, providing various kinds of extension accessories and multi-adjustable features to allow longer use by the child and to suit the wide spectrum of children’s needs.

The Carrot 3000 Car Seat is one of the safest child seats in the world, catering for safety and the importance of keeping the child in a safe and supported posture for travel and was was designed, engineered and built to provide optimal positioning & safety for children with insufficient head, trunk, and pelvic stability.

Specifications

CLX
  • CLX
  • Lite Extreme "LX"
  • Lite Extreme "XLX" X-Laced
  • Blade LXL
  • Extra Lite Extreme Everyday "LXL"
  • Lite Extreme "LX" FLEXRIM
  • SPOX Everyday
  • X-Laced Lite Extreme "XLX" FLEXRIM
Overview Details Technology Detail Options
The CLX is the lightest performance wheelchair wheel on the market. The carbon fiber rim brings outstanding performance never seen before! Industry experts claim this the most efficient wheel ever developed. They are lightweight, incredibly responsive, super durable and the best looking wheelset out there. The CLX features a twill weave carbon fiber rim, a custom CNC machined hub and of course our patented PBO fiber spokes in blade shape. Includes exclusive Spinergy designed high performance lightweight CNC machined hub in black PBO™ Power Spoke



Includes Spinergys patented PBO Power spokes, which are encased in a chemical resistant, water / UV proof composite containing over 30,000 strands of polyphenylene bensobisoxazole fiber. This delivers 3-times the strength of stainless steel at just half the weight resulting in less rotational weight and a faster responding wheel. PBO Power spokes are incredibly strong and will absorb impact more efficiently while staying in true. Performance and all day comfort—only from Spinergy.

Rim Specifications: Carbon Fiber, double-walled rim. Rivnut handrim mounting system. Available in, 24”and 25” sizes. Weight 1.1 lbs./wheel (530g)



Hub: Spinergy CAD design, CNC machined from lightweight aluminum. Minimalistic styling. Color: Black Bearings: ½” or 12mm



Specifications CLX
Rim Carbon Fiber, double-walled rim. Rivnut handrim mounting system.
Spokes PBO 3mm Blade
Spoke Count 18
Spoke Colours Pink, Green, Orange, Black, White, Red, Yellow, Blue, Note: Hub colour is always black
Spinergy Handrim Options TC Handrim, Silver Aluminum, Black Vinyl Coated
Wheel Size 24″, 25″
Spoke Specification Radial Laced with Spinergy patented Bladed PBO FIBER spokes.
Bearing Sizes Stainless steel 1/2″ or 12mm Axel Bearing
Wheelweight 530g/Wheel
Overview Details Technology Detail Options
Designed for people looking for a performance wheel with a unique cutting edge style of its own that offers excellent reach-through access underneath your chair. The Lite Extreme LX is aesthetically pleasing and is designed to reduce weight from your chair without sacrificing durability and performance. Includes exclusive Spinergy designed high performance lightweight CNC machined hub in black or optional polished finish. PBO™ Power Spoke



Includes Spinergys patented PBO Power spokes, which are encased in a chemical resistant, water / UV proof composite containing over 30,000 strands of polyphenylene bensobisoxazole fiber. This delivers 3-times the strength of stainless steel at just half the weight resulting in less rotational weight and a faster responding wheel. PBO Power spokes are incredibly strong and will absorb impact more efficiently while staying in true. Performance and all day comfort—only from Spinergy.

Rim Specifications: Lightweight aluminum, double-walled rim. Flexrim compatible. Rivnut handrim mounting system compatible. Available sizes: 22″, 24″, 25″ and 26″ sizes. Weight 687g/wheel.



Hub: Spinergy CAD designed, CNC machined from lightweight aluminum with stylish cutouts in flanges. Colors: Black or silver. Bearings: 1/2″ or 12mm.

Specifications Lite Extreme “LX”
Spokes PBO 4mm
Spoke Count 12
Spoke Colours Pink, Green, Orange, Black, White, Red, Yellow, Blue
Spinergy Handrim Options FlexRim, Silver Aluminum, Black Vinyl Coated
Wheel Size 22″, 24″, 25″, 26″.
Spoke Specification Radial Laced with Spinergy patented PBO FIBER spokes.
Bearing Sizes Stainless steel 1/2″ or 12mm Axel Bearing
Wheelweight 687g/Wheel
Overview Details Technology Detail Options
Designed for people looking for performance, style and additional torsional stiffness in their wheel choice. Spinergy’s Lite Extreme LX X-Laced is designed for maximum torsional stiffness and responsiveness. The hybrid radial/x-laced pattern produces “wind up” when pushing, transferring or using wheels locks while maintaining optimal lateral stiffness. Like the LX wheels, there is plenty of space between the spokes for great reach-through access underneath your chair. The hub and spoke pattern look fantastic and deliver what they promise. Includes exclusive Spinergy designed high performance lightweight CNC machined hub in black or optional polished finish. PBO™ Power Spoke



Includes Spinergys patented PBO Power spokes, which are encased in a chemical resistant, water / UV proof composite containing over 30,000 strands of polyphenylene bensobisoxazole fiber. This delivers 3-times the strength of stainless steel at just half the weight resulting in less rotational weight and a faster responding wheel. PBO Power spokes are incredibly strong and will absorb impact more efficiently while staying in true. Performance and all day comfort—only from Spinergy.

Rim Specifications: Lightweight aluminum, double-walled rim. Flexrim compatible. Rivnut handrim mounting system compatible. Available sizes: 22″, 24″, 25″ and 26″. Weight 658g/wheel.



Hub: Spinergy CAD designed, CNC machined from lightweight aluminum. X-Laced/radial hybrid design. Colors: Black or silver. Bearings: 1/2″ or 12mm.



Specifications Lite Extreme “XLX” X-Laced
Spokes PBO 4mm
Spoke Count 12
Spoke Colours Pink, Green, Orange, Black, White, Red, Yellow, Blue
Spinergy Handrim Options FlexRim, Silver Aluminium, Black Vinyl Coated
Wheel Size 22″, 24″, 25″, 26″
Spoke Specification X-Laced with Spinergy patented PBO FIBER spokes
Bearing Sizes Stainless steel 1/2″ or 12mm Axel Bearing
Wheelweight 658g/Wheel
Overview Details Technology Detail Options
The Blade LXL is the lightest performance wheelchair wheel on the market. These are your next wheels if you want super lightweight combined with Spinergy reliabilty. Developed as an incredibly stylish and aesthetically pleasing wheel with a clean design of its own, never sacrificing performance and durability. The Blade LXL features a 17mm bead width rim, a new minimalistic hub design and of course our patented PBO bladed fiber spokes. Hands down this wheel performs.



Bladed Spokes: The bladed spokes takes this model to a new level. Each spoke is a bladed shape to add sleek & cutting edge styling similar to high-end aero bicycle wheels.

Includes exclusive Spinergy designed high performance lightweight CNC machined hub in black. PBO™ Power Spoke



Includes Spinergys patented PBO Power spokes, which are encased in a chemical resistant, water / UV proof composite containing over 30,000 strands of polyphenylene bensobisoxazole fiber. This delivers 3-times the strength of stainless steel at just half the weight resulting in less rotational weight and a faster responding wheel. PBO Power spokes are incredibly strong and will absorb impact more efficiently while staying in true. Performance and all day comfort—only from Spinergy.

Rim Specifications: Lightweight aluminum, double-walled narrow rim (2mm narrower than all other Spinergy rims). Rivnut handrim mounting system compatible. Available in 22″, 24″, 25″ and 26″ sizes. Weight 586g/wheel.



Hub: Spinergy CAD design, CNC machined from lightweight aluminum. Minimalistic styling. Color: Black. Bearings: 1/2″ or 12mm.



Specifications Blade LXL
Spokes PBO 3mm Blade
Spoke Count 18
Spoke Colours Pink, Green, Orange, Black, White, Red, Yellow, Blue, Note: Hub colour is always black
Spinergy Handrim Options Silver Aluminum, Black Vinyl Coated
Wheel Size 20″, 22″, 24″, 25″, 26″
Spoke Specification Radial Laced with Spinergy patented Bladed PBO FIBER spokes.
Bearing Sizes Stainless steel 1/2″ or 12mm Axel Bearing
Wheelweight 568g/Wheel
Overview Details Technology Detail Options
The LXL wheel is the lightest performance wheelchair wheel on the market. The same design features as the “BLADE LXL” model, but with round spokes instead of bladed. This model elegantly combines performance, simplicity and the durability Spinergy is known for. The LXL features a 17mm bead width rim, a new minimalistic hub design and of course our patented PBO fiber spokes. This wheel supports our position that wheels are one of the most beneficial upgrades you can make. Includes exclusive Spinergy designed high performance lightweight CNC machined hub in black. PBO™ Power Spoke



Includes Spinergys patented PBO Power spokes, which are encased in a chemical resistant, water / UV proof composite containing over 30,000 strands of polyphenylene bensobisoxazole fiber. This delivers 3-times the strength of stainless steel at just half the weight resulting in less rotational weight and a faster responding wheel. PBO Power spokes are incredibly strong and will absorb impact more efficiently while staying in true. Performance and all day comfort—only from Spinergy.

Rim Specifications: Lightweight aluminum, double-walled narrow rim (2mm narrower than all other Spinergy rims). Rivnut handrim mounting system compatible. Available in 20″, 22″, 24″, 25″ and 26″ sizes. Weight 586g/wheel.



Hub: Spinergy CAD designed, CNC machined from lightweight aluminum. Minimalistic styling. Color: Black. Bearings: 1/2″ or 12mm.



Specifications Extra Lite Extreme Everyday “LXL”
Spokes PBO 3mm
Spoke Count 18
Spoke Colours Pink, Green, Orange, Black, White, Red, Yellow, Blue
Spinergy Handrim Options Silver Aluminum, Black Vinyl Coated
Wheel Size 20″, 22″, 24″, 25″, 26″
Spoke Specification Radial Laced with Spinergy patented Bladed PBO FIBER spokes.
Bearing Sizes Stainless steel 1/2″ or 12mm Axel Bearing
Wheelweight 586g/Wheel
Overview Details Technology Detail Options
The Spinergy FLEXRIM is a revolutionary product that is changing the way people roll. With the urethane material holding the pushrim onto the rim, it allows the user to push with out ever touching the tire. The ultra-light and extremely strong material allows the pushrim to flex in and give the wheelchair user an extra inch or so when squeezing into very tight doorways. This product is unlike anything offered by any other company and a must have for everyday users of wheelchairs. Includes exclusive Spinergy designed high performance lightweight CNC machined hub in black or optional polished finish. PBO™ Power Spoke



Includes Spinergys patented PBO Power spokes, which are encased in a chemical resistant, water / UV proof composite containing over 30,000 strands of polyphenylene bensobisoxazole fiber. This delivers 3-times the strength of stainless steel at just half the weight resulting in less rotational weight and a faster responding wheel. PBO Power spokes are incredibly strong and will absorb impact more efficiently while staying in true. Performance and all day comfort—only from Spinergy.

Rim Specifications: Lightweight aluminum, double-walled rim. Flexrim compatible. Rivnut handrim mounting system compatible. Available sizes: 24″ and 25″. Weight 658g/wheel.



Hub: Spinergy CAD designed, CNC machined from lightweight aluminum. Colors: Black or silver. Bearings: 1/2″ or 12mm.



Specifications Lite Extreme “LX” FLEXRIM
Spokes PBO 4mm
Spoke Count 12
Spoke Colours Pink, Green, Orange, Black, White, Red, Yellow, Blue
Spinergy Handrim Options FlexRim
Wheel Size 24″, 25″
Spoke Specification Radial Laced with Spinergy patented Bladed PBO FIBER spokes.
Bearing Sizes Stainless steel 1/2″ or 12mm Axel Bearing
Wheelweight 658g/Wheel
Overview Details Technology Detail Options
Spinergy built its reputation as a market leader with the SPOX Everyday wheelchair wheel. They have been our best seller for 15 years and are built to last. Wheels are the most rewarding upgrade you can make on a wheelchair and the SPOX Everyday wheels are our entry wheel with a budget in mind. Includes exclusive Spinergy designed high performance lightweight CNC machined hub in black or optional polished finish. PBO™ Power Spoke



Includes Spinergys patented PBO Power spokes, which are encased in a chemical resistant, water / UV proof composite containing over 30,000 strands of polyphenylene bensobisoxazole fiber. This delivers 3-times the strength of stainless steel at just half the weight resulting in less rotational weight and a faster responding wheel. PBO Power spokes are incredibly strong and will absorb impact more efficiently while staying in true. Performance and all day comfort—only from Spinergy.

Rim Specifications: Lightweight aluminum, double-walled rim. Rivnut handrim mounting system compatible. Available sizes: 20″, 22″, 24″, 25″ and 26″ sizes. Weight 721g/wheel.



Hub: Spinergy CAD designed, CNC machined from lightweight aluminum, Traditional Spinergy styling. Colors: Black or silver. Bearings 1/2″ or 12mm.



Specifications SPOX Everyday
Spokes PBO 3mm
Spoke Count 18
Spoke Colours Black, White, Red, Yellow, Blue
Spinergy Handrim Options Silver Aluminum, Black Vinyl Coated
Wheel Size 20″, 22″, 24″, 25″, 26″
Spoke Specification Radial Laced with Spinergy patented Bladed PBO FIBER spokes.
Bearing Sizes Stainless steel 1/2″ or 12mm Axel Bearing
Wheelweight 721g/Wheel
Overview Details Technology Detail Options
Designed for people looking for performance, style and additional torsional stiffness in their wheel choice. Spinergy’s Lite Extreme LX X-Laced is designed for maximum torsional stiffness and responsiveness. The hybrid radial/x-laced pattern produces “wind up” when pushing, transferring or using wheels locks while maintaining optimal lateral stiffness. Like the LX wheels, there is plety of spce between the spokes for great reach-through access underneath your chair. The hub and spoke pattern look fantastic and deliver what they promise. Includes exclusive Spinergy designed high performance lightweight CNC machined hub in black or optional polished finish. PBO™ Power Spoke



Includes Spinergys patented PBO Power spokes, which are encased in a chemical resistant, water / UV proof composite containing over 30,000 strands of polyphenylene bensobisoxazole fiber. This delivers 3-times the strength of stainless steel at just half the weight resulting in less rotational weight and a faster responding wheel. PBO Power spokes are incredibly strong and will absorb impact more efficiently while staying in true. Performance and all day comfort—only from Spinergy.

Rim Specifications: Lightweight aluminum, double-walled rim. Flexrim compatible. Rivnut handrim mounting system compatible. Available sizes: 24″ and 25″. Weight 658g/wheel.



Hub: Spinergy CAD designed, CNC machined from lightweight aluminum. X-Laced/radial hybrid design. Colors: Black or silver. Bearings: 1/2″ or 12mm.



Specifications X-Laced Lite Extreme “XLX” FLEXRIM
Spokes PBO 4mm
Spoke Count 12
Spoke Colours Pink, Green, Orange, Black, White, Red, Yellow, Blue
Spinergy Handrim Options FlexRim
Wheel Size 24″, 25″
Spoke Specification X-Laced/Radial Hybrid Design laced with Spinergy patented PBO FIBER spokes.
Bearing Sizes Stainless steel 1/2″ or 12mm Axel Bearing
Wheelweight 658g/Wheel

Accessories

IRCRED_angle-min

IRC Exeracer Pro Tyre

IRCEXERACERGRAY_angle-min

IRC Exeracer Tyre

SS-Angle-White

TC Stainless Steel Handrim

Surge

Spinergy Aluminum Handrims - Hard Anodized Grey

Aluminum-HR-angle-2014

Spinergy Aluminum Handrims - Silver

NEVEGAL_angle-min-1

Kenda Nevegal Tyre

KONCEPTBLUE_angle

Kenda Koncept "Iron Cap" Tyre

Natural-Fit-LT-Angle_0

Natural Fit - LT Oval

Natural-Fit-Oval

Natural Fit - Original Oval

Q-Grip-Angle

Natural Fit - Q-Grip

Thumb-Guard-Standard

Natural Fit - Standard Thumb Guard

Super-Thumb-1

Natural Fit - Super Thumb Guard

Surge

Natural Fit - Surge

Surge-LT-Angle

Natural Fit - Surge LT

SENTINEL_angle-min

Pr1mo Sentinel HD Solid Tyre

MARATHON_angle-min

Schwalbe MPE Tyre

RIGHTRUNBLUE_angle-min_0

Schwalbe RightRun Tyre

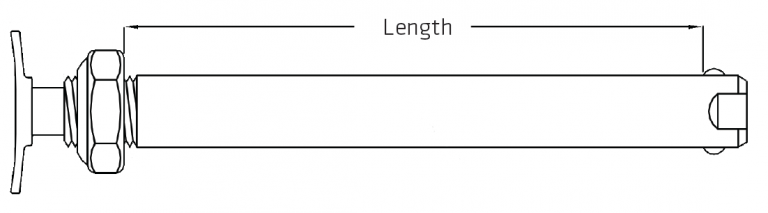

Axles-.5-2014

Steel Axle - 1/2"

Axles-.625-2014

Steel Axle - 5/8"

Axles-.5-2014

Titanium Axle - 1/2"

IMG_6988_0

XSLX Hub Cap

IRCRED_angle-min

IRC Exeracer Pro Tyre

The Exeracer Pro tire offers several benefits no other tire has. They mix silica into their tread compound to achieve a unique grip and performance that only IRC has. They don’t lose their grip over time and and stay on the rim better than any other brand. The rubber is also antibacterial!

Sizes 24″(540), 25″(559), 26″ (590), 700/28″(622)
Width 1″ (25mm)
Colours Red, Grey
Tread Small channels (700c size is slick tread), Silica based compound
Puncture protection n/a – not necessary, and would only add unwanted weight
Other Anti-bacterial rubber
Product Code:
1579-94-ATIREIRCEXP24Grey
1579-94-ATIREIRCEXP24Red
1579-94-ATIREIRCEXP25Grey
1579-94-ATIREIRCEXP25Red
1579-94-ATIREIRCEXP26Grey
1579-94-ATIREIRCEXP26Red
1579-94-ATIREIRCEXP700Grey
1579-94-ATIREIRCEXP700Red
IRCEXERACERGRAY_angle-min

IRC Exeracer Tyre

The Exeracer tire offers several benefits no other tire has. The silica-mix compound achieves a unique grip and performance that only IRC has. They don’t lose their grip over time and and stay on the rim better than any other brand. The rubber is also antibacterial!

Sizes 24″(540), 25″(559)
Width 1″ (25mm)
Colours Black (34″only), Grey (25″only)
Tread Semi deep grooves, silica based compund, non-marking
Puncture protection Moderate due to tread thickness
Other Anti-bacterial rubber, marks floors and walls less than any other brand
Product Code:
1579-94-ATIREIRCEX24Bla
1579-94-ATIREIRCEX25Grey
SS-Angle-White

TC Stainless Steel Handrim

Introducing Spinergy’s new Tactical Control Pushrim made from a revolutionary new lightweight stainless steel. Offered in sizes 22″ (501), 24” (540), 25” (559), & 26” (590).

Look Unique clean appearance
Wear Stays looking great
Feel Non-sticky, cool even in hot sun, non-burning on down slope/low friction
Grip Embossed texture
Hygiene Easy clean surface
Grip marking Does not transfer to skin
Quality Spinergy design + testing (2 years field test)
Surge

Spinergy Aluminum Handrims - Hard Anodized Grey

Hard anodized aluminum is going to resist dents and scratches better than any treatment, making them ideal for contact sports. Spinergy’s hard anodized handrims are inspected for quality and backed by our commitment to quality.

Sizes 24″(540) 6-tab, 25″(559) 6 tab, 26″ (590) 6-tab, 700c (622) 12-tab – sometimes known as 27″ or 28″
Diameter 3/4″
Finish Hard anodized, grey
Mounting 6 Q-tab (24-26″)/ 12 Q-tab (700c), 2 mount holes in each tab
Aluminum-HR-angle-2014

Spinergy Aluminum Handrims - Silver

Precision-made handrims for the best fit to your Spinergy wheels. No need to bend tabs with these handrims! Helpful tip: Pair these up with our rivnut system to make it super easy to install and replace these handrims without having to take your tires off!

Sizes 20″ (451), 22″ (501), 24″ (540), 25″ (559), 26″ (590)
Diameter 3/4″
Finish Brushed aluminum – clear anodized
Mounting 6 Q-tab, 2 holes, protective sleeve
NEVEGAL_angle-min-1

Kenda Nevegal Tyre

The Kenda Nevegal tire mounted on our LX wheel model makes an excellent outdoor wheel set-up. Select the right tire and wheel size and you can dial in a set of these to be interchangeable with your normal street wheels! The Nevegal’s rugged tread pattern make it the ultimate tire for all conditions – loose, hard pack, and wet surfaces. The knobs are specially designed to penetrate and hold on rugged surfaces, while keeping rolling resistance to a minimum. That is perfect for anyone wanting to take on the challenge of different terrains without overtaxing their shoulders! Taking it further, the 22″ and 24″ sizes contain a special additive in the compound to make it the least marking black knobby tire available.

Sizes 22″ (501), 24″ (540), 25″ (559)
Width 22″ x 1.95″, 24″x 2.1″, 25″ x 1.95″
Colour Black
Tread Knobby, non-marking compound in 22″ & 24″
Puncture Protection “Iron Cap”
Product Code:
1579-94-ATIREKN22BLA
1579-94-ATIREKN24BLA
1579-94-ATIREKN25BLA
NEVEGAL_angle-min-1

Kenda Koncept "Iron Cap" Tyre

Kenda “Iron Cap” tires are primarily used as a sport tire, but can be used for standard daily use as well. The Iron Cap puncture resistance technology and the universally designed tread makes them the jack of all trades.

Sizes 24″(540), 25″(559), 26″(590)
Width 1″
Colour Red or Blue
Maximum Pressure 110 psi
Tread Smooth/grooved, non-marking
Puncture Protection Ïron Cap”
Other “Koncept”version comes in 24” and 25″size. “Kotender” version comes in 26″ size.
Product Code:
1579-94-ATIREKK24BLU
1579-94-ATIREKK24RED
1579-94-ATIREKK25BLU
1579-94-ATIREKK25RED
1579-94-ATIREKK26BLU
1579-94-ATIREKK26RED
Natural-Fit-LT-Angle_0

Natural Fit - LT Oval

The Natural-Fit LT uses a reduced weight, smaller profile oval. The LT is designed for those looking for a reduction in weight or a smaller gripping surface (for those with smaller hands). The LT is more than 17% lighter than the original Natural-Fit.

Available Sizes: 22″, 24″, 25″, 26″

Product Code:
1579-94-900110NFLT
1579-94-900120NFLT
1579-94-900130NFLT
1579-94-900140NFLT
Natural-Fit-Oval

Natural Fit - Original Oval

The Natural-Fit has a contoured thumb piece and an oval component that together create an optimal ergonomic grip. Size and coating options allow for better customisation.

Available Sizes: 22″, 24″, 25″, 26″

Product Code:
1579-94-900110NF
1579-94-900120NF
1579-94-900130NF
1579-94-900140NF
Q-Grip-Angle

Natural Fit - Q-Grip

The Q-Grip is a fully-coated handrim that sets itself apart due to its unique coating surface and superior durability. The Q-Grip™ redefines what a coated handrim can be. The Q-Grip uses an exclusive anti-slip, latex-free, neoprene coating that makes a difference on every push.

Available Sizes: 22″, 24″, 25″, 26″

Product Code:
1579-94-900110NFQ
1579-94-900120NFQ
1579-94-900130NFQ
1579-94-900140NFQ
Thumb-Guard-Standard

Natural Fit - Standard Thumb Guard

Both the Natural-Fit and the Natural-Fit LT come with Standard Grip or Super Grip coating options for the thumb piece. The Standard Grip uses a powder coat on the thumb piece that provides a low friction surface to go along with the smooth braking surface on the oval. For those users interested in the ergonomic features of the Natural-Fit but who do not like high friction surfaces, then the standard grip may be your best choice. For users who want both the ergonomic benefits of the Natural-Fit along with a grippier propulsion surface, the Super Grip will be the better choice.

Available Sizes: 22″, 24″, 25″, 26″

Product Code:
1579-94-900110NF201
1579-94-900120NF401
1579-94-900130NF501
1579-94-900140NF601
Super-Thumb-1

Natural Fit - Super Thumb Guard

Both the Natural-Fit and the Natural-Fit LT come with Standard Grip or Super Grip coating options for the thumb piece. The Super Grip uses an advanced copolymer coating that provides a higher friction surface on the thumb piece (it is similar to a vinyl coating). This provides a grippier propulsion surface for your thumb. For those users interested in the ergonomic features of the Natural-Fit but who do not like high friction surfaces, then the standard grip may be your best choice. For users who want both the ergonomic benefits of the Natural-Fit along with a grippier propulsion surface, the Super Grip will be the better choice.

Available Sizes: 22″, 24″, 25″, 26″

Product Code:
1579-94-900110NF203
1579-94-900120NF403
1579-94-900140NF603
Surge

Natural Fit - Surge

The Surge is an all-in-one, single component handrim with a Gription Strip, a rubber strip that goes all the way around the top surface of the oval for increased friction while leaving the side surface smooth for braking.

Available Sizes: 22″, 24″, 25″, 26″

Product Code:
1579-94-900110NFS
1579-94-900120NFS
1579-94-900140NFS
Surge-LT-Angle

Natural Fit - Surge LT

The Surge is a lightweight, all-in-one oval handrim with a Gription™ Strip that improves traction on every push. The Surge does not add any width to your chair and can be mounted in the close-in or wide position.

Available Sizes 22″, 24″, 25″, 26″

Product Code:
1579-94-900110NFSLT
1579-94-900120NFSLT
1579-94-900130NFSLT
1579-94-900140NFSLT
SENTINEL_angle-min

Pr1mo Sentinel HD Solid Tyre

Pr1mo has long been the go-to brand for dependable and price-conscious street tires. We’re excited to offer their new Sentinel HD (High Density) solid model. The fit is great, the looks rock, and if you’re gonna go solid look no further!

  • Pr1mo sentinel solid tires are not compatible with the following wheel models: Blade LXL or LXL wheels
Sizes 22″, 24″(540), 25″(559), 26″(590)
Width 1″
Colour Black
Tread Smooth/grooved
Puncture Protection Solid tire (no tube required)
Product Code:
1579-94-ATIRESHD22BLA
1579-94-ATIRESHD24BLA
1579-94-ATIRESHD25BLA
1579-94-ATIRESHD26BLA/td>
MARATHON_angle-min

Schwalbe MPE Tyre

Schwable quickly entered the wheelchair scene in 2004 with their innovative Marathon Plus Evolution tire. Dreamt up by wheelchair athletes, it remains the benchmark in puncture protection and overall reliability. The Marathon Plus Evolution model is great for the active user that requires peace of mind and performance. Schwalbe also took on the challenge of producing this model with mostly natural rubber – doing one for the environment.

Sizes 24″ (540), 25″(559), 26″(590)
Width 1″(25mm)
Colour Black
Maximum Pressures 145 psi
Tread Semi deep grooves, non-marking “Black’n Roll”
Puncture Protection Maximum due to “Smart Guard”
Other Anti-aging sidewall compound – sidewalls won’t dry and crack prematurely or from under inflation
Product Code:
1579-94-ATIREMPE24BLA
1579-94-ATIREMPE25BLA
1579-94-ATIREMPE26BLA
RIGHTRUNBLUE_angle-min_0

Schwalbe RightRun Tyre

Schwalbe’s entry level tire with some nice bonus features. The RightRun’s attractive 2 color compound and 2 grip side walls set them apart from other “standard” tires right away. Schwalbe’s “KevlarGuard” helps prevent flats and the “Black’n Roll” means you’re not scuffing up your friend’s new hardwood floor. They are also rated up to 145 psi so their rollability will make your shoulders and therapist happy.

Sizes 20″ (451), 22″ (501), 24″ (540), 25″ (599), 26″ (590)
Width 1″(25mm)
Colour Black/Grey, Blue/Grey, Red/Grey
Maximum Pressure 145 psi
Tread Slick with shallow grooves
Puncture Protection Minimum to Moderate Level 3 K-Guard (extra layer of natural rubber and Kevlar)
Product Code:
1579-94-ATIREMPE24BLA
1579-94-ATIREMPE25BLA
1579-94-ATIREMPE26BLA
Axles-.5-2014

Steel Axle - 1/2"

Our Spinergy axles are designed for performance and style. The stylish push button proudly features a laser etched Spinergy “S” logo. The business end of the axle is 100% stainless steel and CAD designed to exacting tolerances. These axles look great and take functionality to the next level.

Our ½” steel axles instill a sense quality and reliable performance that you don’t get with other axles. They are 100% stainless steel so you don’t have to worry about rust – not all axles can say that! The nylock nut is adjustable so you can dial in the grip length for zero slop.

Grip Length 3.75″, 4.00″, 4.25″, 4.50″, 4.75″
Diameter 1/2″
Length Adjustable Yes, threaded Nylock nut
Push Button Large, black with laswer etched Spinergy “S”
Installation Quick Release
Shaft Material Steel
How to measure your axles axle_measure
Product Code:
1579-94-AXLWC3.75-S
1579-94-AXLWC4.00-S
1579-94-AXLWC4.25-S
1579-94-AXLWC4.50-S
1579-94-AXLWC4.75-S
Axles-.625-2014

Steel Axle - 5/8"

Our 5/8″ thick axles give you the peace of mind you need to stay focused on the game. These are primarily used in wheelchair basketball and quad rugby, but can benefit any player that is concerned about bending axles. Our line of “R10″ wheels are built with the complementary 5/8″ bearings.

These 5/8″ axles are tough! If you bend 1/2″ axles and have a chair or plan on getting a wheelchair that can accommodate 5/8” axles, these are your secret weapon. Hold one in your hand, and you’ll immediately know these are the solution!

Grip Length  4.25″, 4.75″
Diameter 5/8″
Length Adjustable Yes, threaded Nylock nut
Push Button Small
Installation Quick Release, 4 release balls
Shaft Material Steel
How to measure your axles axle_measure
Product Code:
1579-94-AXLWC.625-4.25
1579-94-AXLWC.625-4.75
Axles-.5-2014

Titanium Axle - 1/2"

Our Spinergy axles are designed for performance and style.  The stylish push button proudly features a laser etched Spinergy “S” logo. Our Titanium axles feature a titanium shaft which make them noticeably lighter than steel axles. These axles look great, are super lightweight and perform superbly.

Our ½” titanium axles scream quality! They are super lightweight, look great and offer excellent performance and reliability. The shaft is titanium, while the inner spindle/springs/balls are stainless steel for superb resistance against rust. The nylock nut is adjustable so you can dial in the grip length for zero slop.

Grip Lengths 3.75″, 4.00″, 4.25″, 4.50″, 4.75″
Diameter 1/2″
Length Adjustable Yes, threaded Nylock nut
Push Button Large, black with laswer etched Spinergy “S”
Installation Quick-Release
Shaft Material Titanium
How to measure your axles axle_measure
Product Code:
1579-94-AXLWC3.75-T
1579-94-AXLWC3.75-T
1579-94-AXLWC4.25-T
1579-94-AXLWC4.50-T
1579-94-AXLWC4.75-T
IMG_6988_0

XSLX Hub Cap

Our new XSLX Hub Cap easily snaps over the hub in order to provide a smooth and round outer surface. Generally used in contact sports like basketball, but can be used in any sport or application. Only compatible with the XSLX model.

Size One size fits all
Diameter 3.75″ (96mm)
Colour Black (nylon)
Installation Snap on (see demonstration video link below)
Compatibility All XSLX wheels (X-Laced SLX) using 1/2″or 5/8″axles
XSLX 1/2″ axles
XSLX R10 5/8″axles
Product Code:
1579-94-A700019

View Installation Video

Spoke Colour Options

Black (111)

spoke_zoom_color_black-W_1

Blue (122)

spoke_zoom_color_blue-W_1

Green (177)

spoke_zoom_color_green-W_1

Orange (166)

spoke_zoom_color_orange-W_1

Pink (188)

spoke_zoom_color_pink-W_1

Red (133)

spoke_zoom_color_red-W_1

White (155)

spoke_zoom_color_white-W_1

Yellow (144)

spoke_zoom_color_yellow-W_1

Purple (211)

spoke_zoom_color_purple-W_1

Custom colour options are available

Related products

QUICKIE Xtender Wheelchair Power-Assist Wheels

QUICKIE Xtender Wheelchair Power-Assist Wheels

Go the distance with power-assisted manual mobility. The Quickie Xtender adds motorised power-assist wheels to a manual wheelchair to increase travel distance; improve propulsion efficiency and reduce fatigue. With synchronised wheel communication; quick-release wheels and built-in hill support features; it helps users maintain the look and control of a manual chair while gaining extra assistance when needed.
CarboLife Handrims

CarboLife Handrims

Grip; efficiency and comfort in every push. CarboLife Handrims are designed to improve manual wheelchair propulsion through better grip surfaces; lighter handling and a more comfortable pushing experience. With different profiles available to suit user preference and pushing style; they help support control; comfort and more efficient everyday mobility.

Experience a live product demonstration

Get in touch today
