Spex Zygo Deep Contour Lo Back Support
Spex Zygo Deep Contour Lo Back Support
Functional benefits
Fits to You, Not Just to the Chair
When it comes to finding the right size and style, the Zygo fits to the user not just to the chair!
User-focused scripting – by user size, not wheelchair width ensures a tailored fit to the torso.
Extensive range of size and style combinations available from two shell contours (Active and Deep) and varying shell heights (Lo and Mid).
Aesthetic and Minimalistic
Look your best with Zygo! From the perfectly contoured shape, to the futuristic and tasteful ventilated shell pattern, achieve effortless style and class through the Zygo’s elegant design! The Zygo lets you be your true self. All Zygo back supports are supplied with a cover extension.
Compatibility With Different Wheelchairs
Unique breathable shell design allows interfacing of the shell to a range of different wheelchair styles, from lightweight manual chairs to complex power chairs. The carefully placed hole cut-outs allows the shell to be directly mounted to certain wheelchair frames and is also compatible with central mounting systems.
Easy to Use and Easy to Adjust
The Zygo has been designed to be easily adjustable, easy to use, and easy to remove. Suited to those with limited hand function, the easy ‘drop-in’ installation is made possible by the lightweight quick-release Drop Mount Hardware. The invertible shell design (on mid-height back supports) provides easy adjustment of the lateral height to achieve optimum trunk stability, enable a precisely tailored fit and accommodate postural and growth requirements. Removable and washable cover design.
More Comfort and Freedom to Move
Zygo users experience true freedom with unrestricted arm movement and scapula clearance. The Zygo provides superior comfort and flexibility which is achieved through the breathable padding design and ventilated shell that reduces the contact surface area around the user.
Supportive Deep Contour
The Zygo Deep Contour offers a solid shell with inbuilt laterals providing excellent lateral trunk stability without compromising function of the user. Coupled with soft and comfortable upholstery design the Zygo offers secure spine and trunk support. Across the size range the Zygo Deep Contour style, the depth of the lateral support varies to ensure a perfectly tailored match to the user.
Measurements and Specifications
- Weight Capacity
- Size Options
- Thickness of Zygo Lo Back Supports

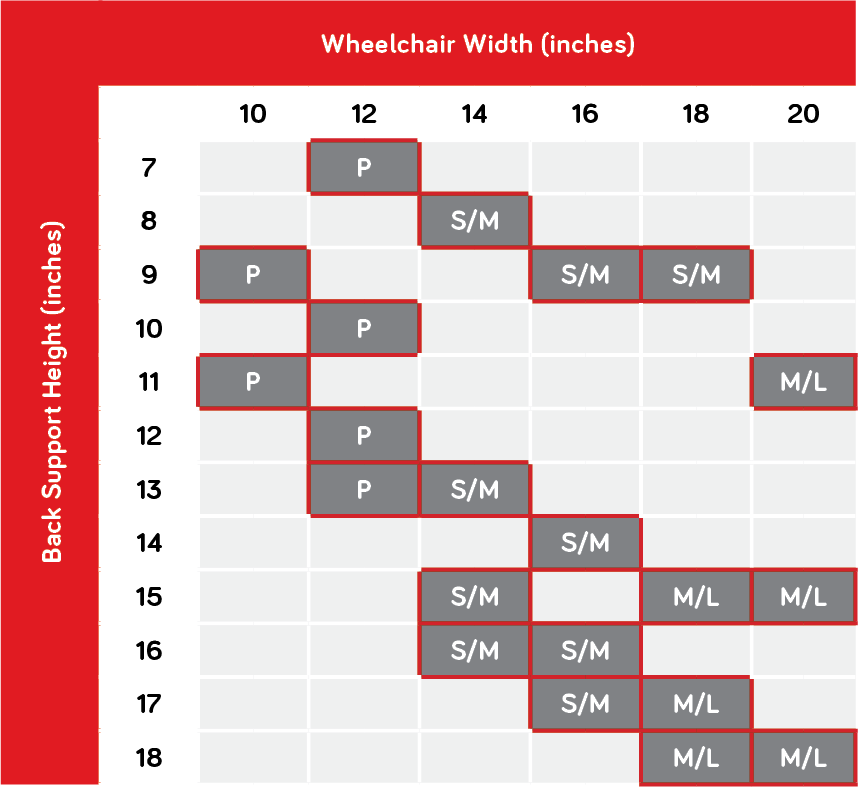

- Hardware Selection
| Zygo Style | Size | Weight |
|---|---|---|
| Zygo Deep Lo | 16″ x 9″ | 0.9kg |
Maximum Occupant Weight: 136kg
The Zygo Back Support Family implements a unique “user-focused” scripting process where the size is determined by the user size, not the wheelchair width, thereby ensuring a tailored fit to the torso. See our Zygo fitting guide.
| Deep Lo – Sizing Table | ||||||
|---|---|---|---|---|---|---|
| Zygo Size | Outer Width | Inner Width | Height | Depth | Lateral Height | Code |
| 12″ x 7″ | 10.5″ | 8.5″ | 7″ | 3.5″ | 6.2″ | 1251-1207-0DL |
| 14″ x 8″ | 12.5″ | 10.5″ | 8.2″ | 4.5″ | 7.4″ | 1251-1408-0DL |
| 16″ x 9″ | 14.7″ | 12.5″ | 8.8″ | 5.8″ | 7.8″ | 1251-1609-0DL |
| 18″ x 9″ | 16.7″ | 14.5″ | 9.4″ | 6.3″ | 8″ | 1251-1809-0DL |
| 20″ x 11″ | 18.7″ | 16.5″ | 10.6″ | 6.3″ | 8.5″ | 1251-2011-0DL |
 |
 |
 |
| Zygo Style | Width | Supportive Pink PU Foam | Velcro Grey Contouring Layer | Overall Thickness (Including Cover) |
|---|---|---|---|---|
| Zygo Lo | 12″ to 14″ | 20mm | 6mm EVA | 30mm |
| Zygo Lo | 16″to 20″ | 25mm | 6mm EVA | 35mm |
Crash tested and transport certified to ISO 16840-4:2009
Drop Mount Hardware
The lightweight Drop Mount hardware self-locks into place and is simple to operate with a single combined clamp and mechanism unit. The release mechanism is simple to operate, and suitable for single-handed use, and those with limited hand function. The hardware gives plenty of adjustability and rigidity and can be used on a wide range of wheelchair frames.
Developed using a composite material the Drop Mount Hardware is lightweight (600-800g) without compromising on durability.
Available in four sizes, ensures the visual footprint of the hardware is paired perfectly to the back support size. The hardware fits 10” to 20” wide backs which are between 7” to 18” tall.
| Size | Code | Width Adjustment | Depth Adjustment | Wheelchair Compatibility: When used with Zygo Back Supports | Wheelchair Compatibility: When used with Spex Back Supports | Weight |
|---|---|---|---|---|---|---|
| Paediatric | 1259-1400-00P | 1″ | 2 | +2″ to -2″ | +2″ to -0″ | 600g |
| Small | 1259-1400-00S | 1.7 | 1.5 | +2″ to -2″ | +3″ to -0″ | 600g |
| Medium | 1259-1400-00M | 1.7 | 2 | +2″ to -2″ | +3″ to -0″ | 700g |
| Large | 1259-1400-00L | 2.3 | 3 | +2″ to -2″ | +4″ to -2″ | 800g |
