Spex XLella Bariatric Back Support Hardware

Spex XLella Bariatric Back Support Hardware

Enquire now

xlella_fixed_hardware_1_-_shell_ghosted-medium_1-1vv

xlella_quick-release_hardware_1_-_shell_ghosted-medium_1-1vv

xlella_quick-release_hardware_1-medium-2vv

xlella_fixed_hardware_flipped_1_-_shell_ghosted-mediumvv

Spex XLella Bariatric Hardware

Mounting hardware tested and rated for heavier users.

There are two options of mounting hardware for bariatric users, Fixed Mount and Quick-Release to suit individual needs.

Fixed Hardware is a default hardware choice for simplicity, with lower hardware weight. Fixes the back to the wheelchair for sturdy installation. Can easily be set in flipped configuration to allow greater seat depth adjustment.

Quick-Release Hardware allows easy removal of back support for use with folding wheelchairs or in situations the back is required to be removed.

Both models of hardware are transport certified and have a weight capacity of up to 300kg.

Medifab is pleased to provide the most comprehensive special purpose car seat we’ve every introduced for children and teenagers, providing various kinds of extension accessories and multi-adjustable features to allow longer use by the child and to suit the wide spectrum of children’s needs.

The Carrot 3000 Car Seat is one of the safest child seats in the world, catering for safety and the importance of keeping the child in a safe and supported posture for travel and was was designed, engineered and built to provide optimal positioning & safety for children with insufficient head, trunk, and pelvic stability.

Functional benefits

spex_xlella_back_support_quick-release_hardware_2-mediumoo

Compatibility With Different Wheelchairs

The XLella Bariatric Hardware is designed to be compatible with an extensive range of wheelchair frames.

Width and Depth Adjustable

Within the Bariatric Mount brackets, there is a range of width and depth adjustment to fit the back support on different size wheelchairs and to adjust the seat depth on the wheelchair.

spex_xlella_back_support_quick-release_hardware_3-medium_-_sturdy_robustaa

Sturdy and Robust

Heavy-duty and tough to meet the daily lifestyle demands of bariatric wheelchair users. The robust shell and hardware are not only tested and rated for heavier users up to 300kg.

spex_xlella_back_support_thickness-medium_011

Range Angle Adjustment

10° of forwards and 10° rearwards angle adjustment with 20° total available in the bracket.

Hardware Options

XLella Fixed Mount Bariatric Hardware

Default hardware choice for simplicity, with lower hardware weight. Fixes the back to the wheelchair for sturdy installation. Can easily be set in flipped configuration to allow greater seat depth adjustment.

XLella Quick-Release Bariatric Hardware

Allows easy removal of back support for use with folding wheelchairs or in situations the back is required to be removed.

Measurements and Specifications

Specifications

Specifications
Colour Options

HARDWARE	XLELLA FIXED MOUNT	XLELLA QUICK RELEASE
WEIGHT	1.1kg	1.4kg
POINTS OF FIXATION	4
FITS CANE SIZES	19-26mm
BACK ANGLE ADJUSTMENT	+/-10°
SEAT DEPTH ADJUSTMENT	0-30mm Flipped Orientation: 70-100mm
OVERALL WIDTH ADJUSTMENT	50mm
WEIGHT CAPACITY	300kg
CODE	1259-2500-100	1259-2505-100

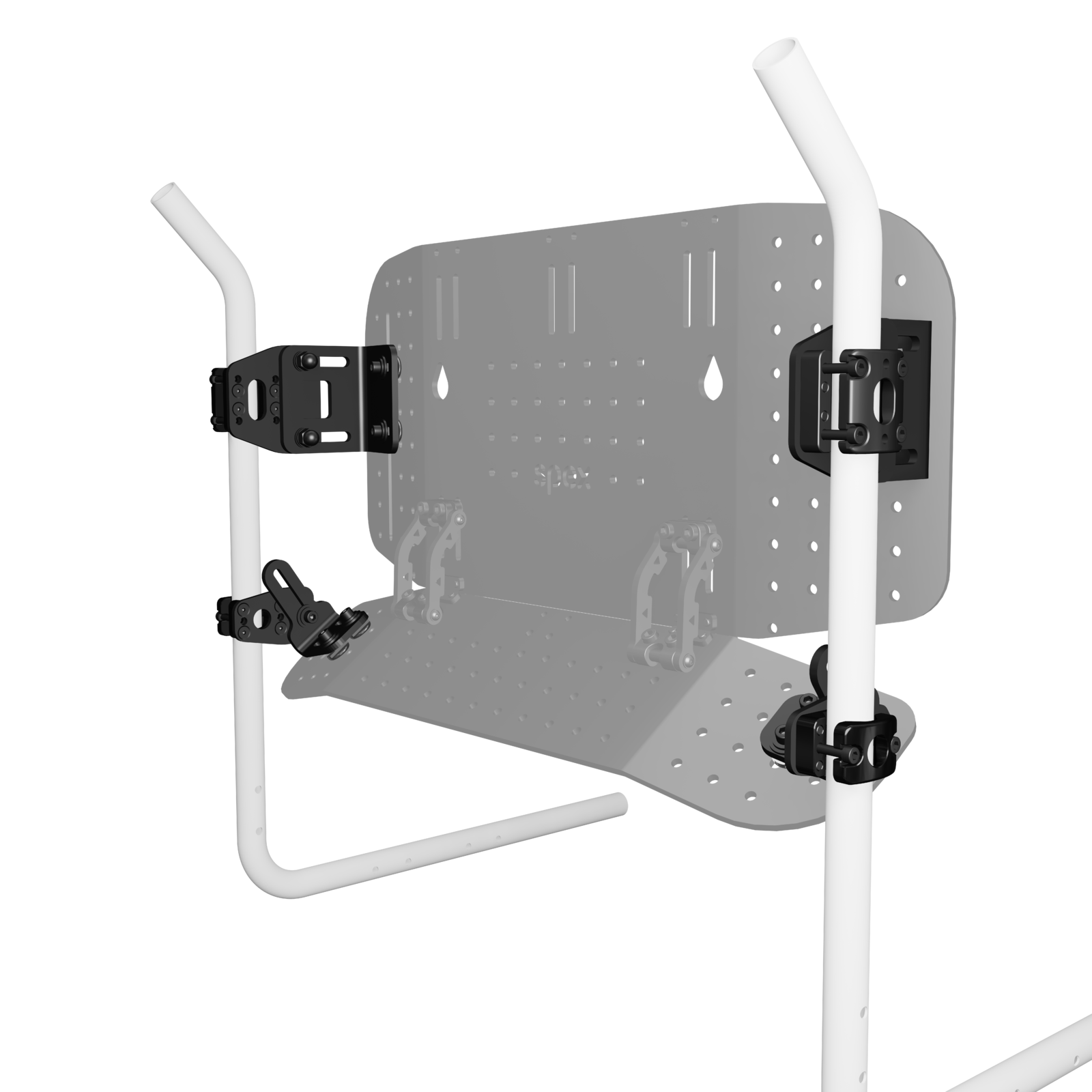

Hardware in flipped orientation
for greater seat depth.

xlella_fixed_hardware_flipped_1_-_shell_ghosted-mediumvv

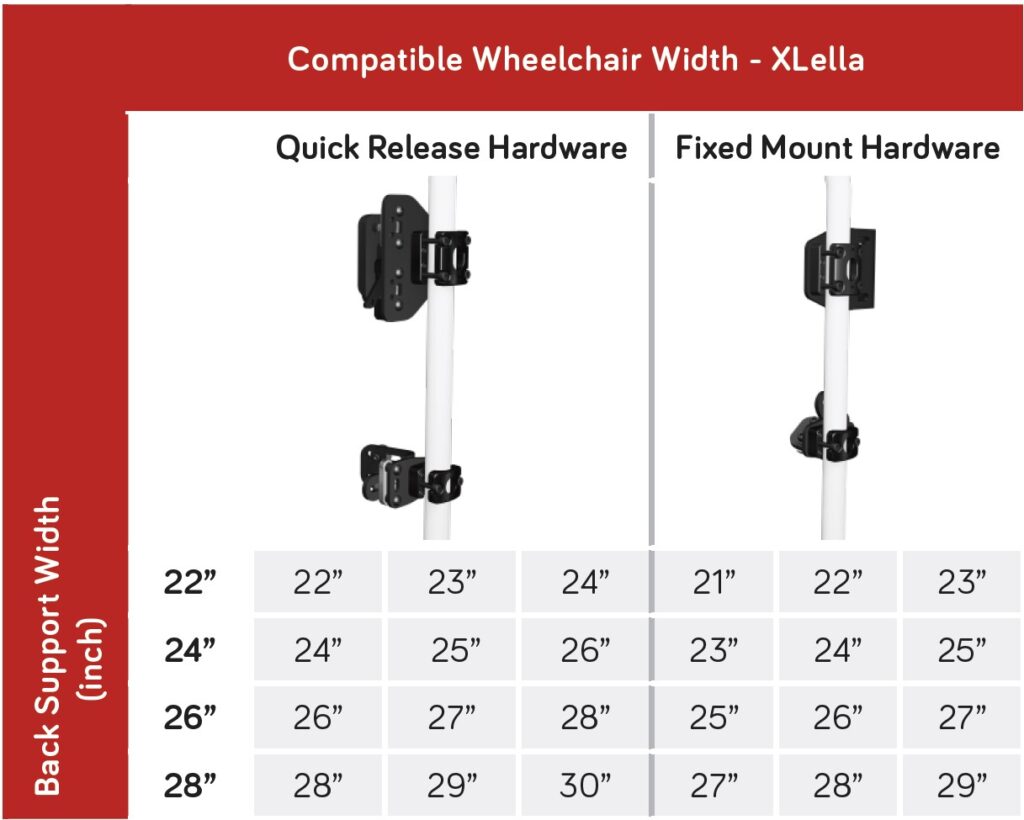

Compatibility Chart

This chart outlines XLella compatibility with wheelchair sizes for each hardware option.

xlella_hardware_compatibility_chart-1024x820

Transport Certified All XLella Back Supports and hardware configurations are suitable for transport in a vehicle when mounted on an appropriate wheelchair frame.
