Spex Tessellated Shape System
Spex Tessellated Shape System
Functional benefits
Varying foam densities
Positioning pack includes a number of different tessellations in varying foam densities.
Slots behind back support squab
Developed to be placed behind the back support squab (in front of the seat shell).
Shape to fit
Stack and configure the shapes according to the user's needs.
Cut to suit
The separate elements of the TSS can be cut and modified to achieve the desired configuration, making it a versatile solution to easy and effective back support contouring.
Strong velcro backing
The different elements of the TSS are backed with a strong Velcro surface.
What do the different blocks do?
Easy and effective back support contouring: stack and configure each component
- Upgrade Vigour, Manta or other Spex back supports in order to maximise stability, positioning and seating tolerance.
- Different densities are colour coded for easy application.
 |

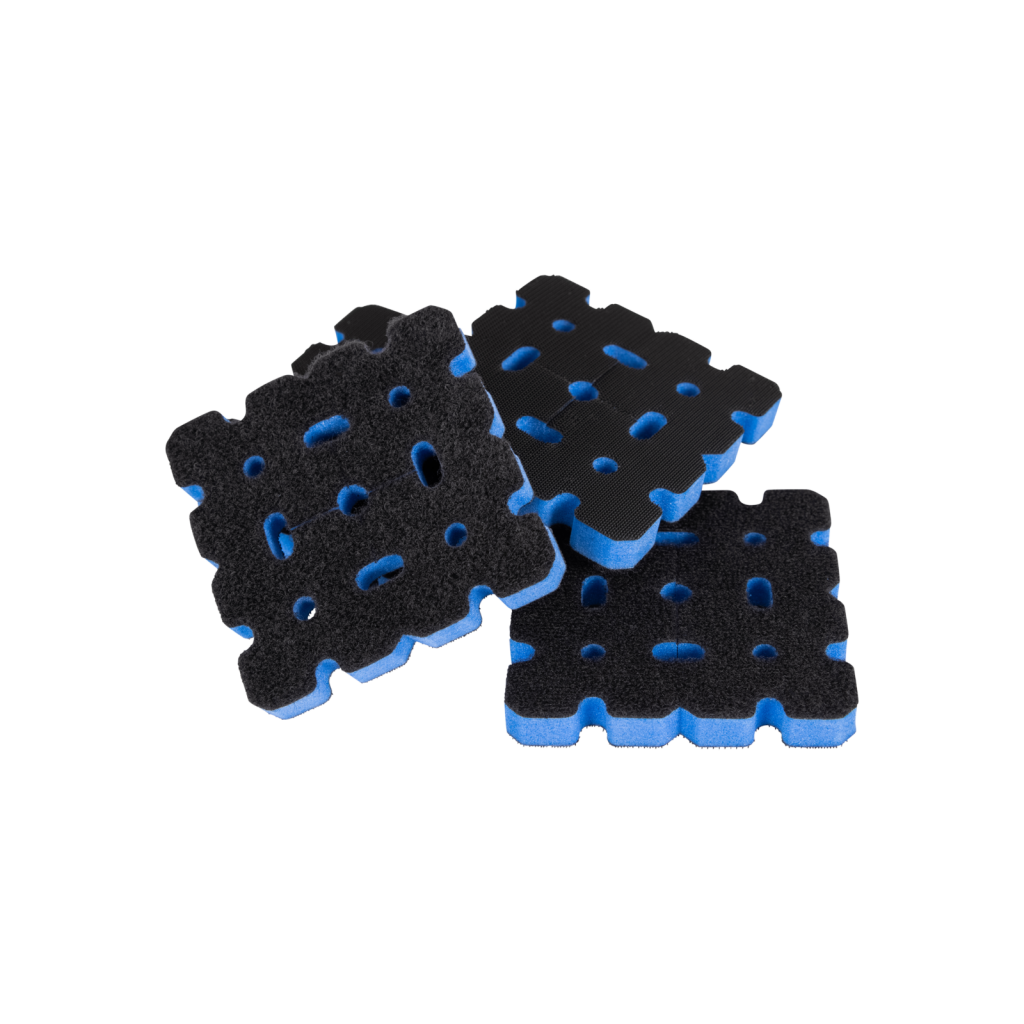

Blue Base Building Block | Firm density shape is used to build a firm foundation for the contouring.
The blue blocks are used to build a firm and stable foundation for contouring and to provide the body surface with sensory feedback to the position of the support. |
 |

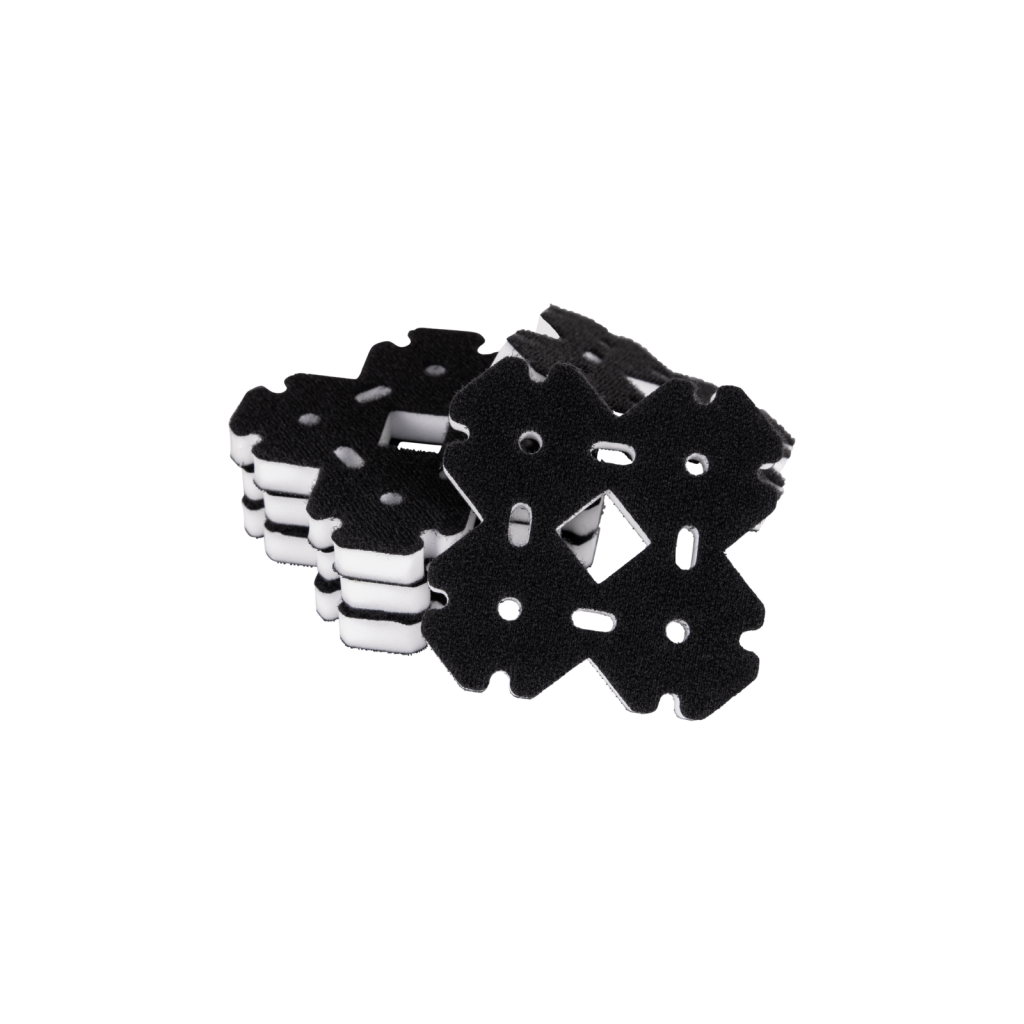

White Intermediate Building Block | Medium density shape is used to build up shapes where positioning is required.
The white blocks are designed to layer and build shapes for tailored positioning. |
 |

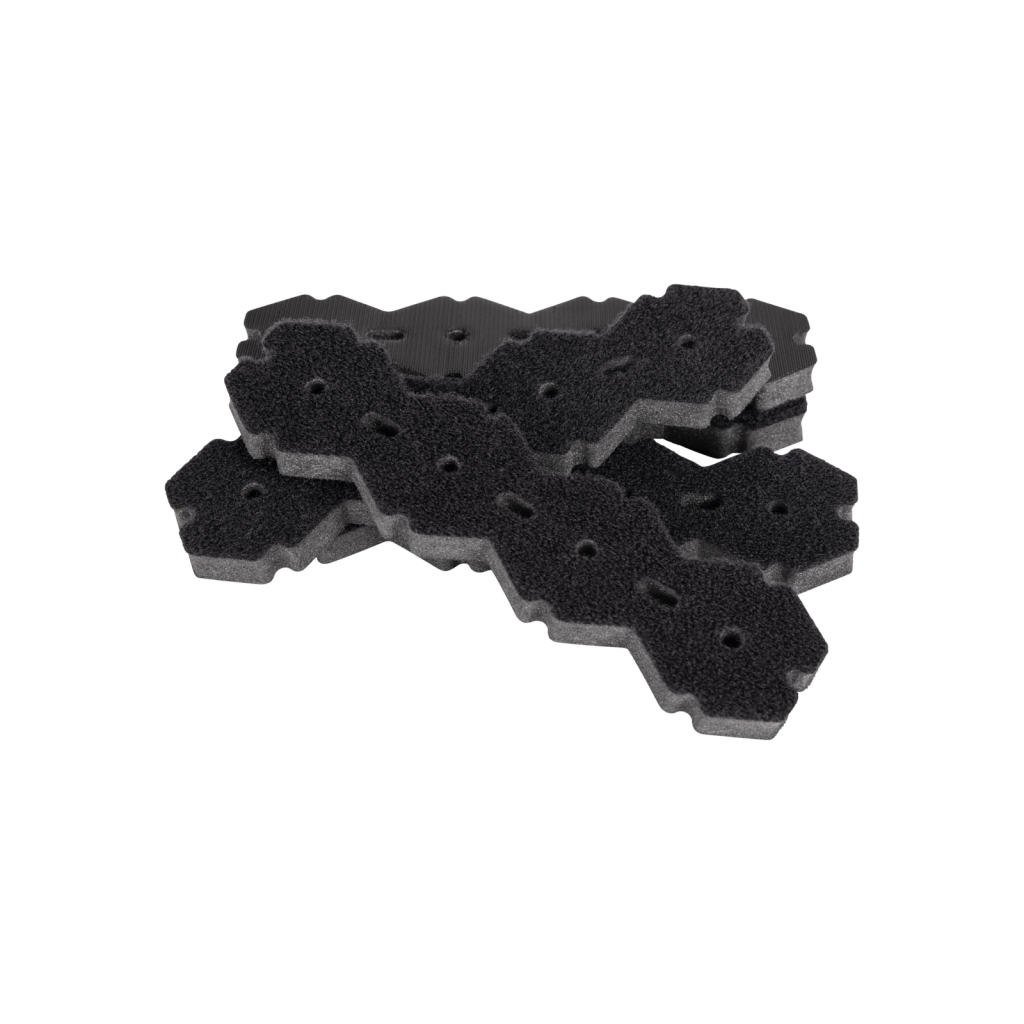

Charcoal Overlay Block | Softer density shape is used for creating softer overlay over the previous blocks.
The charcoal blocks are used to enhance comfort by providing a softer foam density and smooth out the edges of the underlying building blocks. |
 |

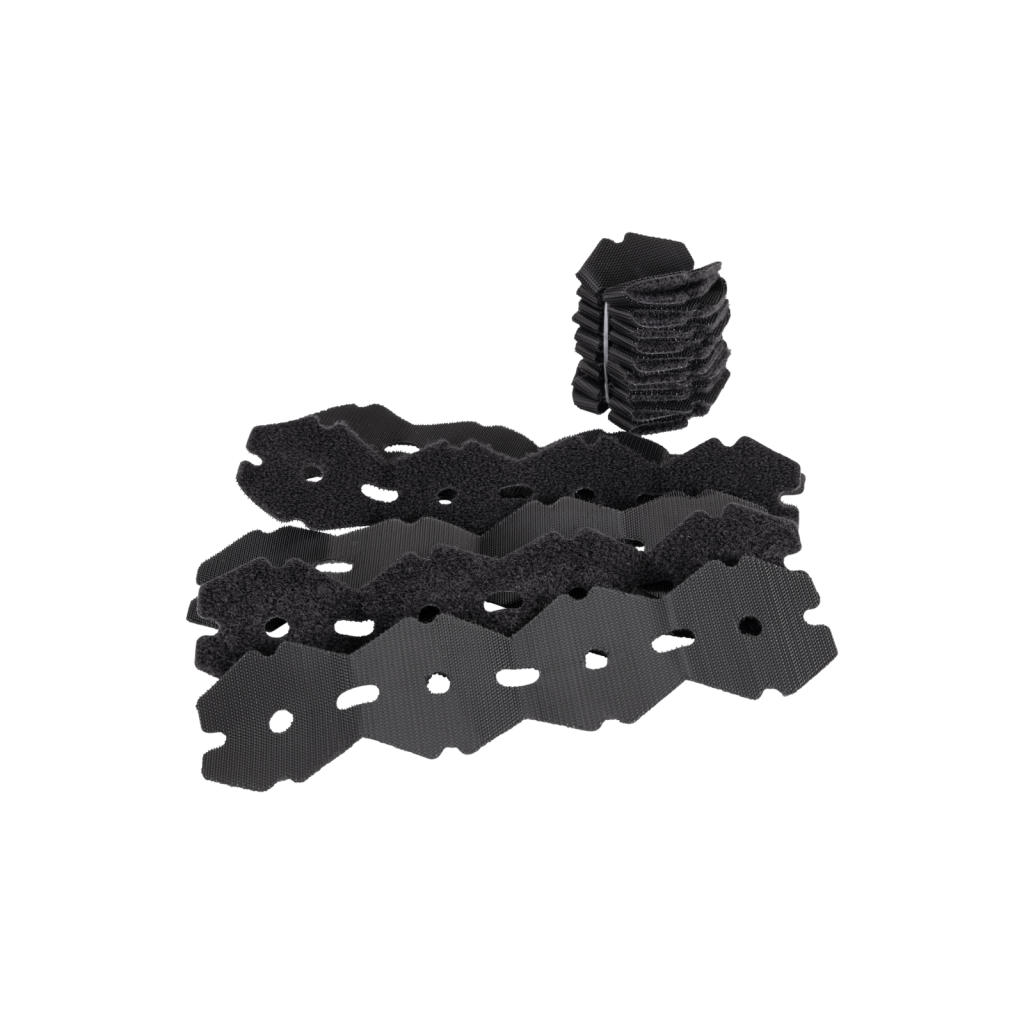

Velcro fastening strips | These are used to smooth over the contours and also to hold it all together. |
Note: The colours of the foam blocks have recently changed. Previously the blue elements were the softest, grey elements were medium density, and the black elements were firmest density.
Which TSS Positioning Kit Do I Need?
- Tessellated Shape System
- TSS Elements
- TSS Lite
Tessellated Shape System
Whats included:
- 1 x Velcro Backing Board
- 5 x Blue Base Building Blocks
- 5 x White Intermediate Building Blocks
- 5 x Charcoal Overlay Blocks
- 10 x Velcro Fastening Strips
Codes:
| W/C WIDTH | HEIGHT | TESSELLATED SHAPE SYSTEM CODE |
|---|---|---|
| 10″ | 12″ | 1250-1012-000 |
| 10″ | 14″ | 1250-1014-000 |
| 10″ | 16″ | 1250-1016-000 |
| 12″ | 14″ | 1250-1214-000 |
| 12″ | 16″ | 1250-1216-000 |
| 12″ | 18″ | 1250-1218-000 |
| 14″ | 16″ | 1250-1416-000 |
| 14″ | 18″ | 1250-1418-000 |
| 14″ | 20″ | 1250-1420-000 |
| 16″ | 18″ | 1250-1618-000 |
| 16″ | 20″ | 1250-1620-000 |
| 16″ | 23″ | 1250-1623-000 |
| 17″ | 18″ | 1250-1718-000 |
| 17″ | 20″ | 1250-1720-000 |
| 17″ | 23″ | 1250-1723-000 |
| 18″ | 18″ | 1250-1818-000 |
| 18″ | 20″ | 1250-1820-000 |
| 18″ | 23″ | 1250-1823-000 |
| 20″ | 18″ | 1250-2018-000 |
| 20″ | 20″ | 1250-2020-000 |
| 20″ | 23″ | 1250-2023-000 |
TSS Elements
Comprehensive selection and quantity of TSS elements for a substantial contouring solution. Suitable for use on Spex Back Supports with a rectangular back surface, e.g. Manta, Vigour, Classic.
What’s included:
- 5 x Blue Base Building Blocks
- 5 x White Intermediate Building Blocks
- 5 x Charcoal Overlay Blocks
- 10 x Velcro Fastening Strips
Product Code: 1250-3959-000
TSS Lite
Selection of key components from the Tessellated Shape System to enable fast contouring solution. Suitable for use on all Spex Back Supports, particularly for Zygo, Adapta and those with non-rectangular/flat surfaces.
What’s included:
- 3 x Blue Base Building Blocks
- 3 x White Intermediate Building Blocks
- 3 x Charcoal Overlay Blocks
- 5 x Velcro Fastening Strips
- 6 x 7.5° Wedges
Product Code:1250-3955-000
