Spex Swing-Away Lateral Trunk Support

Enquire now
Swing-Away-Lateral-Trunk-Support-1024x1024

Spex Swing-Away Lateral Trunk Support

Spex Lateral Trunk Supports Standard Swing-Away

Spex lateral trunk supports offer adjustability, comfort and positioning

Wheelchair lateral trunk supports that are width and depth adjustable with vertical pivot adjustment.

Spex laterals offer optimum trunk support whilst improving balance, posture and comfort.

Select lateral pad from a huge range available to provide the exact snug fitting that is required.

Functional benefits

Spex-Lateral-Pad-Broad-1

Broad Pad: Long Trunk Support

Effective Pressure Reduction.

Spex-Lateral-Pad-Narrow-Straight

Narrow Straight Pad: Freedom of Movement

Move forwards and back for functional activities and transfers.

Spex Lateral Trunk Support Pads with narrow curved design, offering customised lateral support for improved seating stability.

Narrow Curved Pad: Anterior Support

For increased comfort and spinal extension.

Spex-Lateral-Bracket-Fixed-medium

Select from a wide range of hardware

Fixed, Standard swing-away, or Axial swing-away hardware configurations available.

Media

Lateral-Scripting Play

How to script Spex Lateral Trunk Supports

Clinical

  • Modular lateral supports provide optimum trunk control whilst improving balance, posture and comfort

  • Offset correction can be applied to an asymmetric trunk to bring better trunk alignment for enhanced function


Functional

  • Super comfortable pressure-reduction padding for moulding to user shape

  • Removable and washable covers

  • Brackets are adjustable in all planes: height, width, depth and lateral angle for ultimate trunk orientation

  • Spex brings you modular creativity! Mix and match with different pad combinations

  • Provide trunk control and stability with the ability to install a lateral in multiple positions on the back support

Specifications

Select Hardware
  • Select Hardware
  • Select Pad
Swing-Away, Straight Brackets Code Bracket length Depth Adjustment
Swing-Away 1266-2201-100 175 mm 60 mm
Kidz Swing-away 1266-2211-100 134 mm 31 mm
Swing-Away, Extended 1266-2202-100 205 mm 85 mm



Swing-Away, Offset Brackets Code Bracket Length Offset Depth Adjustment
Swing-Away, Offset 1266-2203-100 175 mm 20 mm 38 mm
Kidz Swing-Away, Offset 1266-2213-100 134 mm 15 mm 32 mm
Swing-Away, Offset Extended 1266-2204-100 205 mm 40 mm 38 mm



Select lateral support pad from Narrow Straight, Narrow Curved or Broad pad ranges here.



STRAIGHT-LATERAL-DIMENSIONS-511x1024
OFFSET-LATERAL-DIMENSIONS-459x1024
Standard Comfy-Cover

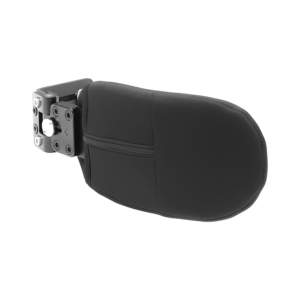

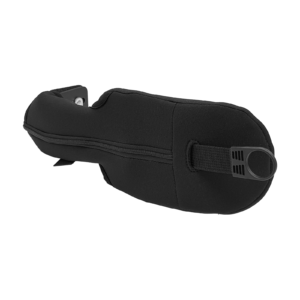

Spex-Lateral-Cover-Standard Spex-Lateral-Cover-Comfy-1



Pad Style Height Depth Pad with Standard Cover Pad with Comfy Cover
Narrow Straight 0 85 mm 115 mm 1266-3010-400 1266-3010-800
Narrow Straight 1 95 mm 145 mm 1266-3011-400 1266-3011-800
Narrow Straight 2 95 mm 180 mm 1266-3012-400 1266-3012-800
Narrow Straight 3 115 mm 210 mm 1266-3013-400 1266-3013-800
Narrow Straight 4 115 mm 240 mm 1266-3014-400 1266-3014-800
Narrow Curved 1 95 mm 145 mm 1266-3021-400 1266-3021-800
Narrow Curved 2 95 mm 180 mm 1266-3022-400 1266-3022-800
Narrow Curved 3 115 mm 210 mm 1266-3023-400 1266-3023-800
Narrow Curved 4 115 mm 240 mm 1266-3024-400 1266-3024-800
Broad 1 105 mm 130 mm 1266-3031-400 1266-3031-800
Broad 2 125 mm 140 mm 1266-3032-400 1266-3032-800
Broad 3 140 mm 150 mm 1266-3033-400 1266-3033-800
Broad 4 160 mm 155 mm 1266-3034-400 1266-3034-800
Broad 5 195 mm 165 mm 1266-3035-400 1266-3035-800
Broad 6 230 mm 175 mm 1266-3036-400 1266-3036-800

Resources

Spex User Manual - Lateral - English

1.57 MB

Spex Spare Parts Script Form

5.71 MB
